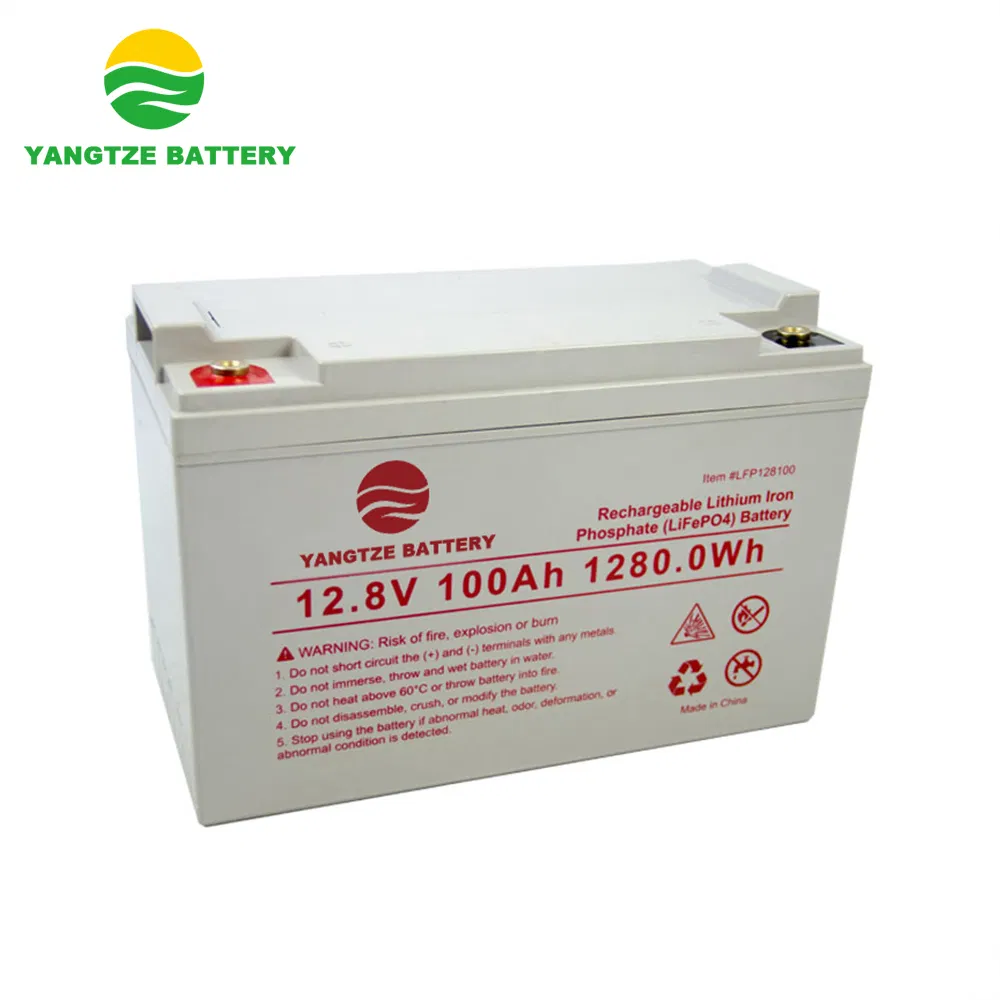

Deep Cycle Lithium Li Ion Lithium Battery Cell 12V 100ah

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Lfeli-12100M

Nominal Voltage

12V

Discharge Rate

High Discharge Rate

Electrolyte

Li-ion

Nominal Capacity

12V 100ah Lithium Battery

Cycle Life

8000 Times

Warranty

5 Years

Weight

13.60kg (29.98lbs)

Certificate

Ce/RoHS/UL/MSDS/Un38.3

Protection

PCM/PCB

Dimensions

342mm*173mm*220mm

Origin

China

Key Features

Longer Cycle LifeUp to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, minimizing replacement costs.

Lighter WeightAbout 40% of the weight of a comparable lead acid battery. A "drop in" replacement solution.

Higher PowerDelivers twice the power of lead acid batteries, even at high discharge rates, while maintaining high energy capacity.

Wider TemperatureOperating range from -20ºC to 60ºC for various environmental conditions.

Superior SafetyLithium Iron Phosphate chemistry eliminates risk of explosion or combustion due to high impact, overcharging, or short circuits.

Applications

Wheelchairs and scooters

Solar/Wind energy storage

Back-up power for small UPS

Golf trolleys & buggies

Electric bikes

Technical Parameters

Electrical	Nominal Voltage	12.8V
	Nominal Capacity	100Ah
	Energy	1280Wh
	Cycle Life	>2000 cycles @ 1C 100% DOD
Standard Charge	Charge Voltage	14.6±0.2V
	Charge Current	50A
	Max. Charge Current	100A
Standard Discharge	Continuous Current	100A
Standard Discharge	Discharge Cut-off Voltage	8V
Environmental	Charge Temp	0ºC to 55ºC
Environmental	Discharge Temp	-20ºC to 60ºC
Mechanical	Dimensions	342mm173mm220mm
Mechanical	Weight	13.60kg (29.98lbs)

Product Showcase

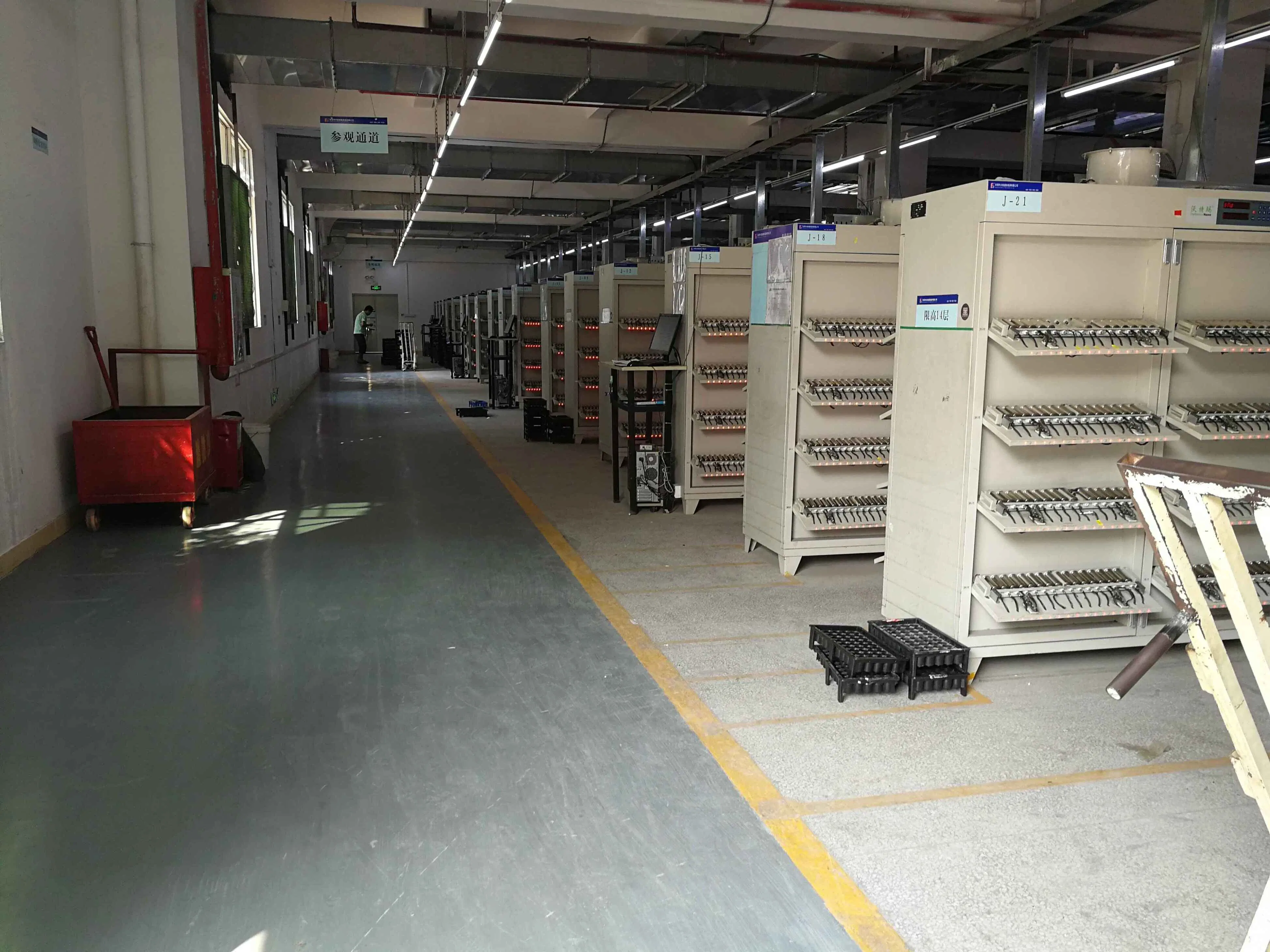

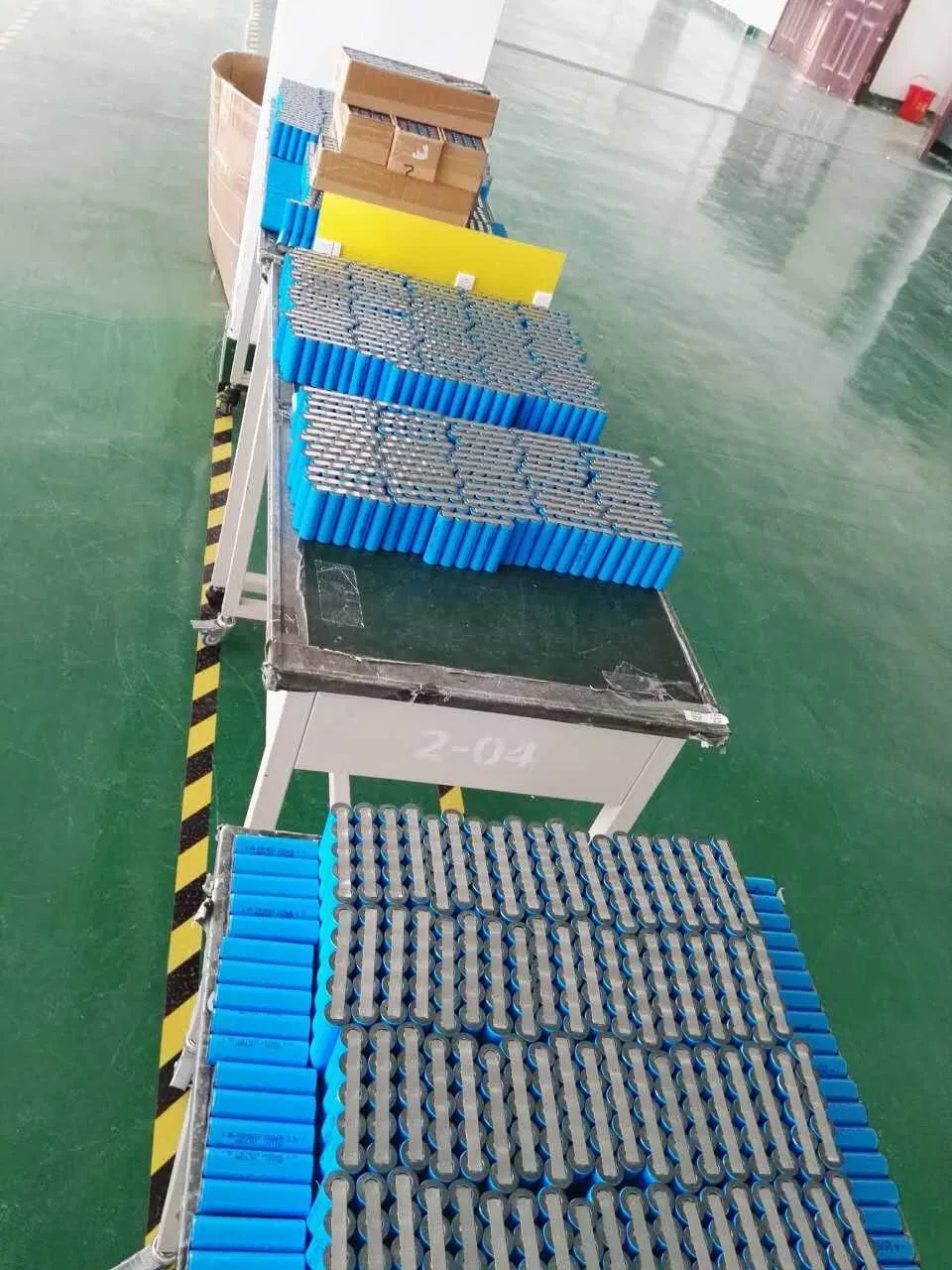

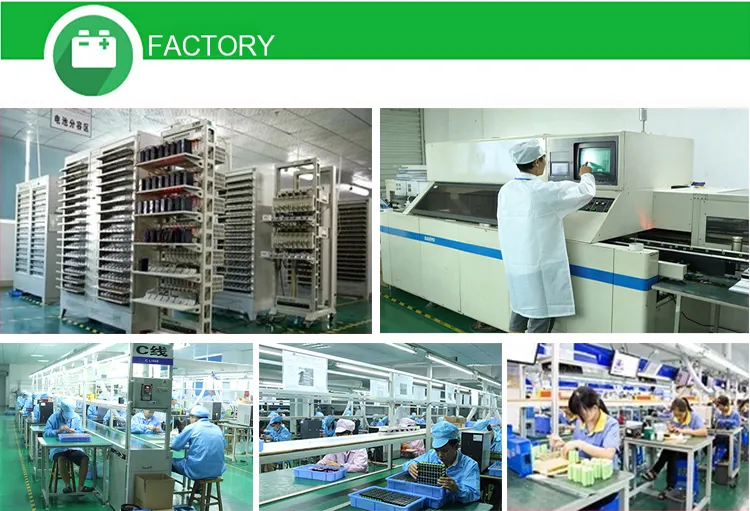

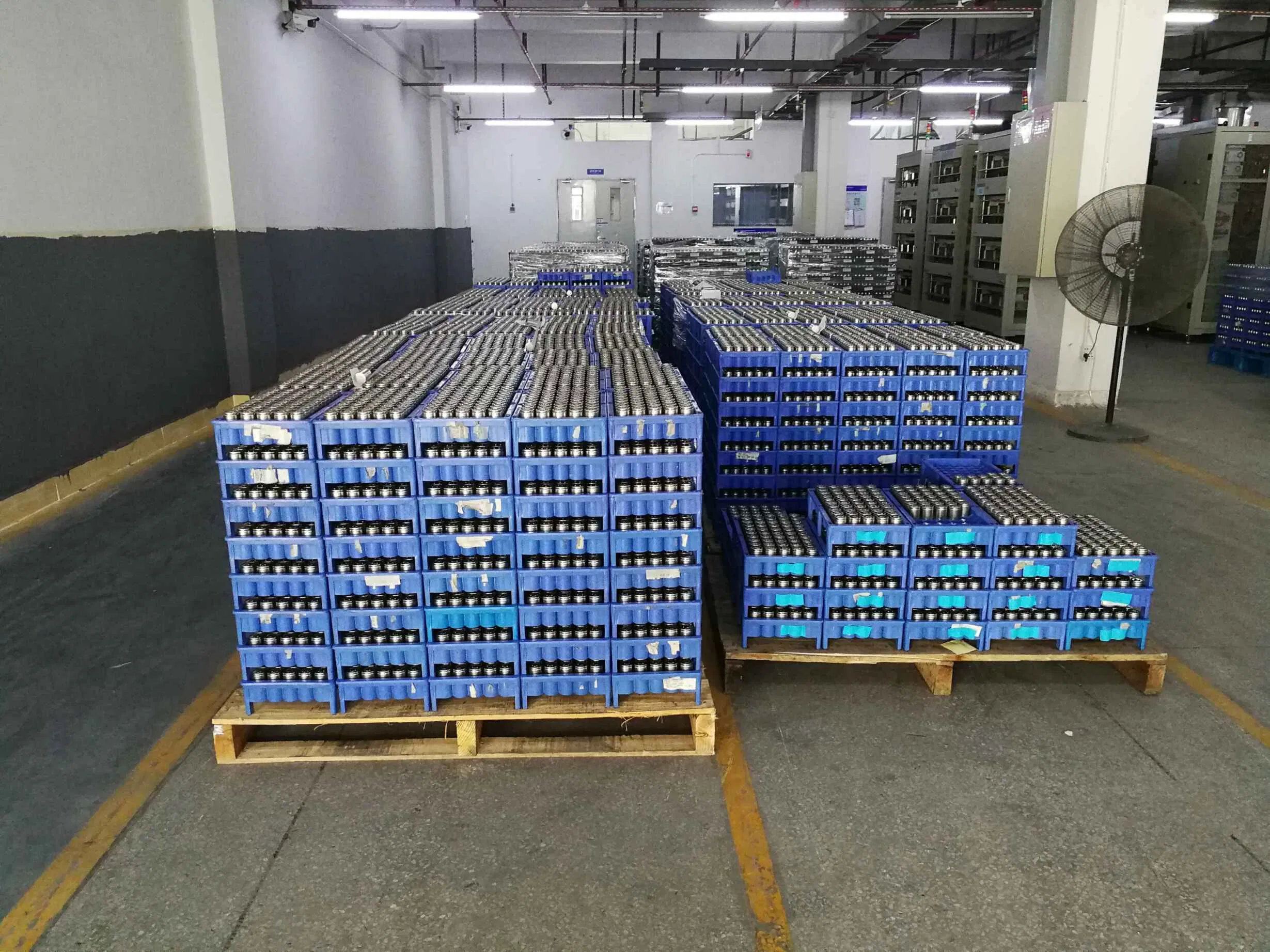

Manufacturing Excellence

♦ Expertise: Factory founded in 1996 with 2 million batteries annual production capacity.

♦ Diverse Range: Including Lithium, VRLA, Gel, Deep Cycle, OPzV, and OPzS batteries.

♦ Global Reach: Exported to more than 150 countries worldwide.

♦ Certification: Fully certified by CE and TUV for quality assurance.

♦ Technology: Mature and respected AGM and GEL technologies ranging from 2Ah to 3000Ah.

Frequently Asked Questions

What is the expected lifespan of this lithium battery?

This battery offers a superior cycle life of up to 8000 times (at specified discharge conditions), which is significantly higher than traditional lead-acid batteries.

Is it safe to use in high-temperature environments?

Yes, the battery is designed to operate safely within a wide temperature range of -20ºC to 60ºC, thanks to its stable Lithium Iron Phosphate chemistry.

Can this 12V 100Ah battery replace my current lead-acid battery?

Absolutely. It is designed as a "drop-in" replacement, being approximately 40% lighter while providing twice the power and a much longer service life.

What kind of maintenance does this battery require?

This lithium battery is virtually maintenance-free. The built-in PCM/PCB protective system handles cell balancing and protection against overcharge or short circuits.

What is the warranty period for this product?

We provide a 5-year warranty on this model, ensuring long-term reliability and peace of mind for your energy storage needs.

What certificates does the battery have for international shipping?

The battery is fully certified with CE, RoHS, UL, MSDS, and UN38.3, making it compliant for global transport and safety standards.
