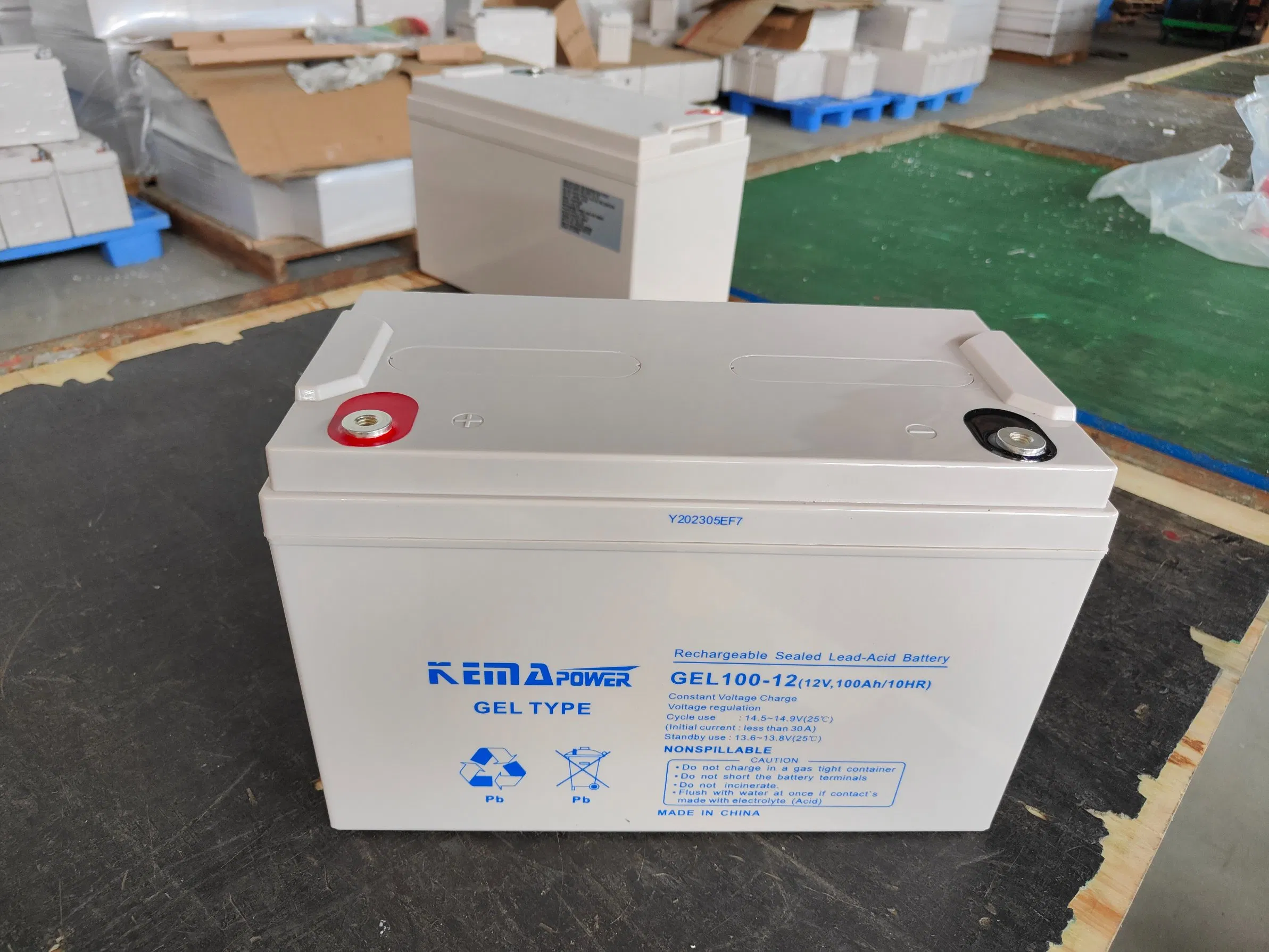

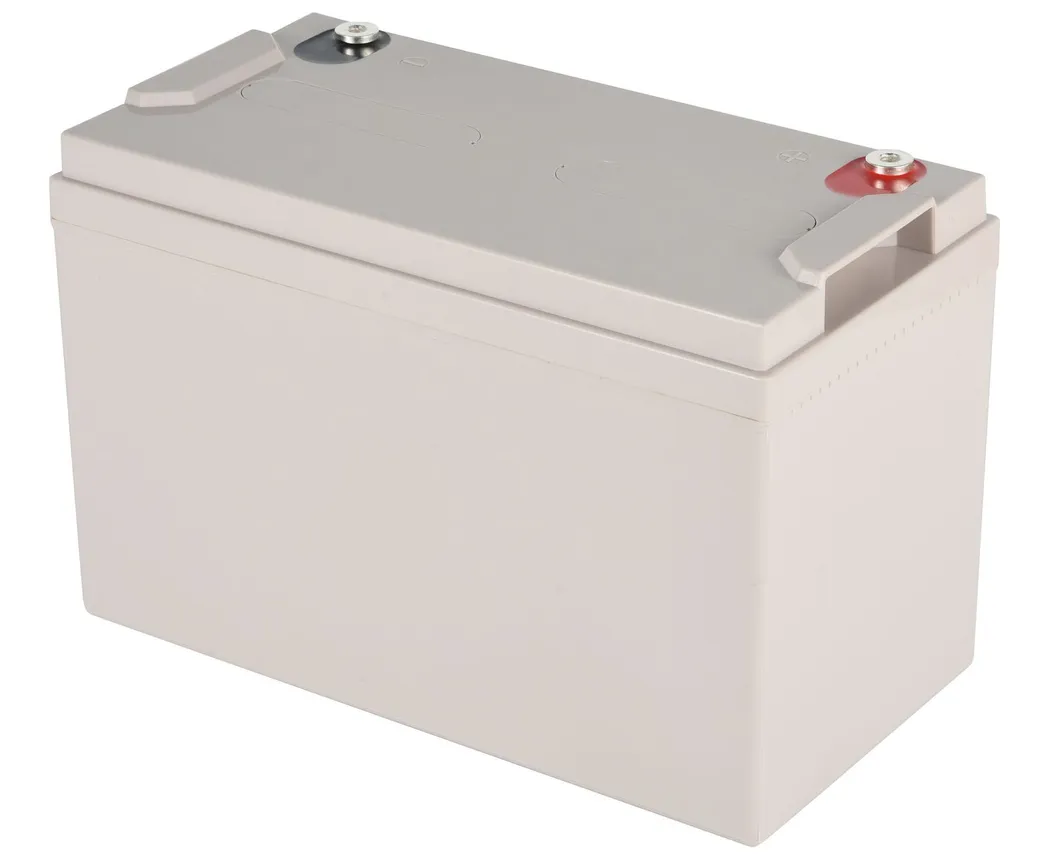

24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

1 / 5

24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

Customization:	Available
Type:	Lead-Acid Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Send Inquiry

Product Description

Basic Specifications

Model NO.

GEL

Nominal Voltage

12V

Discharge Rate

Low Discharge Rate

Shape

Square Battery

Electrolyte

Acid

Installation

Packaged

Rechargeable

Chargeable

Size

520*240*224cm

Application

Solar Power System

Product Name

Gel65-12 Flat Plate Gel VRLA 12VDC Battery

Service Life

10 years

Production Capacity

60,000 PCS/Year

Key Features

◈

High-Quality Material: Primary material is gas silicon dioxide from import.

◈

Fully Sealed Design: Features cover and pole double seal design to prevent electrolysis leakage; safe-valve reliability prevents oxygen and dust entry.

◈

Maintenance Free: High sealed reaction efficiency ensures water reproduction, eliminating the need for compensation water during use.

◈

Enhanced Safety: Reliable gas pressure venting system and anti-explosion device ensure safe operation without acid leakage.

◈

Long Cycle Life: Utilizes anti-erosion pb-ca multi-alloy and ABS plastic material to maximize service longevity.

◈

Temperature Adaptability: Designed for safe operation within a wide range of -25ºC to 50ºC.

Technical Specifications

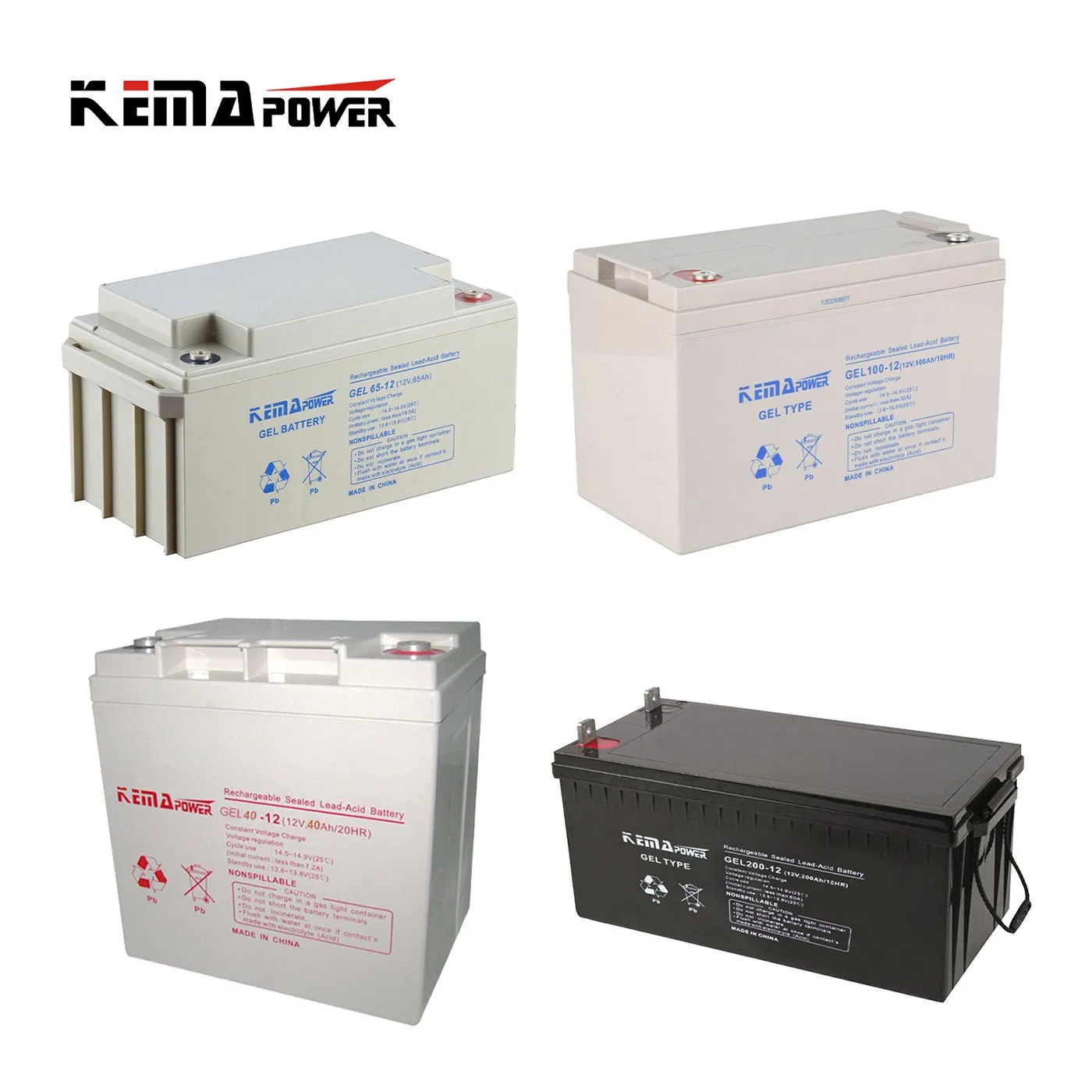

Battery Model	Voltage (VDC)	Capacity (Ah)	Charge Voltage (VDC)		Size (MM)				Weight (KG)
Battery Model	Voltage (VDC)	Capacity (Ah)	Cycle	Float	L	W	H	T/H	Weight (KG)
GEL24-12	12	24	14.4-15	13.65	166	125	175	182	8.00
GEL38-12	12	38	14.4-15	13.65	197	165	170	182	12.00

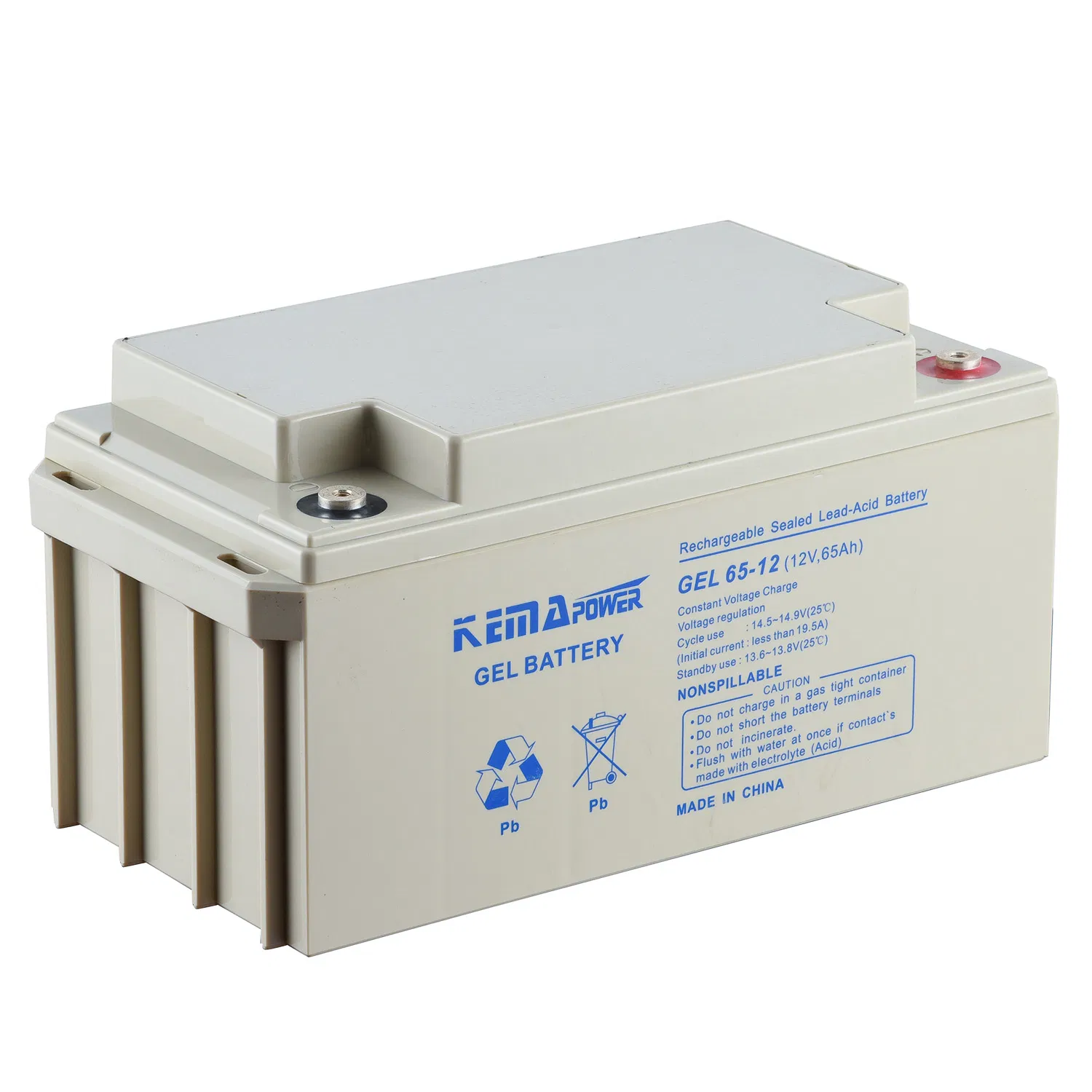

GEL65-12	12	65	14.4-15	13.65	350	166	178	178	21.00

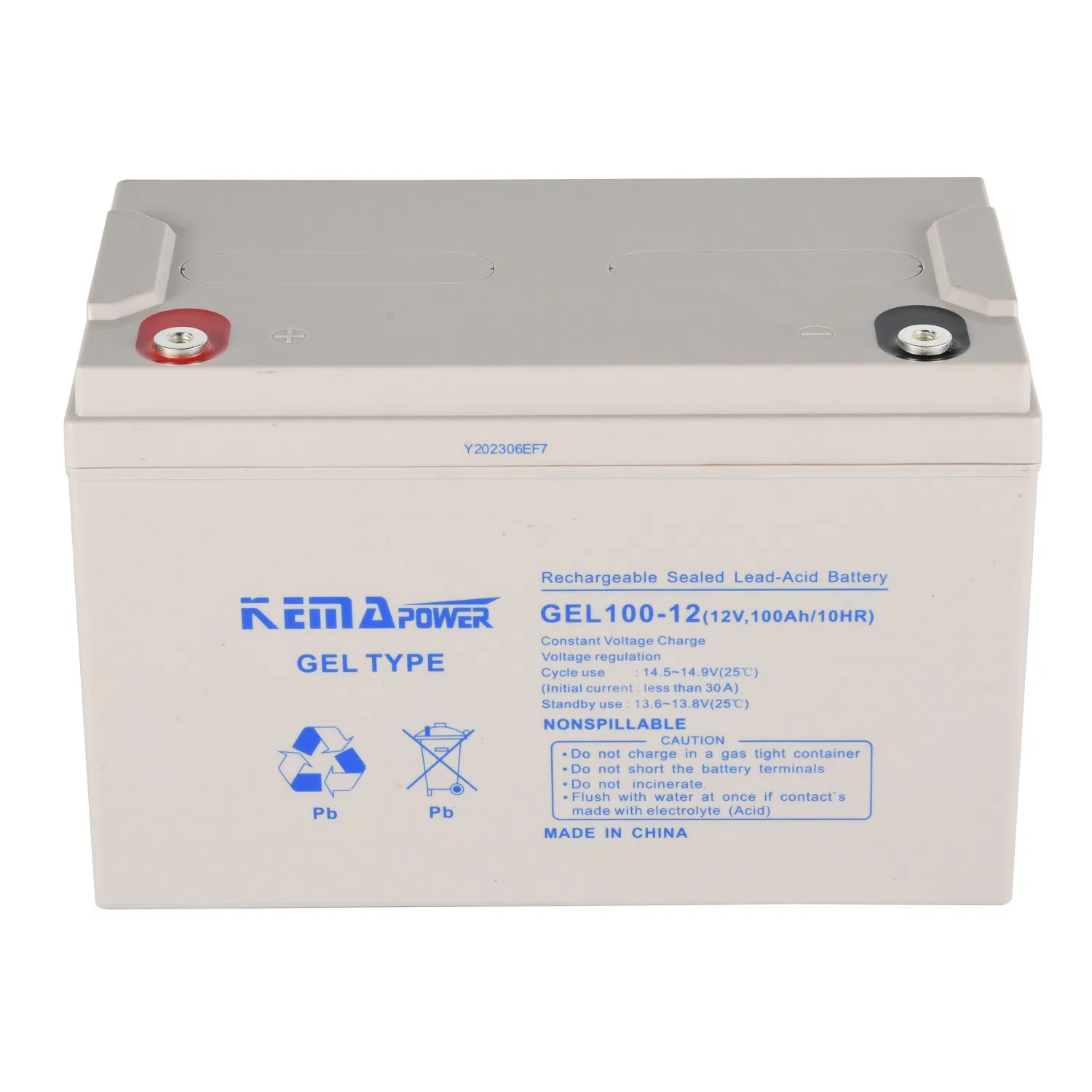

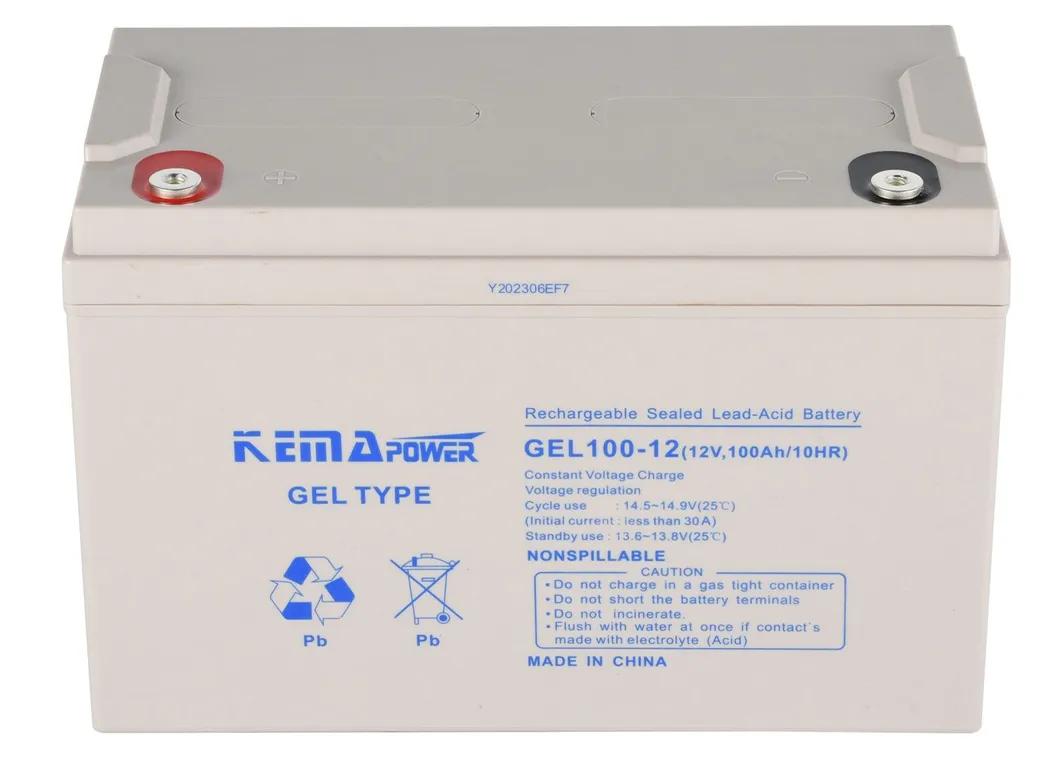

GEL100-12D	12	100	14.4-15	13.65	330	173	220	240	27.00
GEL150-12	12	150	14.4-15	13.65	485	171	241	241	37.00

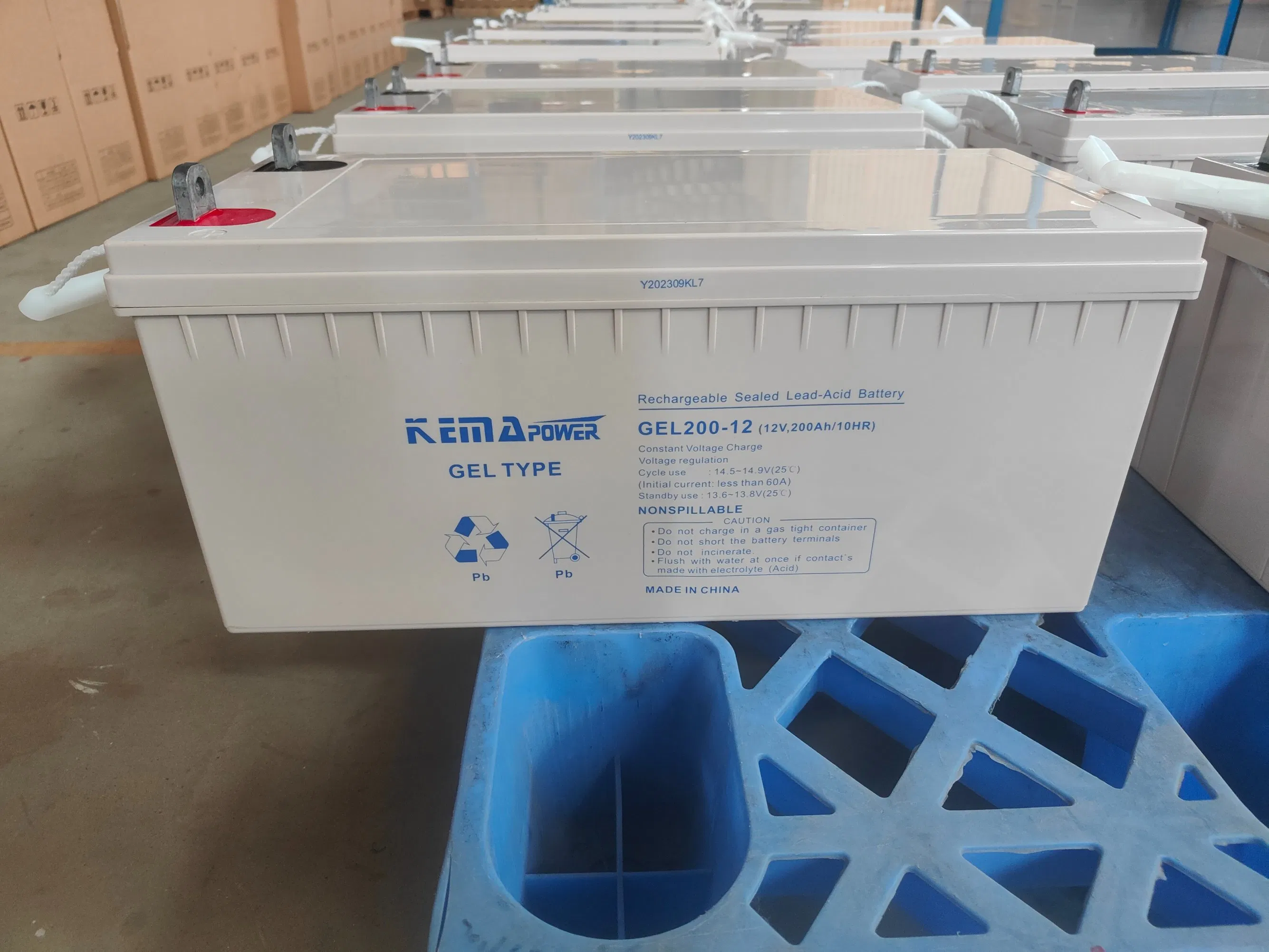

GEL200-12	12	200	14.4-15	13.65	520	240	224	244	57.00
GEL230-12	12	230	14.4-15	13.65	520	269	203	203	67.00

* Note: 10-year service life; ABS shell; parameters subject to change without notice.

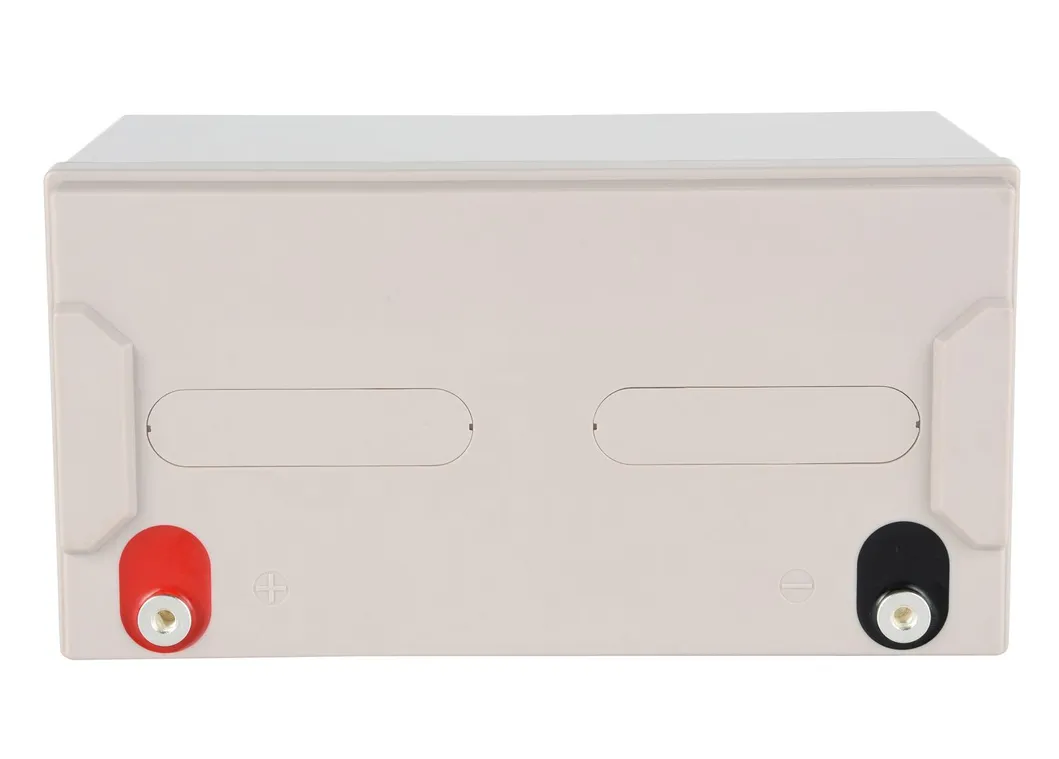

Product Display

Frequently Asked Questions

What is the expected service life of this Gel battery?

The battery is designed with a long cycle life of approximately 10 years under standard operating conditions.

Does this battery require regular water maintenance?

No, it is a maintenance-free VRLA battery with high sealed reaction efficiency, meaning no water compensation is needed.

In what temperature range can this battery operate safely?

The battery is highly adaptable and can be used safely within a temperature range of -25ºC to 50ºC.

What are the primary applications for the GEL12V series?

These batteries are ideal for Solar Power Systems, Energy Storage, and other deep cycle discharge applications.

Is the battery safe for sea or railway transport?

Yes, because it uses a fully sealed design without free electrolysis, it is classified as non-hazardous material for transport.

What safety features are included to prevent explosions?

The battery is equipped with a reliable gas pressure venting system and an anti-explosion device to ensure maximum safety.
