| Model NO. | Industrial Grade | Condition | New |
|---|---|---|---|
| Automation | Automatic | After-sales Service | Engineers Available Overseas |
| Shipping Method | Sea Freight | Warranty | 2 Years |
| Package Size | 2000.00cm * 2000.00cm * 2000.00cm | ||
| Gross Weight | 2000.000kg | ||
Comprehensive Solid-State Battery Module PACK Automatic Production Line for Efficient Output 12PPM is designed for the modular production of solid-state batteries, featuring high automation, flexibility, and integrated quality control (QC) systems. It ensures efficient production while maintaining strict quality standards. The line is suitable for electric vehicles, energy storage systems, and consumer electronics, supporting various specifications of battery modules.
| Key Parameters | Description |
|---|---|
| Estimated Daily Output | 500-1000 modules (adjustable) |
| Energy Consumption | 5000-8000 kWh (based on runtime) |
| Included Equipment | Assembly machines, laser welding, inspection, packaging, conveyors |
| Delivery Lead Time | 2-3 months |
| Technical Specification | Parameter | Remarks | |
|---|---|---|---|
| Line Efficiency | ≥12PPM | Adjustable | |

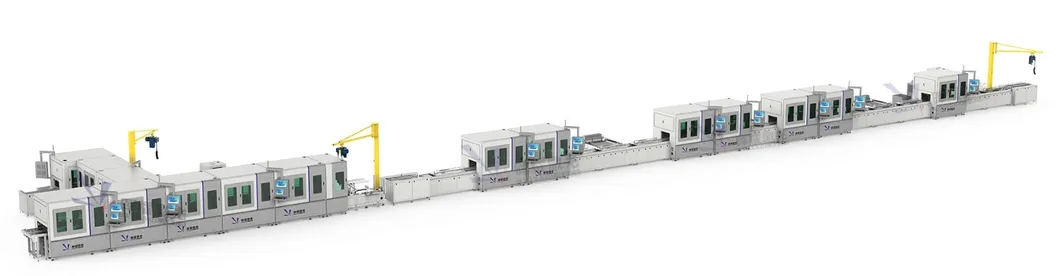

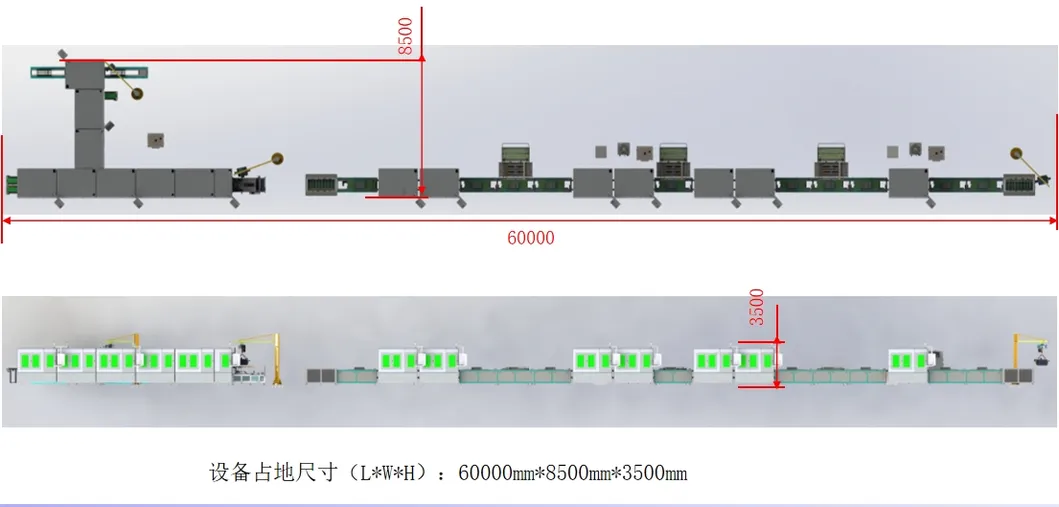

| Dimensions (L*W*H) | 60000mm*8500mm*3500mm | Layout adjustable | |
| Final Yield Rate | ≥99.8% | High precision | |
| Inspection Capability | Voltage: ±0.01V, Resistance: ±0.1mΩ | Real-time monitoring | |
| Environment | Temperature | 10-25ºC | Stable operation |
| Humidity | 40-60% | Prevents moisture | |
| Response Time | 24-hour response | Global Support | |

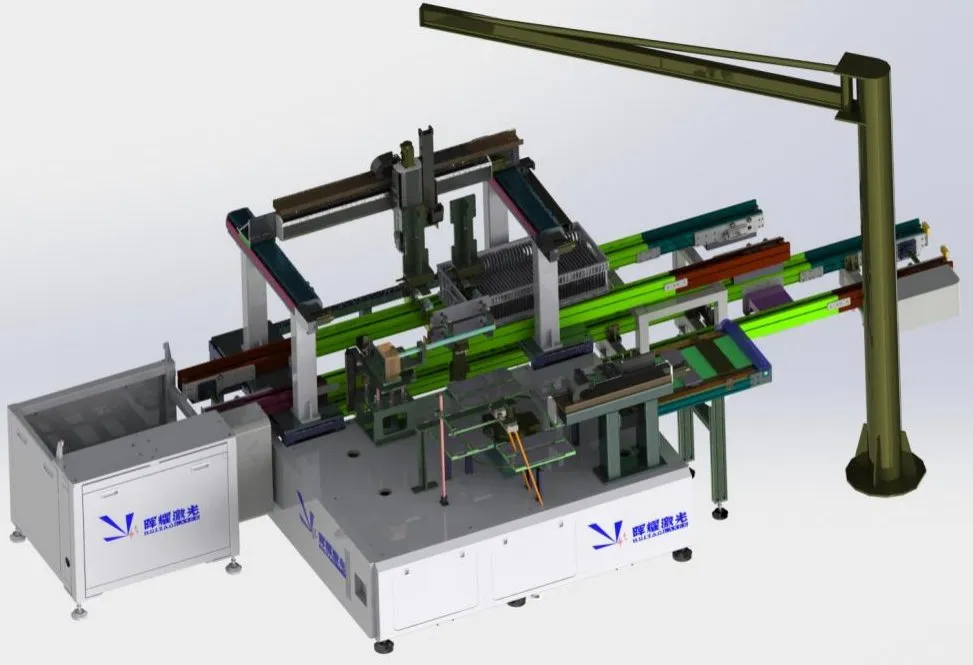

| 1. Heat Conduction Plate Loading | 2. Terminal Tab Cutting Inspection | 3. Cell Loading & Gluing |
| 4. Module Stacking | 5. Busbar Installation | 6. Laser Welding |
| 7. EOL Testing | 8. Insulation Testing | 9. Module Off-Loading |

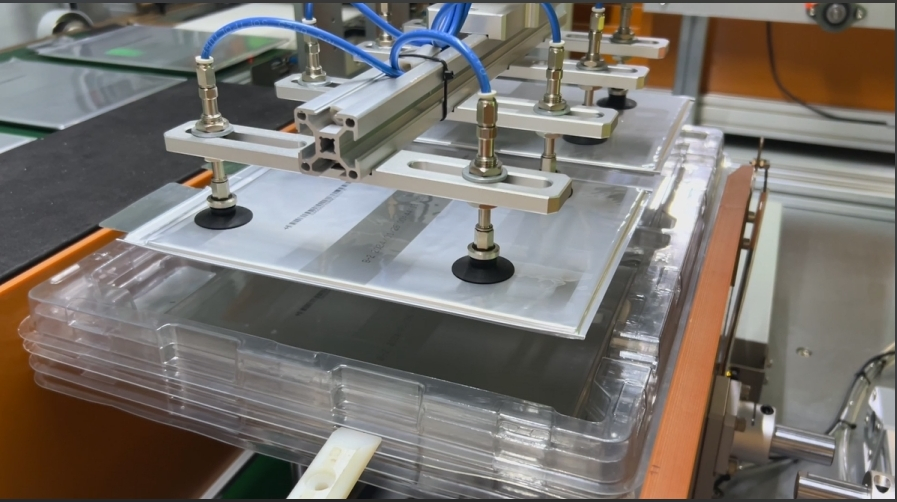

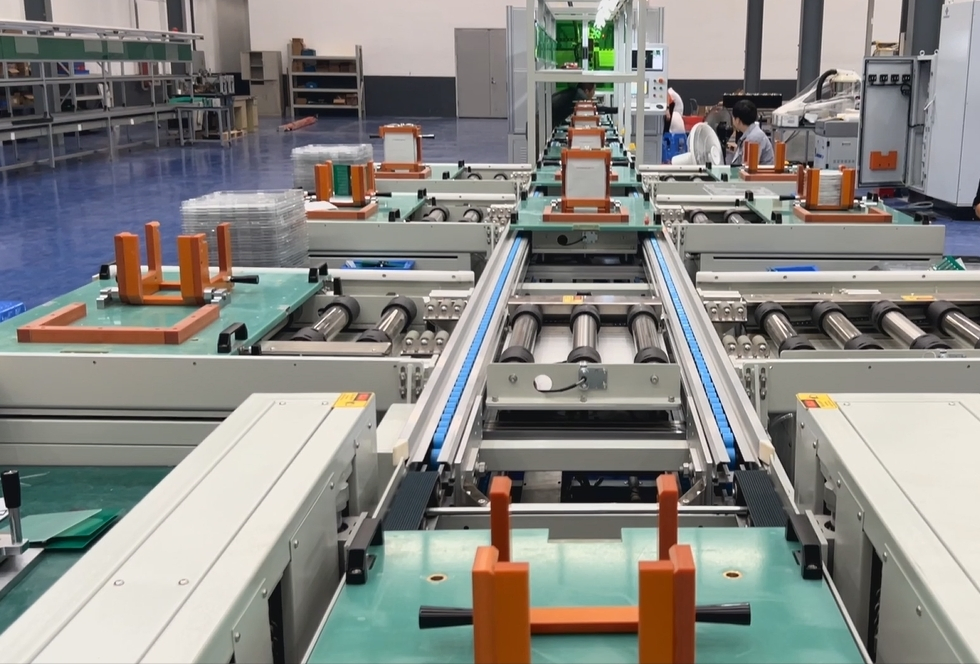

Operator handles material through a cantilever crane. Grippers prevent flipping while placing products horizontally onto the conveyor belt for next-stage transport.

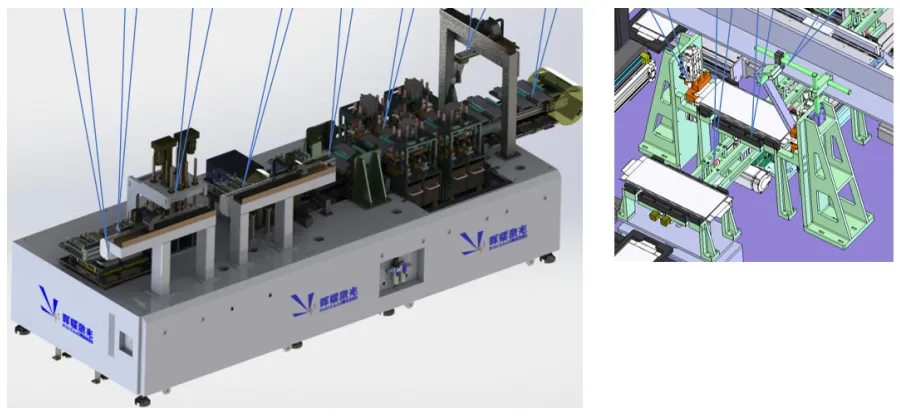

Robots transfer products for weighing, thickness measurement, and lug pre-leveling. OCV tests are uploaded, followed by high-precision lug cutting and sorting.

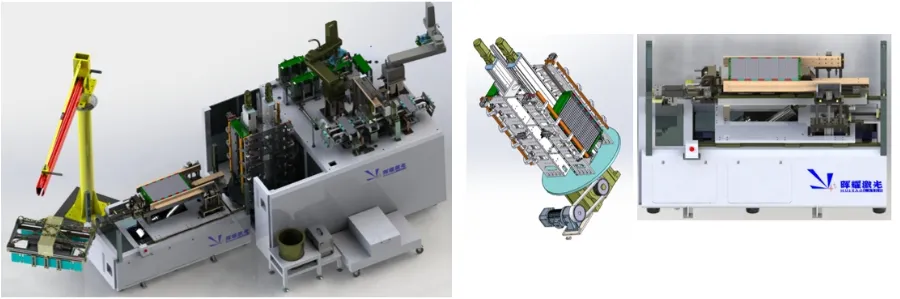

Robotic stacking with double-sided tape application. Features compression rotation and extrusion tooling for final assembly before manual lifting off the line.

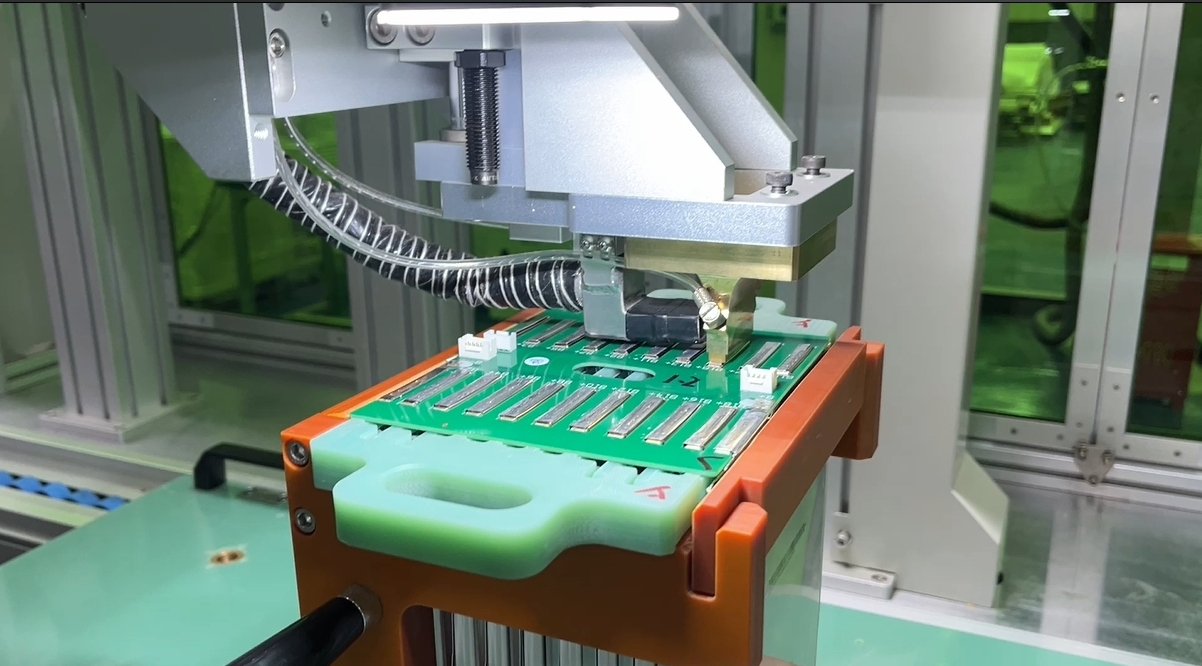

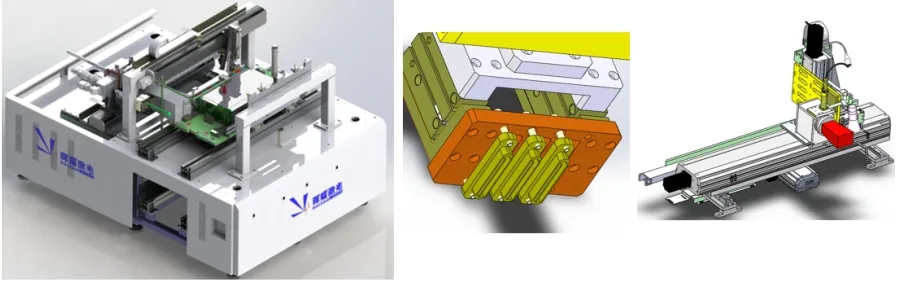

High-speed laser welding with sequential addressing via camera. Ranging sensors ensure precise dimensions across all lugs before moving to the next process.
We are an industry-leading manufacturer of new energy intelligent equipment, dedicated to providing innovative turnkey solutions for Battery Module PACK Production Lines and CCS Intelligent Manufacturing Production Lines across various industries. Since our establishment in 2019, we have continuously advanced the development and application of laser technology, providing high-quality, high-performance laser equipment and automated production lines to global clients.
