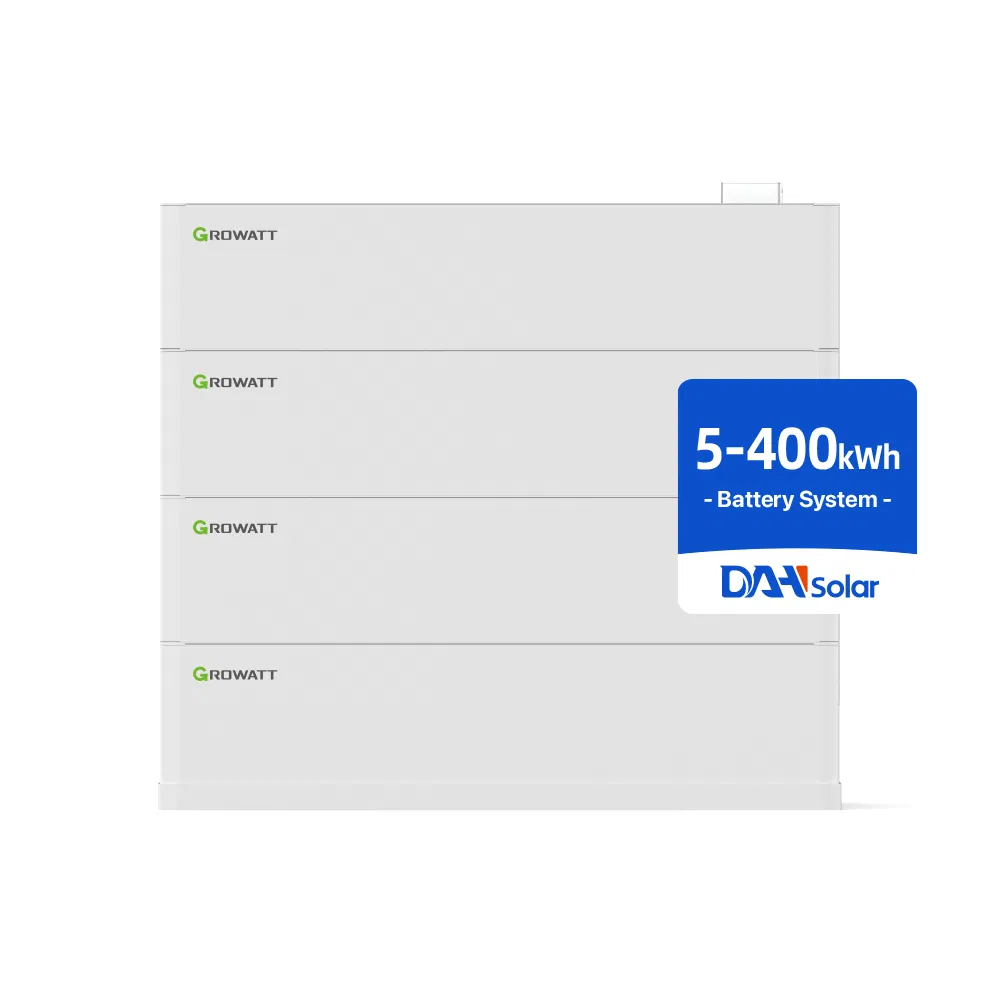

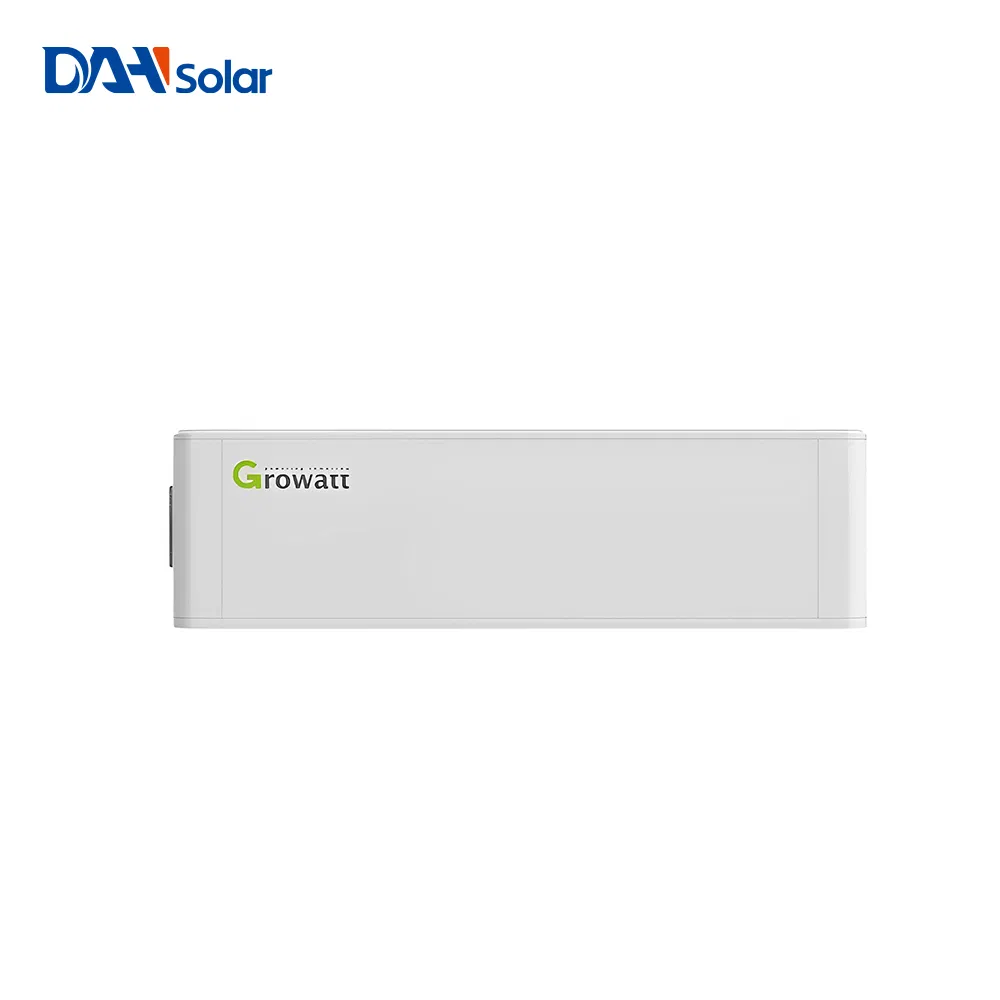

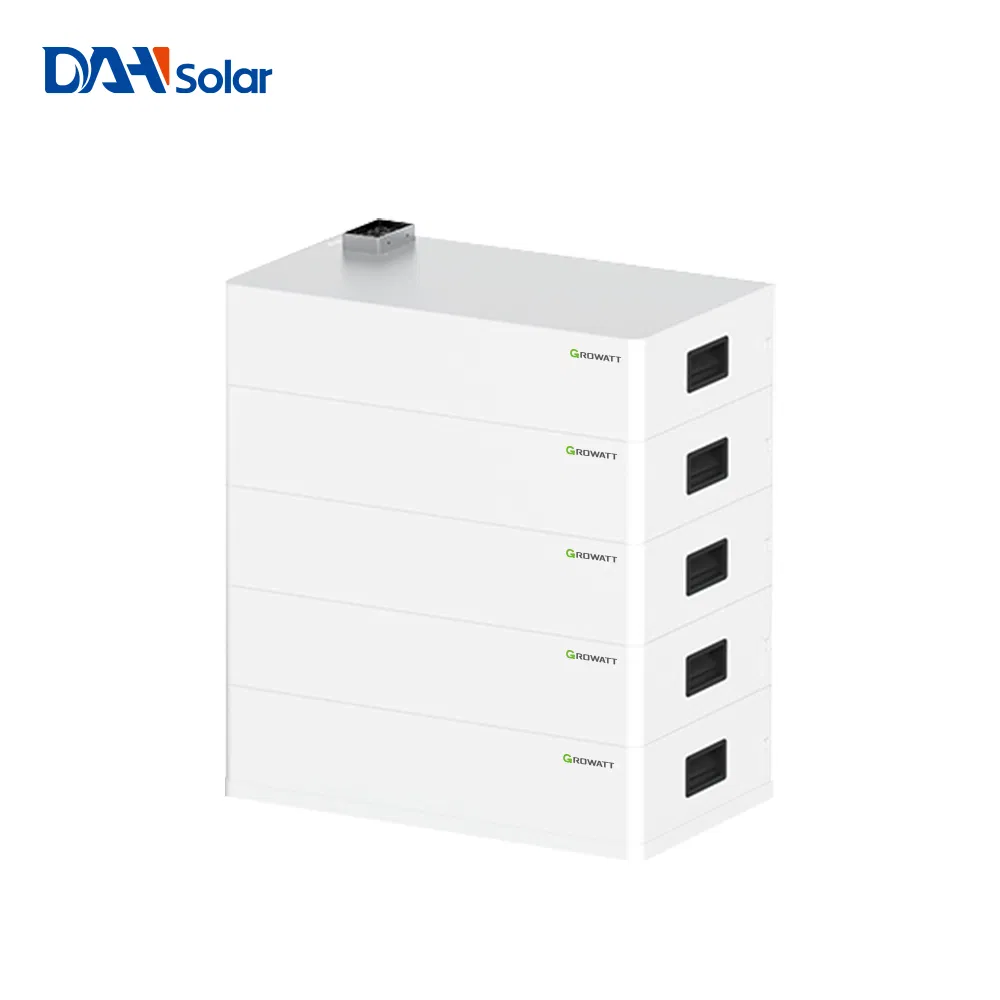

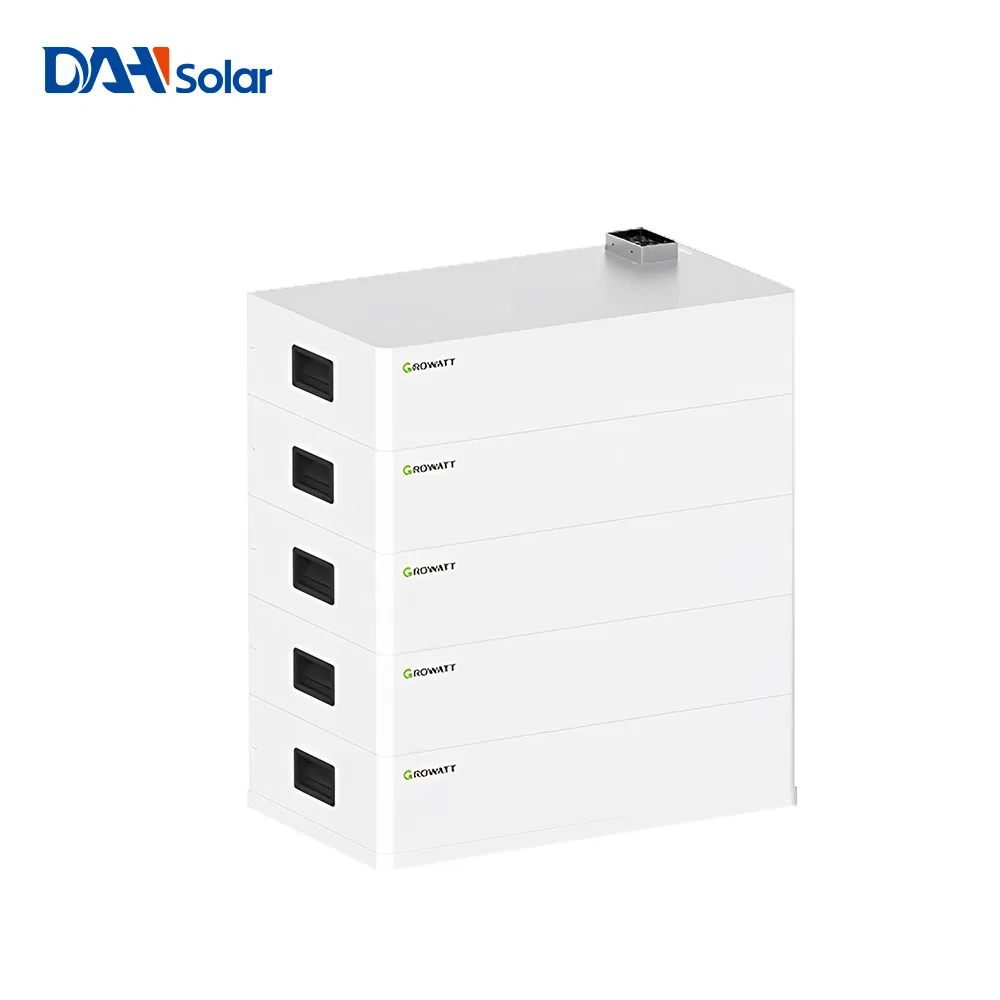

| Datasheet | AXE 5.0L | AXE 10.0L | AXE 20.0L | AXE 30.0L | AXE 50.0L |
|---|---|---|---|---|---|
| Modules | 1 | 2 | 4 | 6 | 10 |
| Capacity | 5.0kWh | 10.0kWh | 20.0kWh | 30.0kWh | 50.0kWh |
| Dimension (W/D/H) | 650/350/165mm | 650/350/305mm | 650/350/585mm | 650/350/865mm | 650/350/1425mm |
| Weight | 47kg | 92kg | 182kg | 272kg | 452kg |
| Charge/Discharge | 60A | 120A | 120A | 120A | 120A |
Nominal Voltage: 51.2V
Battery Type: Cobalt Free Lithium Iron Phosphate (LFP)
Operating Temperature: 0°C-50°C / 32-122°F
Monitoring: SOC, System voltage, Current, Cell voltage, Cell temperature, PCBA temperature measurement.

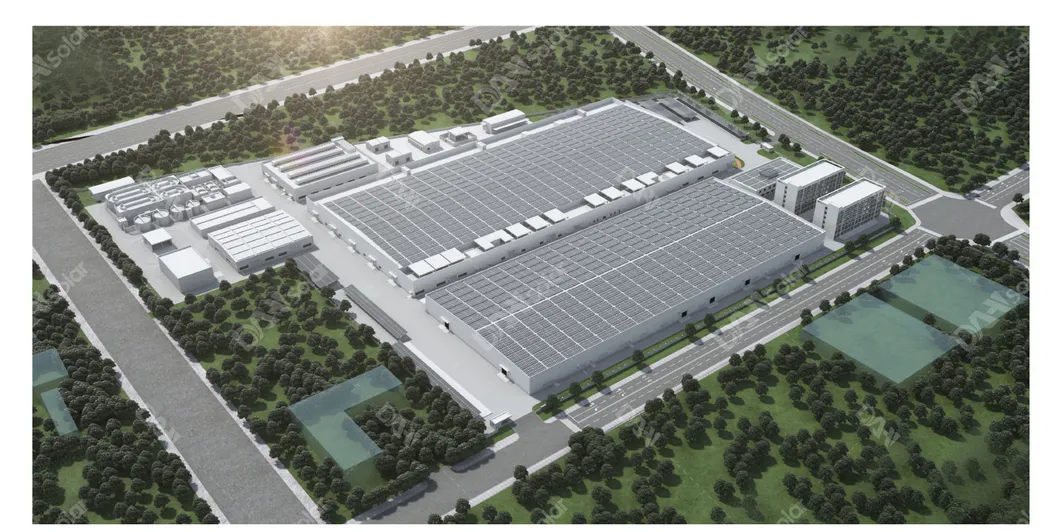

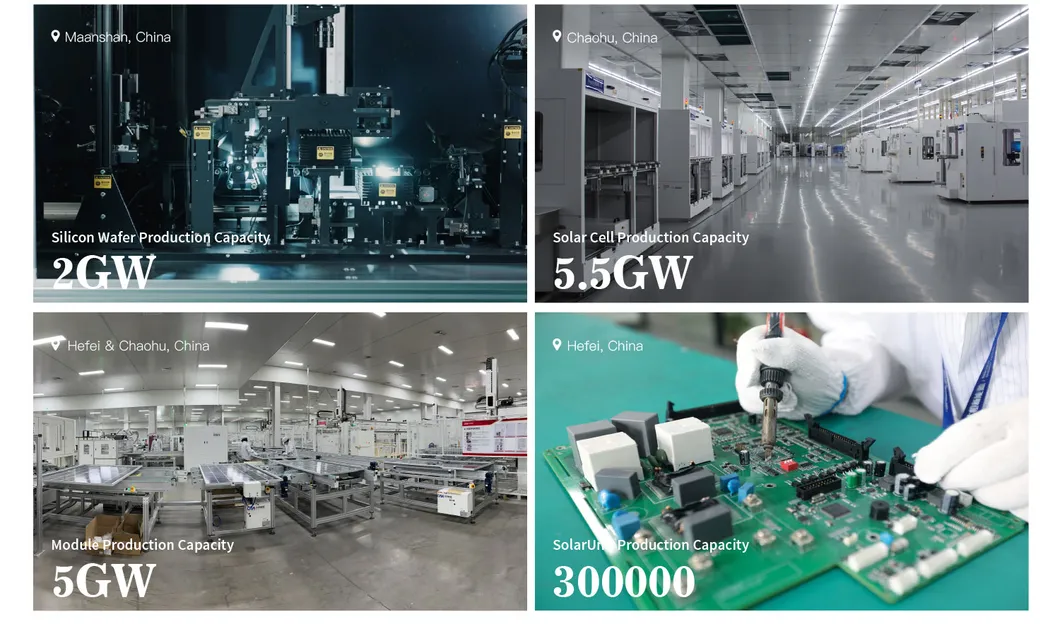

The manufacturing base has established silicon wafer, solar cell, and integrated PV system production capacities. Industrial integration drives the high-speed development and quality stability of the products.

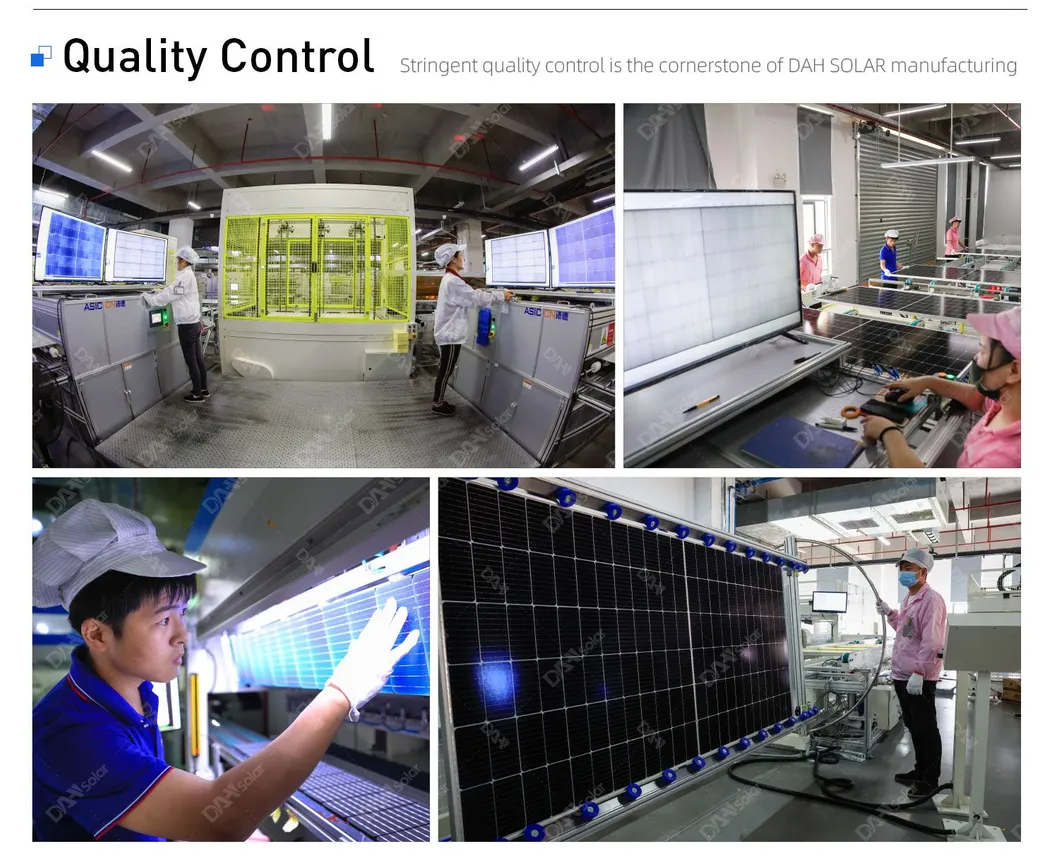

During more than 20 production processes, each module is quality tested and inspected with 2 times EL tests by professional instruments.

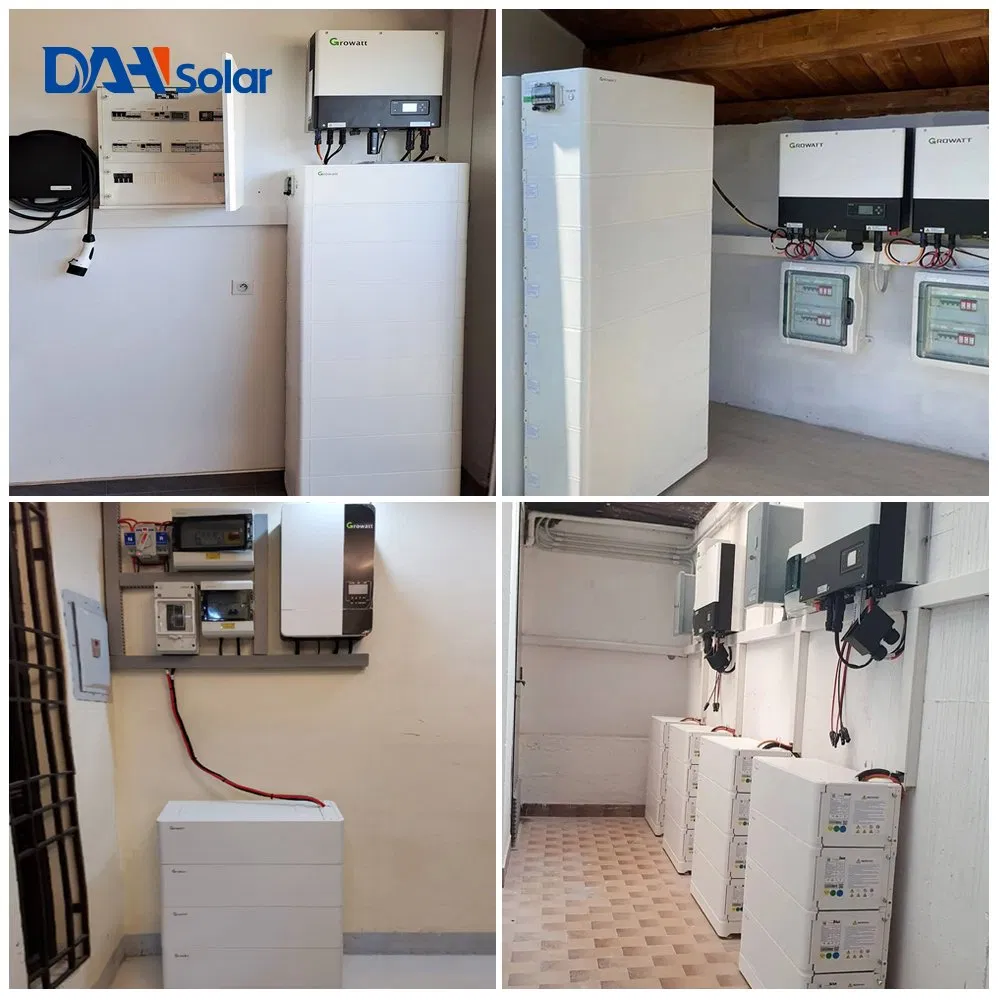

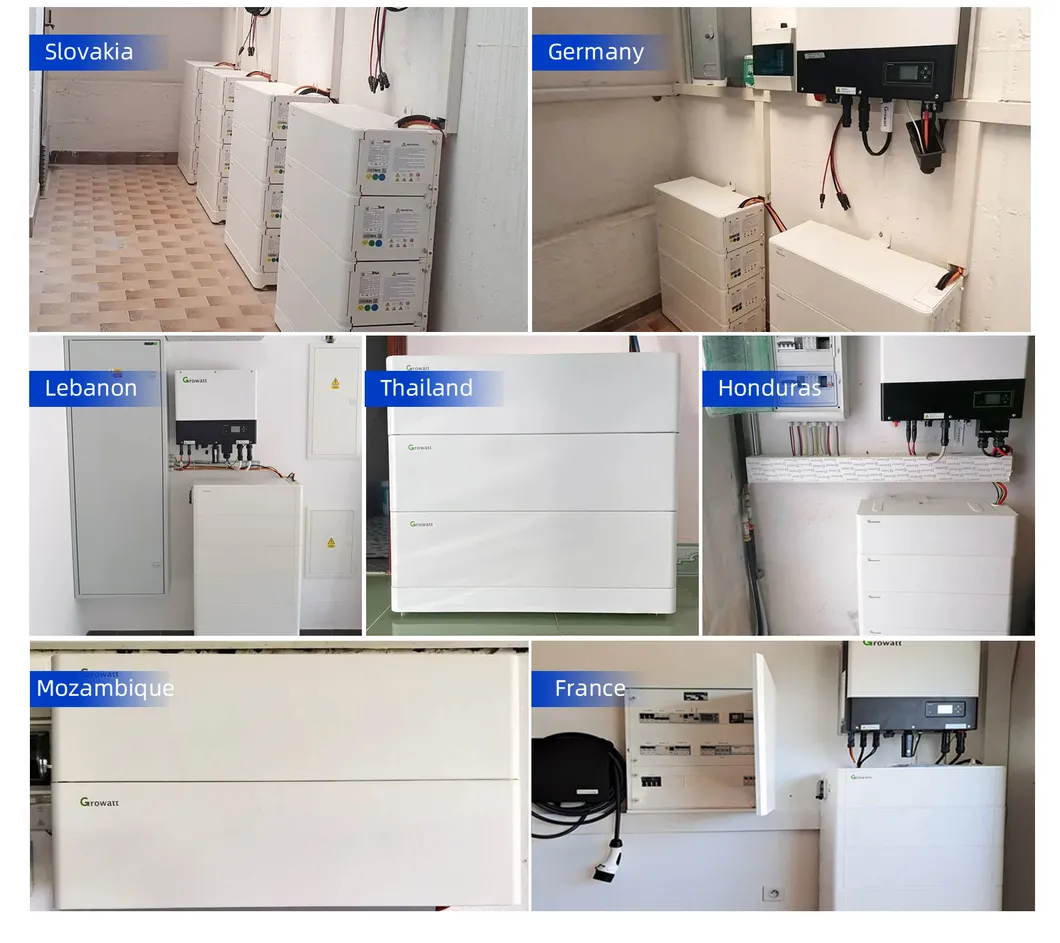

Solar systems have been exported to more than 100 countries, with rich experience in design and installation. Local engineering teams provide timely service worldwide.
