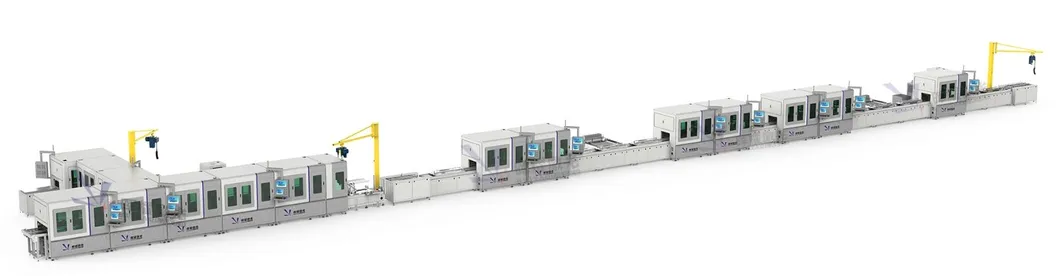

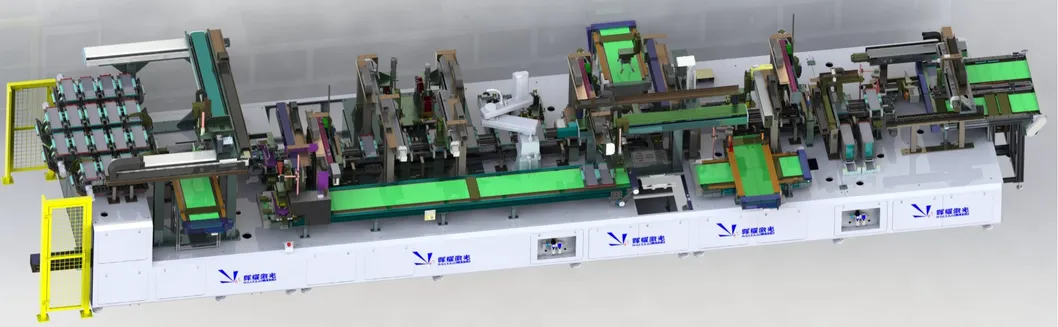

Comprehensive Solid-State Battery Module PACK Automatic Production Line for Efficient Output 12PPM is designed for the modular production of solid-state batteries, featuring high automation, flexibility, and integrated quality control (QC) systems. It ensures efficient production while maintaining strict quality standards. The line is suitable for electric vehicles, energy storage systems, consumer electronics, and more, supporting the production of various specifications of solid-state battery modules.
| Key Parameters | Description |
|---|---|
| Estimated Daily Output | 500-1000 modules (adjustable based on configuration and production cycle time) |
| Estimated Daily Energy Consumption | 5000-8000 kWh (calculated based on equipment runtime and power consumption) |
| Included Equipment | Automatic assembly machines, laser welding machines, inspection equipment, packaging machines, conveyor systems, QC integration systems |
| Payment Terms | 50% advance payment, 50% before shipment |
| Delivery Lead Time | 2-3 months (from contract signing to equipment delivery) |
| Technical Specification | Technical Parameter | Remarks |
|---|---|---|
| Line Efficiency | ≥12PPM | Adjustable based on configuration |

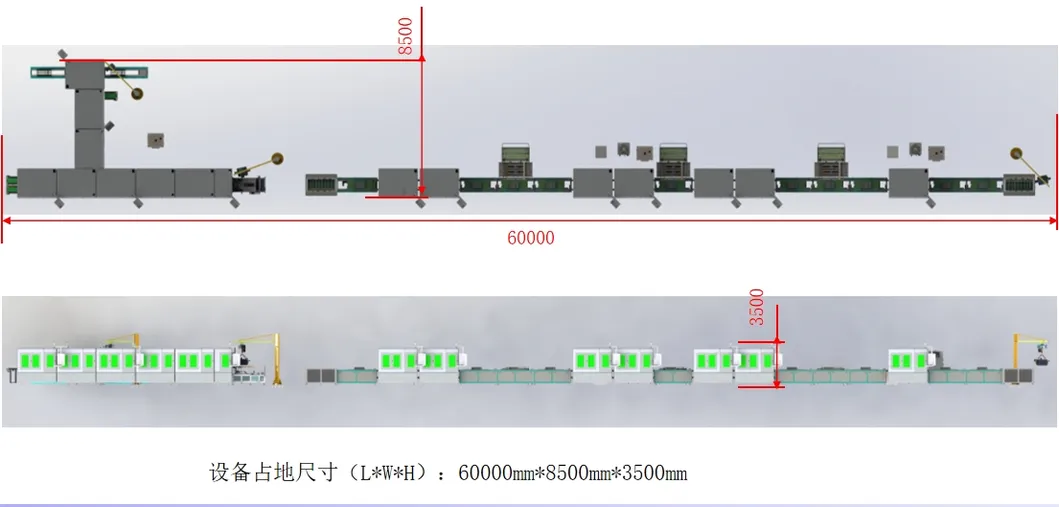

| Production Line Dimension | 60000mm*8500mm*3500mm(L*W*H) | Adjustable based on workstation layout |
| Final Yield Rate | ≥99.8% | - |
| Line Failure Rate | ≤2% | - |
| Inspection Capability | Voltage: ±0.01V, Internal Resistance: ±0.1mΩ | High-precision inspection equipment |
| Warranty Period | 2 year | Lifetime technical support provided |
| NO. | Process Flow | NO. | Process Flow |
|---|---|---|---|
| 1 | Heat Conduction Plate Loading | 11 | Terminal Tab Flatting |
| 2 | Terminal Tab Cutting Inspection | 12 | NG Cell Re-work |
| 3 | Cell Loading | 13 | Insulation Testing |
| 4 | Cell Glue Applying | 14 | Laser Welding |
| 5 | Terminal Tab Bracket Assemblying | 15 | Post-Welding Testing |
| 6 | Cell Insulation Testing | 16 | Insulation & Voltage Detection |
| 7 | Unit Glue Applying | 17 | Sense Lead Insulation |

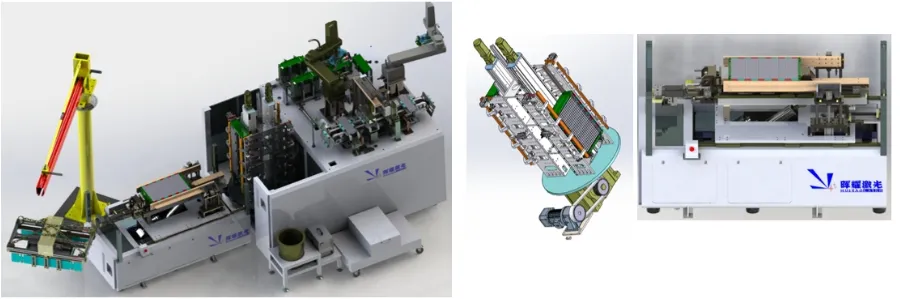

| 8 | Module Stacking | 18 | EOL Testing |
| 9 | Busbar Installation | 19 | Module Off-Loading |
| 10 | Terminal Tab Bending | - | - |

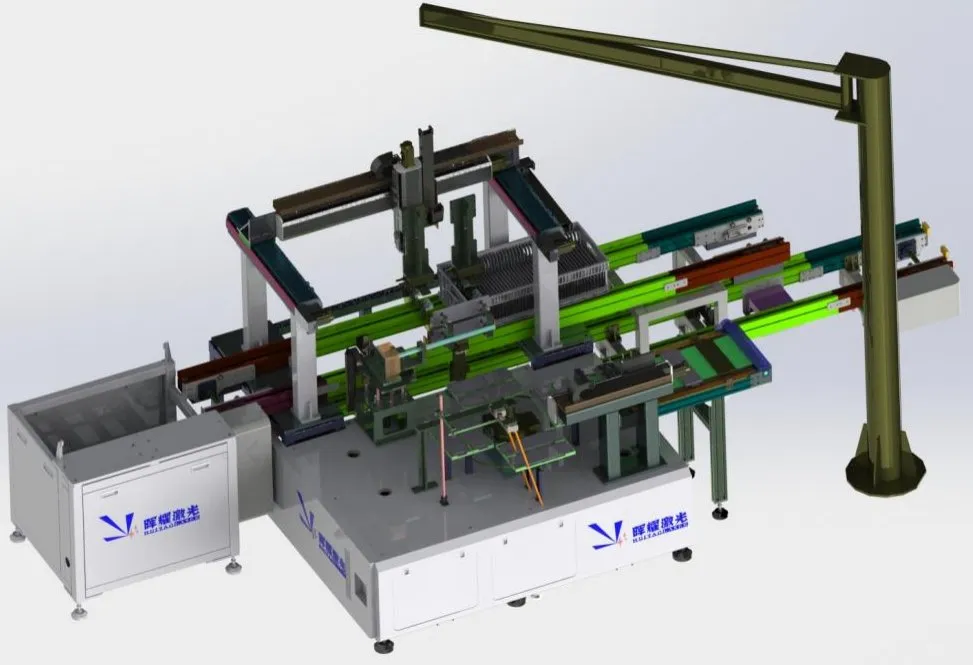

1. Cell Loading: Operator handles material frame through crane. Flip station places products horizontally at the conveyor belt for transport.

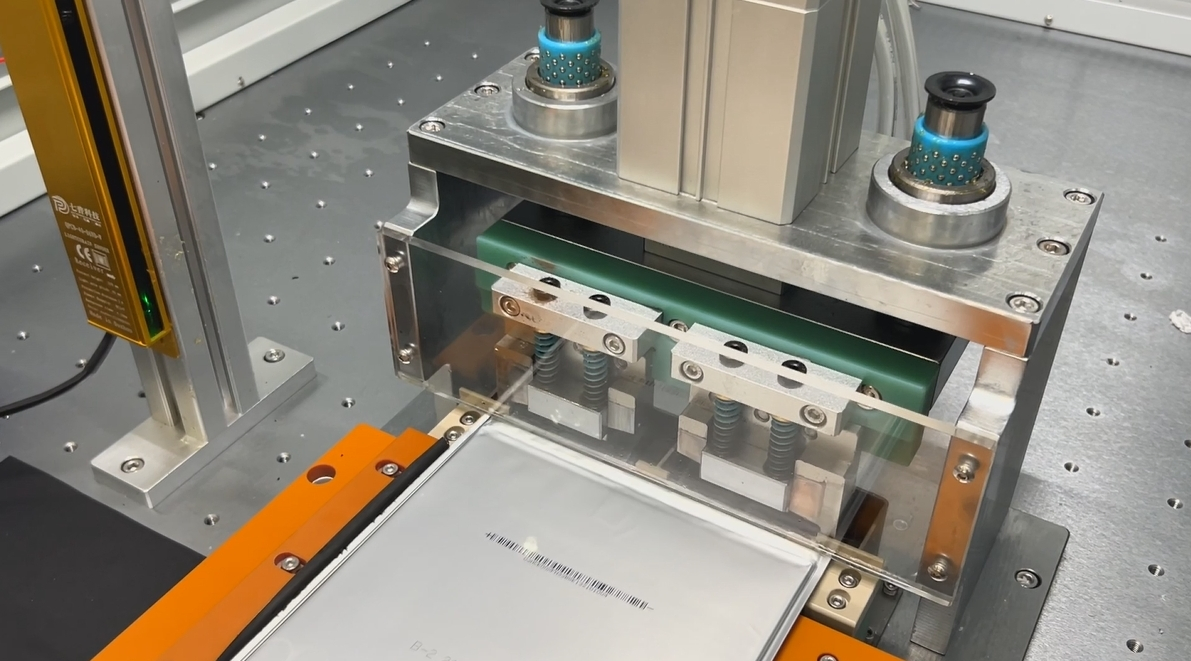

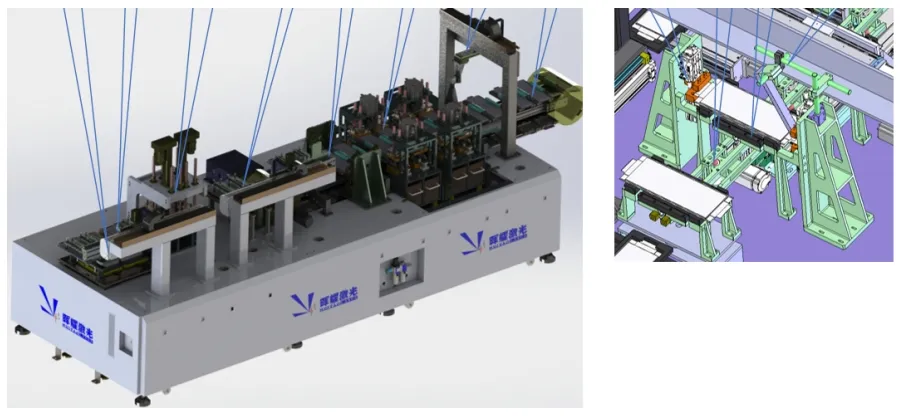

2. Cell Process Station: Robot transfers product for weighing, thickness measurement, and OCV test. Includes lug cutting and data uploading.

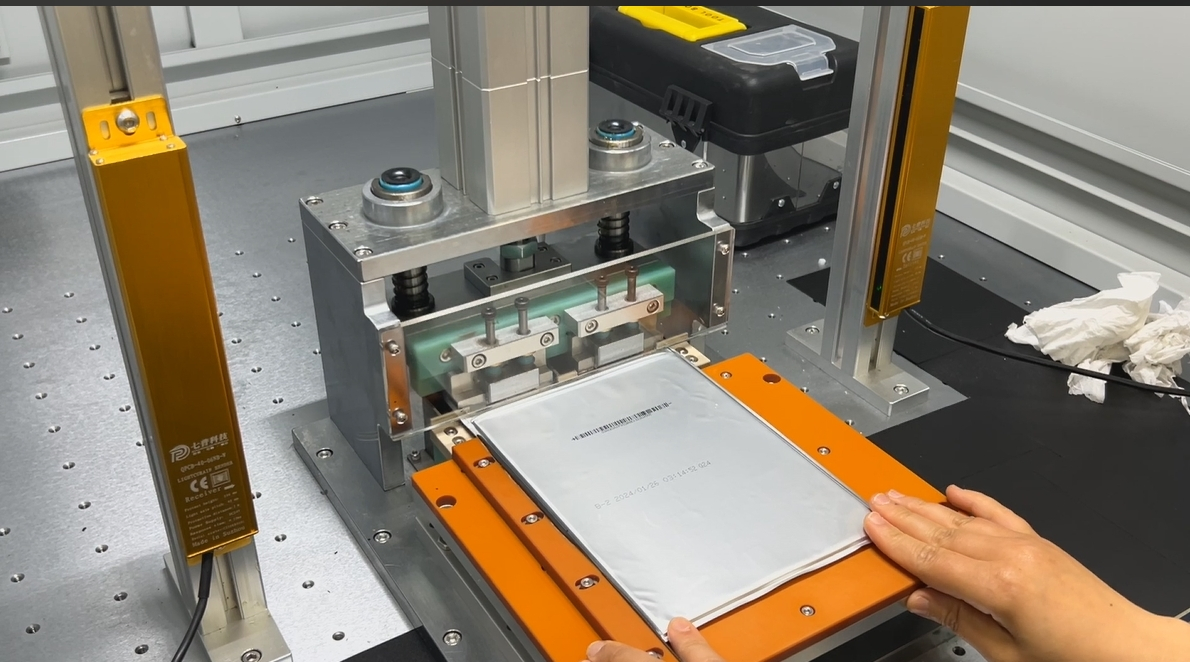

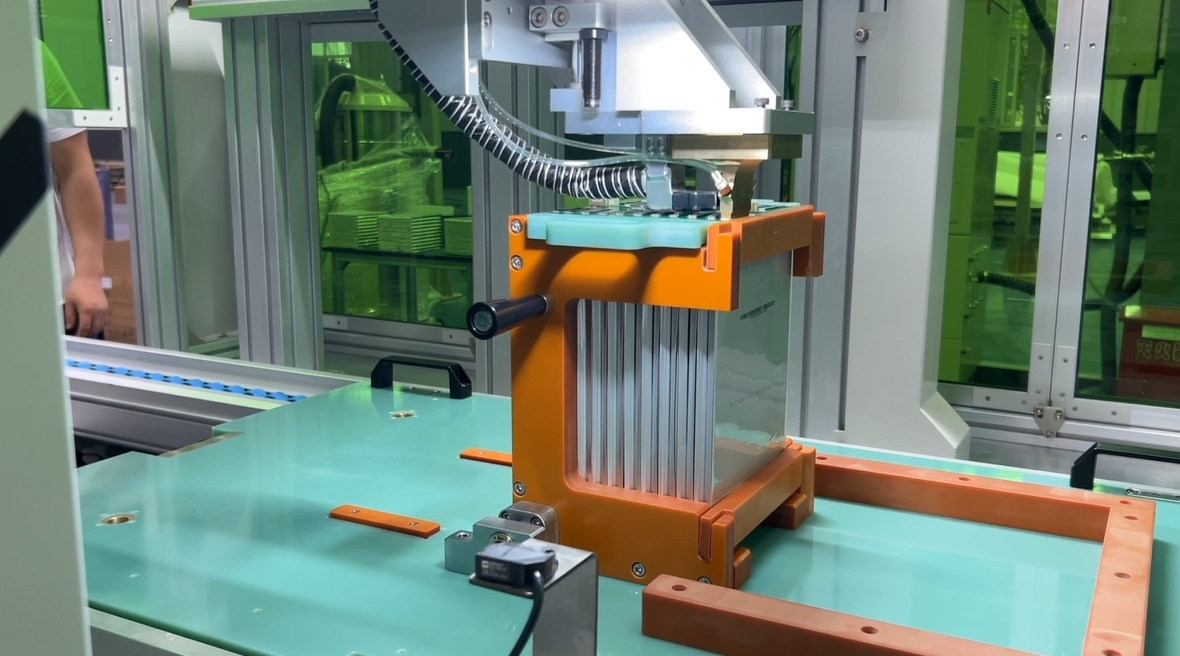

3. Module Stacking & Pressing: Robot applies double-sided tape and stacks products. Includes manual assembly of steel ties and lifting off the line.

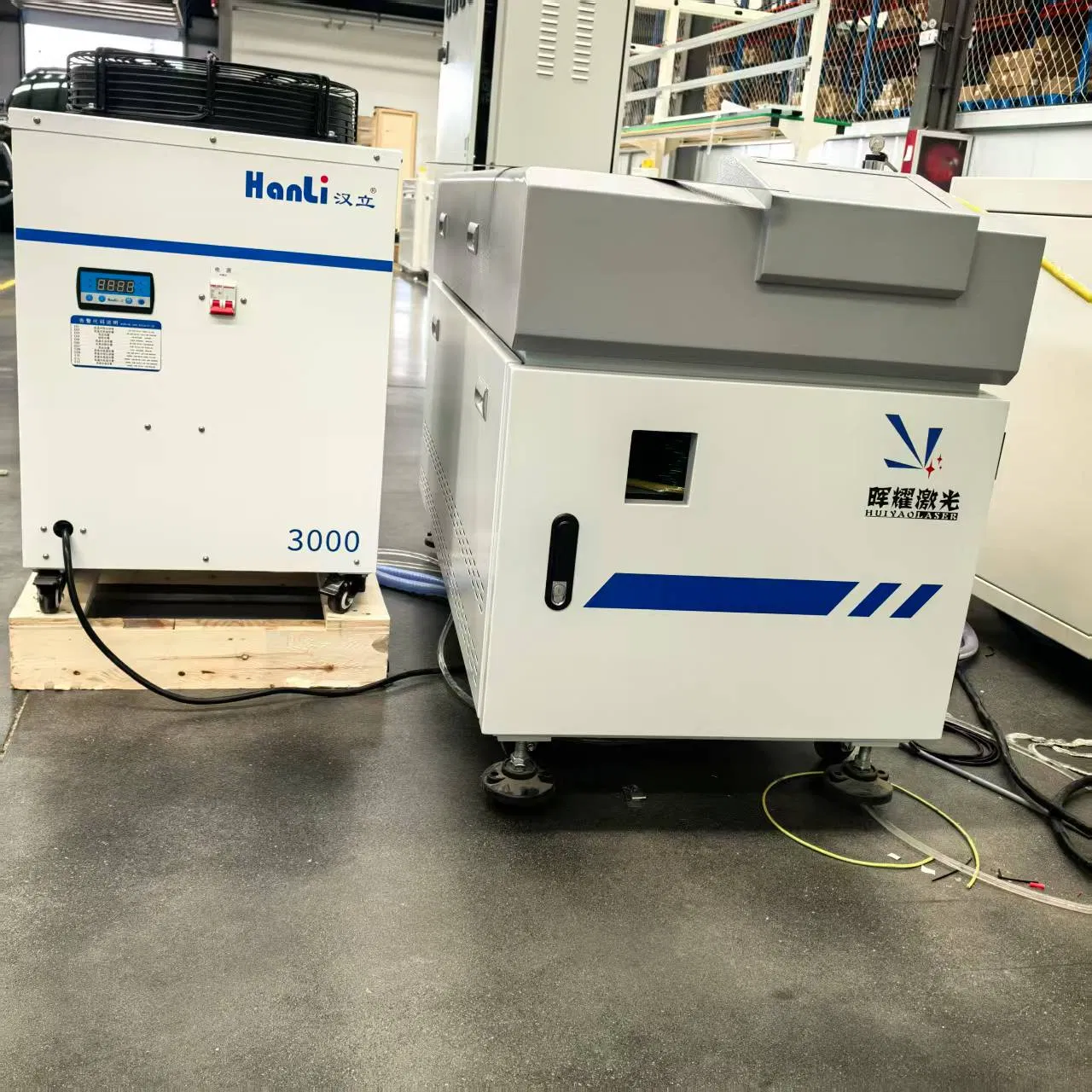

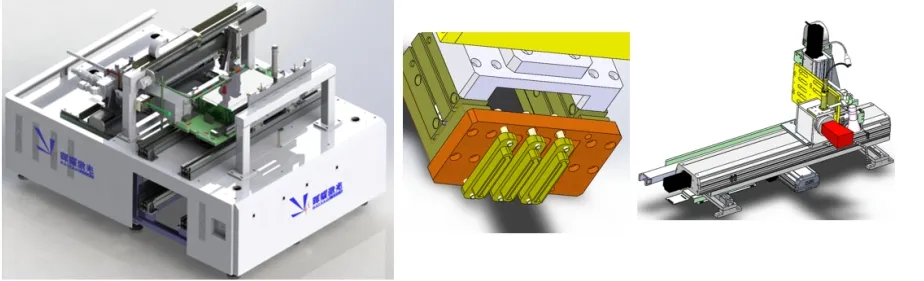

4. Terminal Tab Laser Welding: Precise laser welding with camera addressing and ranging. Ensures high-quality connection of battery lugs.
