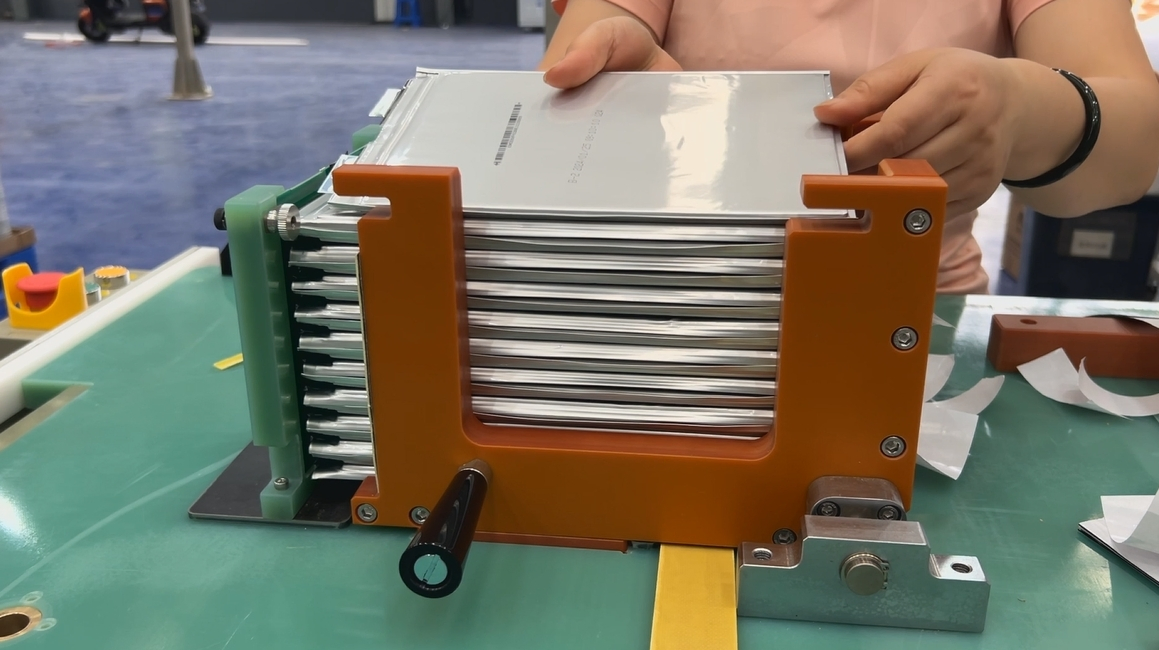

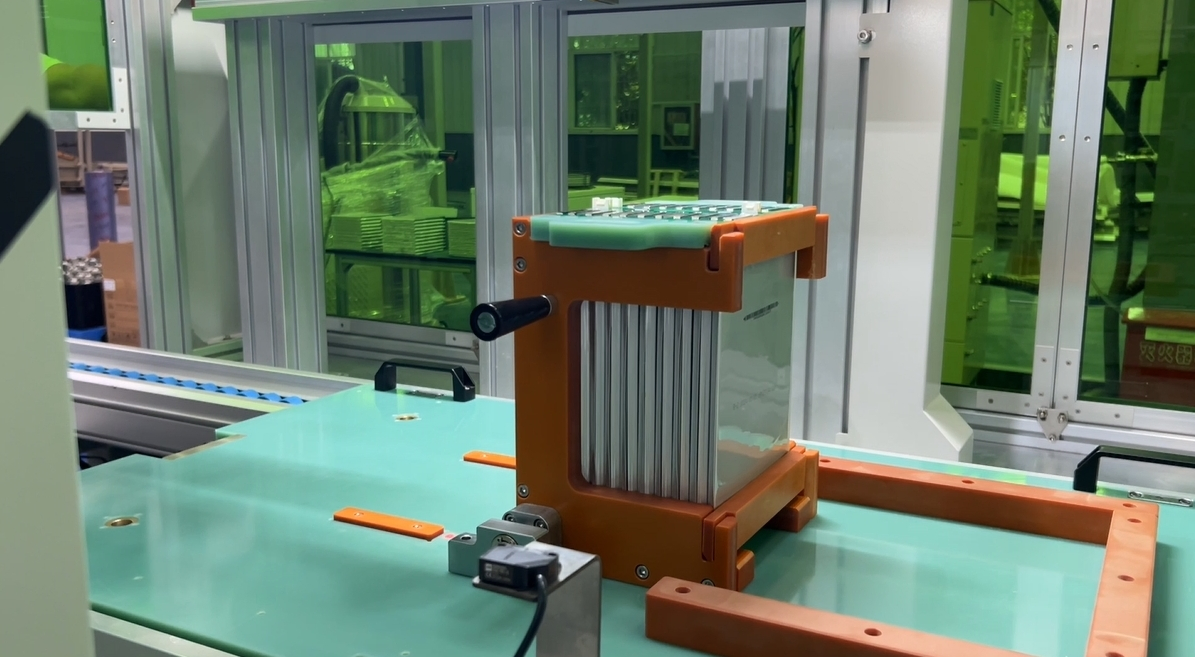

Huiyao Laser China Assembly Automated EV Battery Pack Module

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

📋

Product Overview

The Comprehensive Solid-State Battery Module PACK Automatic Production Line is designed for efficient output at 12PPM. Specifically engineered for modular production of solid-state batteries, it features high automation, flexibility, and integrated quality control (QC) systems. This line ensures consistent production quality for electric vehicles, energy storage systems, and consumer electronics.

Specification	Detail
Model Type	Automatic Laser System
Condition	New / High-Tech
Automation	Fully Automatic
Production Capacity	12 PPM

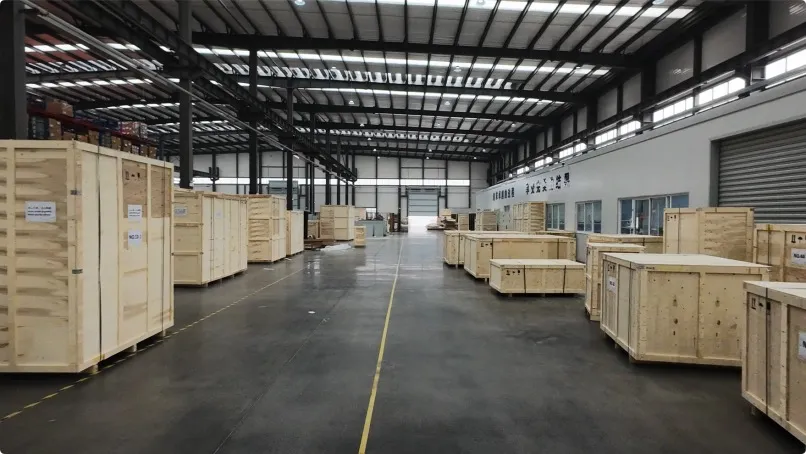

Transport Package	Wooden Box Packing

🚀

Key Features & Functions

✔

High Automation: Minimizes manual intervention and maximizes throughput.

✔

Integrated QC: Real-time monitoring of welding, voltage, and resistance.

✔

Flexible Design: Rapid reconfiguration for multiple battery specifications.

✔

Intelligent MES: Full traceability and data analysis for every module.

✔

Energy Efficiency: Optimized power consumption for green manufacturing.

⚙️

Technical Parameters

Parameter Item	Technical Specification	Remarks
Line Efficiency	≥12 PPM	Adjustable by configuration

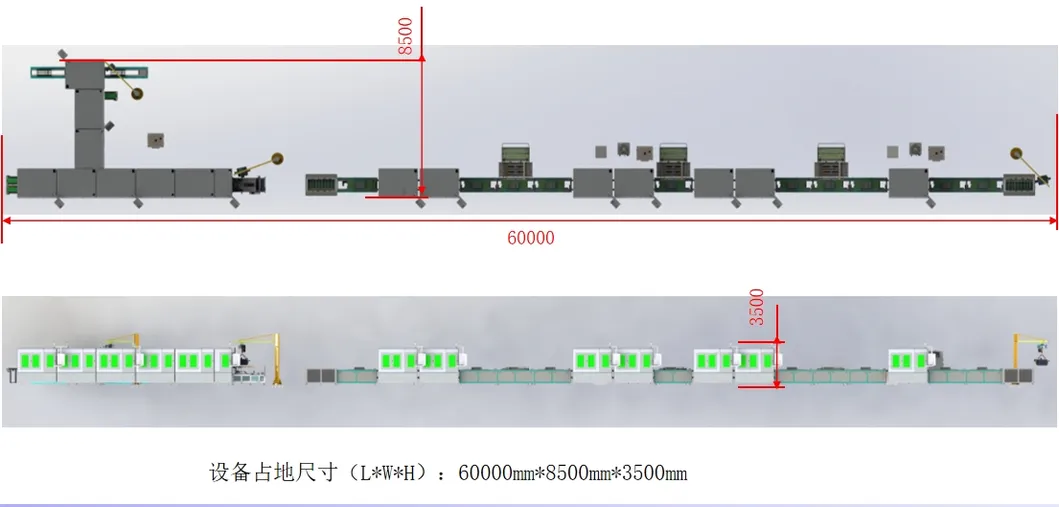

Dimensions (LWH)	60000mm * 8500mm * 3500mm	Layout customizable
Final Yield Rate	≥99.8%	High precision output
Inspection Accuracy	Voltage: ±0.01V, Resistance: ±0.1mΩ	QC Integrated
Environment	Temp: 10-25ºC \| Humidity: 40-60%	Standard clean room

🔄

Automatic Process Flow

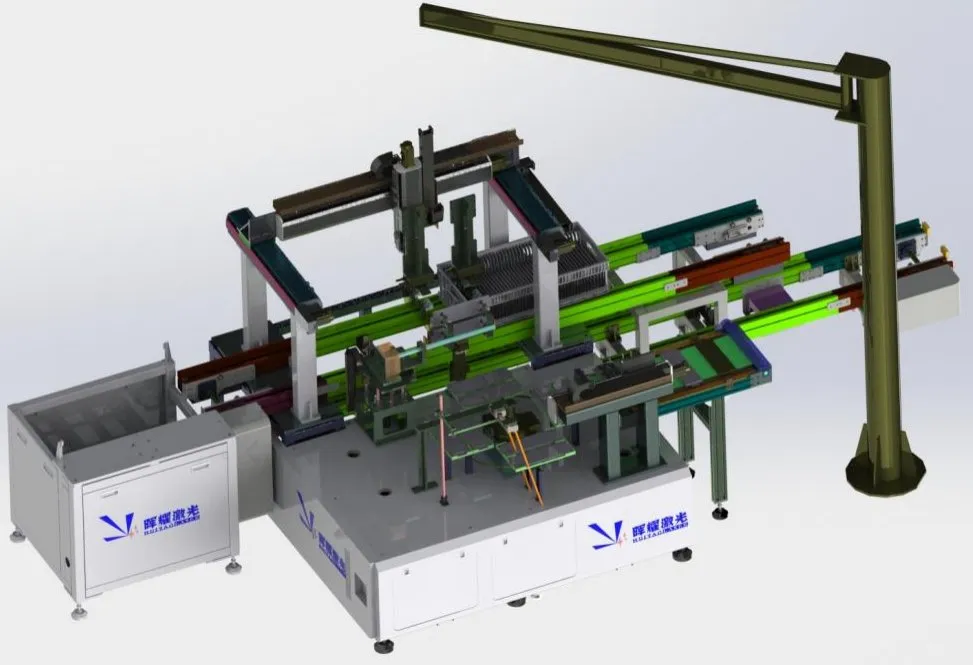

1 Cell Loading: Automatic cantilever crane handling and flip station placement.

2 Cell Process & OCV: Weight detection, thickness measurement, and OCV testing.

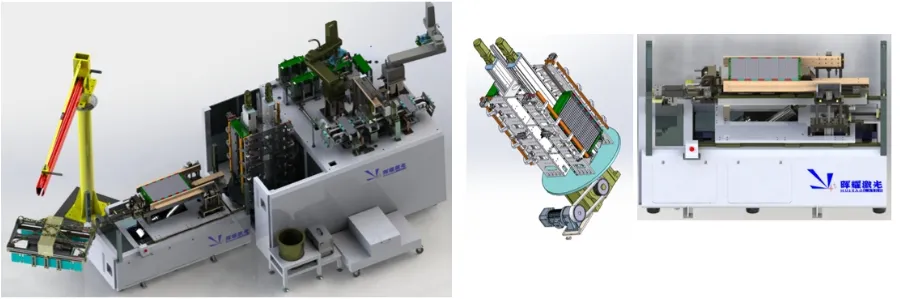

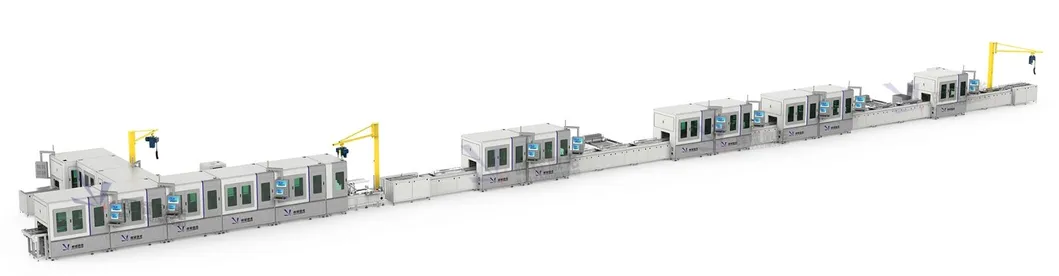

3 Stacking & Pressing: Robotic stacking with double-sided tape application and extrusion.

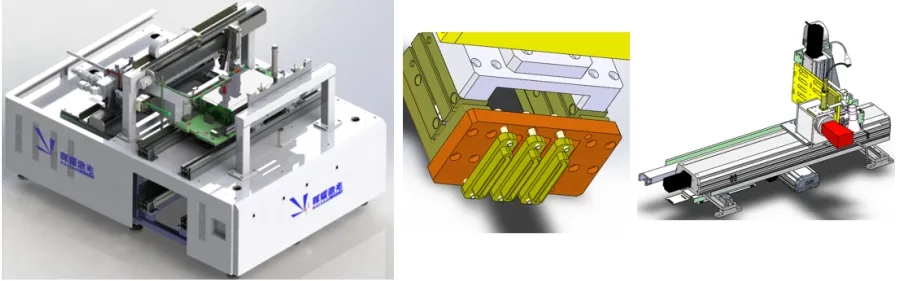

4 Laser Welding: Precision terminal tab laser welding with CCD addressing.

📦

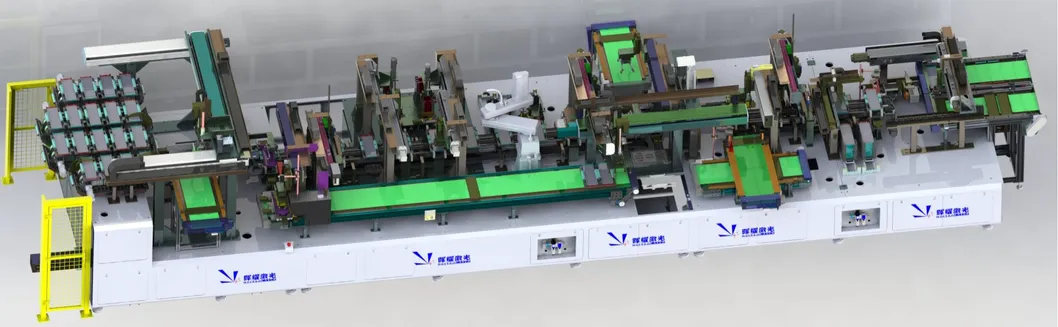

Application & Logistics

🏆

Certifications & Global Cooperation

❓

Frequently Asked Questions

How is the production efficiency of the battery line ensured?

The 12PPM output is achieved through high-speed automation, robotic handling, and synchronized workstation management, minimizing idle time.

What quality control measures are integrated into the system?

The production line features a comprehensive QC system that monitors welding depth, voltage consistency, internal resistance, and OCV data in real-time.

Can the production line handle different battery module sizes?

Yes, the line utilizes a flexible design and programmable robots that allow for quick reconfiguration to support various module specifications.

What is the typical lead time for equipment delivery?

The standard lead time is approximately 3 to 4 months from contract signing to final equipment delivery at the customer site.

Is technical support provided after installation?

We provide lifetime technical support, including initial installation, equipment debugging, and comprehensive operator training to ensure smooth production.

What are the power and environmental requirements?

The system requires a standard 380V industrial power supply and operates best in a temperature-controlled environment (10-25ºC) with 40-60% humidity.
