Technical Specifications
After-sales Service
Lifetime After-Sales
Application Field
New Energy Industry
Cooling Method
Water Cooling
Production Capacity
100 Set/Month
Automated Battery Cell Assembling Requirements
- Equipment capacity: ≥10PPM;
- Final excellent rate: ≥99.8% (equipment related);
- Equipment failure rate ≤ 2%;
- Laser output power stability ≤±1%;
- Automated welding track with digital focal length adjustment (-5.0~+5.0mm).

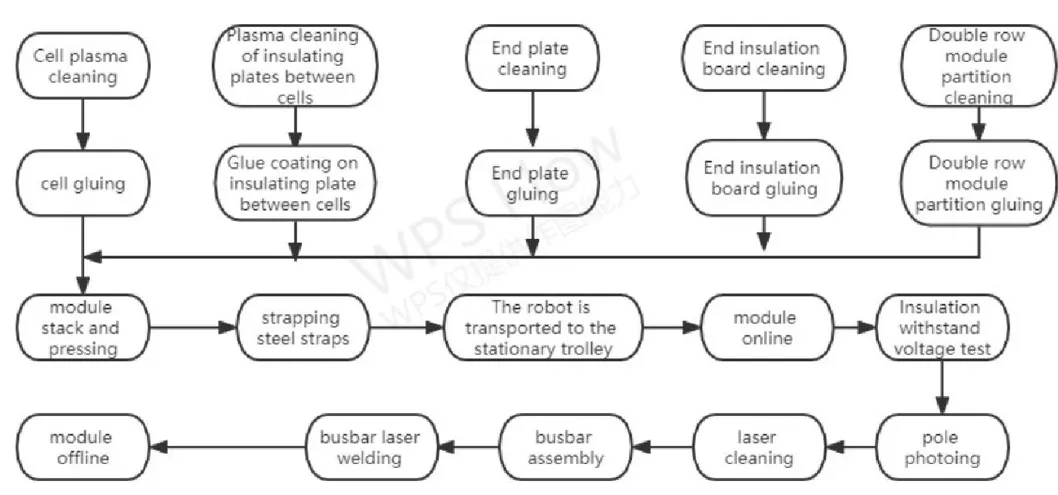

Process Flow Chart

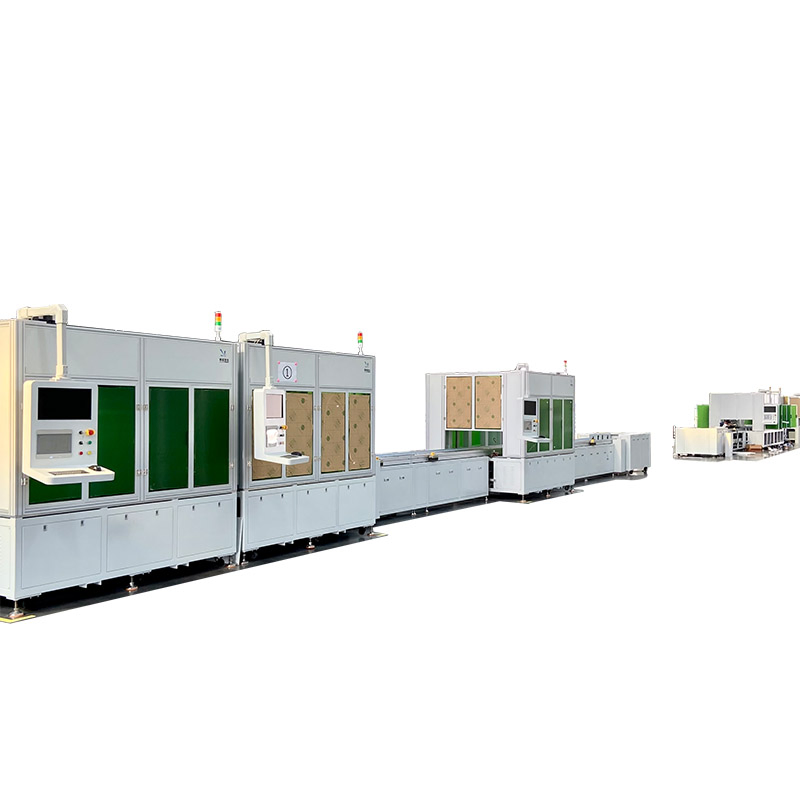

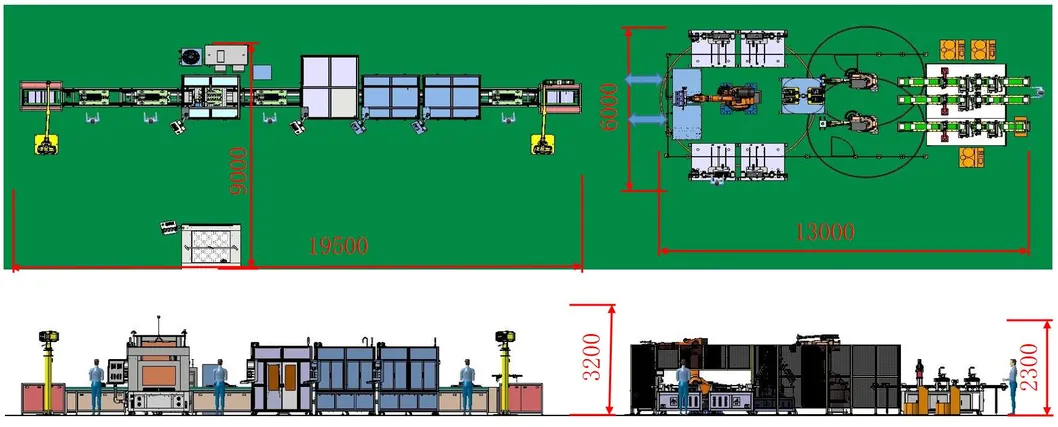

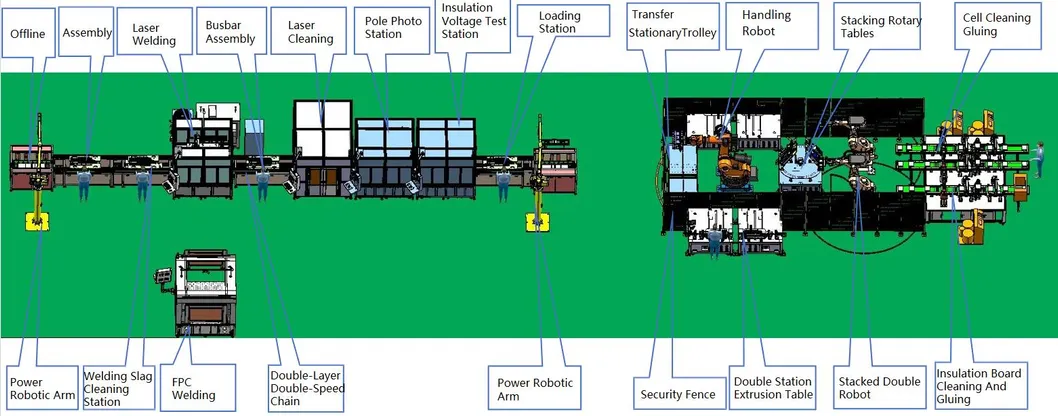

Program Layout & Design
Back layout size (L*W*H): 19500mm * 9000mm * 3200mm
Front layout size (L*W*H): 13000mm * 6000mm * 2300mm
Function Module Introduction

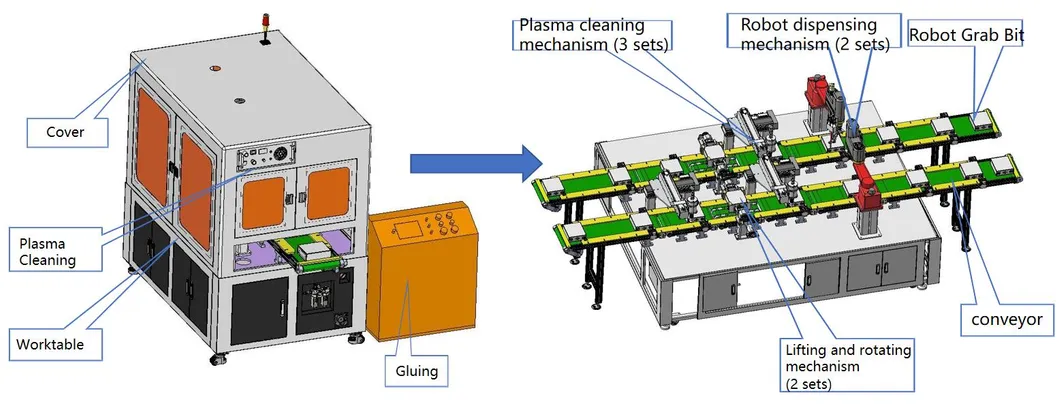

3.1 Cleaning & Gluing Station
| Component | Specifications |
|---|
| Power Supply | AC220V/50HZ |
| Cleaning/Gluing Range | X/Y: 300/300mm |
| Repeat Accuracy | ±0.02mm |
| Gluing Accuracy | 0.02g (Error ≤±5%) |
| Robot System | 4-axis Robot |
| Servo System | Panasonic |

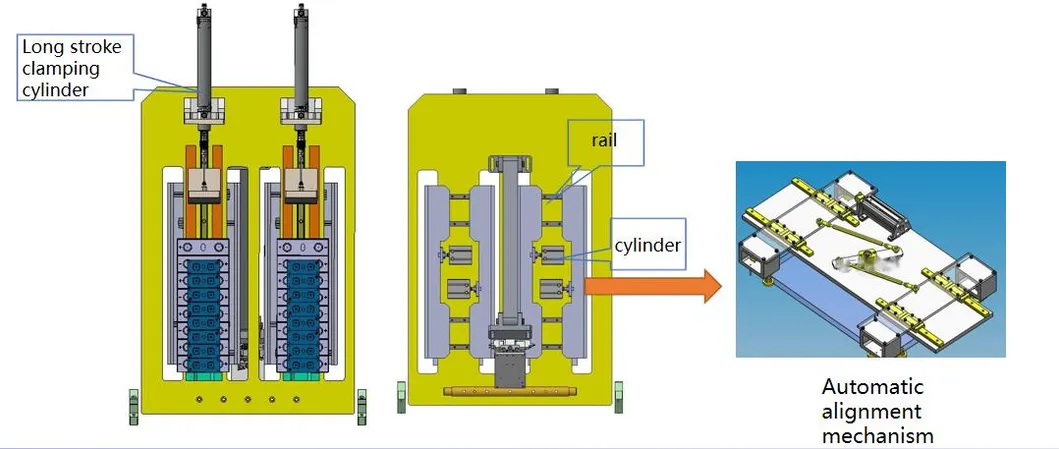

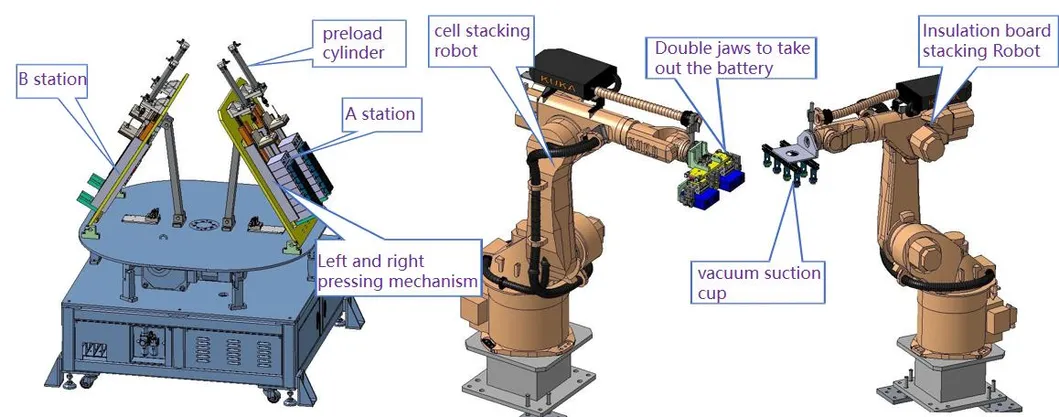

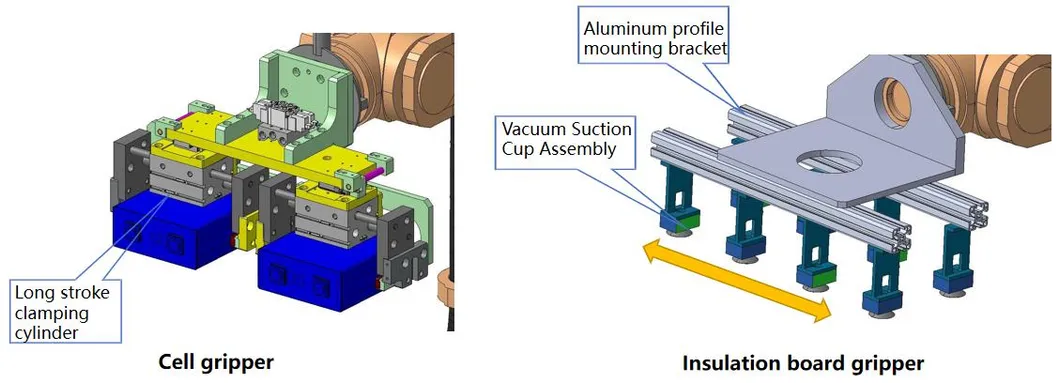

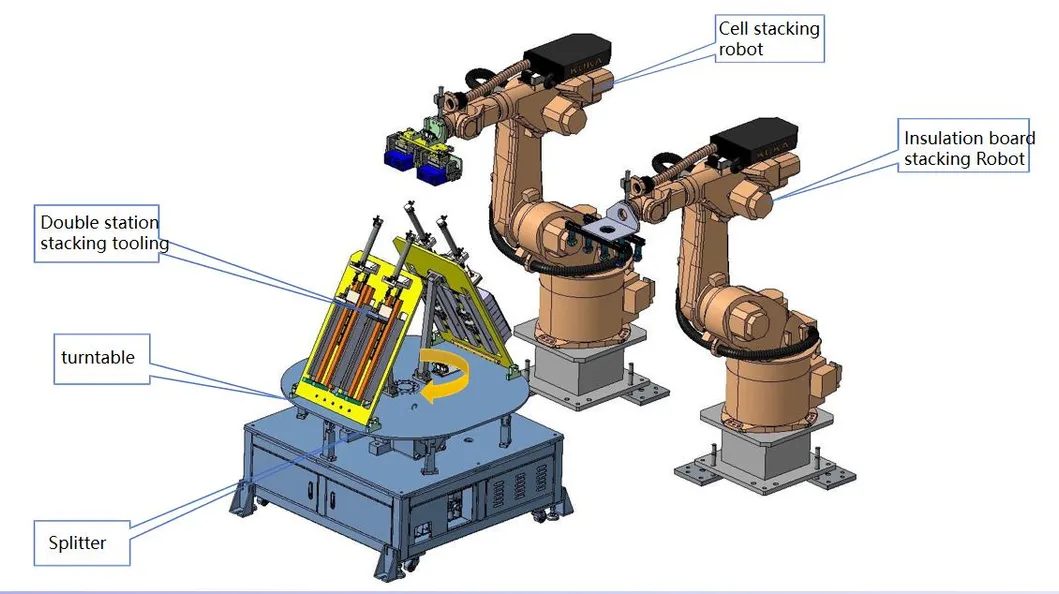

3.2 Stacking Rotary Tables

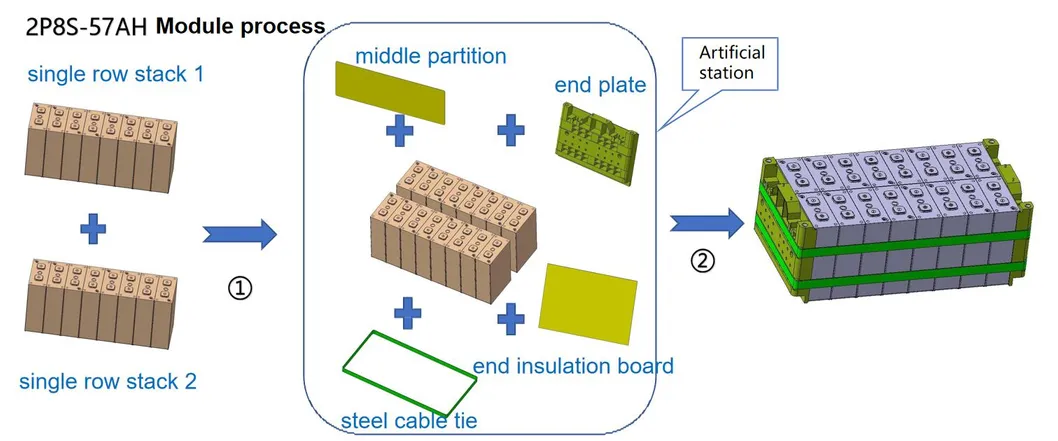

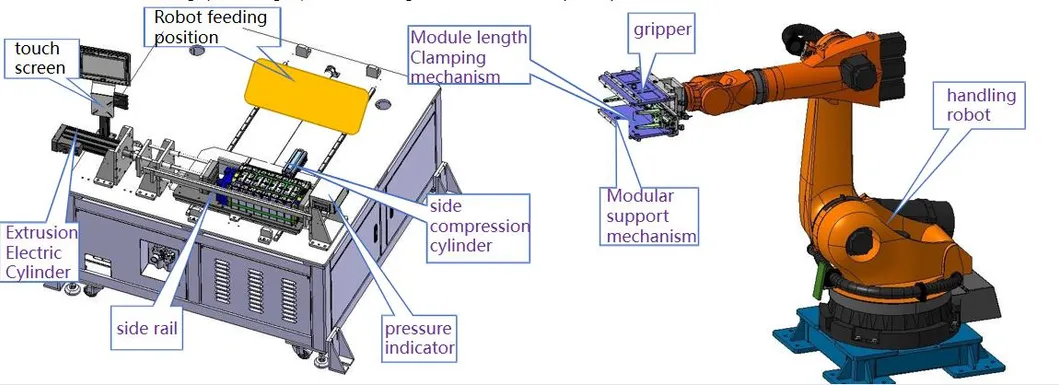

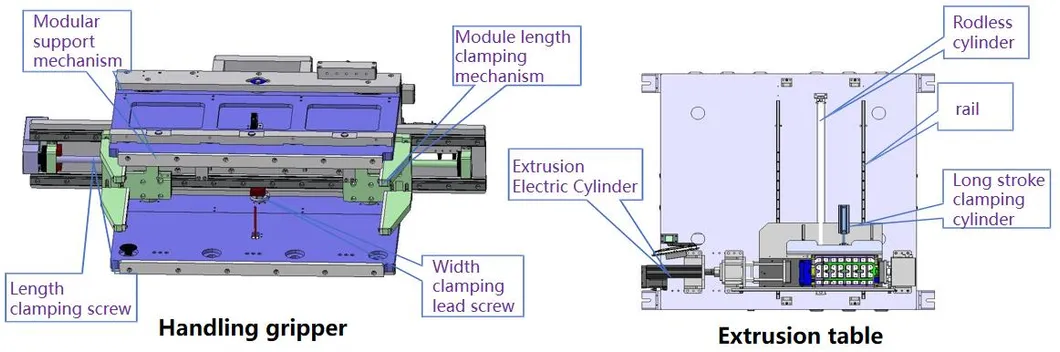

3.3 Extrusion Station

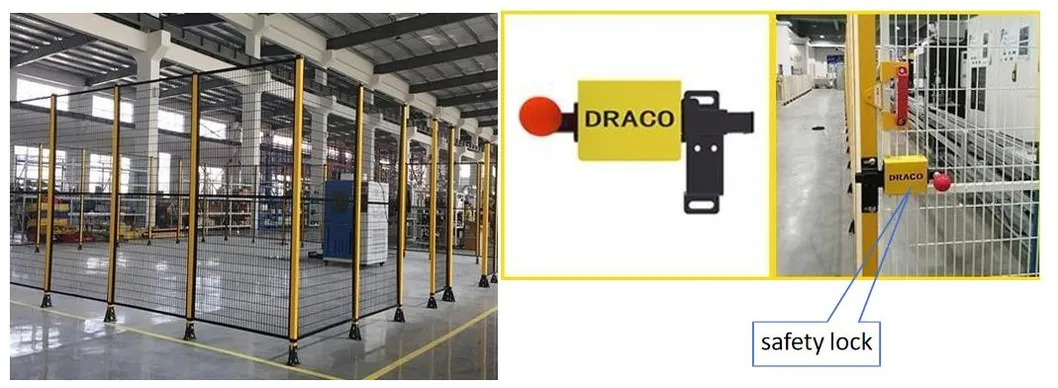

3.4 Safety Systems

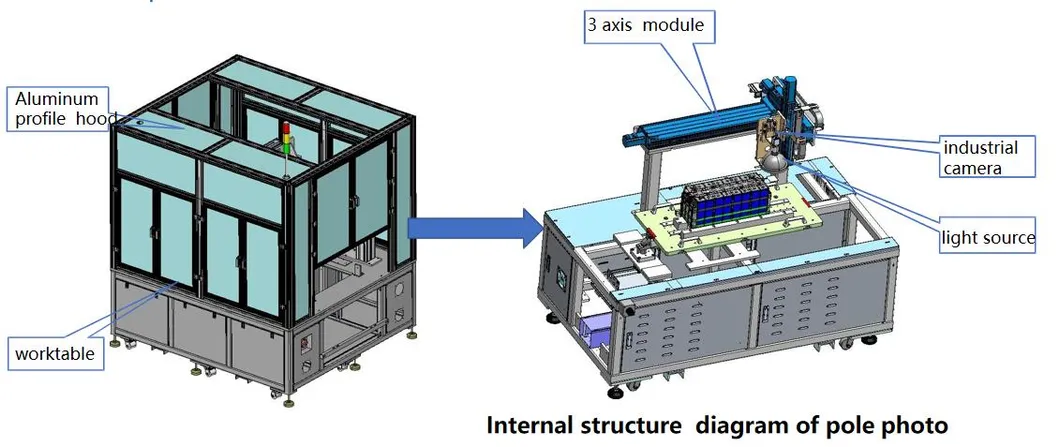

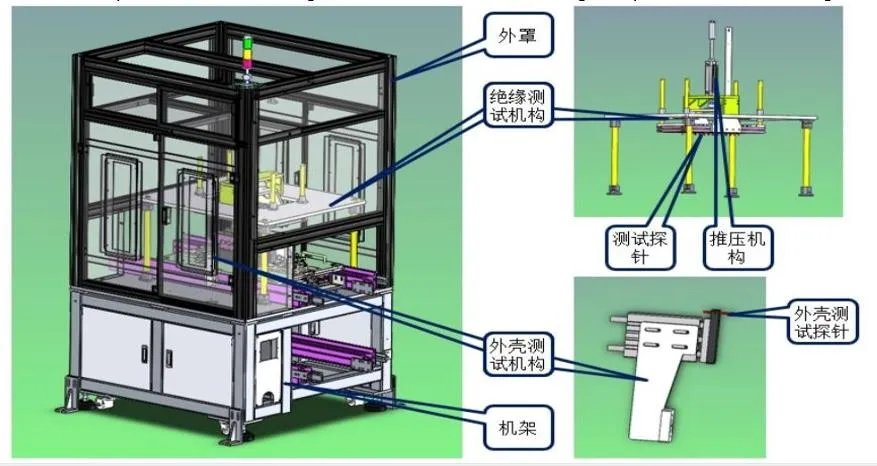

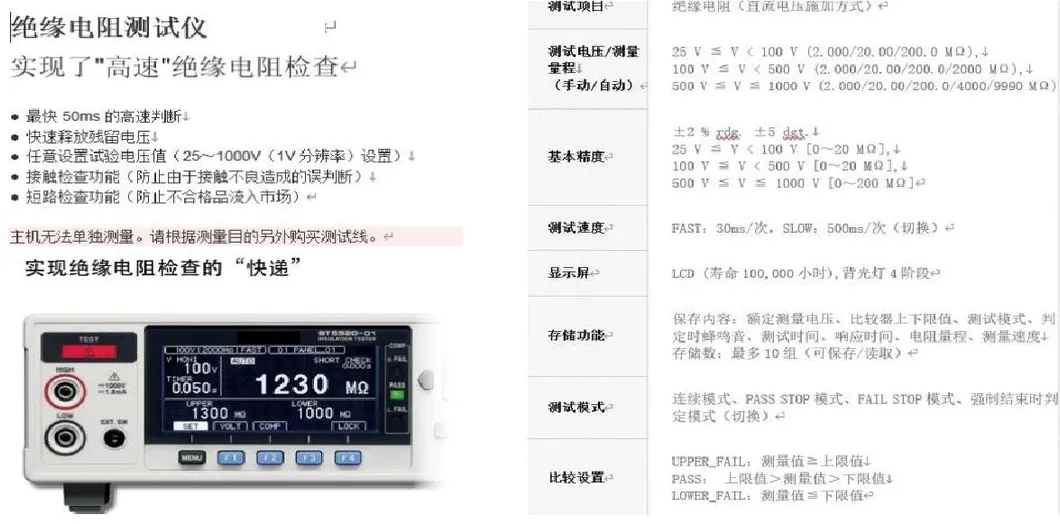

3.5 - 3.7 Testing & Pole Stations

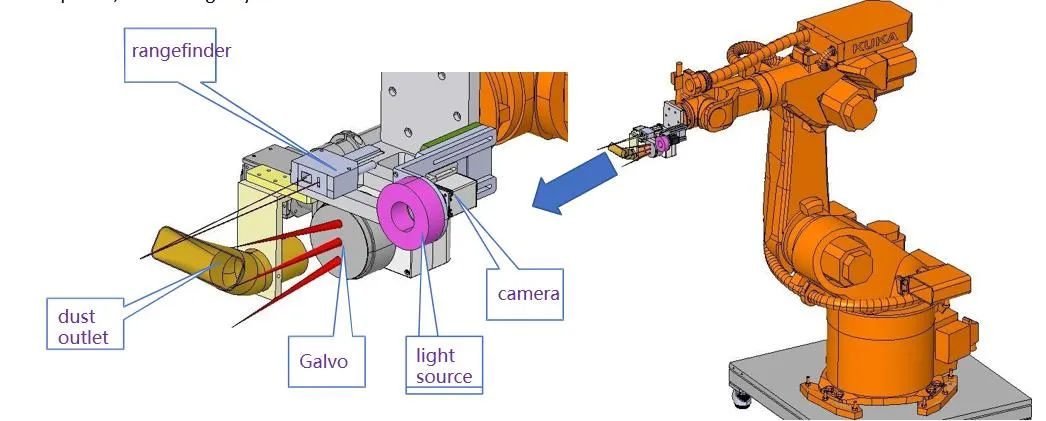

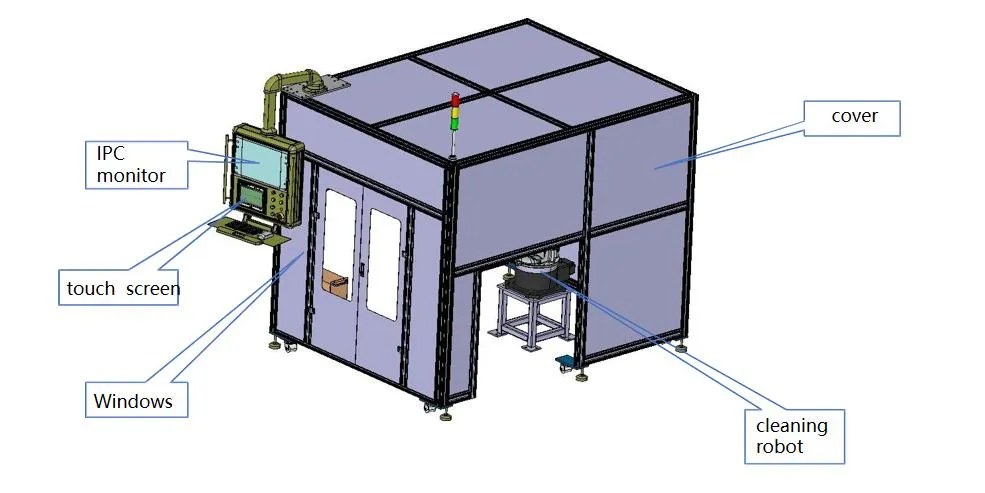

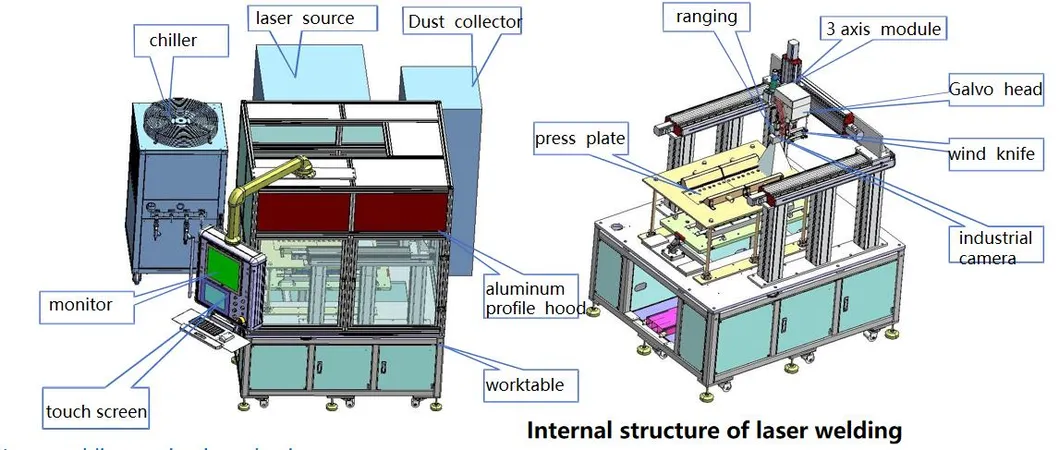

3.8 - 3.9 Laser Cleaning & Welding

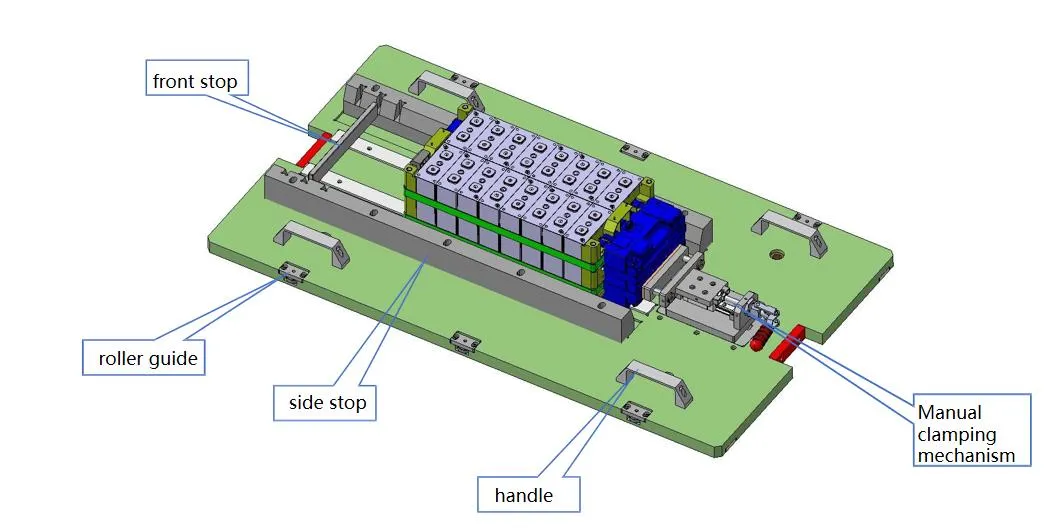

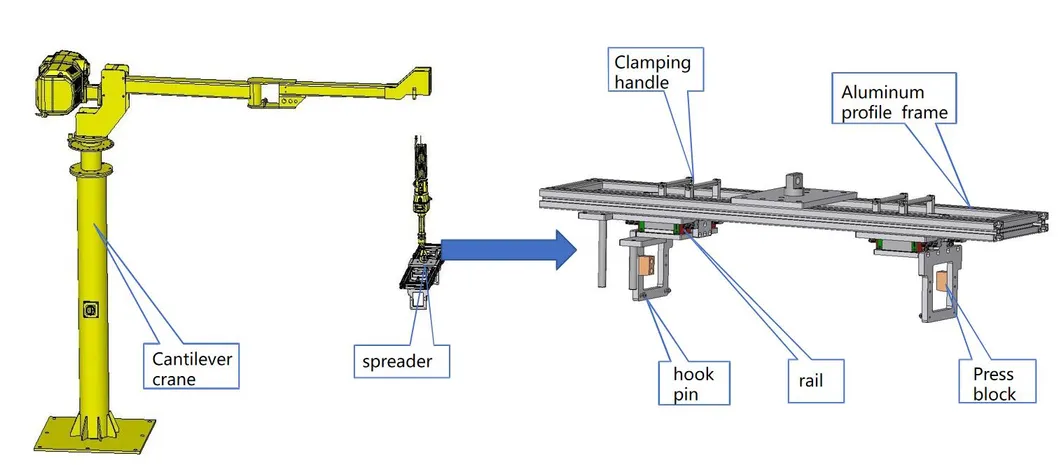

3.10 - 3.11 Handling & Trays
Industry Application

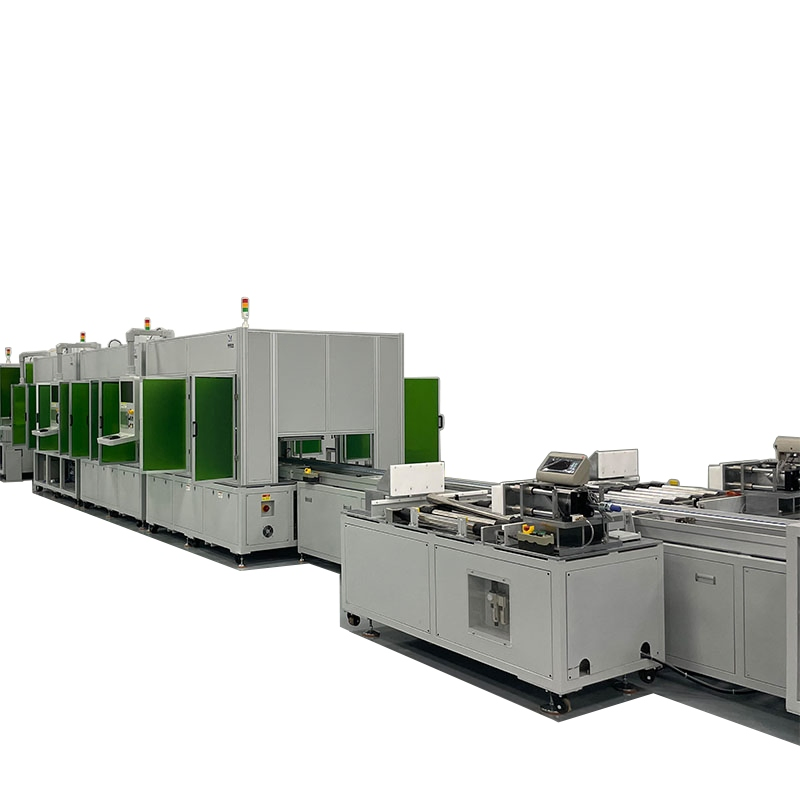

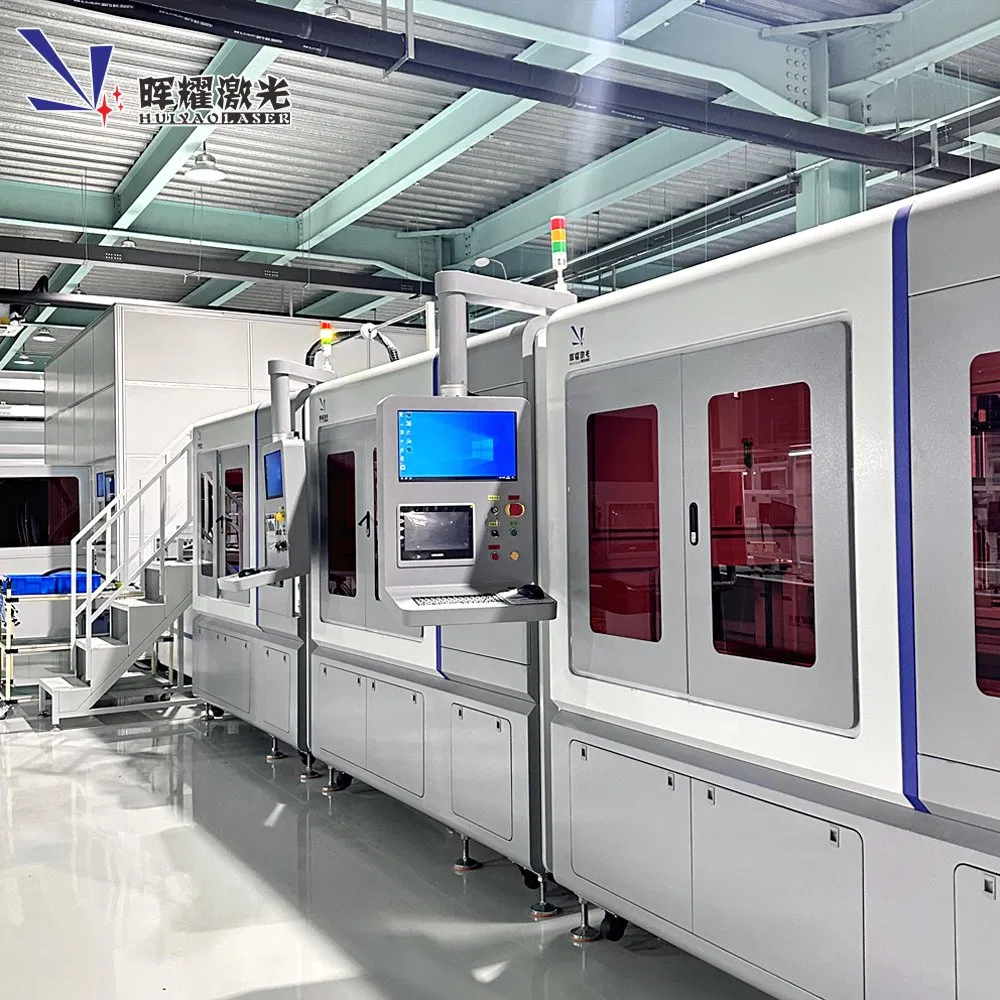

The automatic assembly line is specifically designed for the production of new energy lithium battery modules, Prismatic battery modules, energy storage modules, and power battery pack assembly.
Frequently Asked Questions
Q1: How is the quality of the laser equipment controlled?
We implement strict quality and cost control measures. All components are inspected according to international standards before production to ensure consistent performance.
Q2: Can the machine be customized for specific products?
Yes. We can test your specific product samples on our machines to ensure the design meets your exact production requirements.
Q3: What is the typical delivery timeframe?
Standard laser machines are typically delivered within one month after the order is confirmed.
Q4: Does the equipment come with safety certifications?
Yes, our equipment is CE and ISO certified, complying with relevant safety and quality regulations.
Q5: Is technical training provided for operators?
We provide comprehensive training. You can receive free training at our facility, or our engineers can travel to your location during installation to train your staff.
Q6: What support is available if the machine encounters issues?
We offer 24-hour online engineering support. Machines include a one-year warranty, and operation manuals/CDs are provided for easy troubleshooting.
