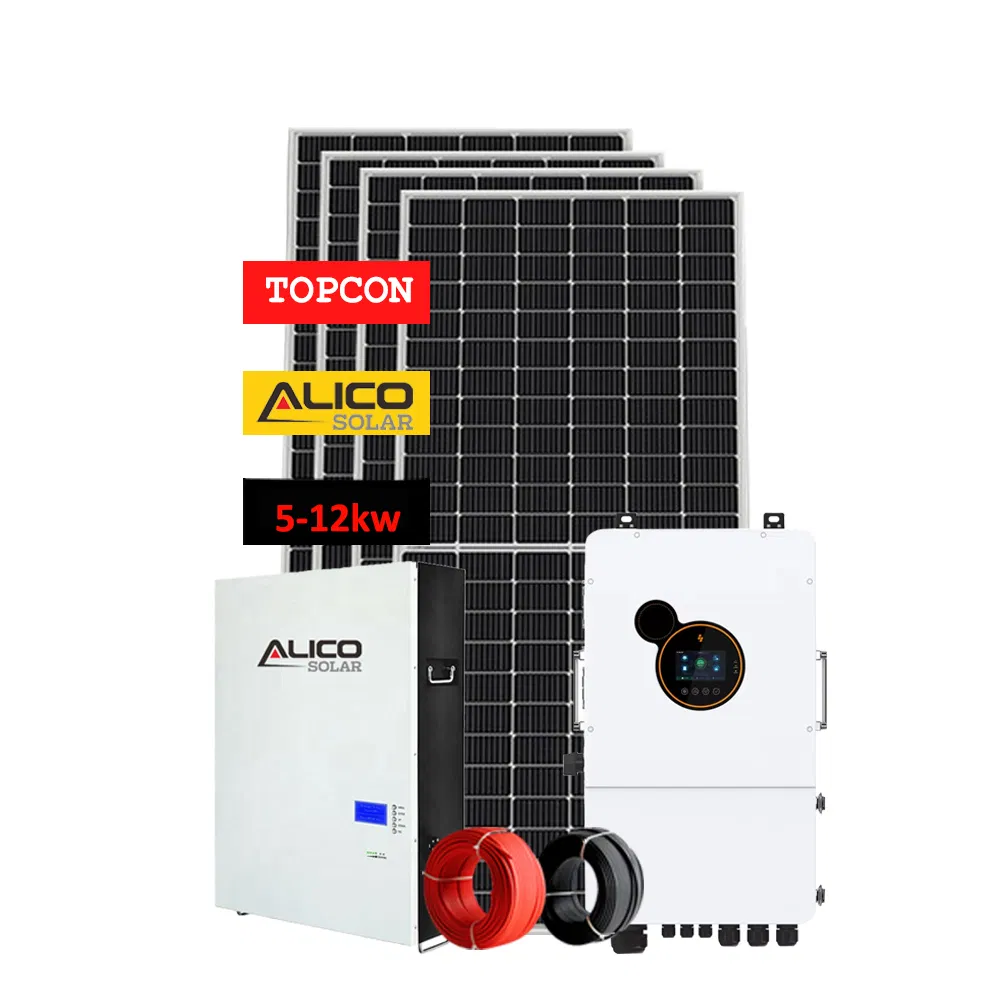

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

1 / 5

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Home Energy Storage System

Solar Panel

Mono N-Type Hjt

Battery

Gel or Lithium Battery or No

Production Capacity

2 Gw/Year

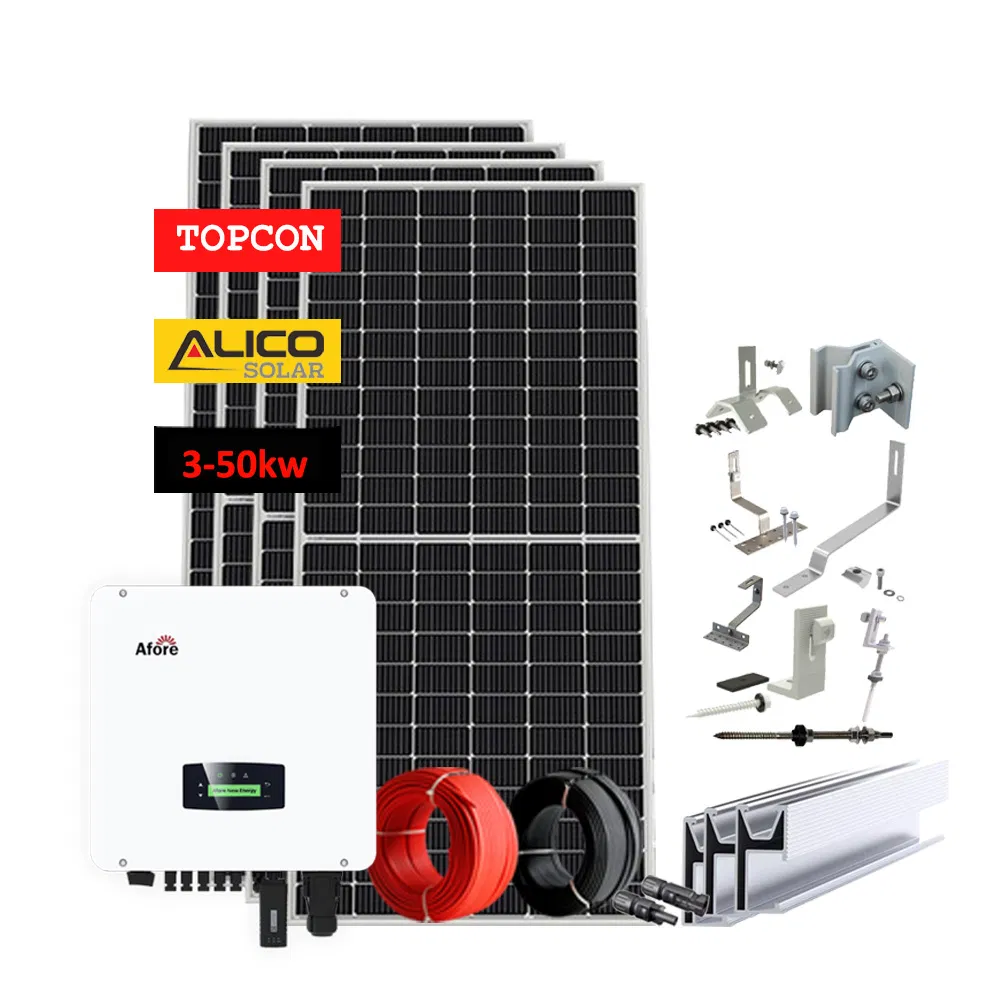

On Grid System Configuration

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000 Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

Detailed Component Specifications

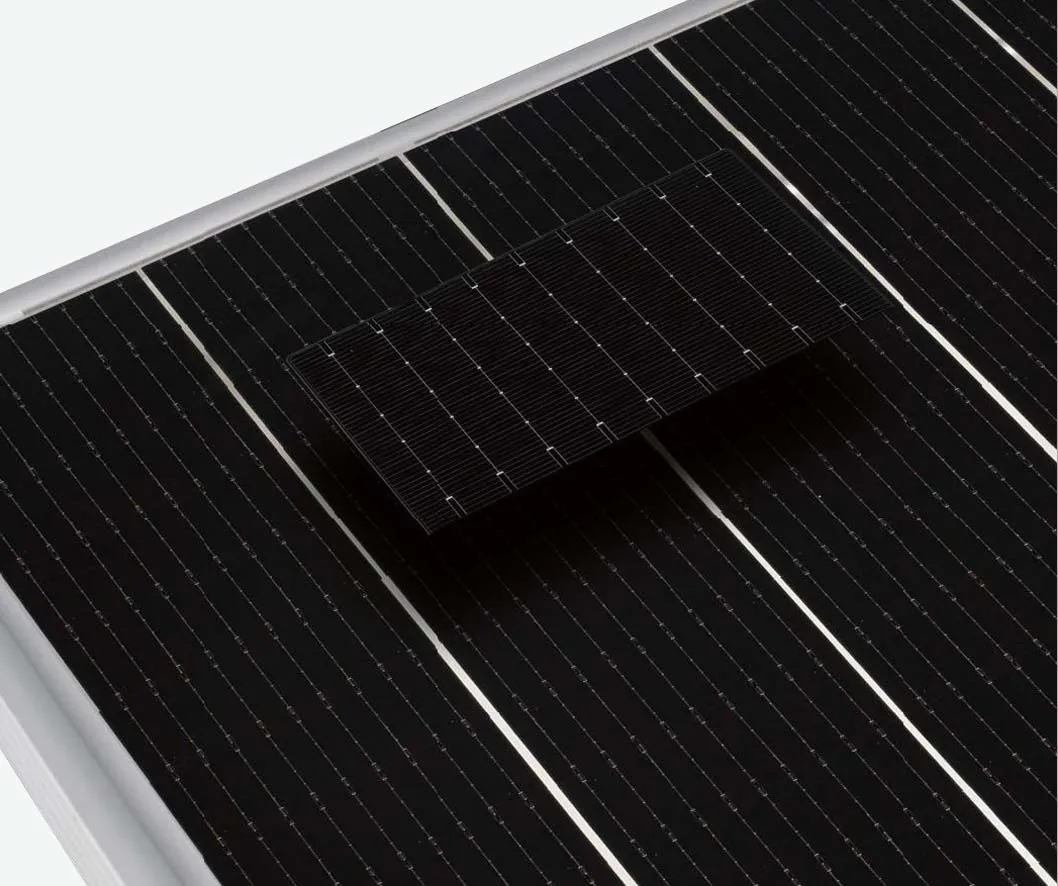

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

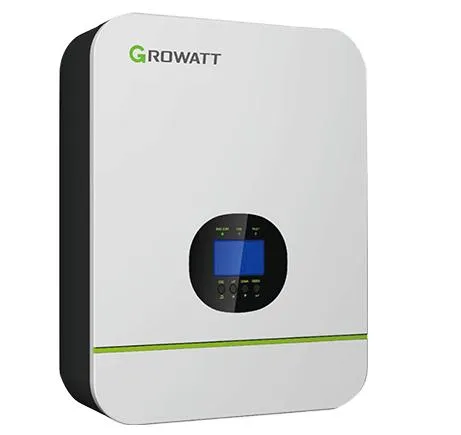

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

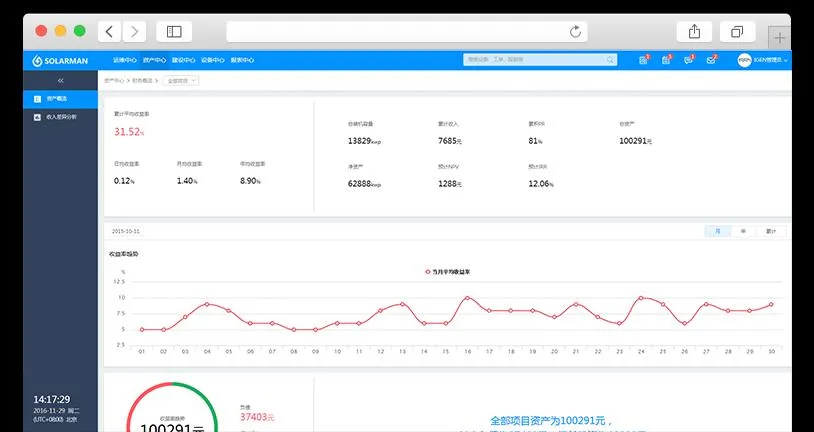

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system via Wi-Fi, Lan or GPRS. Keep informed about system status and atmosphere conditions anytime. App available for PC, IOS & Android.

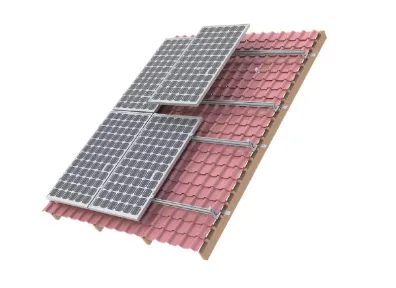

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip, Tie, Ground Clip & Lugs Optional.

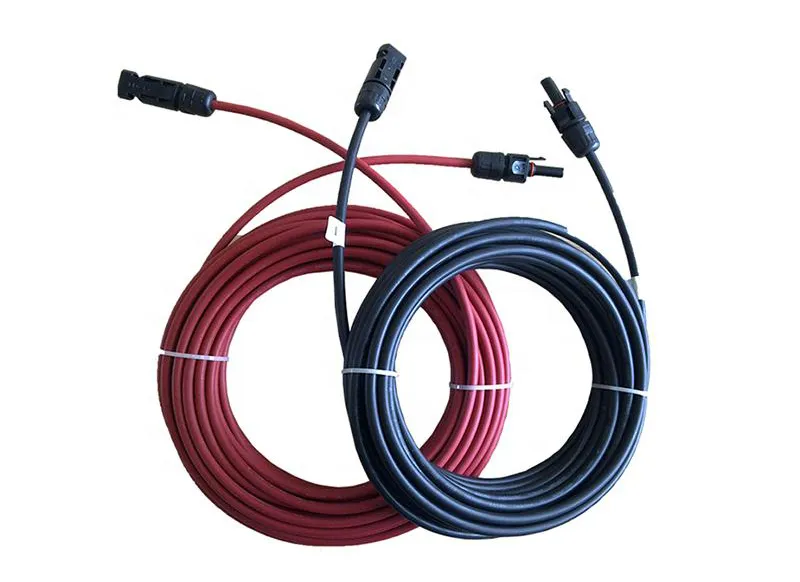

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black (STD), Red Optional.
Lifetime: ≤25 Years

Packaging & Shipping

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Gross Weight

2000.000kg

Transport Package

Carton/Wooden Box

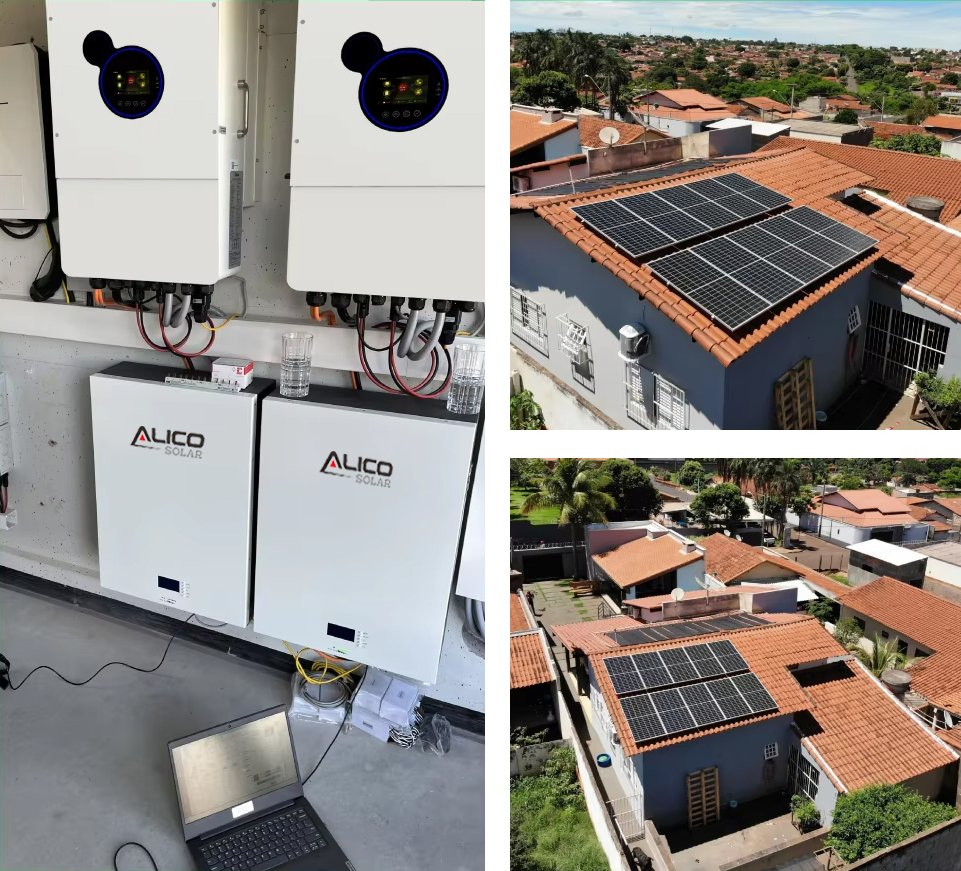

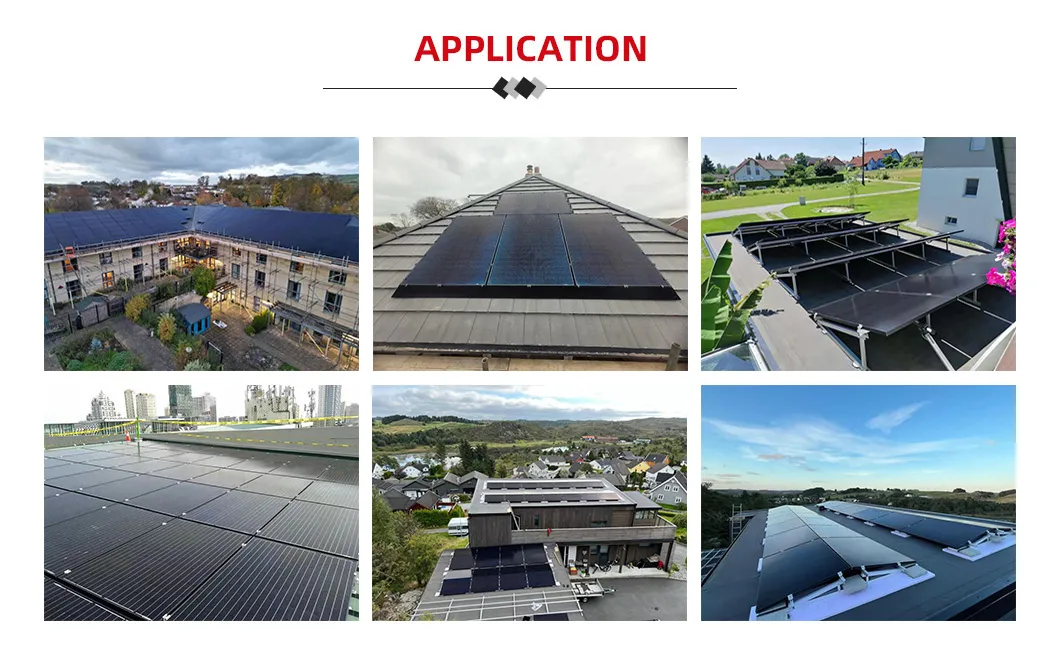

Global Projects

12MW Commercial Metal Roof Solar Plant

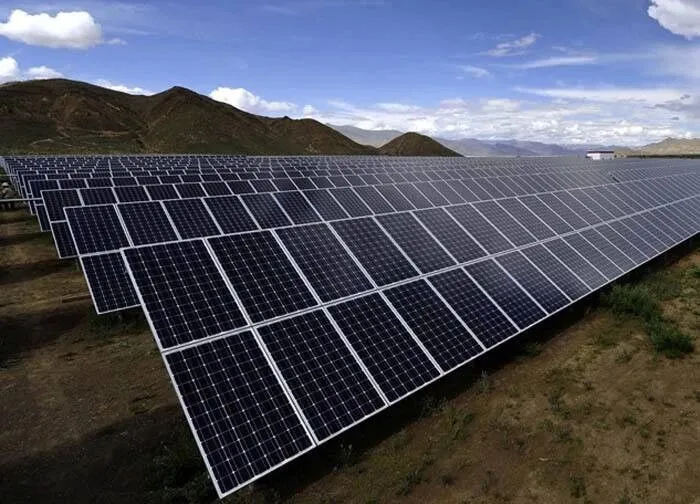

20MW Ground Solar Plant in USA

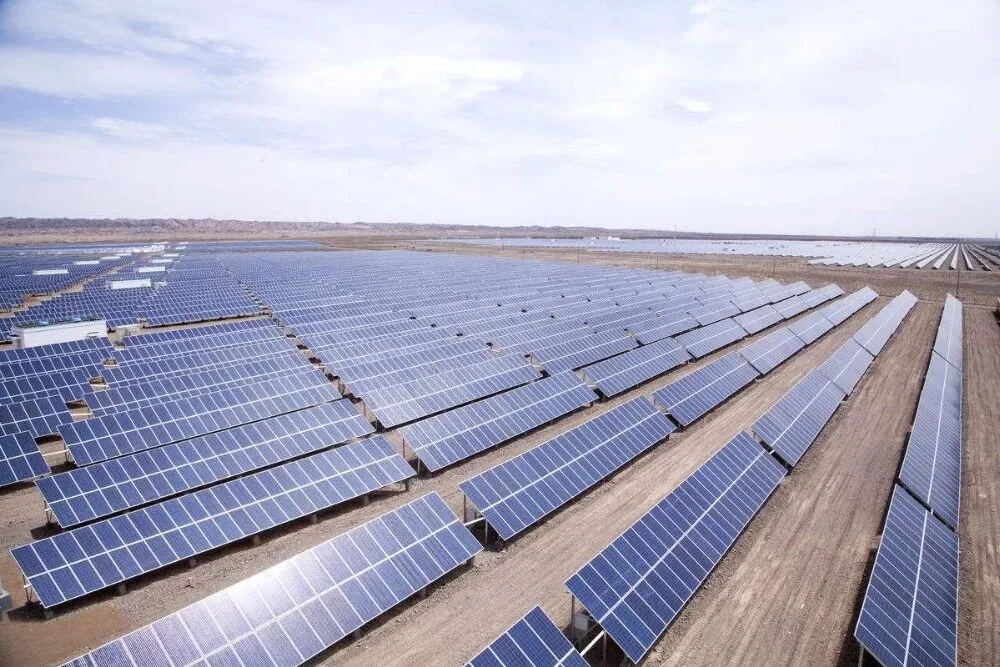

50MW Solar Plant in Brazil

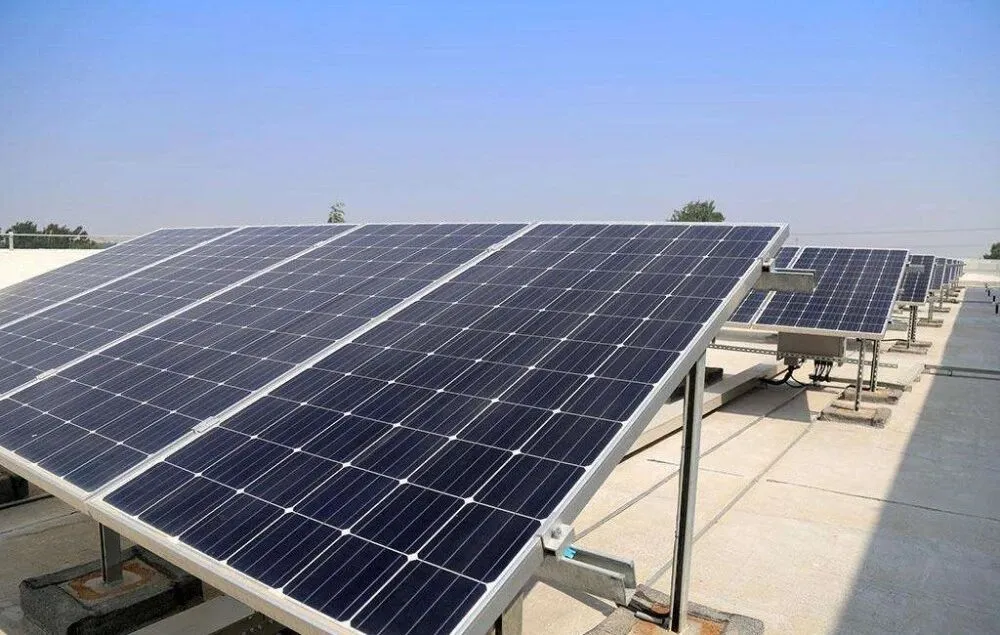

20KW Solar Plant in Mexico

Frequently Asked Questions

1. What applications is this 10kW solar system suitable for?

The AS-ON-10K system is versatile and designed for residential (home), industrial, and commercial applications.

2. What type of solar panels are used in this configuration?

The system utilizes high-efficiency Mono N-Type HJT (Heterojunction Technology) solar panels, typically in 550W modules.

3. Can I monitor the power generation of my system remotely?

Yes, the system includes a data logging stick that supports Wi-Fi, Lan, or GPRS connectivity, with a dedicated app for iOS, Android, and PC.

4. What is the expected lifespan of the DC cables and connectors?

The high-quality DC cables and MC4 connectors provided are designed for a long service life of up to 25 years.

5. Is the mounting system compatible with my roof type?

The standard kit is designed for pitched roofs, but it is fully customizable for ground mounts, asphalt shingles, or other specific requirements.

6. Does this system include batteries for energy storage?

This is an on-grid system, but it can be configured with Gel or Lithium batteries depending on your specific requirements and model selection.
