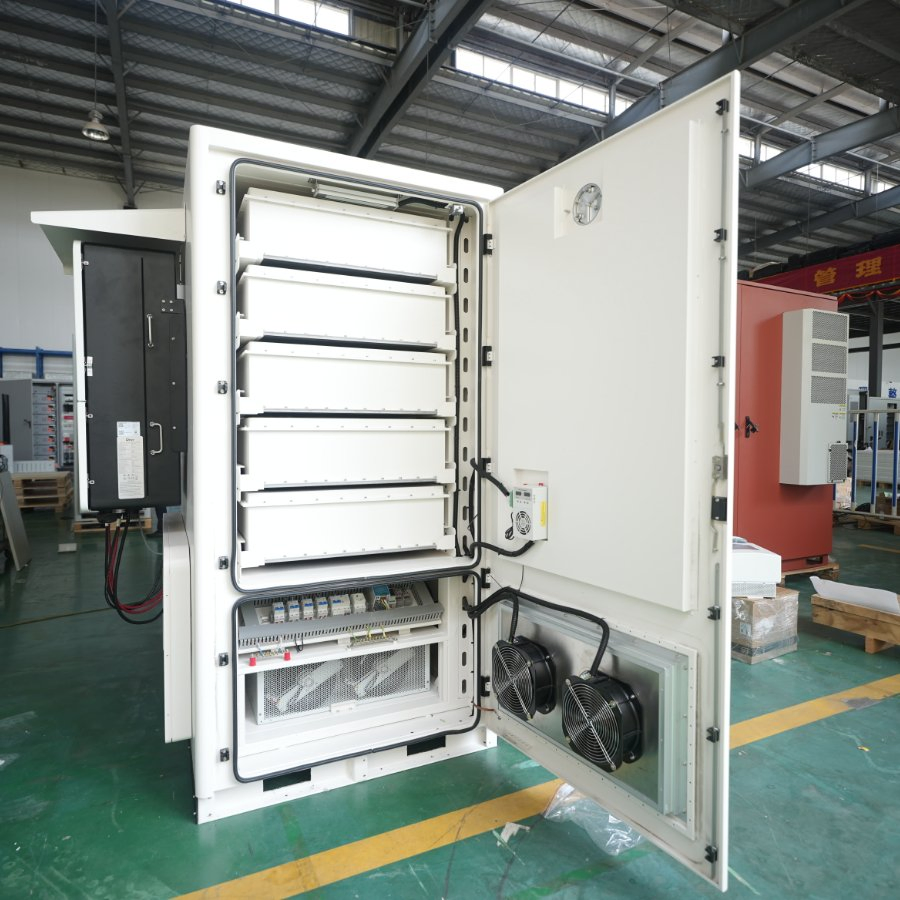

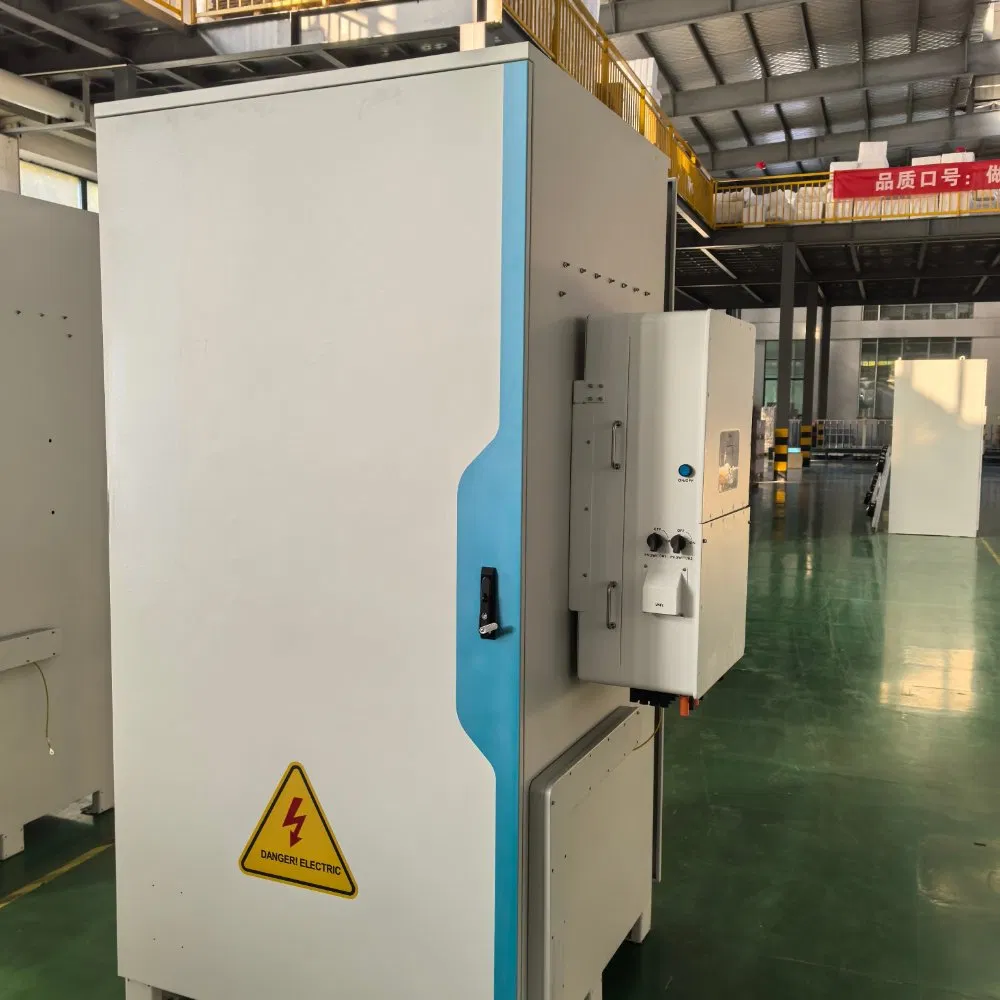

Outdoor Cabinet Bess Battery Storage 50kw 80kw 200kwh 261kwh 1mwh Lithium Solar Battery Energy Storage System

Basic Specifications

Model NO.	ATESSOT100-215KWH	Battery Type	Lithium Iron Phosphate
Nominal Capacity	100~215kwh	Cooling	Air Conditioning Air Cooling
Cycle Life	More Than 6000 Cycles	Application	Outdoor / Industrial / Commercial
Protection Degree	IP54	Designed Life	More Than 10 Years
Total Weight	1.25t	Certifications	IEC62619, IEC61000, UN38.3, MSDS

Product Description

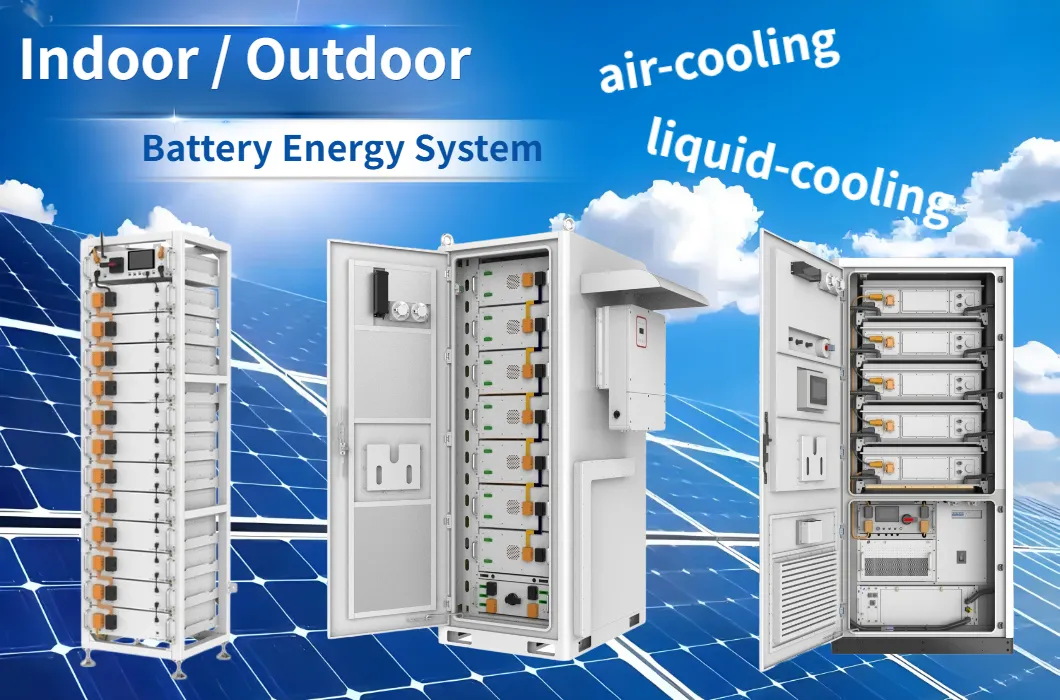

Commercial Battery Storage Energy System: Flexible options for indoor (steel bracket) or outdoor (cabinet) installation. Capacity ranges from 100KWh to 261KWh, expandable through parallel connection. Ideal for industrial and commercial renewable energy storage.

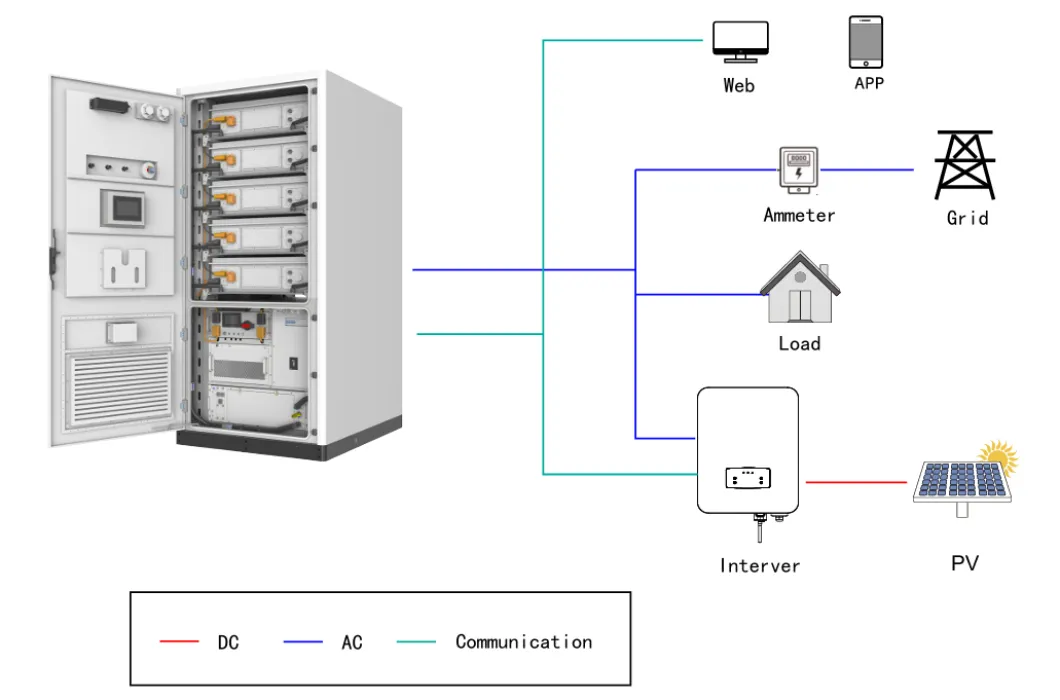

Application Topology & Benefits

Electricity Bill Savings: Peak shaving and valley filling to reduce demand charges.
Renewable Consumption: Store surplus PV energy during the day for night use.
Microgrid Capability: Stable power for remote areas like islands or mountains.
Power Expansion: Meets load demand when distribution capacity is insufficient.
Standby Power: Ensures continuity during power outages or rationing.
Demand Response: Supports grid dispatch for potential subsidies.

Technical Parameters

Model	ATESSOT50-100KWH	ATESSOT100-200KWH
Rated Power	30/50 KW	80/100 KW
System Capacity	100.352 KWH (MAX)	200.7 KWH
DC Voltage Range	560~850 V	615~900 V
AC Voltage Range	320~460 V	320~460 V
Dimensions (WxDxH)	1500x1100x2080 mm	1760x1100x2080 mm
Operating Temp	-25°C ~ +50°C	-25°C ~ +50°C

System Components & Advantages

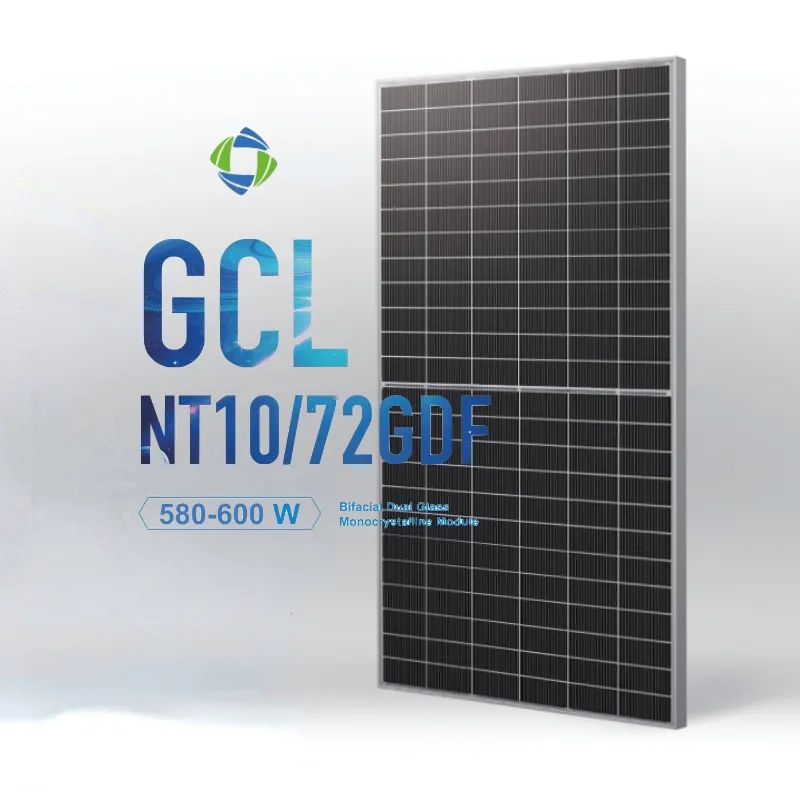

Solar Panels
400W+ to 600W+

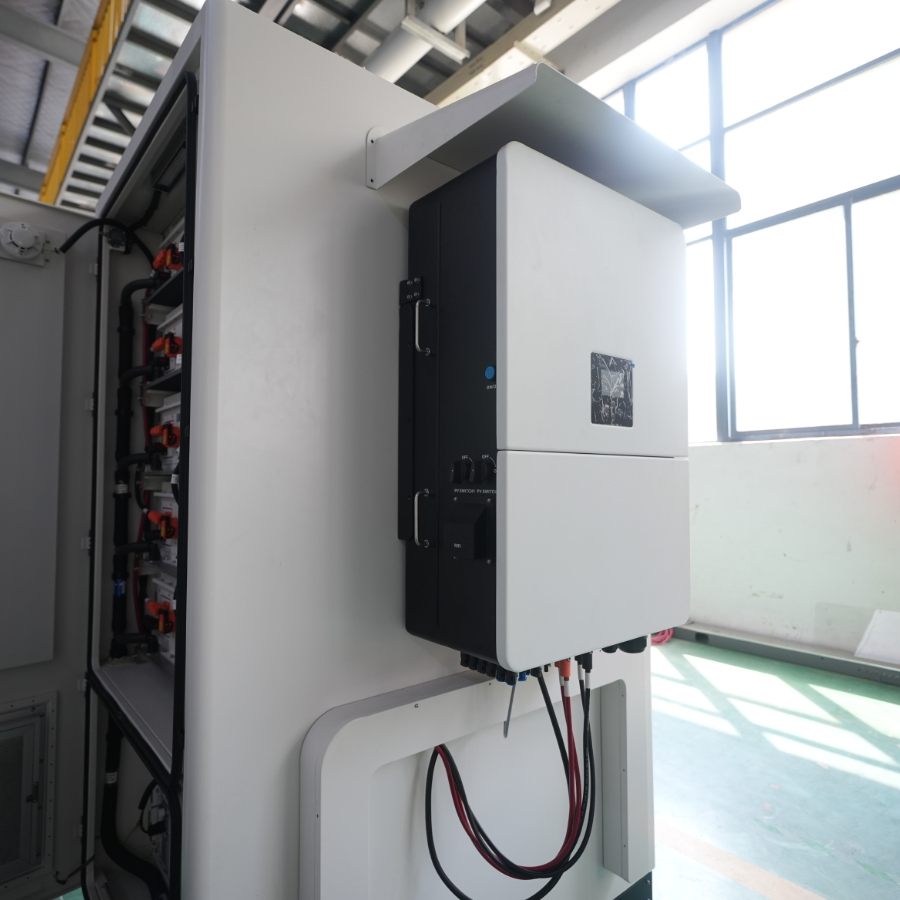

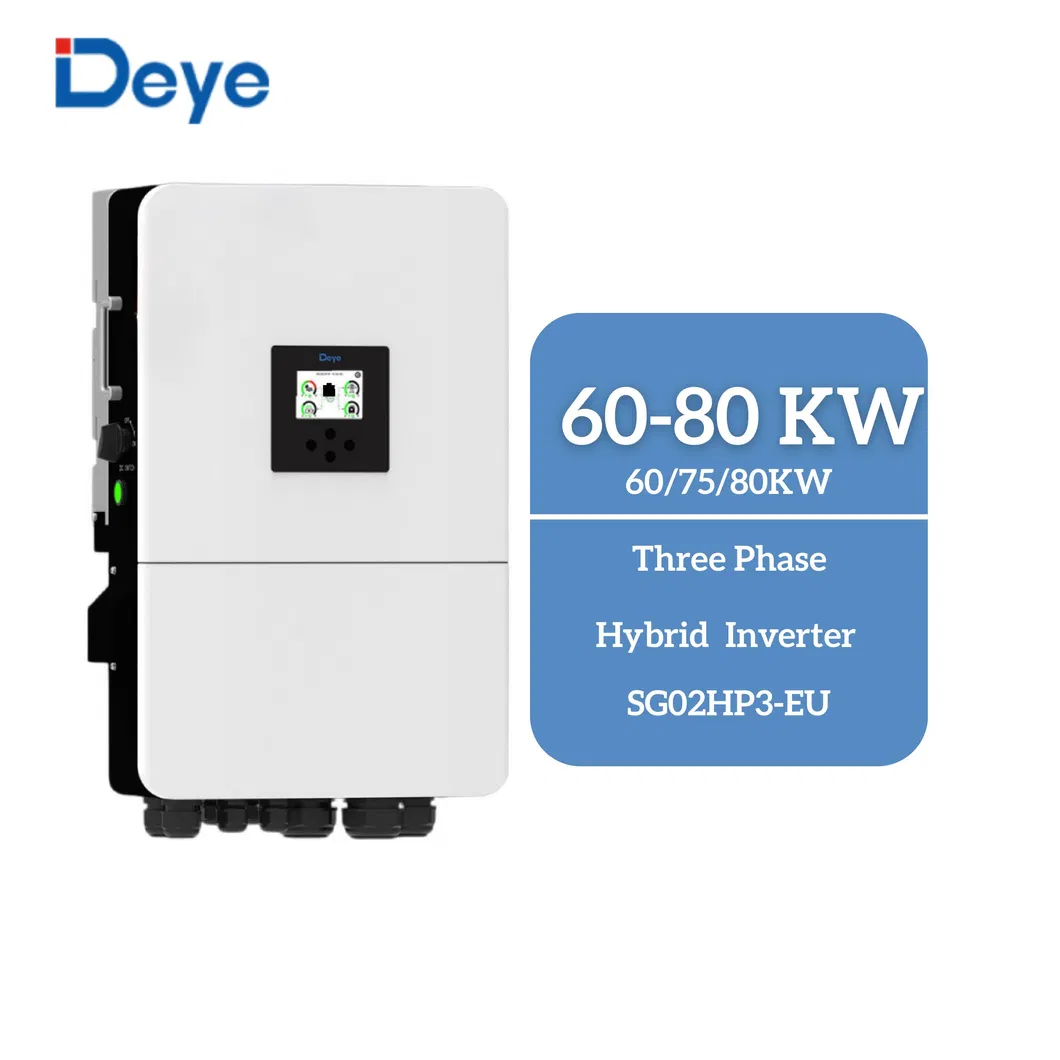

Hybrid Inverter
30Kw~80Kw

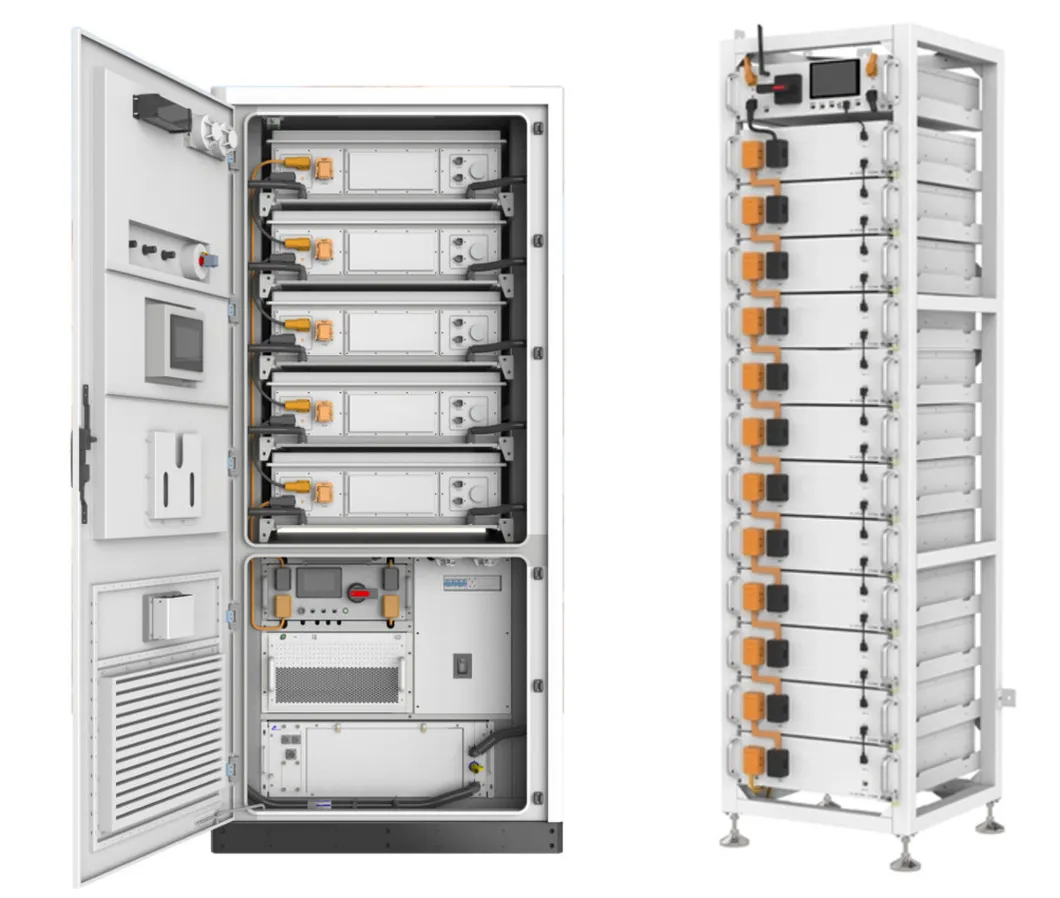

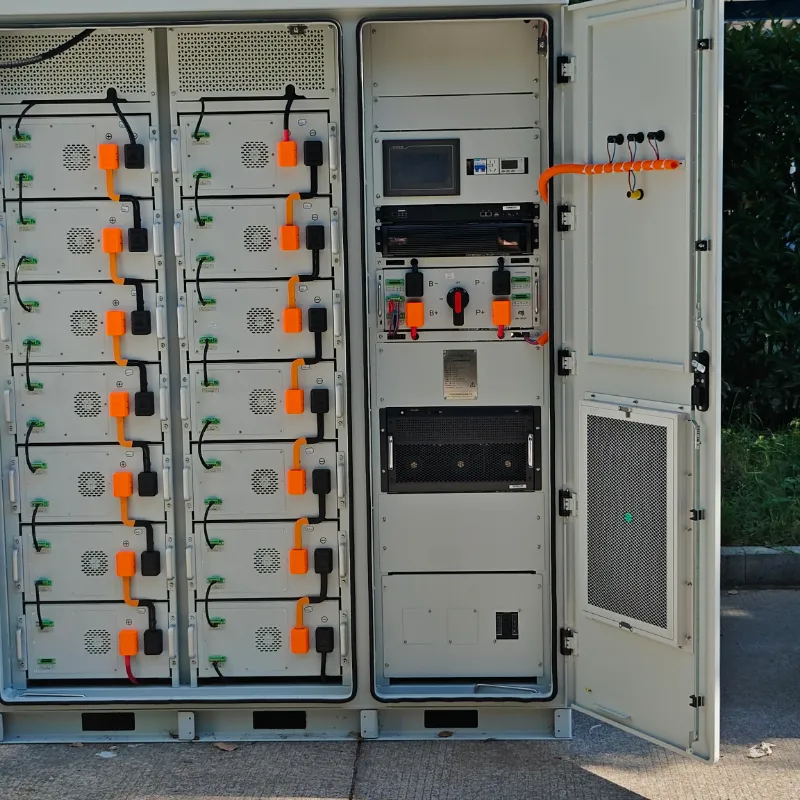

Storage System
100KWh - 1.8MWh+

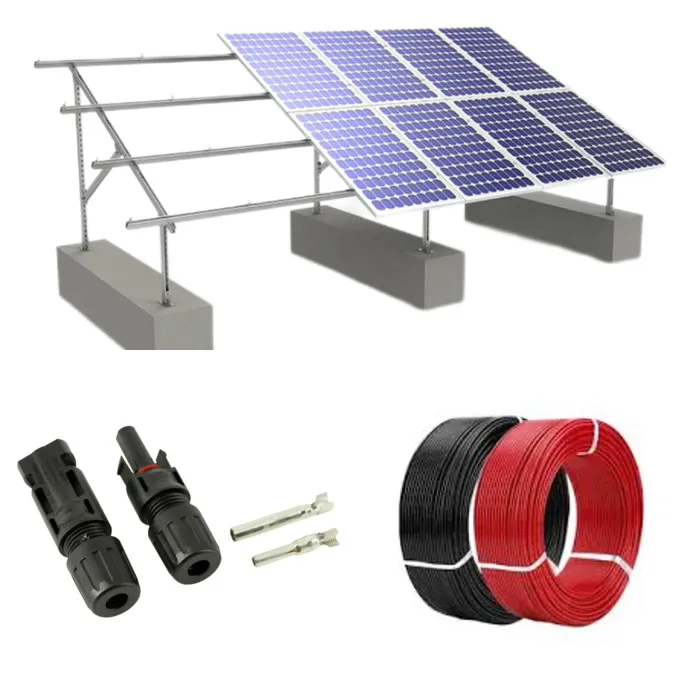

Accessories
Cables & Connectors

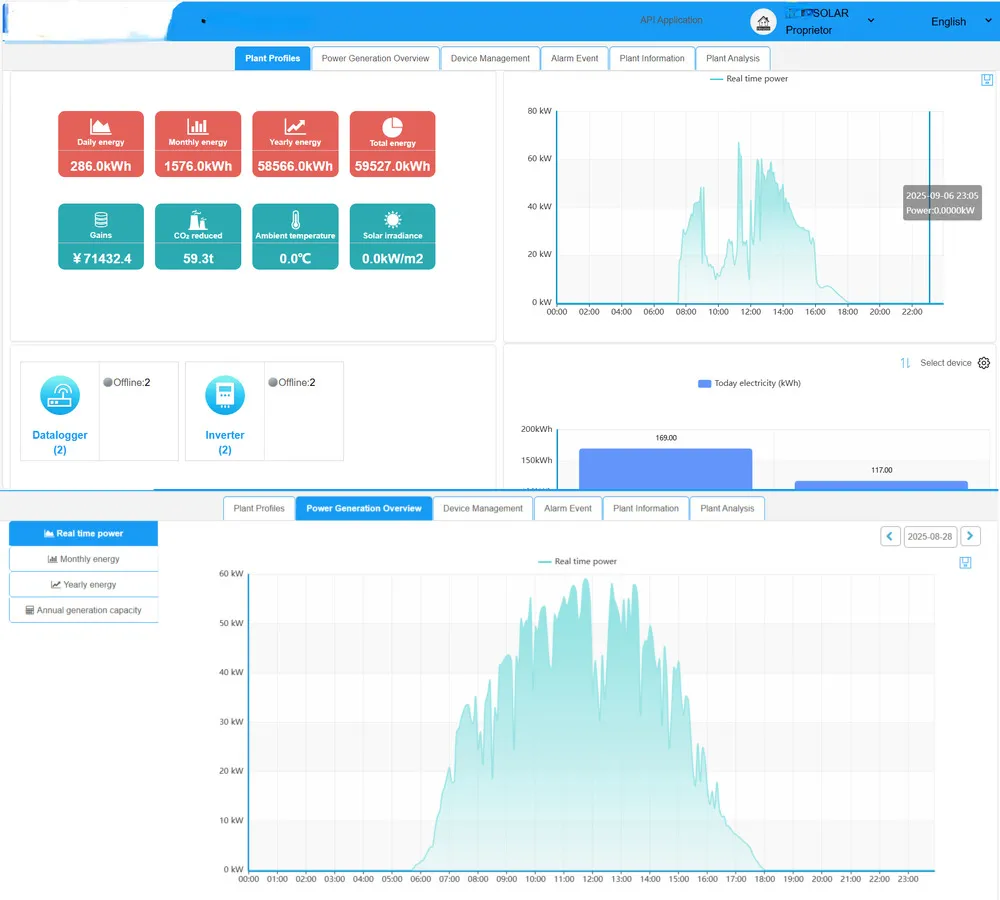

PV Monitoring
Real-time Management

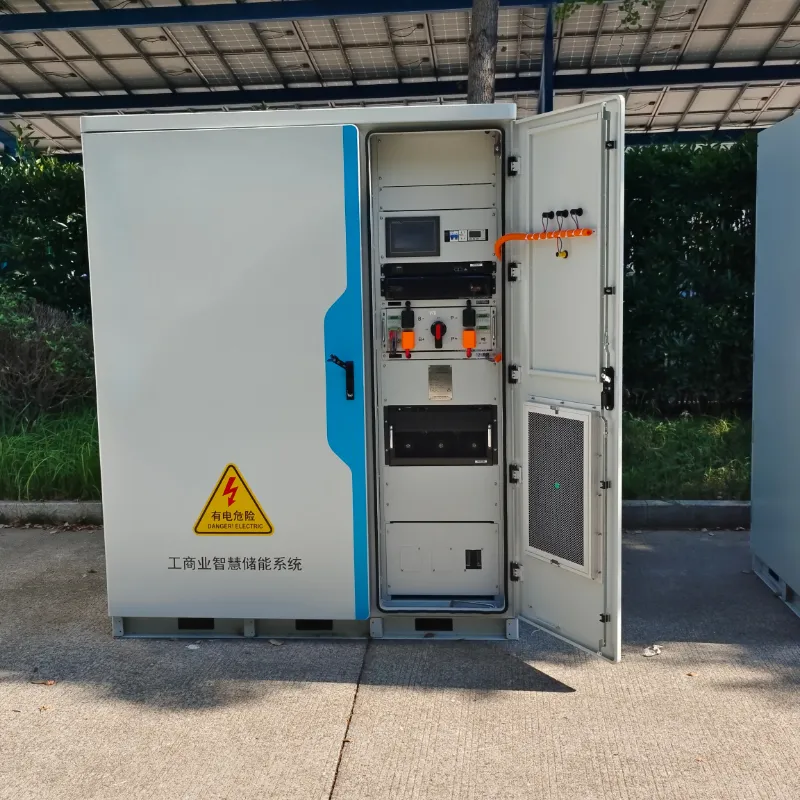

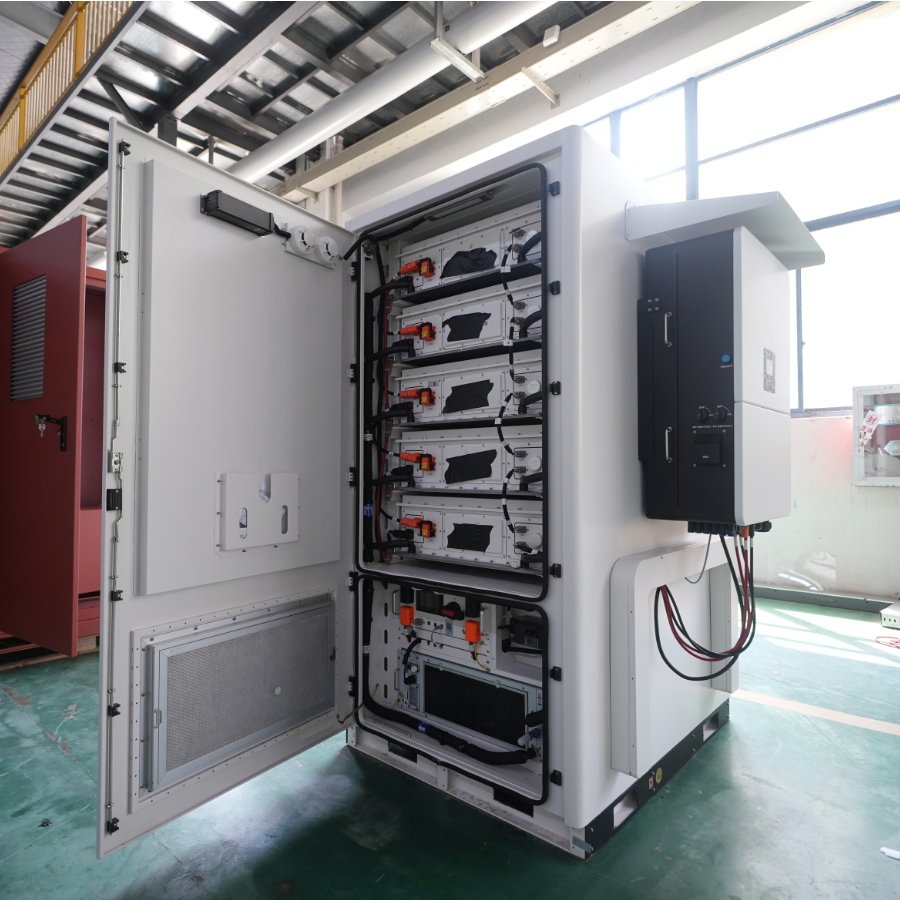

Detailed Photos

Packaging & Shipping

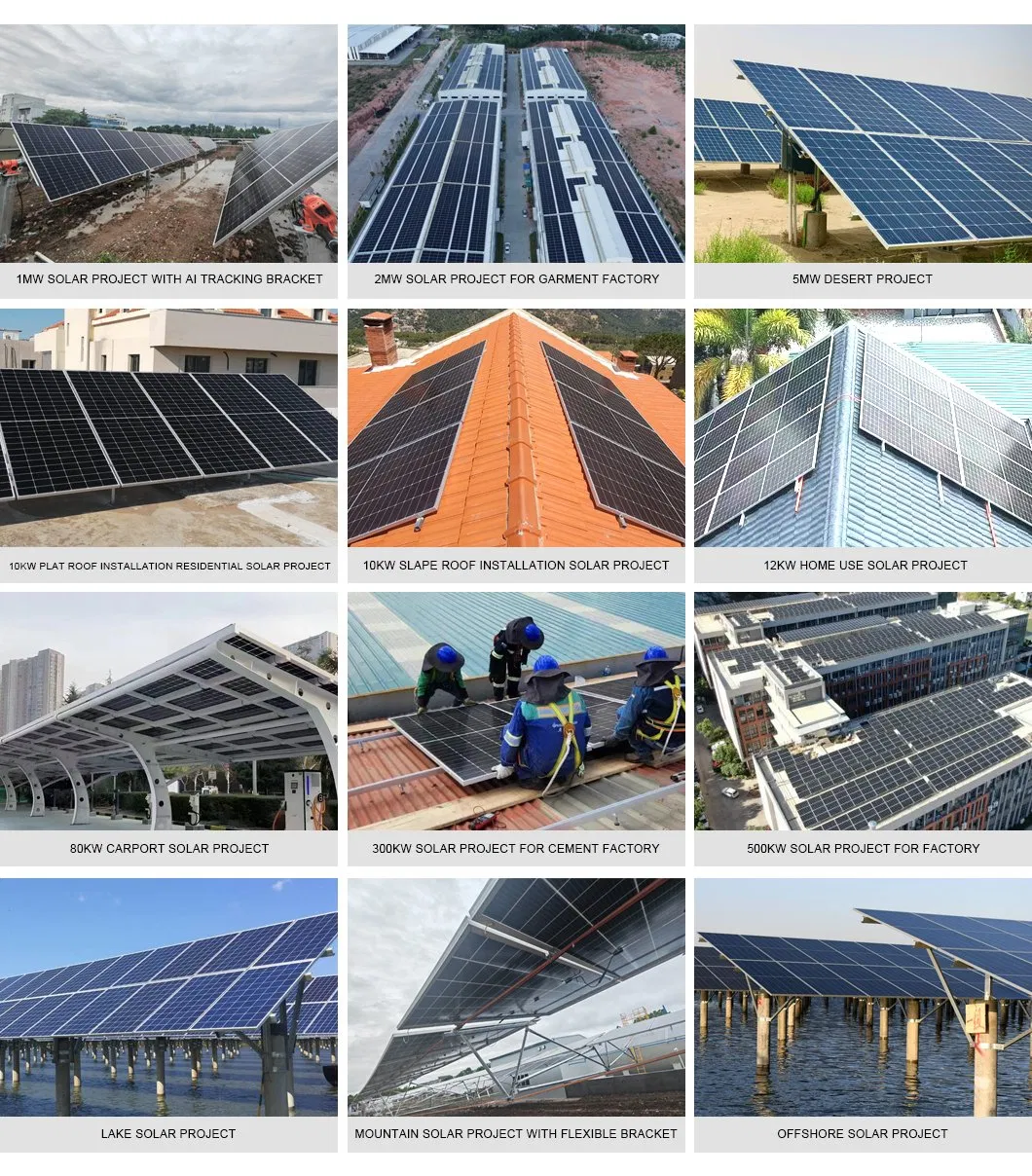

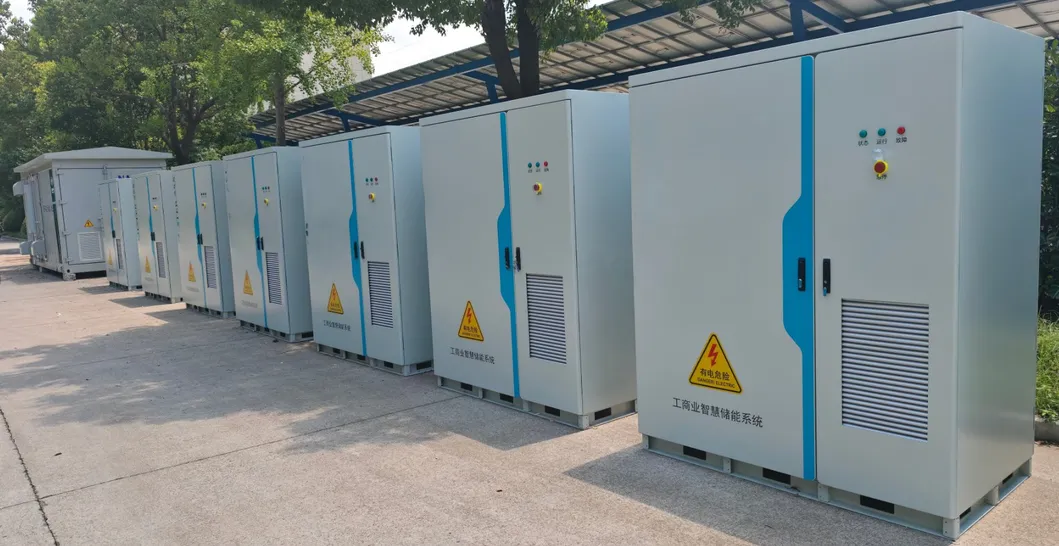

Project Cases & Certifications

Frequently Asked Questions

1. What is the expected lifespan of the battery system?

The system is designed for more than 10 years of service life, with the lithium iron phosphate cells supporting over 6,000 cycles.

2. Can this energy storage system be installed outdoors?

Yes, the system is IP54 rated and features an integrated air conditioning cooling system specifically designed for outdoor environments.

3. What are the primary applications for this system?

It is widely used for peak shaving, valley filling, solar energy storage, microgrids in remote areas, and as a backup power supply for industrial and commercial sectors.

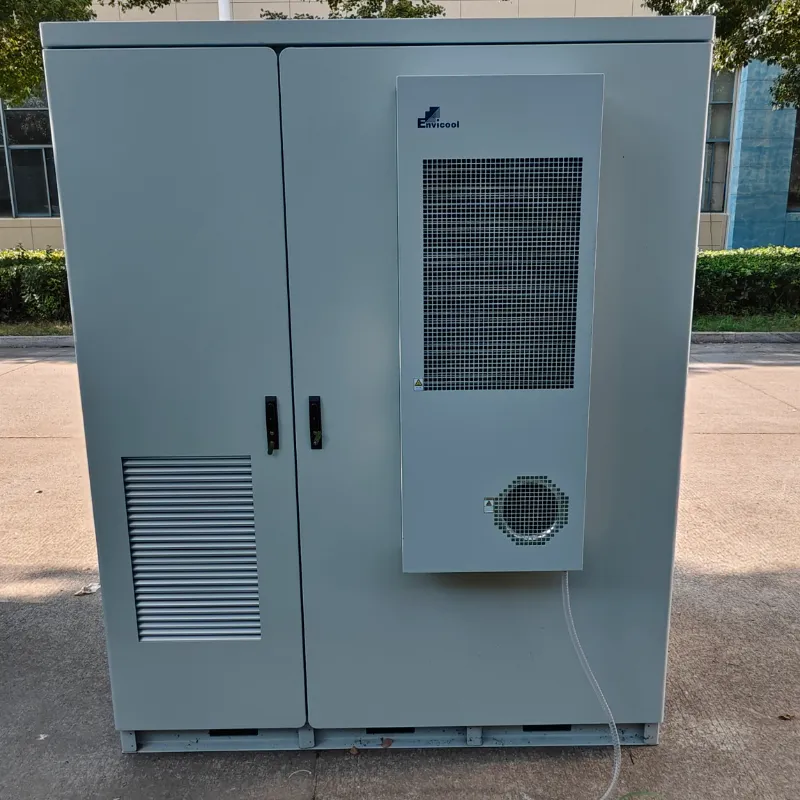

4. How is the battery system cooled?

The system utilizes intelligent air conditioning and air cooling technology to maintain optimal operating temperatures between -25°C and +50°C.

5. Is the capacity expandable?

Yes, multiple units can be connected in parallel to expand capacity from 100KWh up to 1.8MWh or more depending on project requirements.

6. What certifications does the product hold?

Our systems are fully certified with IEC62619, IEC61000, UN38.3, and MSDS for international safety and shipping compliance.
