📊 Overview & Basic Info

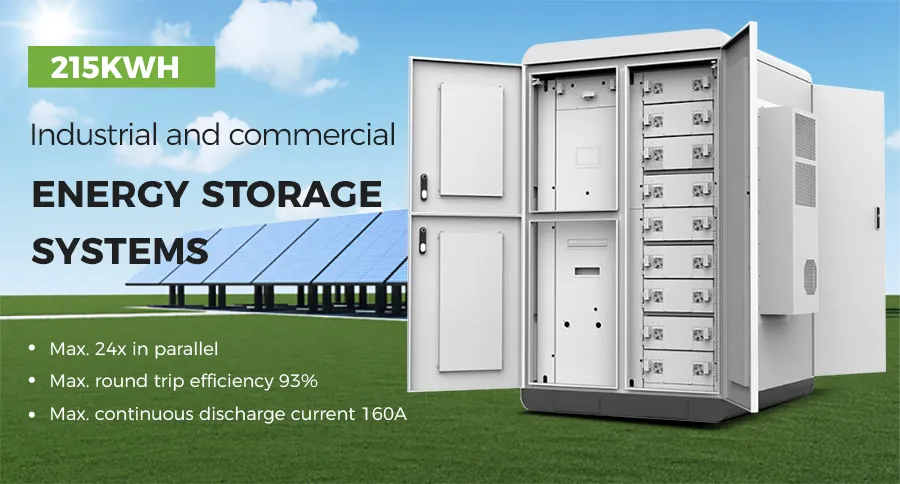

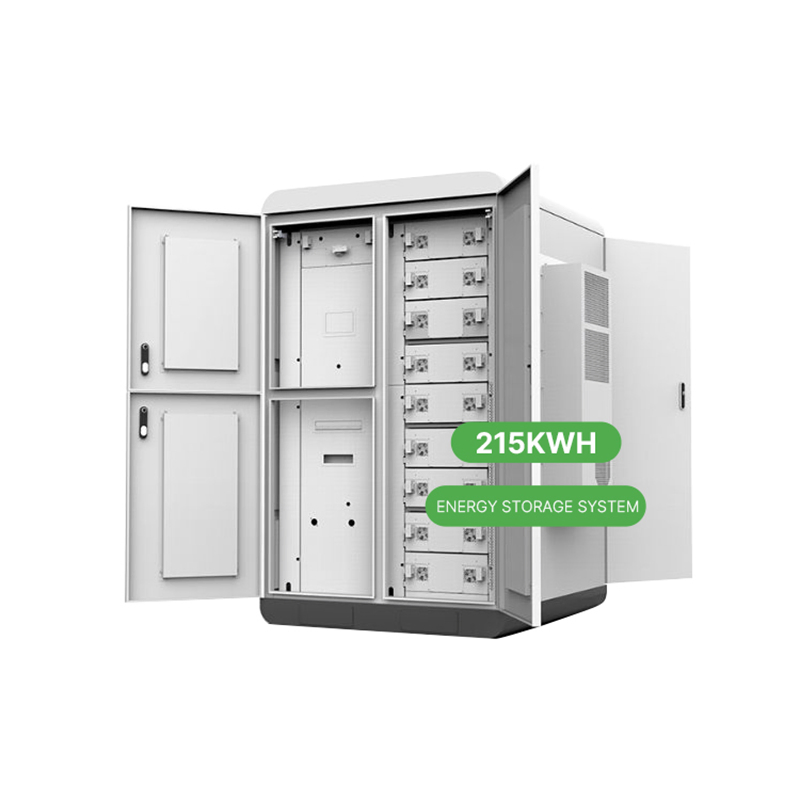

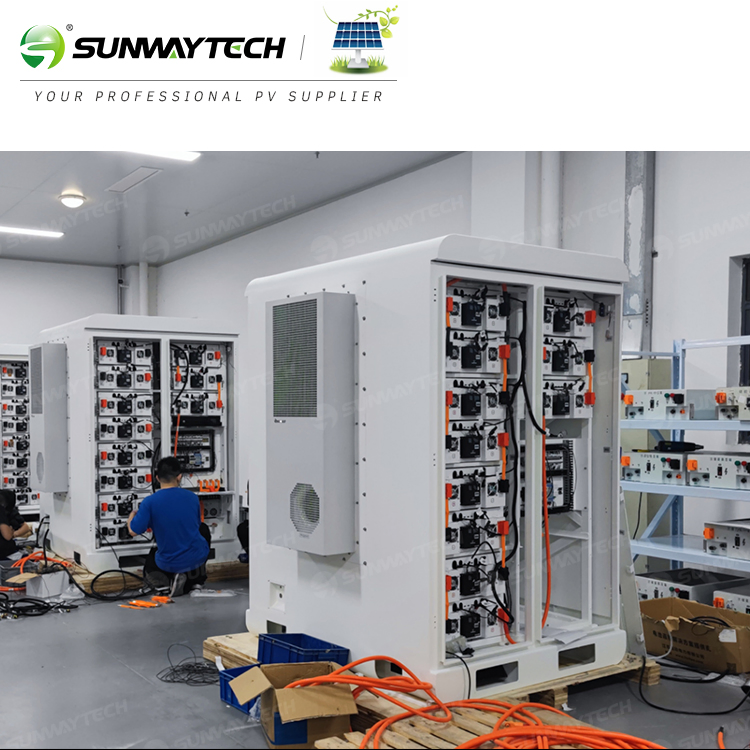

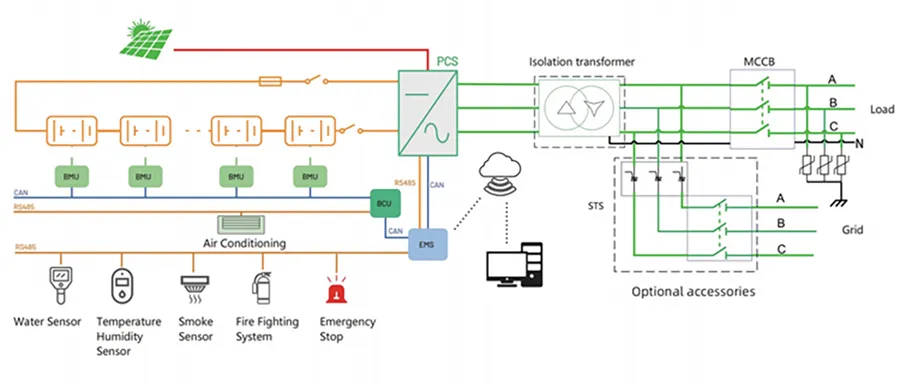

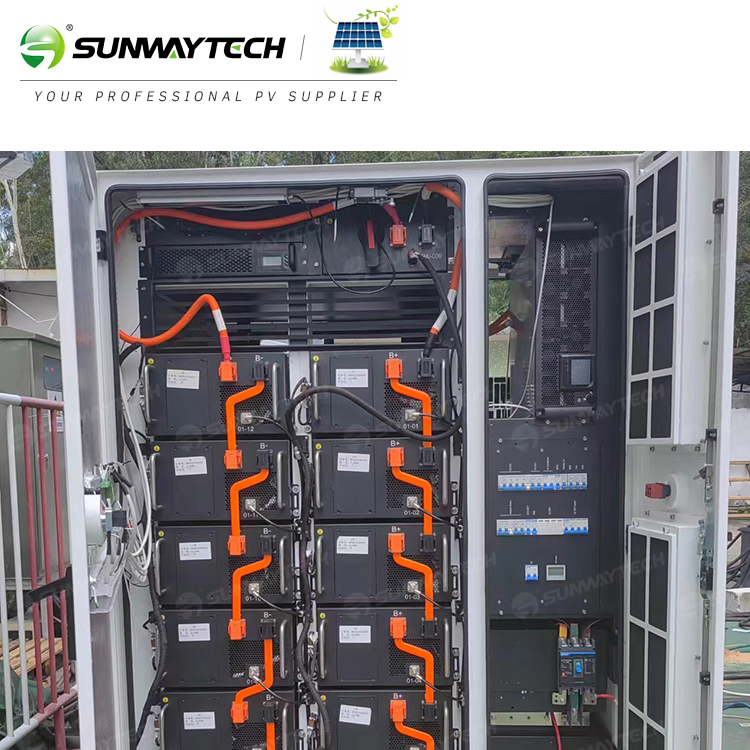

215 commercial & industrial energy storage system adopts the all-in-one design concept. The cabinet is integrated with battery management system (BMS), energy management system (EMS), modular power conversion system (PCS), and fire protection system. The system's capacity is up to 215 kWh and the power is up to 100 kW.
| Model NO. | SWS-215kWh |
| Nominal Voltage | 768V |
| Nominal Capacity | 215 Kwh |
| Cycle Life | > 8000 cycles |
| Protection Degree | IP 55 |
| Communication Port | RS485 / Ethernet |
| Grid Connection | Hybrid Grid |
| Cooling | Air Cooling |
| DoD | 95% |
| Rated Grid Frequency | 50/60 Hz |
| Specification | Lithium Ion |
🔍 Product Description

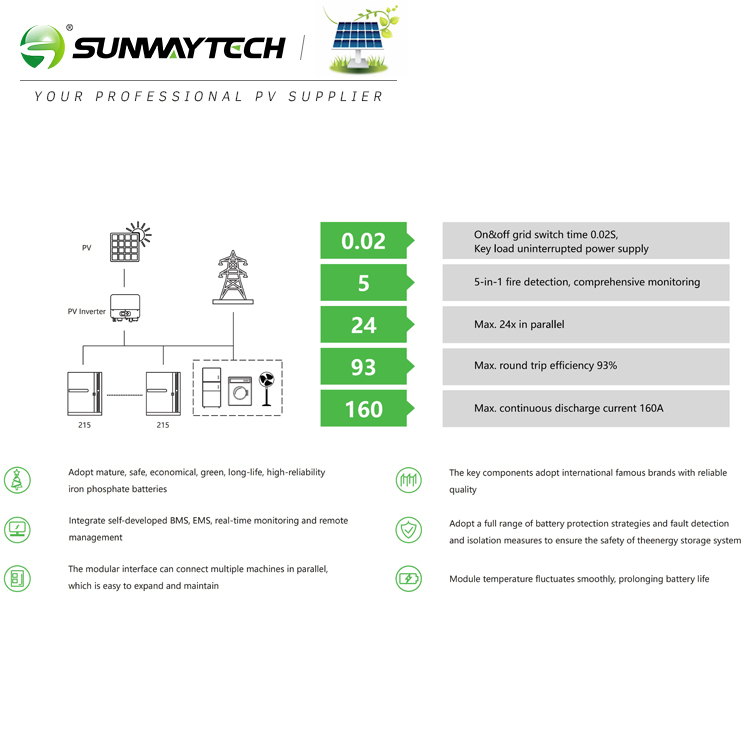

The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start (The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault).
❓ Frequently Asked Questions
What is the total capacity of this storage system?
The system features a rated battery capacity of 215kWh with a rated power output of 100kW.
What kind of battery technology is used?
The system utilizes high-quality Lithium Ion technology with a cycle life of over 8000 cycles at 80% EOL.
Is the system suitable for outdoor installation?
Yes, the enclosure has an IP55 protection rating, making it resistant to dust and water suitable for various environments.
How is the temperature regulated within the cabinet?
The system is equipped with an industrial-grade air conditioning cooling strategy to maintain optimal operating temperatures.
What safety features are integrated for fire protection?
The cabinet includes a built-in fire fighting system using Perfluorohexanone for maximum safety.
Does this system support grid-connected operation?

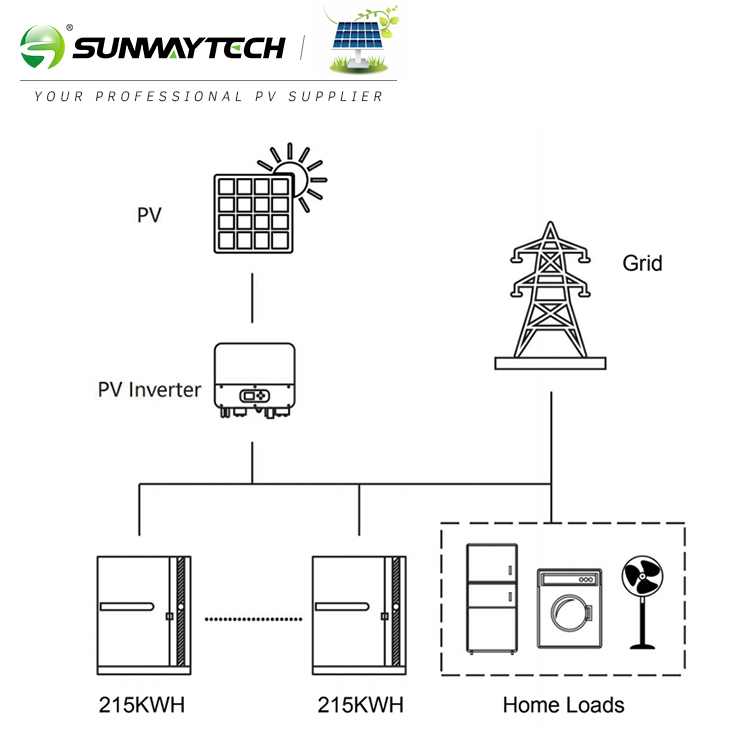

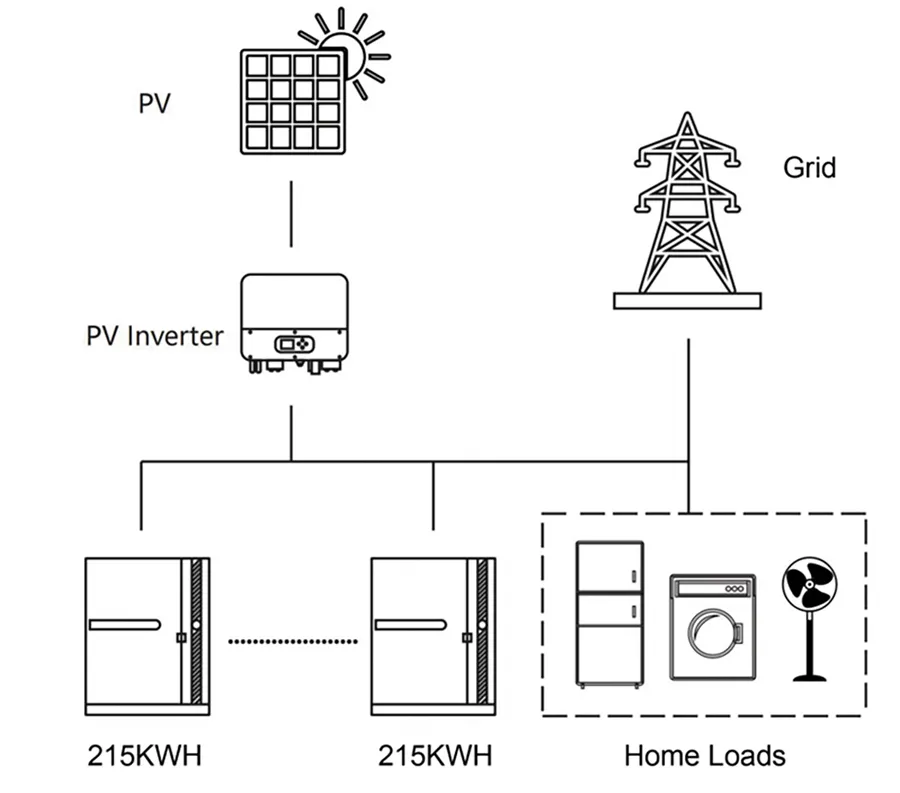

Yes, it supports Hybrid Grid connections and can handle tasks like backup power supply and black starts.
