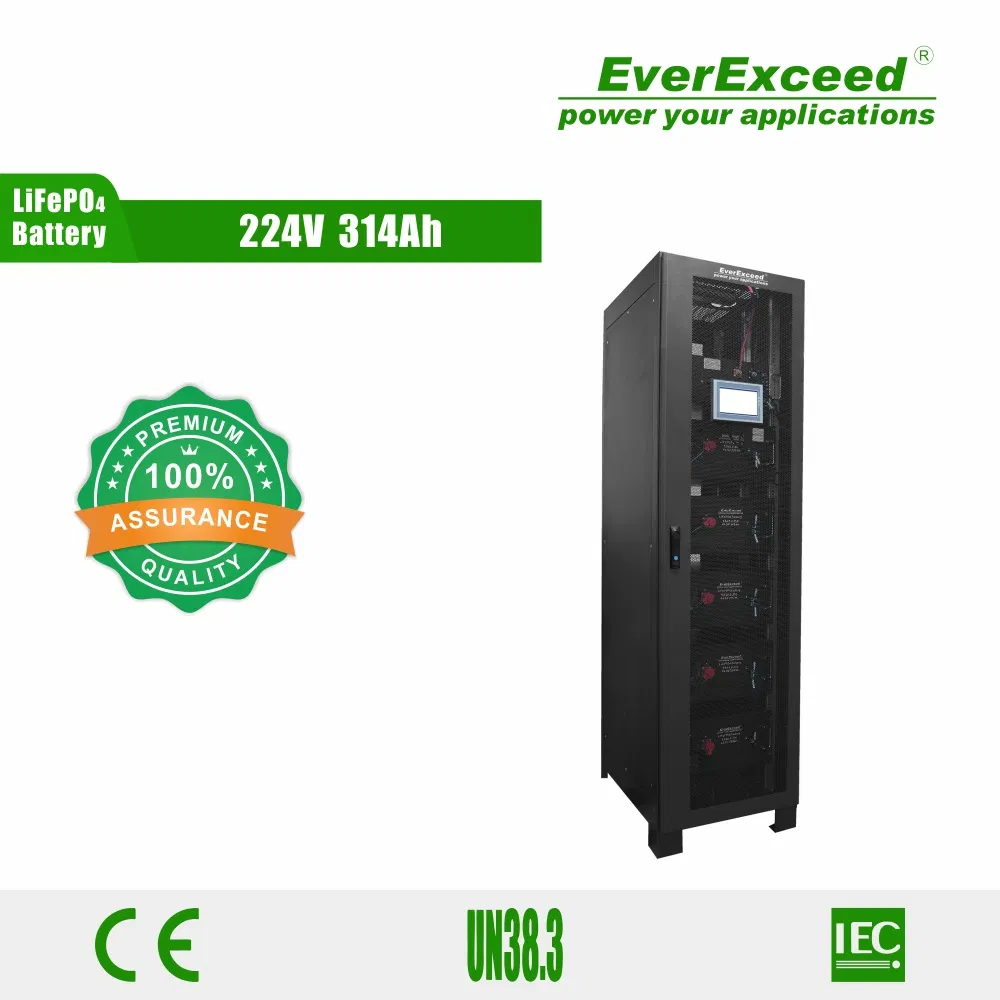

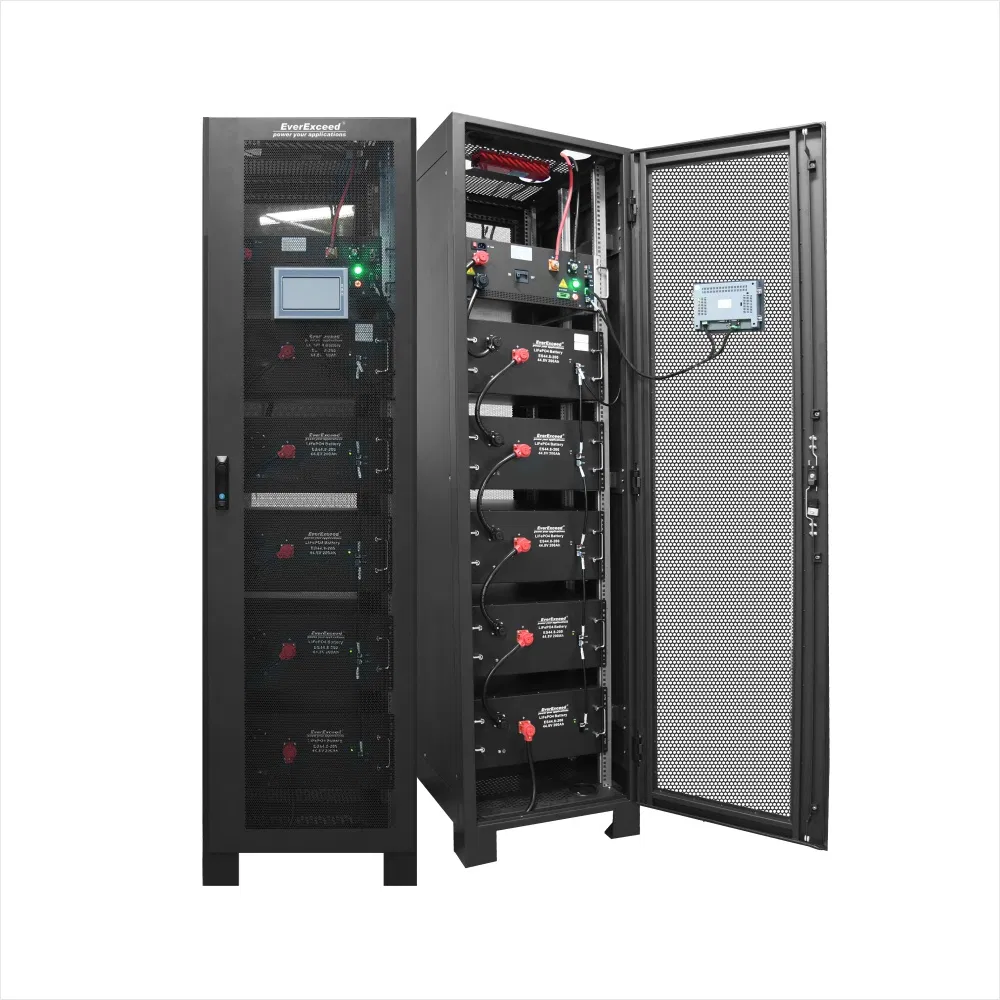

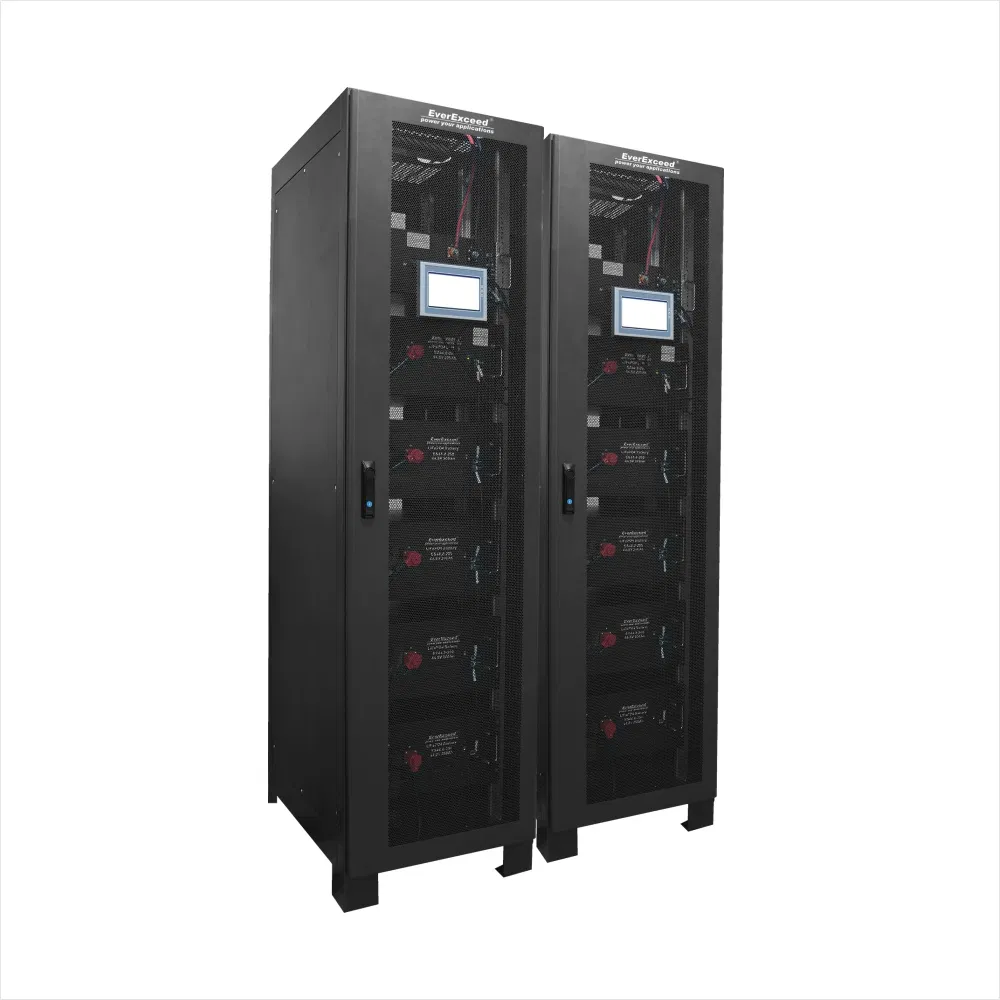

70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
1 / 5
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power
70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power

70kwh 314ah Industrial High-Voltage Lithium Battery for UPS Backup Power

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
ES115-314
Rechargeable
Chargeable
Certificates
ISO / CE/ Un38.3/IEC
Electrolyte
Li-ion
Nominal Voltage
115.2V
Nominal Capacity
314Ah
Usage
UPS Backup Power
Production Capacity
3,500,000kah/Year
📦

Packaging & Delivery

Package Size
48.30cm * 60.00cm * 24.00cm
Gross Weight
300.000kg
🔋

70kWh 314Ah Industrial High-Voltage Lithium Battery

Our lithium battery solutions for power applications utilize Grade A prismatic high-safety LiFePO4 cells. The master-slave series high-voltage solution is employed, making it compatible with industrial chargers, DC panels, and other energy storage backup applications. This high-voltage solution supports multi-cluster parallel connections and high-rate discharge, covering a full range of long-term and short-term backup power applications, delivering reliable and continuous electrical energy.

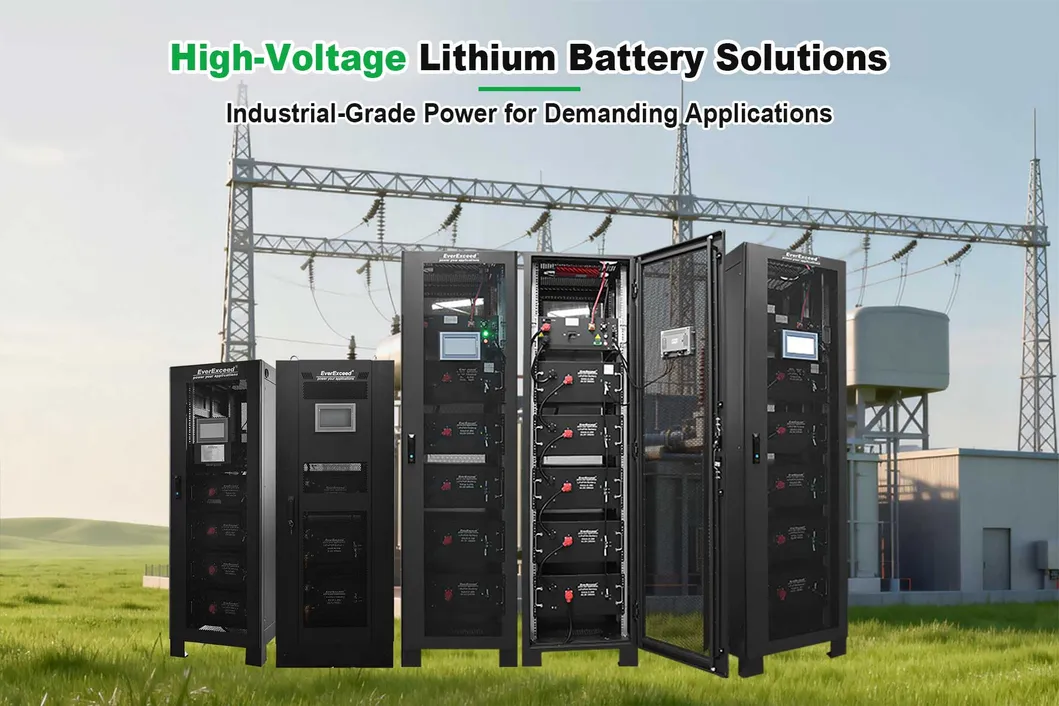

Industrial Lithium Battery Solution
🌟

Key Features

⚙️ Scalable Design

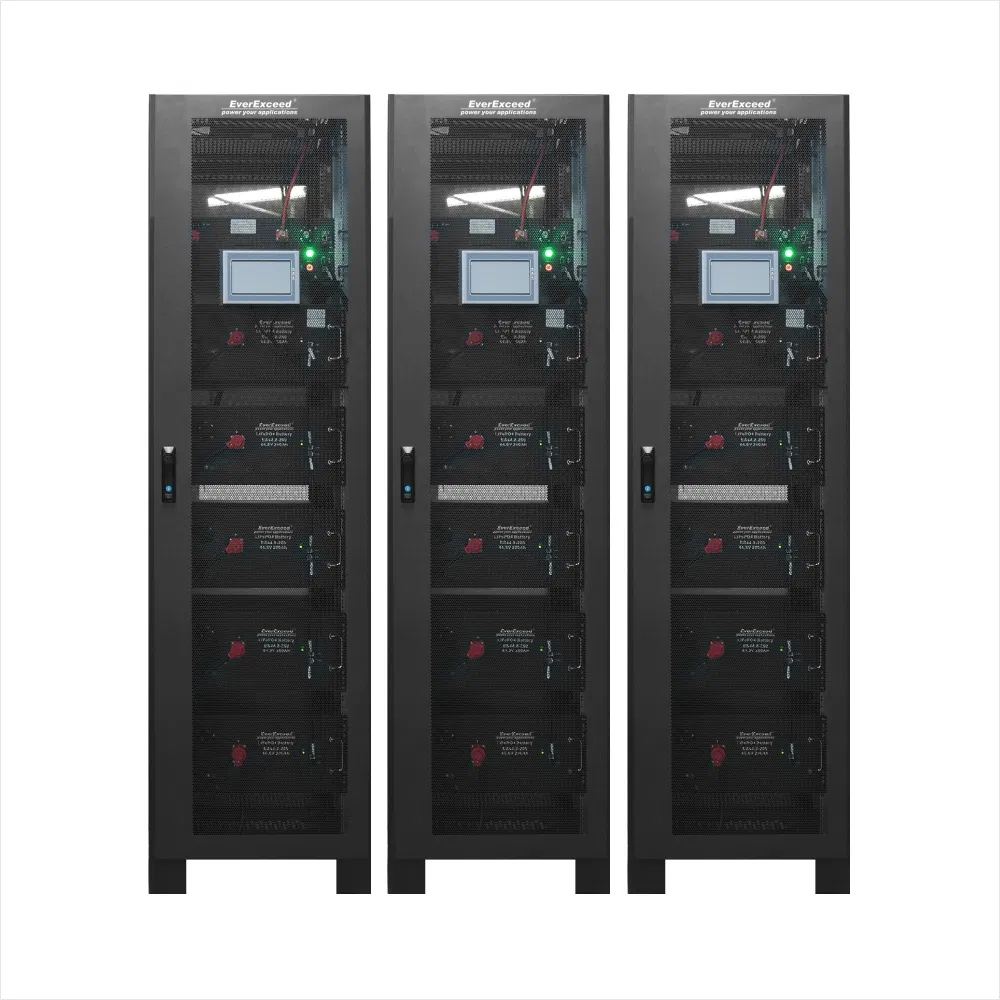

Supports multi-cluster parallel connections for superior power efficiency.

🛡️ 4-Layer Safety

Integrated Smart BMS, physical aerosol extinguishers, and cabinet-level fire suppression.

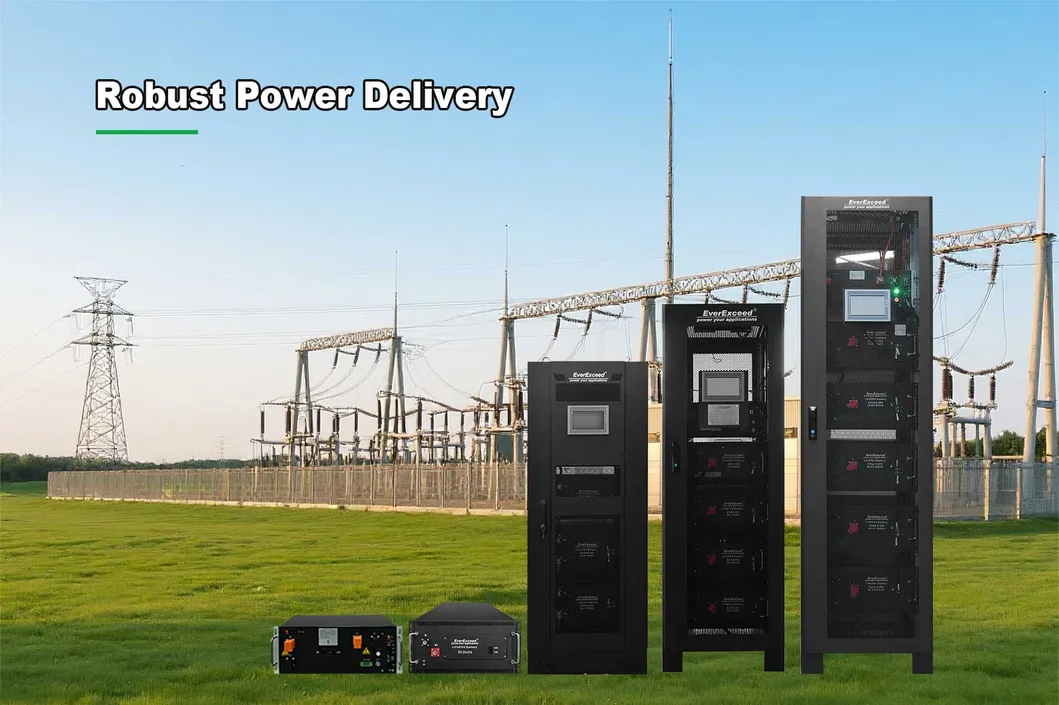

⚡ Robust Delivery

High-rate discharge ensures stable performance under demanding conditions.

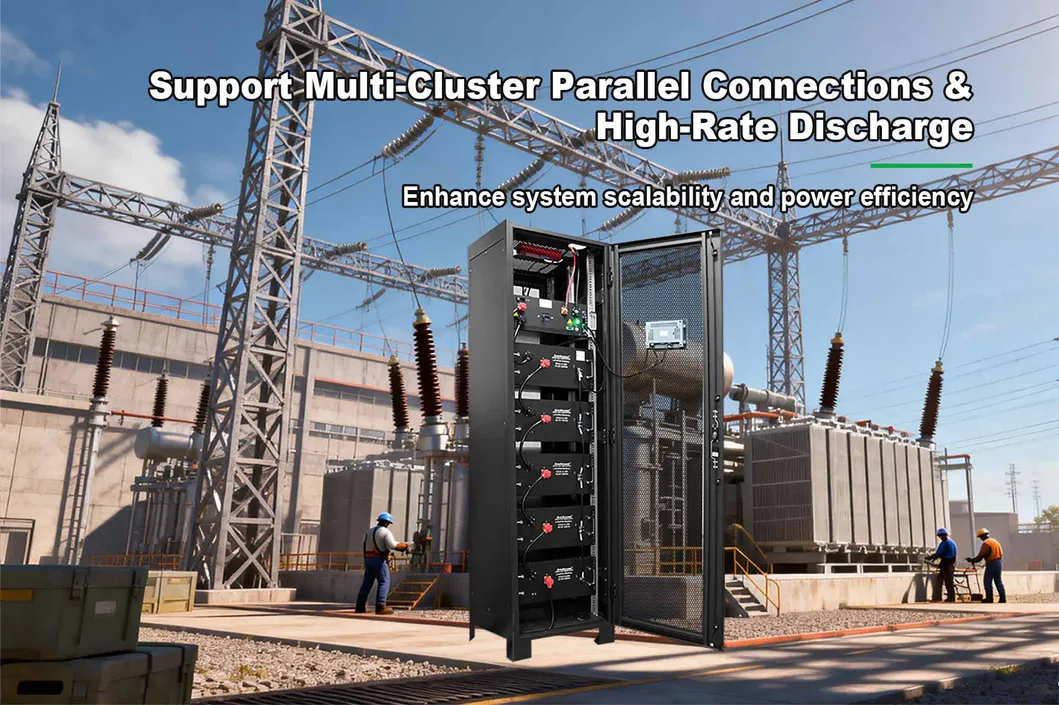

Technical Features
Performance Monitoring
🏭

Applications

Power Plants & Substations: Stable backup for energy infrastructure.
Railways & Transportation: Uninterrupted signaling and communication.
Mining & Heavy Industries: Reliable energy storage for safety operations.

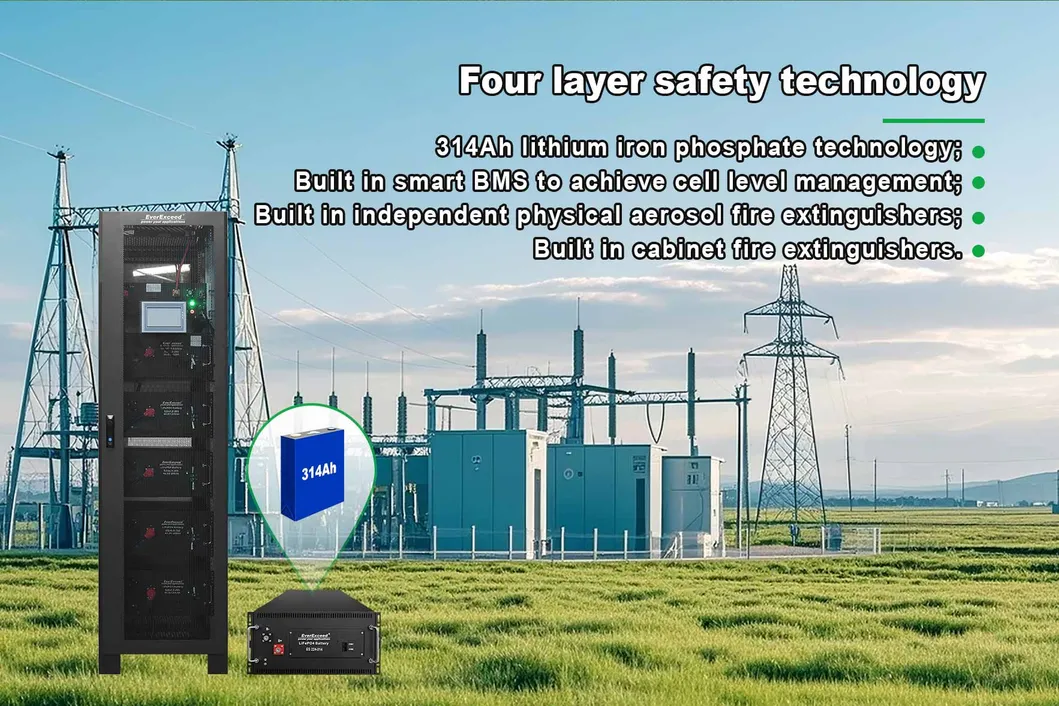

Safety Technology
📋

Technical Parameters

Basic Specification
Nominal Voltage115.2V
Nominal Capacity314Ah
Total Energy36.1kWh
Charging & Discharging
Maximum Charging Voltage124.2V
Maximum Charging Current150A
Voltage Range100.8~124.2V
Maximum Continuous Discharge150A
Environmental & Physical
Fire ProtectionModule and Cabinet-level
Communication InterfaceCAN, RS485, Dry contacts
Operating TemperatureCharge: 0~45°C, Discharge: -20°C~60°C
Cabinet Dimension600*800*1600mm
Total Weight470±50kg
🤝

Why Choose Our Solutions?

Service24/7 pre-sales and after-sales support, OEM, ODM
QualityHighly reliable quality guaranteed by advanced production equipment and technology
WarrantyStandard 2 years, extended options available upon request
Experience30+ years of battery manufacturing expertise since 1985
Global ReachCoverage in 65+ countries with multiple production bases
Global Logistics

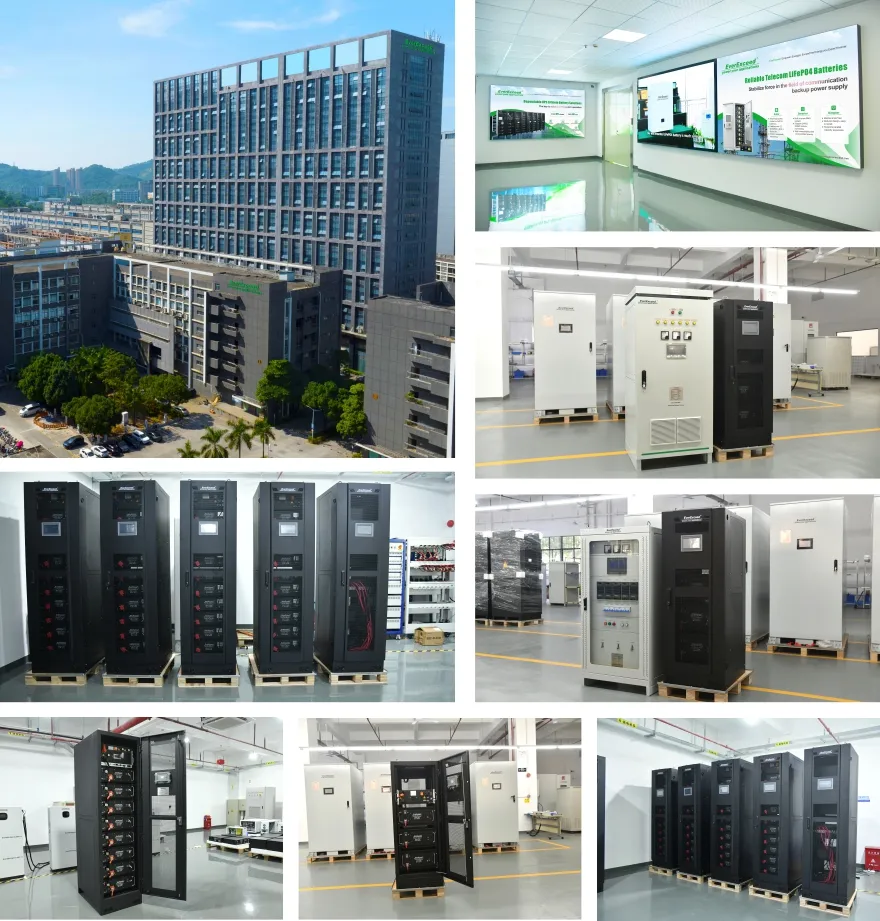

Manufacturing Center
❓

Frequently Asked Questions

What is the difference in charging time?
Faster charging times are beneficial if you need backup power to be restored quickly. Our UPS lithium battery solutions are designed to meet high-speed charging requirements efficiently.
How do the lifespan and cycle life compare?
Our LiFePO4 technology offers significantly longer cycle life compared to traditional lead-acid batteries, greatly reducing long-term maintenance and replacement costs.
What are the differences in physical size and weight?
Lithium systems are much more energy-dense, offering a compact and lightweight solution that saves space compared to equivalent lead-acid systems.
What are the safety considerations?
Systems include multiple safety layers: cell-level management via Smart BMS, overcharge protection, short circuit prevention, and integrated fire suppression mechanisms.
How do equipment requirements align with the UPS?
Our high-voltage systems are designed for broad compatibility with industrial chargers, DC panels, and various communication interfaces like RS485 and CAN.
What type of technical support is provided?
We provide full technical support throughout the lifespan of the equipment, including installation guidance and reliable maintenance services through our global network.
