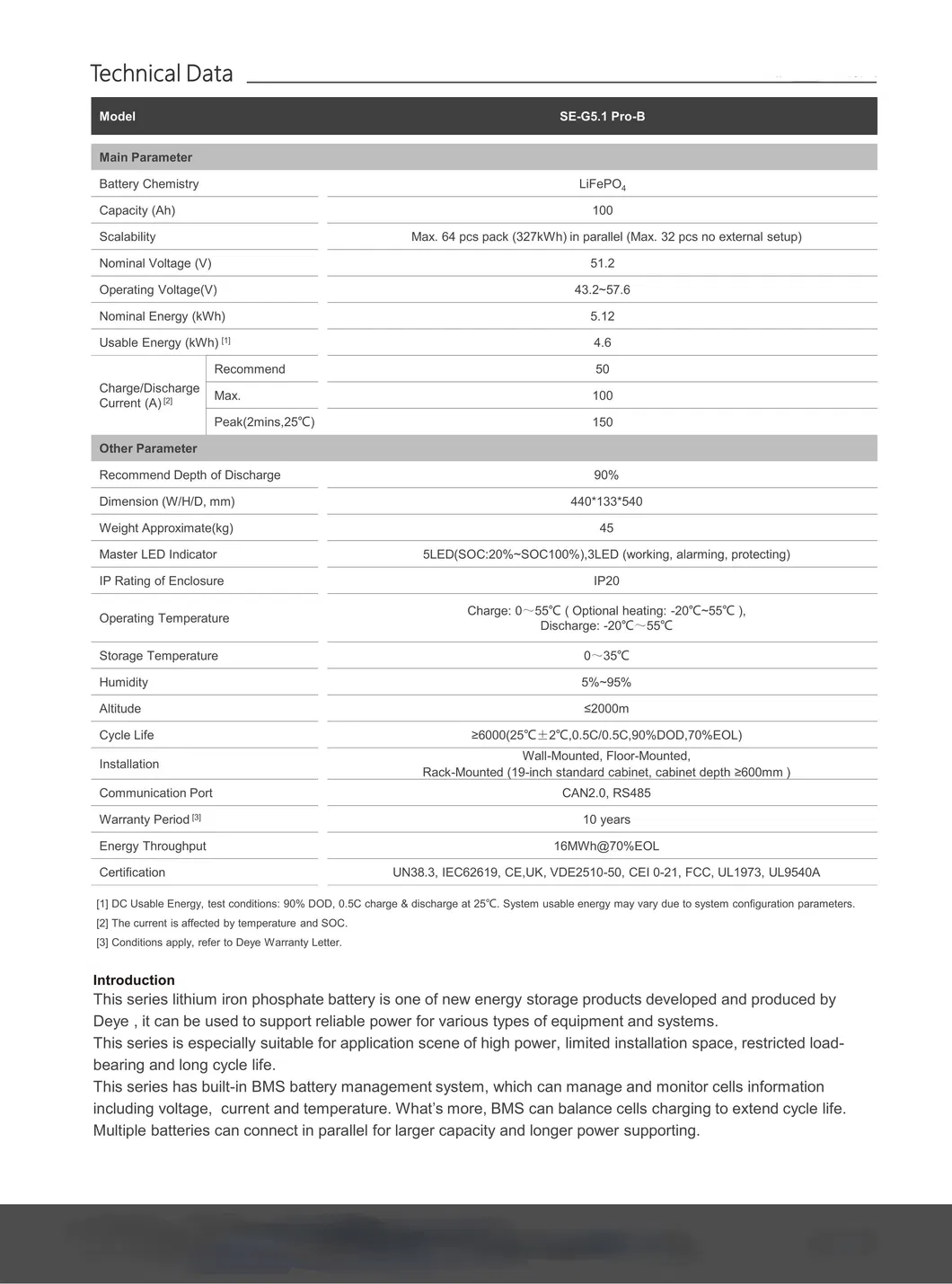

| Parameter | Details |
|---|---|
| Main Parameters | |
| Battery Chemistry | LiFePO4 |
| Capacity (Ah) | 100 |

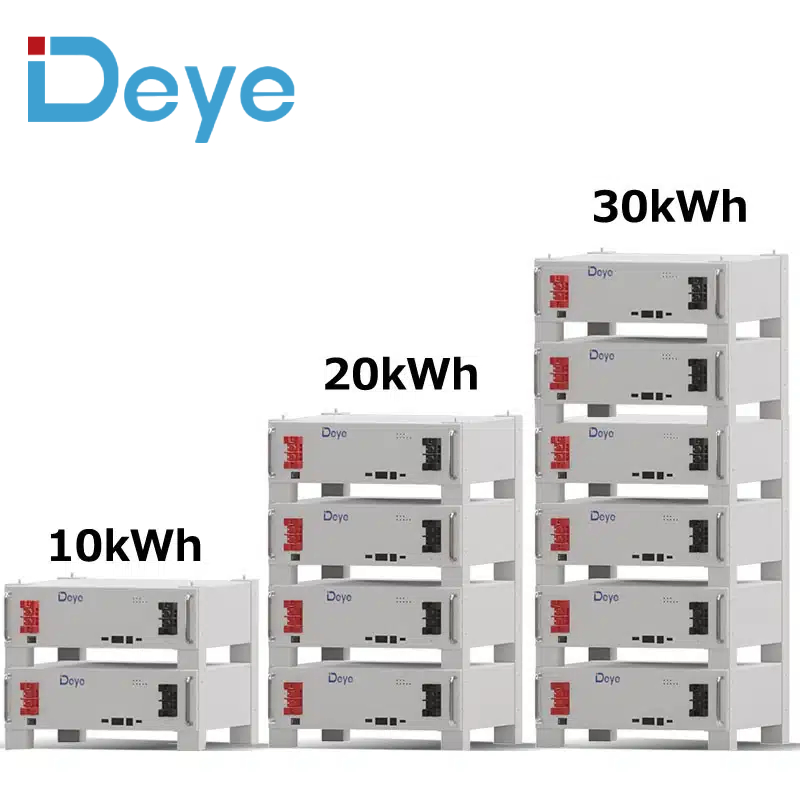

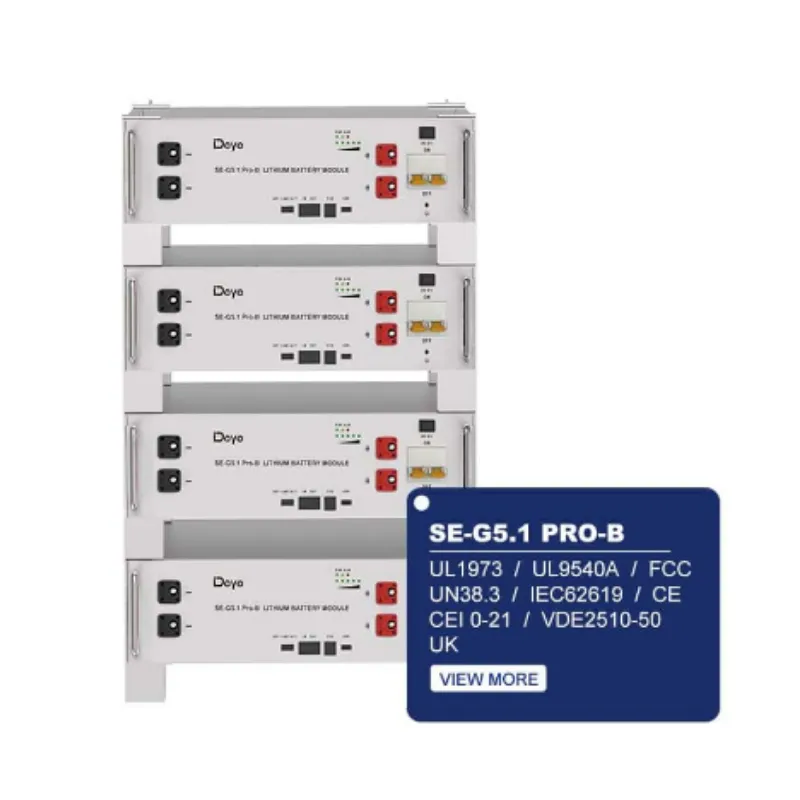

| Scalability | Max. 64 pcs in parallel (327kWh) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 - 57.6 |
| Nominal Energy (kWh) | 5.12 |
| Charge/Discharge Current (A) | Recommend 50A, Max 100A, Peak 150A |
| Other Parameters | |
| Depth of Discharge | 90% |
| Dimension (W/H/D, mm) | 440 * 133 * 540 |
| Weight (kg) | Approx. 45 |
| Operating Temperature | Charge: 0~55°C / Discharge: -20~55°C |
| Communication Port | CAN2.0, RS485 |
| Warranty | 10 Years |
| Certification | UN38.3, IEC62619, CE, UK, VDE2510-50, CEI0-21, FCC, UL1973 |
