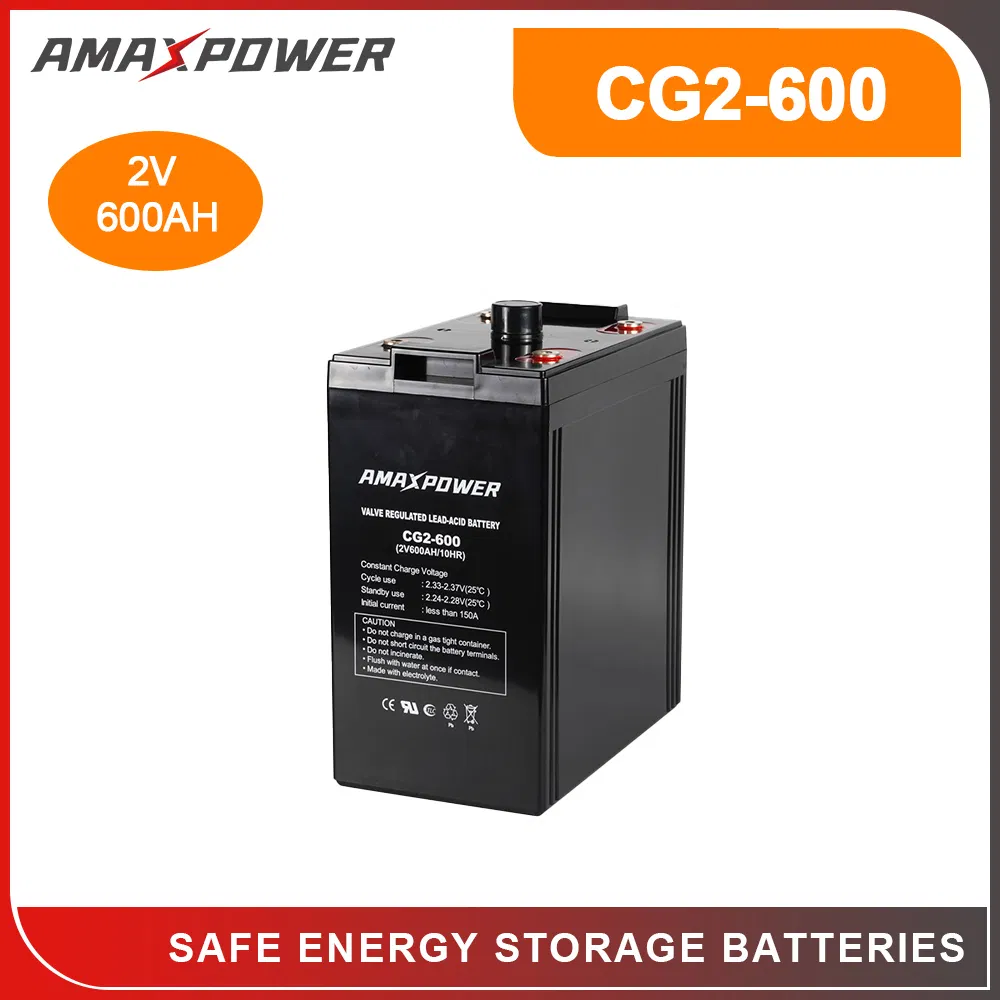

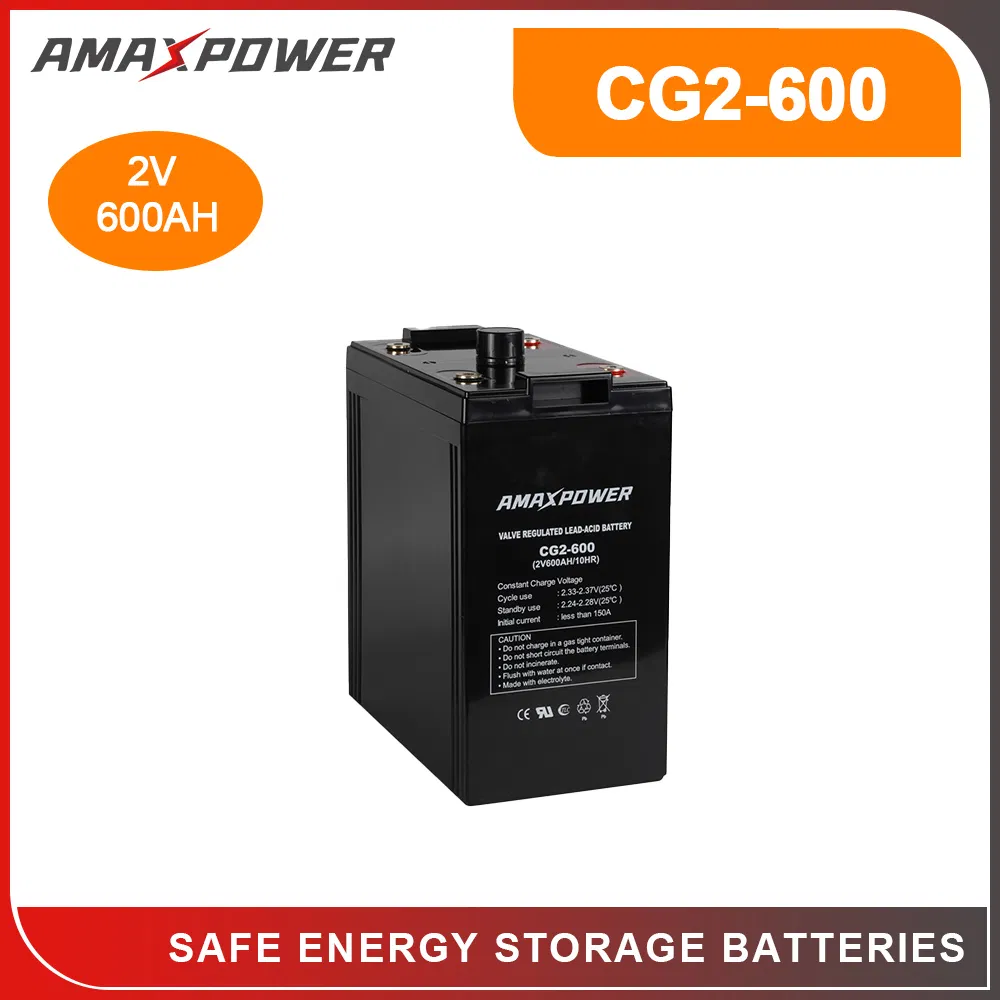

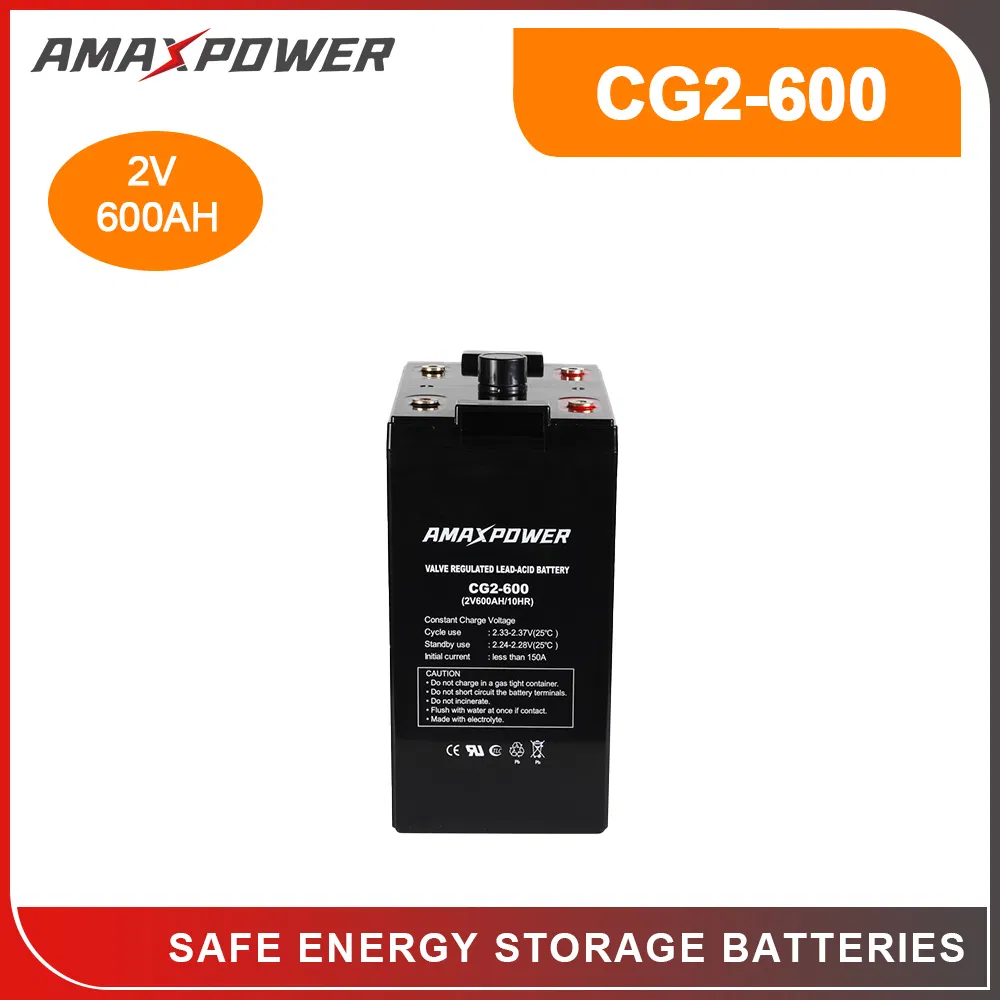

Deep Cycle AGM Battery CG Series
The CG Series is a specially valve-regulated sealed free-maintenance 2V deep cycle AGM battery with a 12-15 year design life in float service. As a reliable and high-quality battery system, it is the perfect choice for deep cycle use, reliable backup, and solar cycle applications.
| Parameter Item | Specifications | |
|---|---|---|
| Nominal Voltage | 2V (Single cell) | |
| Nominal Capacity | 600Ah @ 10 hour-rate | |
| Dimensions | Length | 301±2mm (11.9 inches) |
| Width | 175±2mm (6.93 inches) | |
| Total Height | 366±2mm (14.41 inches) | |
| Weight | Approx. 34kg (75.0lbs) | |
| Internal Resistance | Approx. 0.7mΩ (Fully charged) | |
| Operating Temp Range | Discharge: -20~60°C | Charge: -10~60°C | |

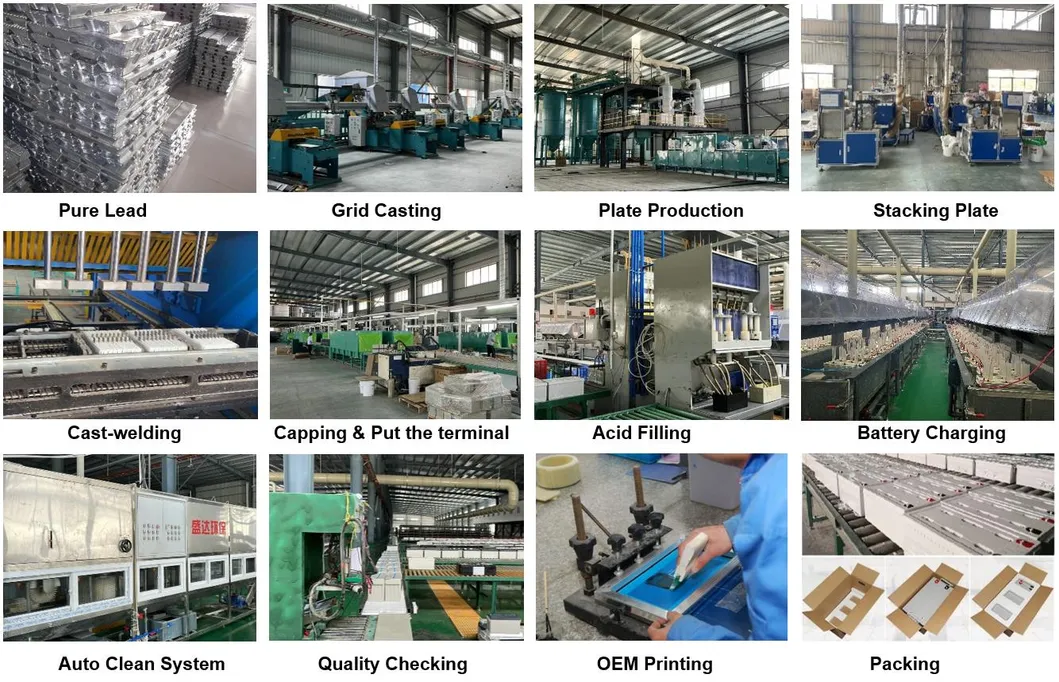

Rigorous QC Process:
1. Lead Plate Quality: Must pass 99.9997% purity check.
2. Case Testing: Anti-impact and burst prevention tests.
3. Consistency: Precise acid filling measured by weight.
4. Online Monitoring: Deep cycle testing and status control.
5. Final Test: 100% inspection before shipment.
| Model No. | Voltage(V) | Capacity(AH) | Weight(kg) | Length(mm) | Width(mm) | Height(mm) | Terminal |
|---|---|---|---|---|---|---|---|
| CG2-200 | 2 | 200 | 12.0 | 172 | 111 | 329 | T5 |
| CG2-400 | 2 | 400 | 24.0 | 210 | 176 | 329 | T5 |
| CG2-600 | 2 | 600 | 34.0 | 301 | 175 | 331 | T5 |
| CG2-1000 | 2 | 1000 | 58.0 | 475 | 175 | 330 | T5 |
| CG2-2000 | 2 | 2000 | 130.0 | 491 | 351 | 343 | T5 |
| CG2-3000 | 2 | 3000 | 195.0 | 710 | 352 | 342 | T5 |
