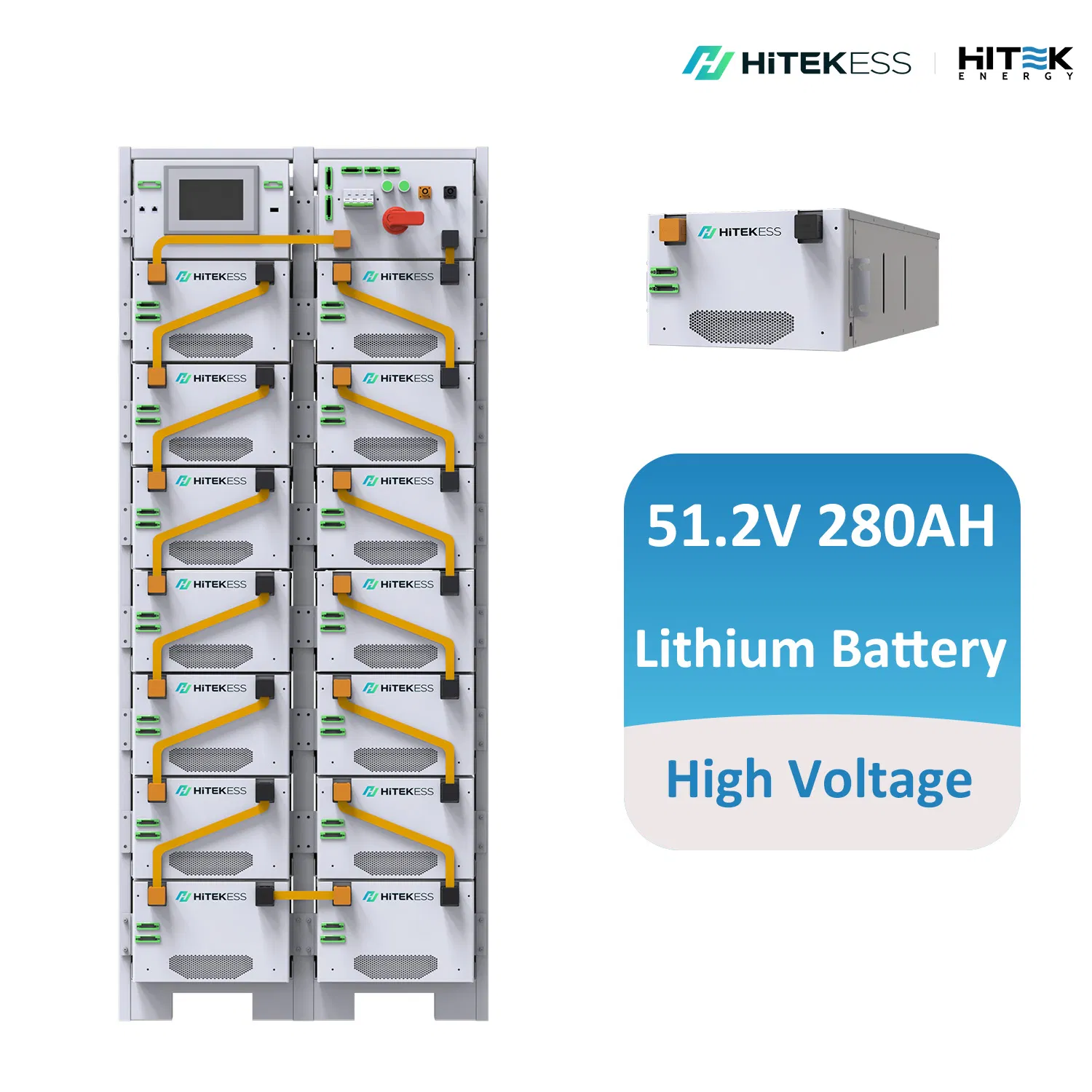

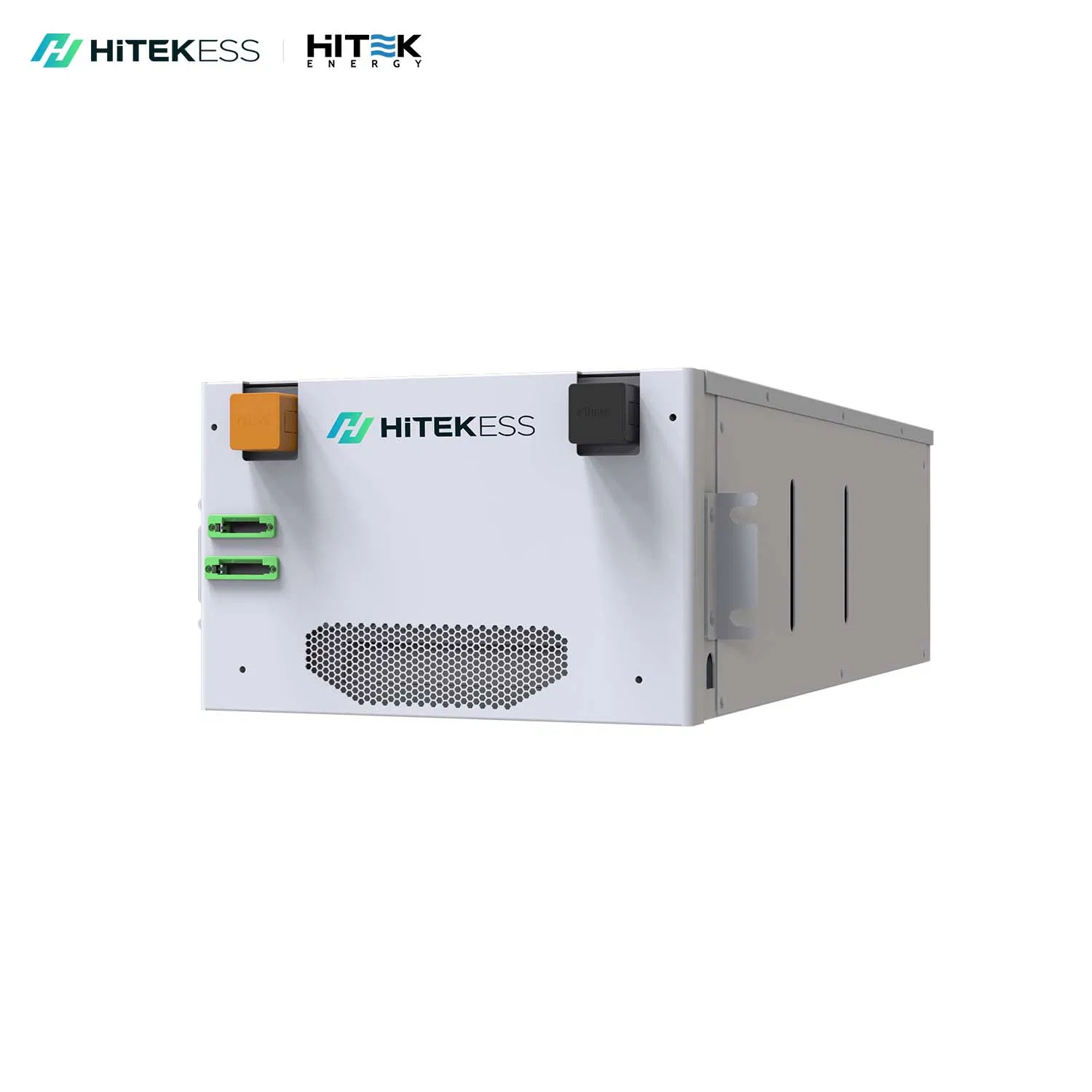

Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
1 / 5
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries
Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries

Custom Lithium LiFePO4 Lithium Rack Battery Pack 51.2V 280ah 100ah Power Backup Station System Industrial Commercial Energy Storage Battery Stackable Batteries

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

i

Overview & Basic Info

Model NO.HTPK-51280H
ProductCommercial LiFePO4 Lithium Battery Pack Hv Solar
Nominal Capacity200.704kwh, 100kwh, 200kwh, 300kwh
Specification716.8V 280AH
Cycle Life6000+
Warranty10 Years on 80% Dod
Smart BMSBuilt-in BMS
Efficiency98%
Cooling MethodNatural Air Cooling
CommunicationRS485/Can
CertificationMSDS, UN38.3, CE, IEC
ApplicationCommercial & Industrial Energy Storage System
★

Product Details

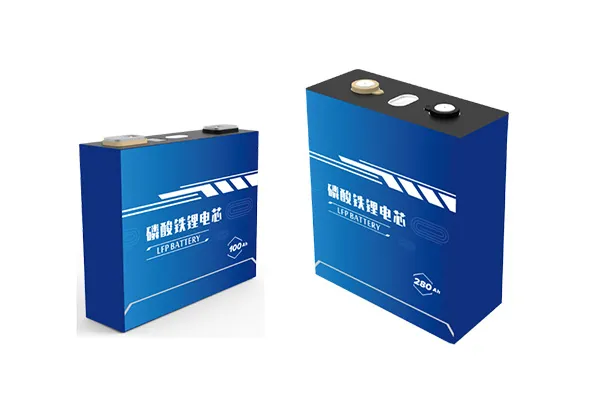

A Grade LiFePO4 Cell

A Grade LiFePO4 Cell

Nominal Voltage: 3.2V
Capacity Range: 50AH-314AH
Mass Energy Density: ≥160Wh/kg

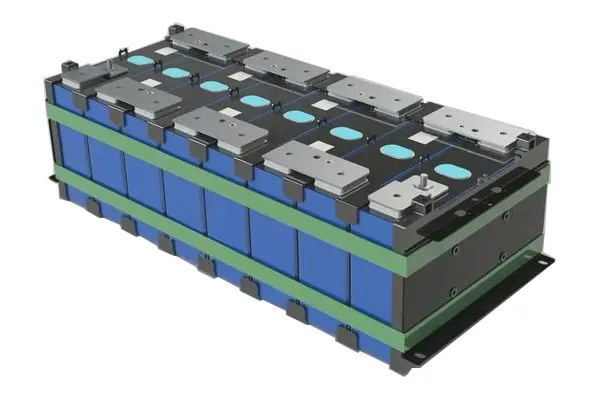

16 Series 1 Parallel

16 Series 1 Parallel Configuration

Capacity: 14.336kWh / 15KWH
Intelligent BMS Control
Built-in Temperature Sensor

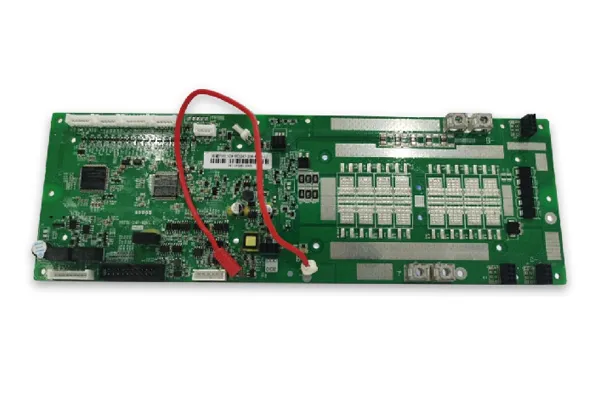

Residential Energy Storage BMS

Advanced Storage BMS

Adjustable overcurrent protection
Integrated serial port IC
High voltage accuracy (≤20mV)
High current accuracy (≤2%@FS)

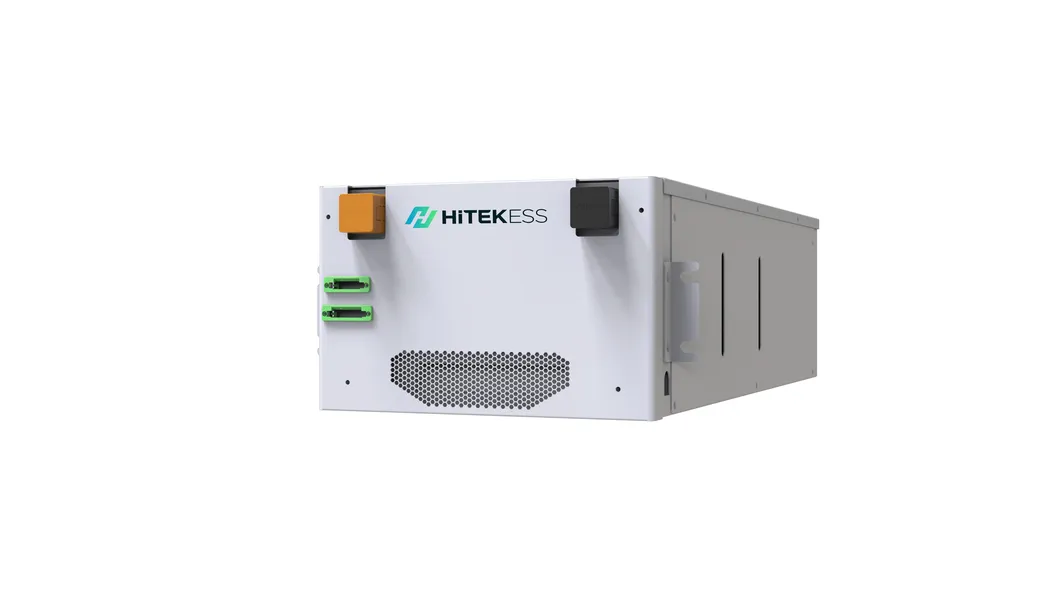

51.2V 280AH Pack

51.2V 280AH Specifications

Capacity: 14.336KWH
Weight: 116.30KGS
IP65 Indoor & Outdoor Options

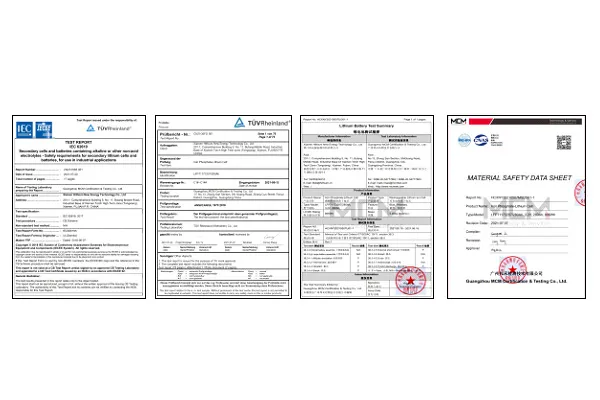

Full Set Certification

Certified Safety

UN38.3 / IEC / MSDS
Tested under GB/T 36276-2018 and GB/T 31485-2015 conditions.

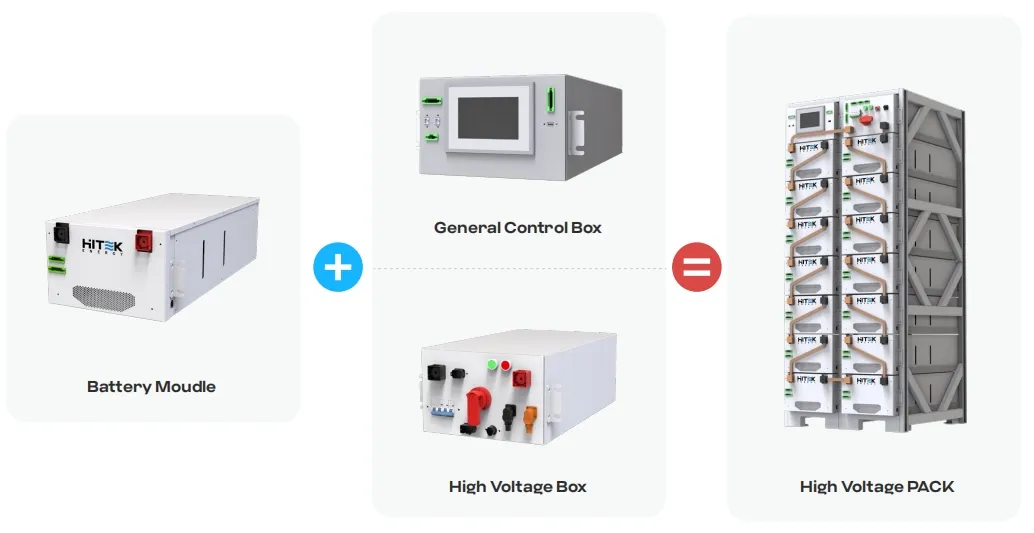

Flexible Customization

Flexible Customization

Various Capacity Options
Easy Installation & Maintenance
Scalable from 100kwh to MWH levels.

📋

Product Parameters

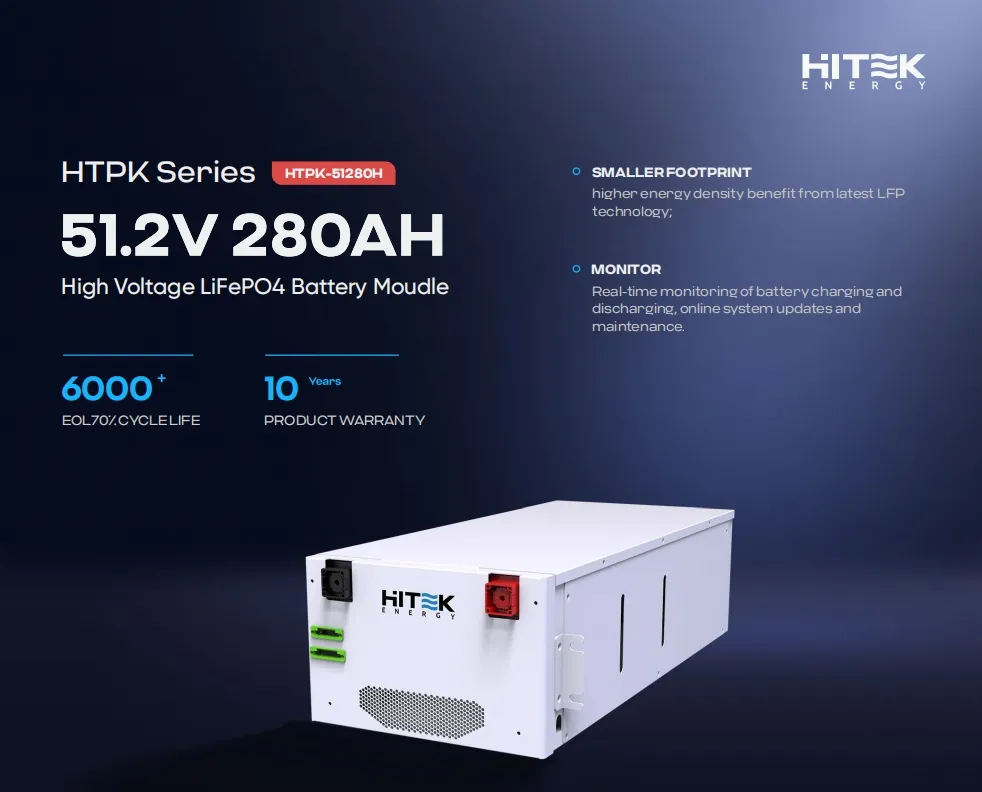

Parameter Chart
ModelHTPK-51280H
Cell Connection1P16S
Nominal Voltage51.2V
Nominal Capacity280AH
Nominal Energy14.336KWH
Recommended Charge/Discharge Current100A
Max. Charge/Discharge Current200A
CoolingSmart Air Cooling
Operating Voltage44.8~57.6V
Dimensions (W*L*H)505x500x235mm
Weight116.30KGS

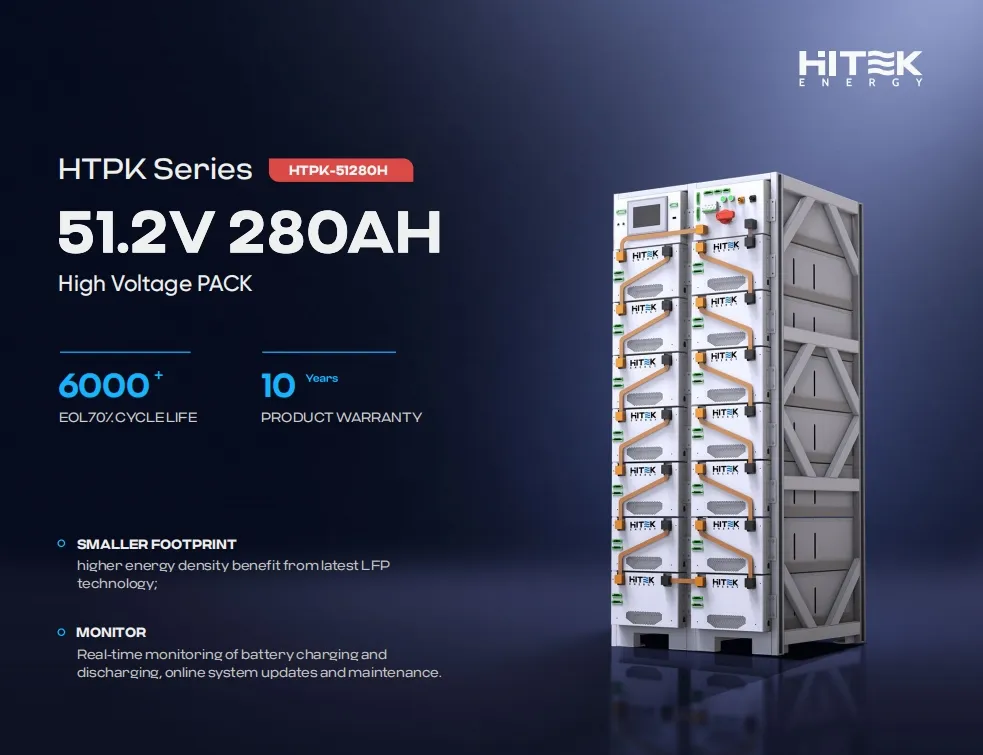

Technical Drawing 1

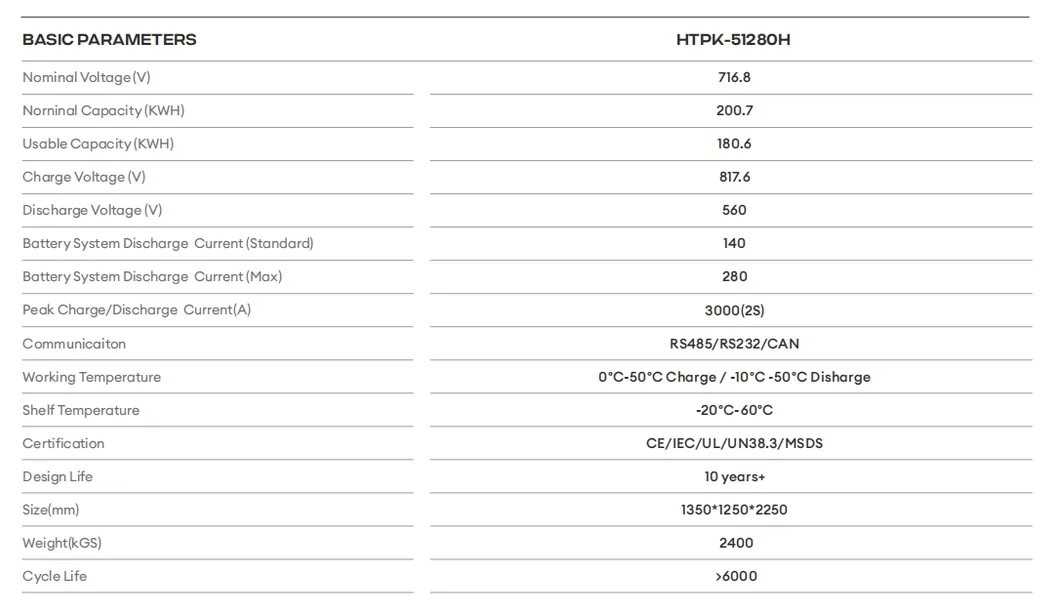

Technical Drawing 2
🌍

Global Footprint & Compatibility

Sales Footprint Map
Inverter Compatibility
🏭

Manufacturing Facility

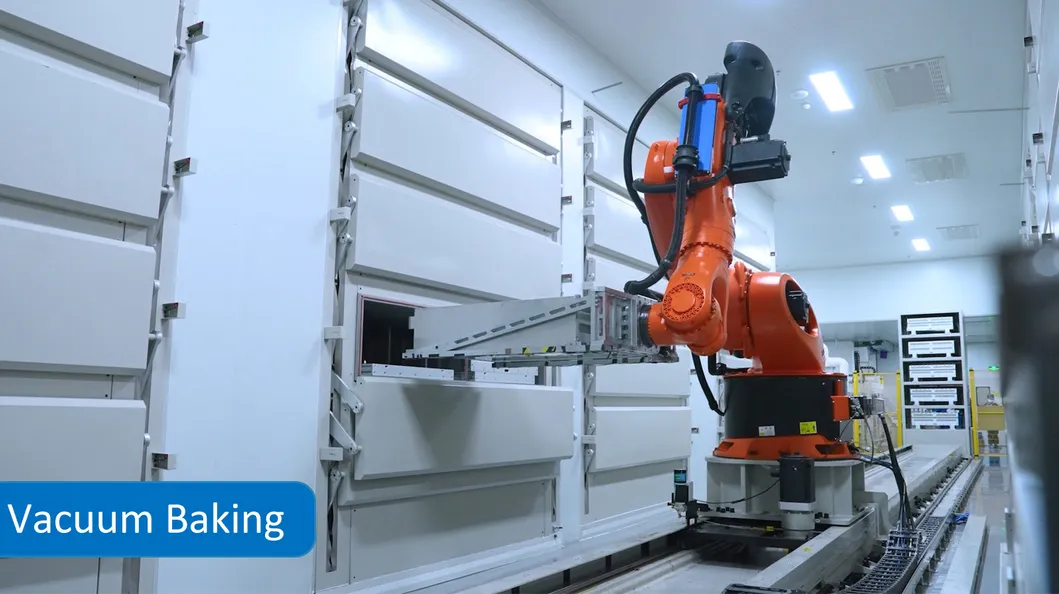

Factory View 1

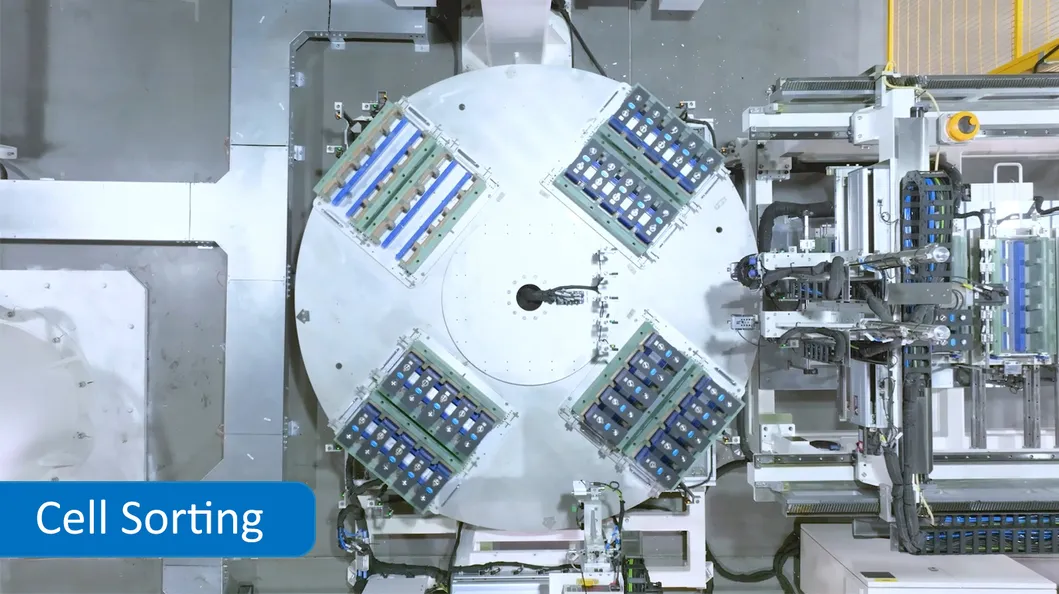

Factory View 2

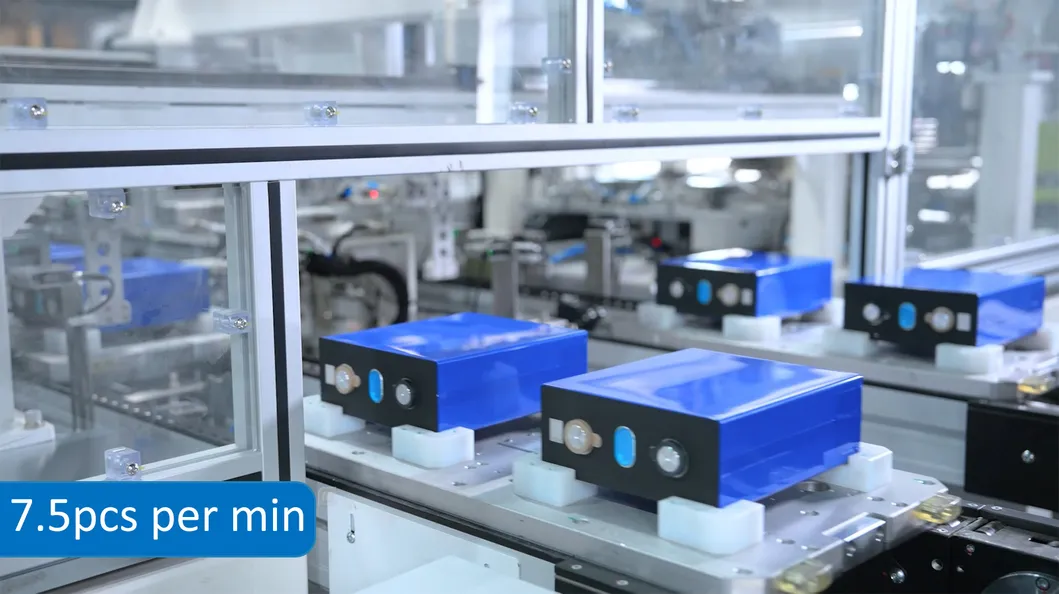

Factory View 3

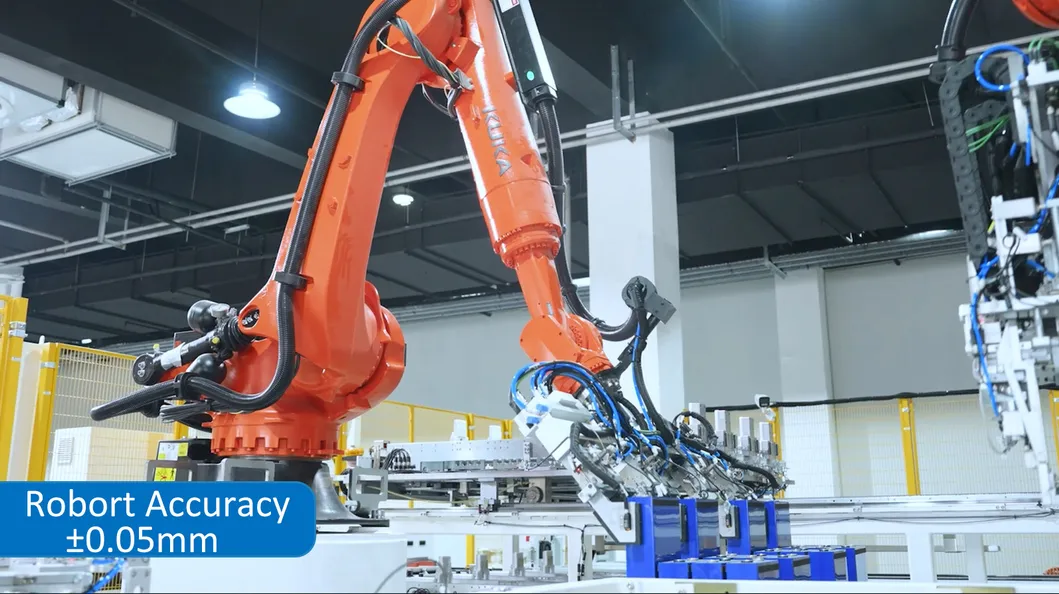

Factory View 4

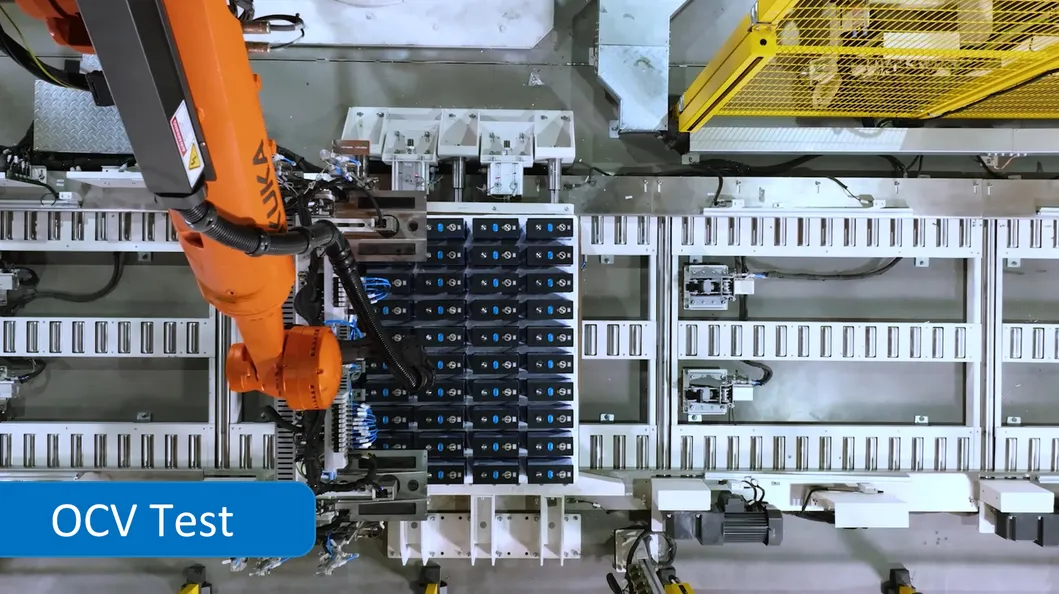

Factory View 5

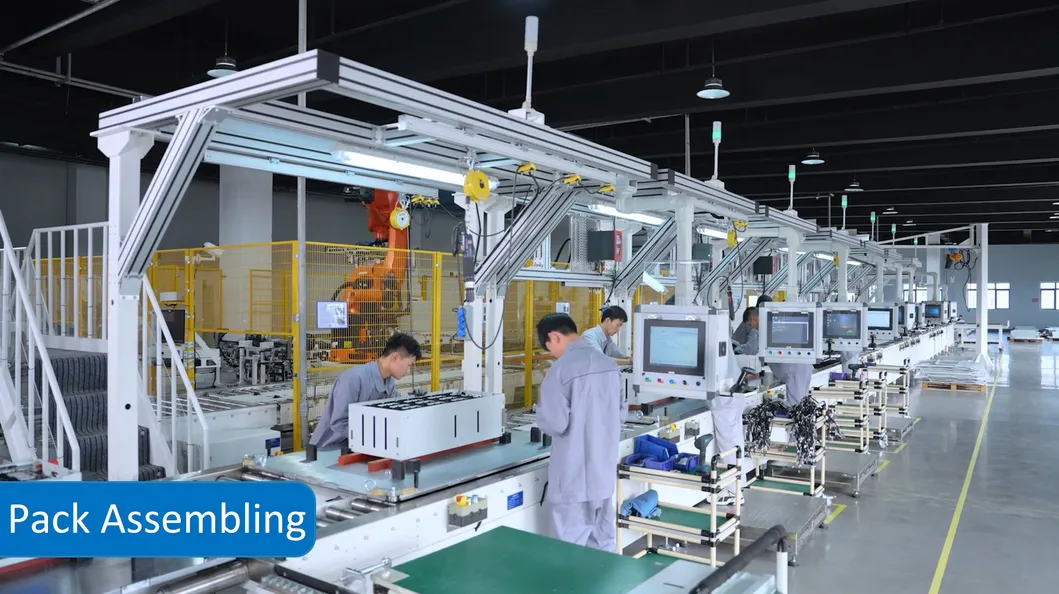

Factory View 6
📦

Packaging & Shipping

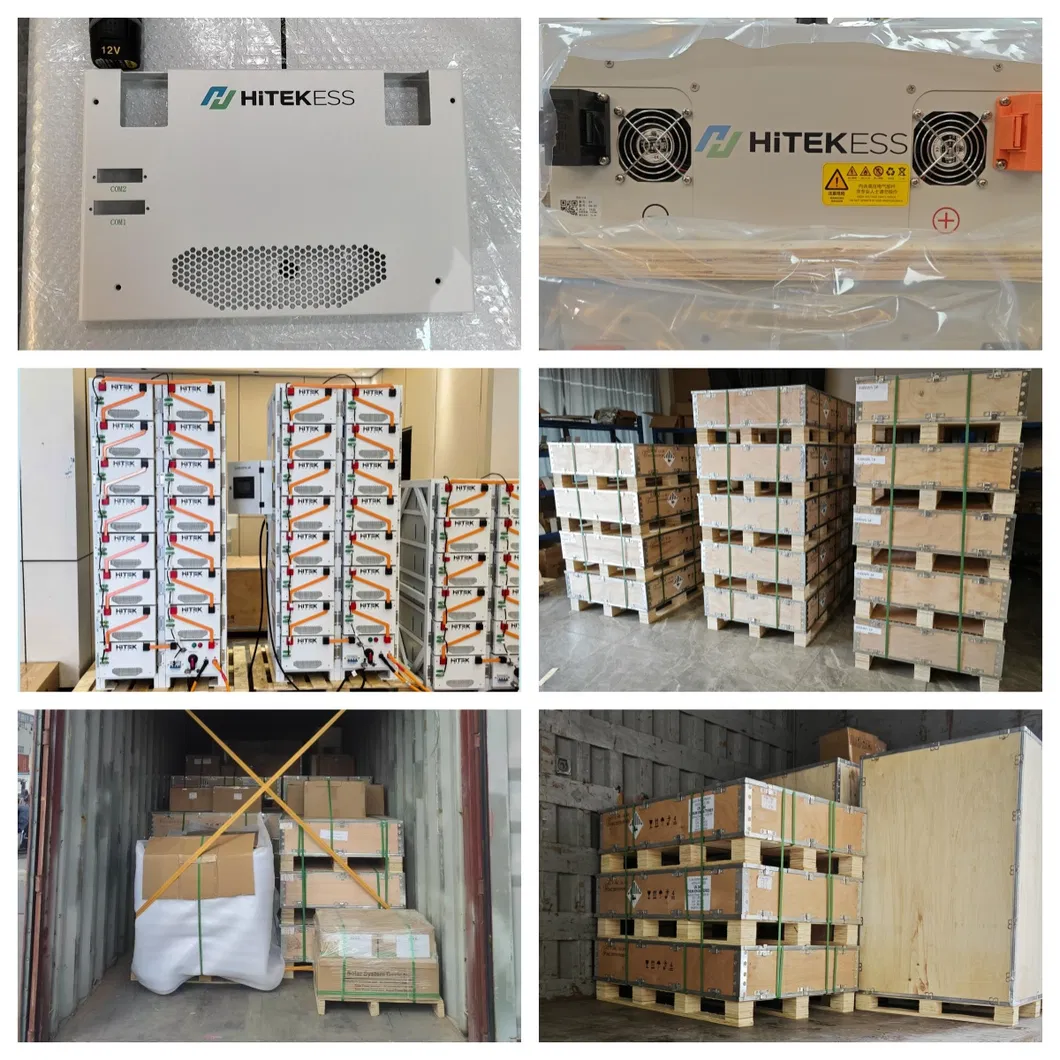

Packaging Detail

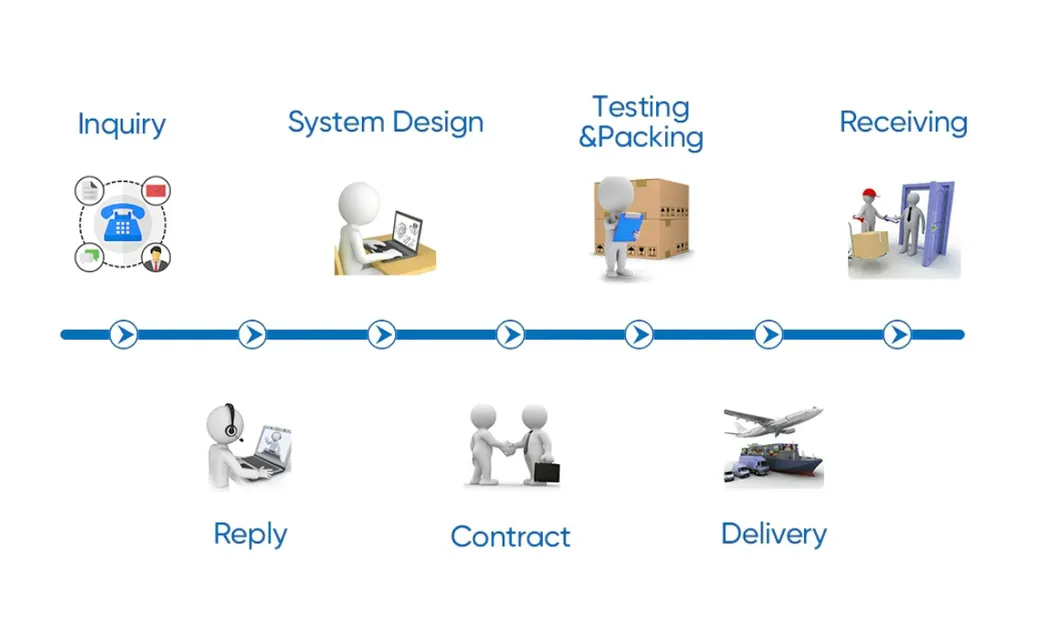

Shipping Preparation
?

Frequently Asked Questions

What is the expected lifespan of this lithium battery pack?
The battery pack features A-grade LiFePO4 cells with a cycle life of over 6,000 cycles at 80% Depth of Discharge (DoD).
What kind of protection does the built-in BMS provide?
The intelligent BMS provides adjustable overcurrent protection, high-accuracy voltage and current monitoring, and integrated temperature sensing to ensure system safety.
Is the system compatible with standard solar inverters?
Yes, the system is designed to be compatible with a wide range of commercial and residential inverters using RS485/CAN communication protocols.
Can I customize the capacity for large-scale industrial use?
Absolutely. We support flexible customization ranging from 100kWh to 300kWh and even up to MWH levels for industrial energy storage systems.
What certifications do these battery packs hold?
Our battery packs are fully certified with UN38.3, MSDS, CE, and IEC standards, ensuring they meet international safety and transport requirements.
What is the warranty period for this commercial storage system?
We offer a 10-year warranty based on 80% Depth of Discharge (DoD) for our lithium battery packs.
