Deye Ge-F60 LiFePO4 Lithium Battery 48V 51.2V 100ah 60kwh 360kwh 600kwh Bess Solar Battery Energy Storage System Cabinet

Customization: Available
Container Size: 780*1056*2235
Weight: 1070kg

Product Description

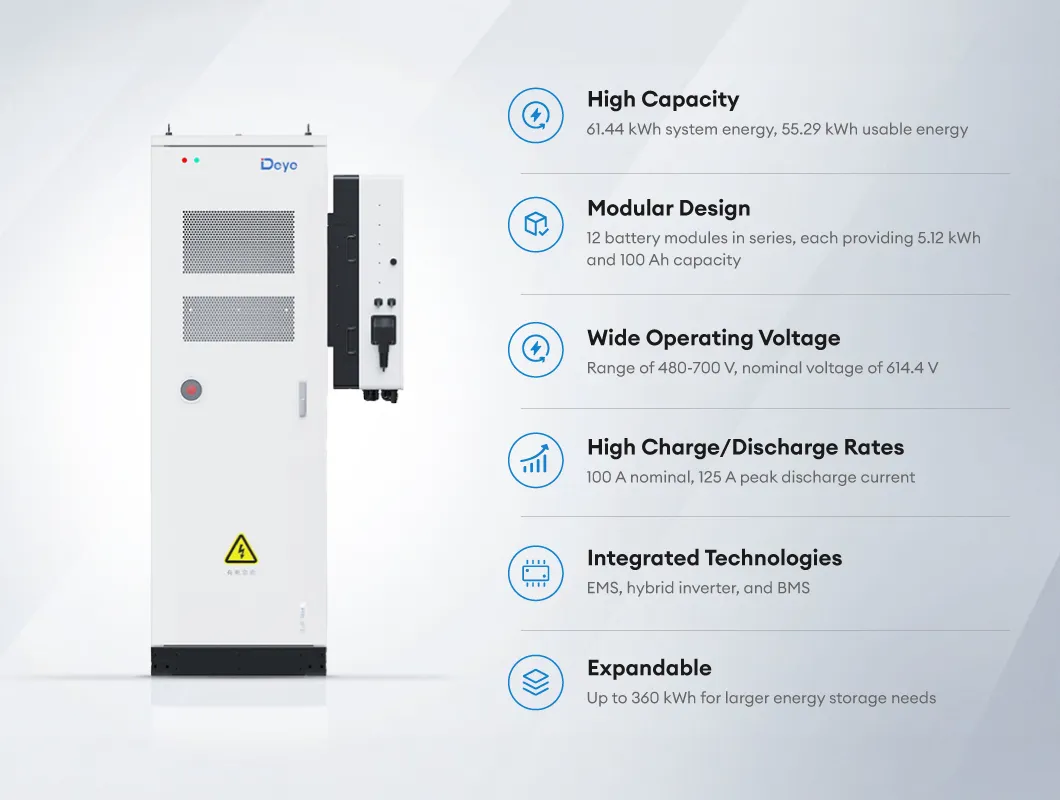

📊 Basic Info & Overview
System Specification
Model NO.GE-F60
Nominal Voltage614.4V
Cell ChemistryLiFePO4
Nominal Capacity100ah
System Energy61.44kWh
Warranty10 Year
Communication PortCan2.0/ RS485
Dimension (W/D/H,mm)780*1056*2235
CertificationCE, IEC62619, IEC62040, Un38.3
IP RatingIP55
📝 Product Description

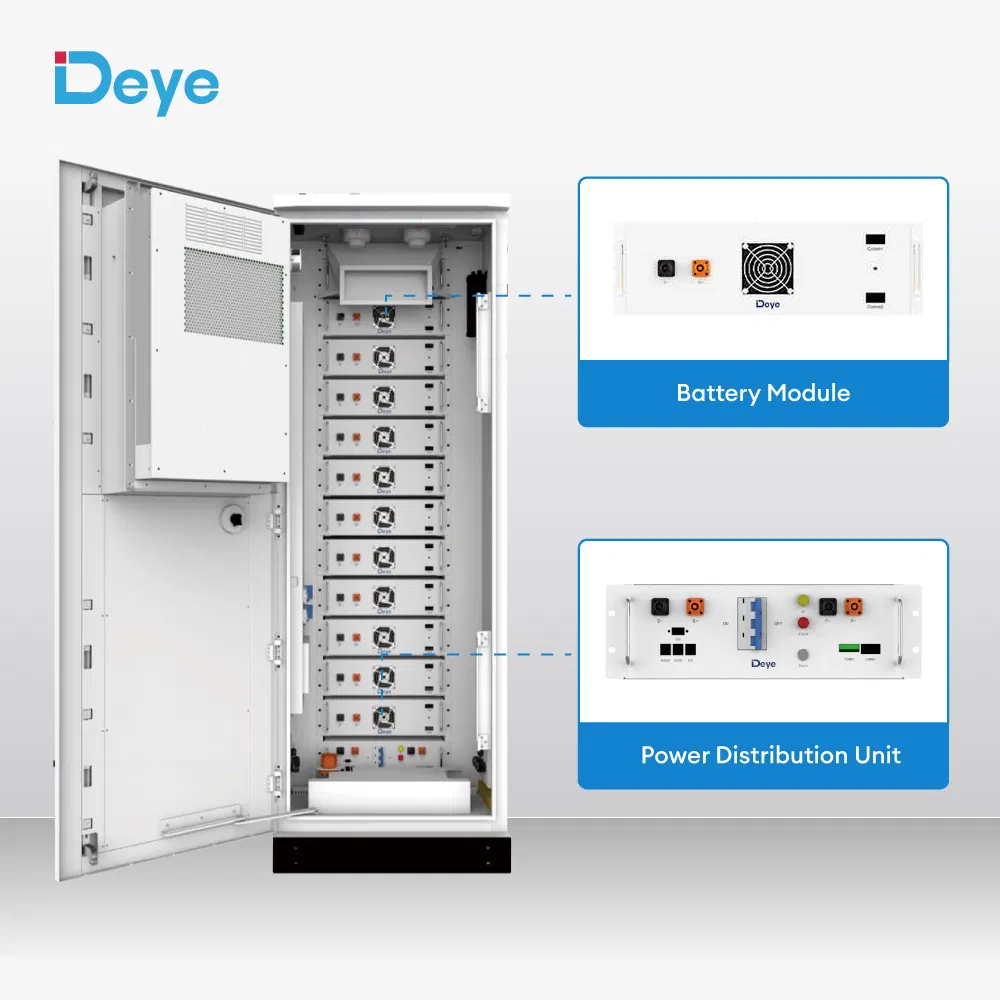

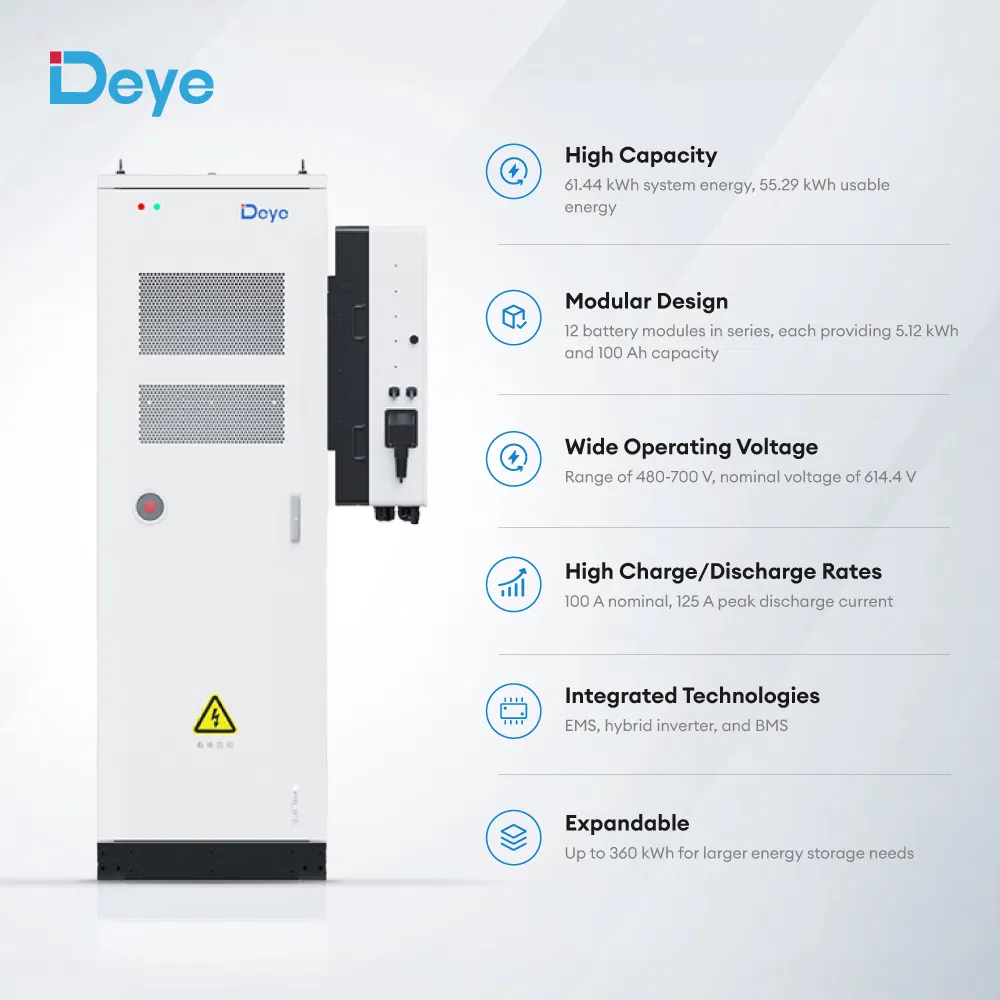

Energy Storage System Cabinet
ModelGE-F60
Module Energy (kWh)5.12
Module Nominal Voltage (V)51.2
System Operating Voltage (V)480~700
Rated DC Power61.44 kW
Recommend Charge/Discharge Current50A
Max Charge/Discharge Current100A
Working TemperatureCharge: 0~55 / Discharge: -20~55°C
Cycle Life25±2°C, 0.5C/0.5C, EOL70% ≥ 6000 cycles
InstallationFloor-mounted

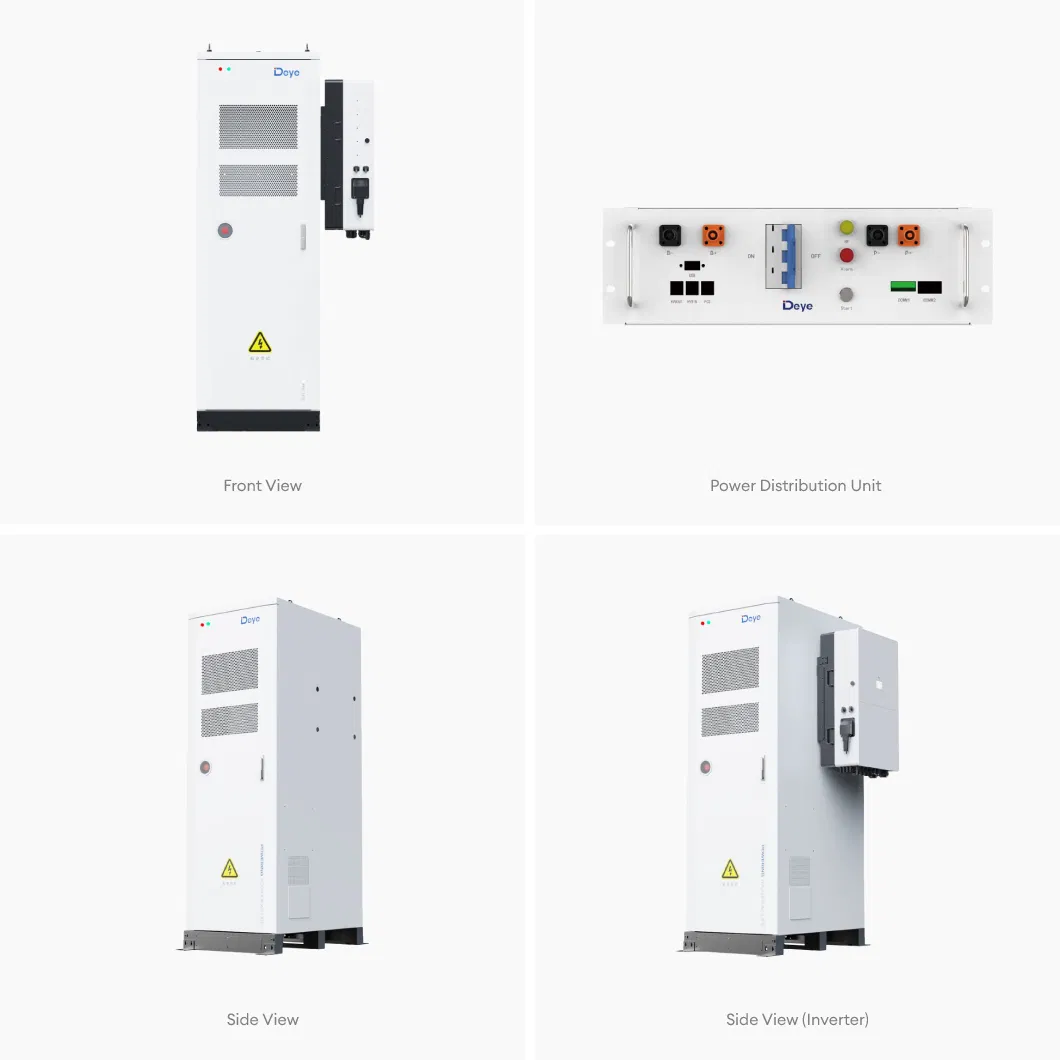

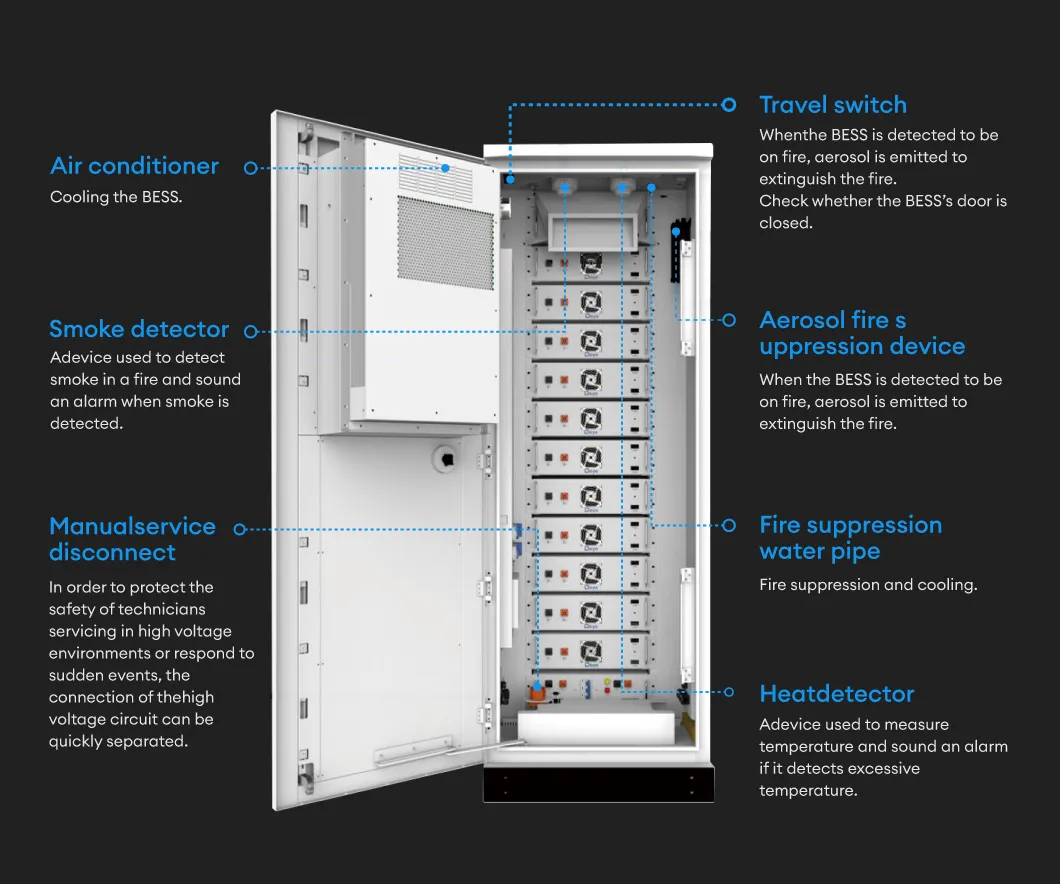

🔍 Product Detail

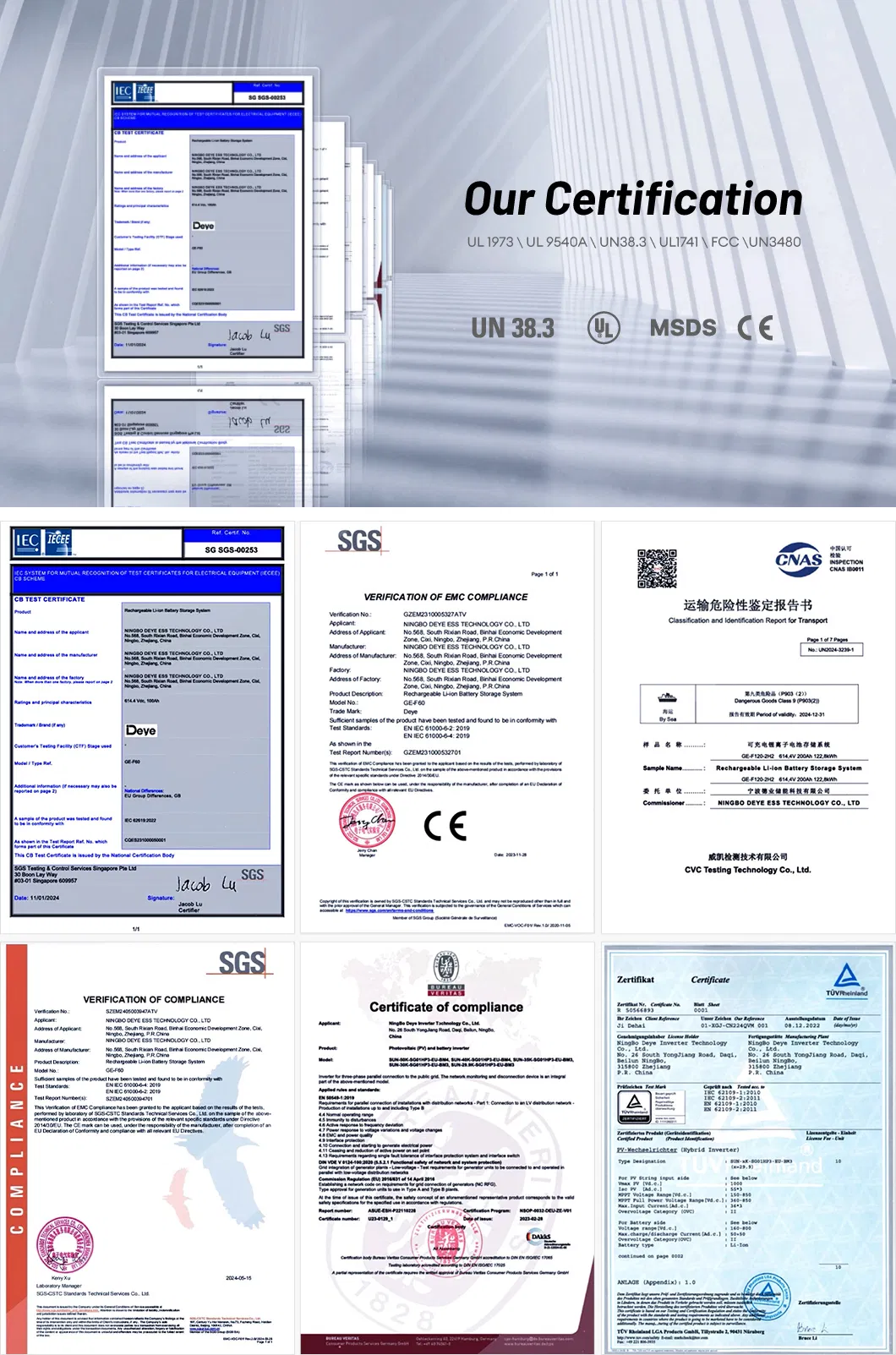

🛡️ Certifications
Certification Documents

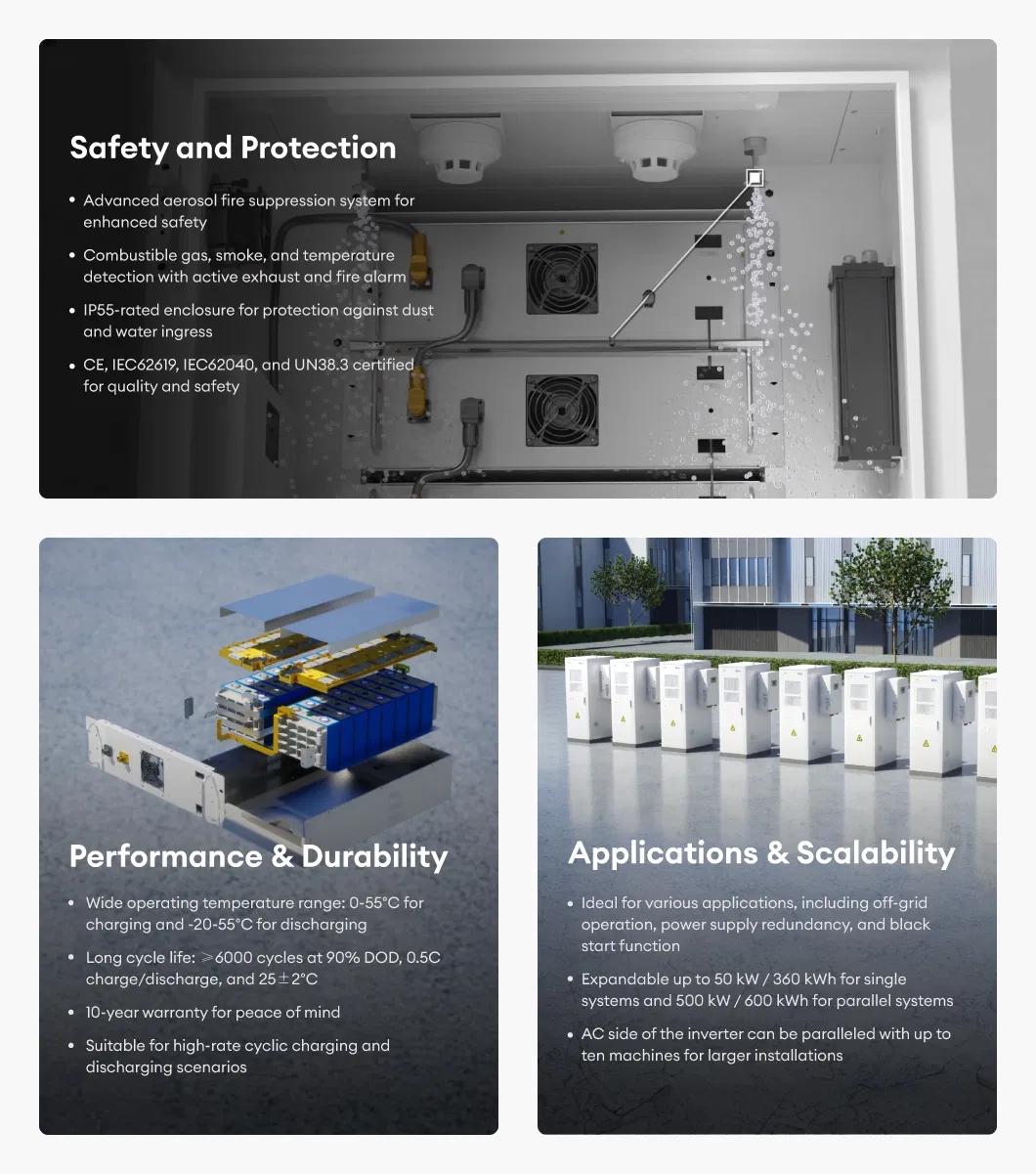

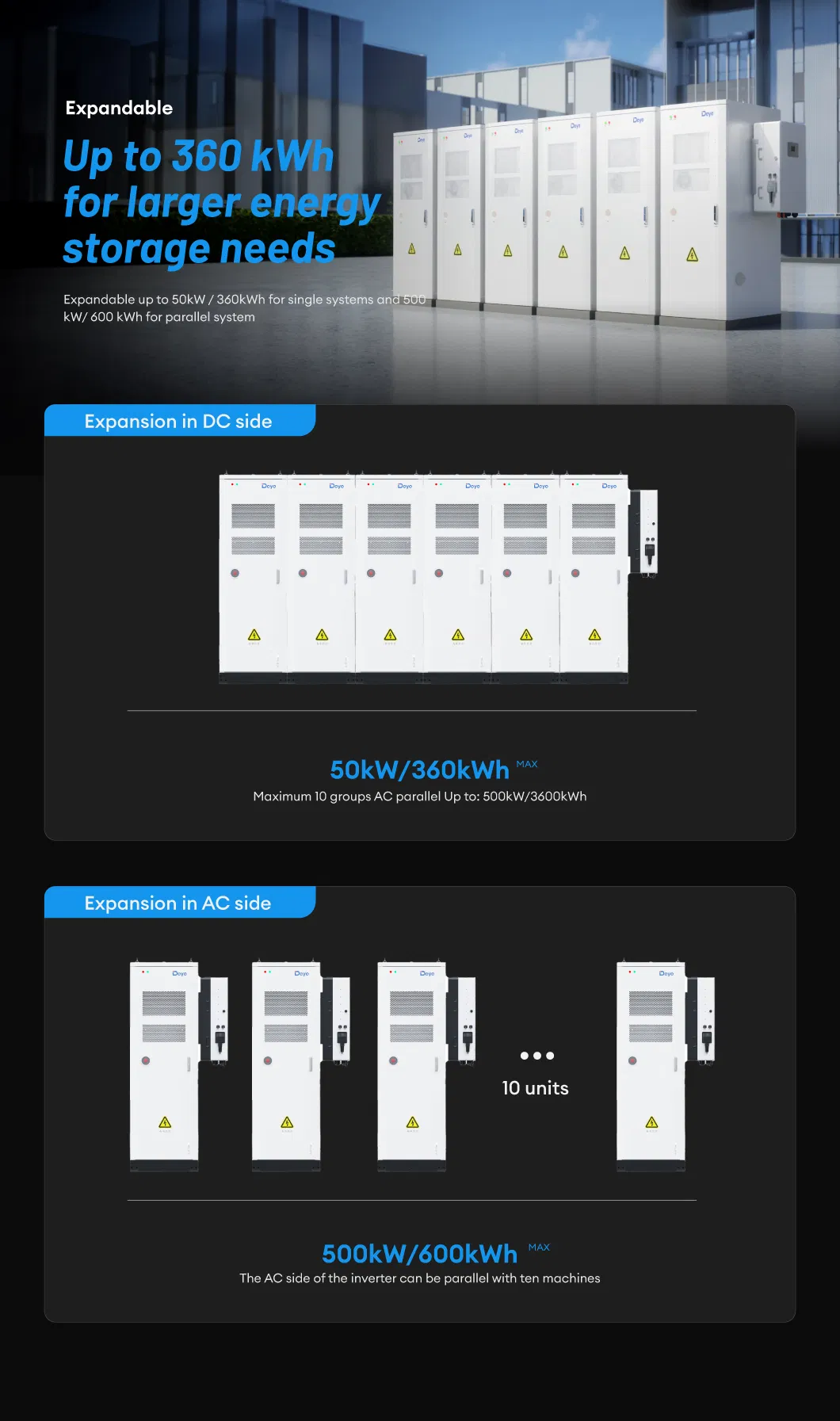

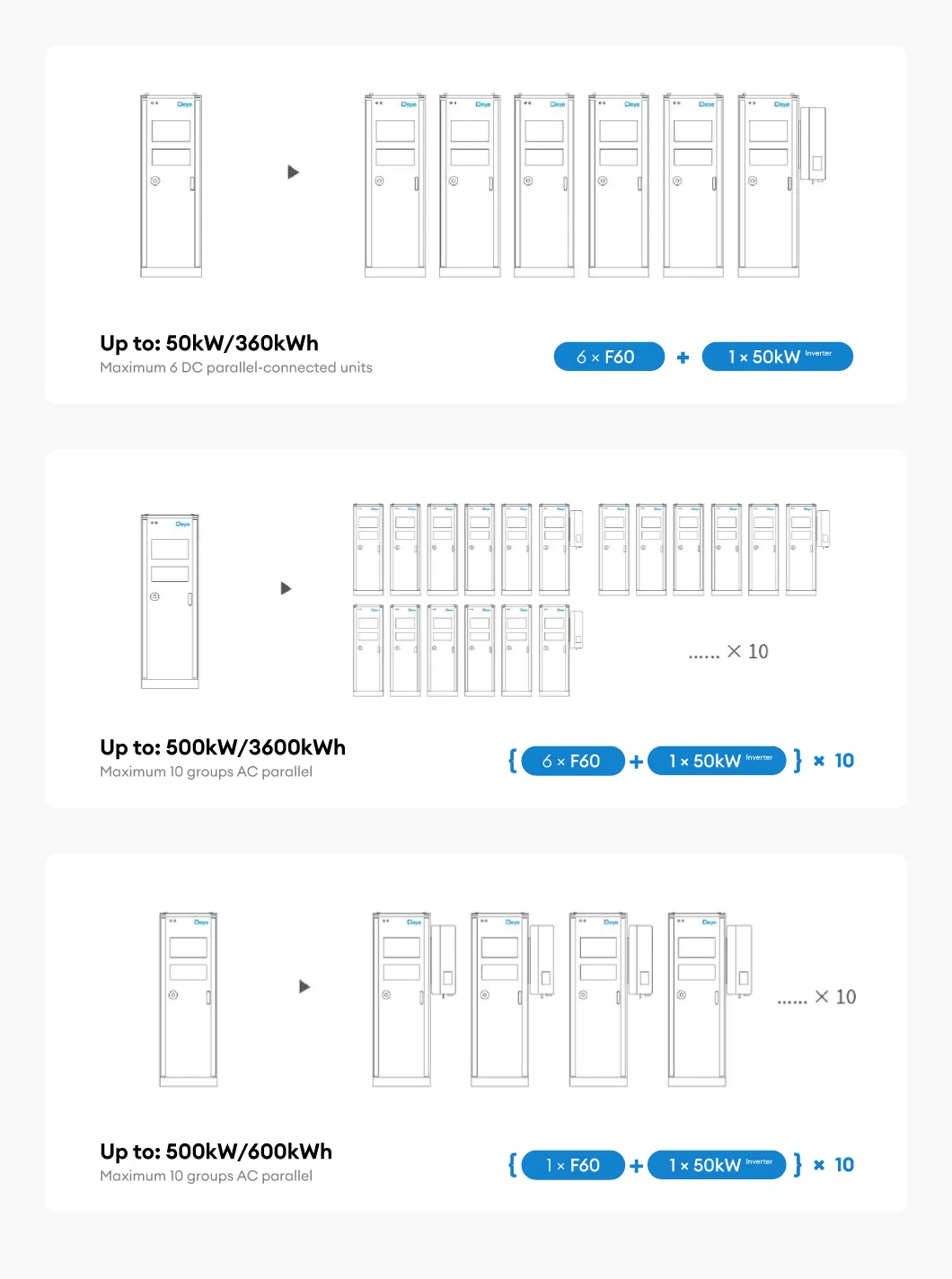

💡 Technical Advantages

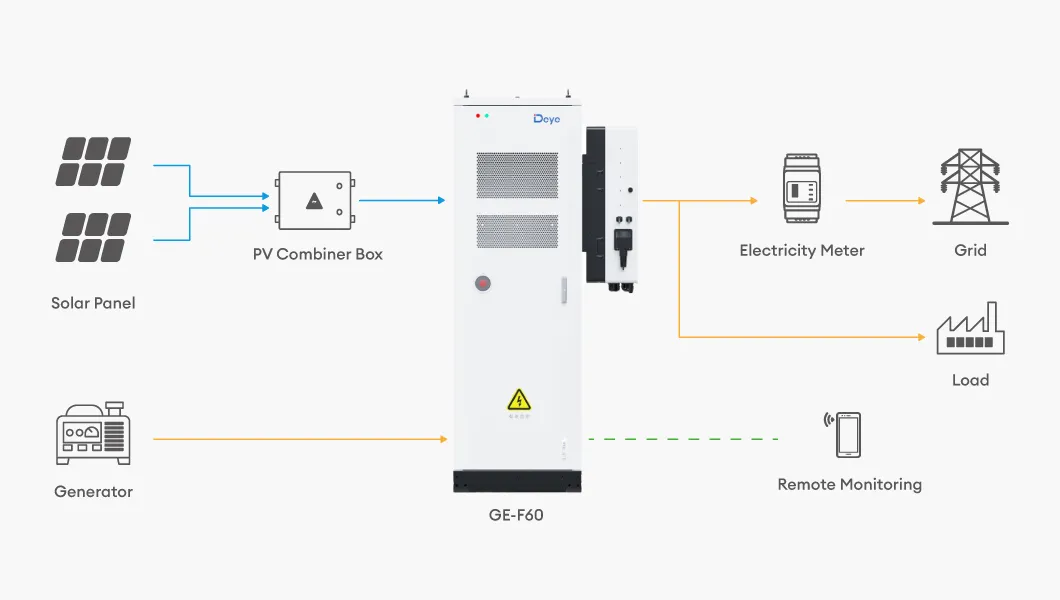

Technical Info

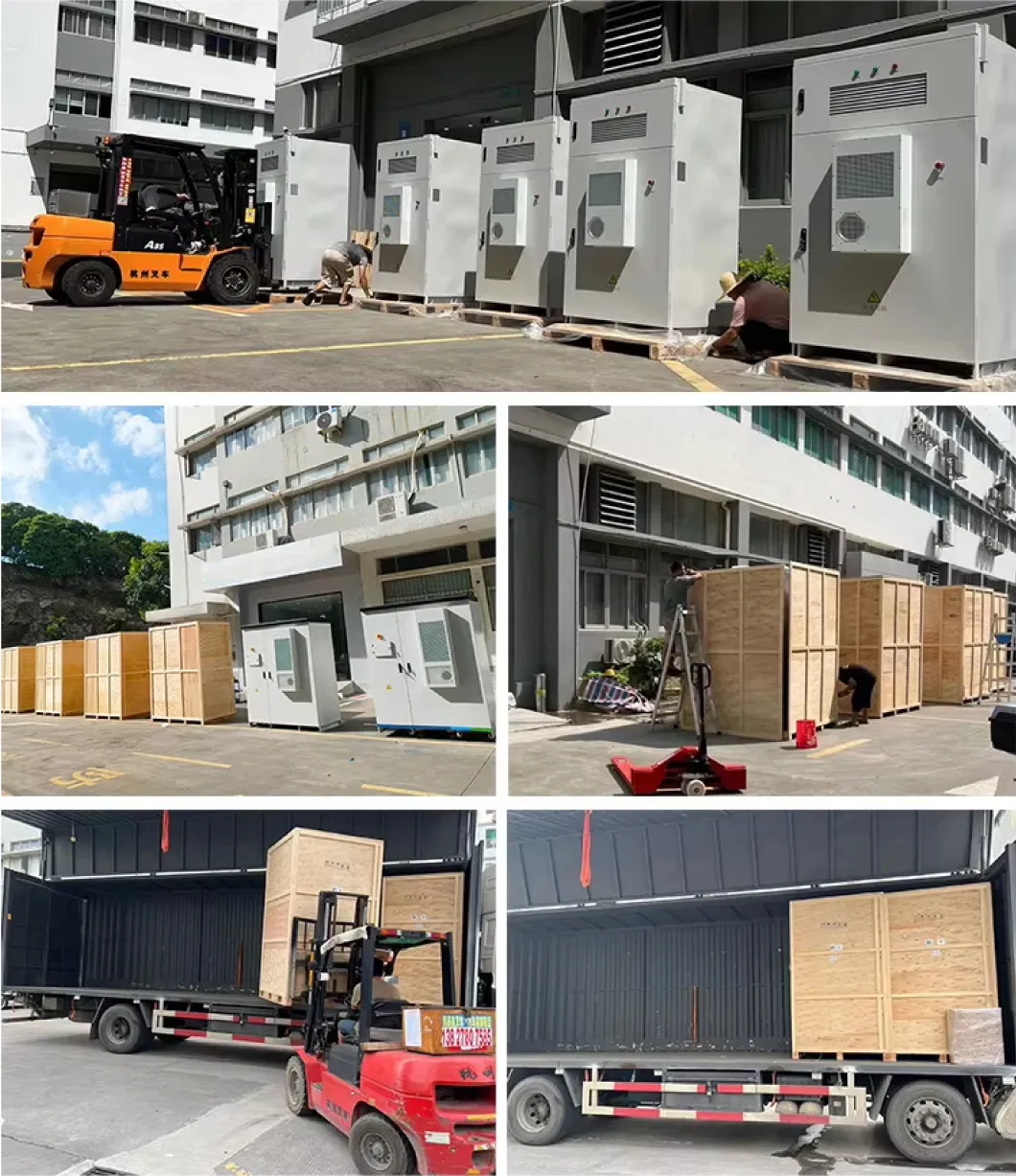

📦 Packaging & Shipping
Packaging

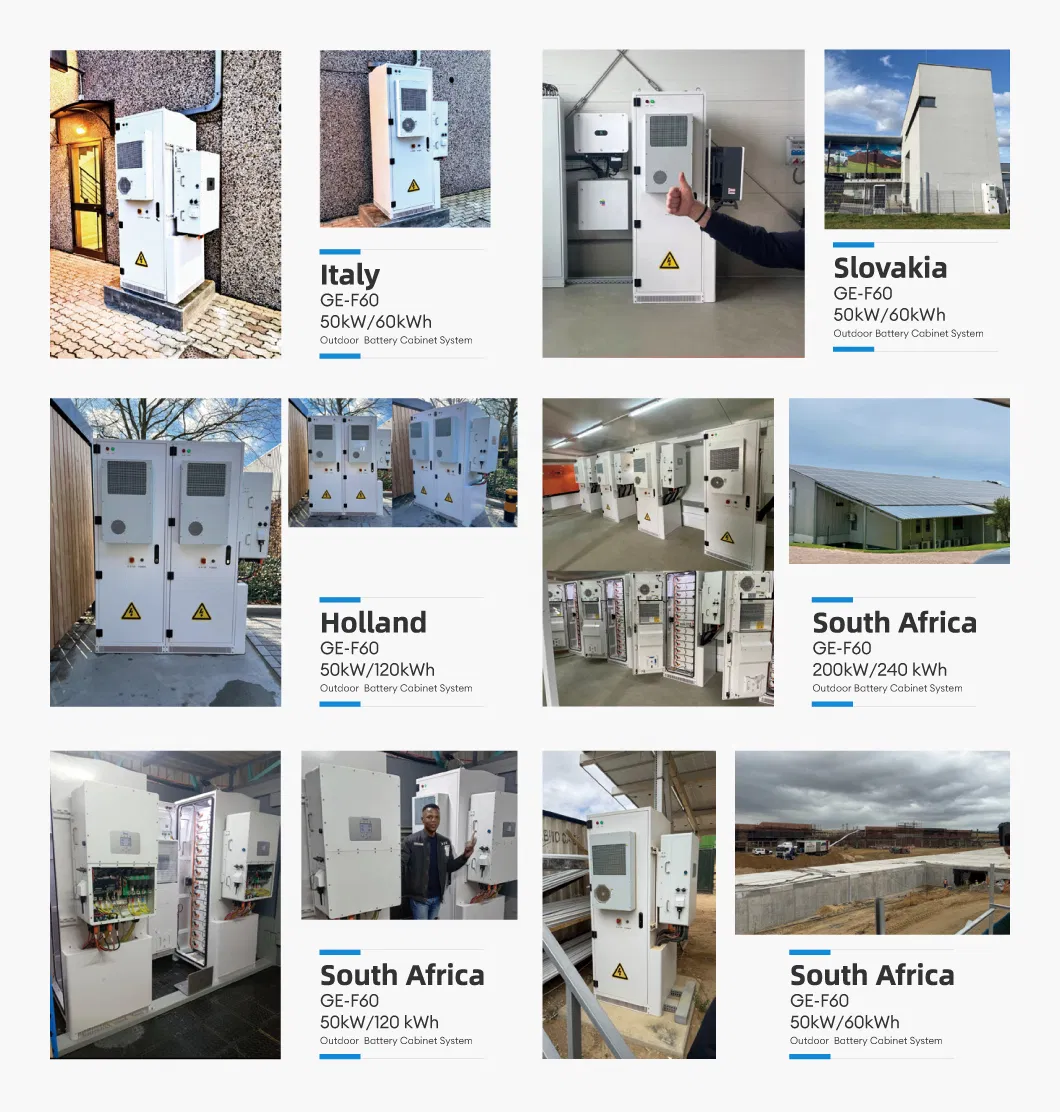

🏗️ Project Case
Installation Case
🏢 Industrial Capability
Manufacturing Support
Frequently Asked Questions
What is the expected lifespan of the GE-F60 battery system?
The system features a cycle life of ≥ 6000 cycles (at 25±2°C, 0.5C/0.5C, EOL70%), providing long-term reliability for energy storage needs.
What is the warranty period for this energy storage system?
We provide a 10-year warranty for the GE-F60 system, ensuring peace of mind and guaranteed performance.
Can this system be installed outdoors?
Yes, the cabinet is rated IP55, which provides significant protection against dust and water, making it suitable for various installation environments.
What is the nominal voltage and total energy capacity?
The system has a nominal voltage of 614.4V and a total energy capacity of 61.44kWh.
What communication protocols does the system support?
The GE-F60 supports standard industrial communication through CAN2.0 and RS485 ports for seamless integration with inverters and monitoring systems.
What safety certifications does the product hold?
The system is fully certified with CE, IEC62619, IEC62040, and UN38.3, meeting international safety and transport standards.
