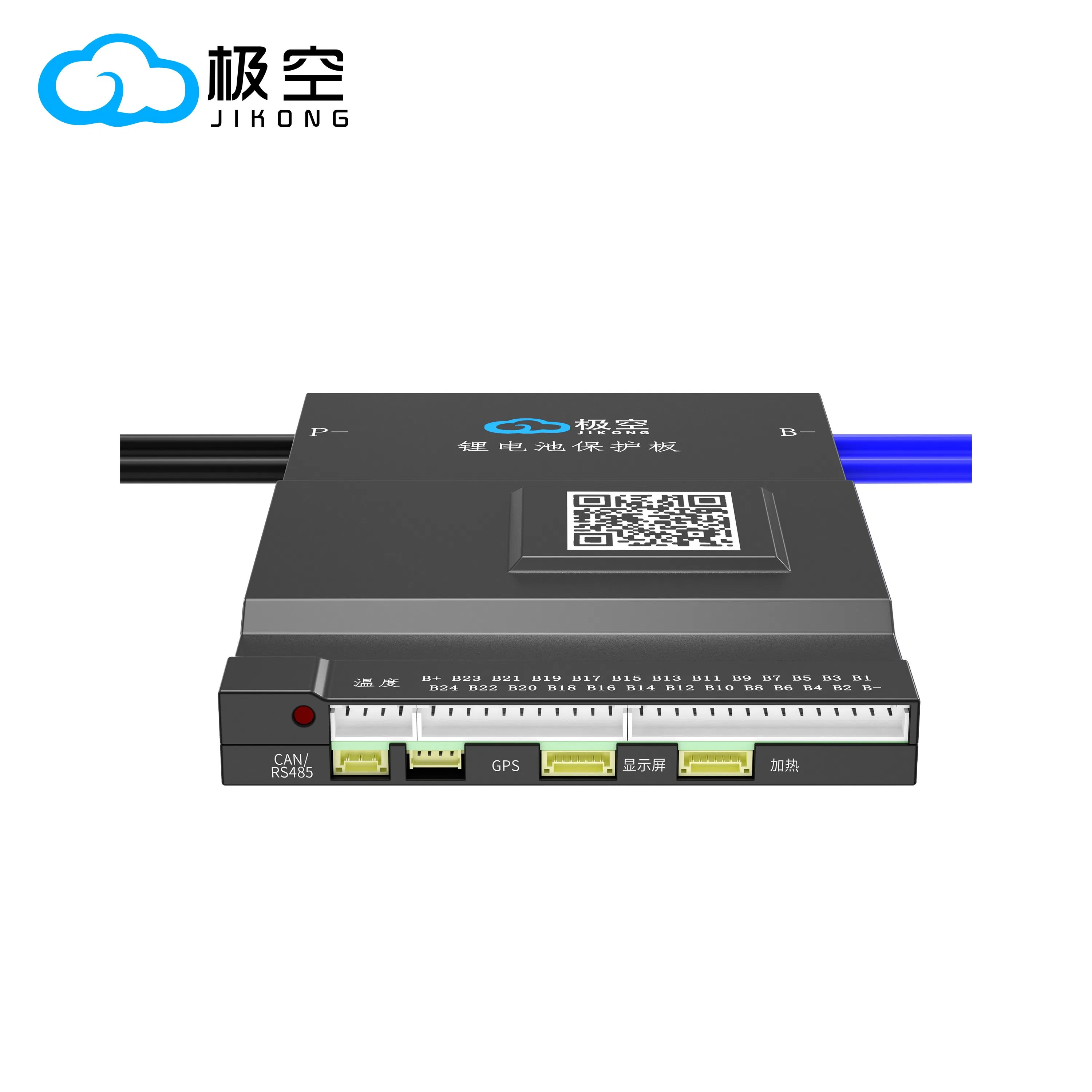

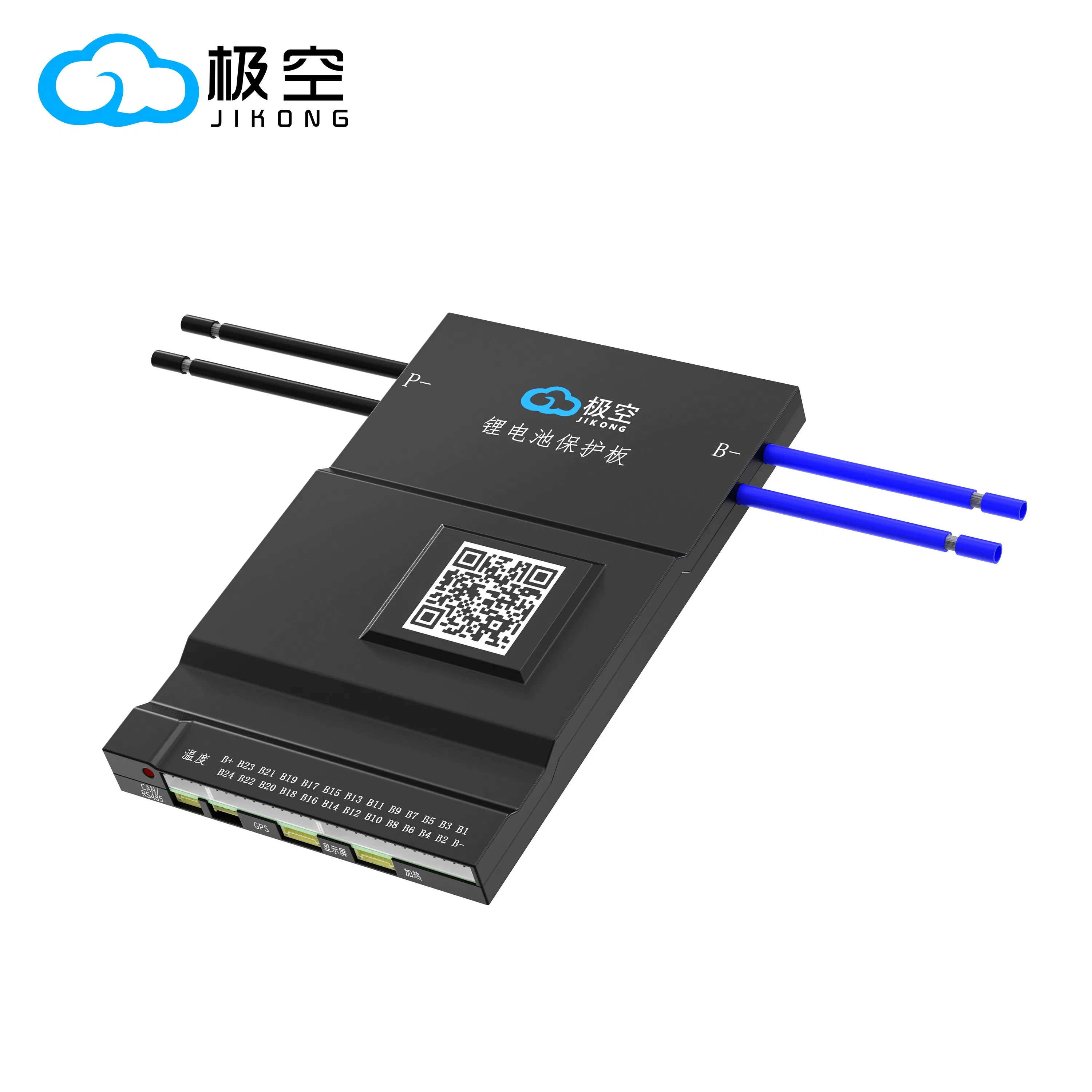

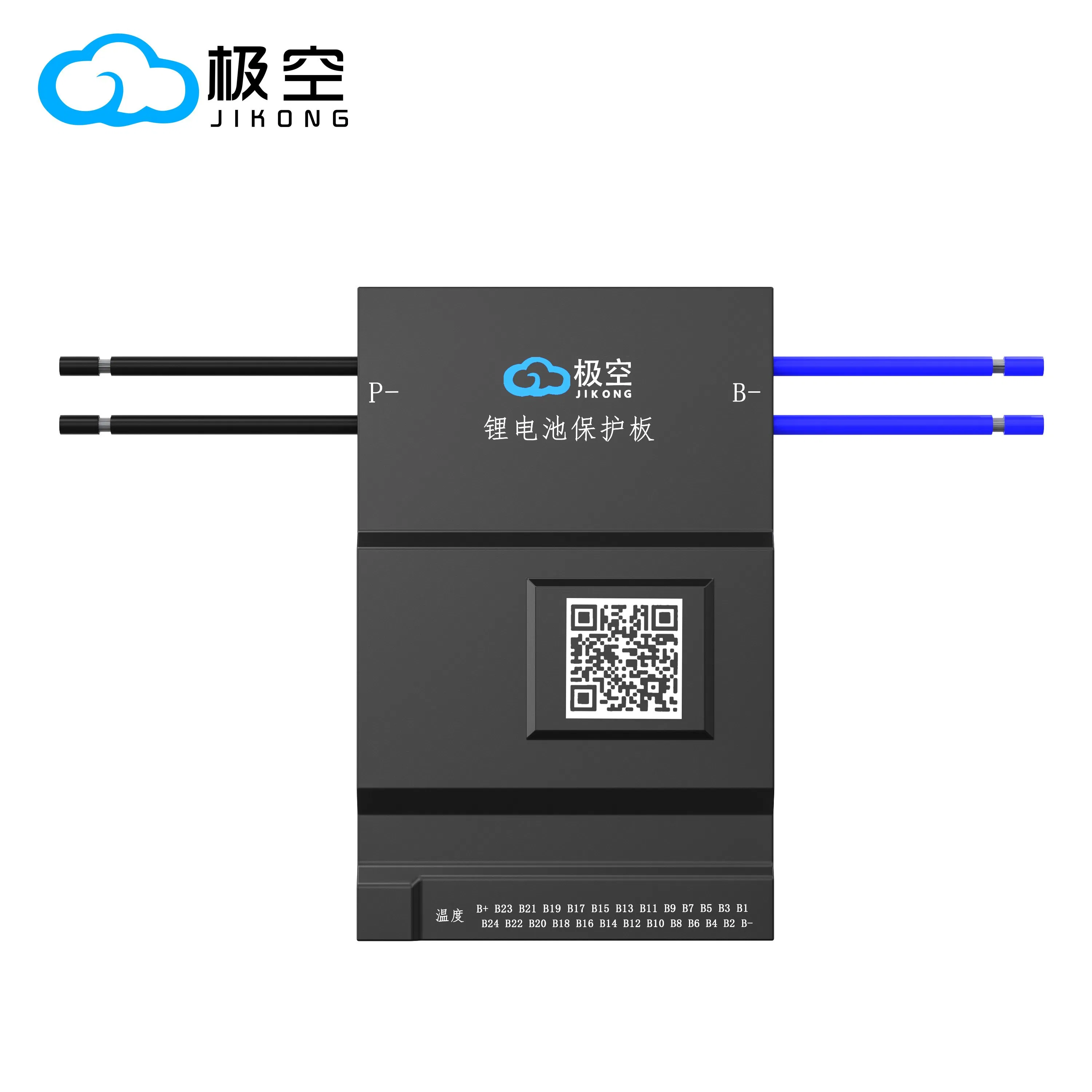

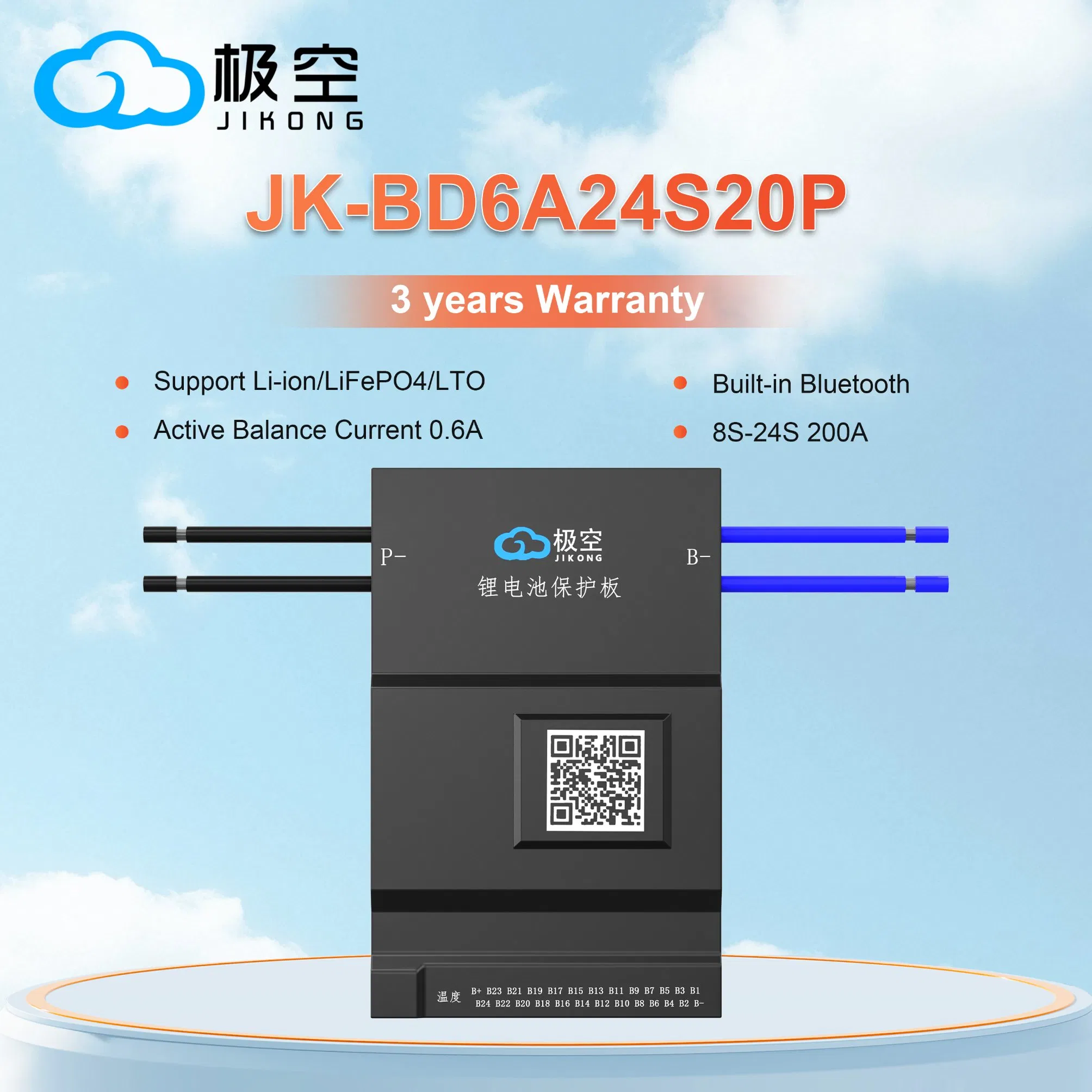

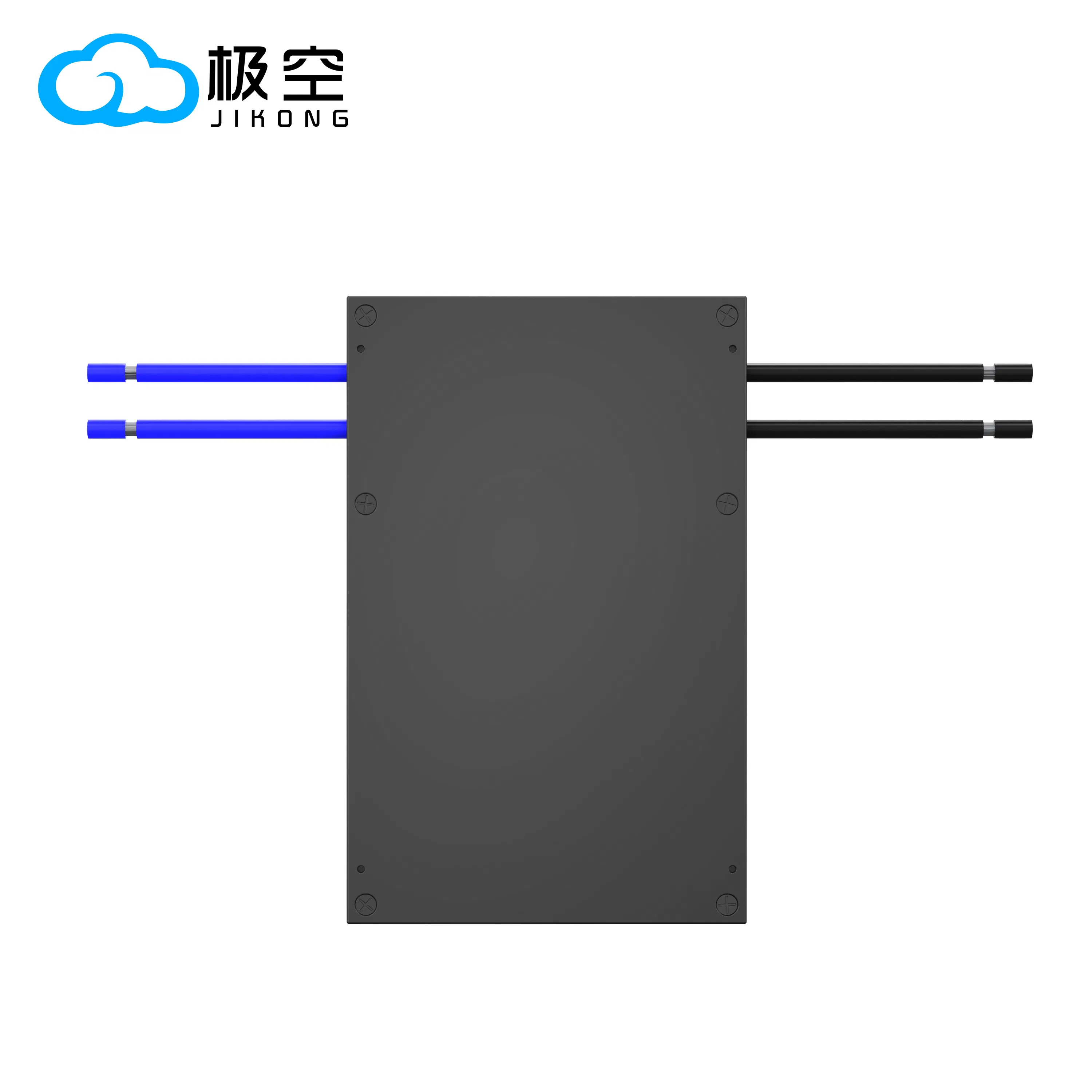

Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
1 / 5
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS
Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS

Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS

Customization: Available
Balance Method: Active Balance
Balance Current: 0.6A
Send Inquiry

Product Description

Basic Information
Model NO.
JK-BD6A24S20P
Charge/Discharge
200A
Battery Strings
8s-24s
Battery Type
LiFePO4/Li-ion/Lto
Interface
Bt Built-in/Lcdswitch/Sampling/Temp.
Size
162*102*20.4mm
HS Code
9032896085
Production Capacity
500,000 Pieces / Year
Product Specifications
PRODUCT MODEL BD6A20S20P BD6A24S20P
Battery Strings (Li-ion)7S~20S7S~24S
Battery Strings (Lifepo4)8S~20S8S~24S
Battery Strings (LTO)12S~20S12S~24S
Working voltage range20~100V
Balance MethodActive Balance
Balance Current0.6A
Continuous Discharge Current200A200A
Continuous Charge Current200A200A
Maximum instantaneous current350A350A
Bluetooth / LCD / Alarm InterfaceSupport
Protection FunctionsOvercurrent / Overvoltage / Undervoltage / Over-temp / Low-temp / Short circuit protection
Product Display & Details

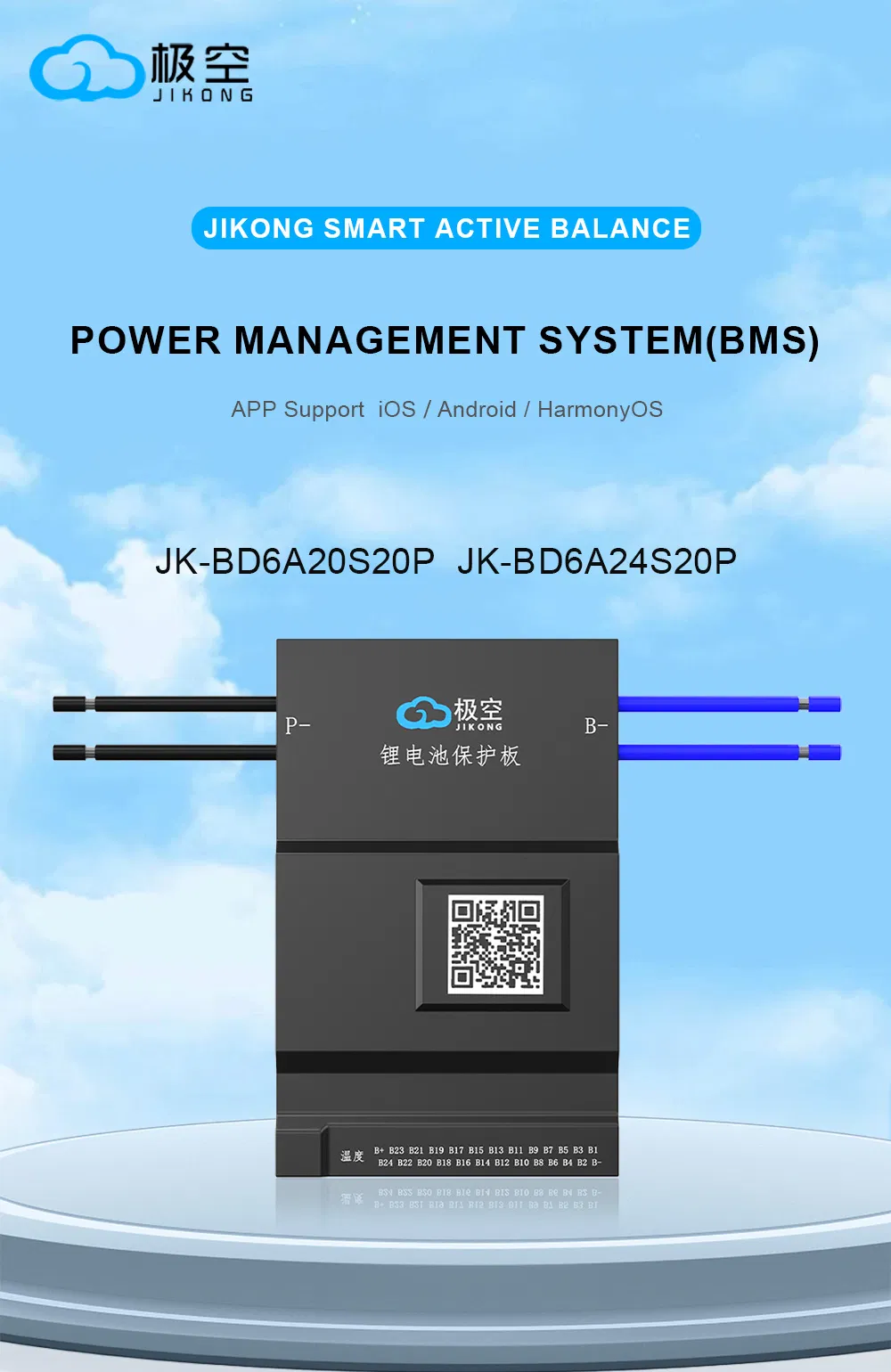

Specification 1

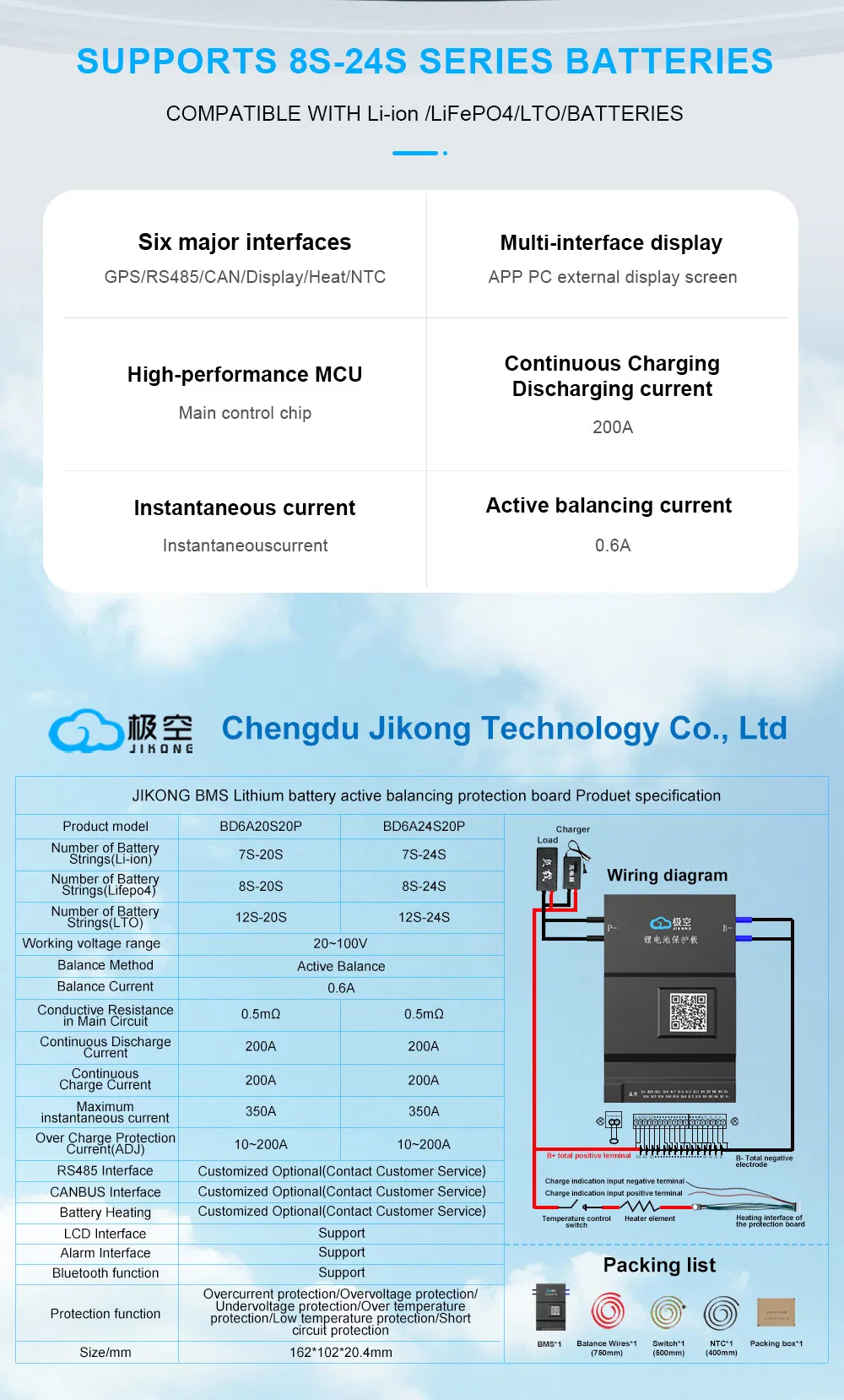

Specification 2
Specification 3

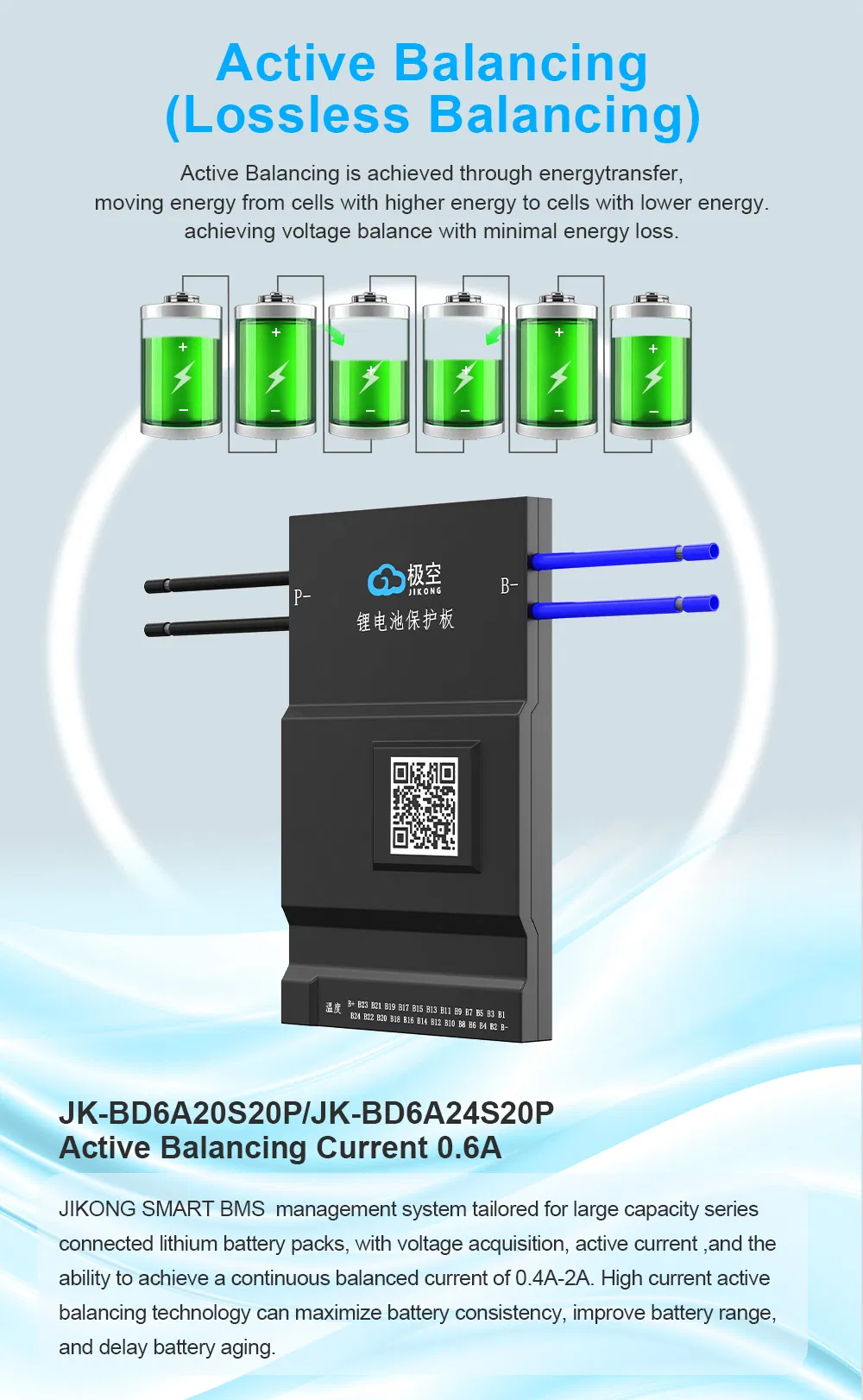

Specification 4

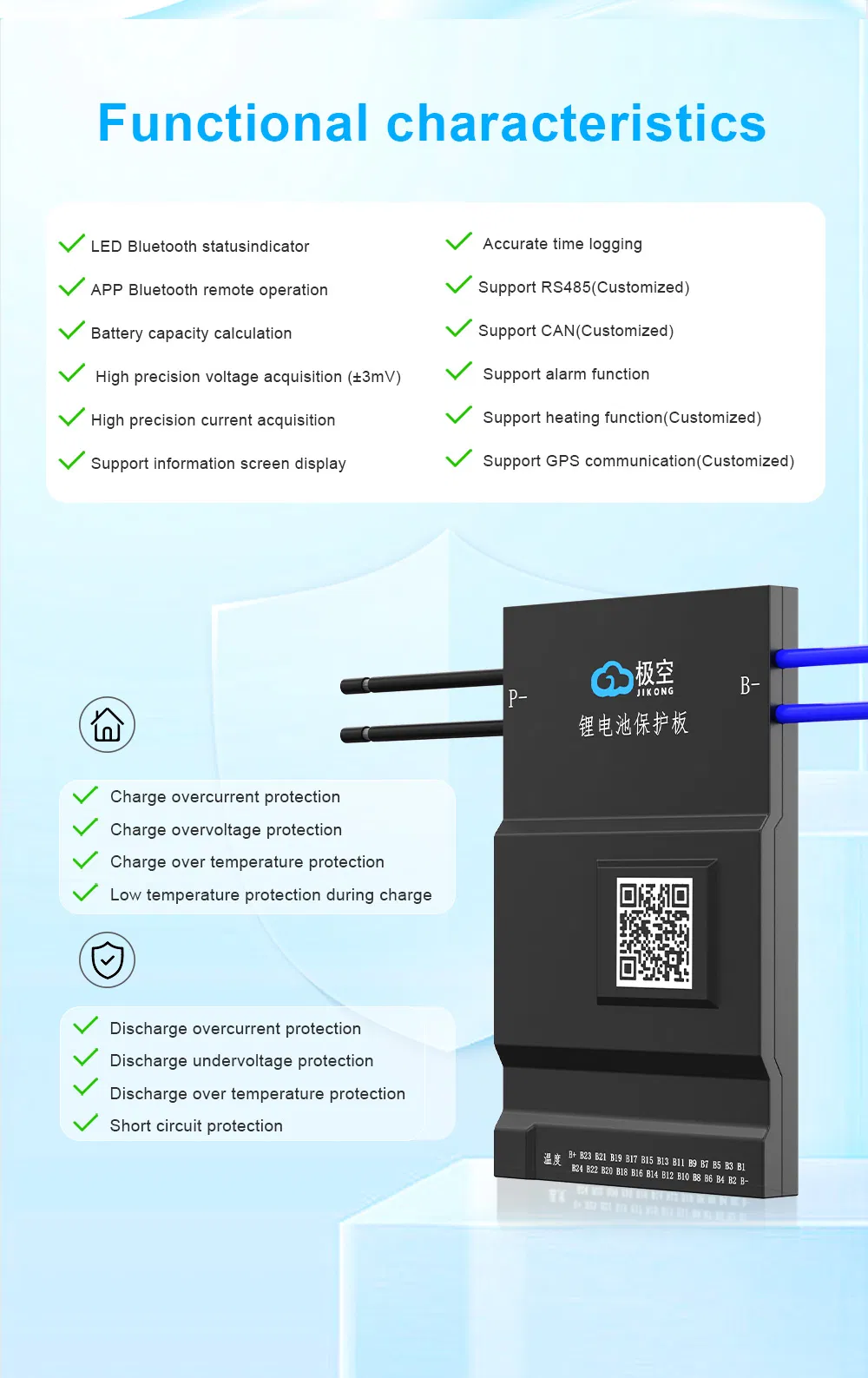

Specification 5

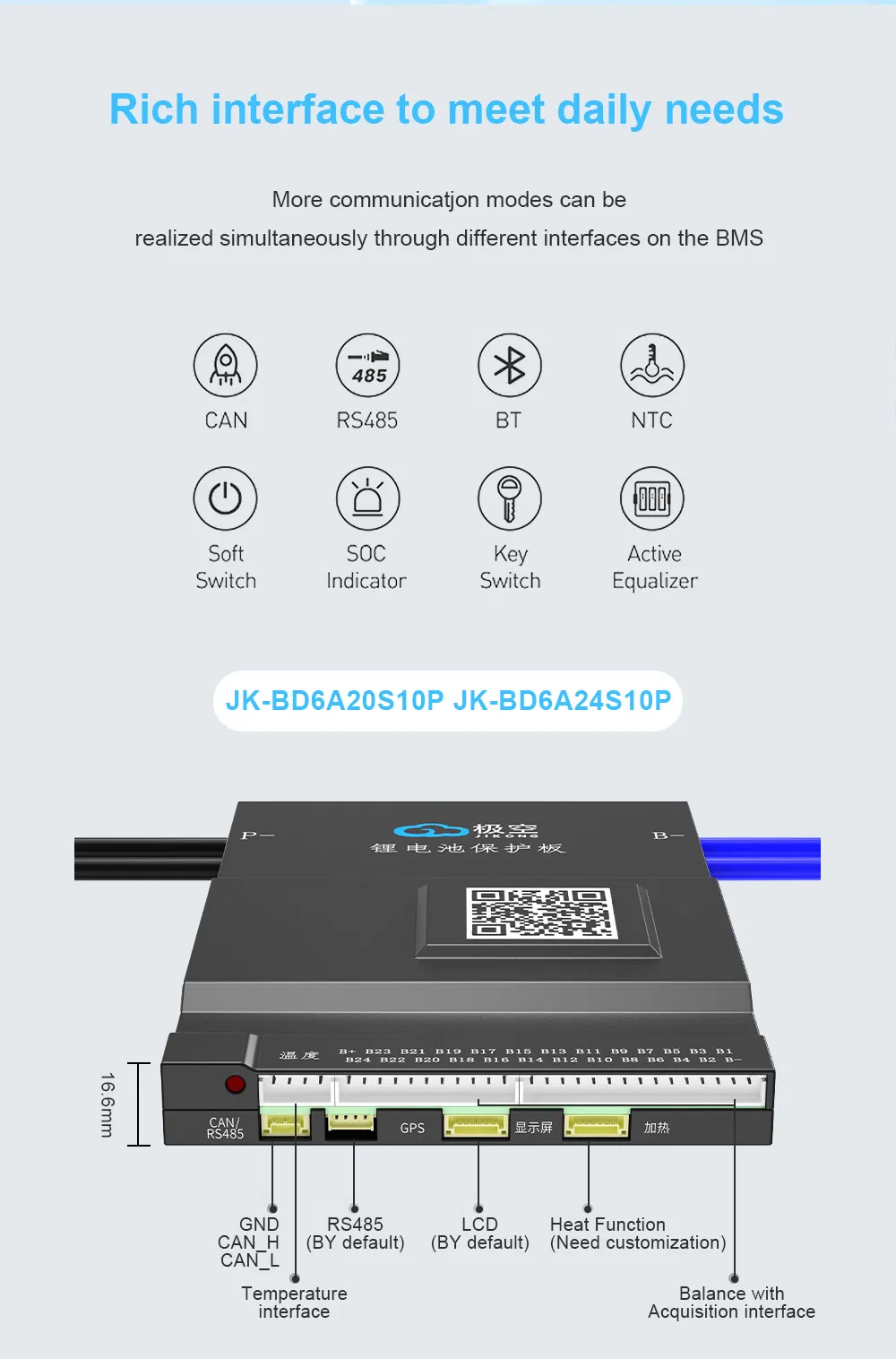

Detail 1

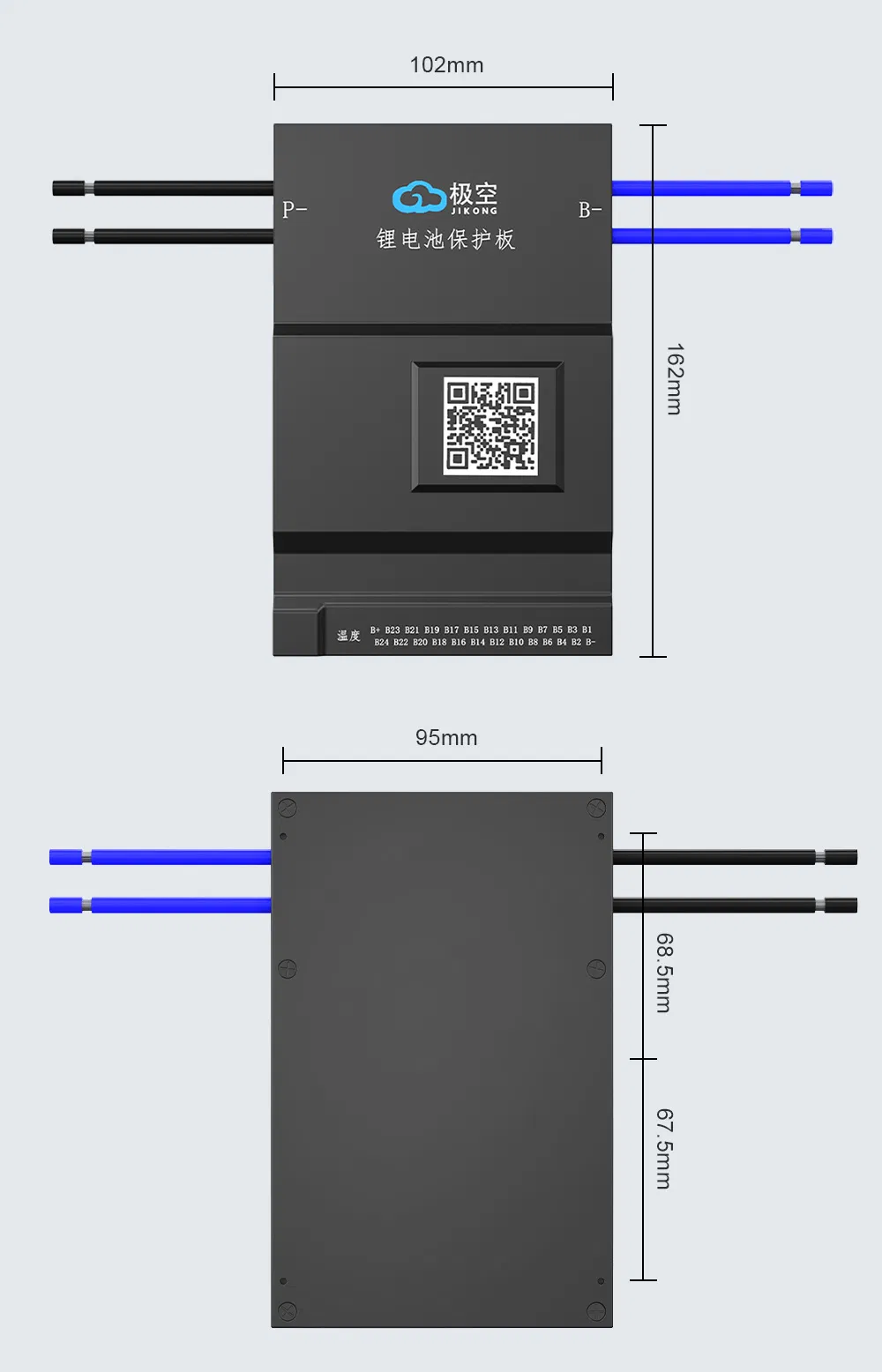

Detail 2

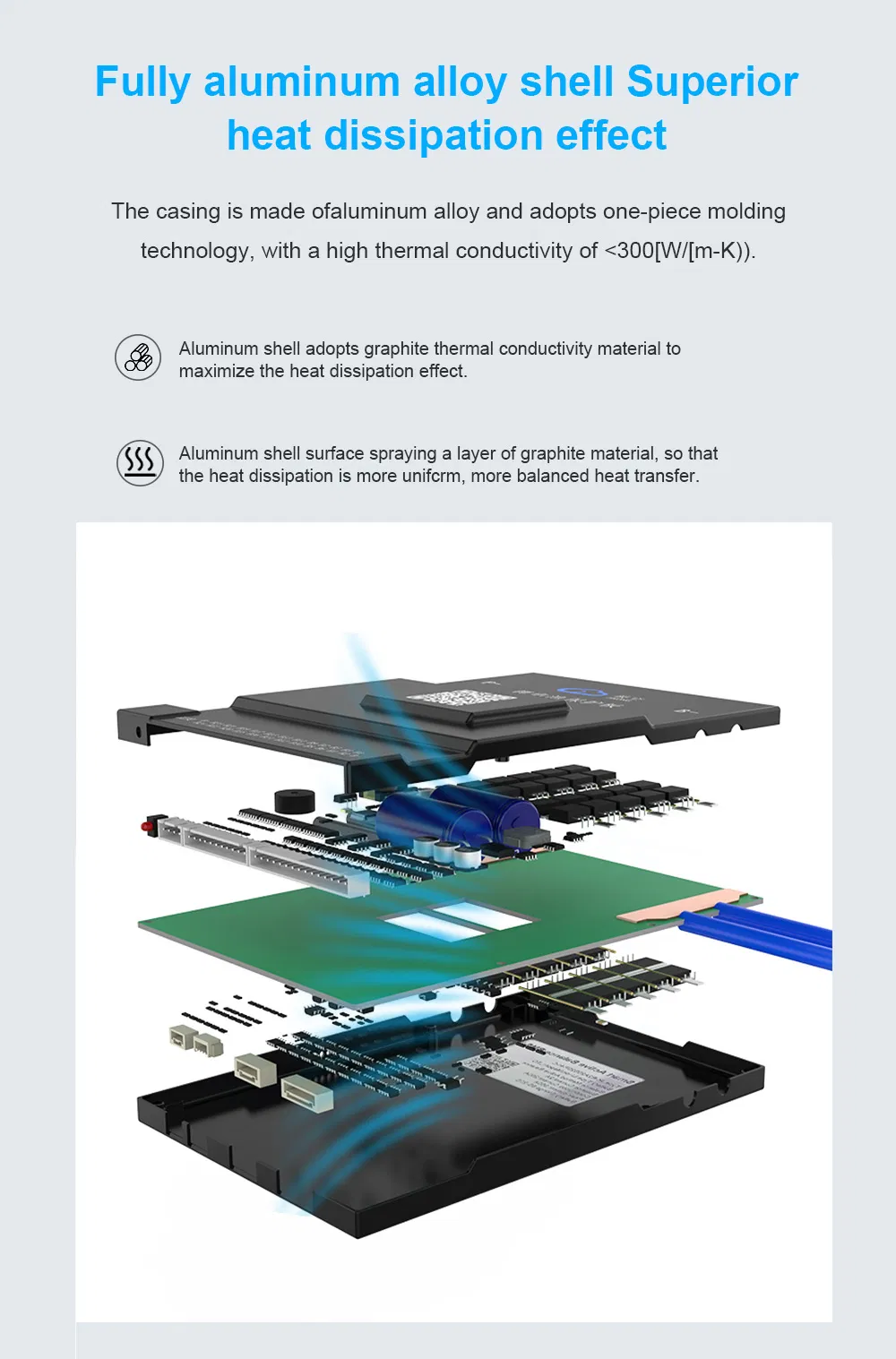

Detail 3

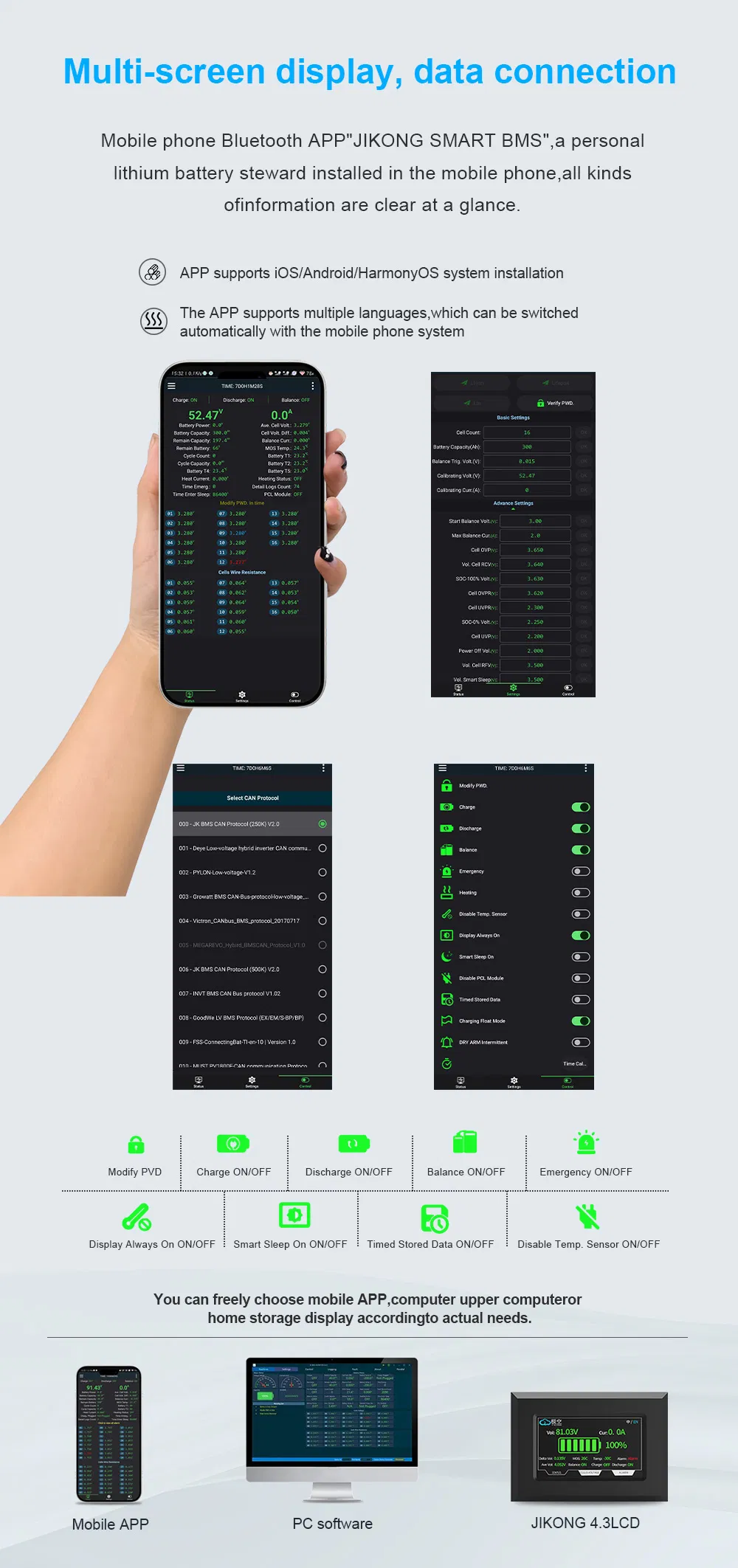

Detail 4

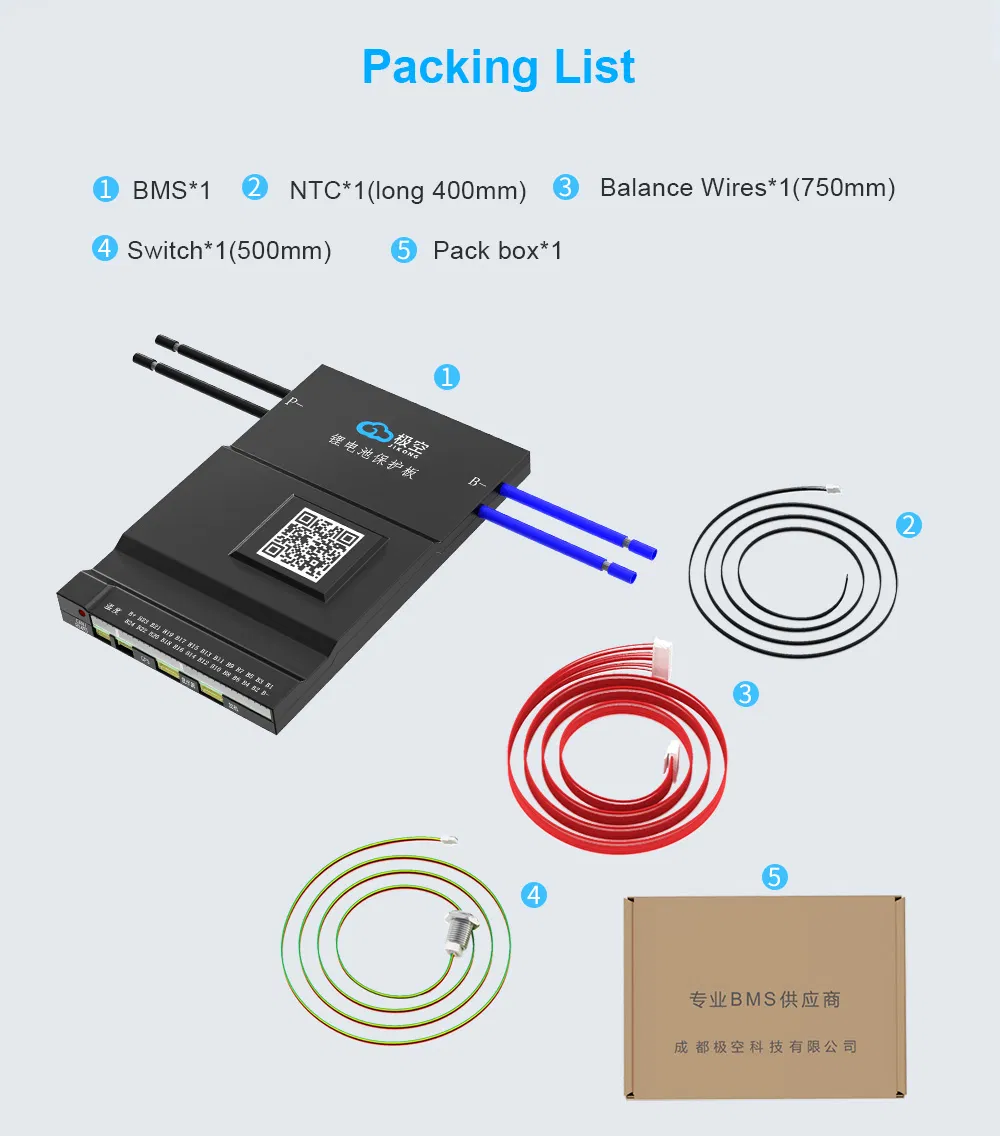

Full Product Overview
Company Profile

A global leader in intelligent Battery Management System (BMS) solutions, integrating R&D, manufacturing, sales, and service into a single high-tech enterprise.

  • Core Technologies: Active Lossless Balancing, All-Time Precise Regulation, Intelligent Communication Protocols.
  • Applications: Home Energy Storage, Commercial & Industrial ESS, EV Powertrains, and Industrial Power Protection.
  • Global Reach: Products sold in over 130 countries including USA, EU, Southeast Asia, and more.
  • Manufacturing: 15,000 m² intelligent plant with 10 million units annual capacity.

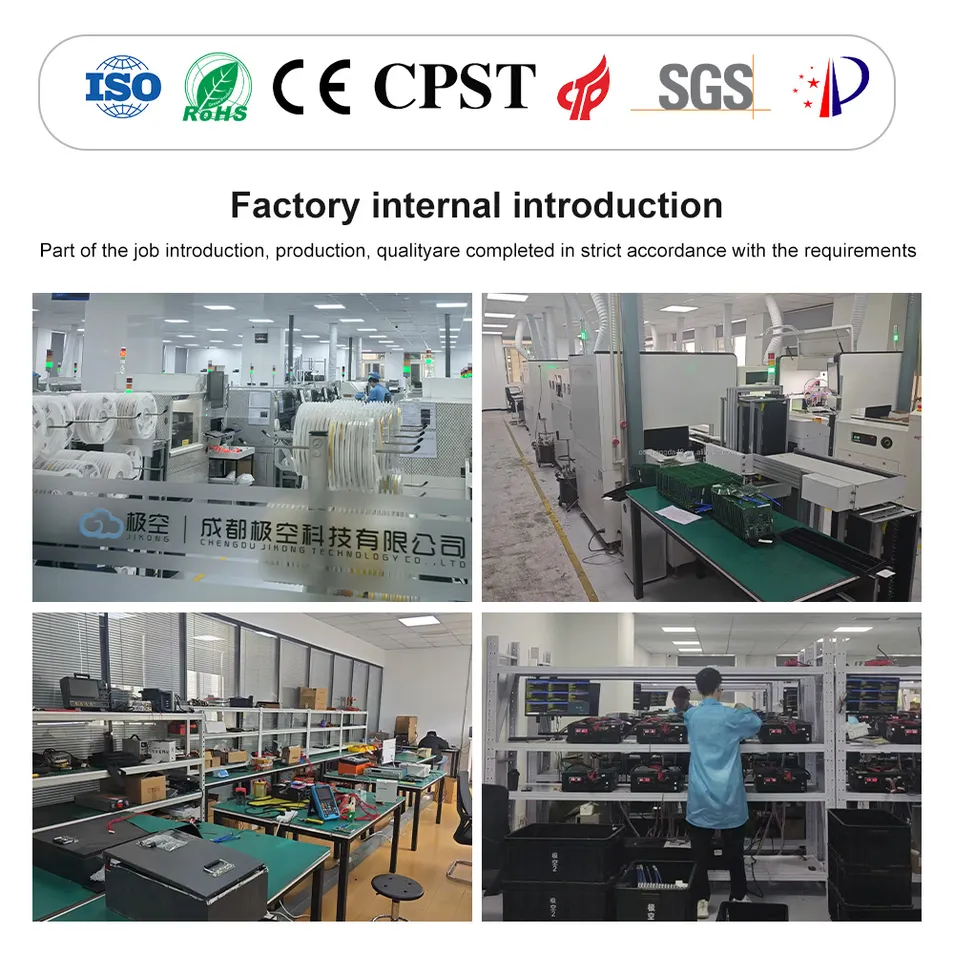

Factory

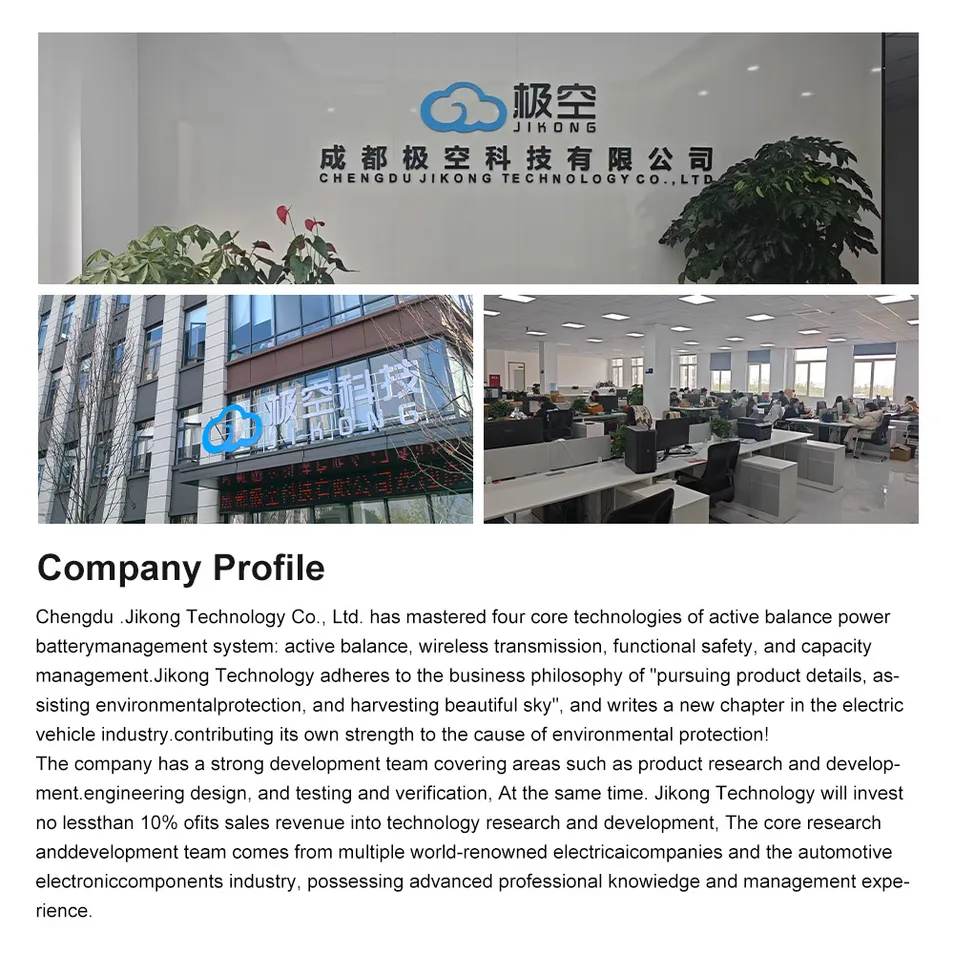

Workshop 1
Workshop 2
Frequently Asked Questions
1. Do you support production and customization?
Yes. As a national high-tech enterprise integrating R&D and production, we have advanced equipment and an experienced team to support both ODM and OEM requirements.
2. How is the product quality and after-sales service guaranteed?
We maintain strict quality control through pre-production samples, 100% testing before delivery, and a final inspection before shipment to ensure high performance and reliability.
3. What are the typical application scenarios for your BMS?
Our BMS solutions cover Inverters (8S-16S), Power systems (4S-24S), Energy Storage (4S-8S), and Truck starting systems (4S-8S), with active balancing currents ranging from 0.4A to 15A.
4. What transportation channels are available?
We offer various shipping methods and can discuss specific logistics requirements in advance to connect with your preferred transportation channels.
5. What is the standard lead time for orders?
Sample delivery typically takes about 7-15 working days, while bulk orders generally have a lead time of approximately 30 working days.
6. Which battery types are compatible with Jikong BMS?
Our BMS is designed for versatility and is compatible with LiFePO4, Li-ion, and LTO battery types across various voltage configurations.
