Basic Information
Model NO.LWS-16S200A-809V4
Over Current ProtectionYes
Balance FunctionYes
UsageLithium Battery Packs, LiFePO4 etc
ApplicationDigital Equipment, Electrice, Ebike, etc
Delivery Time7-15 Days After Payment
Metal CoatingCopper
Mode of ProductionSMT
LayersMultilayer
Base MaterialFr-4
CertificationRoHS, ISO
ConditionNew
Testing Service100% E-Testing
SpecificationL238.4*W95*T17.5mm
HS Code8536300000
Production Capacity10000/Month
Packaging & Delivery
Package Size25.00cm * 10.00cm * 2.00cm
Package Gross Weight1.000kg
Product Description
| Feature |
Specification Details |
| Mode | LWS-16S200A-809V3 |
| PCM Size | L238.4*W95*T17.5 mm |
| Battery Series | 16S Available |
| Working Current | 200A Available |
| Usage (Cell Type) | Li-ion battery packs (51.2V/cell) / LiFePO4 battery packs (59.2V/cell) |
| Application | Ebike, Solar products, etc |
| Sample | Available |
Key Features
Provides protection for 16 series LiFePo battery pack
Provides protections in charging and discharging
Smart cell balancing with adjustable current via external components
Integrated over-current and short-circuit protection
Protection against damage from overload or electrical circuit faults
Low temperature heating function support

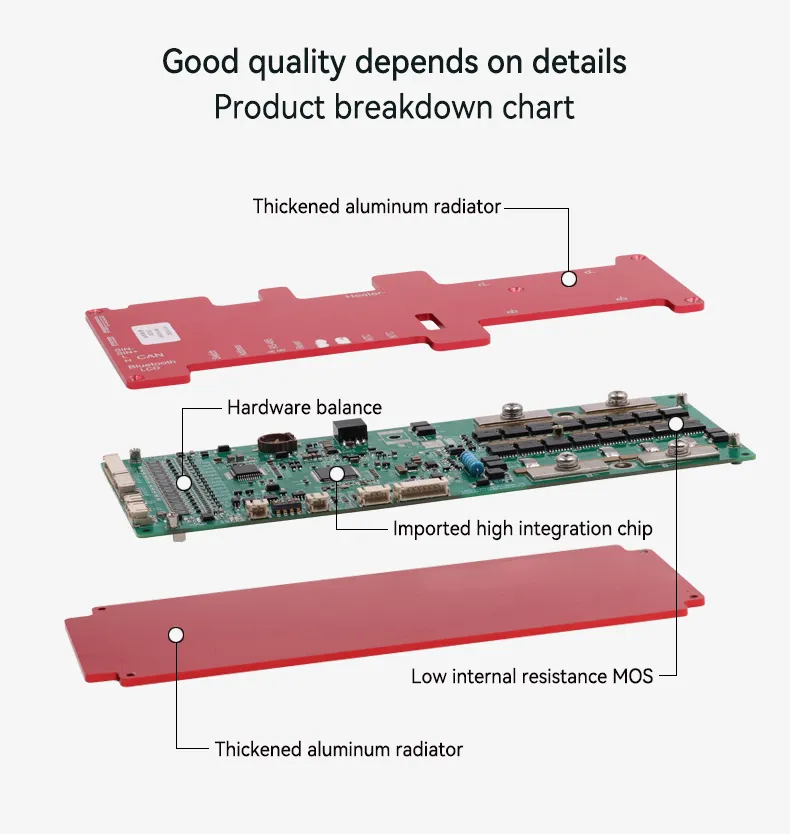

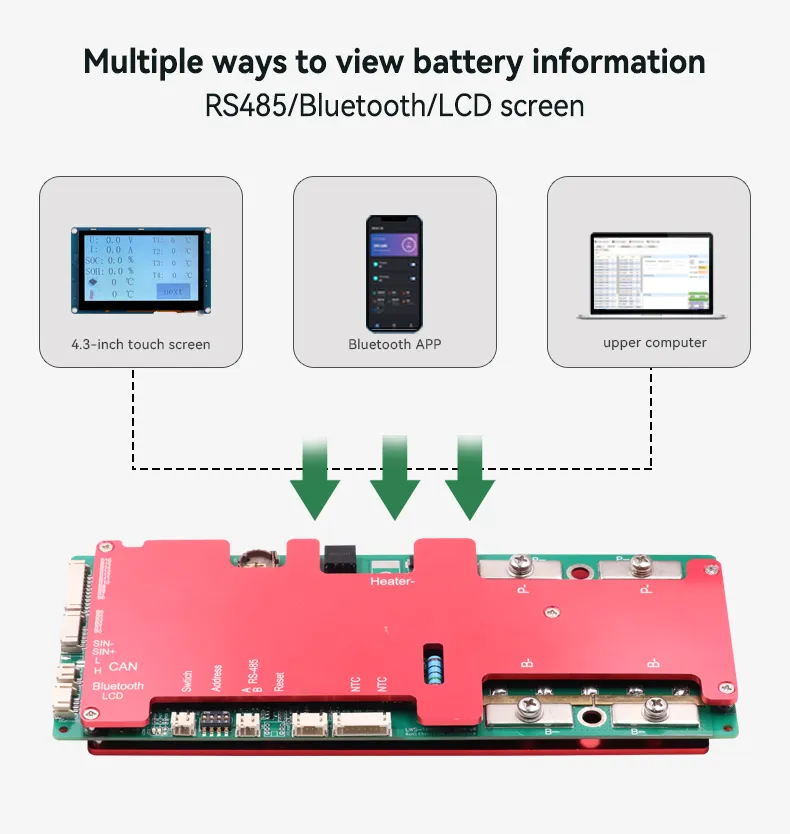

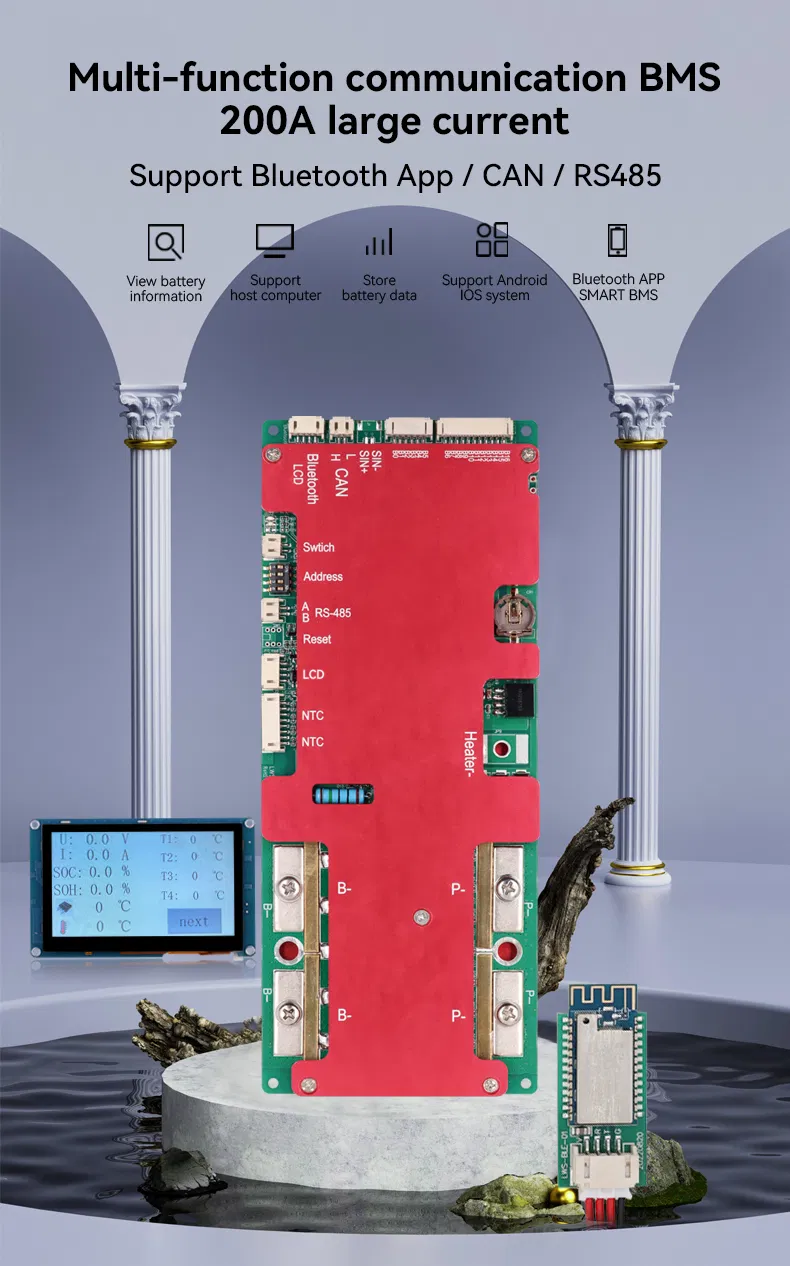

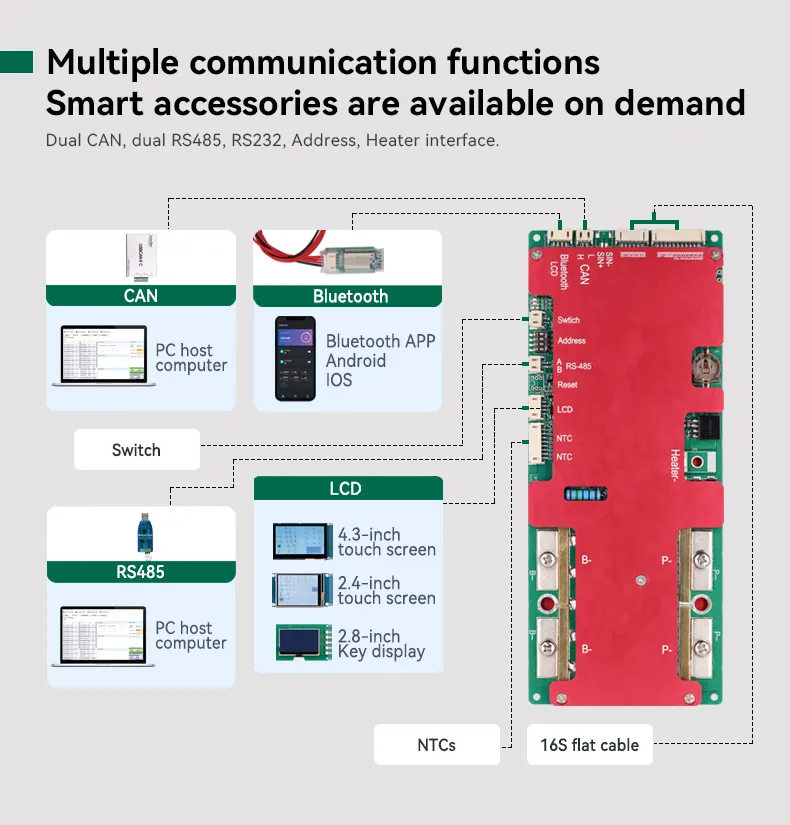

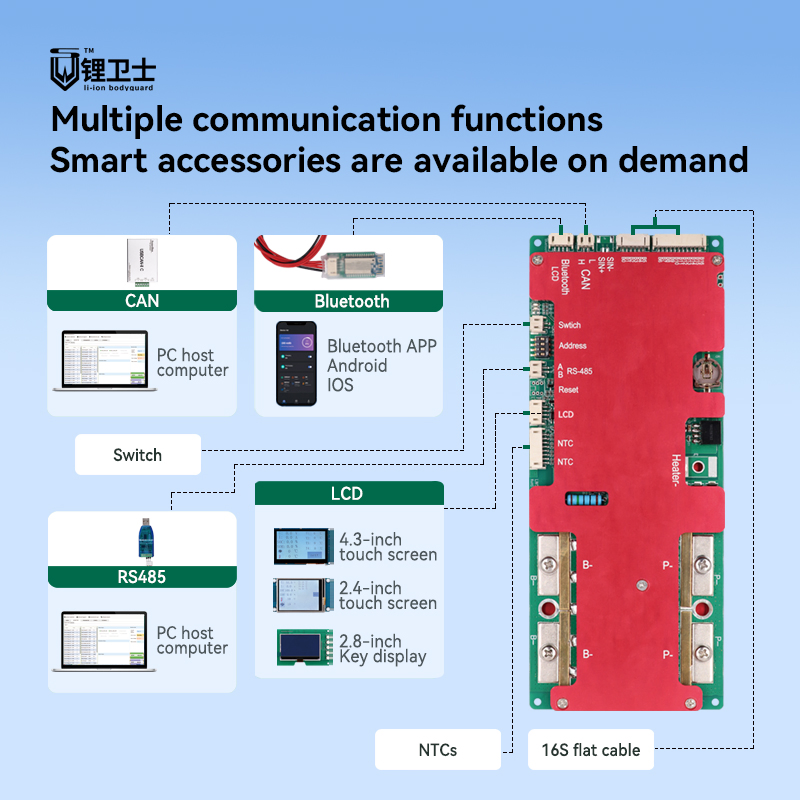

Supports RS485, CAN, and Bluetooth protocols
PCM Technical Specifications
| No. |
Test Item |
Criterion |
| 1 | Charging voltage | DC: 58.4V CC/CV |
| 2 | Balance voltage for single cell | 3.2±0.025V |
| 3 | Balance current for single cell | 75±20mA |
| 4 | MAX Continuous charging/discharge | ≤100A |
| 5 | Over charge detection voltage | 3.75±0.025V |
| 6 | Over charge release voltage | 3.5±0.05V |
| 7 | Over discharge detection voltage | 2.50±0.05V |
| 8 | Over discharge release voltage | 2.8±0.10V |
| 9 | Over discharge current protection | 120±10A |
| 10 | Short circuit protection current | ≈1000A |
| 11 | Protection Resistance (MOSFET) | ≤5mΩ |
| 12 | Operating Temperature | -20~+60ºC |

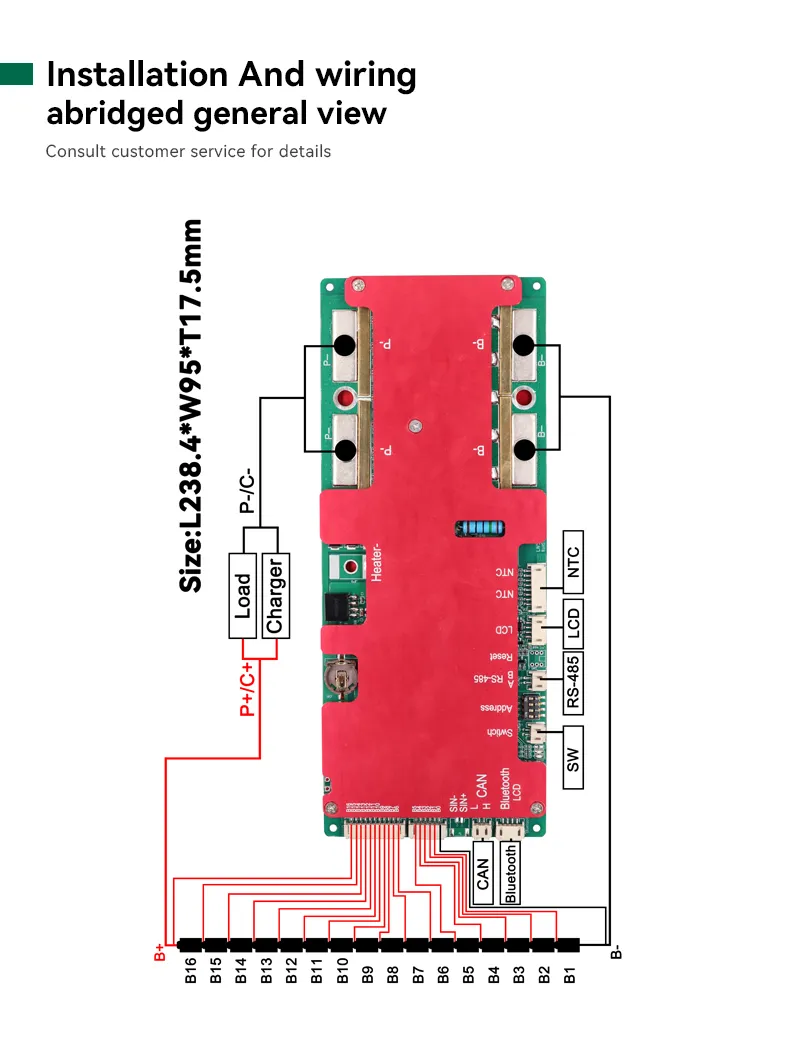

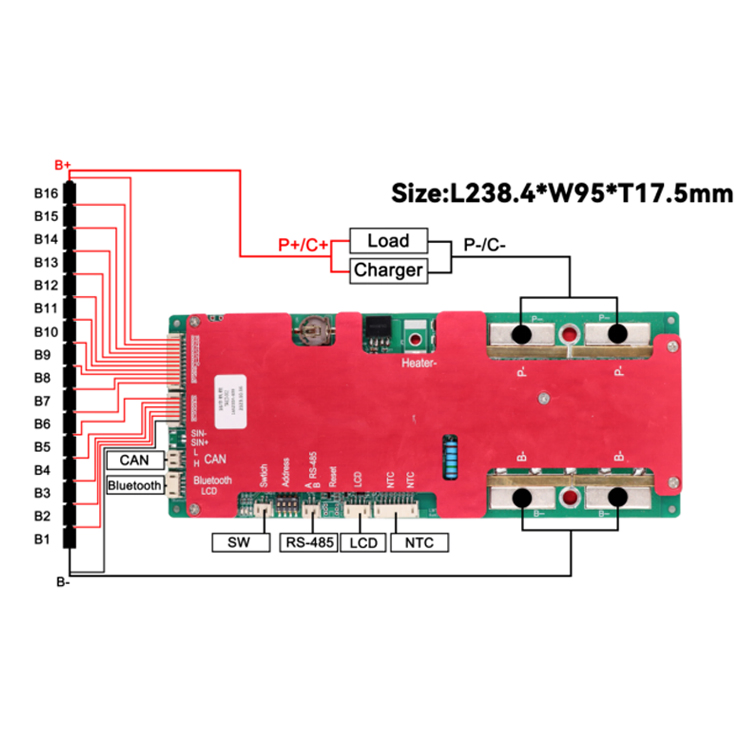

Wiring & Installation Steps

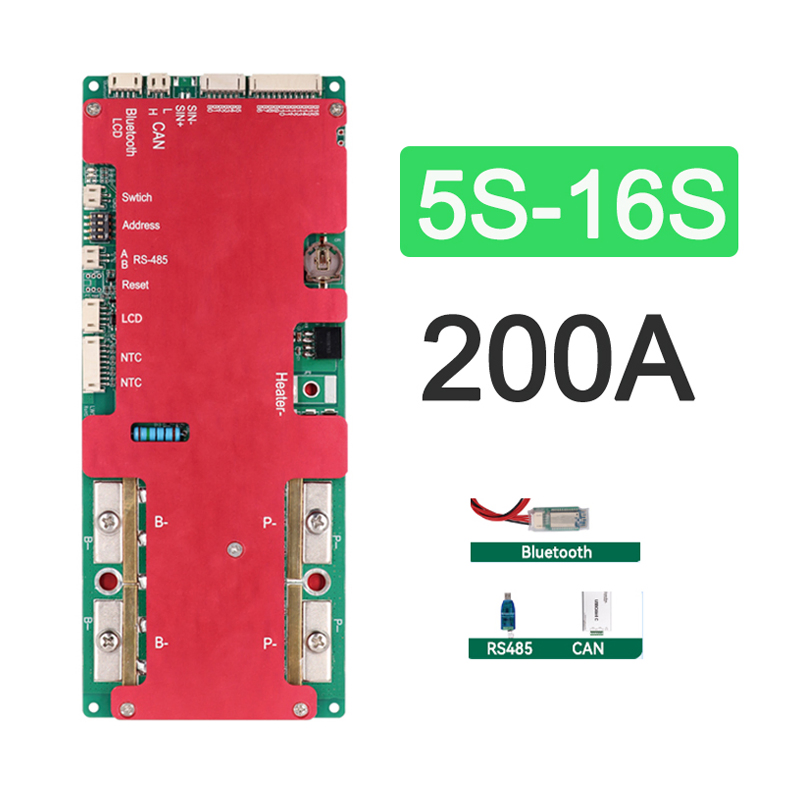

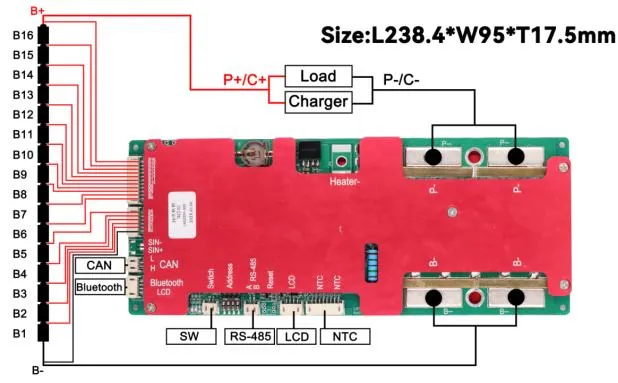

Step 1: Initial Connection
Connect the B- to the battery negative terminal. Ensure the B- is welded to the stub first, then connect the cables (ensure cables are removed from BMS before wiring).
Step 2: Wiring Sequence
Start from B- (total negative terminal). Connect B1 to the positive of cell #1, B2 to cell #2 positive, B3 to cell #3 positive, and continue in sequence.
Step 3: Voltage Testing
Test voltage between adjacent lines. Li-ion should be < 4V, LFP should be < 3.5V. Insert the line after checking.
Step 4: Final Connection
Connect the negative terminal of the charger and load to P-/C-. Use bold cables for B- and P-/C- wiring.
Product Showcase
Frequently Asked Questions
How do I judge what material my battery is?
Check the battery body. If the nominal voltage is 3.2V, it is LiFePo4. If it shows 3.6V or 3.7V, it is a Li-ion or Li-polymer battery.
How is the product quality guaranteed?
We maintain high standards through pre-production samples before mass production and a final 100% inspection before every shipment.
What types of products are available for purchase?
We offer Battery Pack BMS, LiFePO4/Lithium Ion PCM, Protection Circuit Boards, and complete Battery Packs.
What are the advantages of these protection boards?
Our products are manufactured using advanced SMT equipment and a scientific quality management system to ensure high reliability and environmental safety.
What payment and delivery terms are accepted?
We accept FOB and EXW delivery terms. Payments can be made via T/T, PayPal, or Western Union in USD or CNY.
How do I get a recommendation for my specific project?
Simply provide your battery's relative voltage, cell count, and required current (A) or equipment details, and we will recommend the most suitable BMS for you.
