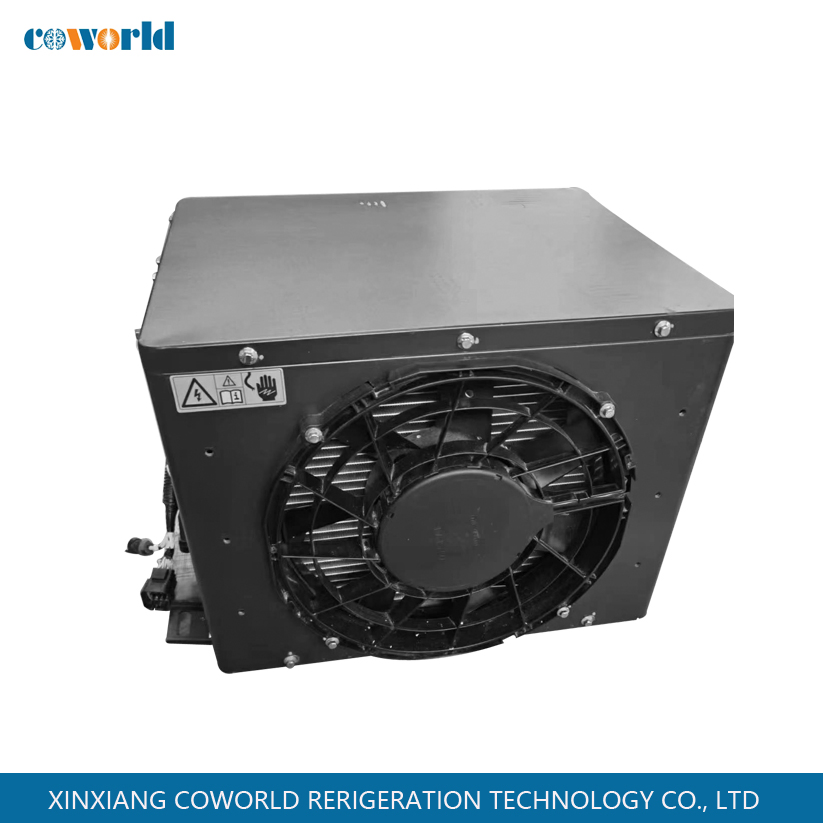

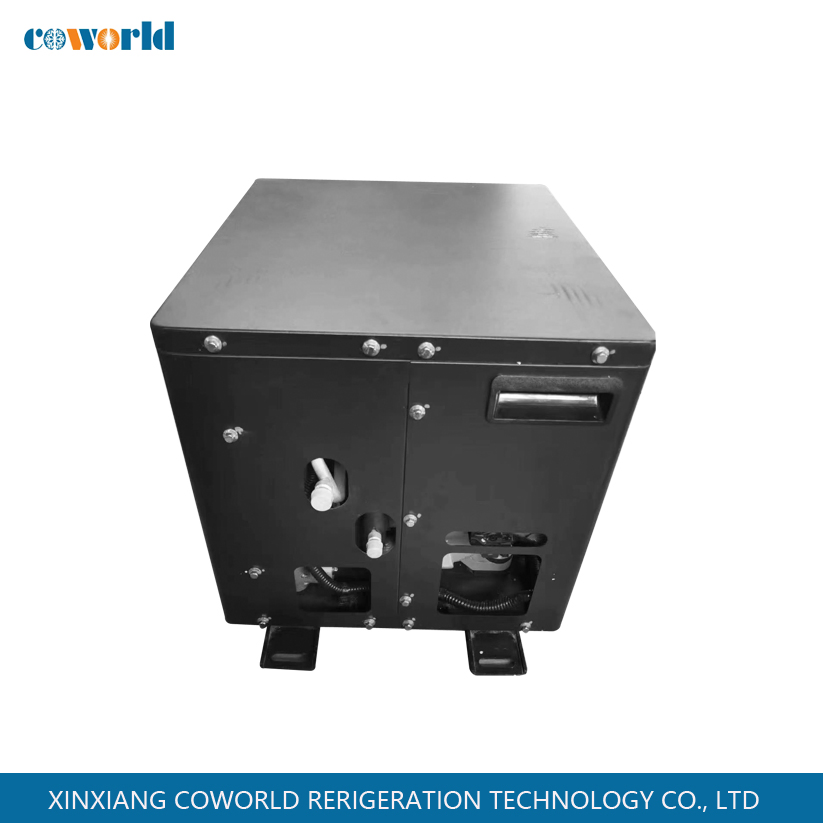

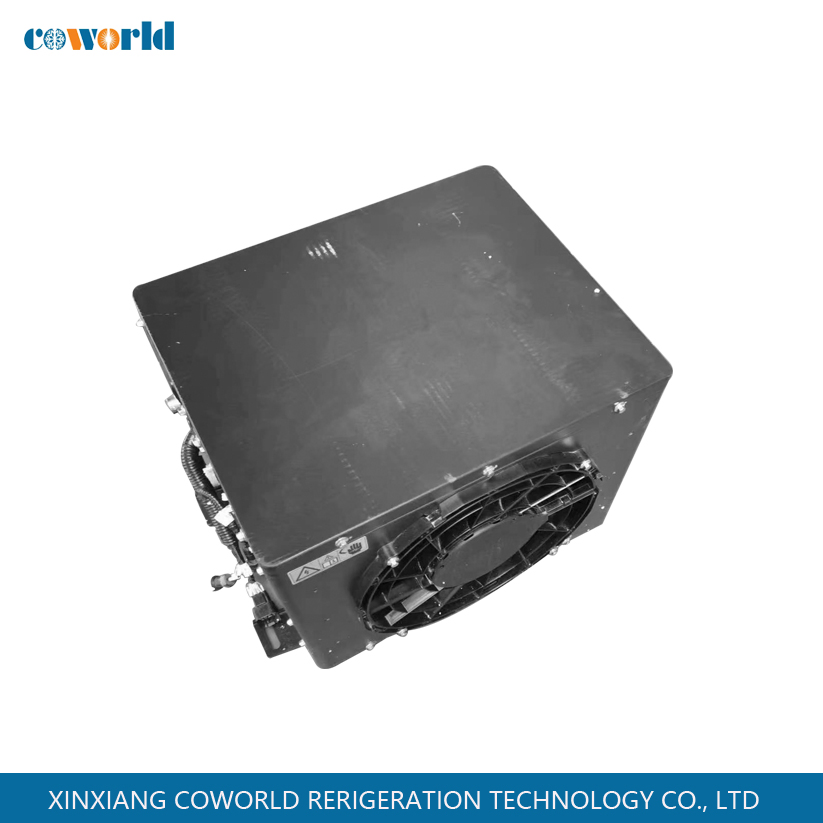

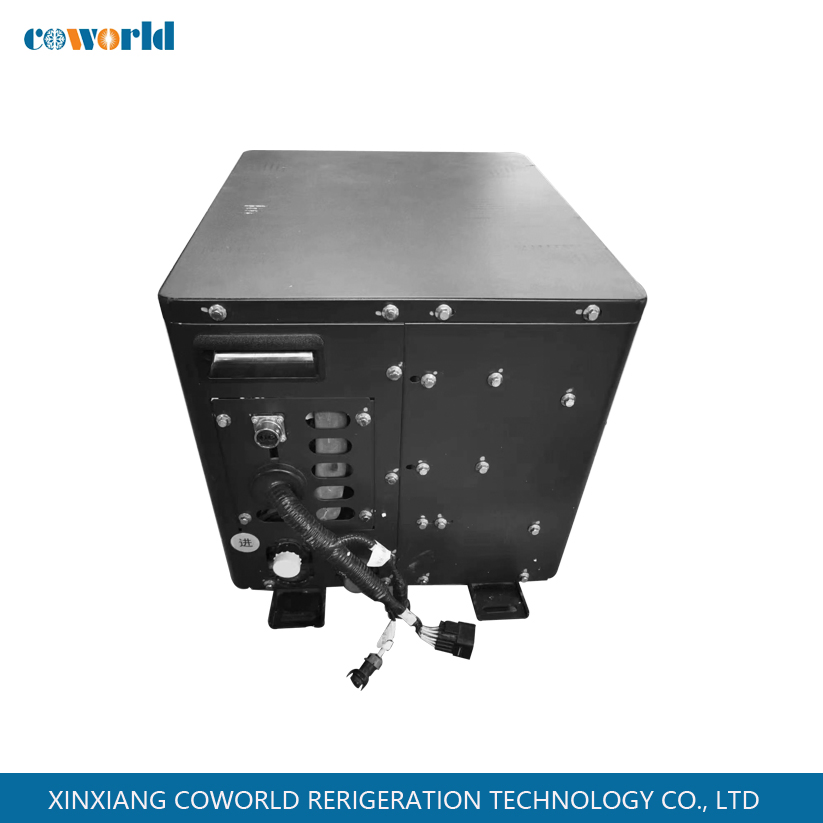

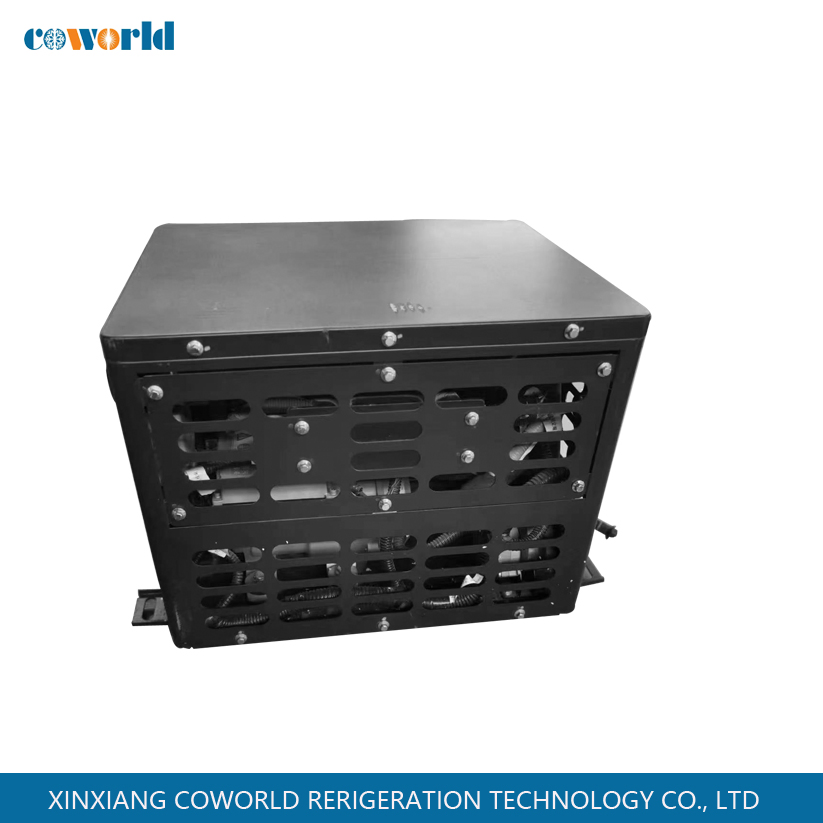

Battery Thermal Management System 24V for Sale

Customization:	Available
After-sales Service:	Free Parts
Warranty:	One Year

i

Basic Information

Model NO.

BTMS-01

Function

Cooling & Heating

Control Mode

Manual

Driving Mode

Non-independent

Temperature Area

Single Area

Certification

CE

HS Code

8418692090

Production Capacity

1000 units/Month

★

Product Description

Battery Thermal Management System for Electric Buses:
The Battery Thermal Management System is specifically designed for electric buses to solve high-temperature challenges during long-term operation. This system significantly extends battery life and ensures consistent, optimal performance of the entire vehicle power system.

⚙

Technical Specifications

Item	Data Details
Compressor	DC brushless scroll type EV26
Heat exchanger	High efficiency plate heat exchanger (15kw under 10L/min)
Condenser	Parallel flow (15kw under 4.5m/s)
Condenser fan	2000 m³/h
Expansion valve	Thermostatic expansion valve
Controller	CAN 2.0; 250Kbps; Fan and compressor control
Cooling Power	8KW
Working Temp Range	1 - 45ºC
Power Inlet Range	DC400-800V or DC240-400V
Control Voltage	DC18-32V
Refrigerant	R134A
Total Weight	≤ 33kg
Dimensions	570 × 314 × 378 mm
Service Life	≥ 20,000 hours
Insulation	≥ 50MΩ (Working state)

📷

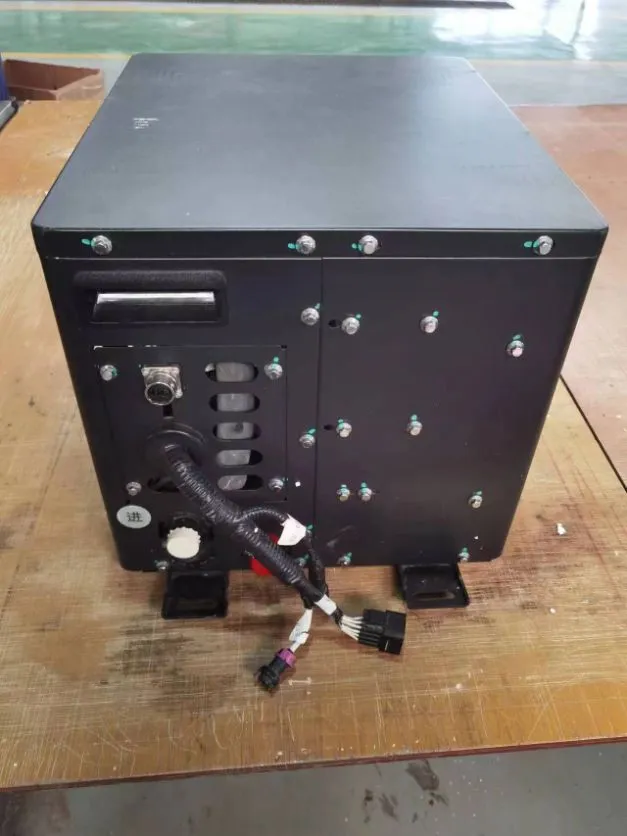

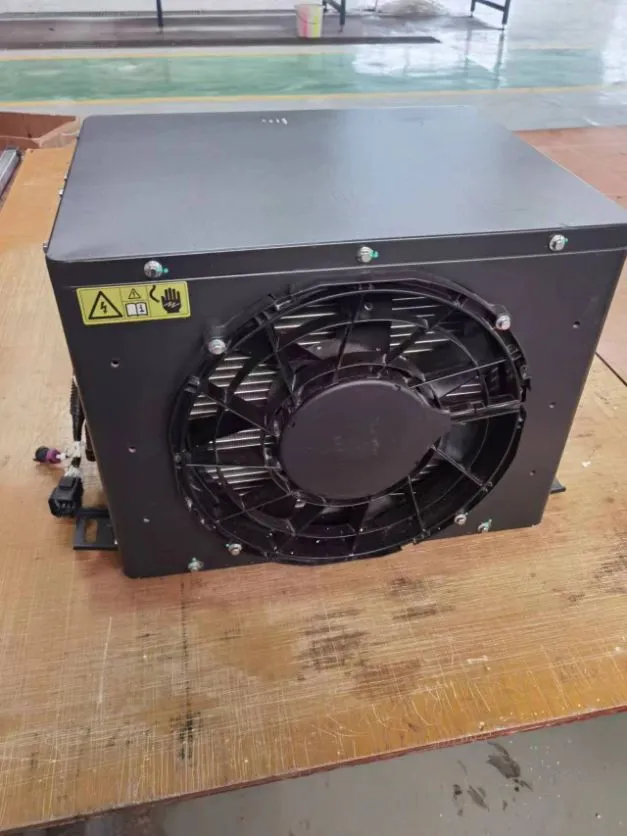

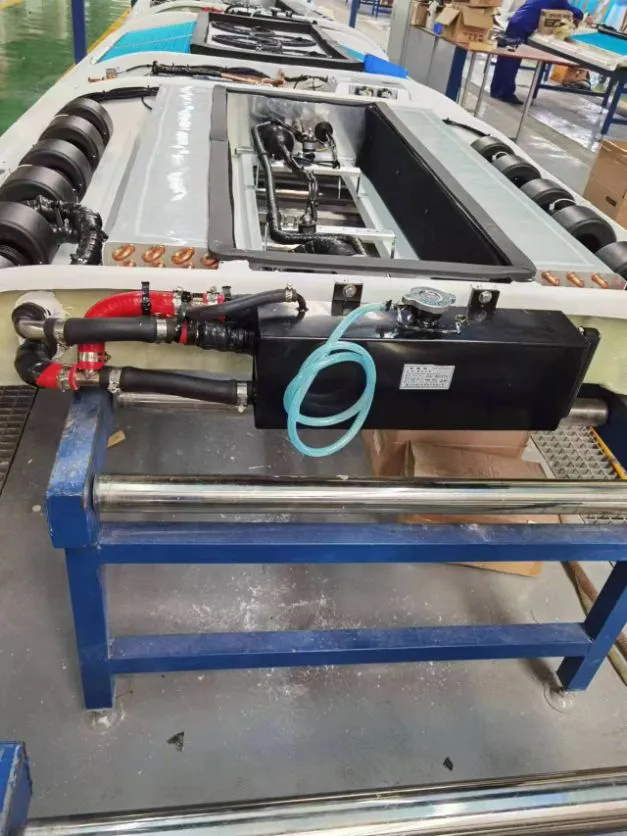

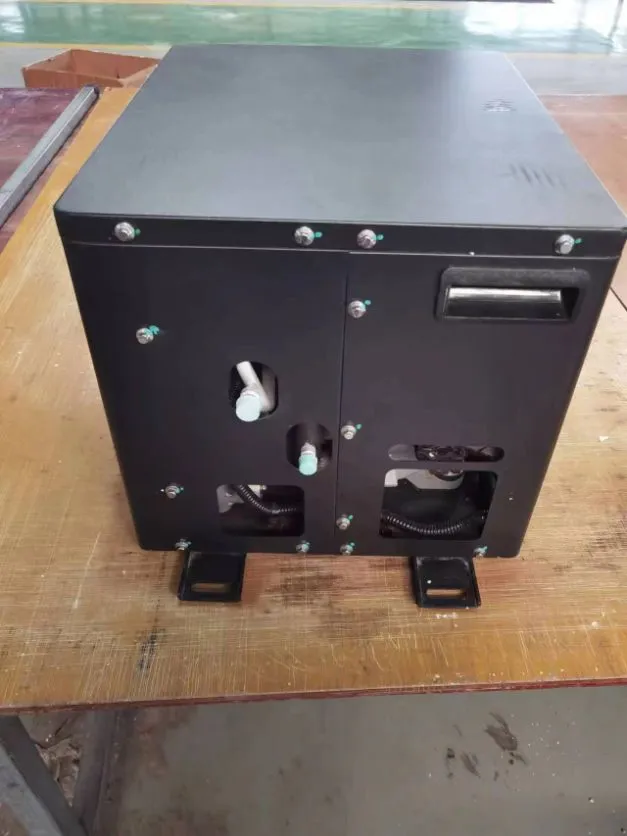

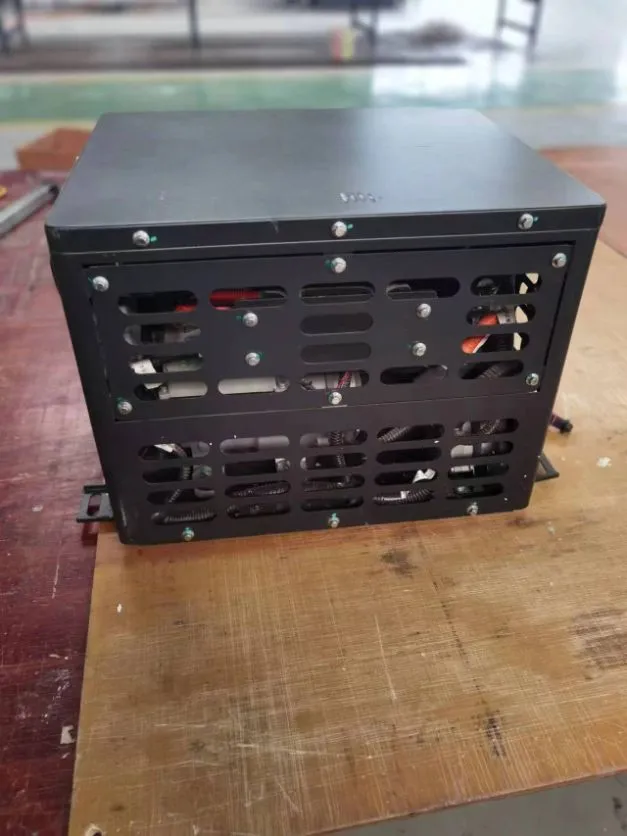

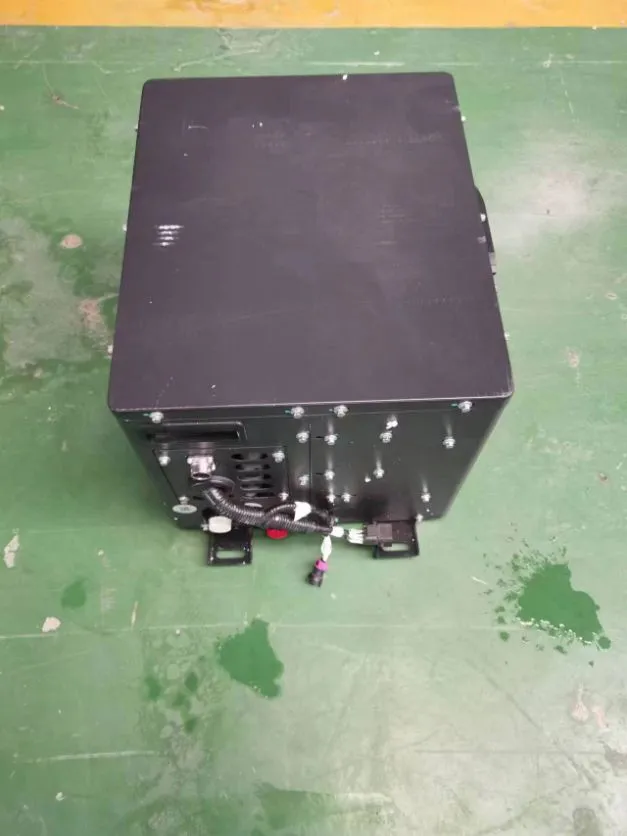

Product Display

📦

Packaging & After-sale

Package Size

590 × 335 × 398 cm

Gross Weight

40.00 kg

Packaging Type

Wooden Case or Carton

After-sale Service: The warranty period is 12 months. If any part fails within the first year, we provide free replacement parts.

?
