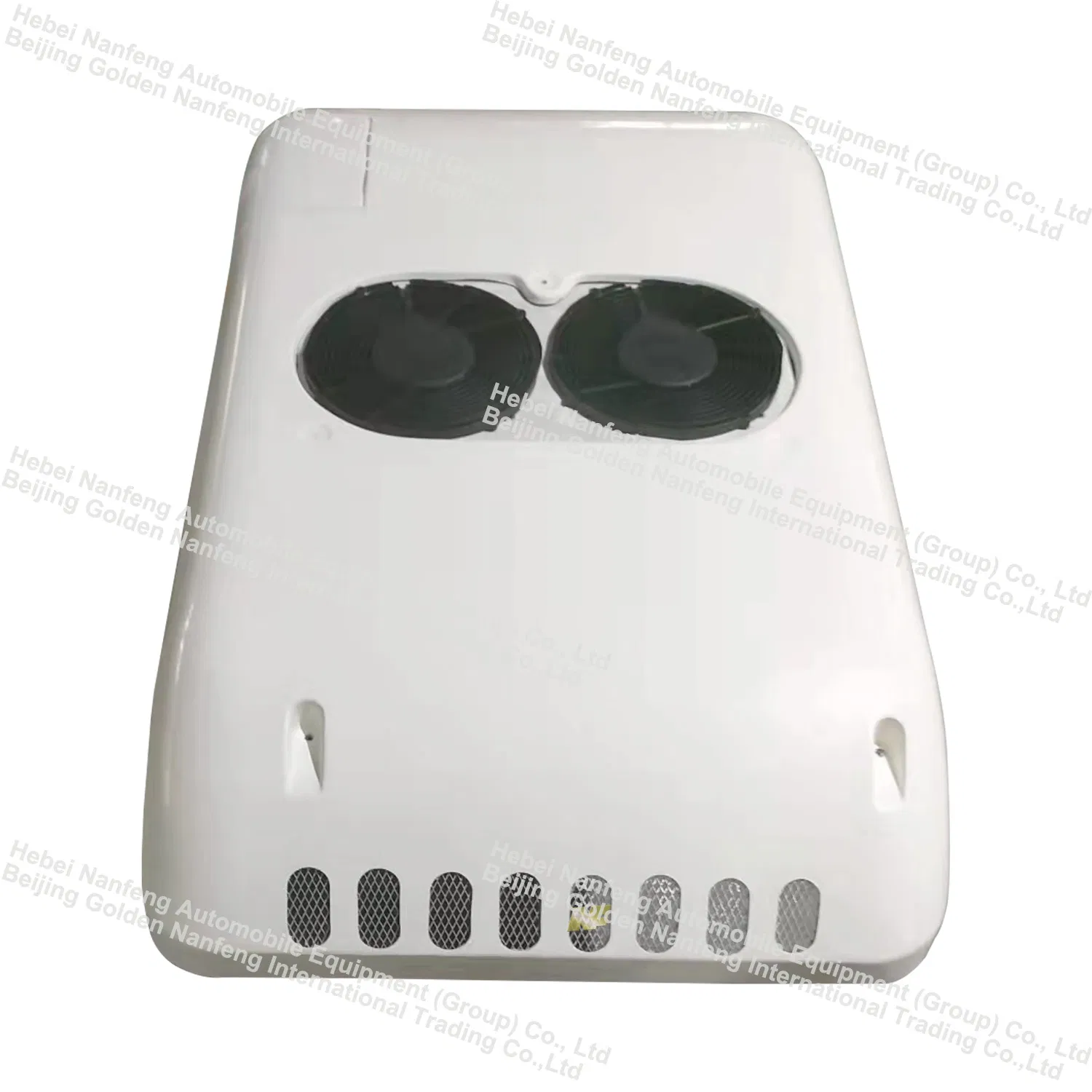

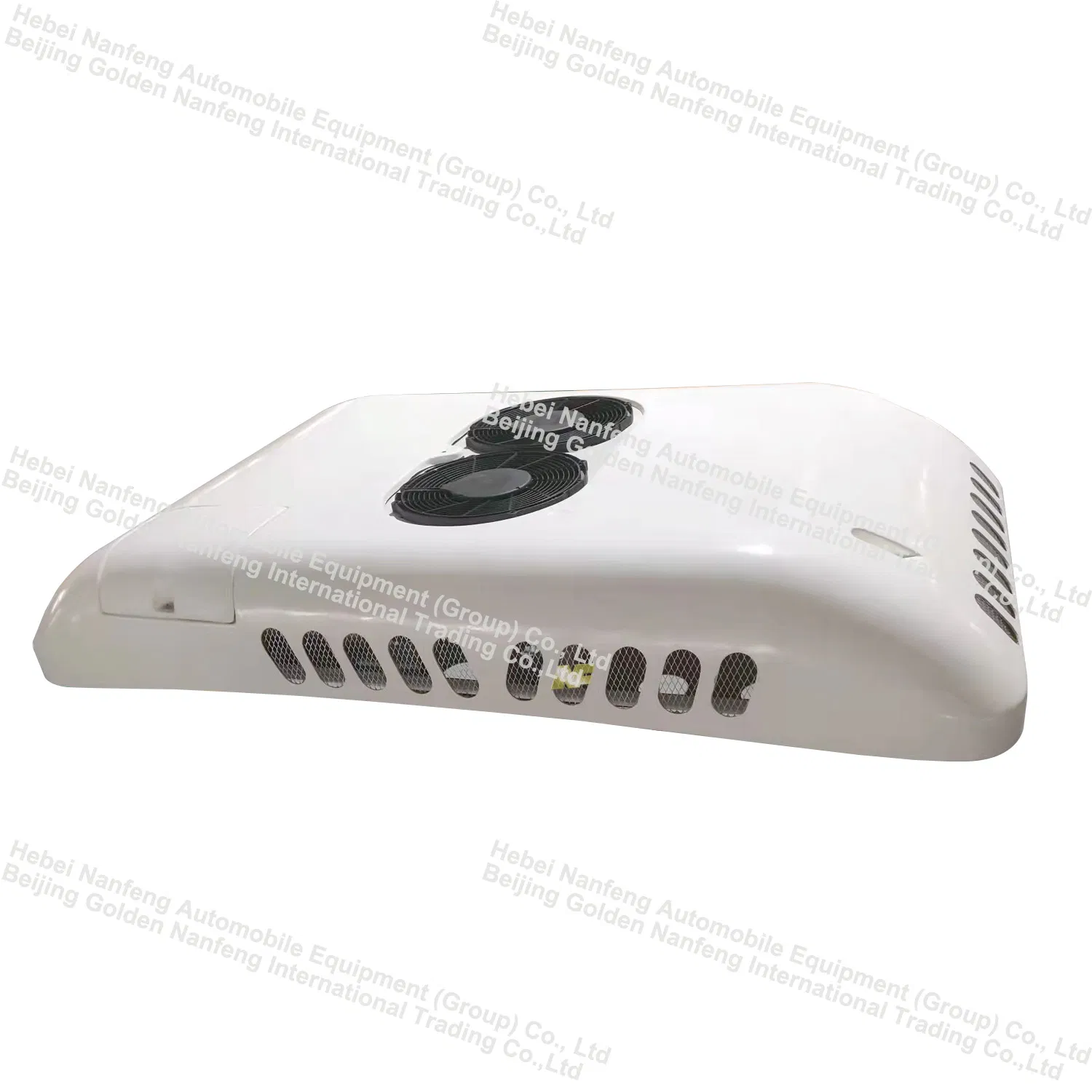

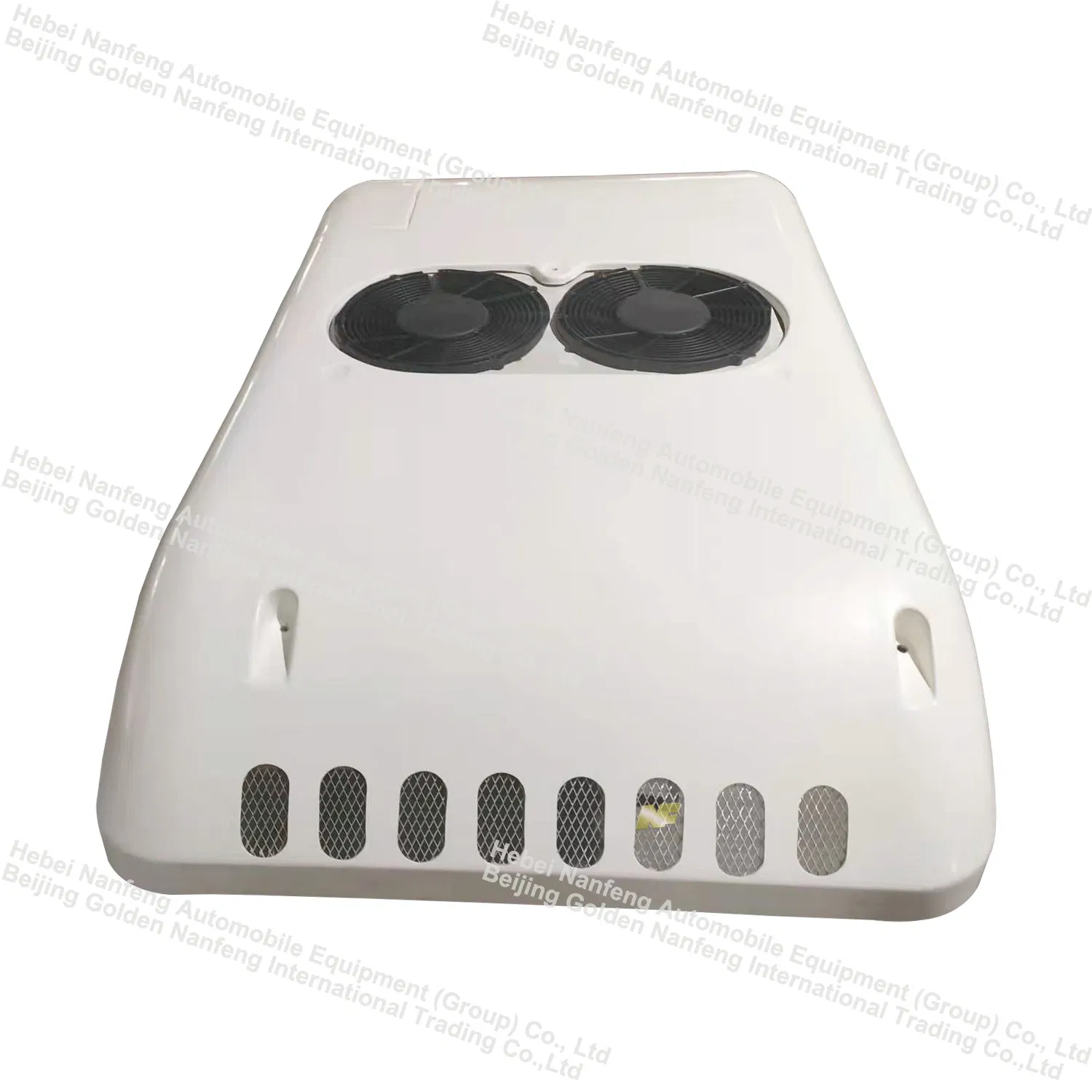

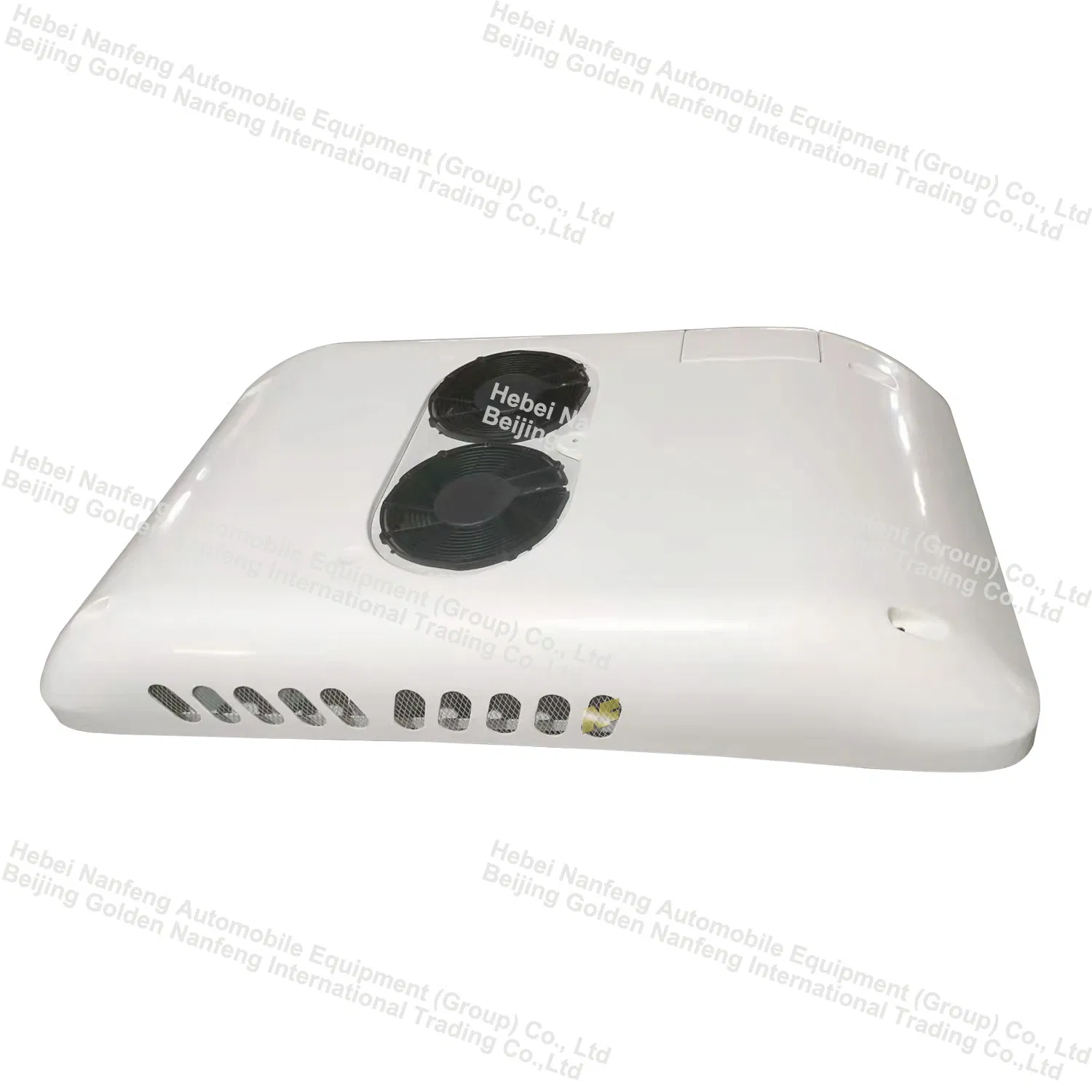

NF 7.5kw Cooling Capacity Battery Thermal Management System

i

Basic Specifications

Model NO.

NFXD-288D

Function

Cooling & Heating, Ventilating, Air Filtering

Control Mode

Optional

Driving Mode

Independent

Certification

CE

Cooling Capacity

7.5kw

LV Consumption

≤35A

HV Consumption

≤15A

Refrigerant

R134A

Unit Weight

60kg

Dimension

1345*1049*278 mm

Applicable Models

8-12m Electric Bus

★

Product Overview

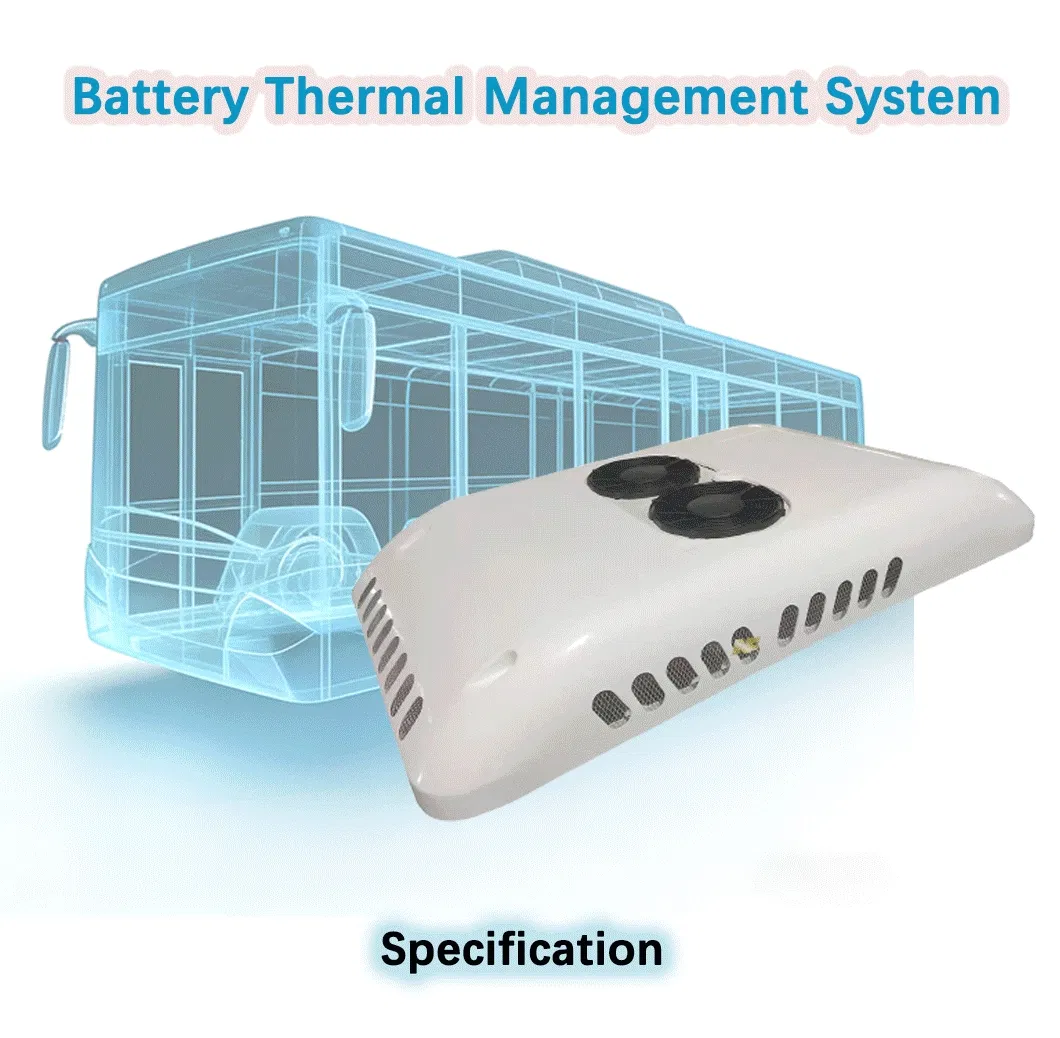

Roof Top Battery Thermal Management System for Electric Bus

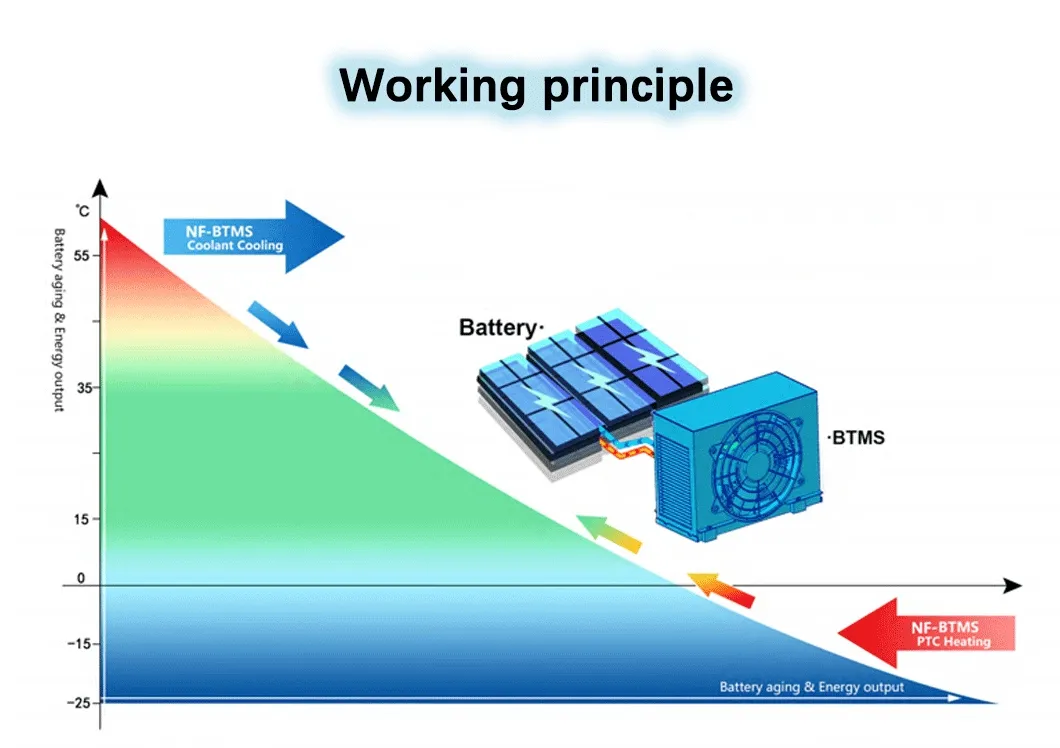

Introduction: The NFXD-288D battery thermostatic management water-cooling unit utilizes evaporative cooling of refrigerant to obtain low-temperature antifreeze. This process efficiently removes heat generated by the battery through convection heat exchange. With a high liquid heat transfer coefficient and large heat capacity, it ensures rapid cooling, reducing maximum temperatures and maintaining consistency across the battery pack. In cold conditions, the system can provide heating to maintain optimal battery performance.

Technical Parameters
Cooling Capacity	7.5kw	LV Power Consumption	≤35A
Compressor Displacement	50CC/r	Refrigerant	R134a
Condensing Air Volume	4400m³/h	Unit Weight	60KG
HV Power Consumption	≤15A	Physical Dimension	13451049278

📷

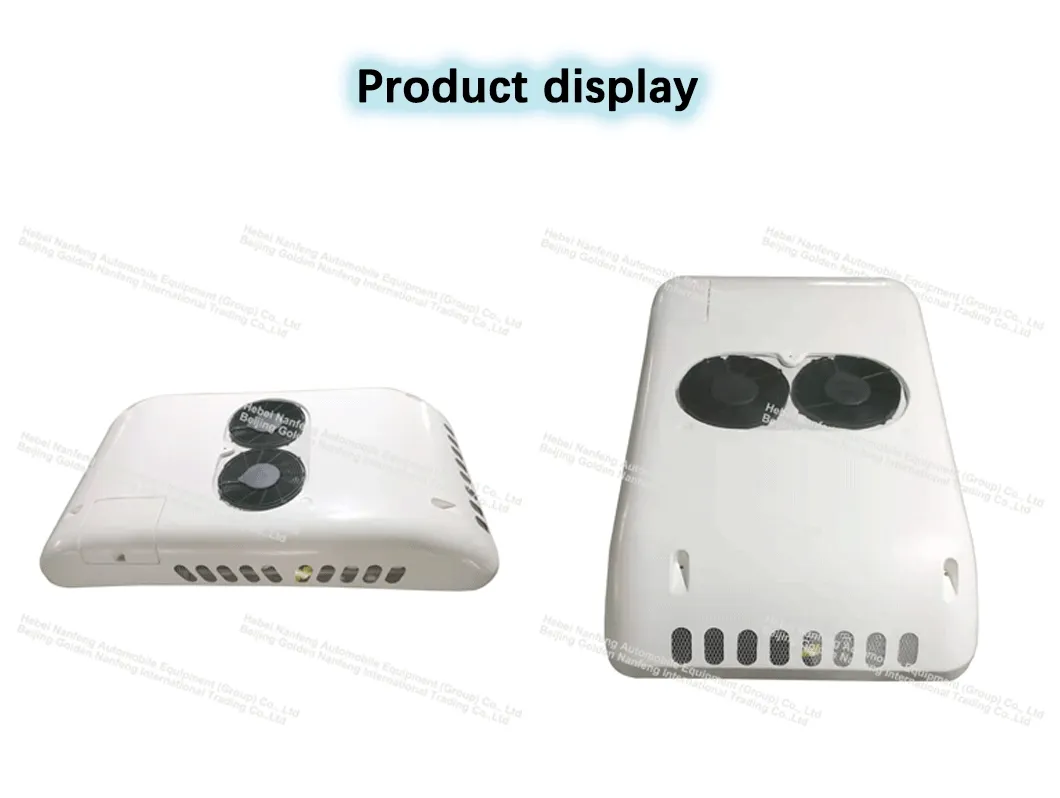

Detailed Photos

✔

Features & Advantages

Full-range temperature control: Precise control (±1°C) across -30°C to 50°C ambient temperatures for extended battery cycle life.
Advanced Algorithms: PID & energy-demand logic for precise outlet temperature (±0.5°C) and optimized efficiency.
Intelligent Monitoring: Remote diagnostics and OTA upgrade capabilities.
Durable Design: Components customized for water, oil, corrosion, and dust resistance.
Modular Installation: Overhead design saves interior vehicle space and simplifies maintenance.
