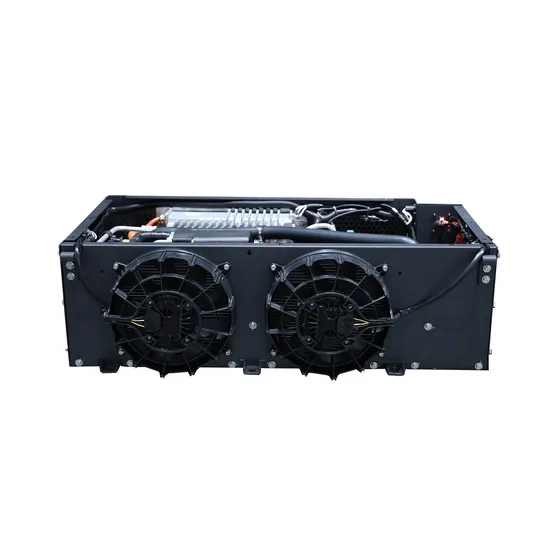

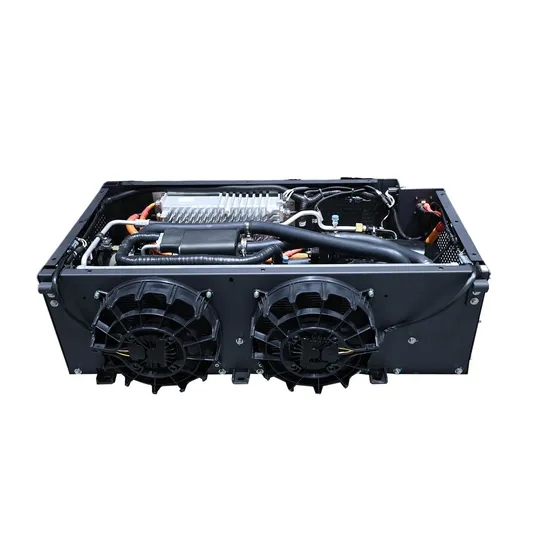

NF Battery Thermal Management System for Electric Vehicles

📊 Basic Information

Model NO.

NFBTM10

Function

Cooling & Heating, Ventilating, Air Filtering

Control Mode

Optional

Driving Mode

Independent

Certification

CE

Power

8-15kw

Operating Range (LV)

18~32V

Operating Range (HV)

≤750V

Body Material

Aluminium

Certified Safety

IP67/IP6K9K

Refrigerant Type

R134A

Noise Level

<80dB (a) @ Maximum

🔋 Product Description

Battery Thermal Management System for Electric Vehicles

📝 Introduction

The vehicle-grade battery cooling unit covers a cooling capacity of 8-15KW and a heating capacity of 10-24KW, providing battery cooling/heating for commercial vehicles (new energy heavy-duty trucks, new energy buses, new energy construction machinery), energy storage stations, battery swap stations, and other large-capacity battery applications.

Technical Parameter	Specification Details
Product Model Code	NFBTM10
Refrigeration Capacity Test Condition	Ambient temperature 38ºC, outlet water temperature constant at 15ºC
Operating Ambient Temperature	-30 to +60ºC (Refrigeration: -15ºC to +55ºC)
Maximum Cooling Capacity	10KW (8~24KW Optional)
Maximum Heating Capacity	0~35Kw
Compressor Speed	800~10000rpm / 800~12000rpm
Coolant Type	50%/50% Ethylene Glycol/Water Solution
Communication Interface	CAN 2.0 Communication Rate: 500k bps
Protection Rating	IP67
Dimensions	L833W550H290mm / L900W608H341mm

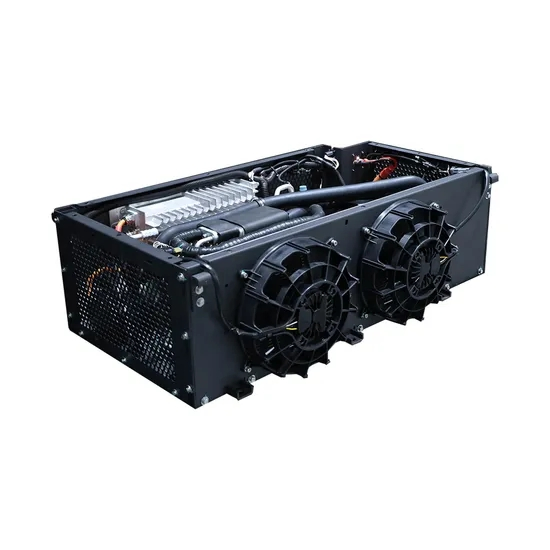

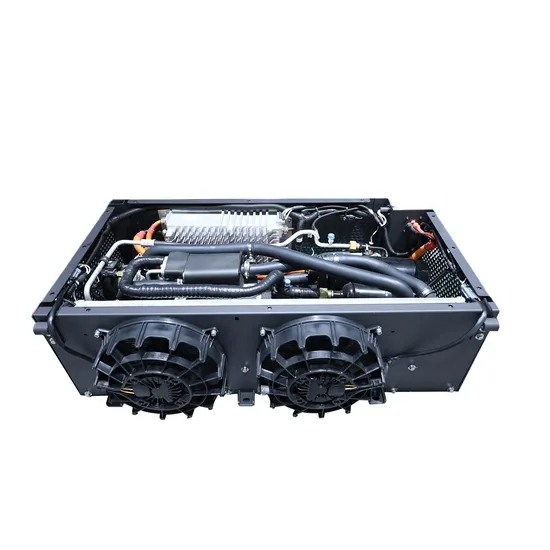

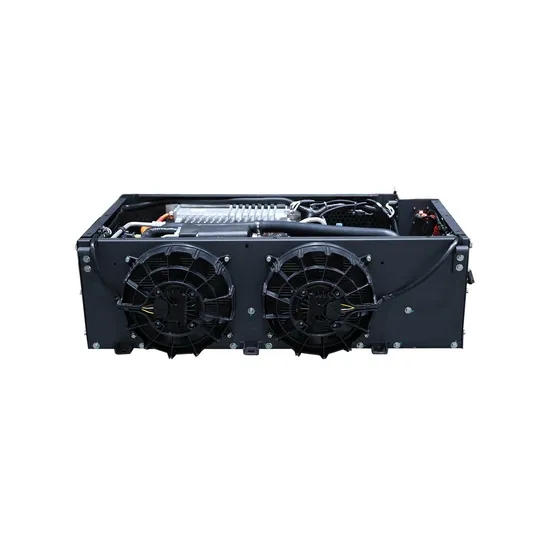

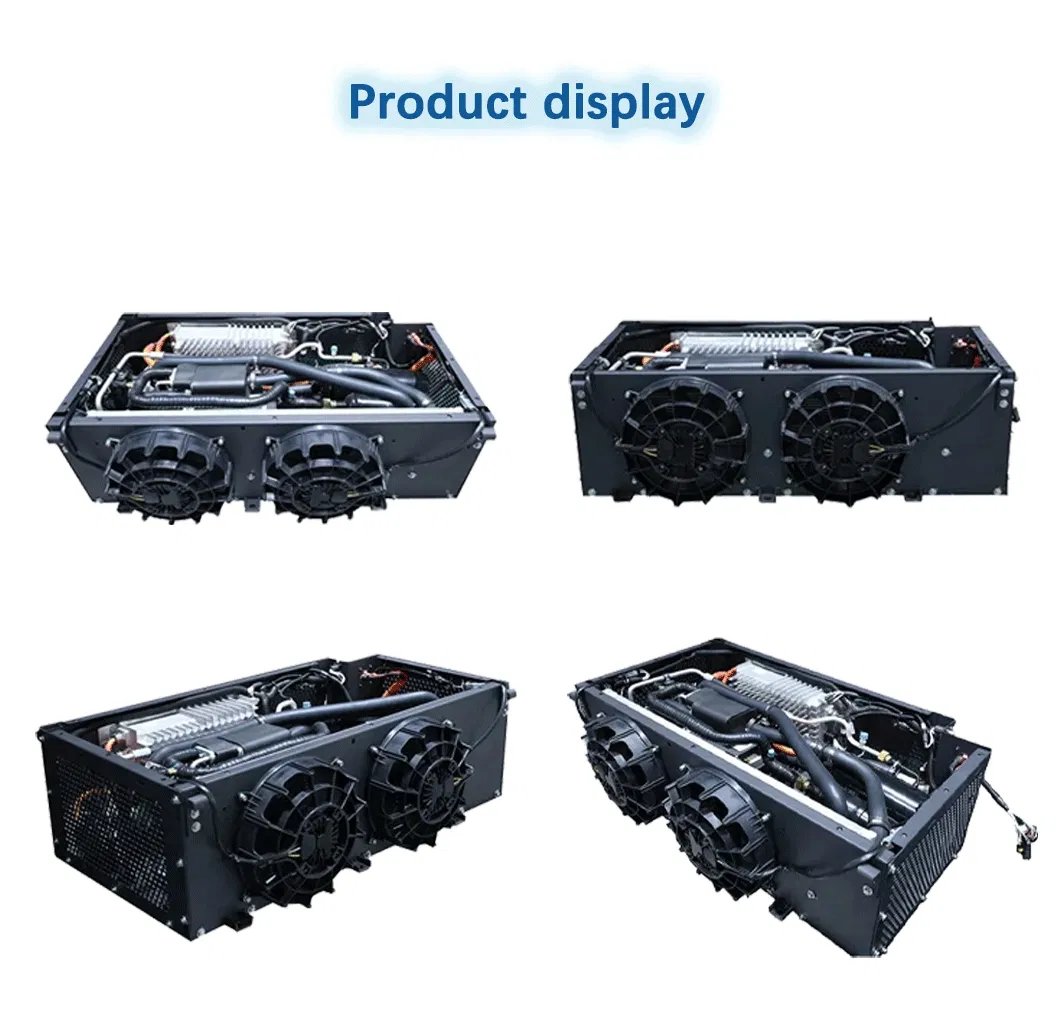

📷 Detailed Photos

⚙️ Key Features

1. Full-range temperature control: Combined low-temperature heating & high-temperature cooling (-30°C~50°C ambient) with ±1°C precision, maintaining optimal battery temperature.

2. Premium Product Emphasis: Advanced PID & energy-demand algorithms enable precise outlet temperature control (±0.5°C) with optimized energy efficiency. Features remote intelligent monitoring.

🌟 Our Advantages

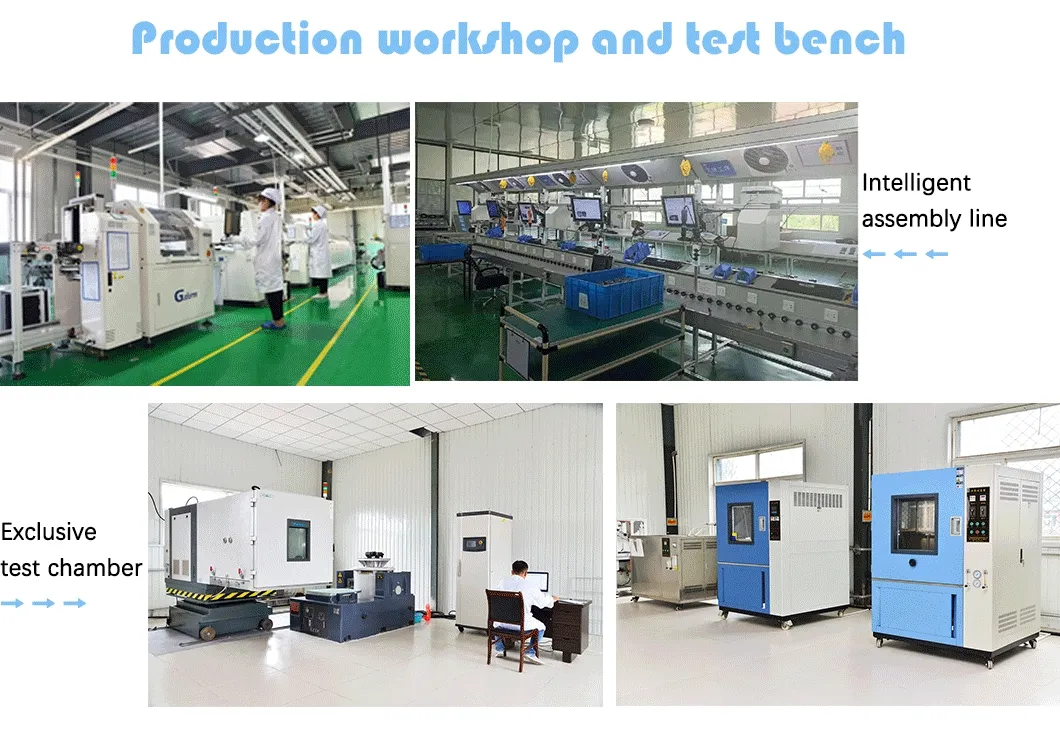

🏢 Manufacturing & Quality

📜 Certifications

❓ Frequently Asked Questions

What are your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging is available upon authorization for legally registered patents.

What are your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you photos of the products and packages before you pay the balance.

What are your terms of delivery?

We offer EXW, FOB, CFR, CIF, and DDU delivery terms.

How about your delivery time?

Generally, it will take 30 to 60 days after receiving your advance payment. The specific time depends on the items and order quantity.

Can you produce according to samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures required.

Do you test all your goods before delivery?

Yes, we conduct 100% testing on all products before delivery to ensure quality and safety.
