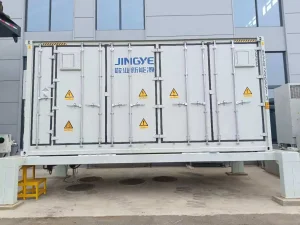

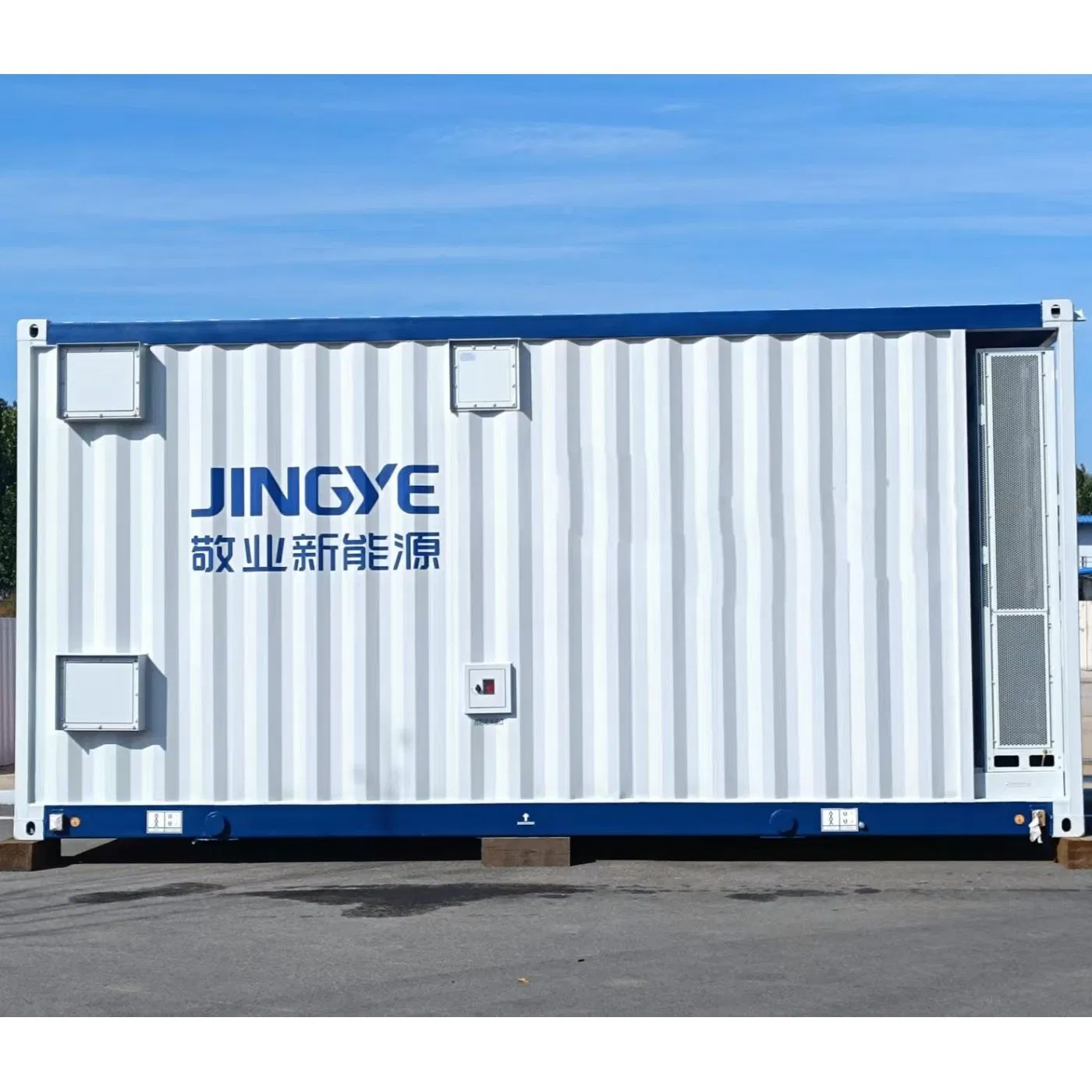

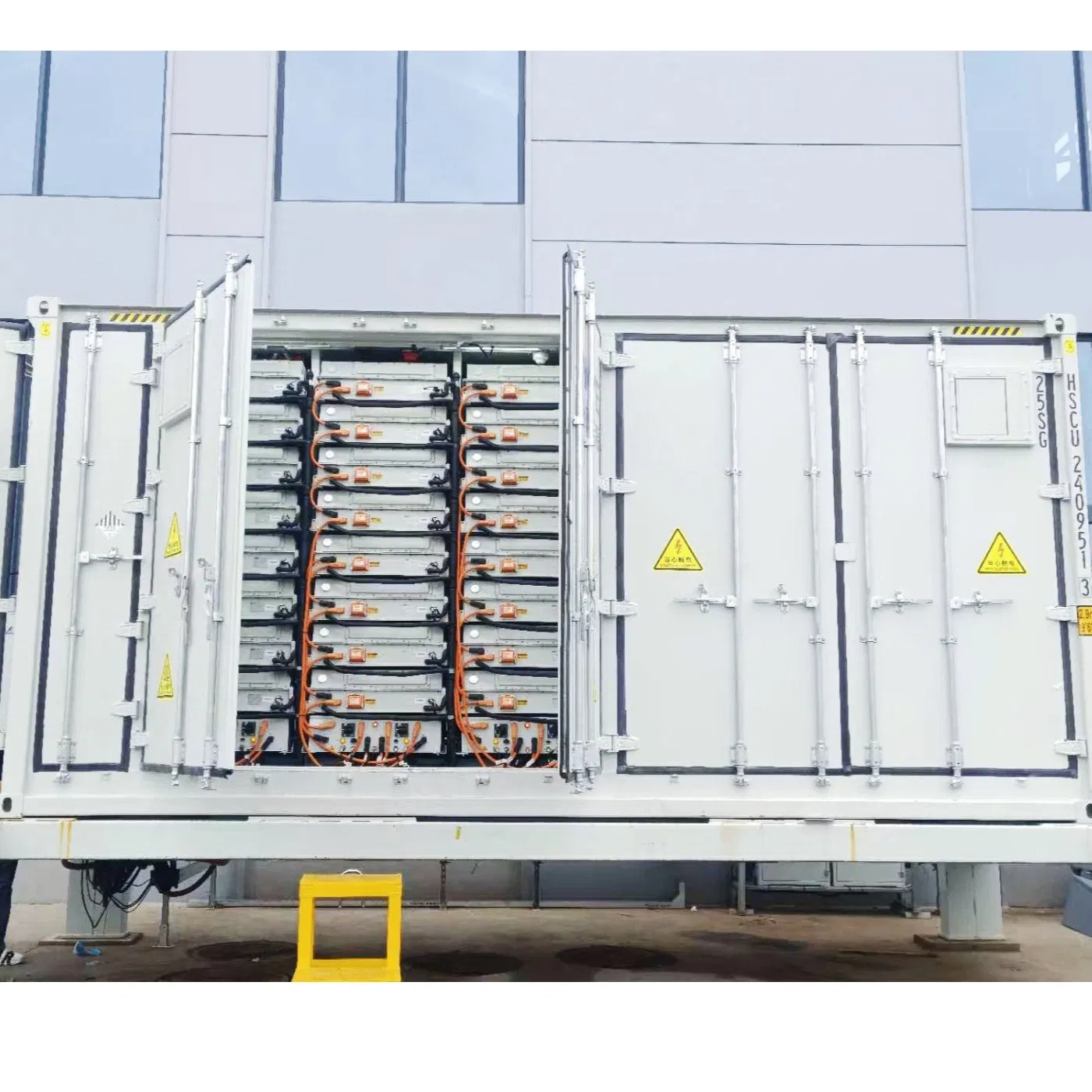

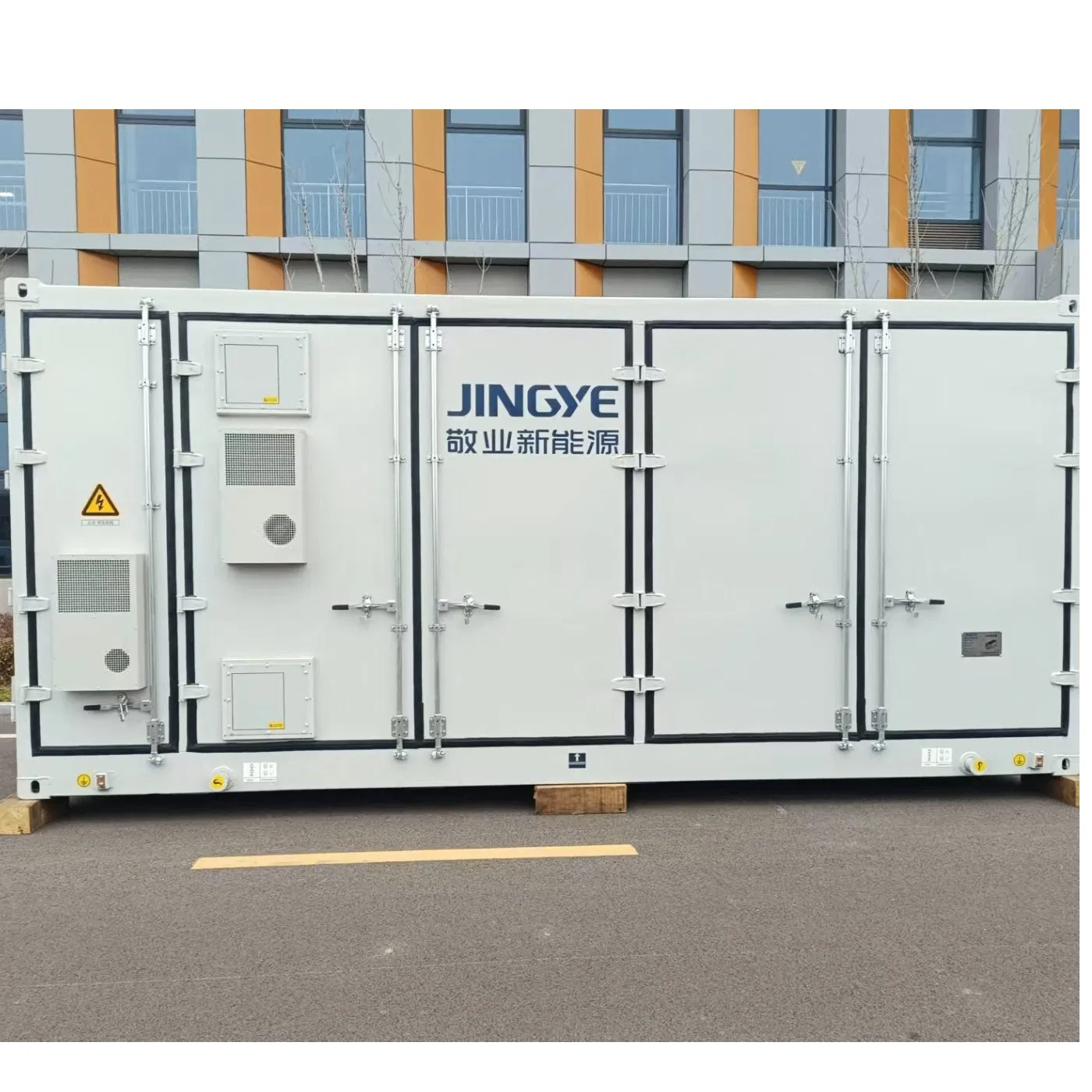

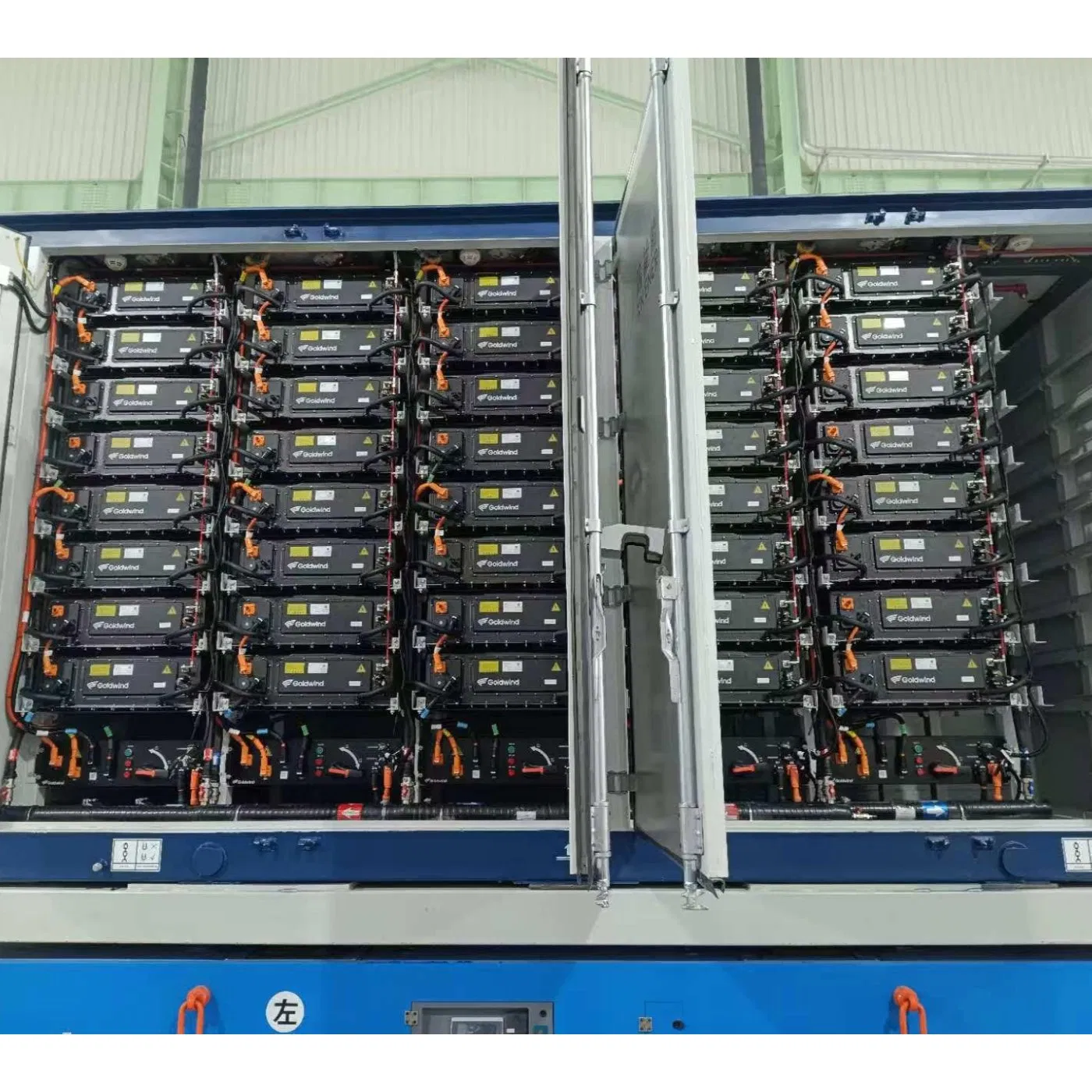

5015KWh Liquid Cooling energy storage system based on domestic high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

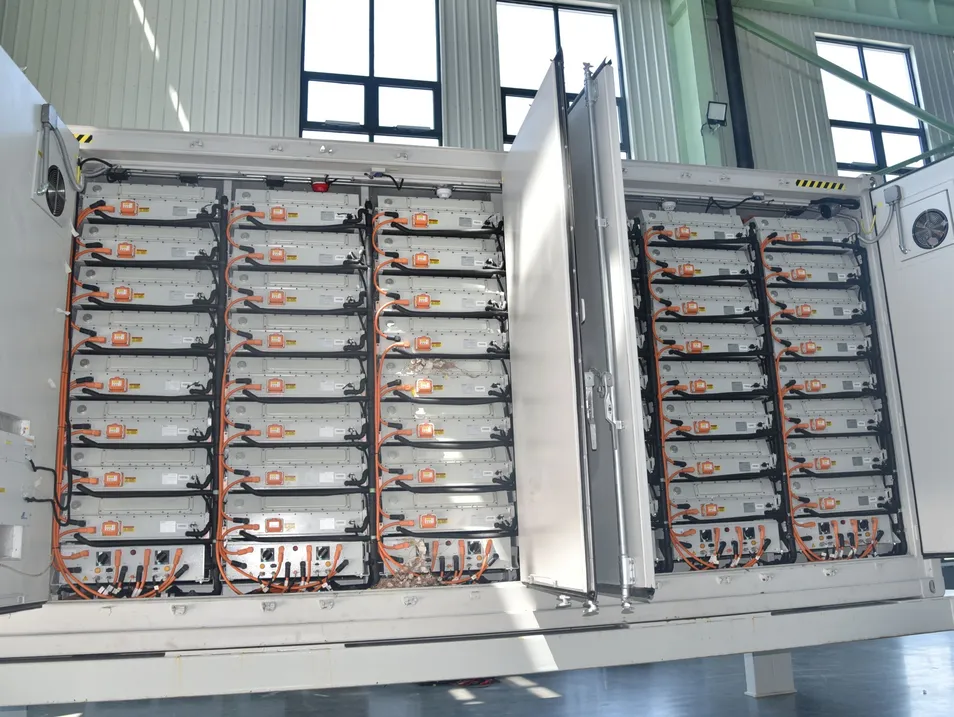

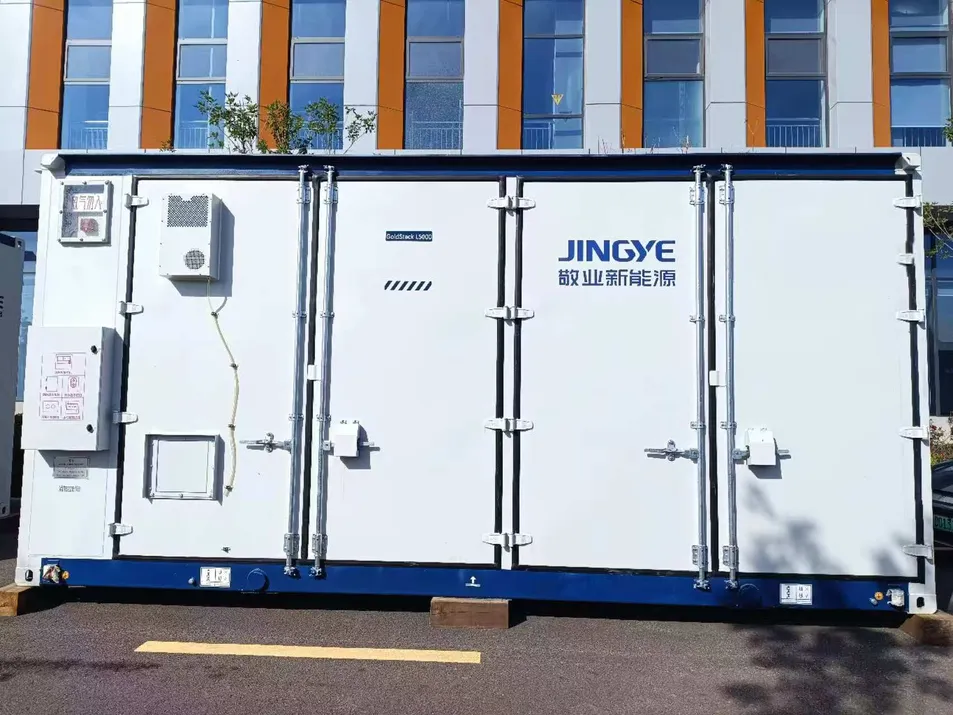

The system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm).
| 5MWh Liquid Cooling Battery Container | ||
|---|---|---|
| Configuration | 12*(1P104S*4) | |
| Rated Power | 5MWh | |
| Rated Voltage | 1331.2VDC | |
| Voltage Range | 1164.8V -1497.6VDC | |
| Rated Charging Power | ≤ 2.5MW | |
| Rated Discharge Power | ≤ 2.5MW | |
| Environmental Conditions | Storage | 5℃ < T ≤ 35℃ |
| Work | -30℃ to 60℃ (discharging) | |
| Dimensions | L6058 x W2438 x H2896mm | |
| Weight | About 43t | |
| IP Rating | IP54 | |
| Cooling Method | Liquid Cooling | |
| Protocols | Ethernet, CAN, ModbusRTU | |

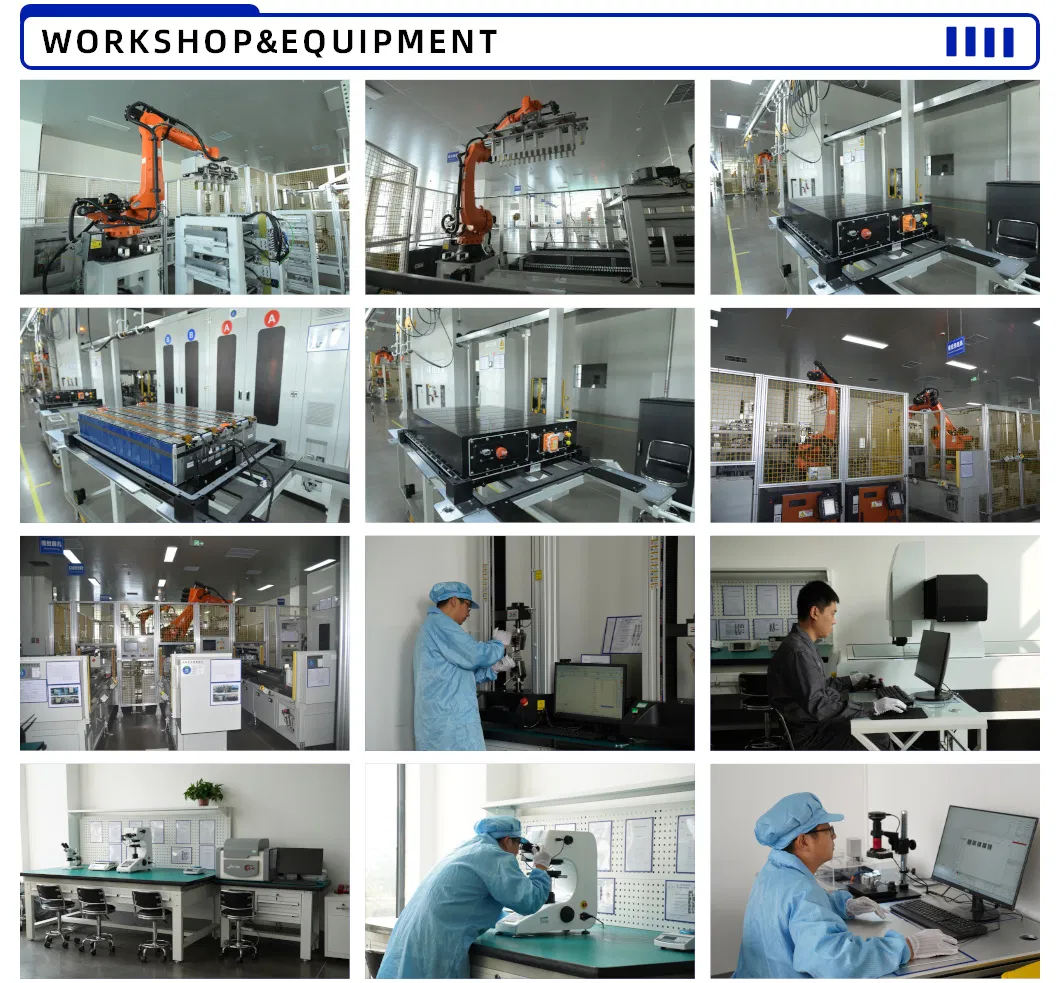

The facility features an advanced automated production line with an annual capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. Products are utilized globally in smart grids, renewable energy integration, and industrial storage.
