ROH-H-P20 Series All-in-one Energy Storage System: Discover cost-effective, robust solutions for enhanced operational efficiency and renewable integration.

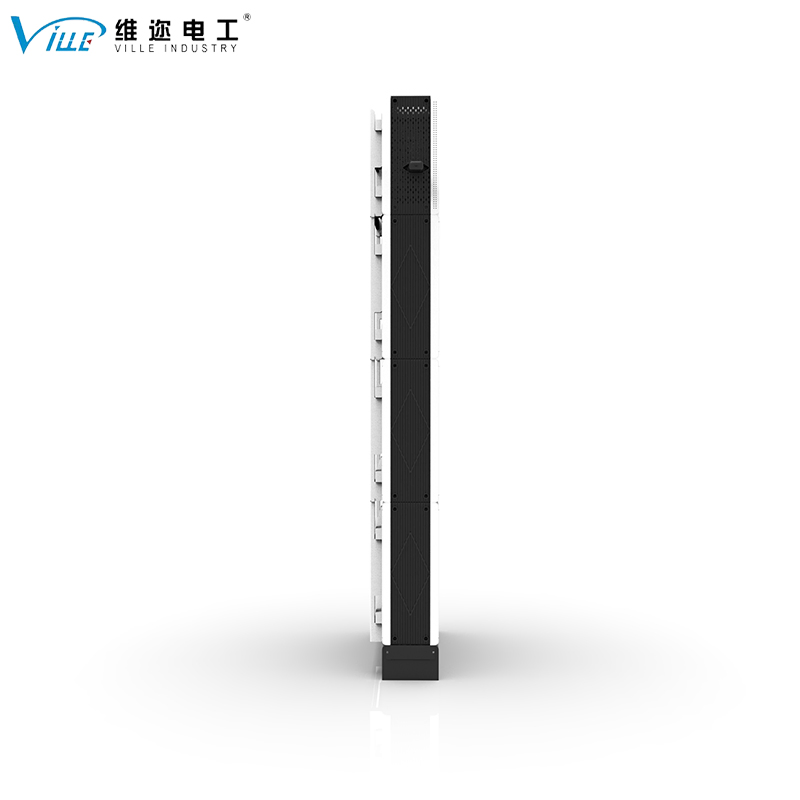

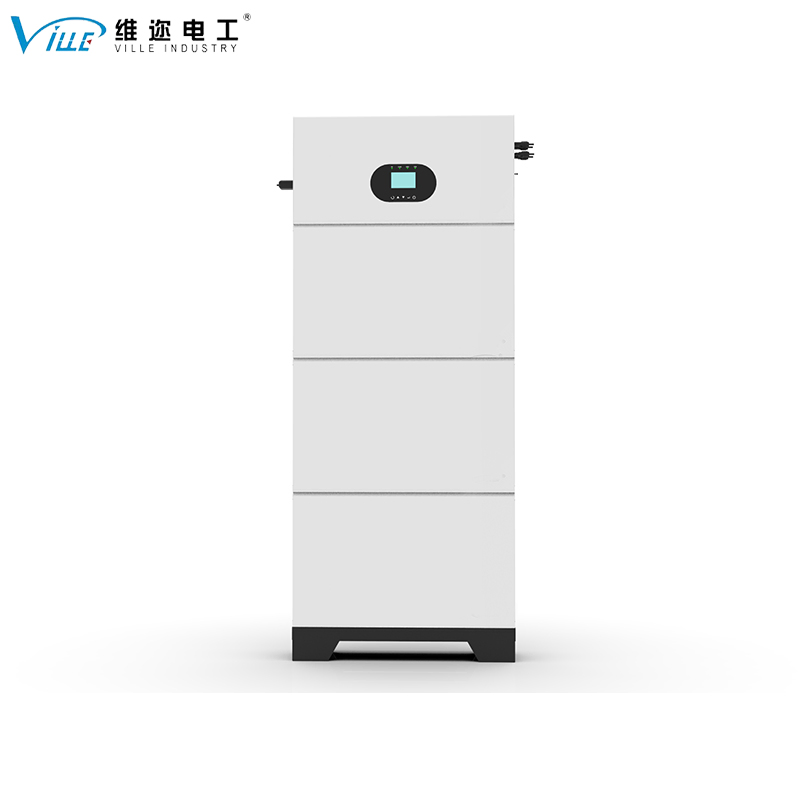

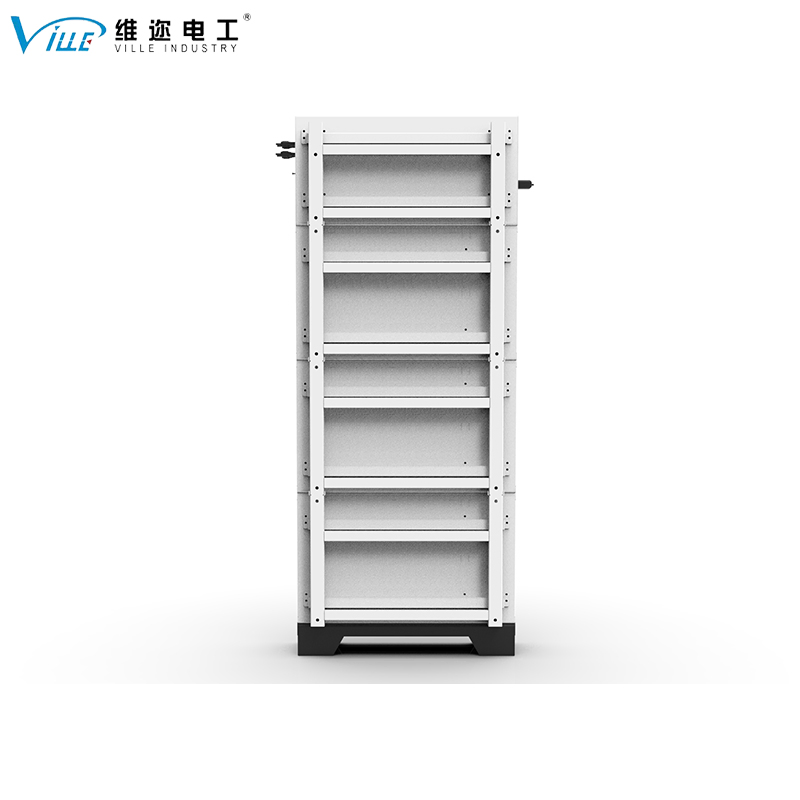

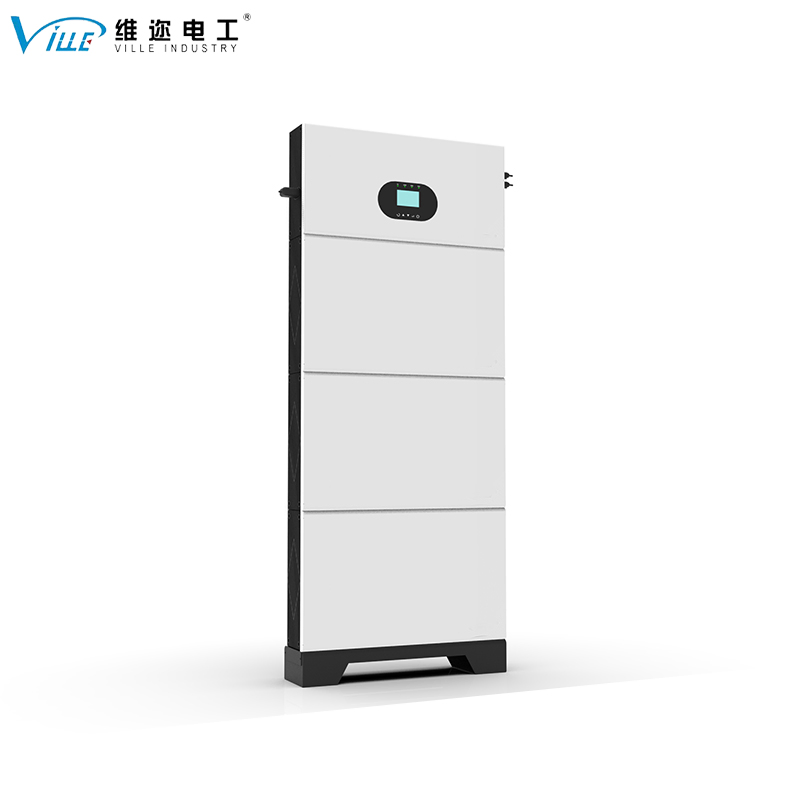

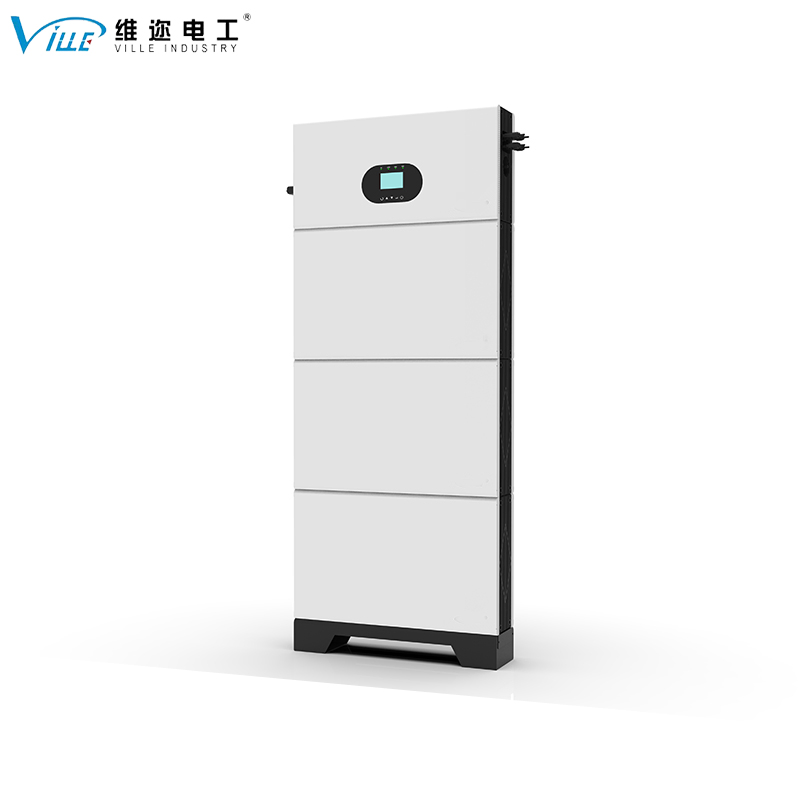

Experience advanced energy solutions with the ROH-H-P20 Series. This sophisticated system is designed to meet the demands of modern energy management, integrating high-durability lithium batteries with an off-grid inverter in a sleek, wall-mountable package. Capable of handling up to six lithium battery modules, each offering 5.12 kWh for a total of up to 30.72 kWh, the ROH-H-P20 ensures substantial power capacity for residential backup or off-grid applications.
| Parameter Item | Specifications | |
|---|---|---|
| Inverter Output | Rated Power | 5500W |
| Voltage | 220V/230VAC ± 3% | |
| Frequency | 50/60Hz ± 0.2% | |
| Waveform | Pure Sine Wave | |
| Solar Charging | Max PV Open Voltage | 500VDC |
| MPPT Voltage Range | 85VDC to 400VDC | |
| Max Charging Current | 100A | |
| Battery (LFP) | Rated Voltage | 51.2VDC |
| Pack Capacity | 5.12kWh (100AH) | |
| System Capacity | 5.12kWh - 30.72kWh (Scalable up to 6 units) | |
| Environment | Enclosure Rate | IP20 |
| Work Temp Range | Charging: 0ºC to +50ºC / Discharging: -20ºC to +50ºC | |
Our operation combines R&D, production, and professional service support. We possess strong technical strength and excellent manufacturing equipment. We specialize in producing large-scale power solutions and industrial systems of high quality and reliability.

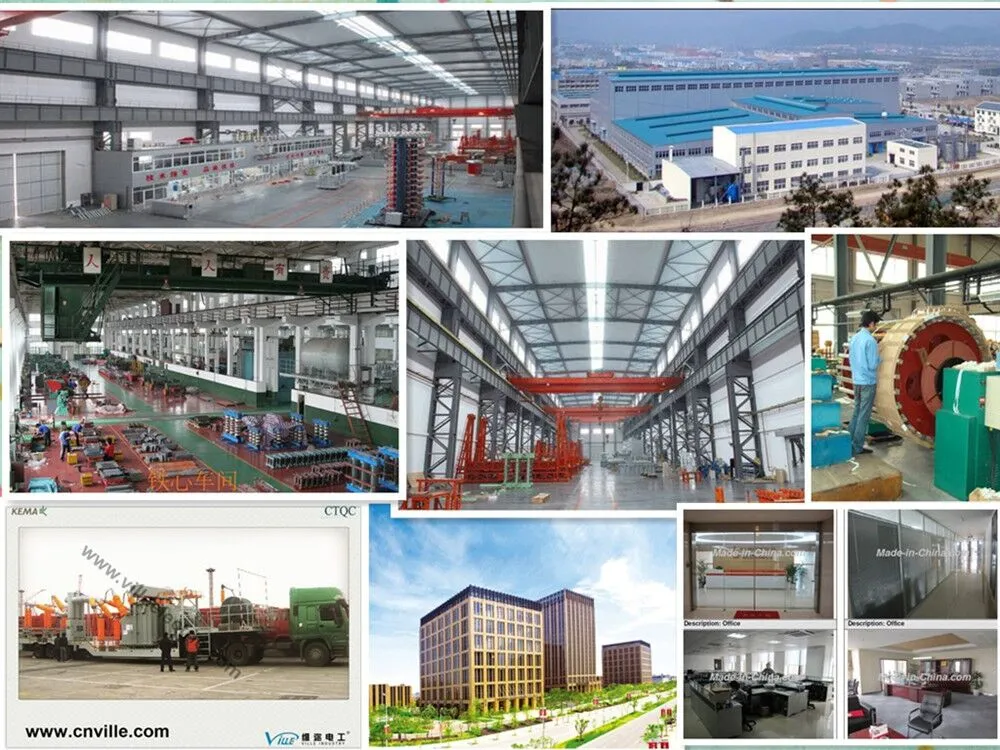

First-Class Processing: With more than 500 sets of sophisticated production and test equipment, we guarantee first-class products. Our quality inspection center ensures that every unit meets strict industry standards before deployment.
