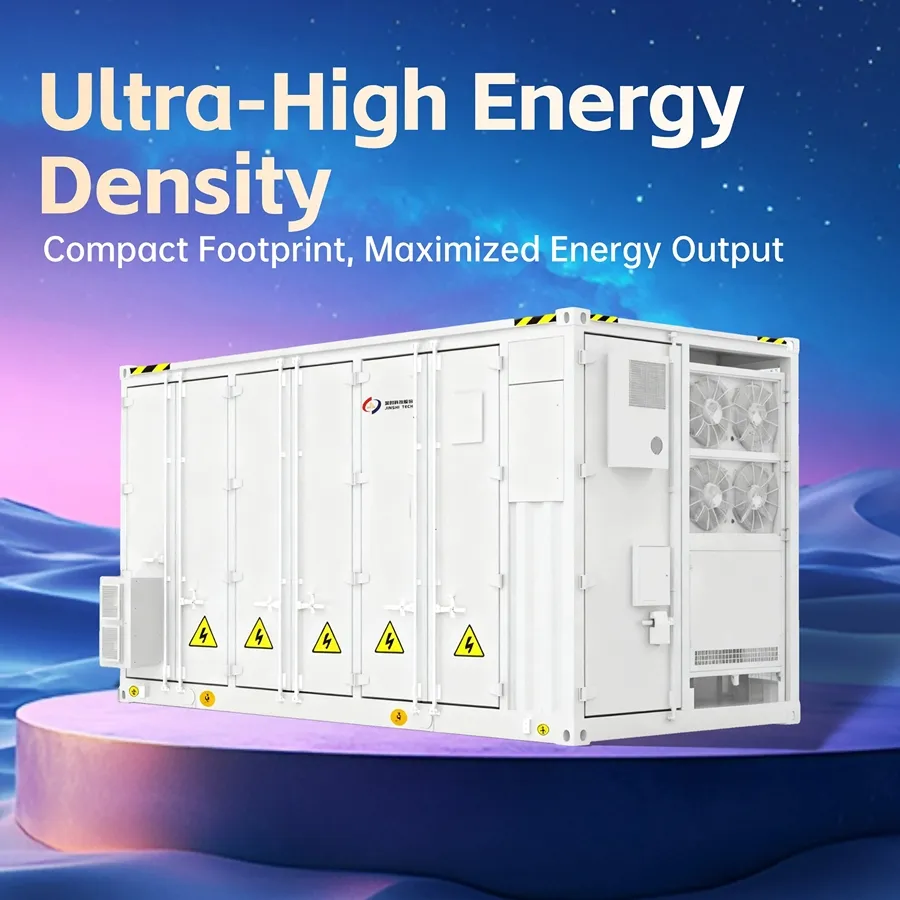

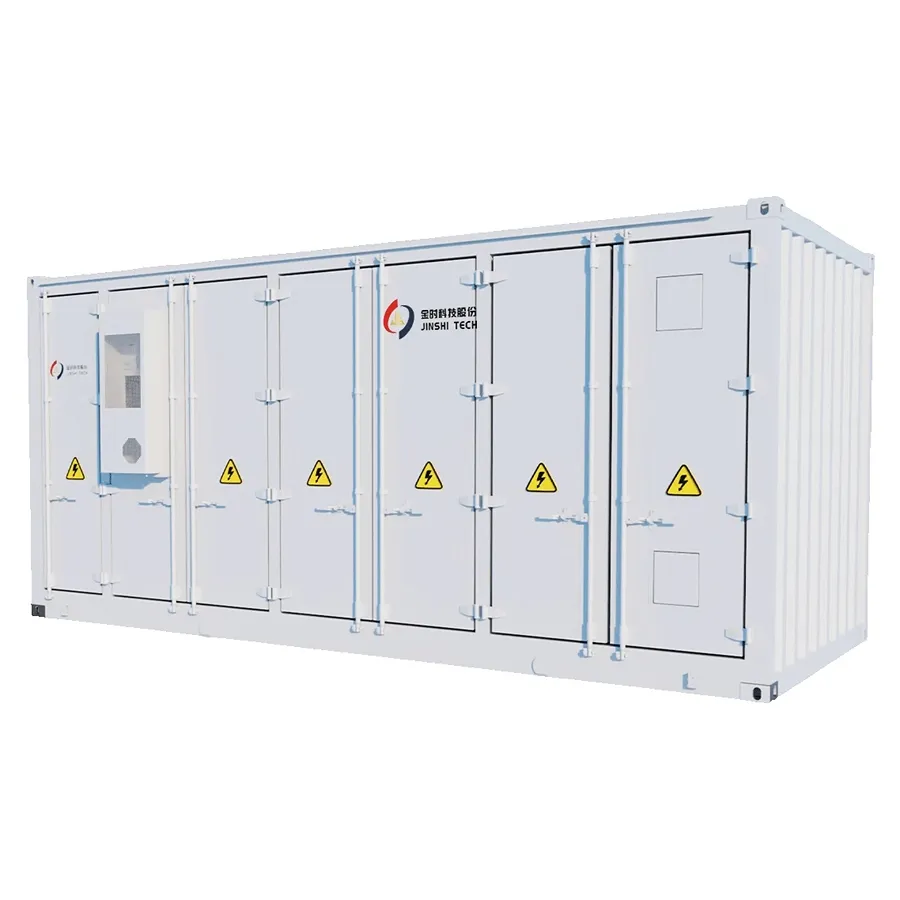

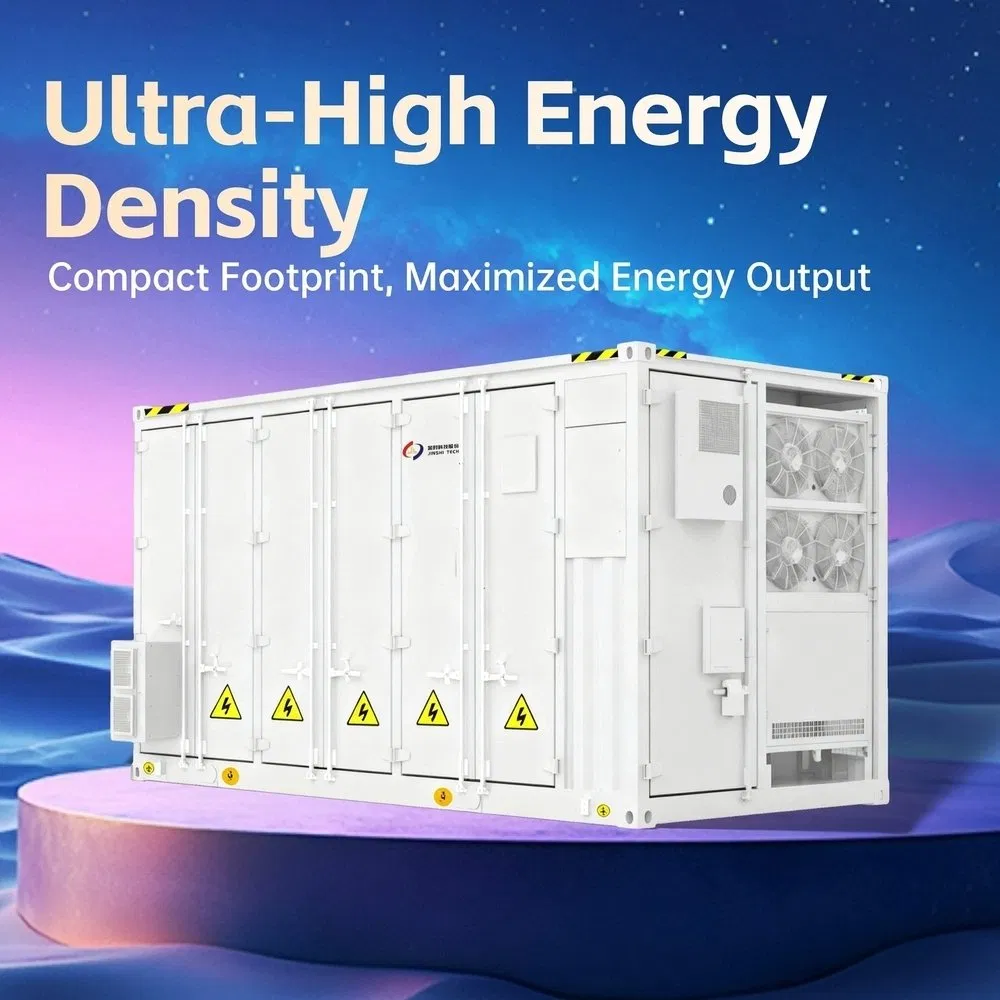

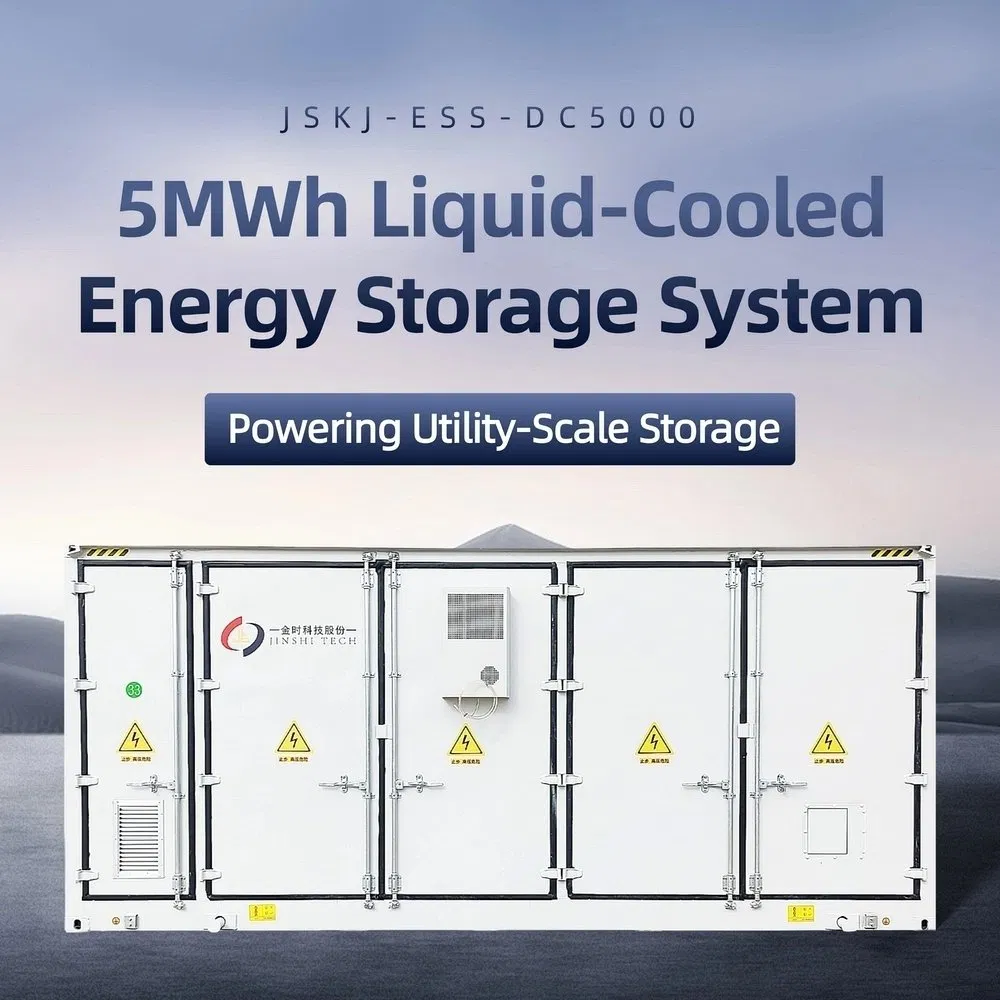

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

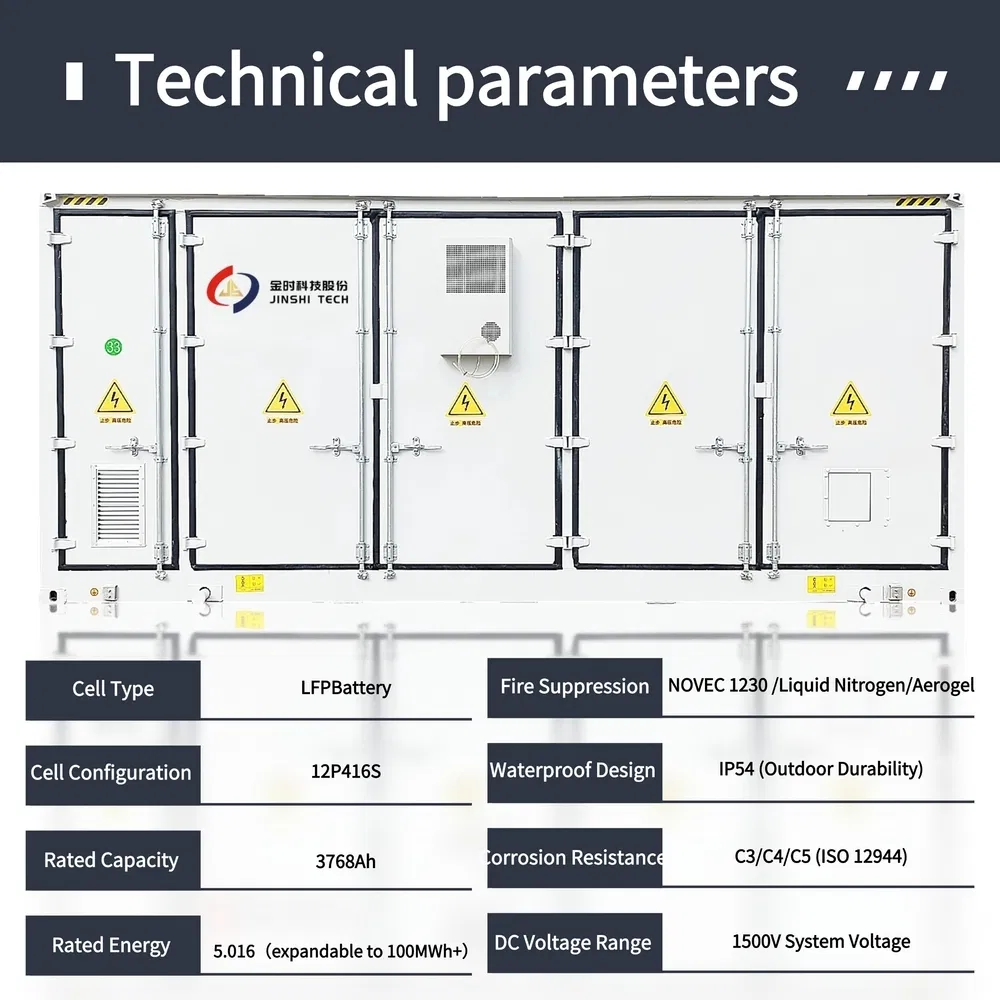

| Parameter Item | Specifications |
|---|---|
| Cell Type | LFP Battery |
| Cell Configuration | 12P416S |
| Rated Capacity | 3768Ah |
| Rated Energy | Expandable To 100MWh+ |
| Rated Voltage | 1331.2V |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 1164.8-1497.6V |

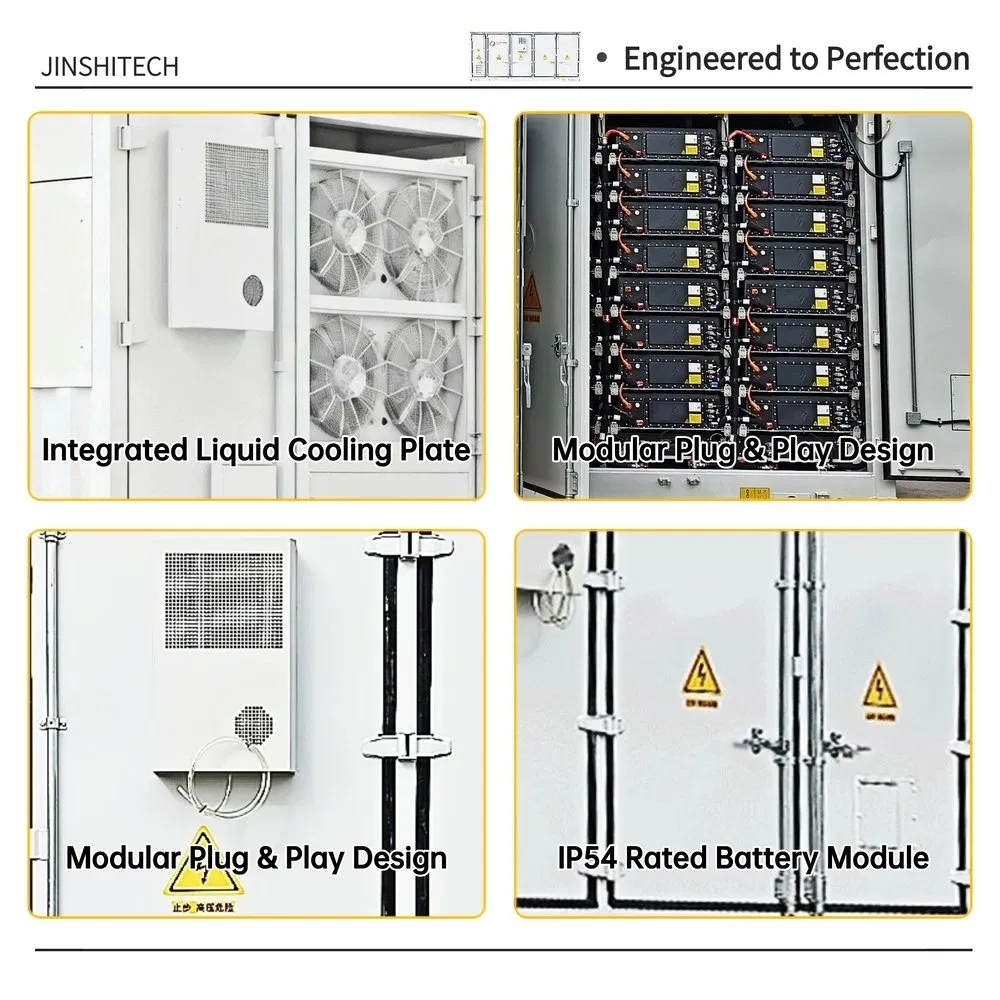

| Cooling Method | Liquid + Air Cooling Dual Thermal Management |
| Fire Detection | Temp, CO, Smoke Sensors |
| System Architecture | Triple Fire Protection + Triple BMS |
| Waterproof Design | IP54 (Outdoor Durability) |
| DC Voltage Range | 1500V System Voltage |
TRIPLE-LAYER FIRE PROTECTION: Three-level fusing system with targeted explosion discharge design; supports advanced fire suppression agents.
COMPREHENSIVE MONITORING: 24/7 BMS with real-time temperature, CO, and smoke sensors; triple redundancy ensures fail-safe operation.
ENVIRONMENTAL PROTECTION: IP54 rating and C3/C4/C5 corrosion resistance suitable for coastal and plateau applications.
