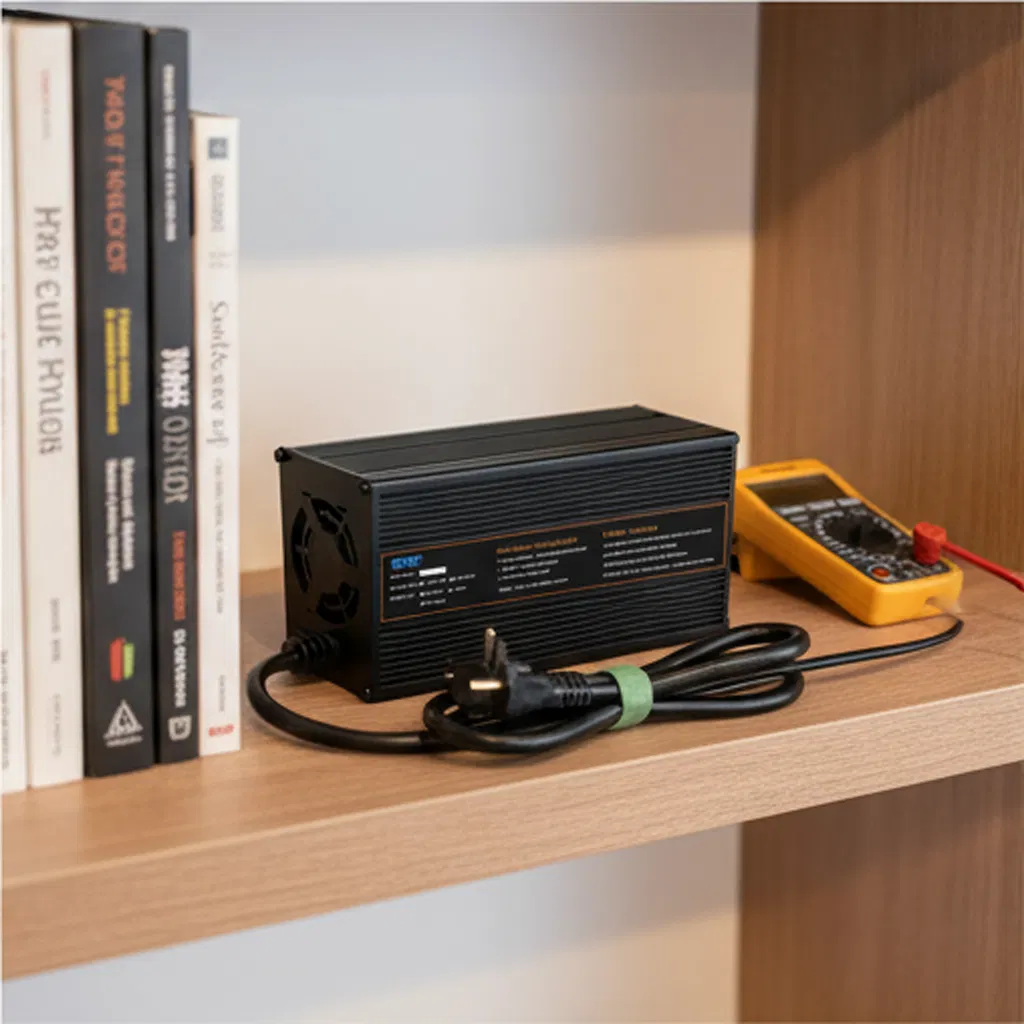

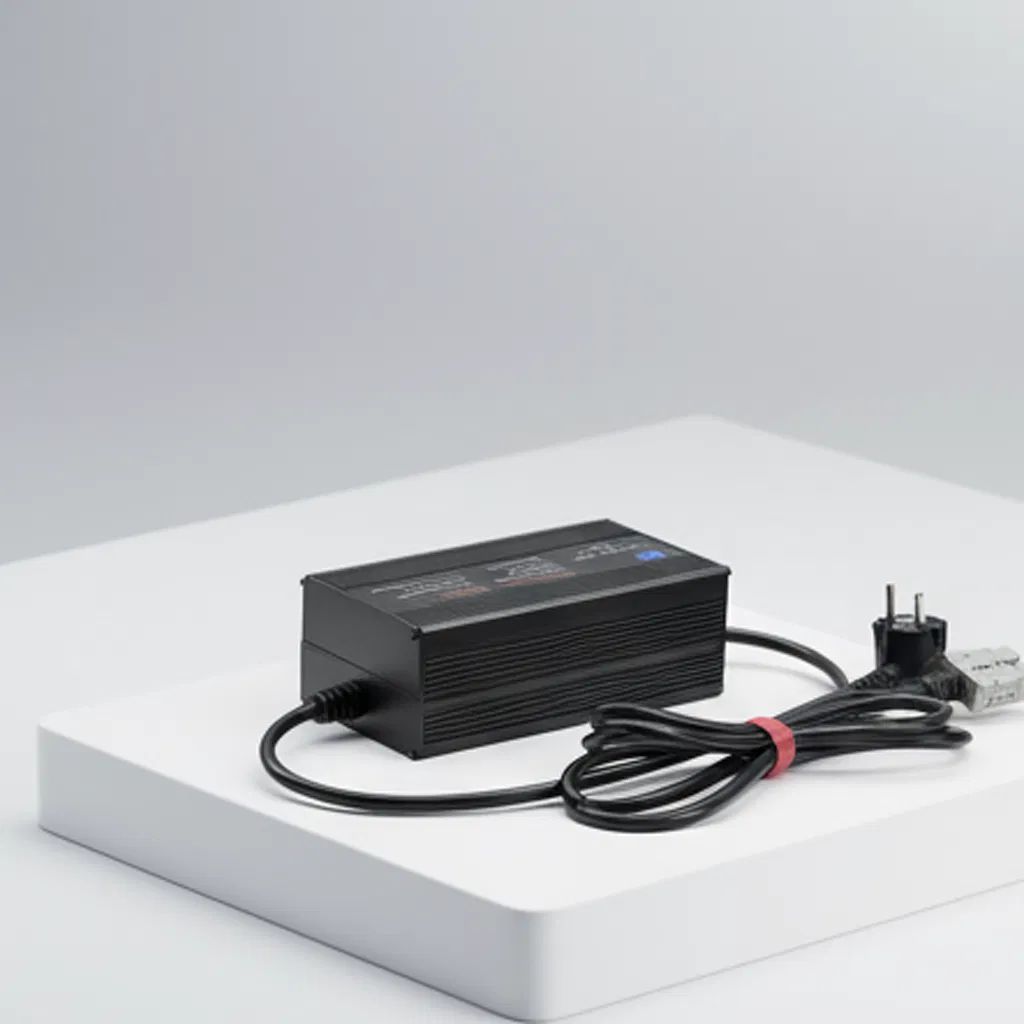

Intelligent Battery Chargers
This smart battery charger is designed for lead-acid, LiFePO4, and lithium batteries. It is ideally suited for electric cars, forklifts, sightseeing cars, patrol cars, golf carts, and electric dining cars.

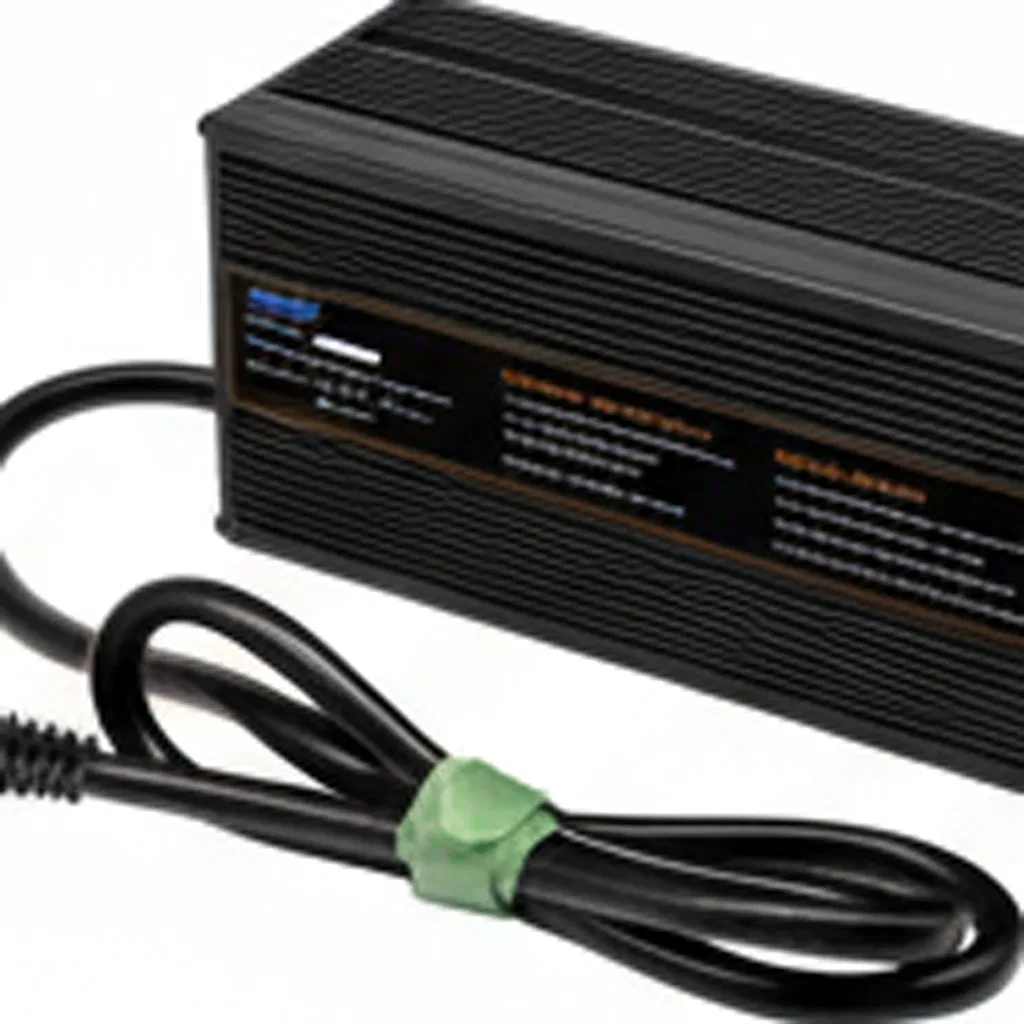

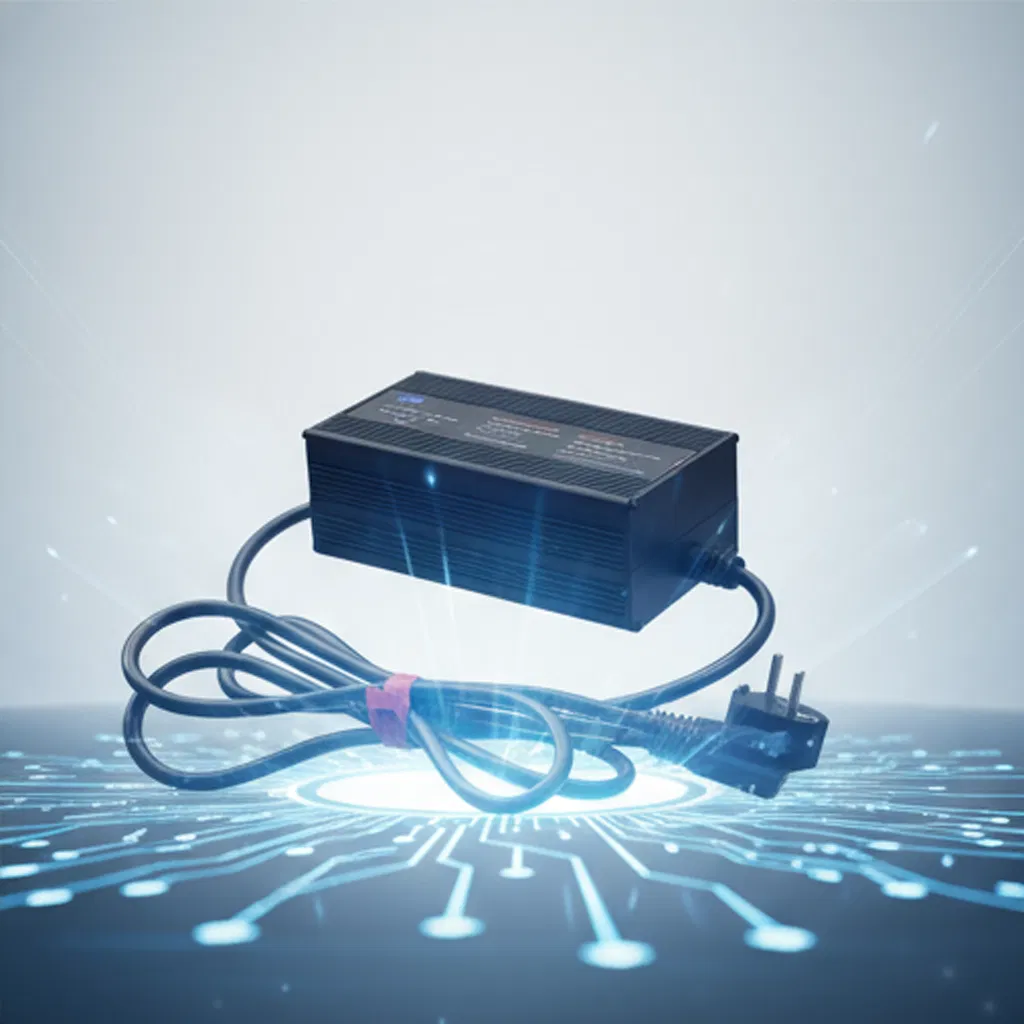

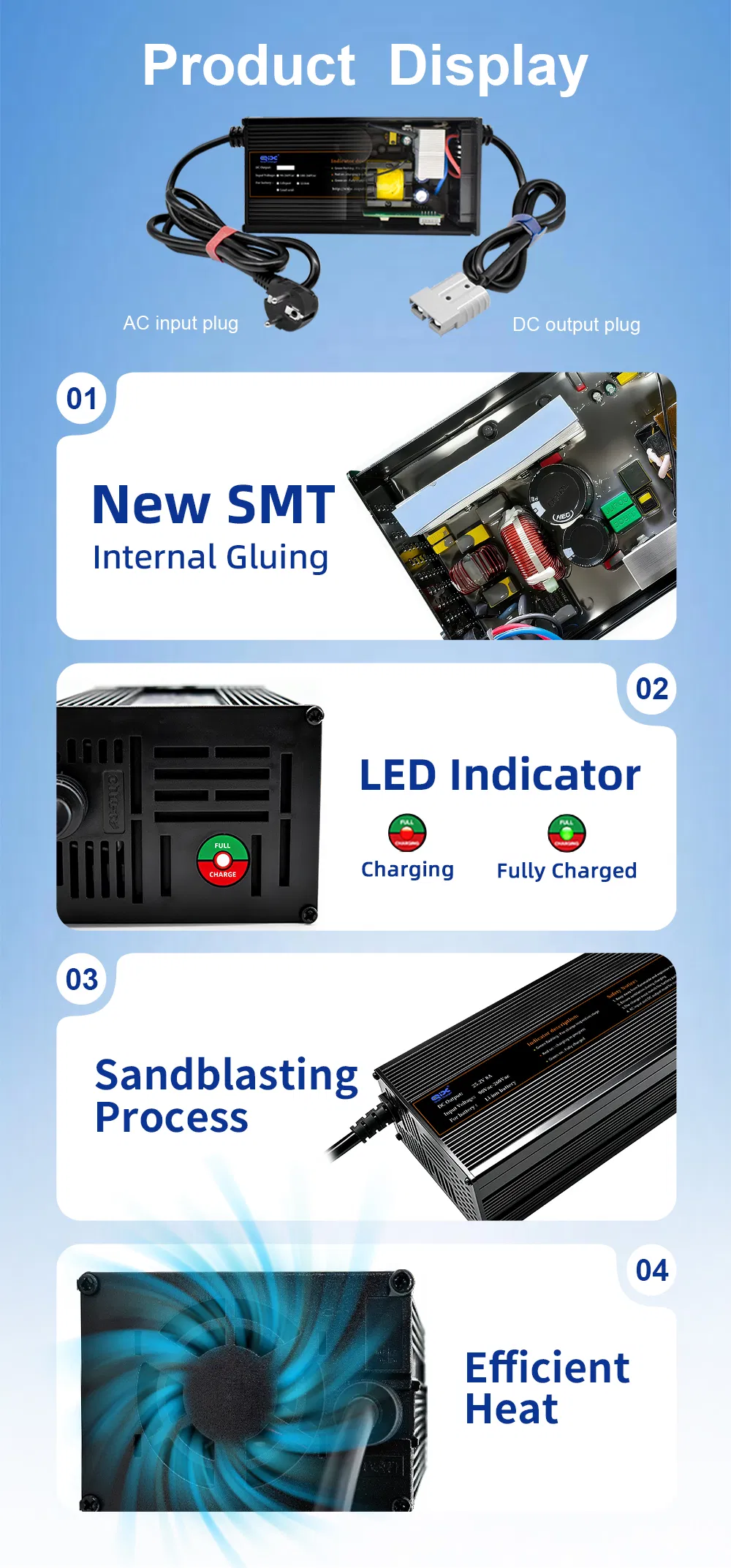

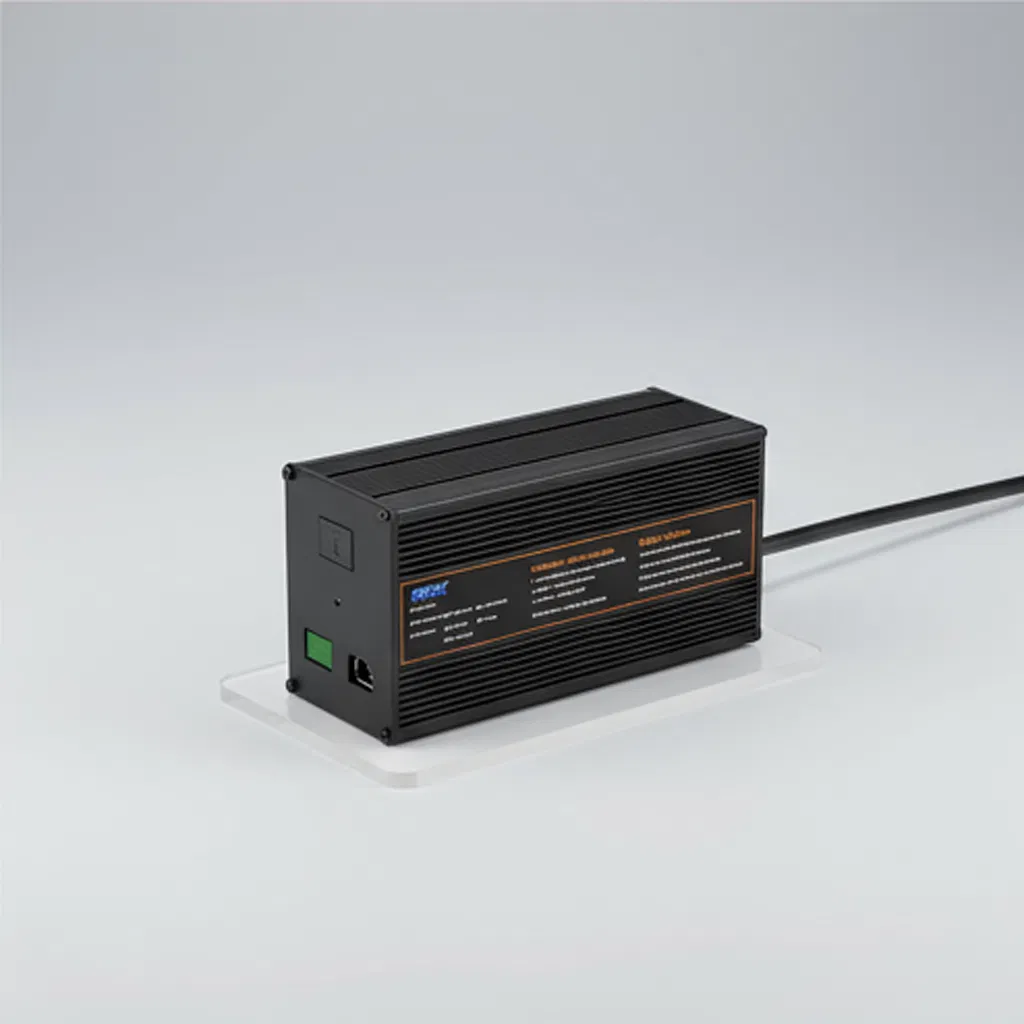

Featuring a fully enclosed aluminum alloy shell for faster heat dissipation and an intelligent temperature control fan, this unit ensures long-term stable operation. Its splash-proof and rain-proof design makes outdoor use reliable and safe.
| STS800 Battery Charger Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Rated Voltage | Lead Acid (CV) | Li-ion (CV) | LiFePo4 (CV) | CC (A) | Net Weight | Size (mm) | ||

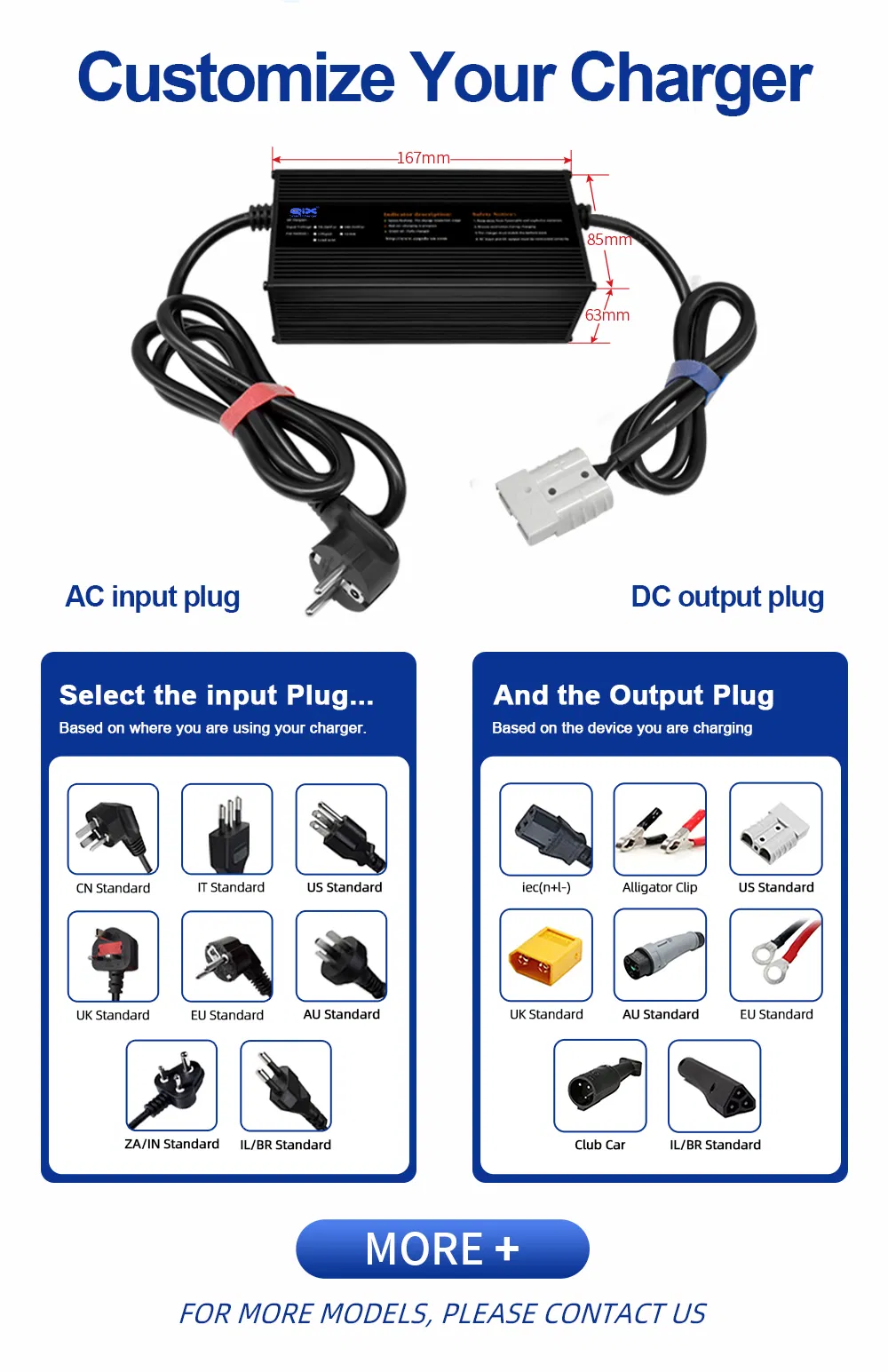

| 12V | 14.7V | 16.8V | 14.6V | 20A | 1.0 Kg | 167*85*63 | ||
| 24V | 29.4V | 33.6V | 29.2V | 20A | ||||
| 36V | 44.1V | 42V | 43.8V | 12A | ||||
| 48V | 58.8V | 54.6V | 58.4V | 12A | ||||
| 60V | 73.5V | 71.4V | 73V | 10A | ||||
| 72V | 88.2V | 84V | 87.6V | 8A | ||||
Note: Cut-off point for Li battery is 5% of CC (adjustable between 3-10%).
CE European Safety Standard
RoHS Environmental Compliance
CB Global Safety Testing
ISO 9001 Quality Management
Patent Unique Design Innovation

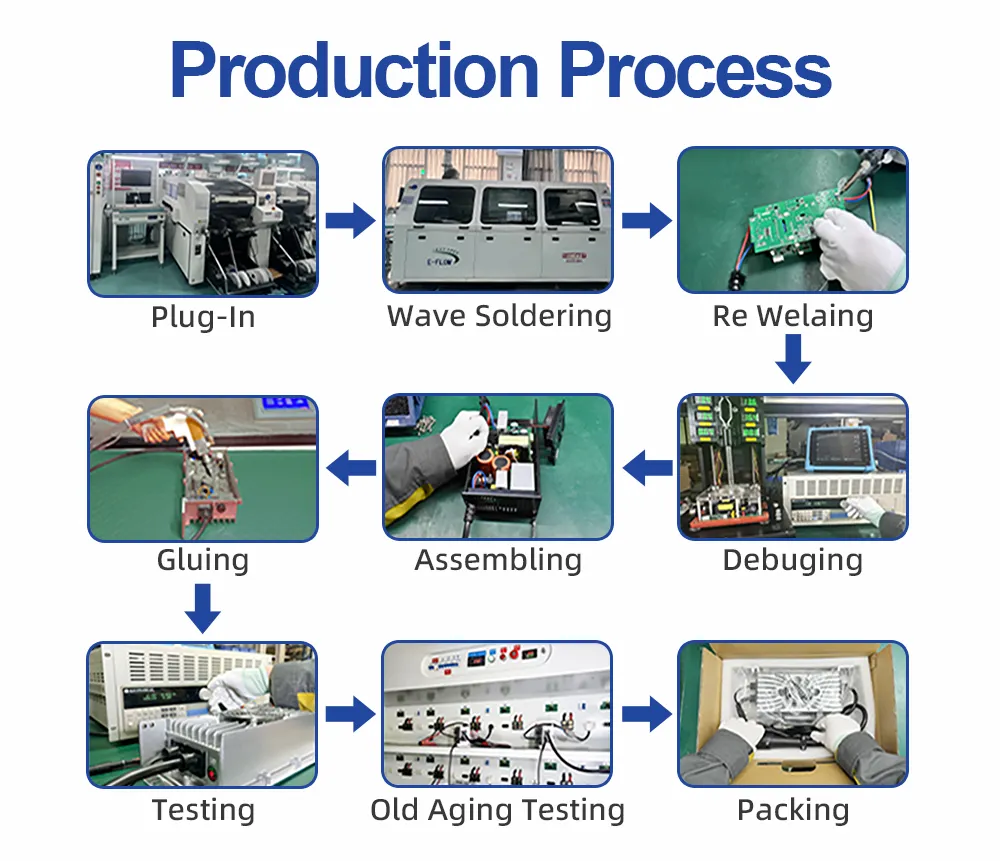

With 20 years of experience in new energy lithium batteries and chargers, we operate from a 3,000-square-meter intelligent production base. Our "Five Dimensional Quality Assurance System" includes 26 inspection processes to ensure global standards are met.
To ensure shipping fees and delivery schedules align with your needs, we collaborate to craft the ideal plan. We offer flexible shipping solutions tailored to your specific logistical requirements.
