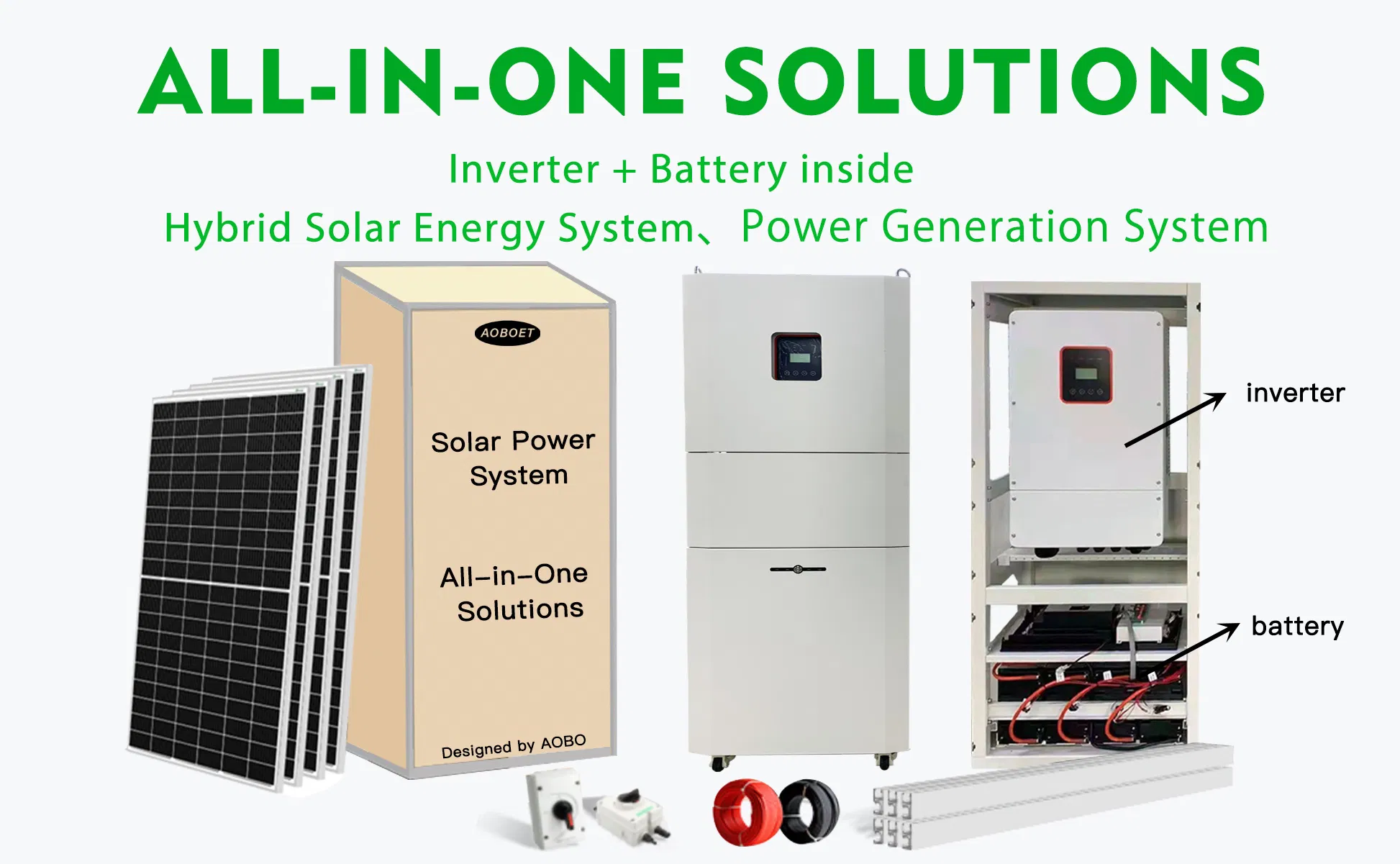

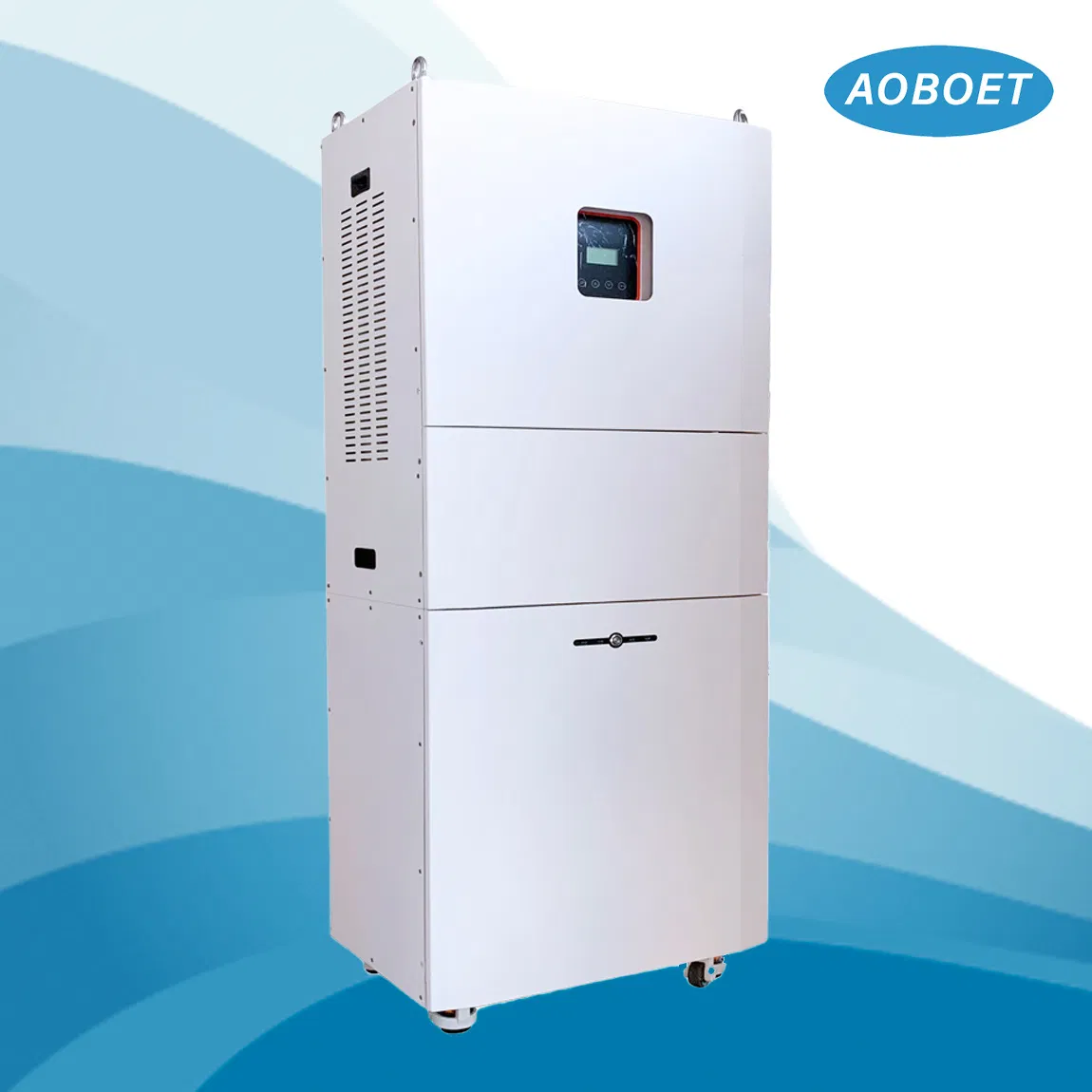

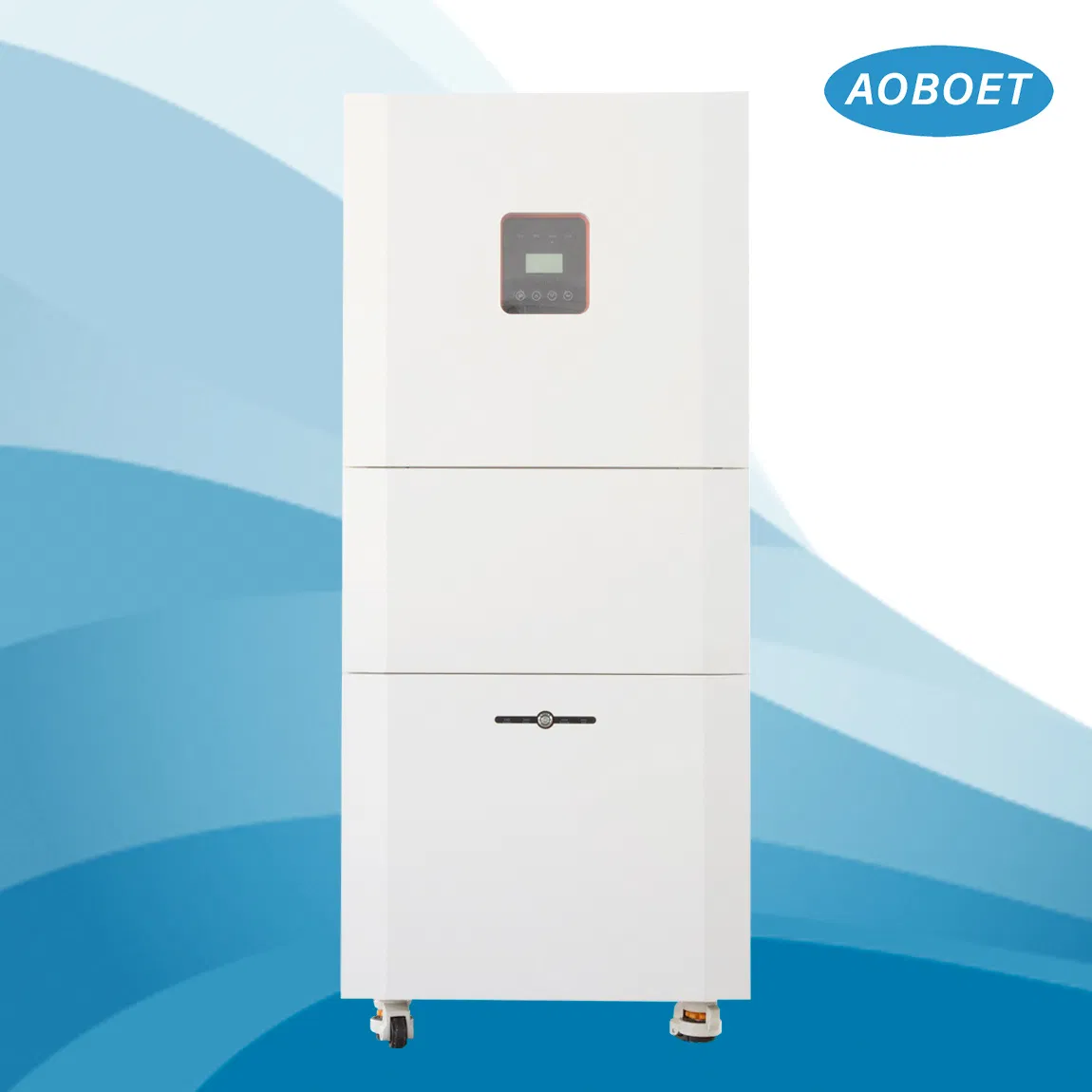

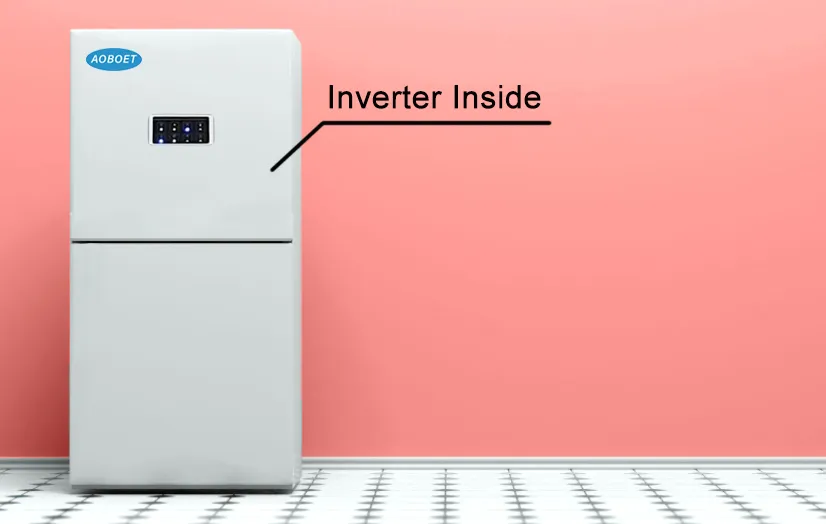

The 12.5kWh Solar Hybrid Generator is a sophisticated combination of battery, inverter, and charger. This system is designed for plug-and-play convenience, serving as a complete link between solar panels and your electrical loads. It functions as a comprehensive solar energy storage system.

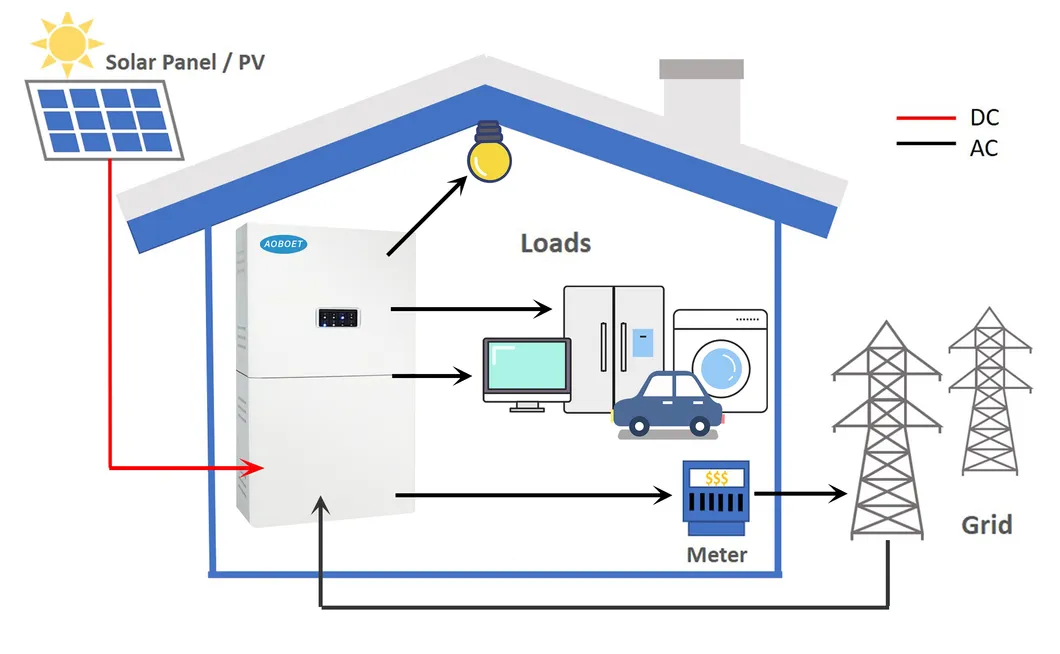

Our hybrid lithium ESS supports both on-grid and off-grid models, ensuring no energy is wasted. Users can prioritize power sources between the main grid and solar energy according to their needs.

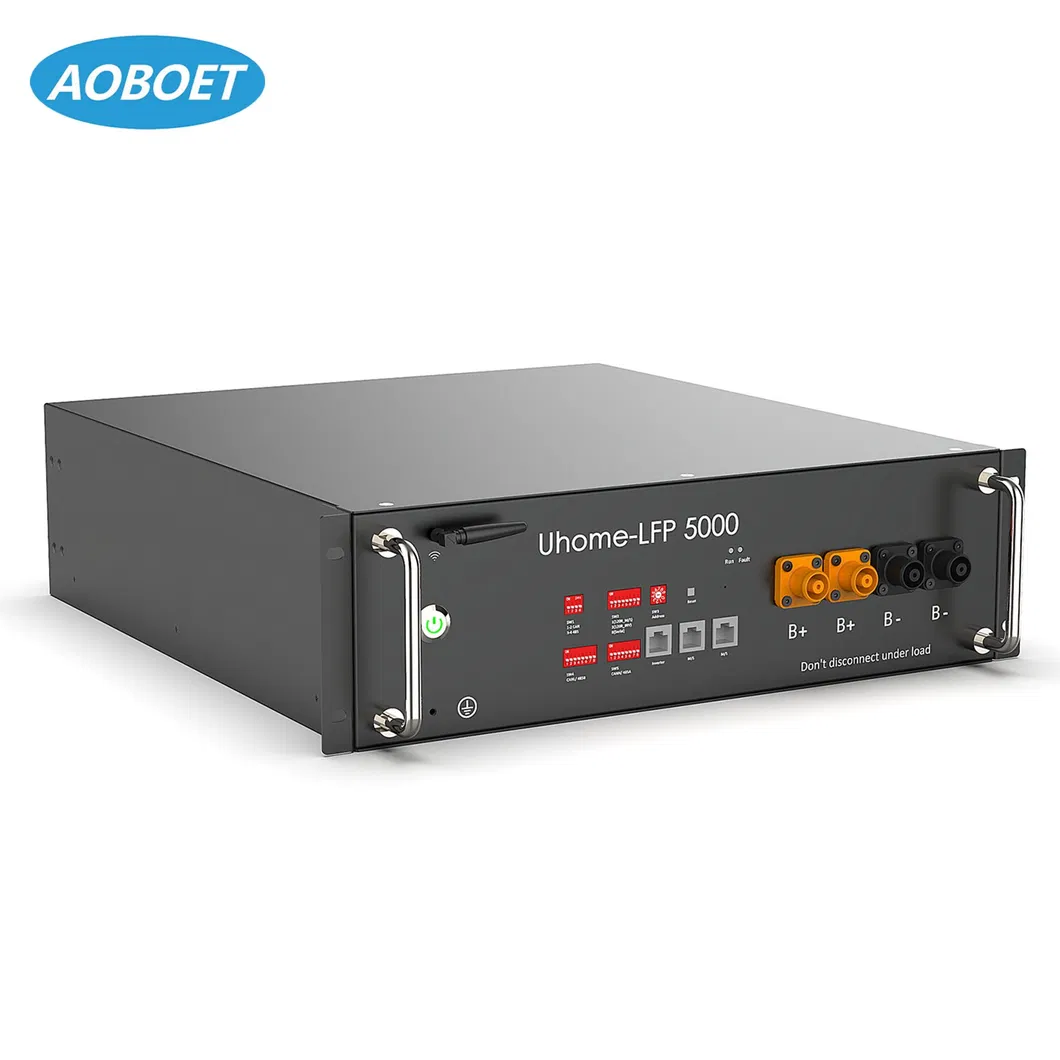

The core of this generator is the high-quality lithium battery. The system offers a long lifespan of more than 15 years (daily cycle). The lithium battery is scalable to achieve higher power levels and supports both series and parallel configurations. An intelligent BMS supports remote battery management via a dedicated app.
Our batteries are highly compatible with various leading inverter brands, including Growatt, Solis, Deye, LuxPower, Megarevo, and more.
| Solar Panel | Solar Bracket |
| Solar Cable | MC4 Connector |
| Solar Combiner | Circuit Breaker |
| On Grid AC Output | |
|---|---|
| Rate AC Output Power | 5KW |
| AC Output Voltage | 230Vac (Single Phase) |
| Max Output Current | 36.5A |
| PV Input | |
| PV Input Power | 12KW |
| MPPT Number | 4 |
| PV Voltage Range | 350V/85V - 500V |
| Battery Data | |
| Battery Type | LFP LiFePO4 |
| Nominal Voltage | 51.2VDC |
| Total Energy | 12.76KWh |
| Peak Power (Discharging) | 15KW for 3S |
| General Data | |
| Operation Temp | -25°C to +60°C |
| Noise Level | <29dB |
| Cooling | Fan Cooling |
| IP Rating | IP65 |
