Aluminum Alloy/Copper Battery Cooling Battery Thermal Management System

1 / 5

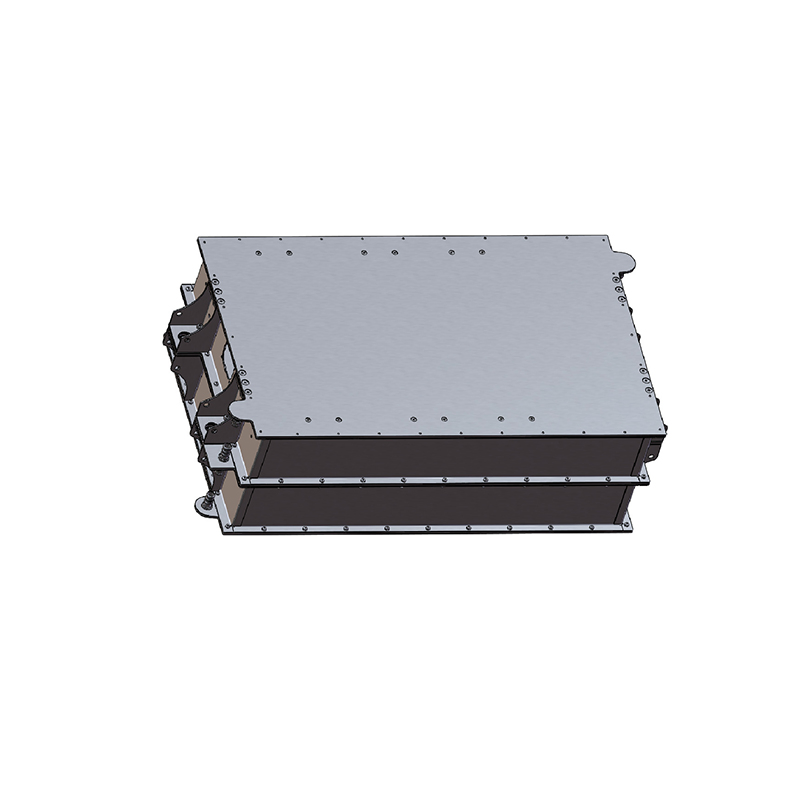

Aluminum Alloy/Copper Battery Cooling Battery Thermal Management System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	Battery Thermal Management System
Certification	RoHS
Application	Oil Cooler, Water Chiller, Industrial Aircondition
Principle	Liquid Cooling or Other Custom Cooling Solutions
Material	Aluminum/Copper
Dimension (LWH)	Max. 200010001000 mm
Cooling Capacity	1 to 10 Kw
Coolant Material	Water, Glycol, Refrigerant, or PCM, etc.

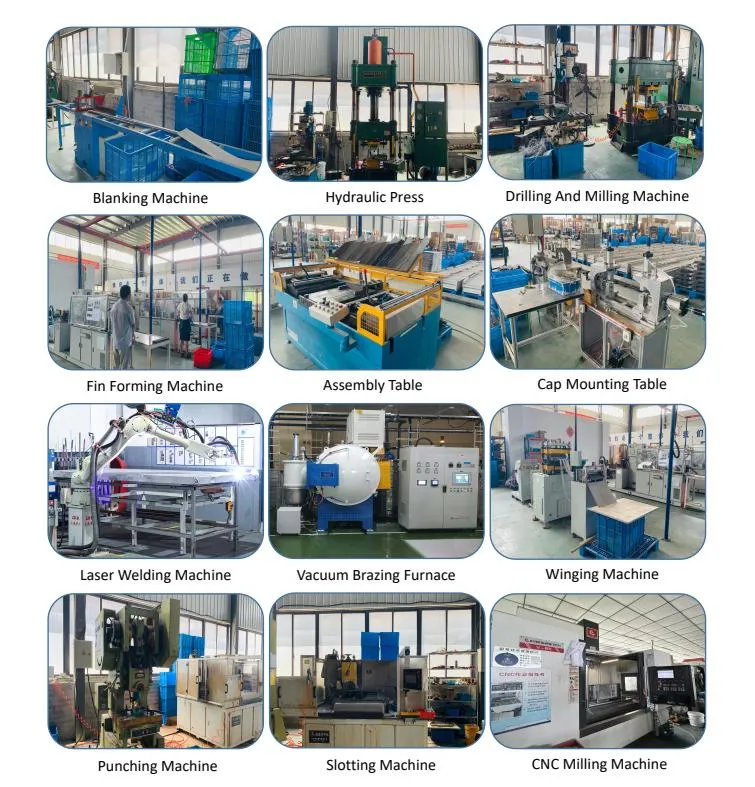

Main Technique	Vacuum Brazing & Arc Welding
Key Selling Points	Energy Saving

Product Description

A Battery Thermal Management System (BTMS) helps to maintain a battery pack at its optimal temperature range of 20° to 45° C regardless of ambient temperature. For each vehicle design, the required performance and cycle life of the battery pack are considered to determine the specific set point for the battery pack temperature.

The Battery Thermal Management System is a complete thermal system solution that maintains the critical operating temperature ranges of vehicle batteries. Design solutions are available for both active and passive cooling circuits.

Technical Features & Parameters

✓ Standard packaging or customized solutions available.

✓ Field proven patented master controls system.

✓ Specialized battery radiator and condenser designed for BTMS.

✓ 2 - 10 kW cooling (typically 6 kW at 45ºC ambient).

✓ 6 kW passive cooling (10ºC ETD).

✓ 2 - 12 kW electric heating down to -20ºC coolant.

✓ Total system weight < 60 kg.

✓ HV: 400 - 800 VDC | LV: 12 or 24 VDC options.

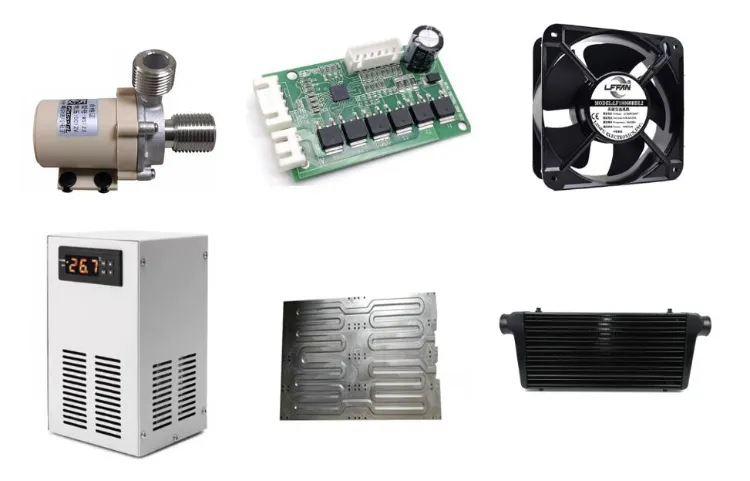

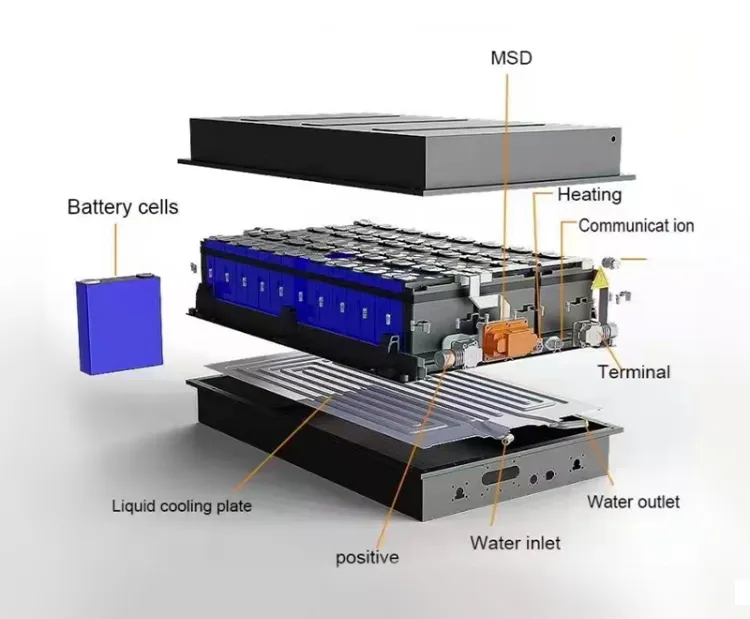

Main System Elements

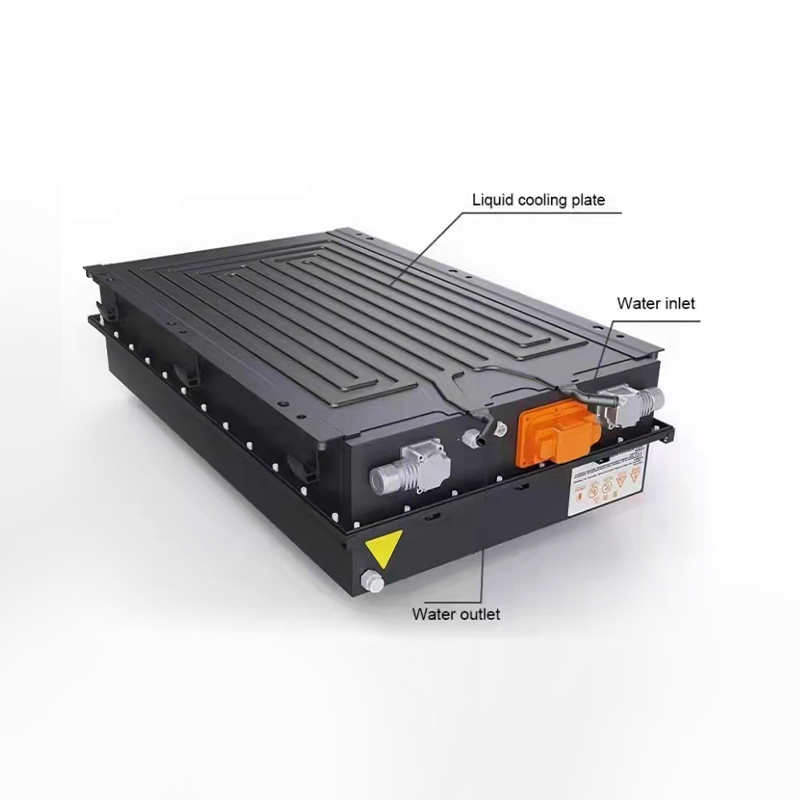

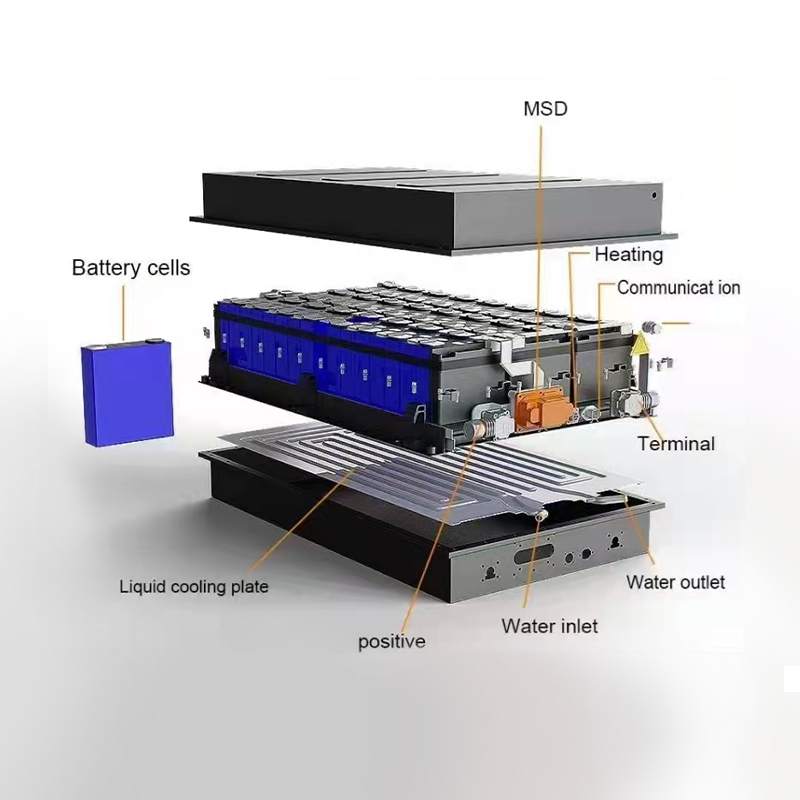

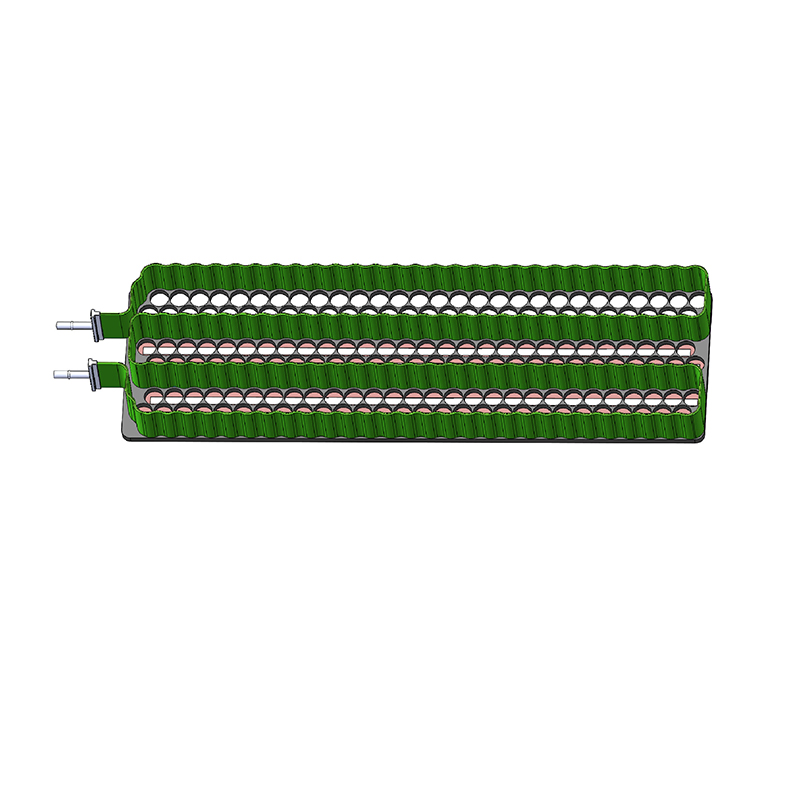

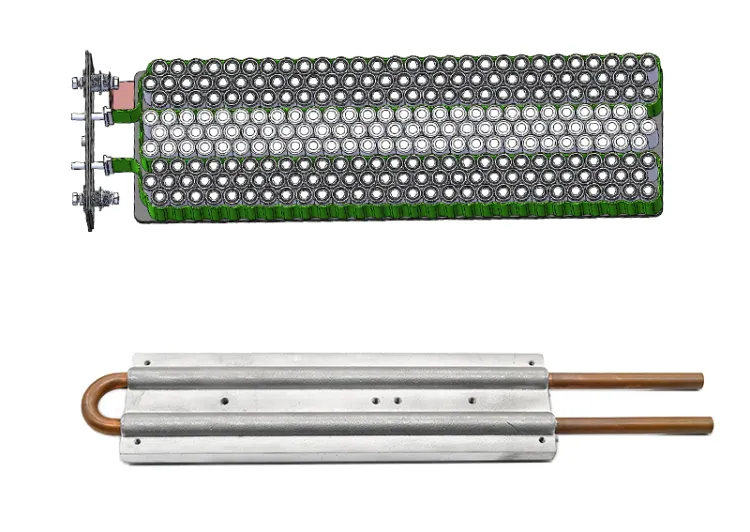

1. Cooling plate

2. Chiller unit

3. Radiator with fan and pump

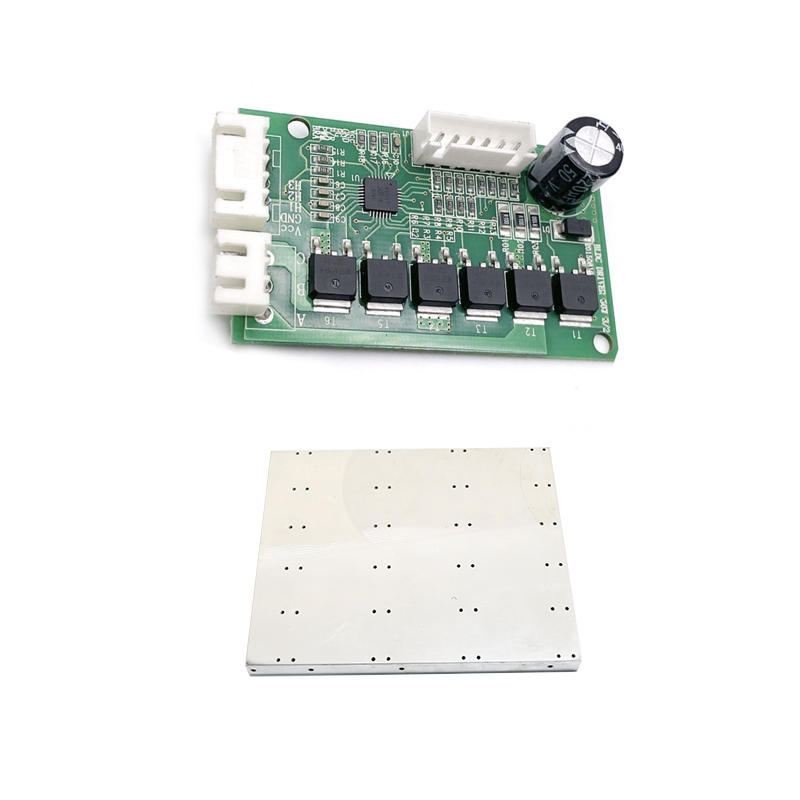

4. Temperature/flow rate controller

5. Value-added accessories: hoses, connector clamps, housings, valves, etc.

Typical Cooling Types

• Air cooling: Includes fan and heat sink.
• Liquid cooling (Type A): Includes cooling plate, radiator, fan, pump, and controller.
• Liquid cooling (Type B): Includes cooling plate, chiller, and controller.
• 2-Phase change cooling: Includes cooling plate and condenser.
• Refrigerant cooling: Includes cooling plate, condenser, and compressor.
• Custom solutions: Such as immersion cooling.
