Battery Thermal Management System Battery Cooling Solution for Electric Buses

1 / 5

Battery Thermal Management System Battery Cooling Solution for Electric Buses

Customization:	Available
After-sales Service:	Free Parts
Warranty:	One Year

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.BTMS-01

ApplicationElectric Buses

ComponentBattery Thermal Management

Body MaterialSteel

Cold StyleAir-cooled

CertificationCE

Cooling FluidGlycerin / Glycol

Radiator TypeTube-fin / Direct-flow

Capacity1000 units/Month

OriginChina

💡

Product Description

Battery Thermal Management System for Electric Buses

The Battery Thermal Management System (BTMS) is specifically designed for electric buses to solve high-temperature challenges during long-term operation. By maintaining optimal temperature ranges, it significantly extends battery life and ensures the overall system works safely and efficiently.

📊

Technical Data Sheet

Item	Technical Specifications
Compressor	DC brushless scroll type EV26
Heat Exchanger	High efficiency plate heat exchanger (15kw @ 10L/min)
Condenser	Parallel flow (15kw @ 4.5m/s)
Condenser Fan	2000 m³/h
Expansion Valve	Thermostatic expansion valve
Controller	CAN 2.0; 250Kbps (Compressor & Fan Drive)
Cooling Power	8KW
Working Temperature	1 - 45ºC
Power Inlet Range	DC 400-800V or DC 240-400V
Refrigerant	R134A
IP Protection / Insulation	≯50MΩ (Working)
Service Life	≥20,000 hours

📸

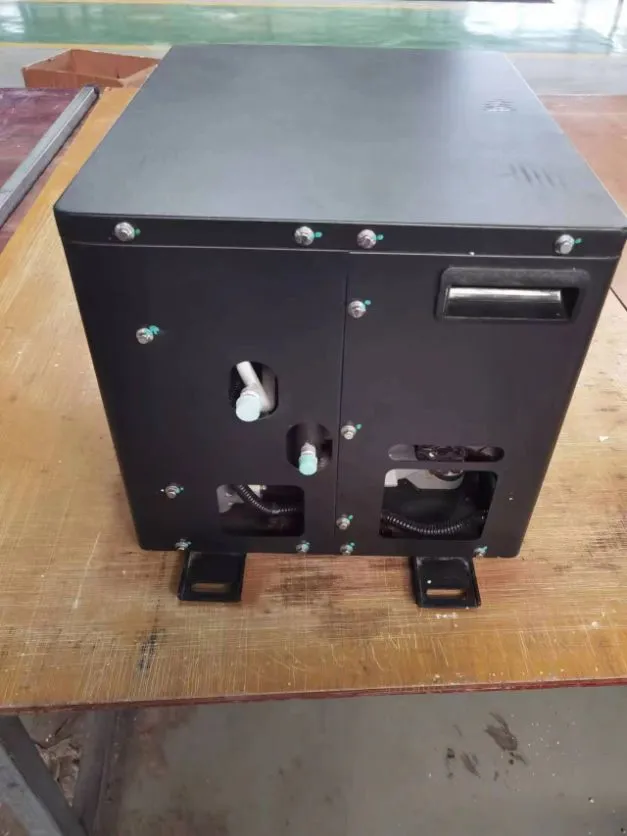

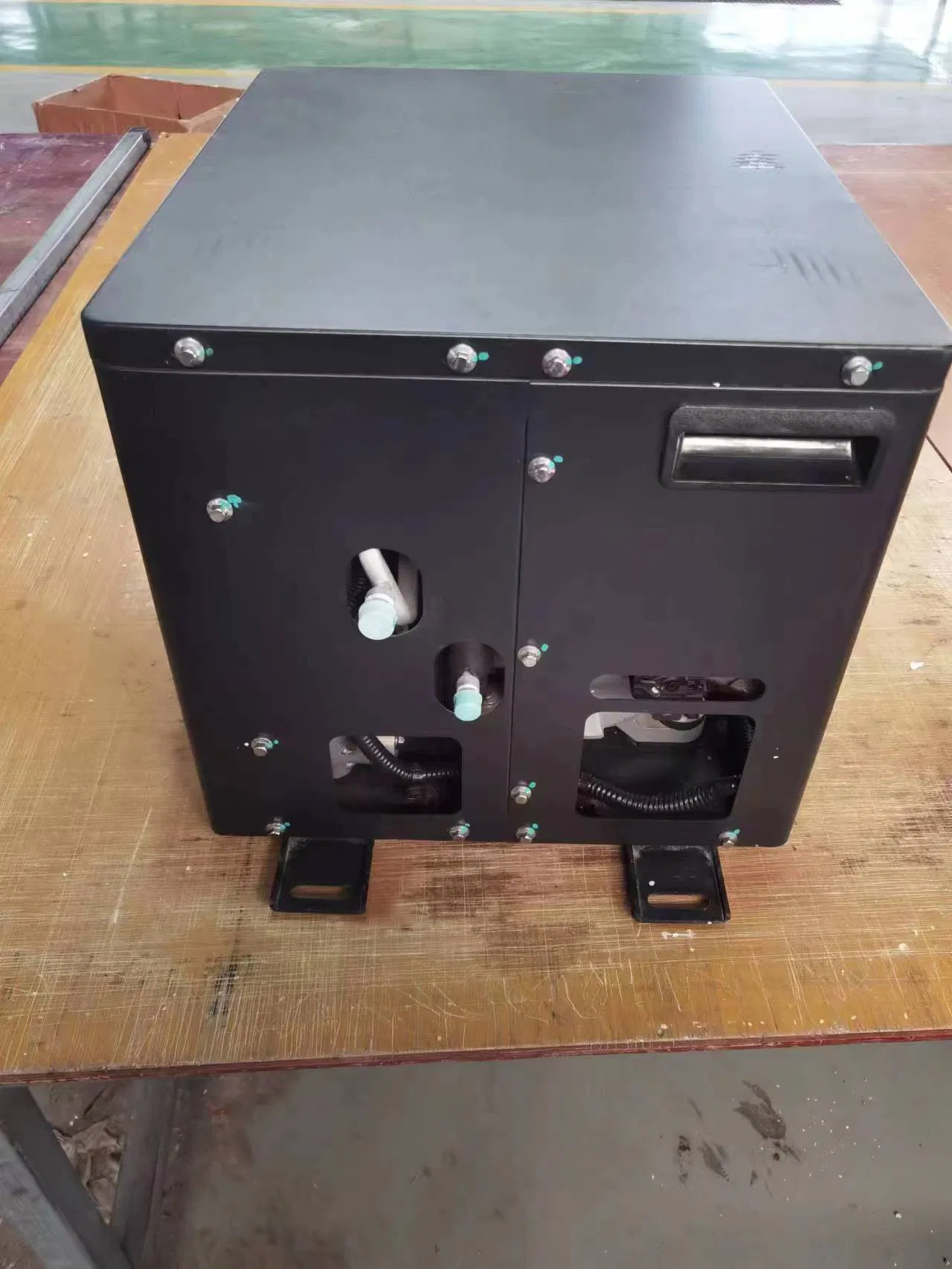

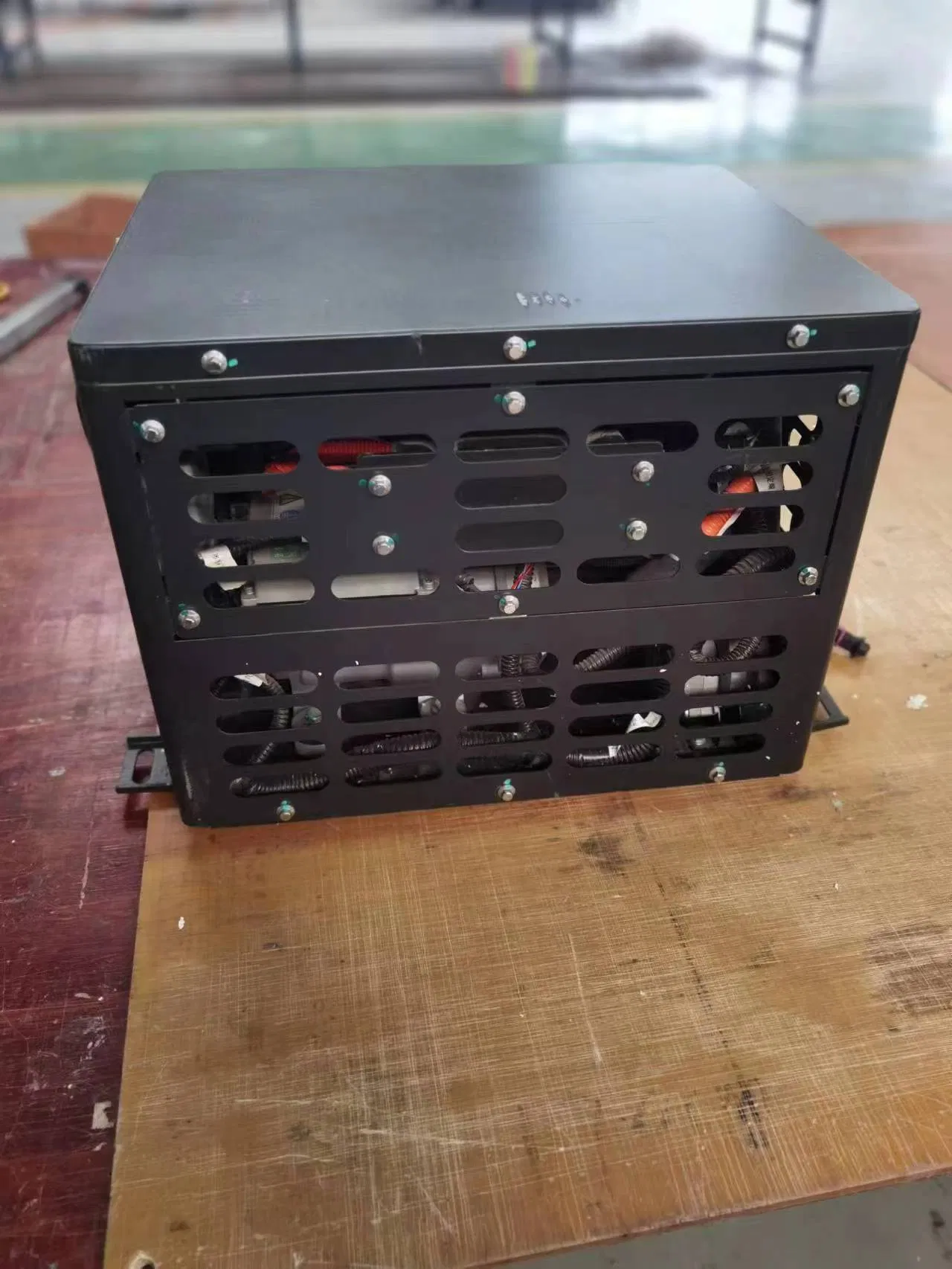

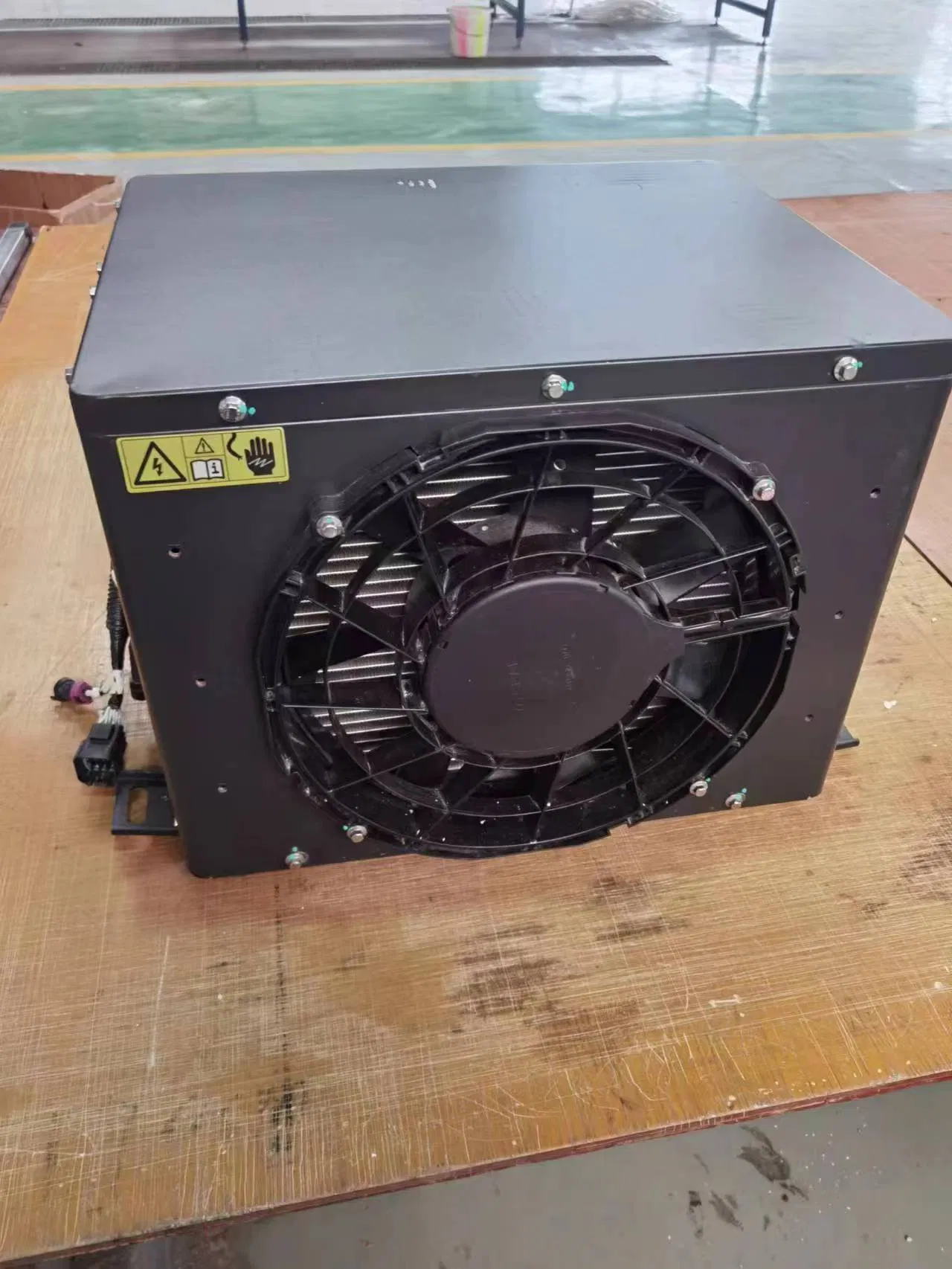

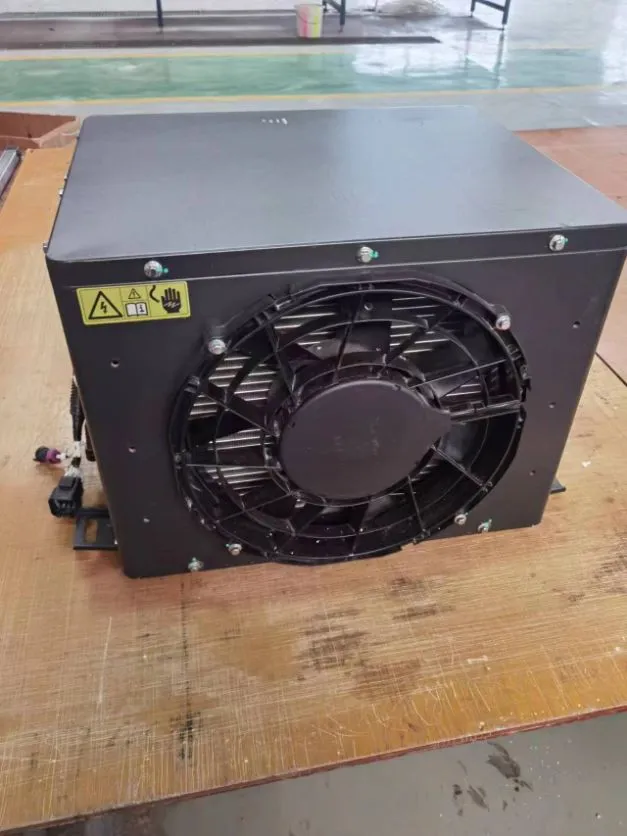

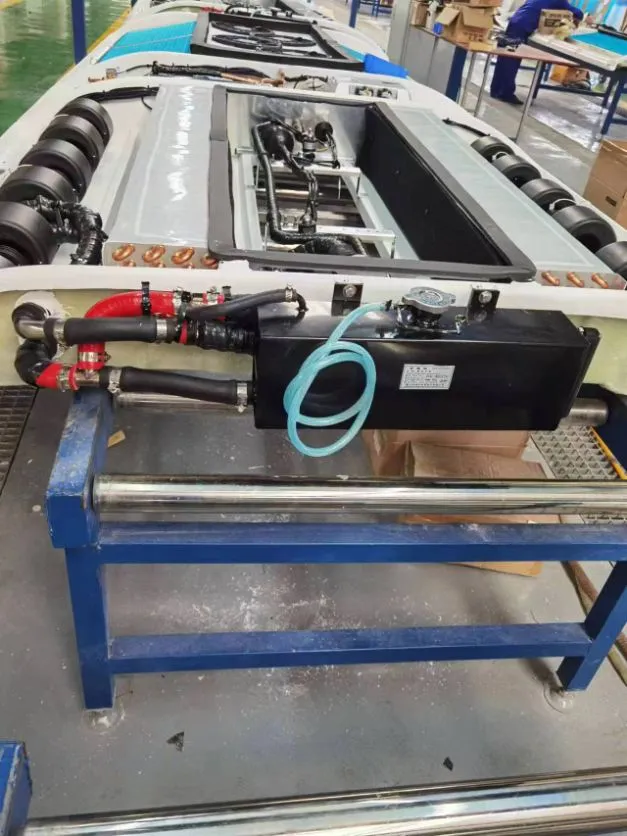

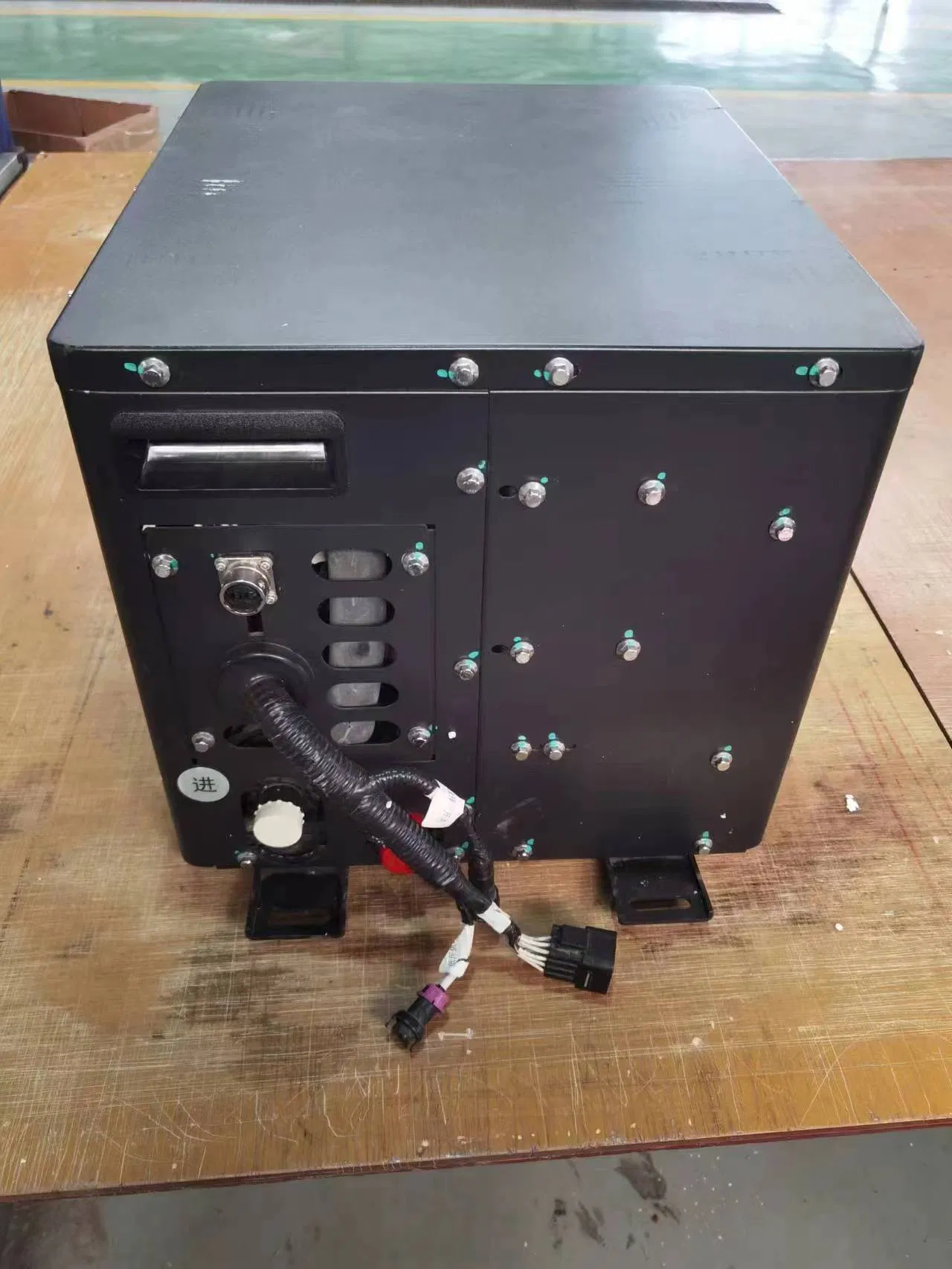

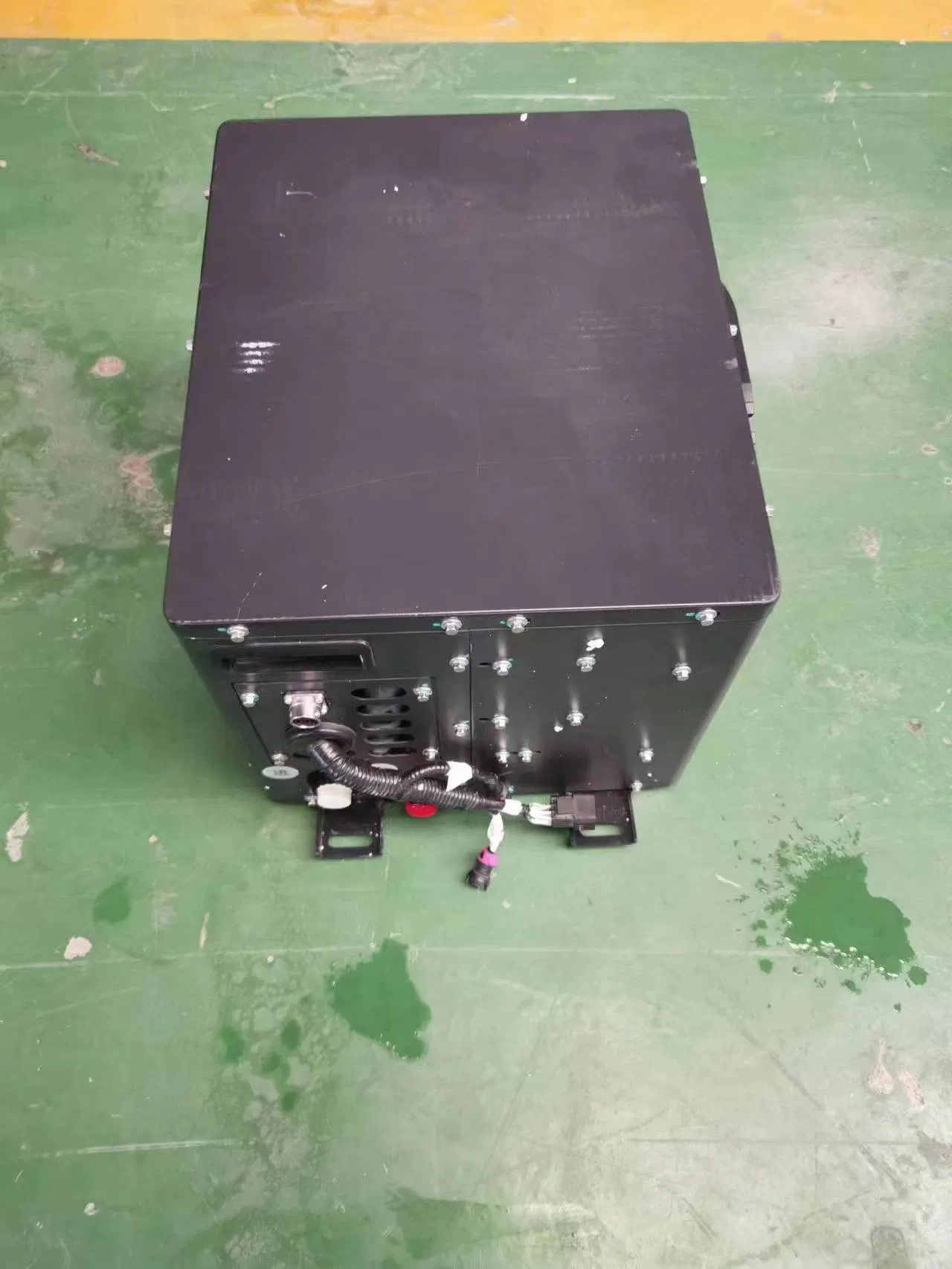

Product Display

📦

Packaging & After-Sales

Package TypeWooden Case or Carton

Package Size590.00cm * 335.00cm * 398.00cm

Gross Weight40.000kg

Warranty Period: 12 months. If any part fails within the first year, a replacement part will be provided free of charge.

Maintenance: Under normal usage, refrigerant should be replaced every 2-3 years.

❓

Frequently Asked Questions

How is the product quality ensured?

All production processes strictly adhere to ISO-9001 procedures. We provide a one-year quality warranty. If the product fails to perform as described due to a manufacturing fault, we offer exchange services.

Do you provide customization services for BTMS?

Yes, we can develop new models based on your specific drawings or samples to meet your unique vehicle requirements.

What is the Minimum Order Quantity (MOQ)?

MOQ varies by product. However, if the specific model is in stock, we can fulfill orders as small as one piece.

What is the typical delivery lead time?

In-stock items are shipped within 2 working days. For custom or out-of-stock items, production typically ranges from 1 to 30 working days depending on the complexity.

How can we establish a long-term business relationship?

We focus on maintaining superior quality and competitive pricing to ensure our customers' benefit, while treating every client with respect and sincerity regardless of their origin.
