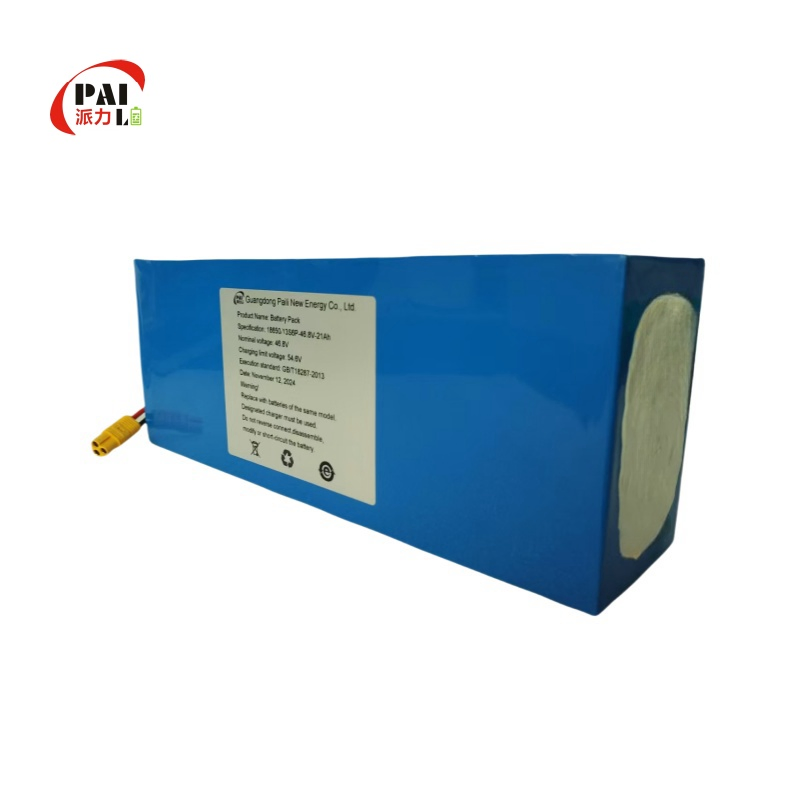

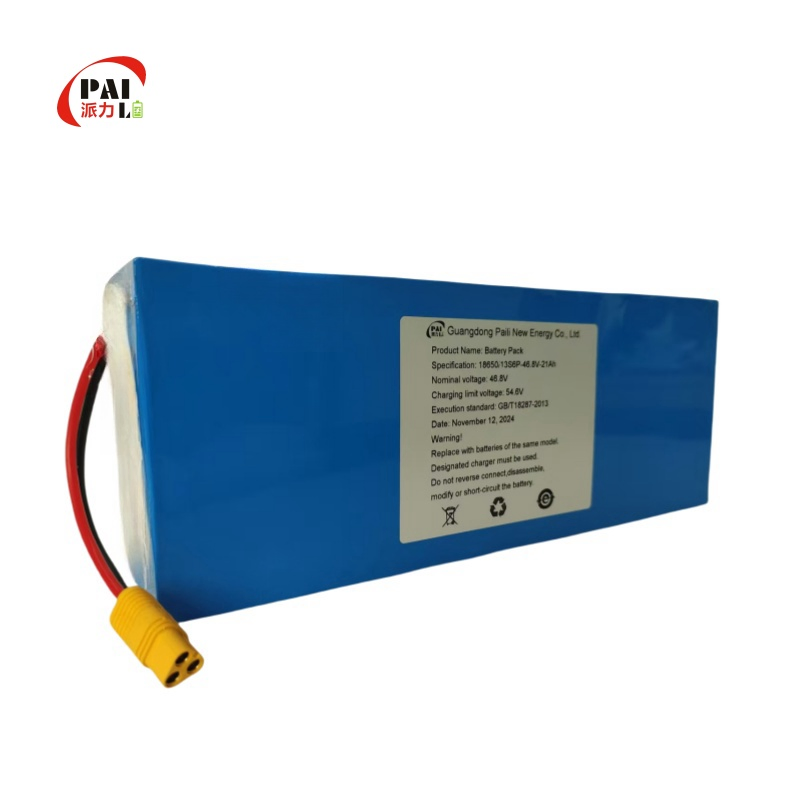

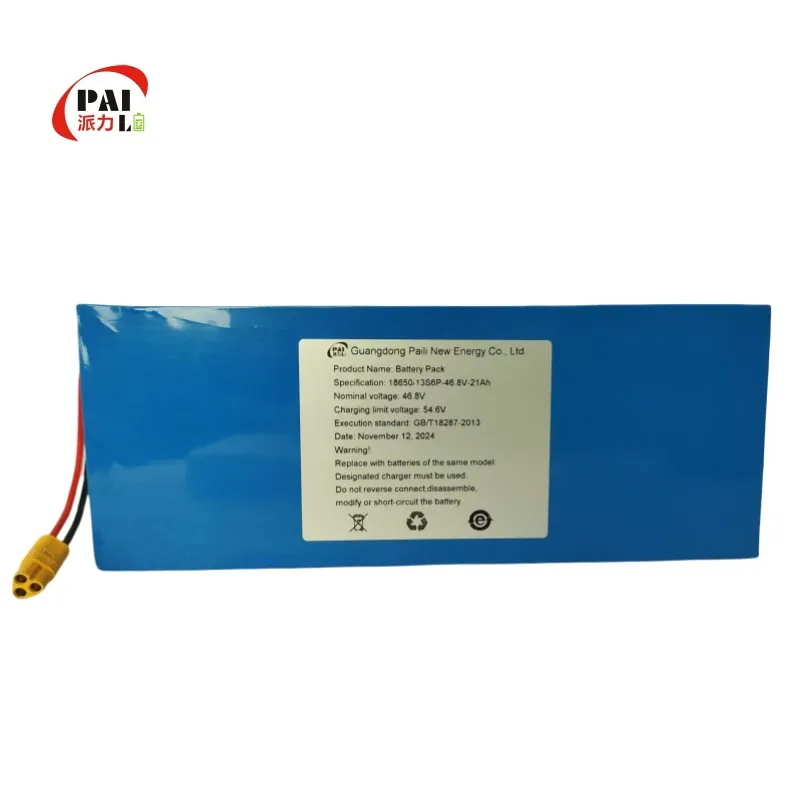

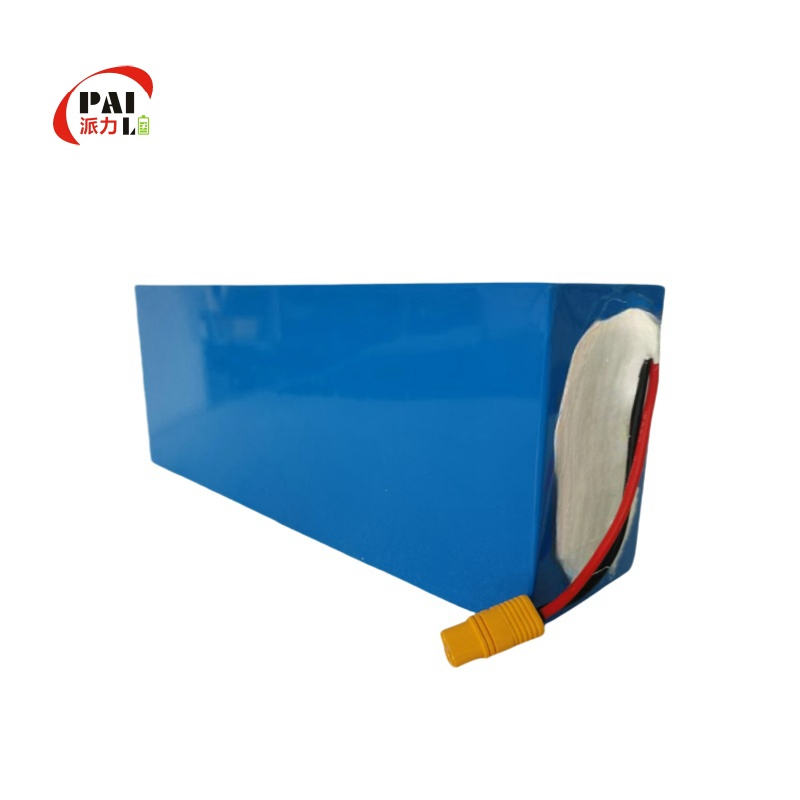

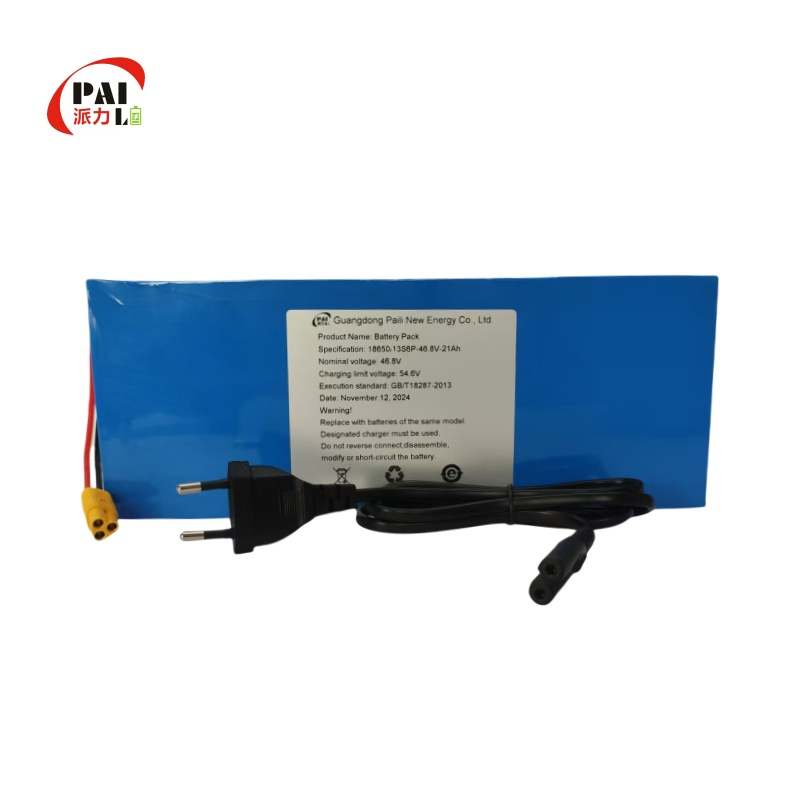

High Performance 18650 13S6P 54.6V 21Ah Lithium Battery Pack
This lithium-ion battery pack is designed for high-demand applications including electric scooters, bicycles, and sweeping robots, featuring advanced communication protocols.
| Battery Specification Parameters | |
|---|---|
| Cell Model | 18650 Li-ion |

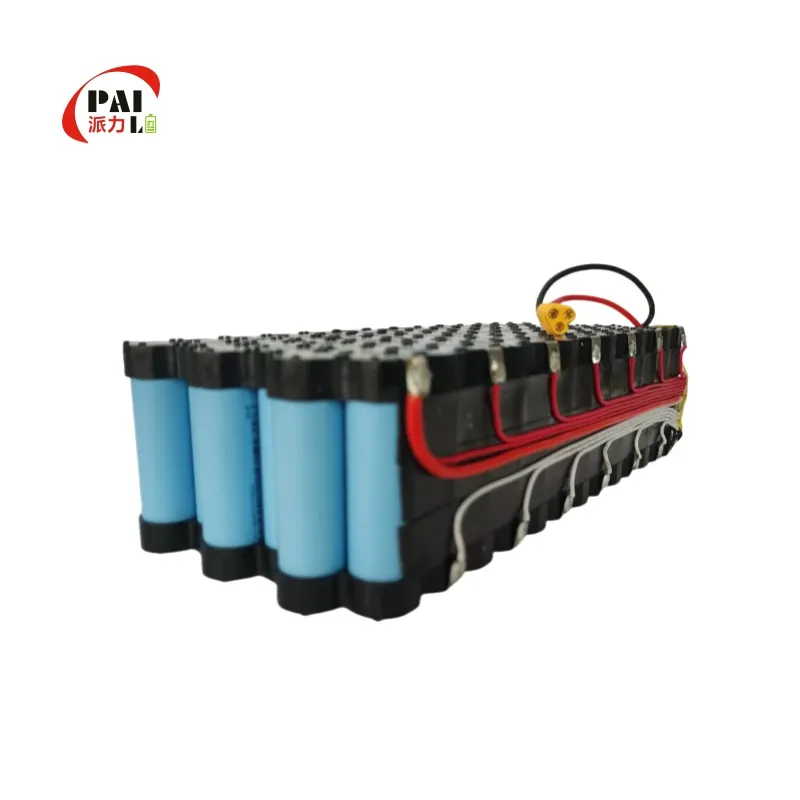

| Configuration | 13S6P |
| Nominal Capacity | 21Ah @0.2C |
| Nominal Voltage | 46.8V |
| Max Charging Voltage | 54.6 ± 0.05 V |
| Discharge Ending Voltage | 35.75 ± 0.05 V |
| Standard Charge Current | Customizable |
| Max Continuous Discharge | 10A |
| Operating Temperature | Charge: 0~45ºC | Discharge: -20~60ºC |
| Dimensions | 250 * 105 * 68mm |
| Weight | Approx. 4.0 Kg |

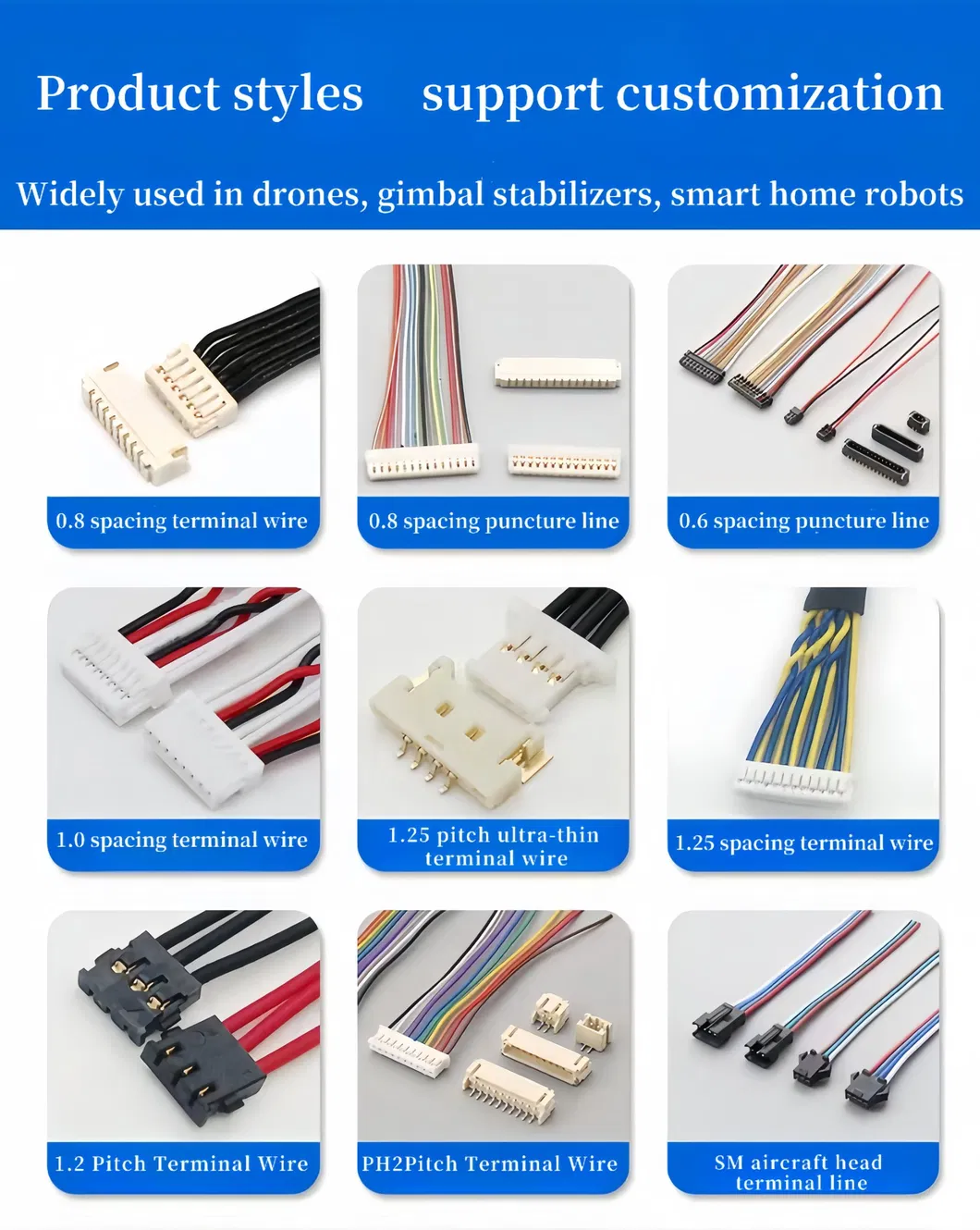

Select the lithium battery module terminal model that fits your specific device requirements.
Visual inspection is required before installation. Batteries are shipped half-full; no special activation is needed.

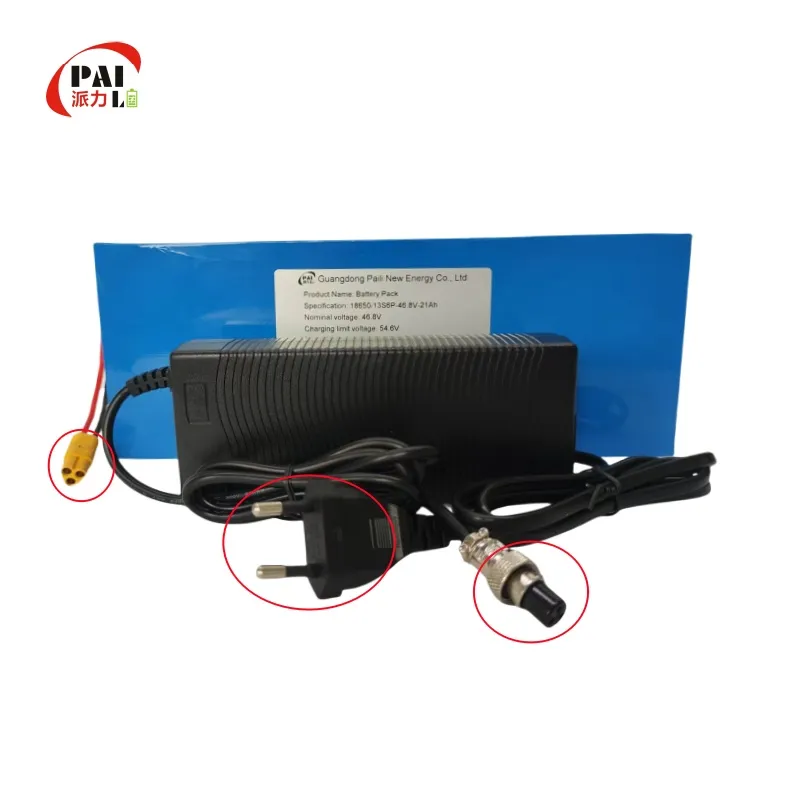

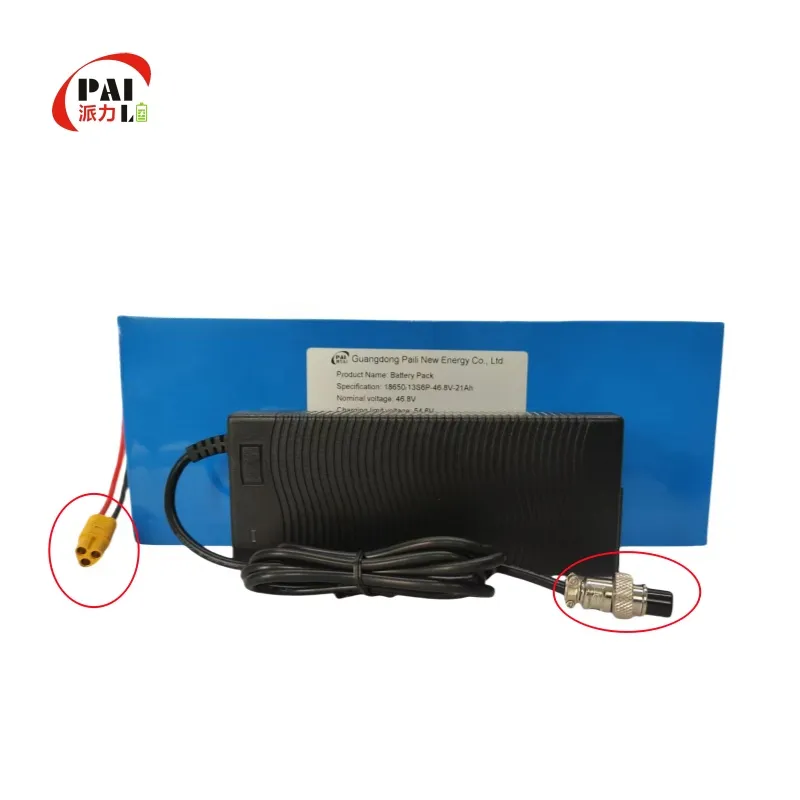

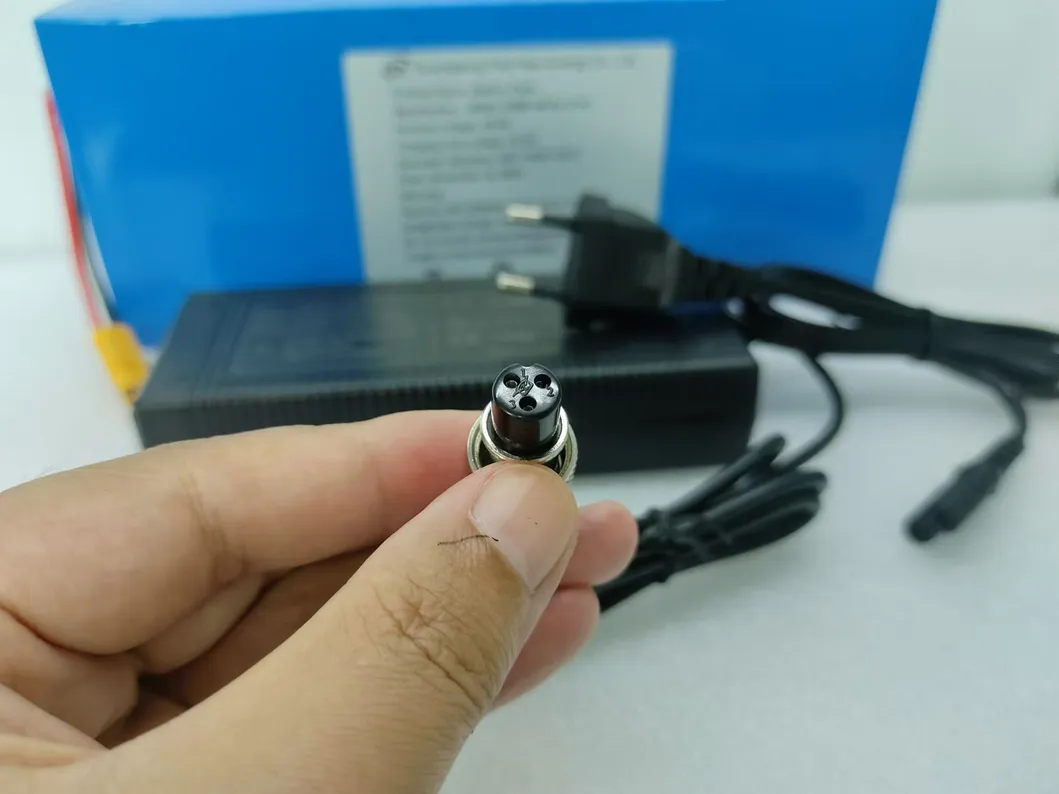

Avoid using fast-chargers for non-fast-charge series. Always connect the charger to the vehicle first, then to the power supply.
Store at 50%-70% charge in temperatures below 25ºC for long-term storage.
Avoid overcharging/discharging. Do not expose to direct sunlight or high heat during the summer months.
Contact us for more technical details and professional support.
