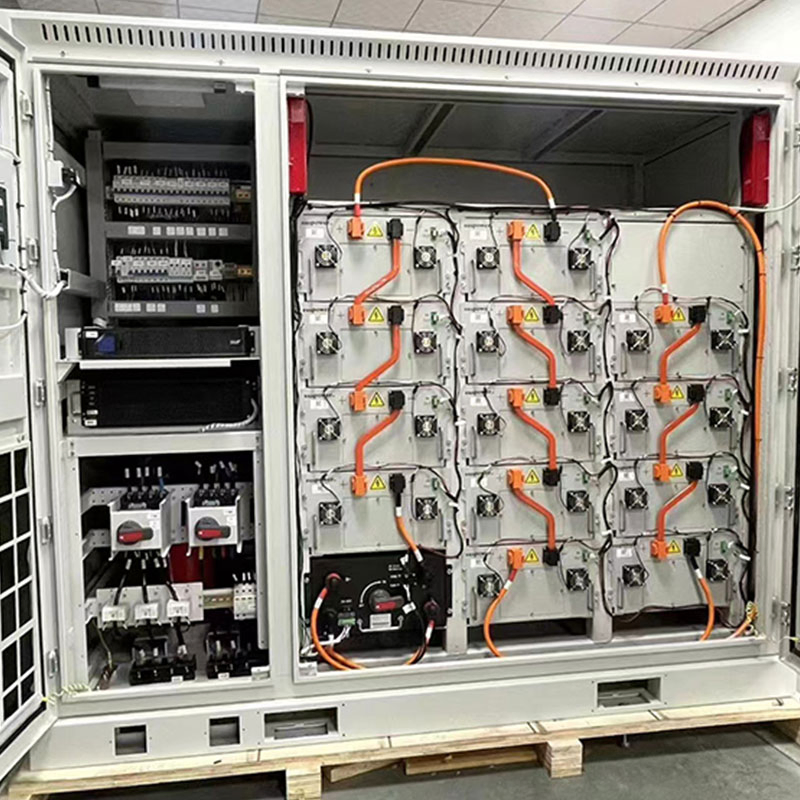

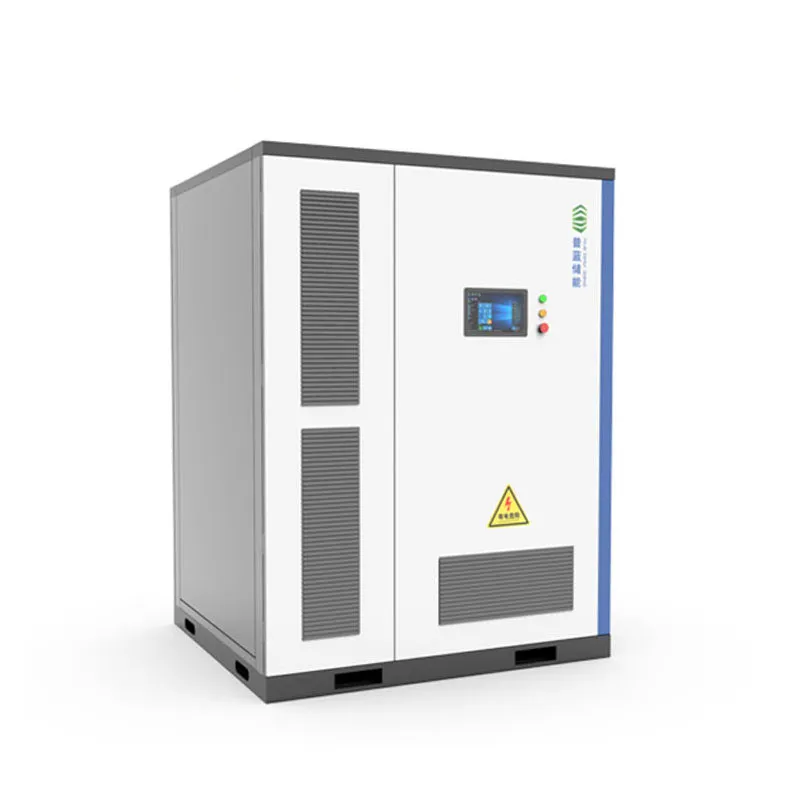

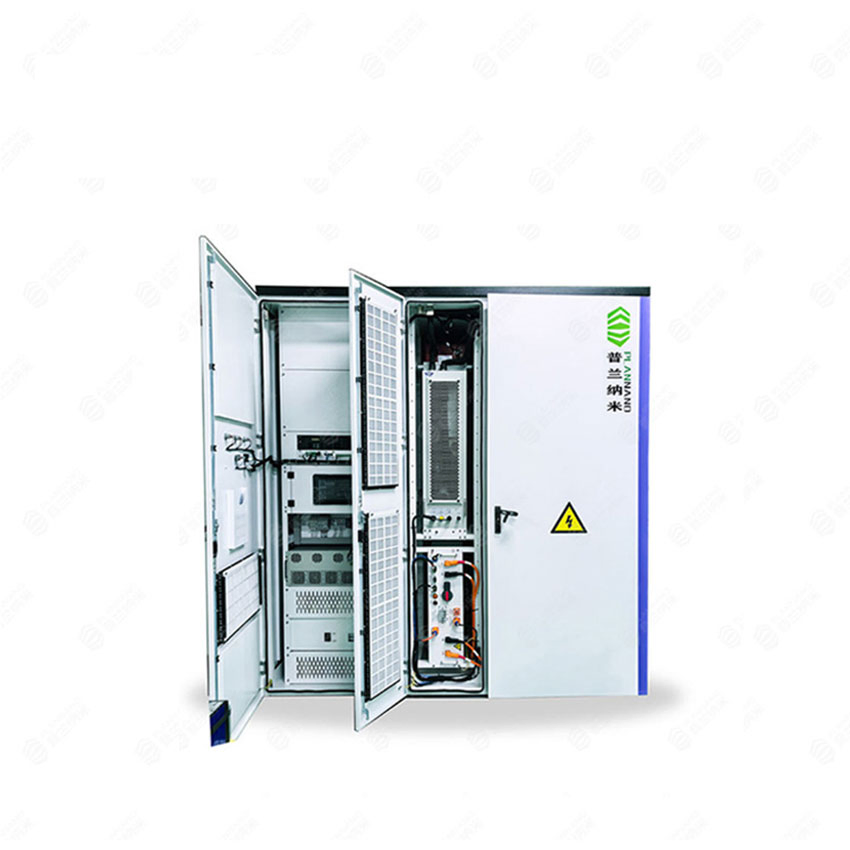

| Battery System Parameters | |
| Product Model | PLPF0280C0-1331R2A |
| Battery Configuration | 1p416s |

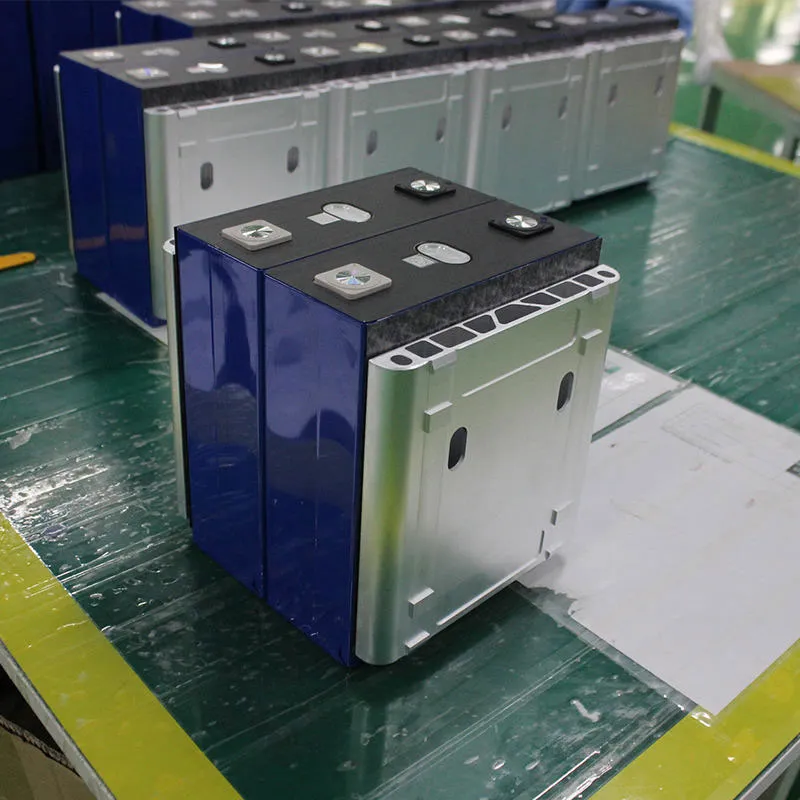

| Cell Specification | 3.2V / 280Ah |
| Cycle Life | ≥6000 @ 100% DOD, 80% EOL |
| Rated Capacity | 373kWh |
| AC Output Parameters | |
| Rated Output Power | 110kW |
| AC Output Current | 184A |
| Rated Grid Voltage | 690V (±15% range) |
| Rated Grid Frequency | 50Hz / 60Hz (±2.5Hz range) |
| Power Factor | -1 (leading) to 1 (lagging) |
| THDi (Harmonics) | ≤3% (at rated power) |
| Isolation Mode | Transformer Isolation (optional) |
| Off-grid Voltage/Freq | 400V | 50Hz/60Hz |
| System Environmental Parameters | |
| Dimensions (W x H x D) | 2300 x 2500 x 1400 mm |
| Humidity Range | 0 ~ 95% (No condensation) |
| Operating Temperature | -30℃ ~ 60ºC (>40ºC derating) |
| Cooling Method | Air / Liquid Cooled |
| Fire Extinguishing | Aerosol / Perfluorocopper (optional) |
| Maximum Altitude | 4000m |
| Display & Comm. | Touch Screen | ModBus-TCP / RTU / IEC104 |
Our company is a high-tech enterprise focusing on the research, development, manufacturing, and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, we aim to supply complete solutions for green-energy storage and power system products for our global clients.
In collaboration with leading research labs, we utilize high-standard test instruments and a top-class technical management team. With more than 50 patents in preparation and application, we have completed production lines for various advanced materials.

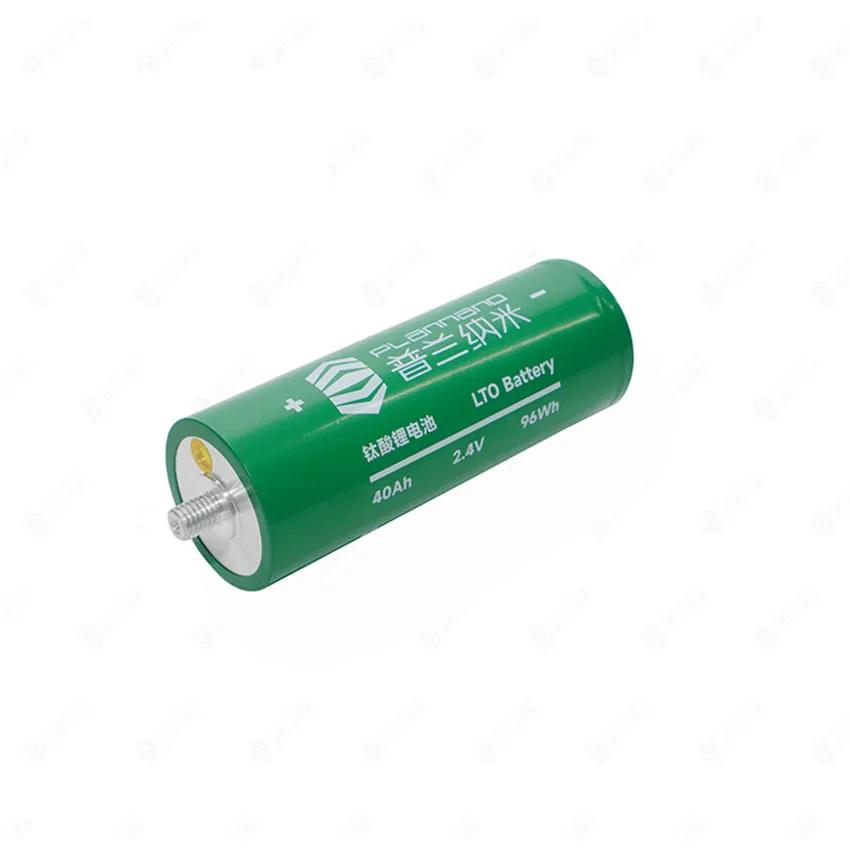

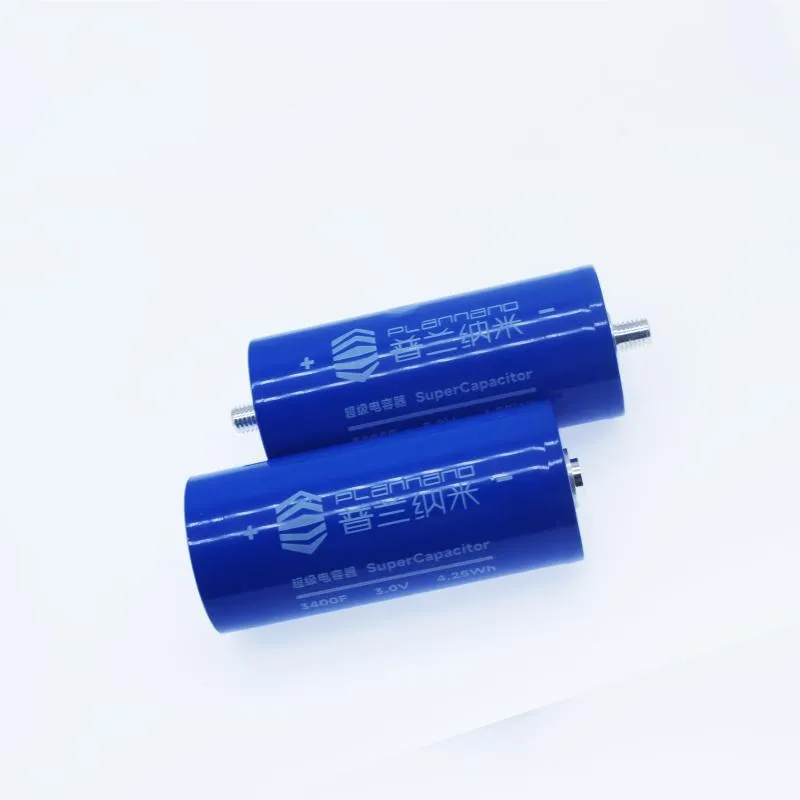

We have successfully mass-produced products such as Graphene, LTO, Si/C material, and supercapacitor cells ranging from 0.1F to 3000F. Our main products are widely applied in new-energy vehicles, rail transportation, smart grids, micro-grids, engineering machinery, and industrial energy-saving fields.
We treat credibility and integrity as our foundation. Based on the latest achievements in science and technology, we aim to manufacture advanced clean-energy products with high quality and supply reliable solutions to contribute to the global green energy industry.
