Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
1 / 5
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter
Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter

Energy Storage Battery for Communication Station Energy Storage Systems Base Station Scooter

Customization: Available
Type: Energy Storage
Usage: Electric Power
Send Inquiry

Product Description

Basic Specifications

Model NO.
Energy Storage
Nominal Voltage
48V
Discharge Rate
High Discharge Rate
Electrolyte
Li-ion
Power
33.12kwh
Protection Level
IP21
Efficiency
>95%
MTBF
>100000 Hours
Environment
Indoor
Origin
China
Dimensions
680mm*489.5mm*1528mm
Humidity
<95%

Product Overview

Energy Storage Battery

The one-stop energy storage system for communication base stations is specially designed for critical power backup and energy management. This system enables discharging during peak load periods and charging from the grid during low load periods, effectively reducing peak demand and optimizing electricity costs through intelligent arbitrage.

System Integration: Combined EMS, BMS, PCS, battery, and power distribution into a single robust solution.
Safe and Stable: Triple-layer safety design including thermal runaway warnings, DC circuit breakers, and explosion-proof structures.
Minimalist Deployment: Modular architecture allows for rapid setup; complete installation can be achieved in just 15 minutes.

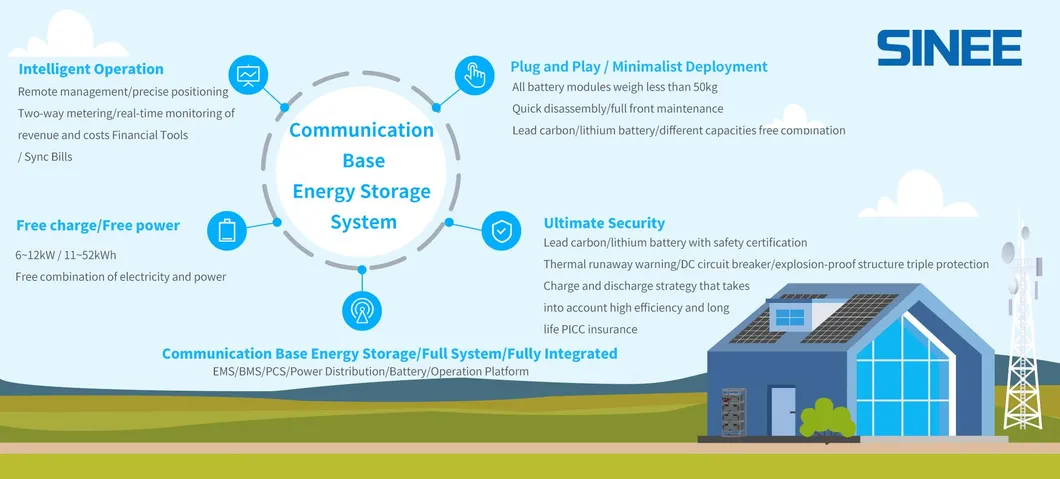

System Interface

Technical Parameters

Feature Lead Carbon System Lithium Battery System
Mechanical Weight 860kg (2V500Ah system) 370kg (3.2V230Ah system)
Dimensions 1040 * 540 * 1485mm 680 * 489.5 * 1528mm
Cooling Air Cooling Air Cooling
Electrical Power Capacity 22kWh 33.12kWh
DC Bus Side 42VDC ~ 58VDC 42VDC ~ 58VDC
Efficiency ≥95% ≥95%
Protection Max 150A Overcurrent Max 150A Overcurrent
Environment Temperature -20 to 50ºC -20 to 50ºC
Protection Level IP21 IP21

Installation Guide

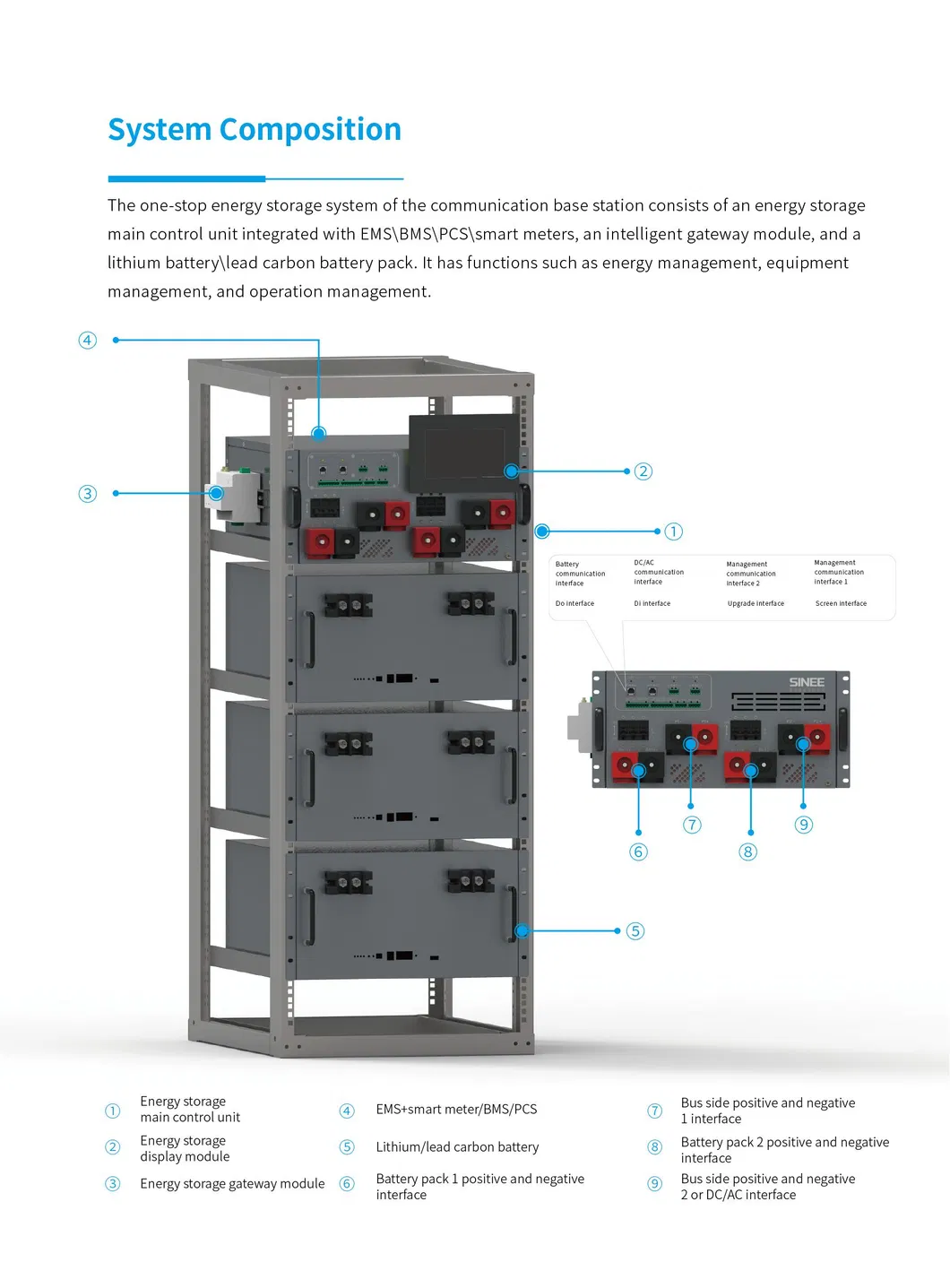

Installation Instructions
Product Details

Frequently Asked Questions

What are the primary applications for this energy storage system?
The system is specifically designed for communication base stations, energy storage systems, and electric scooters, providing reliable peak-shaving and backup power.
How does the system ensure safety?
It utilizes a triple protection design including thermal runaway warnings, integrated DC circuit breakers, and an explosion-proof structure to ensure maximum operational safety.
Is it compatible with existing battery setups?
Yes, the system is compatible with mainstream batteries on the market, allowing different types, capacities, and batches to be used in parallel effectively.
What is the estimated installation time?
Thanks to its modular design, the system supports quick disassembly and assembly. A standard base station installation can typically be completed in about 15 minutes.
Can the system be monitored remotely?
Absolutely. It supports intelligent operation through remote monitoring of equipment status, allowing for efficient maintenance and accurate energy revenue calculations.
What is the maintenance requirement?
The system features a full frontal maintenance design, meaning no rear or side maintenance channels are required, which helps save significant space in base stations.
