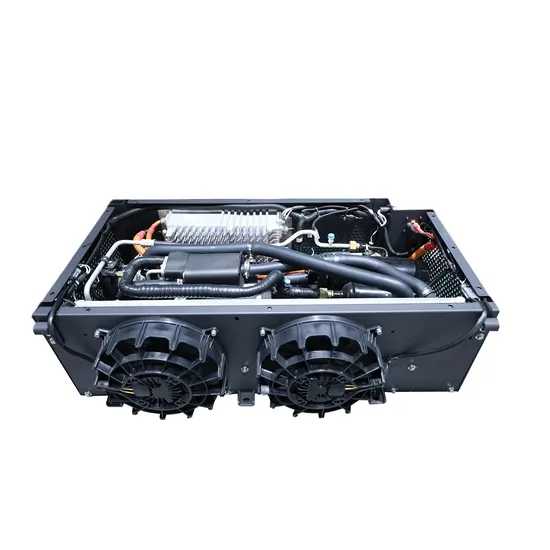

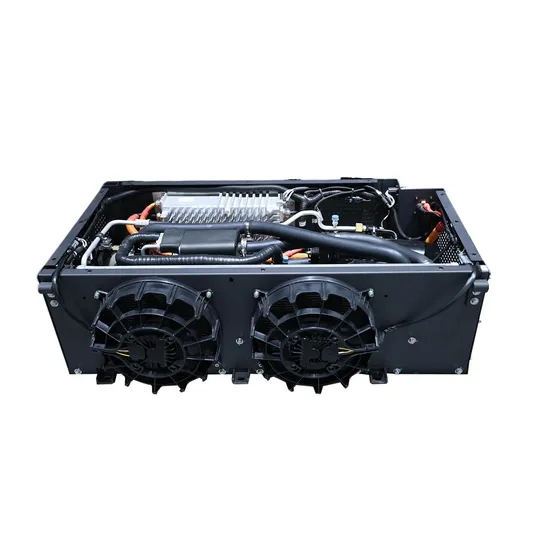

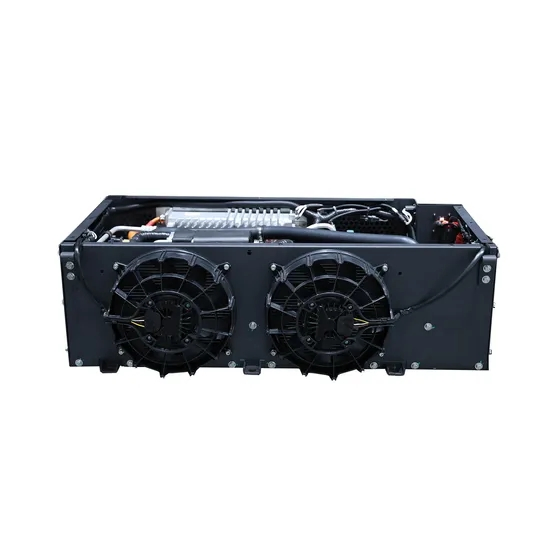

NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks

📊 Basic Information

Model NO.

NFBTM10

Function

Cooling & Heating, Ventilating, Air Filtering

Control Mode

Optional

Driving Mode

Independent

Name

Battery Thermal Management System

Power

8-15kw

Certification

CE

Certified Safety

IP67/IP6K9K

Refrigerant Type

R134A

Weight

<48kg

📝 Product Description

NF Battery thermal management system for Electric Vehicles

Introduction

The vehicle-grade battery cooling unit covers a cooling capacity of 8-15KW and a heating capacity of 10-24KW, providing battery cooling/heating for commercial vehicles (new energy heavy-duty trucks, new energy buses, new energy construction machinery), energy storage stations, battery swap stations, and other large-capacity battery applications.

⚙️ Technical Parameter

Parameter	Details
Product Model Code	NFBTM10
Operating Ambient Temperature	-30 to +60ºC (Refrigeration: -15ºC to +55ºC)
Maximum Cooling Capacity	10KW (8~24KW Optional)
Maximum Heating Capacity	0~35Kw
Compressor Displacement	33CC / 46CC
Compressor Speed	800~10000rpm / 800~12000rpm
Coolant Type	50%/50% Ethylene Glycol/Water Solution
Communication Interface	CAN 2.0 (500k bps)
COP	>2.2
Protection Rating	IP67
Dimensions	L833W550H290mm / L900W608H341mm

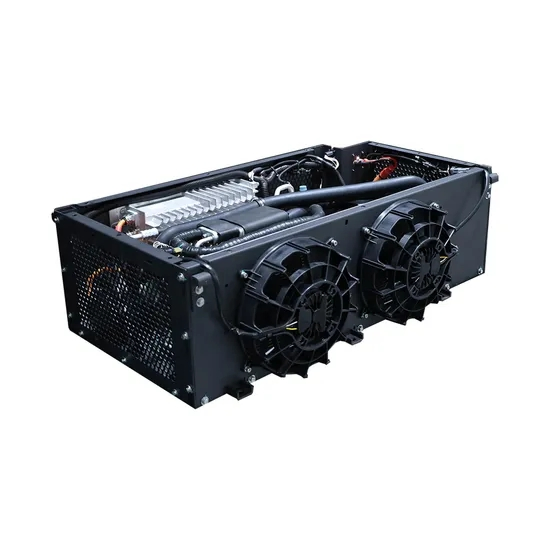

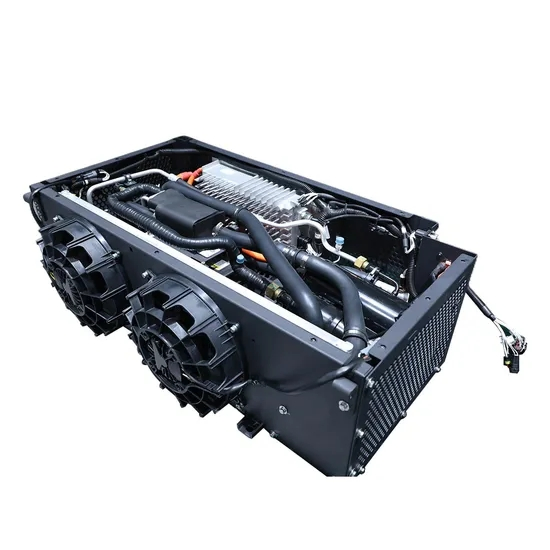

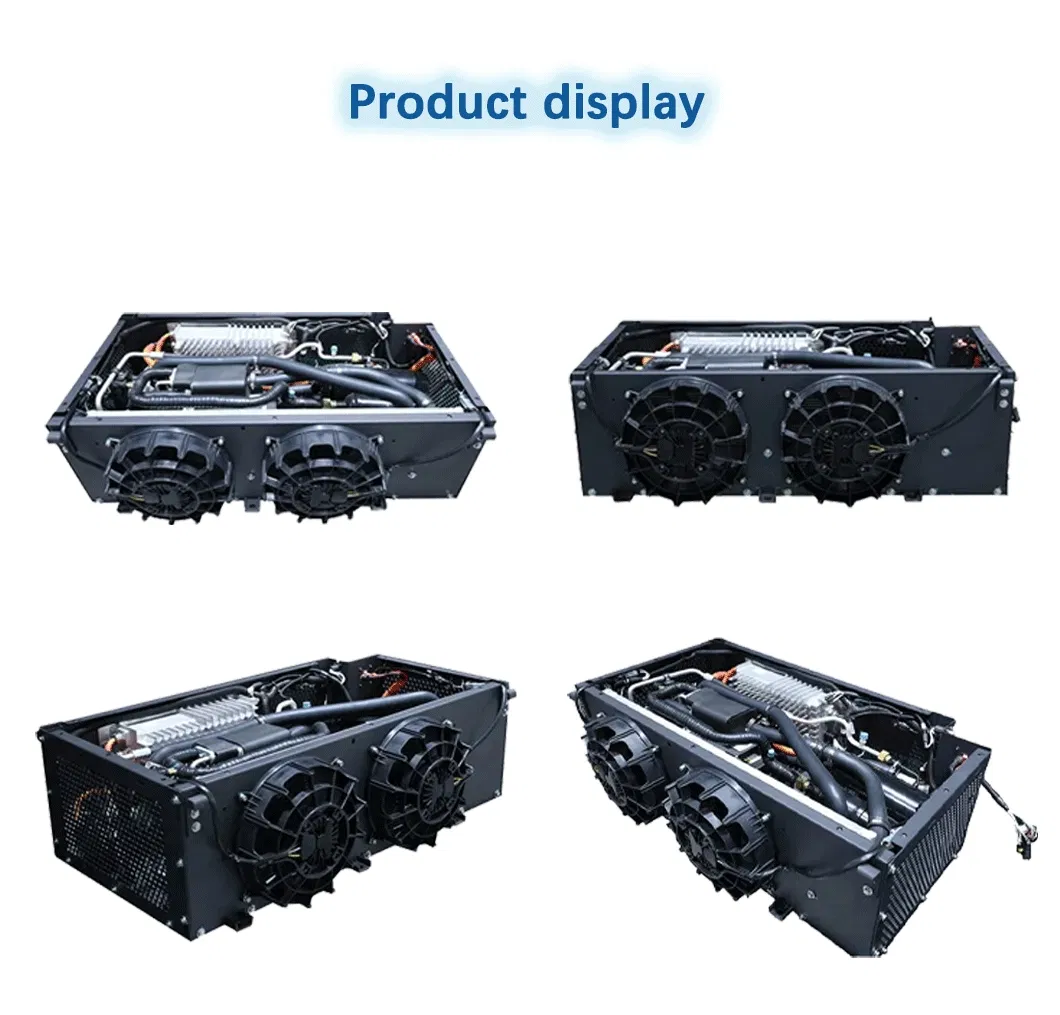

🔍 Detailed Photos

🌟 Key Features

1. Full-range temperature control

Combined low-temperature heating & high-temperature cooling (-30°C~50°C ambient) with ±1°C precision, maintaining optimal battery temperature for extended cycle life and improved energy efficiency.

2. Premium Product Emphasis

Advanced PID & energy-demand algorithms enable precise outlet temperature control (±0.5°C) with optimized energy efficiency. Features remote intelligent monitoring/diagnostics and OTA upgrade capability.

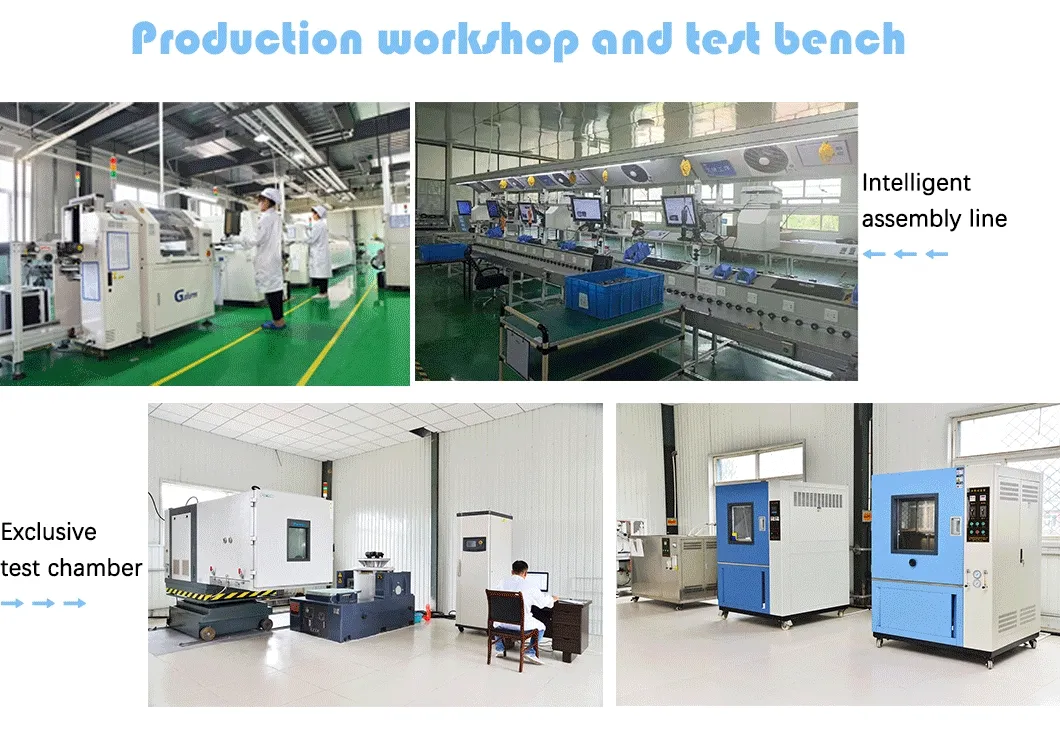

🏆 Our Advantages & Certifications
