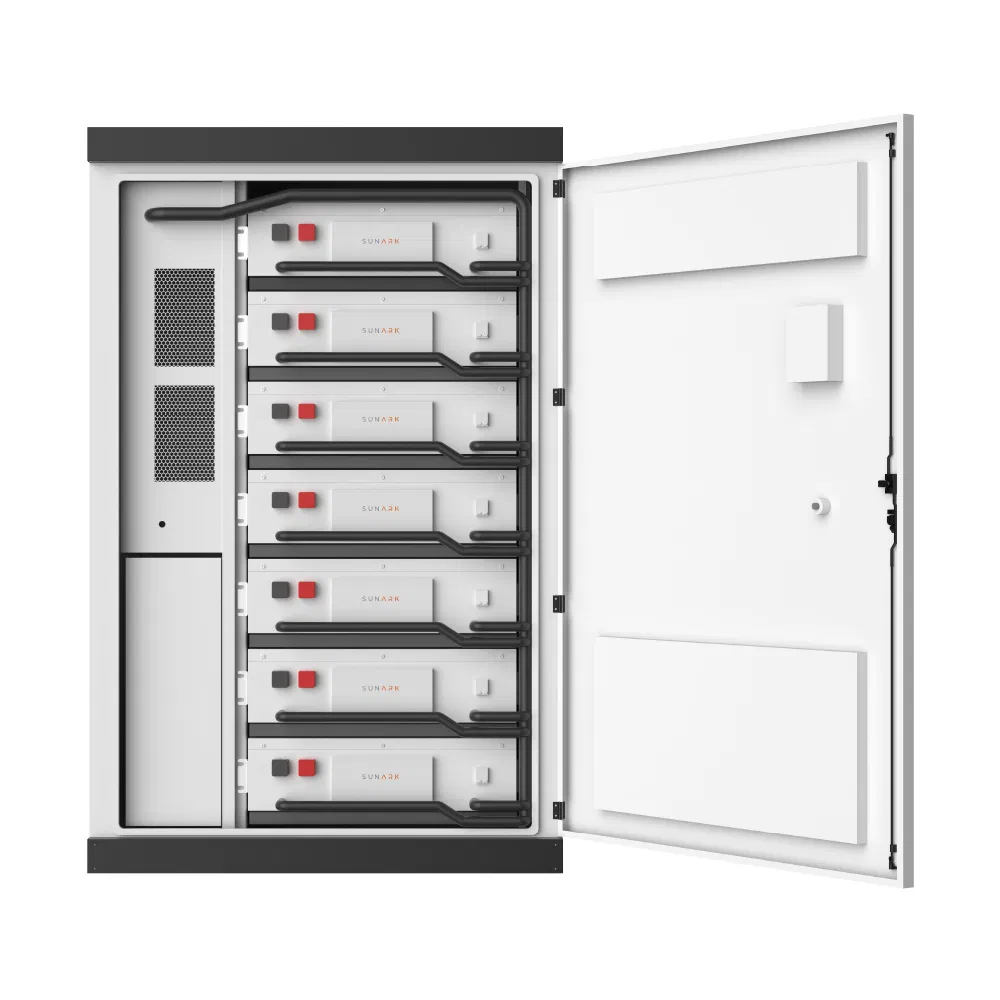

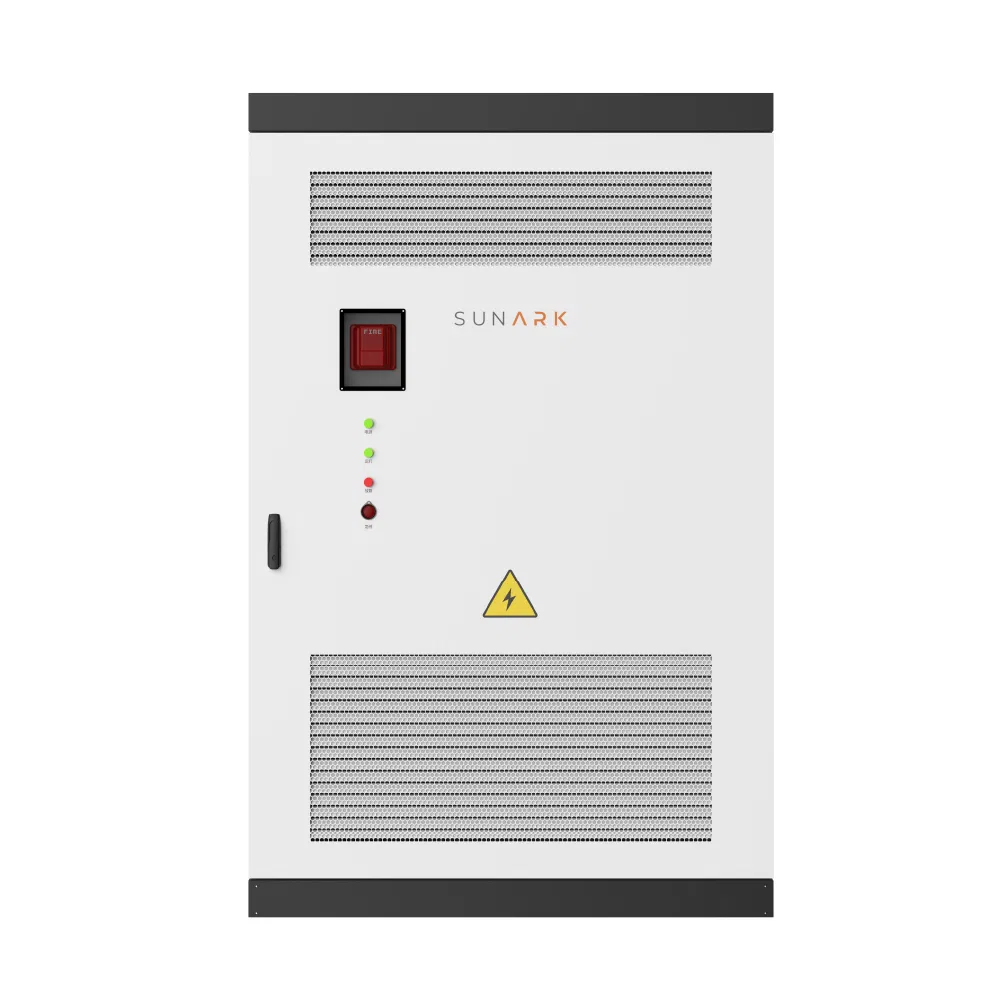

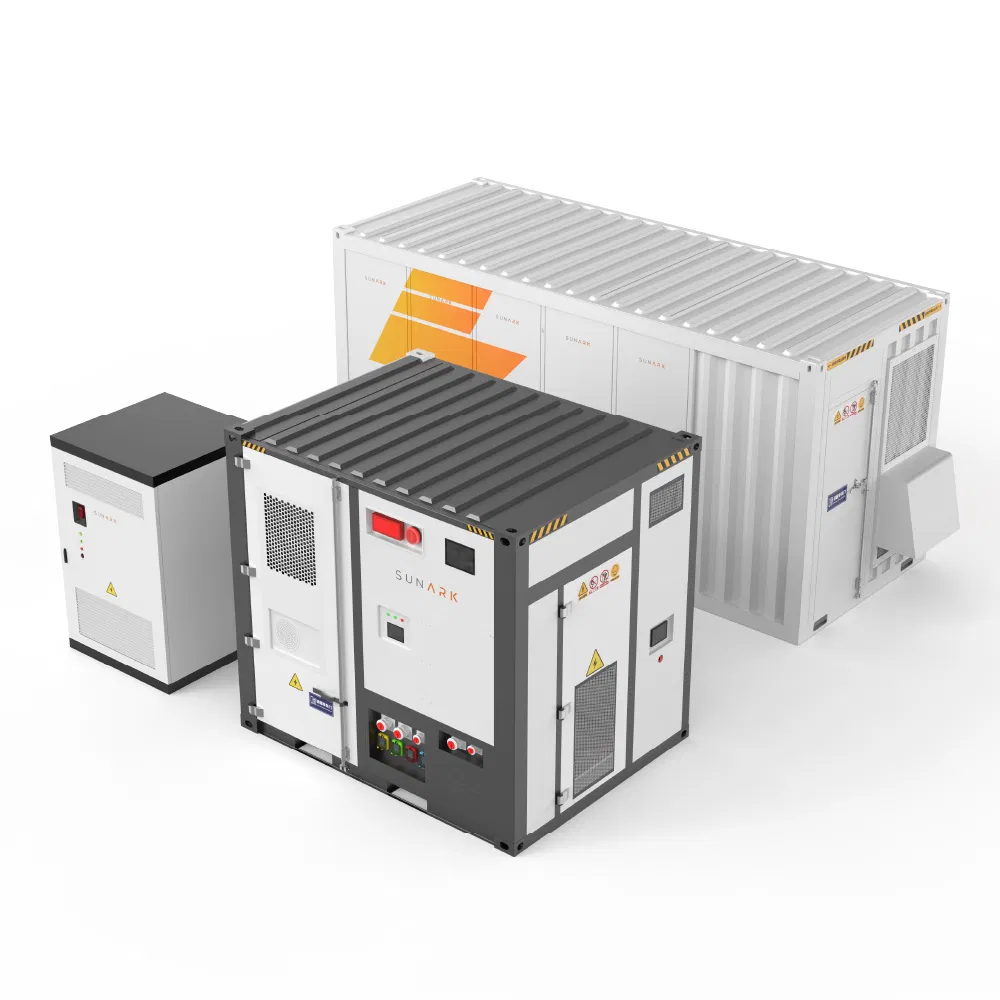

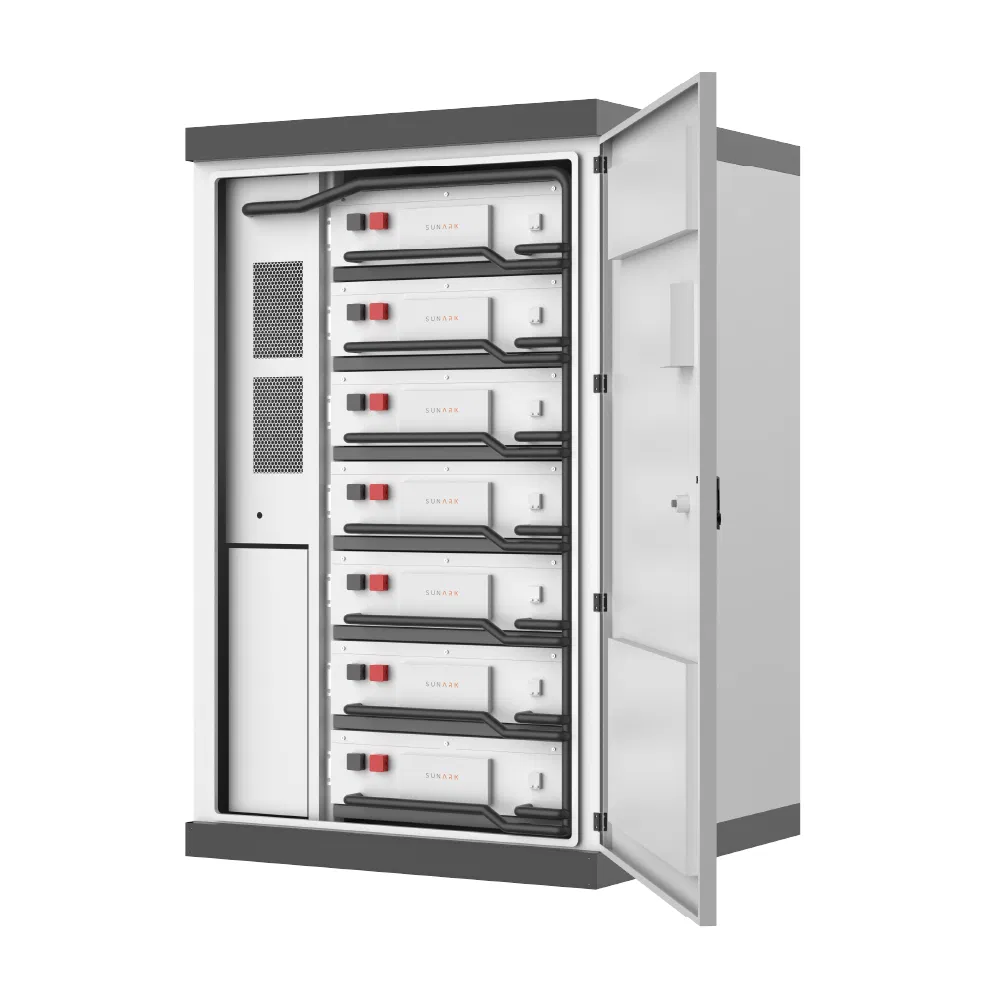

Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
1 / 5
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration
Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration

Sunark Fire Warning Function Solar Battery Container System 100kwh 200kwh 215kwh Bess Cabinet High System Integration

Customization: Available
Application: Liquid Cooling Container Energy Storage System
Rated Charge/Discharge Performance: 0.5c/1c
Send Inquiry

Product Description

Basic Specifications

Model NO.100-215KWH
Nominal Voltage [V]768-1331.2
Cell Rated Capacity [Ah]280
Rated Grid Frequency [Hz]50/60
Power Factor>0.99
DC Component<0.5% in
Ingress ProtectionIP54
CommunicationCan, RS485
Dimension [mm]1400*1400*2200
Transport PackageCarton with Pallet
Specification100-215kwh

Product Description

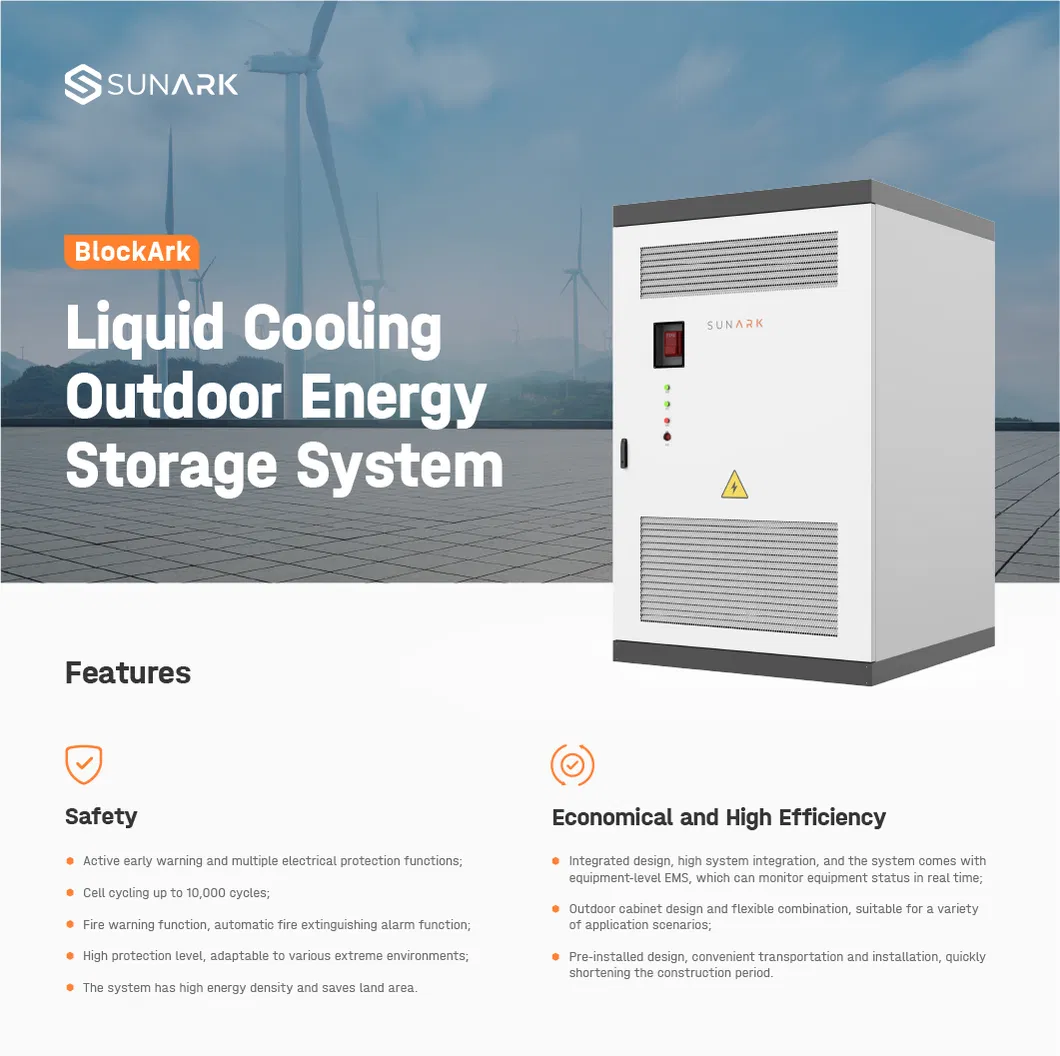

Battery Container System Integration
Bess Cabinet High System Integration

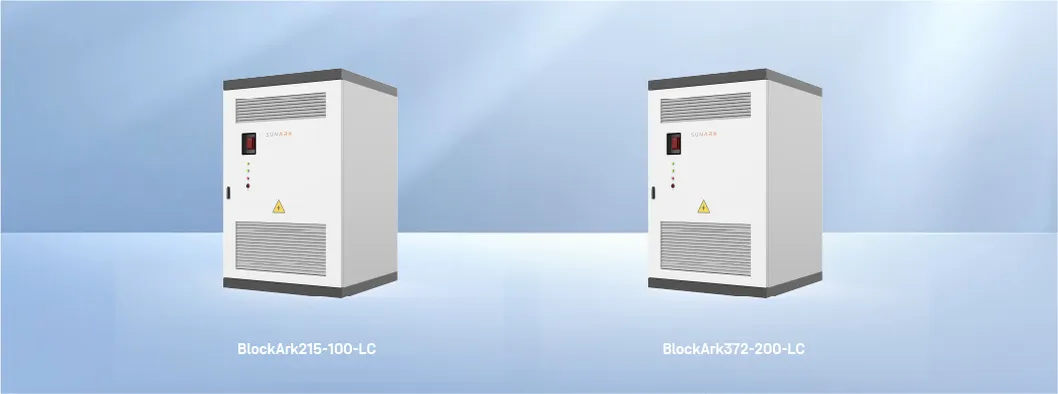

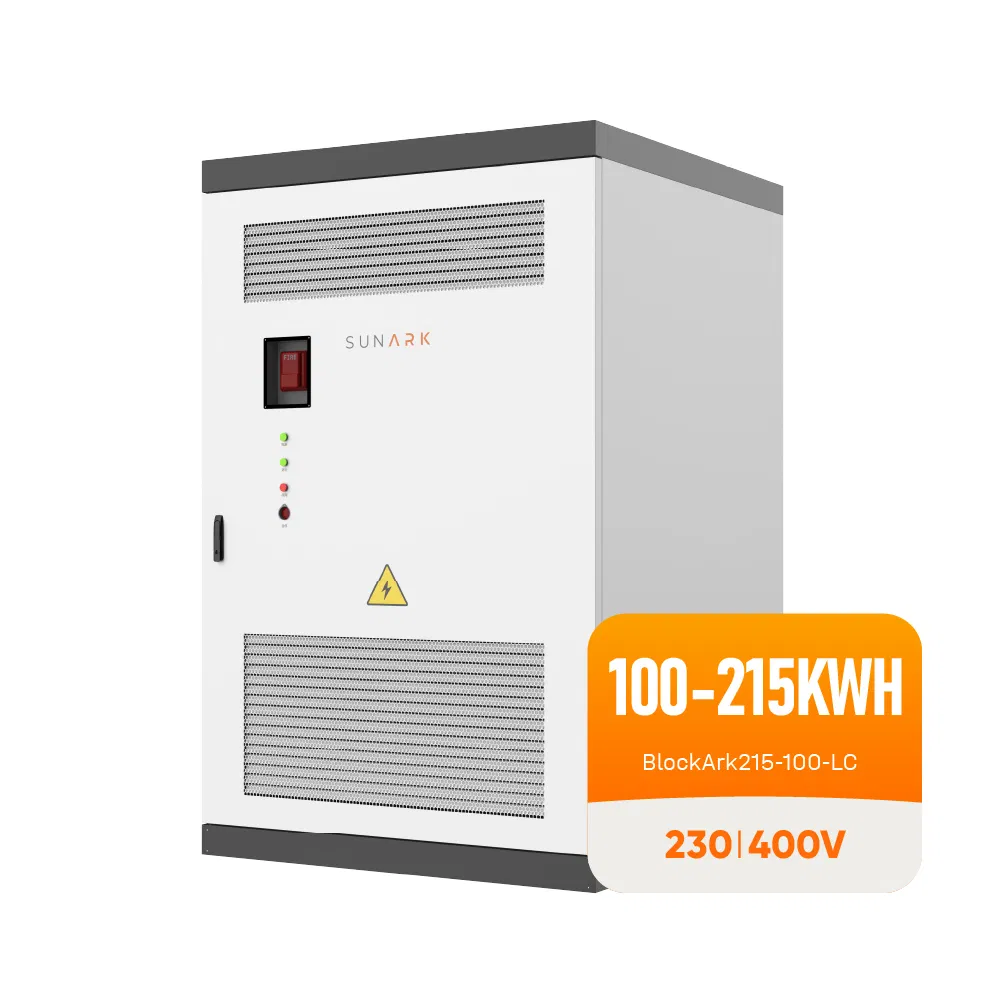

MODULE BlockArk215-100-LC BlockArk372-200-LC
Battery TypeLiFePO4
Rated Performance0.5C/1C
Nominal Voltage [V]7681331.2
Operating Voltage Range [V]672~8761164.8~1497.6
Cell Rated Capacity [Ah]280280
Nominal Capacity [kwh]215.04372.73
Composition1P240S1P416S
Rated Output Power [kw]100200
Rated Grid Voltage [V]3/N/PE, 230/4003/PE, 690
Ingress ProtectionIP54
Cooling MethodLiquid cooling system
Fire Fighting SystemYes
Dimension (W*D*H) [mm]1400×1400×22001400×1300×2350

Product Detail & Applications

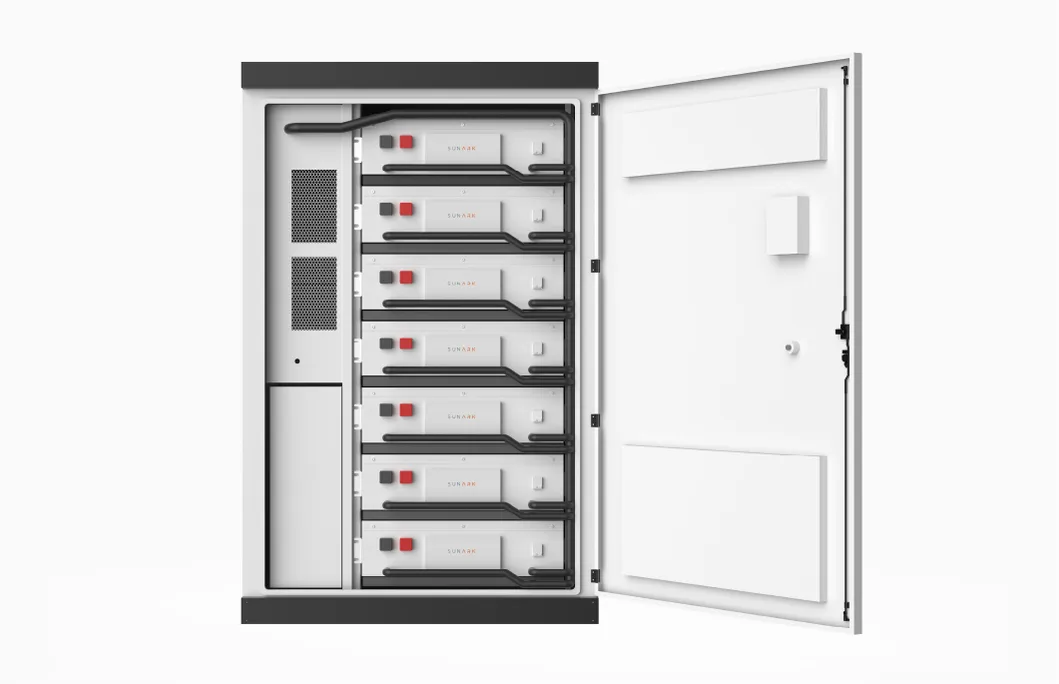

Technical Details

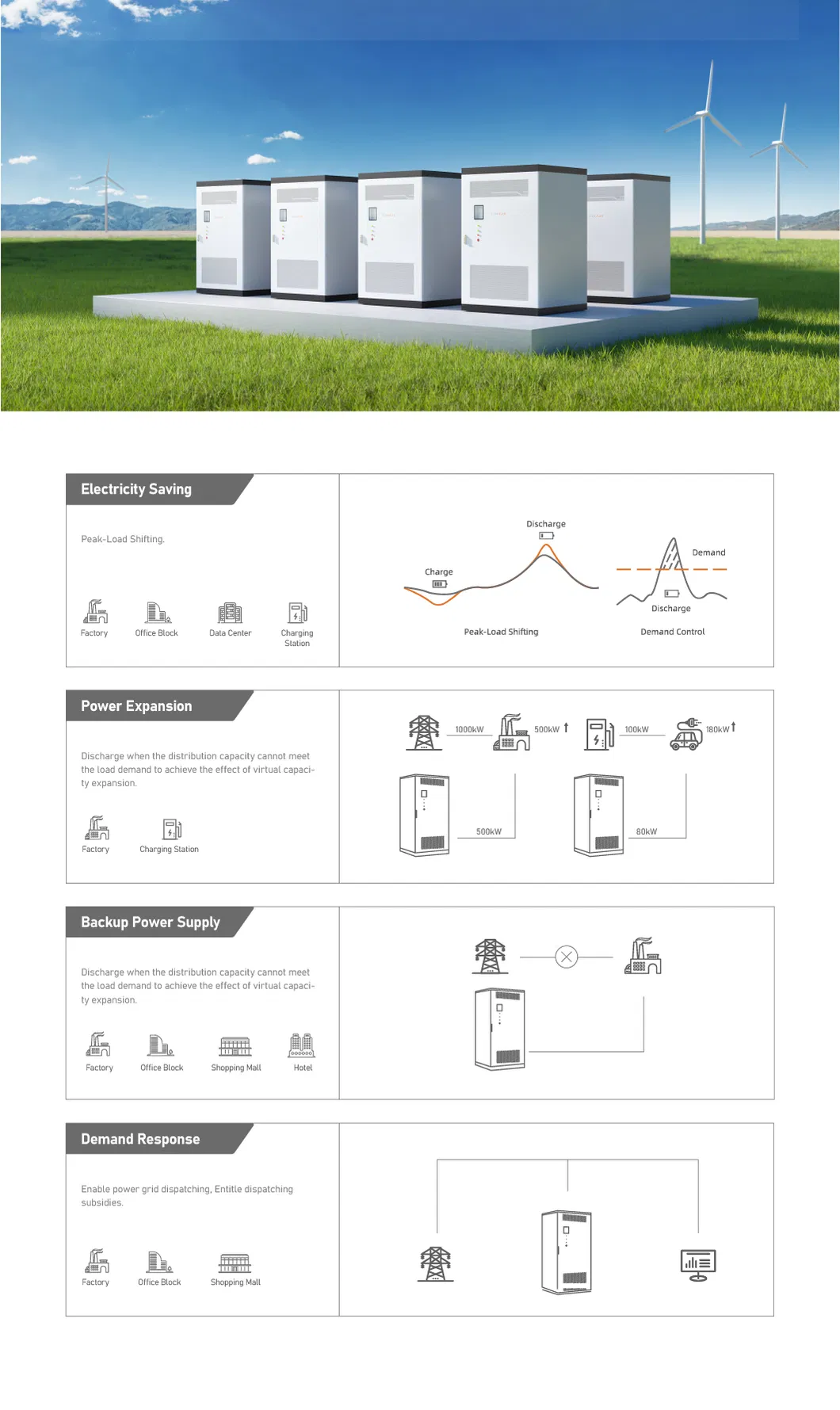

Product Applications

Products Series

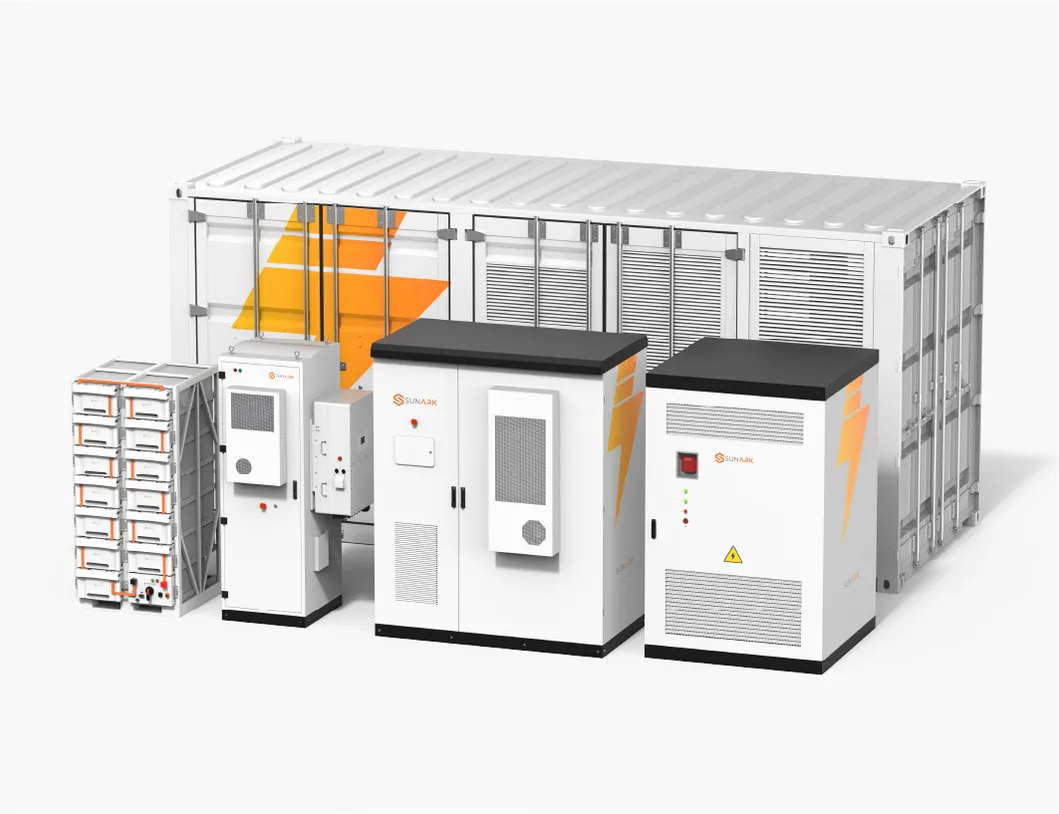

Energy Storage Series Overview
WallArk

WallArk Series

Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh - 15kWh

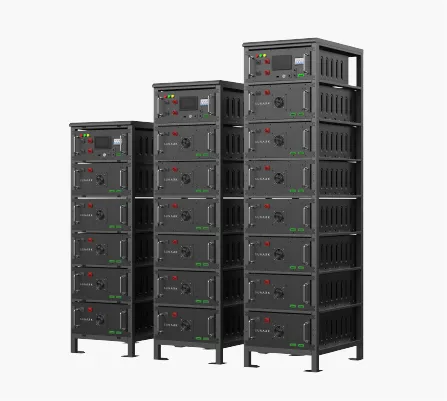

StackArk

StackArk Series

Stackable LV & HV
Voltage: 51.2V / 129.6-561.6V
Capacity: 5kWh - 30kWh

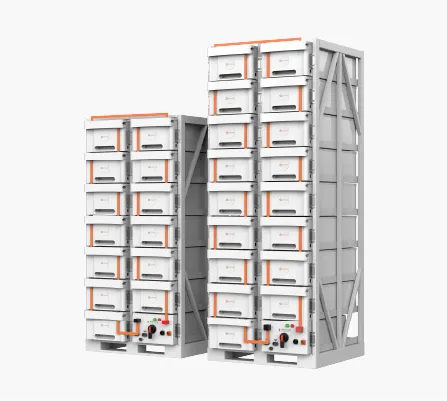

RackArk

RackArk Series

Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50 - 200Ah

GroundArk

GroundArk Series

All In One System
Power: 3-12kW
Capacity: 5-45kWh

EasyArk

EasyArk Series

Portable Power Station
Power: 200-3000W
Capacity: 200-3000Wh

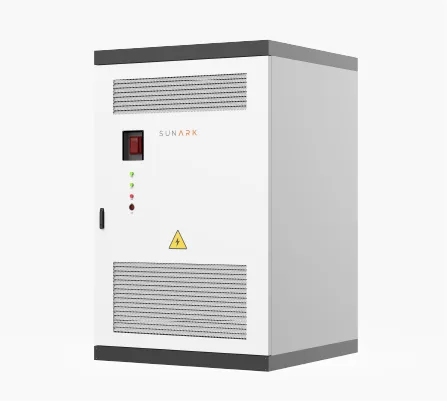

BlockArk

BlockArk Series

HV Cabinet ESS
Inverter Power: 50kw/100kw
Capacity: 105kwh/215kwh

Quality & Certification

Production Facility Product Certifications

Frequently Asked Questions

What is the battery chemistry used in these systems?
The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) cells, known for their long cycle life and high safety standards.
Is the system suitable for outdoor installation?
Yes, the cabinet features an IP54 protection rating, which provides reliable protection against dust and water splashes in outdoor environments.
How is the battery temperature managed?
The system is equipped with an integrated liquid cooling system to ensure the battery operates within its optimal temperature range for performance and longevity.
What fire safety features are included?
Every unit comes with an integrated fire warning and fire fighting system to provide maximum safety during operation.
What communication protocols does the system support?
It supports standard industrial communication protocols including RS485, CAN, Modbus, and IEC104 for easy integration with energy management systems.
What is the operating temperature range?
The system is designed to operate reliably in ambient temperatures ranging from -20°C up to +50°C.
