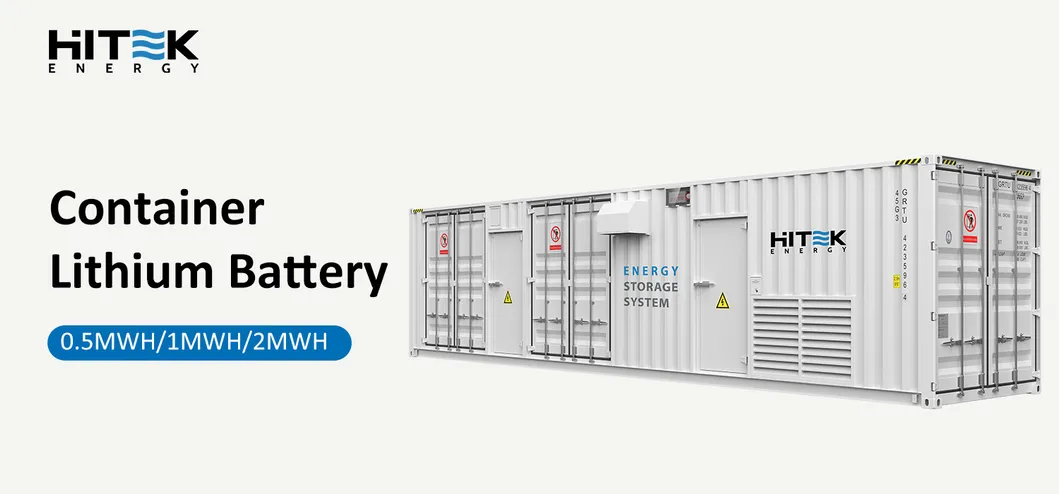

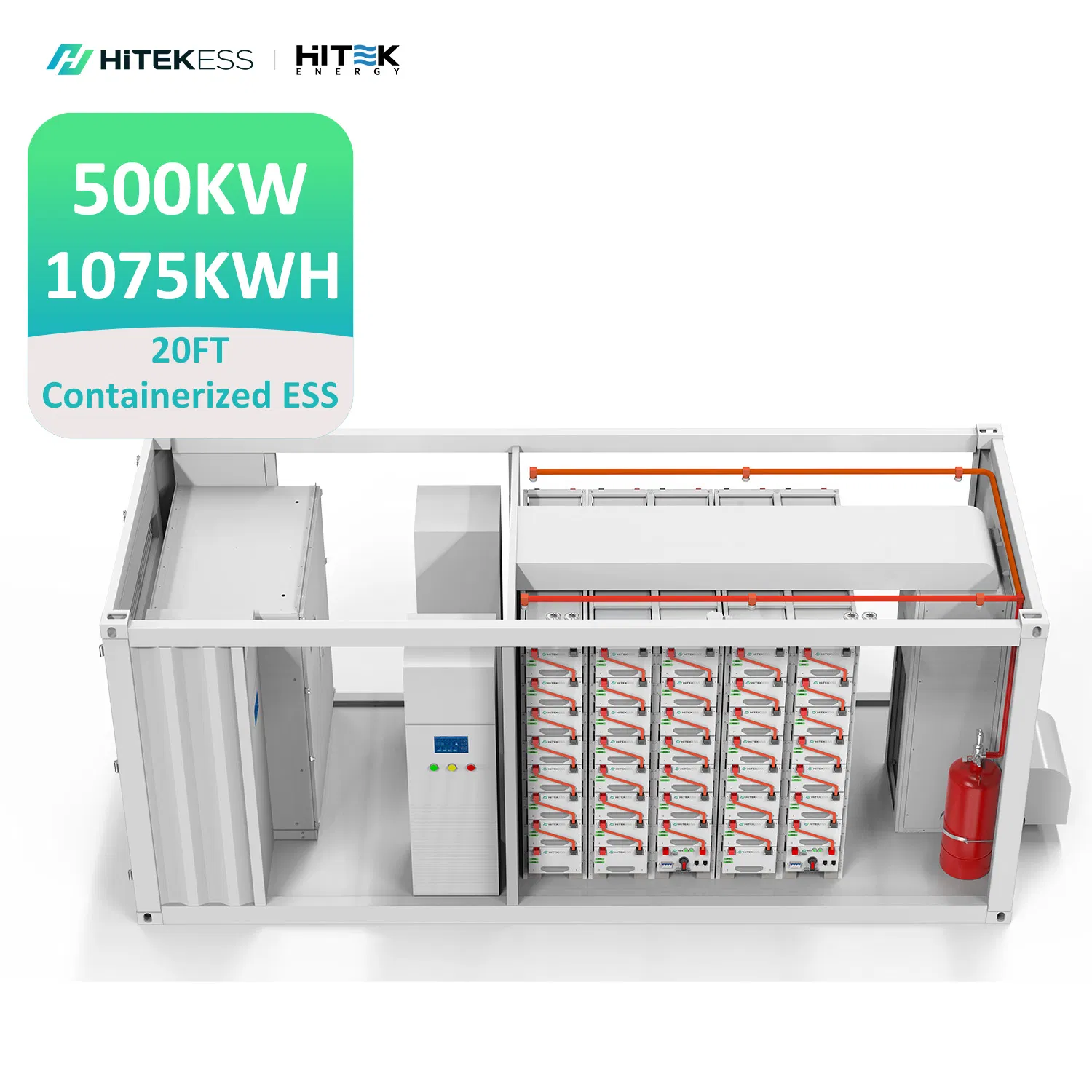

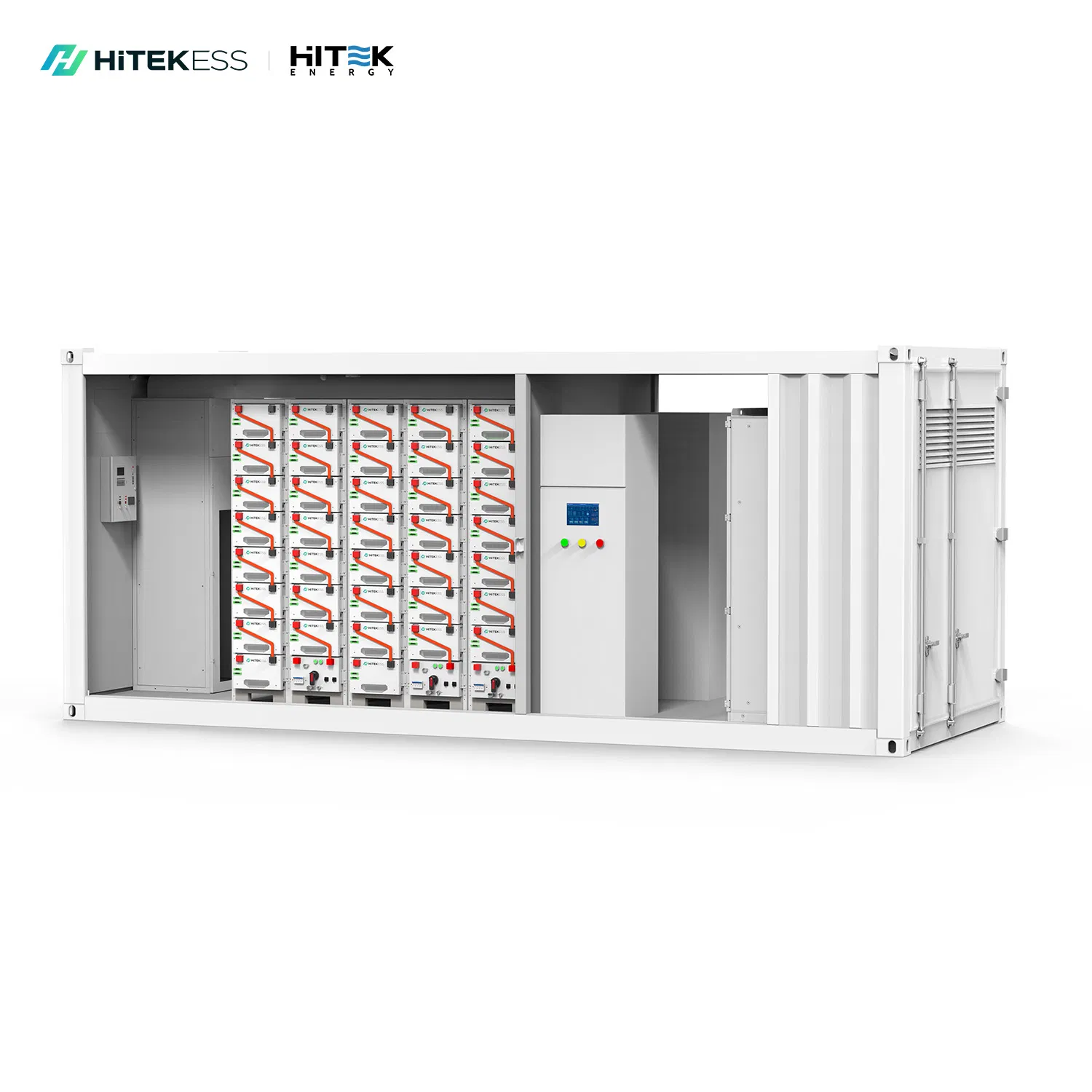

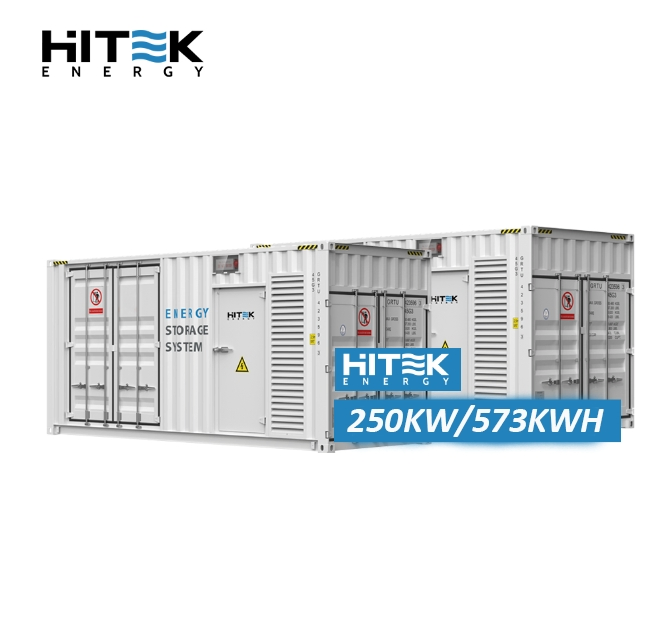

20FT Containerized Solar Solution

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

🌐 Overview - Basic Information

Model NO.	HT-500/1000-EC	Nominal Voltage	380/400/415/480V 3 Phase
Warranty	5 Years	Nominal Capacity	250kwh, 500kwh, 1mwh, 2mwh
Cycle Life	6000+ Cycles	System Application	Ess Solar Storage Container
Solar Panel Type	Monocrystalline / Polycrystalline	Battery Type	LiFePO4 / Lithium Battery / Gel
DOD	0.5/1c @ 80%	BMS	Integrated Management System
Rated Capacity	250kw/500kwh, 500kw/1mwh	Output Voltage	380V-480V / 208V-240V 3phase
Output Frequency	50/60Hz	Container Type	20FT / 40FT IP54 Outdoor
Monitoring	Enerlog Datalogger	Origin	China

📦 Product Description

Key Features of Energy Storage Container System

⚡

Working Modes: Ongrid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving); Offgrid Mode; Generator Connection Support.

🛡️

BMS Features: Status monitoring, dynamic balancing, insulation detection, and comprehensive protection alarms.

🔄

PCS Features: Wide DC input range, rapid charge/discharge conversion, suitable for indoor/outdoor setups.

🔥

Safety Systems: Integrated Fire Protection and specialized Air Conditioning systems for thermal management.

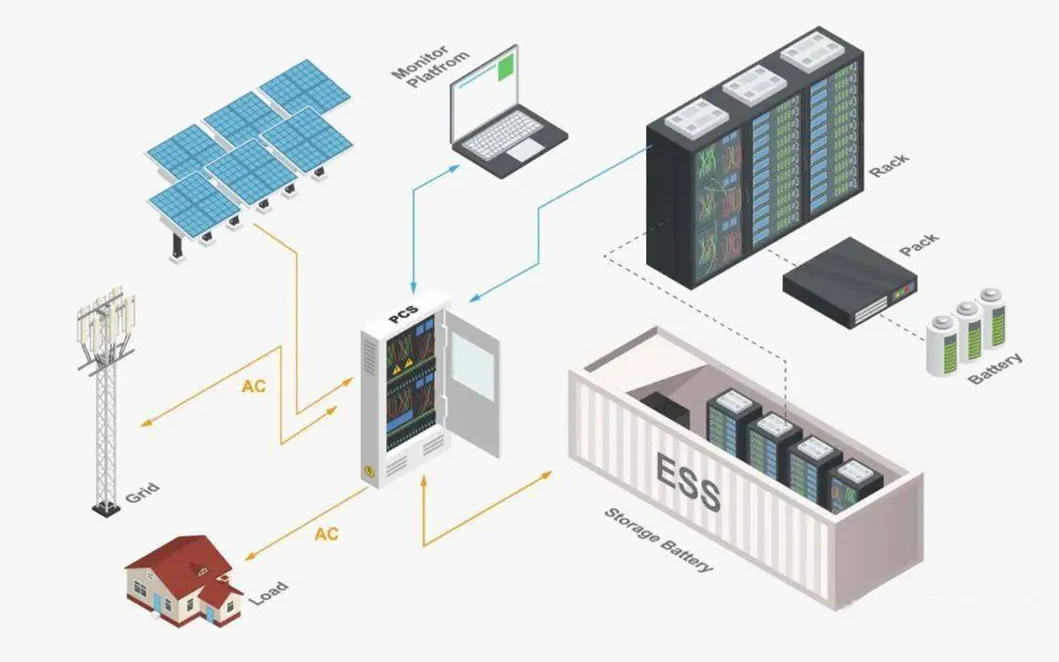

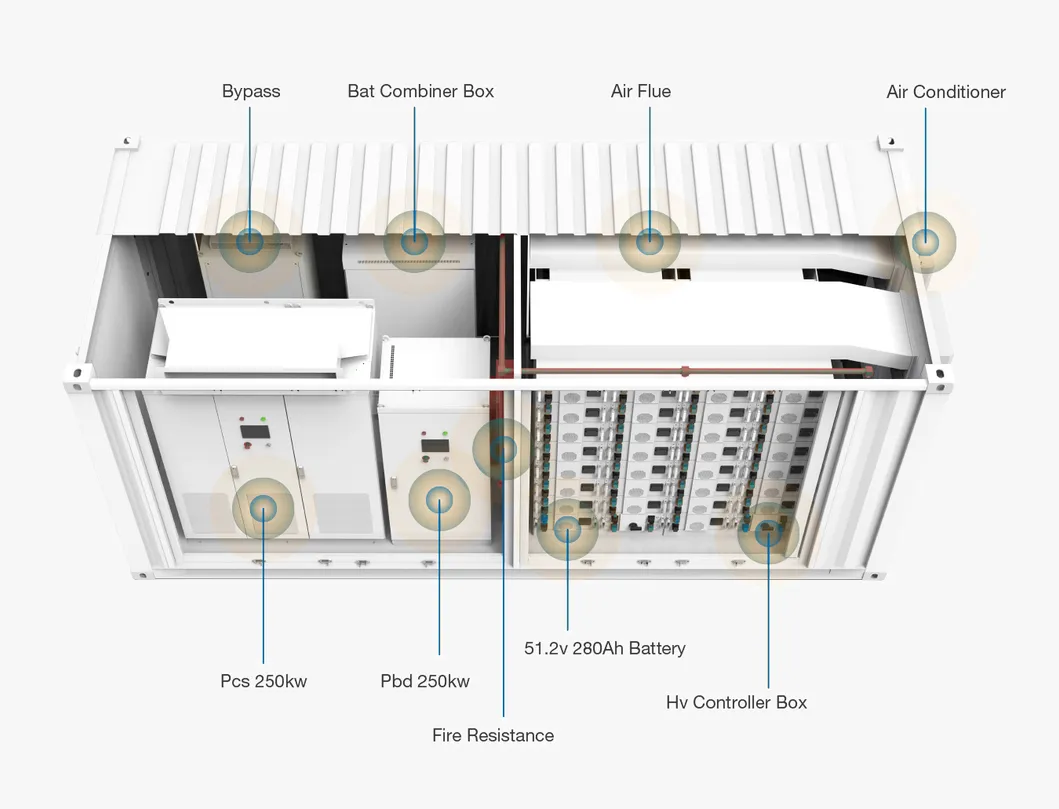

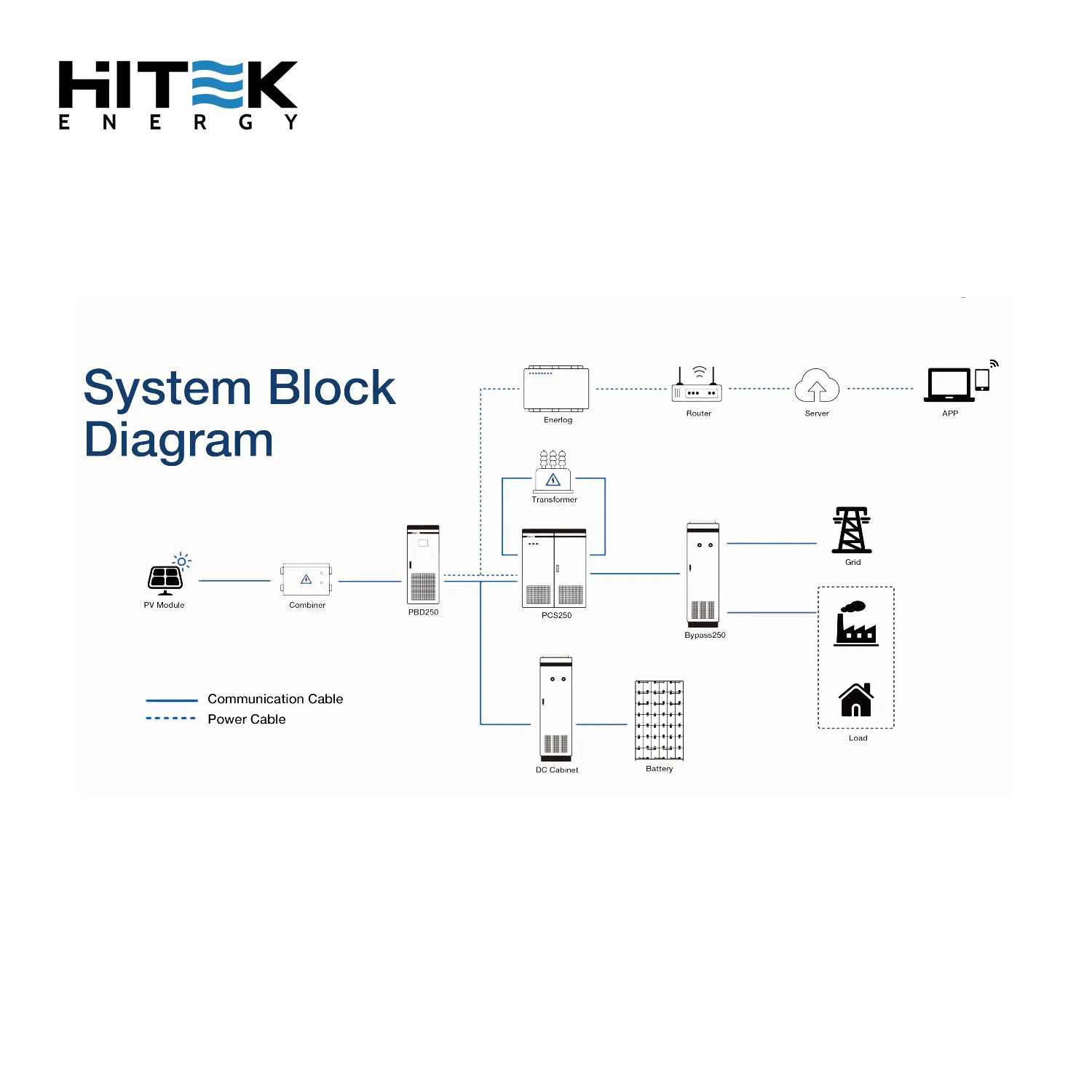

⚙️ System Configuration

Item	Description	Qty (pcs)	Remarks
PV Solar Panel	560W Mono	960	Total 537.6KW
Battery Module	280Ah Lithium	150	51.2V 280AH (14.3kWh)
Combiner Box	1500V-1500A	1	For multiple battery racks
Controller	1500V 300A	15	High Voltage Control
PCS Inverter	500KW	1	Bidirectional Battery Inverter
Bypass Cabinet	500KW	1	Seamless On/Off grid switch
Container	20FT/40FT	1	IP54, Fire-resistant, AC included

📊 Product Parameters

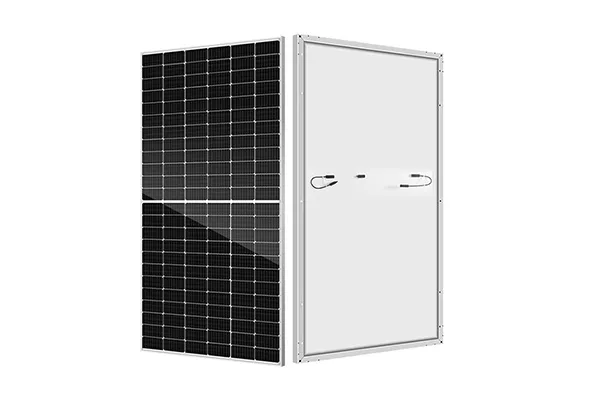

PERC Mono Solar Panel

Model: 560M-72
Peak Power: 560Wp
Open Circuit Voltage: 49.84V
Maximum Power Voltage: 41.08V
Dimensions: 2279*1134*35mm

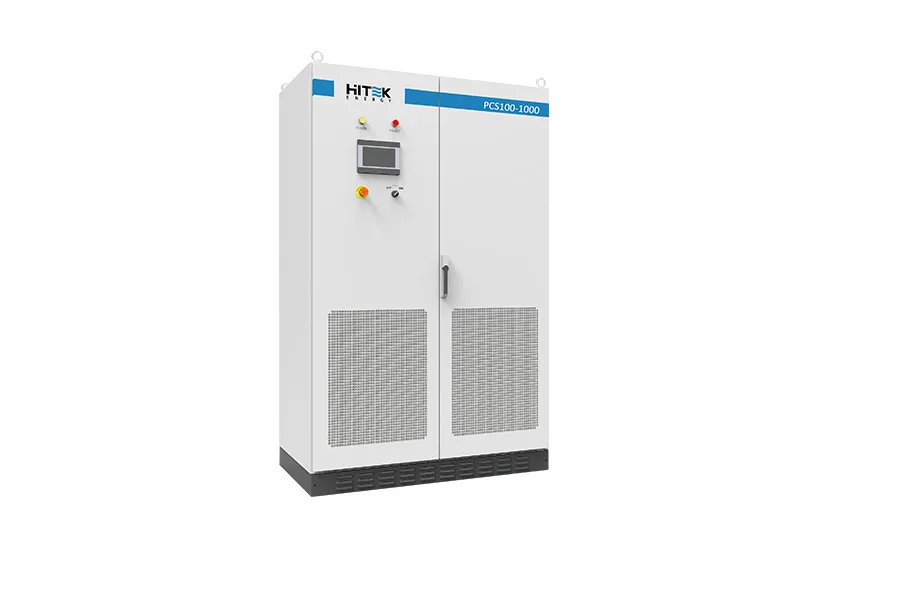

PCS 100-1000KW Inverter

Bidirectional battery inverter. Supports paralleling multiple units, flexible configuration, programmable working modes, and touchscreen LCD interface.

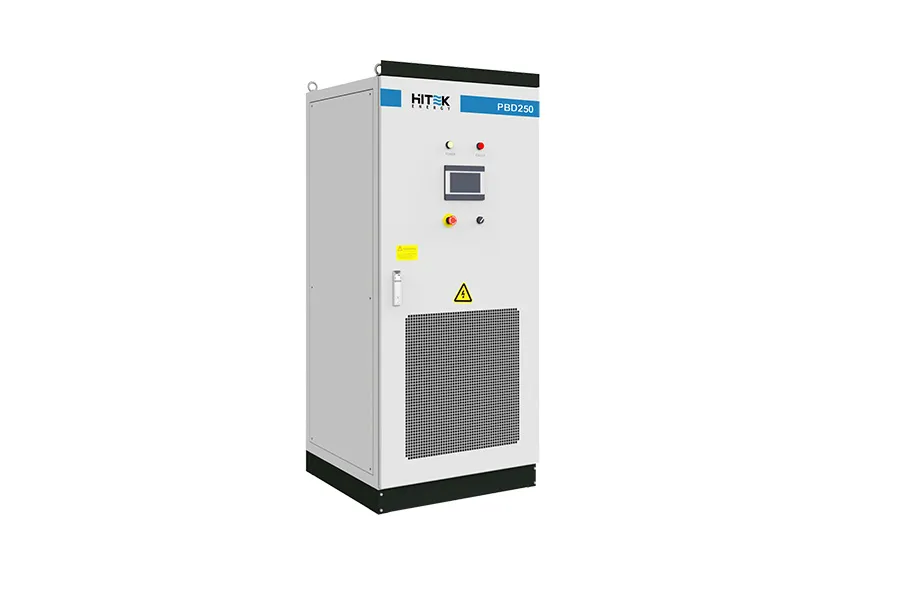

PBD 250KW Solar Controller

1000V DC level. Features up to 5 MPPT trackers, modular transformerless design, and support for large-scale solar integration.

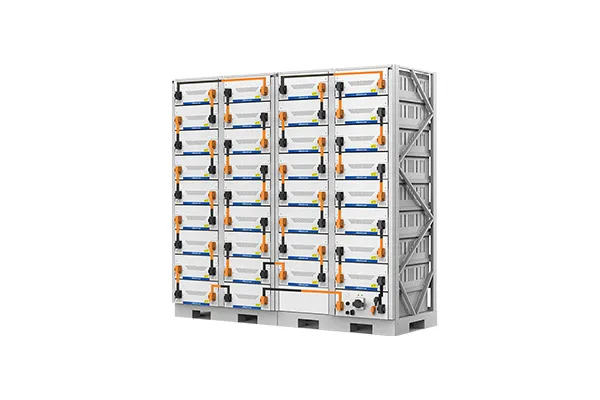

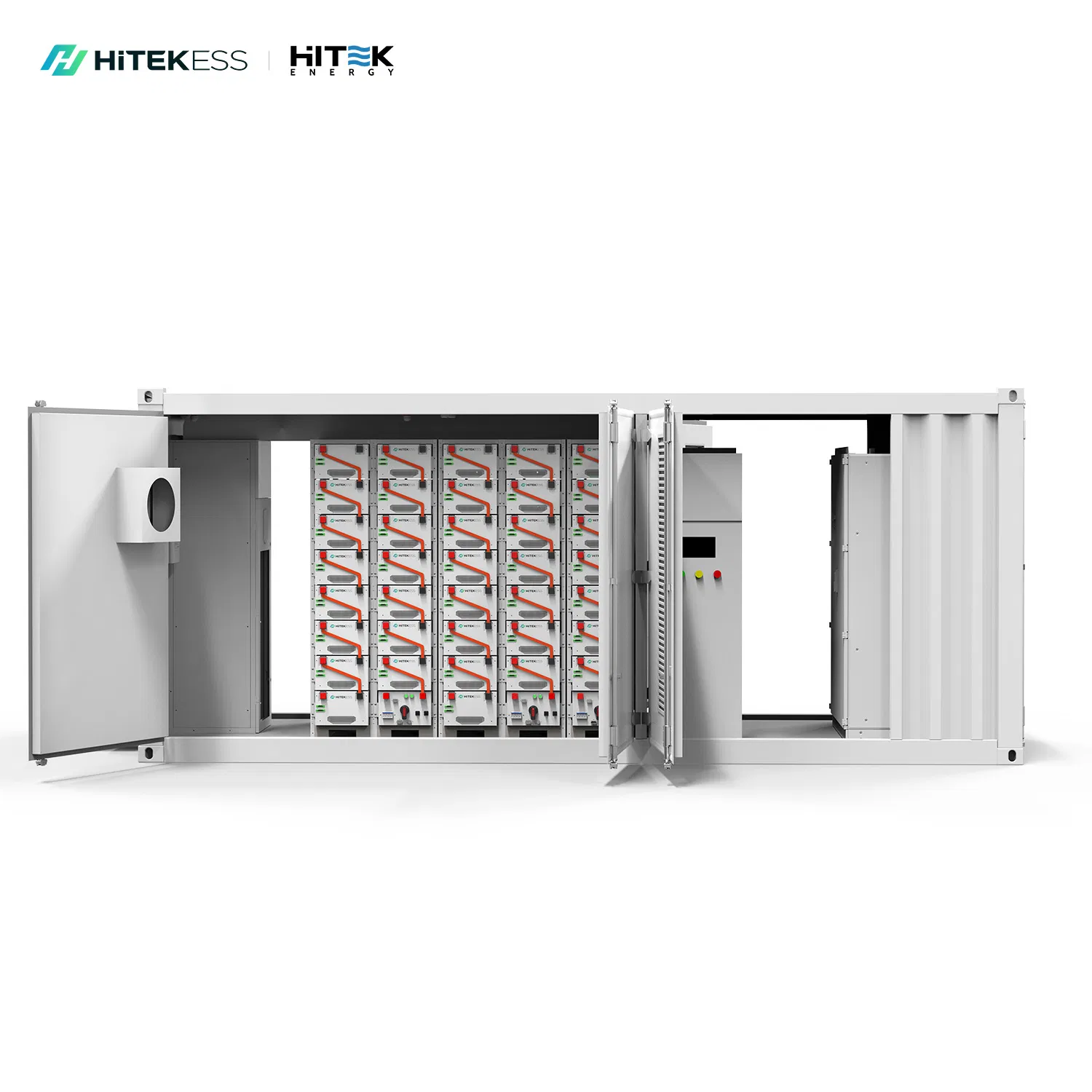

Storage Battery Bank

Composed of 280Ah single cells. Each module provides 14.3kWh. The total system can reach 1720kWh@80% DOD for industrial-grade reliability.

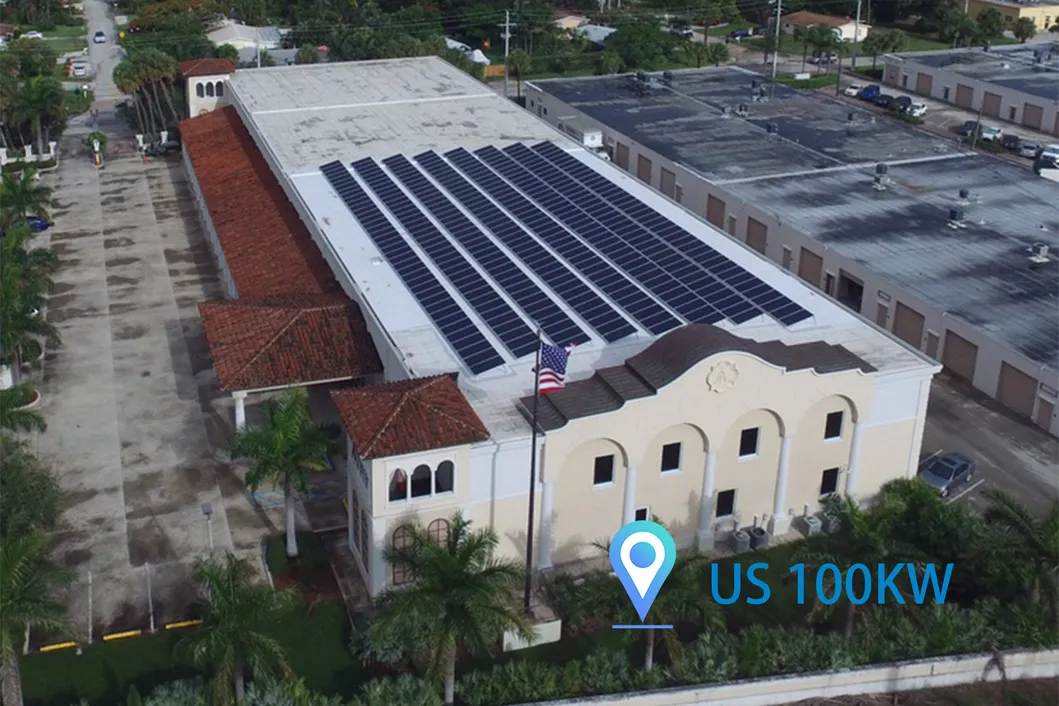

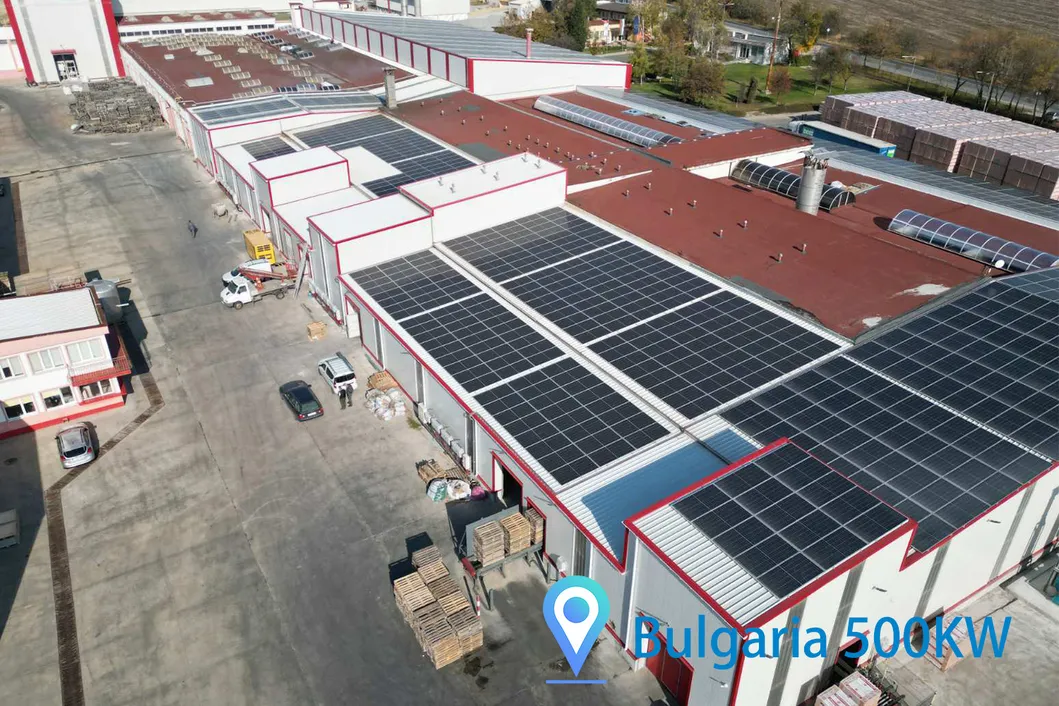

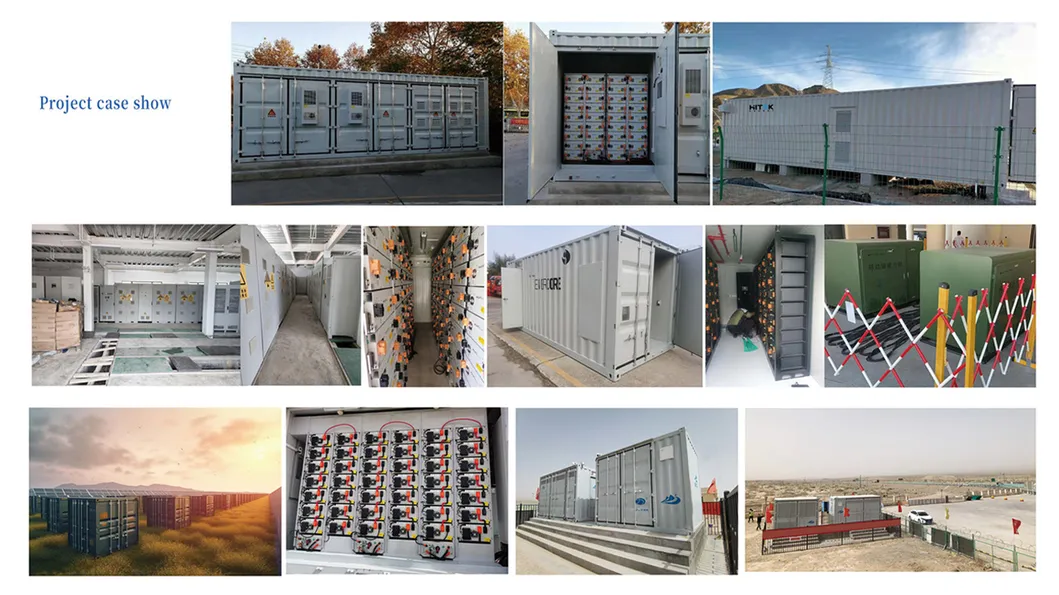

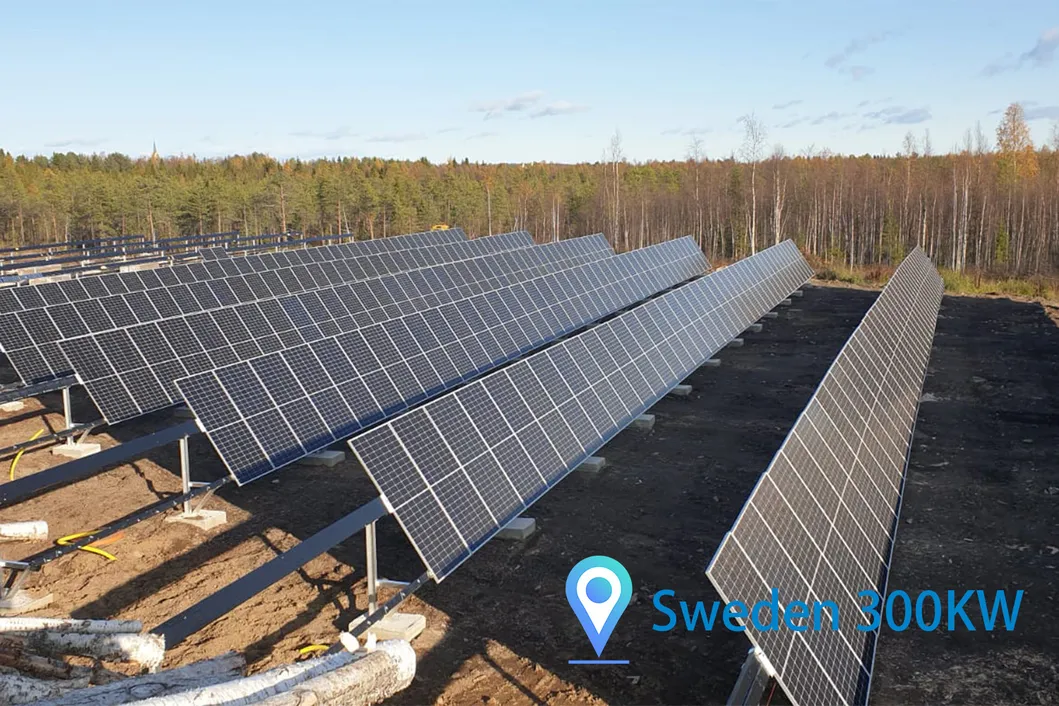

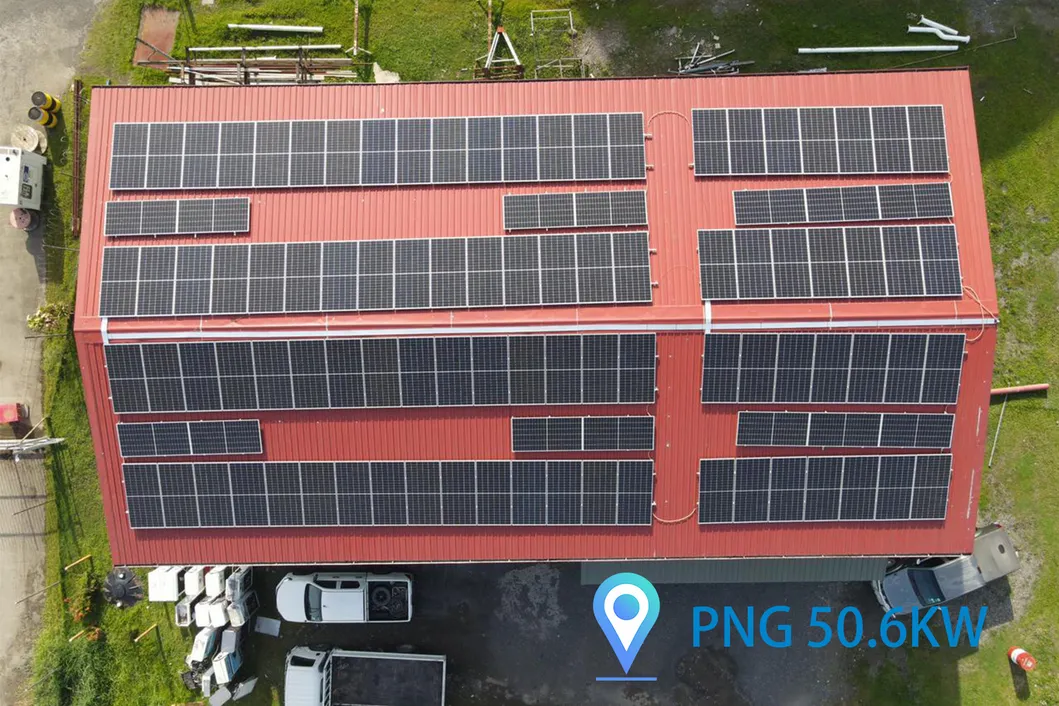

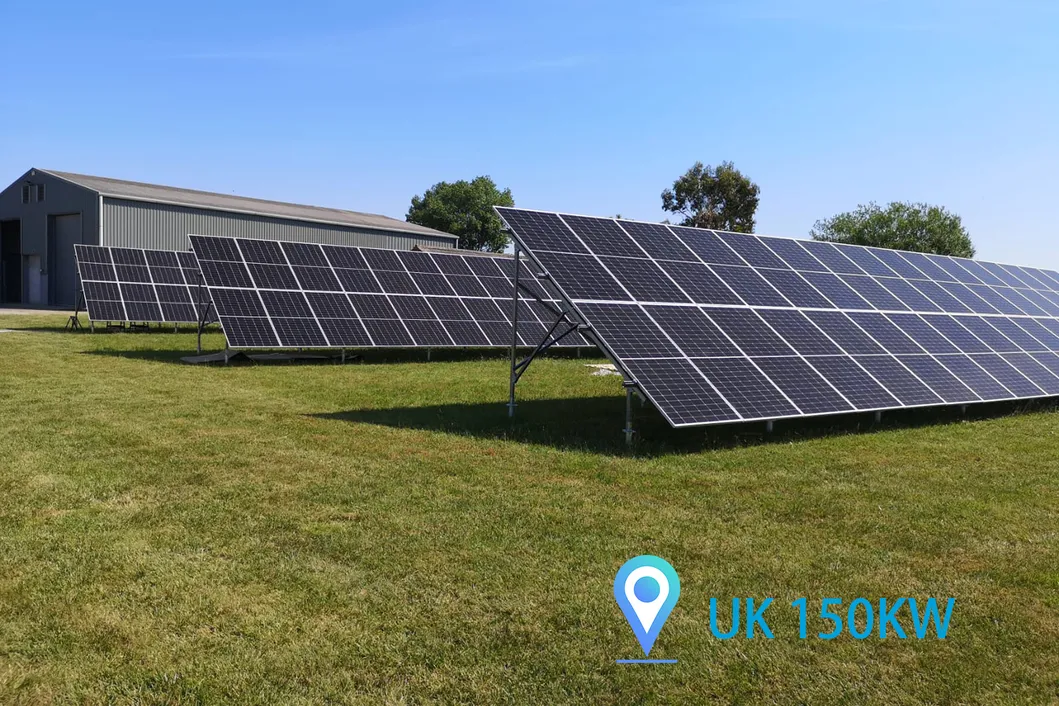

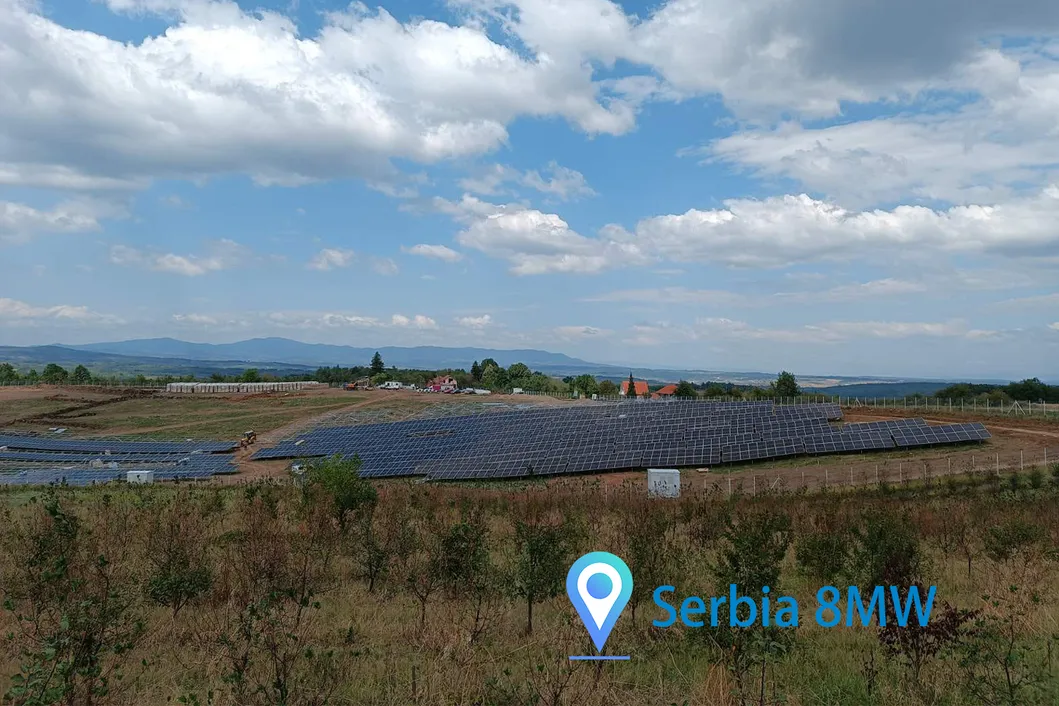

🌍 Global Projects

🏢 Company Profile & Advantages

As a superior photovoltaic manufacturer, we are dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs.

Let's work together for a better, brighter, and greener future.

❓ Frequently Asked Questions

What are the main applications for these energy storage containers?

These containers are ideal for large-scale industrial and commercial use, peak shaving, emergency backup power, and integrating renewable energy sources like solar and wind into the grid or off-grid systems.

How long is the service life of the lithium battery modules?

The LiFePO4 battery modules offer a cycle life of over 6,000 cycles, ensuring long-term reliability and high performance for over 10-15 years depending on usage.

Can the system be monitored remotely?

Yes, the system includes an EnerLog monitoring datalogger that allows for real-time tracking of battery status, energy production, and consumption via a remote interface.

How does the system handle fire safety?

The 20FT/40FT containers are equipped with a specialized integrated fire protection system and fire-resistant materials to ensure maximum safety for large-scale energy storage.

Is the container suitable for extreme outdoor weather?

Yes, the containers are IP54 rated for outdoor installation and include an internal industrial air conditioning system to maintain optimal operating temperatures in various climates.

Can I customize the capacity of the storage system?

Absolutely. While standard configurations range from 250kWh to 2MWh, the system is modular and can be customized to meet specific power and capacity requirements.
