Efficient High Voltage off Grid Commercial Industrial Cabinet 215kw Energy Storage Solution

Customization:	Available
Container Size:	250029001500mm
Weight:	2.65t

Send Inquiry

Product Description

Basic Information

Model NO.PLPF0280C0-0768R0A

Nominal Voltage768V

Warranty2 Years

Nominal Capacity215 kWh

Cycle Life>=6000 @100%Dod, 80%Eol

Battery Type302V/280Ah

Rated Output Power110kVA

Rated Grid Voltage400V

Rated Grid Frequency50Hz/60Hz

Specification2100*2500*1100mm

Technical Parameters

Battery System Parameters
Product Model	PLPF0280C0-0768R0A
Battery Configuration	1p240s

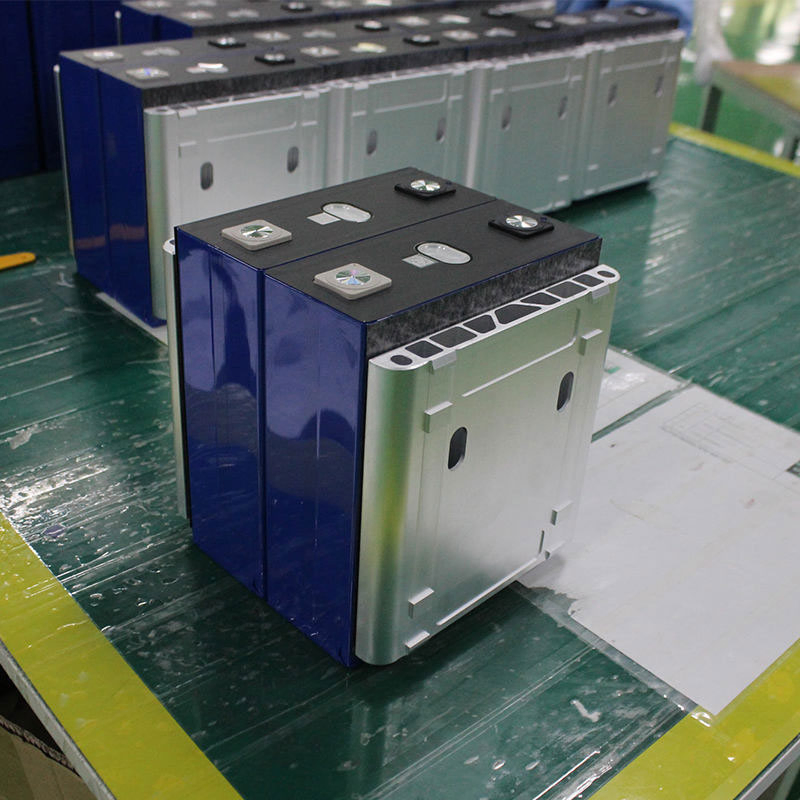

Cell Type	3.2V/280Ah
Cycle Life	≥6000 @ 100%DOD, 80%EOL
Rated Battery Capacity	215kWh
Battery Voltage Range	600 ~ 876V
AC Parameters (Grid Connection)
Rated Output Power	110kW
AC Output Current	158A
Rated Grid Voltage	400V
Grid Voltage Range	±15%
Rated Grid Frequency	50Hz/60Hz
THDI	<=3% (at rated power)
AC Off-Grid Voltage	400V
System Environmental Parameters
Product Size (W x H x D)	2100 x 2500 x 1100mm (Air) / 1300 x 2600 x 1000 (Liquid)
Operating Temperature	-30 ~ 60ºC (>40ºC derating)
Cooling Method	Air / Liquid Cooled
Fire Extinguishing System	Aerosol / Heptafluoropropylene
Communication	ModBus-TCP / ModBus-RTU / IEC104

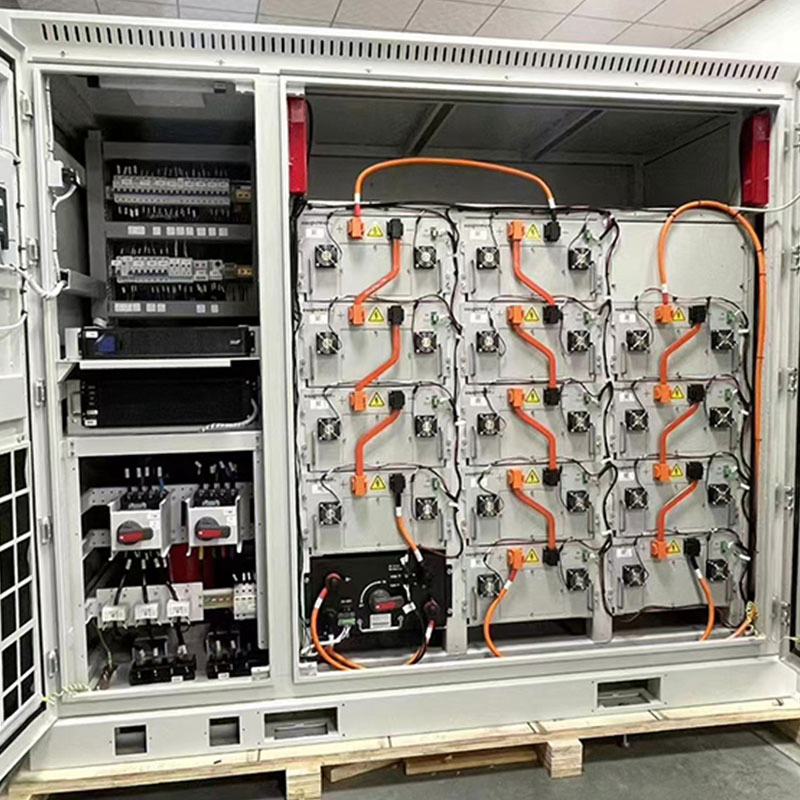

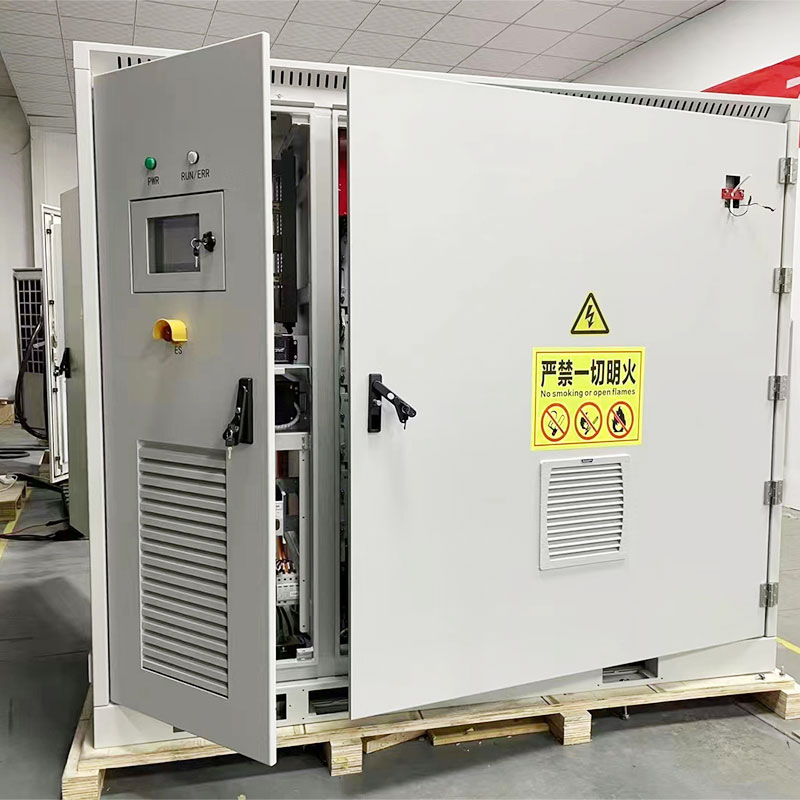

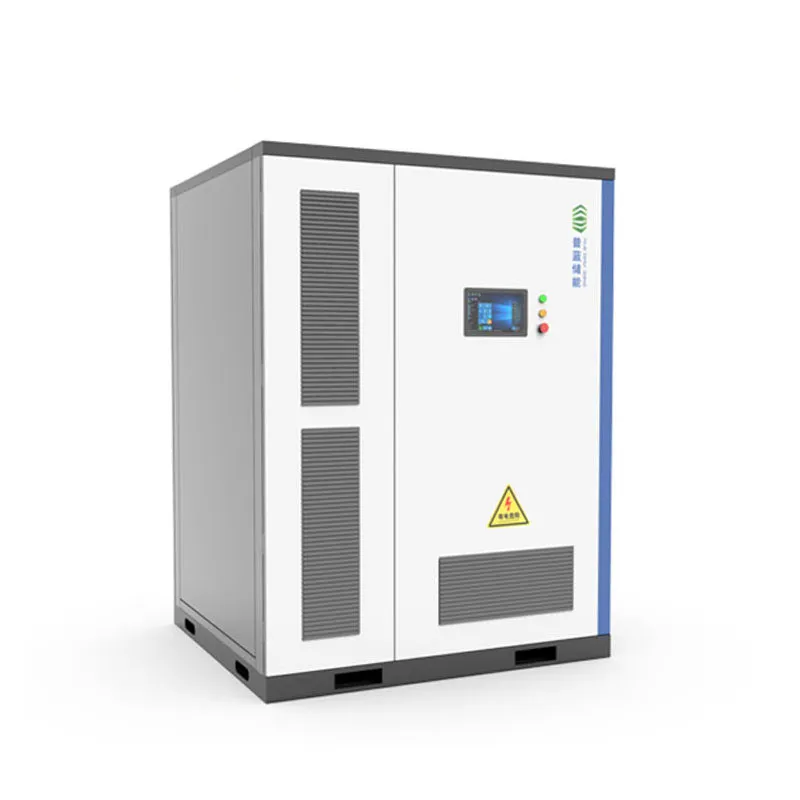

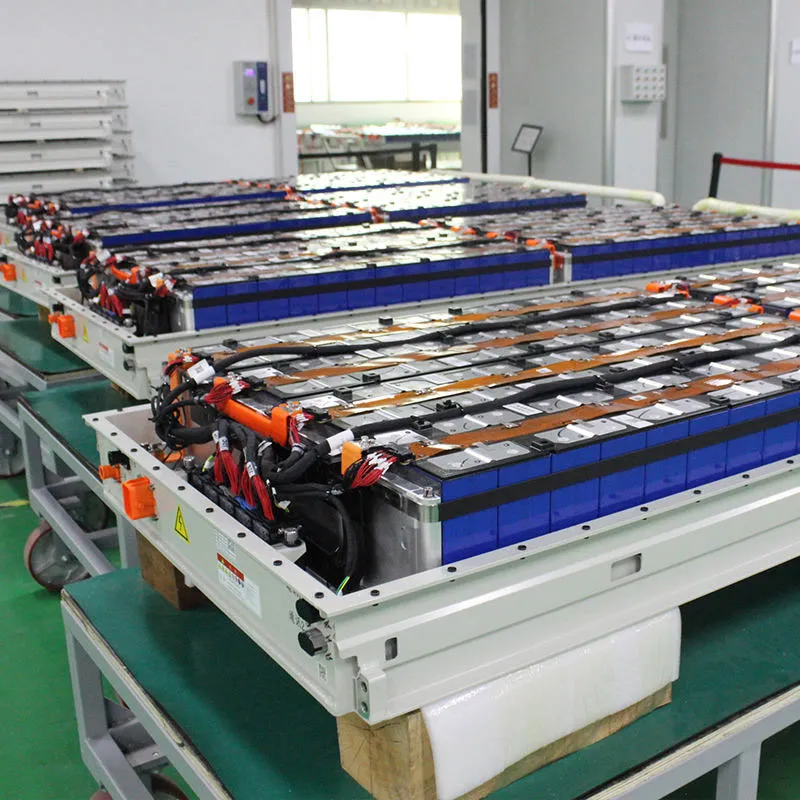

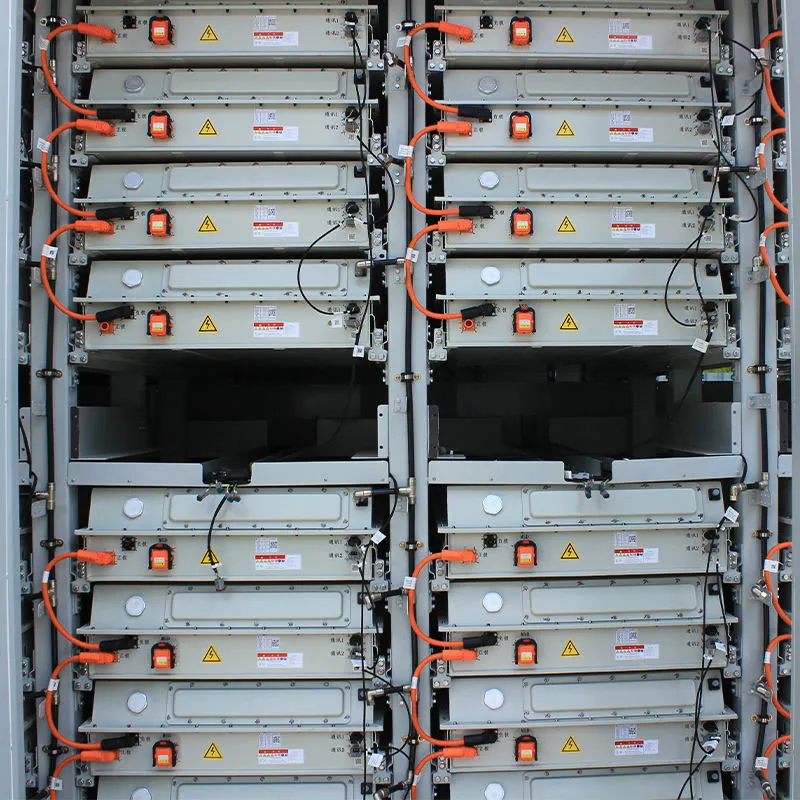

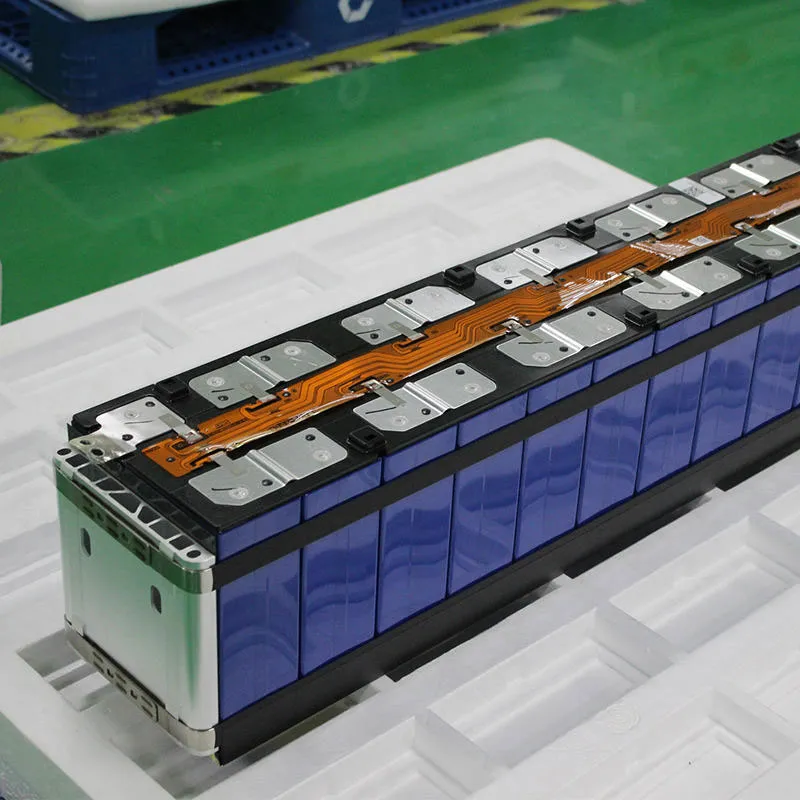

Detailed Product Gallery

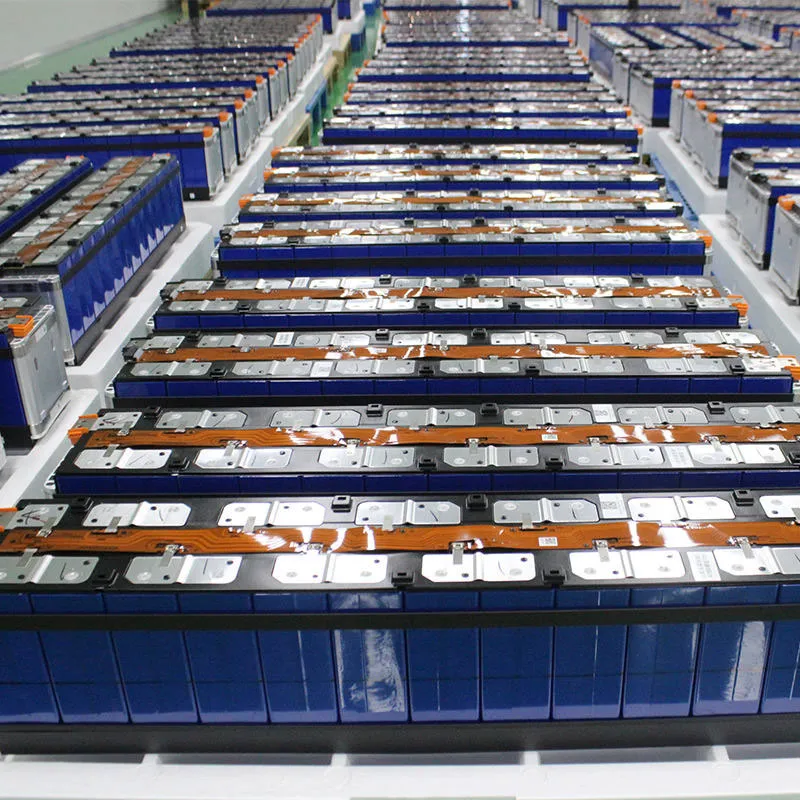

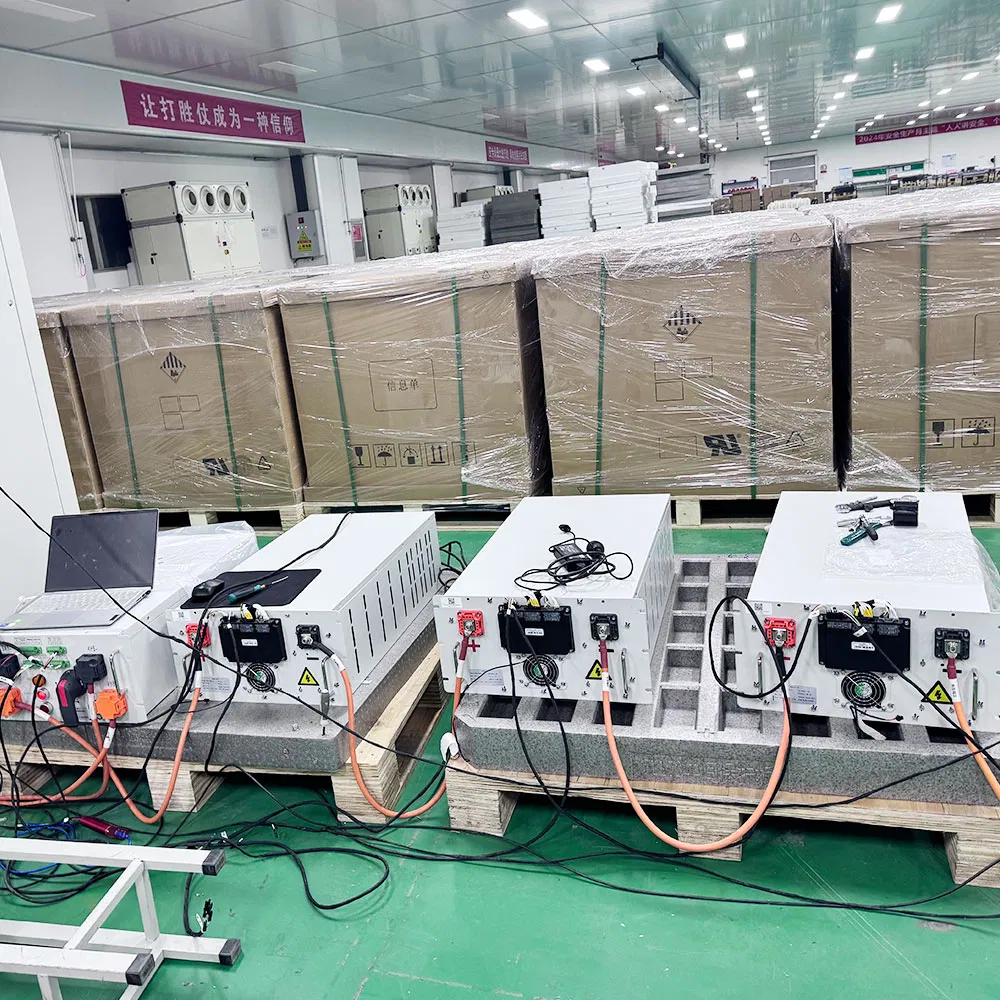

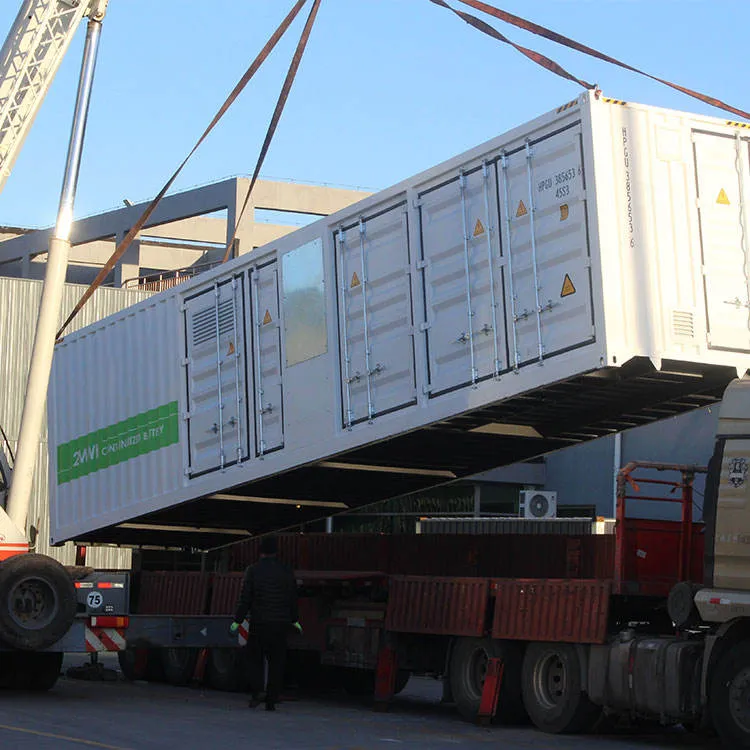

Packaging & Shipping

Frequently Asked Questions

Q1: What is the total storage capacity of this system? The system features a rated battery capacity of 215kWh, designed for commercial and industrial high-voltage energy storage applications.

Q2: How long is the expected life cycle of the battery cells? The battery cells offer a long service life of ≥6000 cycles at 100% Depth of Discharge (DOD) until 80% End of Life (EOL).

Q3: Can this system operate in both grid-connected and off-grid modes? Yes, it supports both grid-connected operation with a rated grid voltage of 400V and AC off-grid output at 400V.

Q4: What safety features are included for fire protection? The cabinet is equipped with advanced fire extinguishing systems using either Aerosol or Heptafluoropropylene to ensure maximum safety.

Q5: What cooling options are available for the system? Depending on your requirements and environmental conditions, we offer both Air Cooled and Liquid Cooled versions of the system.

Q6: What communication protocols does the system support? It supports standard industrial protocols including ModBus-TCP, ModBus-RTU, and IEC104 for seamless integration with monitoring systems.
