Elecnova 50kw to 200kw Optional Energy Storage Converter Solar Power Hybrid Inverter PCS 3 Phase off Grid Energy Solution

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Nominal Capacity 40ah/80ah/120ah Cycle Life 4000 Cycles
Relative Humidity 0~95%(No Condensing) Max Working Altitude(M) 4000 (>2000 Derating)
On/Off Grid Switching Sts Dimension(W*D*H) 1680*1500*1700mm
Model NO. SFR-ES-75-50 Origin China

Product Description

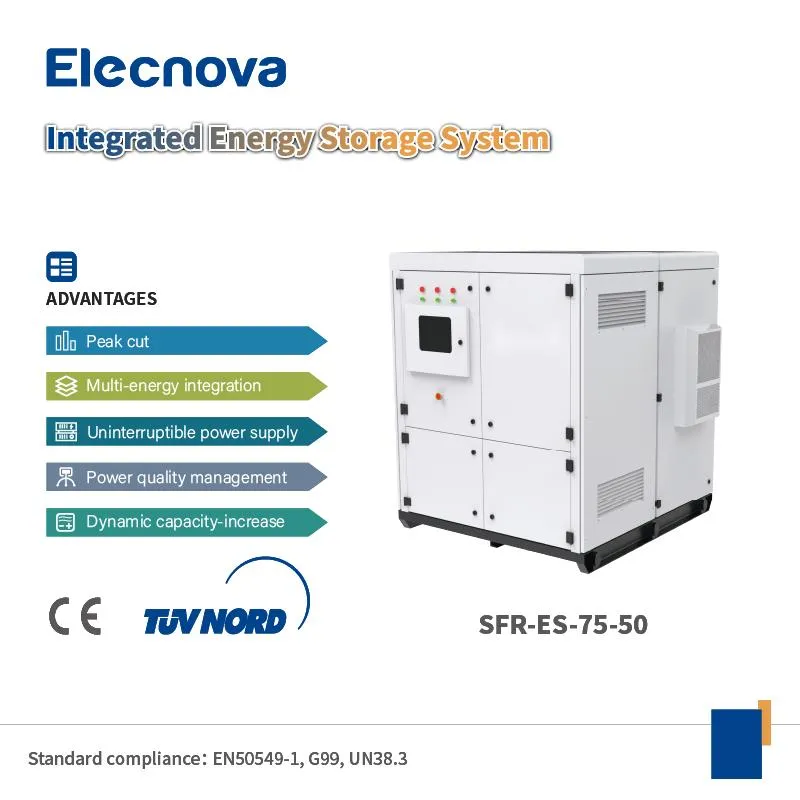

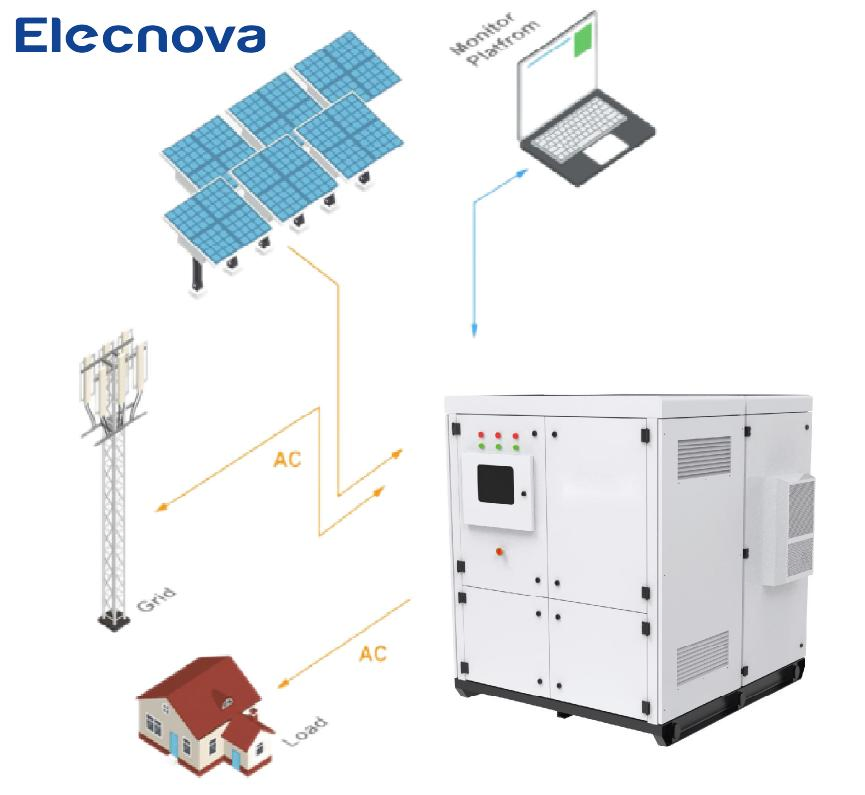

Energy Storage Converter Solution
Model NO. SFR-ES-75-50 Output Frequency 50/60Hz
Controller Type MPPT Battery Type Lithium Ion / LiFePO4
Rated Output Power 50kw Rated Grid Voltage AC 380/400
Application Industrial, Solar Energy Systems, Uninterruptible Power Supply

Product Parameters

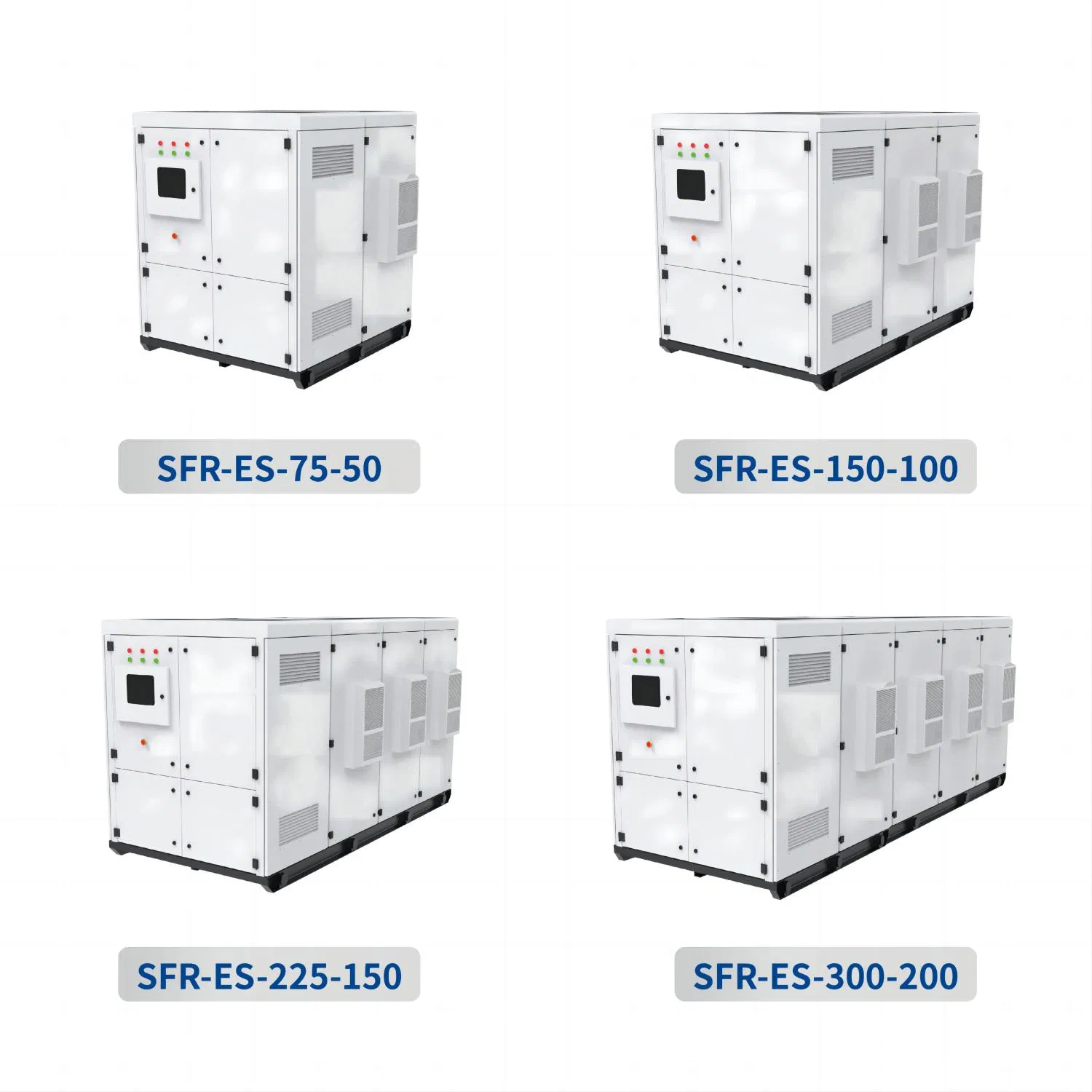

Model SFR-ES-75-50 SFR-ES-150-100 SFR-ES-225-150 SFR-ES-300-200
AC Parameters (Grid Connected)
Rated Output Power (kW)50100150200
Max Output Power (kW)55110165220
Rated Grid Voltage (V)3W+N+PE, 380V
Battery System
Module Qty15304560
Total Power (kWh)76.8153.6230.4307.2
Cycle Life25°C 0.5C/0.5C 100%DOD EOL80% >4000 times
General Parameters
ProtectionOutdoor IP54
CommunicationRS485, CAN, LAN (Modbus-RTU, Modbus-TCP)

Detailed Photos

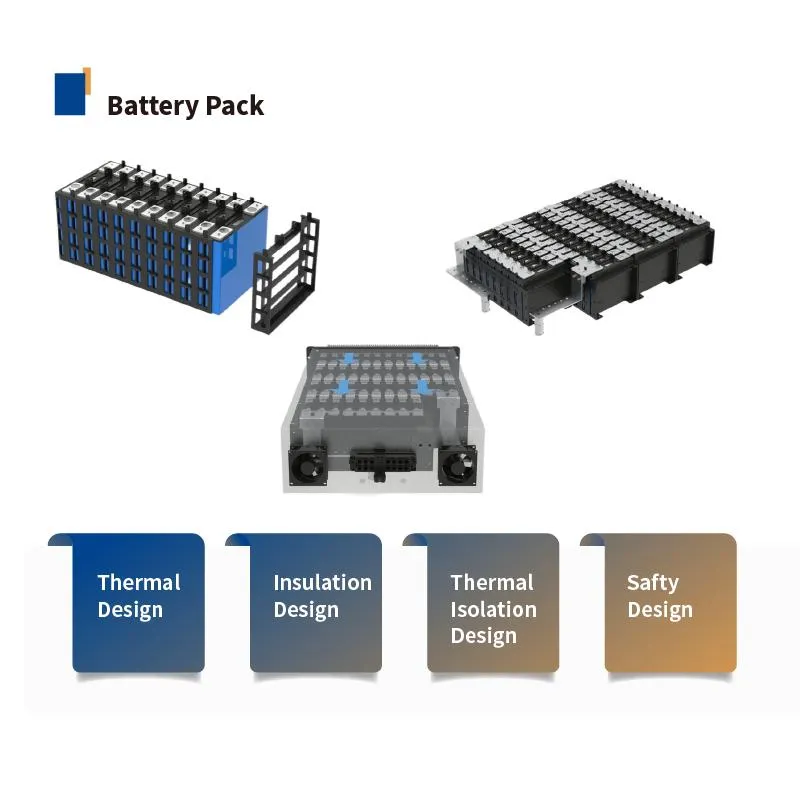

Product View 1

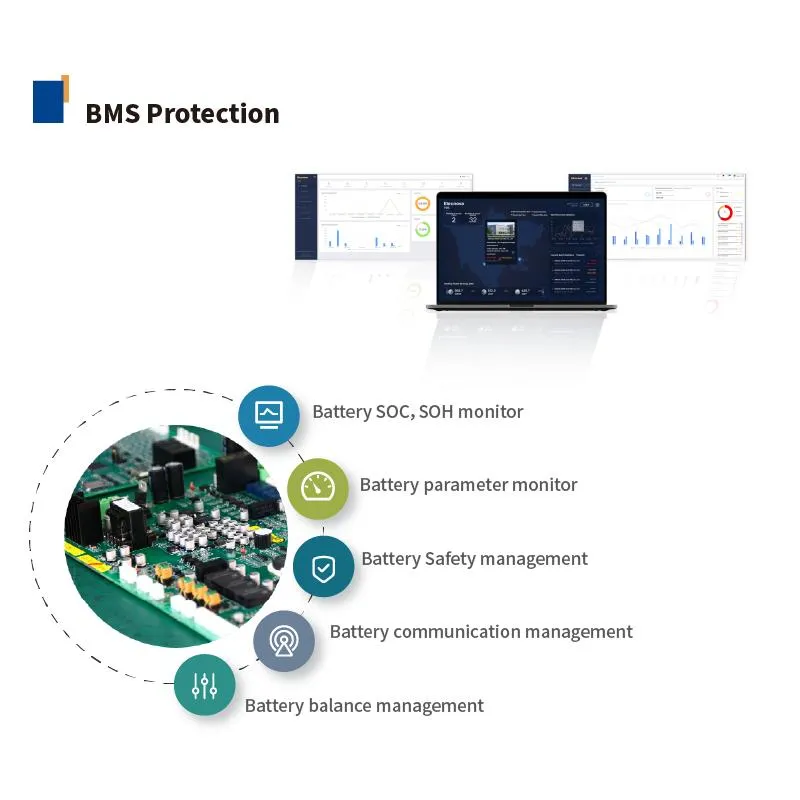

Product View 2

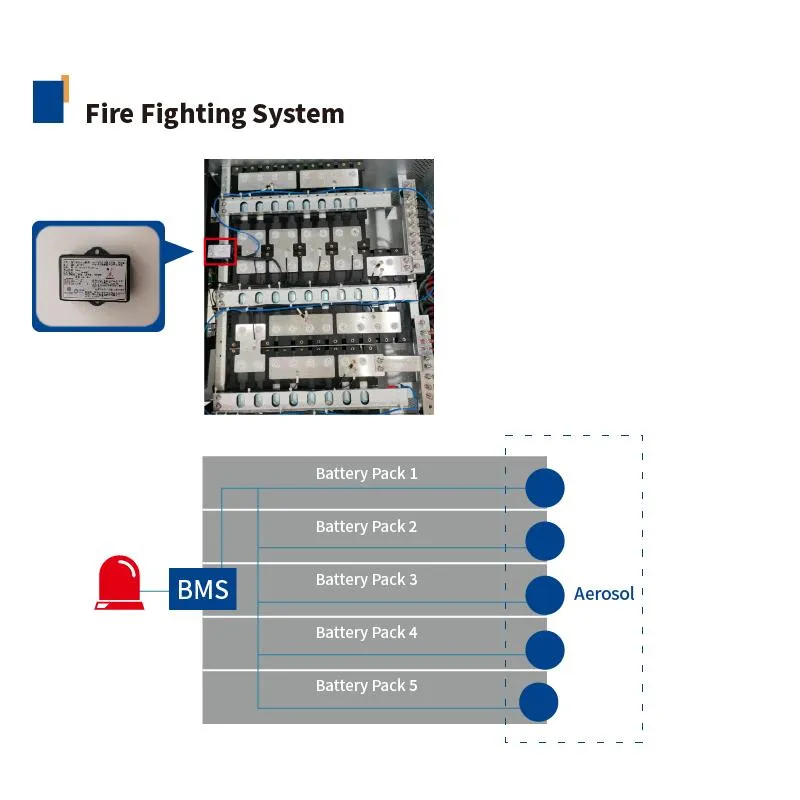

Product View 3

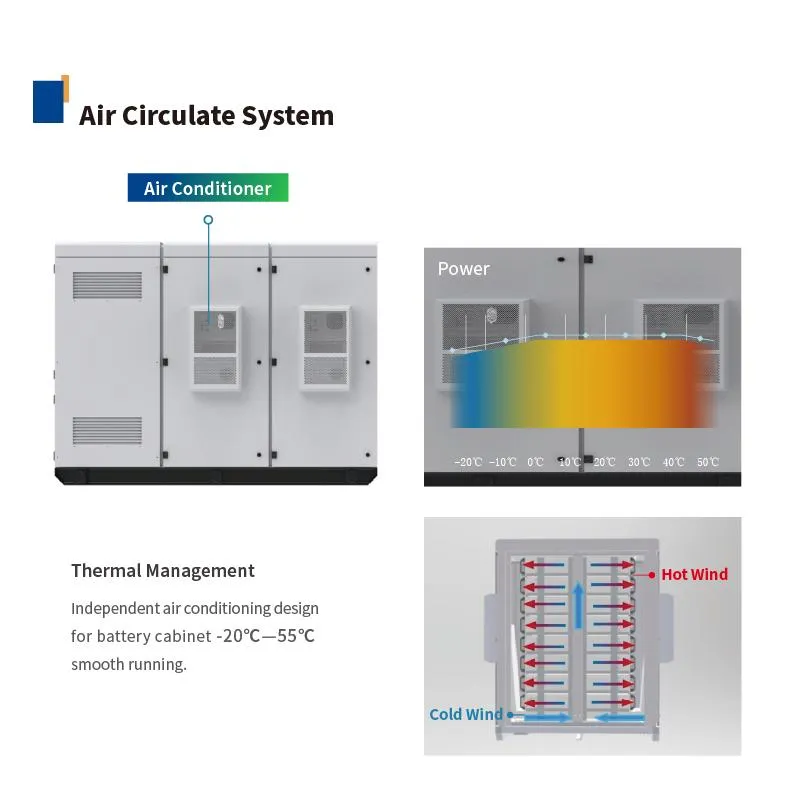

Product View 4

Reference & Engineering

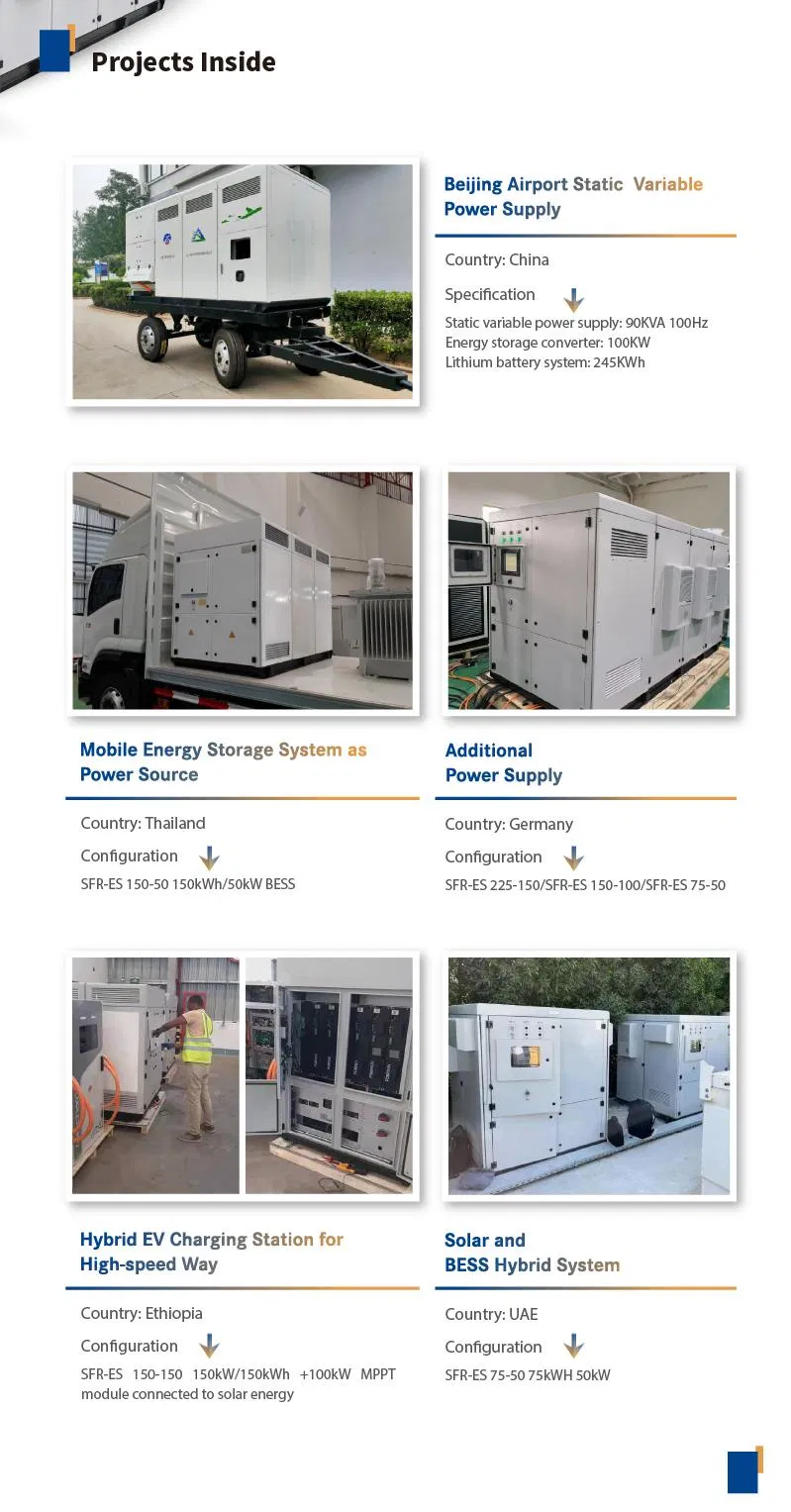

Engineering Reference

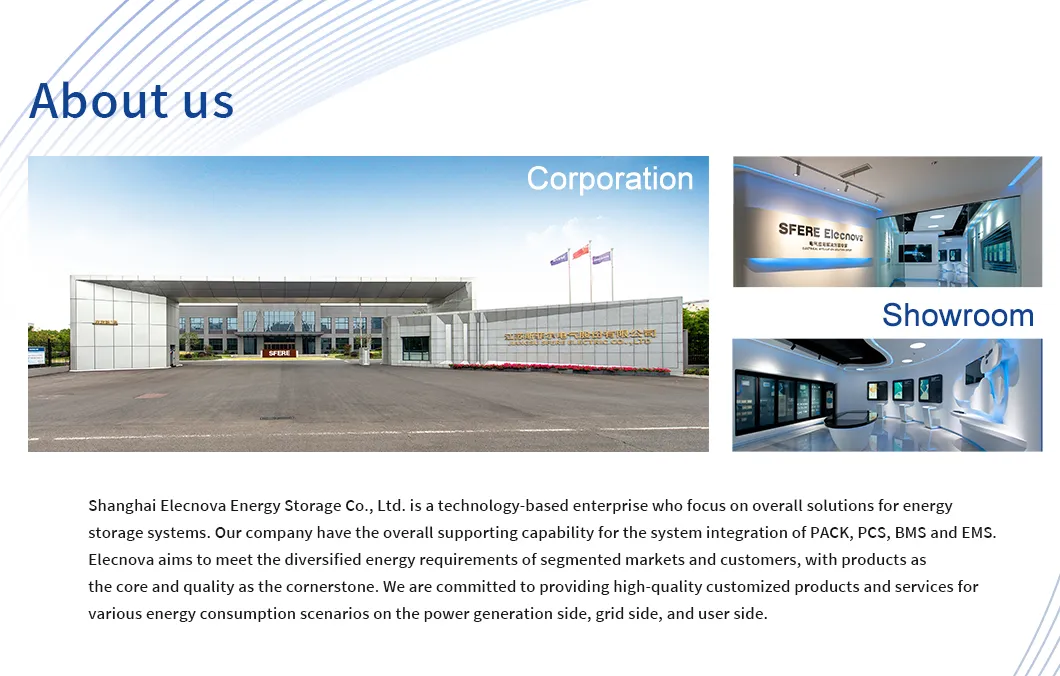

Facility Overview

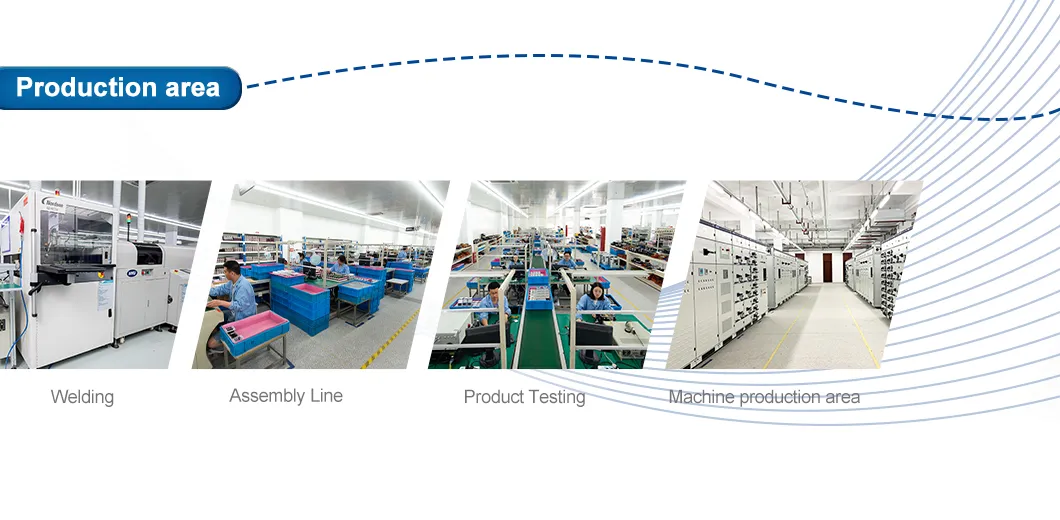

Production Line
Quality Control
Manufacturing Standards

FAQ

Are you a trading company or manufacturer?
We are a factory located in the specialized industrial zone of Jiangsu Province.
Does your company provide customized manufacturing?
Yes, we provide OEM/ODM services. Our experienced R&D team delivers high-efficiency solutions tailored to customer requirements.
How long is your delivery time?
Typically 3-5 working days for items in stock, and 15-21 days for items that are out of stock.
Do you provide samples?
Samples are available; however, customers are required to pay for the sample cost and freight charges.
What are your terms of payment?
For orders under $3000, 100% upfront. For orders over $3000, a 30% deposit is required with the remaining 70% paid before shipment.
What certifications do your products hold?
Our systems are fully certified according to international standards including IEC62477-1, EN61000, IEC62619, IEC62620, and UN38.3.
