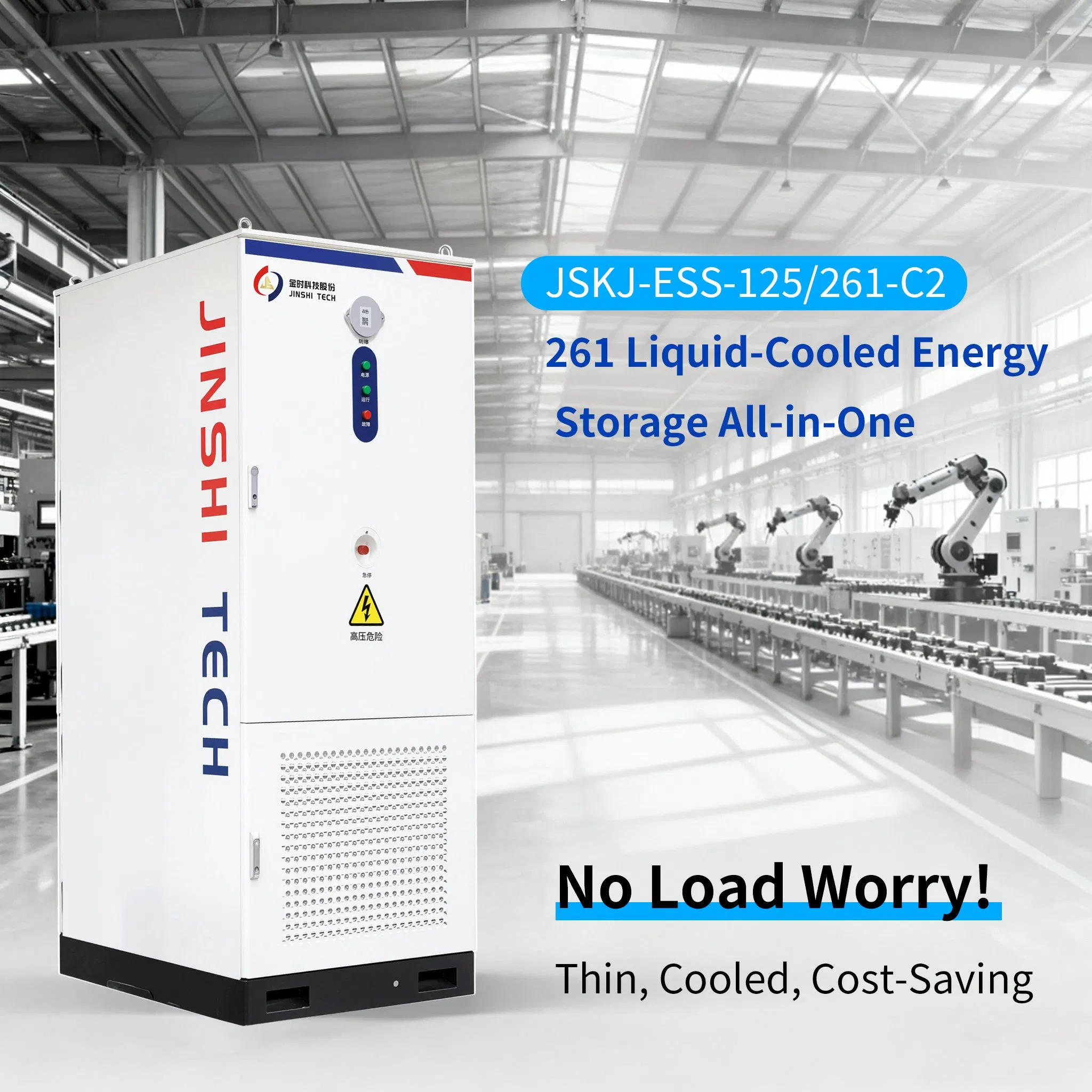

OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
1 / 5
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution
OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution

OEM ODM 125kw Intelligent Distributed Liquid Cooling Integrated and off Grid Outdoor Cabinet Energy Storage System Solution

Customization: Available
Nominal Voltage: 832
Warranty: 2 Year
Send Inquiry

Product Description

i

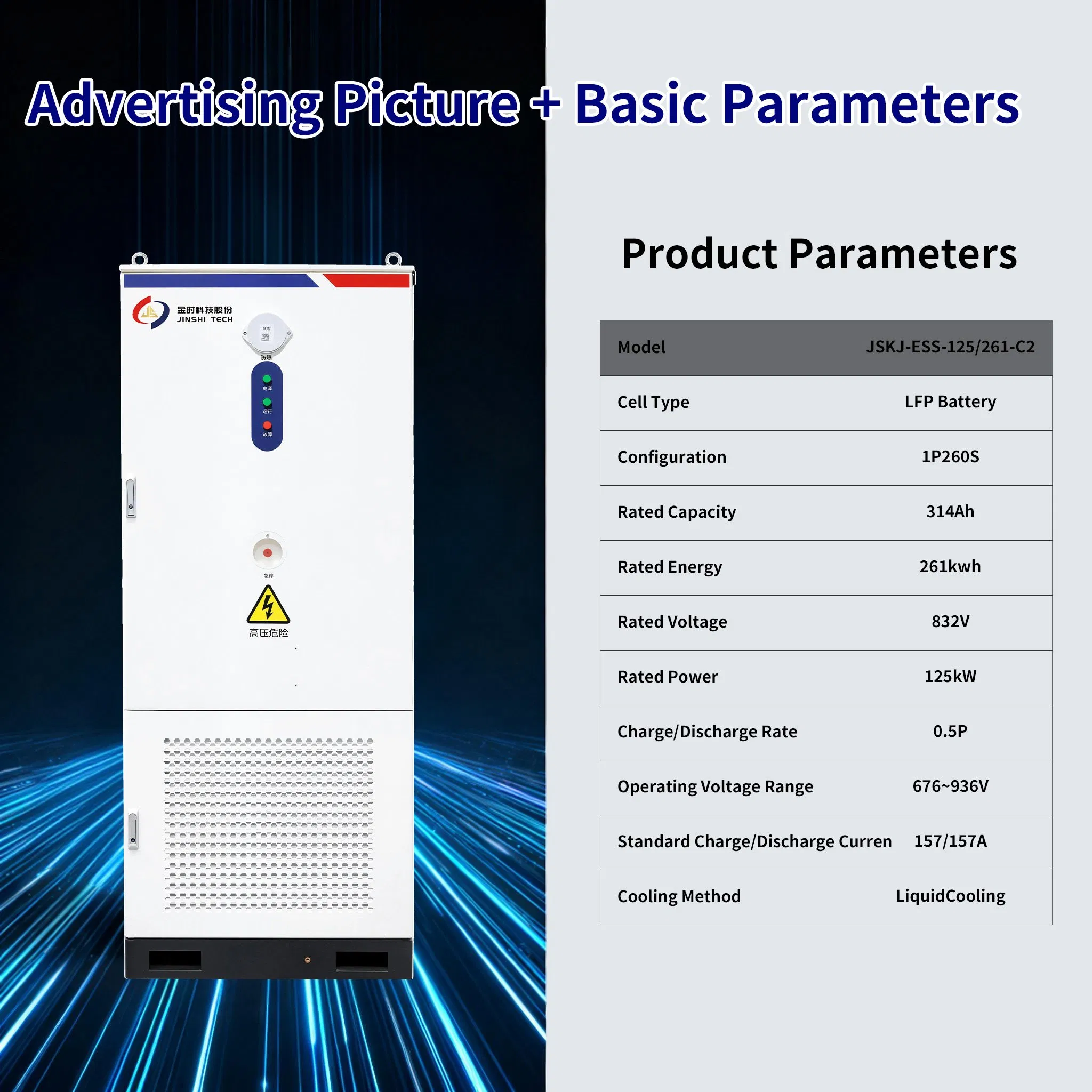

Basic Specifications

Model NO.
JSKJ-ESS-125KW/261KWh-A
Nominal Capacity
314ah
Cycle Life
6000 Cycles
Cell Type
LFP Battery
Configuration
1p260s
Rated Energy
261kwh
Rated Power
125kw
Operating Voltage
676~936V
Cooling Method
Liquid Cooling
Fire Suppression
Perfluorohexanone
Protection Rating
IP54
System Weight
2.6t
Noise Level
≤ 75dB
Corrosion Resistance
C3
P

Product Presentation

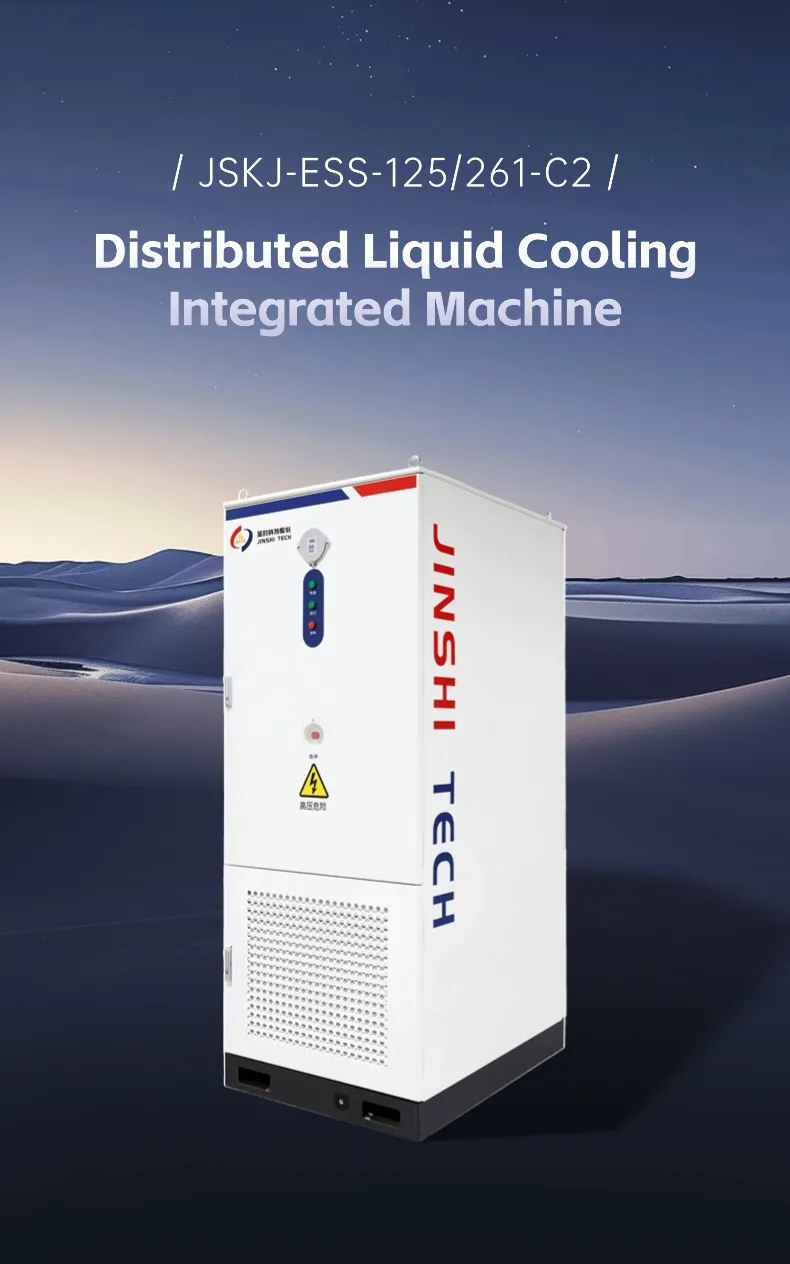

Integrated Outdoor Cabinet Energy Storage
Liquid Cooling System Details
Energy Storage Solution Overview
Technical Layout
System Component Display
Industrial Design
Internal Configuration
Storage Cabinet Features
Safety Monitoring System
On-grid and Off-grid Capabilities
T

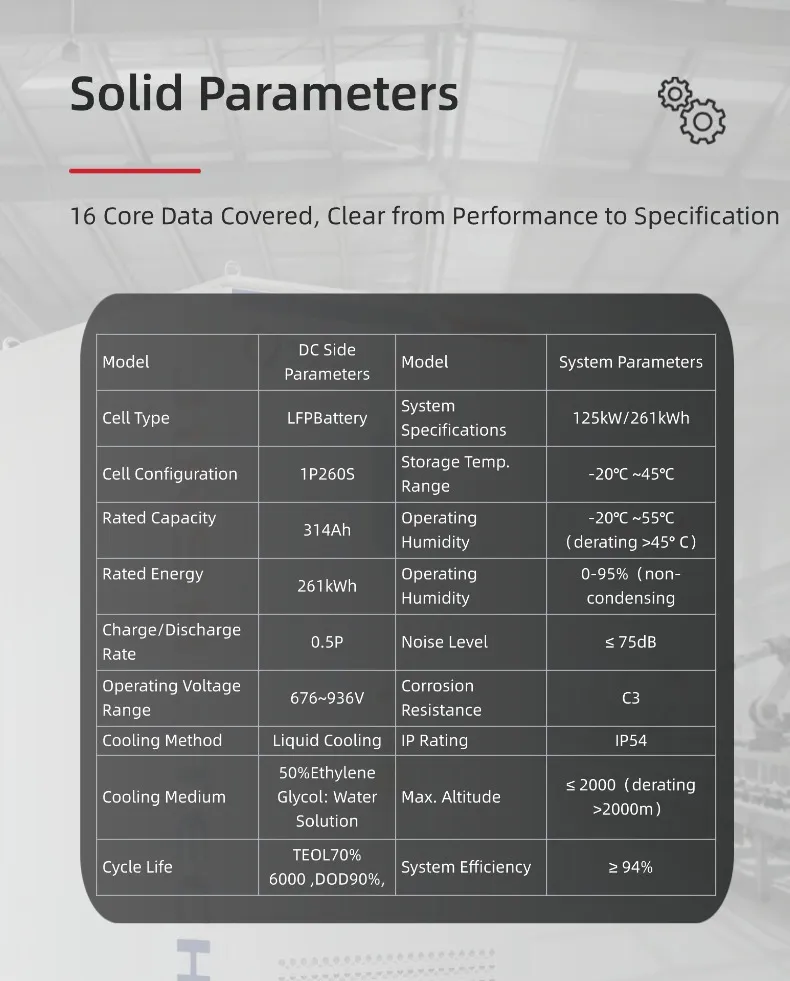

Technical Parameters

DETAILED TECHNICAL DATA
Cell TypeLFP Battery
Configuration1P260S
Rated Capacity314Ah
Rated Energy261kWh
Rated Voltage832V
Rated Power125kW
Charge/Discharge Rate0.5P
Operating Voltage Range676~936V
Fire Suppression MediumNOVEC 1230 / Perfluorohexanone
Fire DetectionTemp., CO, Smoke Sensors
System Specifications125kW/261kWh
IP RatingIP54
Weight2.6T
L

Packaging & Logistics

Package Size
100.00cm * 132.00cm * 250.00cm
Package Gross Weight
2600.00kg
Transport Package
Standard Packaging or Customized
?

Frequently Asked Questions

What is the expected life cycle of this energy storage system?
The system utilizes high-quality LFP battery cells, providing a cycle life of approximately 6000 cycles under standard operating conditions.
How is the temperature regulated within the cabinet?
This system features advanced Liquid Cooling technology, which ensures optimal temperature management for the battery cells, enhancing efficiency and lifespan.
What safety measures are in place for fire prevention?
The unit is equipped with integrated temperature, CO, and smoke sensors for early detection, and utilizes Perfluorohexanone (NOVEC 1230) as a highly effective fire suppression medium.
Is this system suitable for outdoor installation?
Yes, the cabinet has an IP54 rating and C3 corrosion resistance, making it suitable for distributed outdoor installation in various environmental conditions.
Can this system handle overload situations?
The system is designed with a 110% long-term communication overload capacity to ensure stable operation during peak demand periods.
What is the standard configuration of the battery cells?
The system is configured in a 1P260S arrangement, providing a rated energy of 261kWh with a 314Ah nominal capacity.
