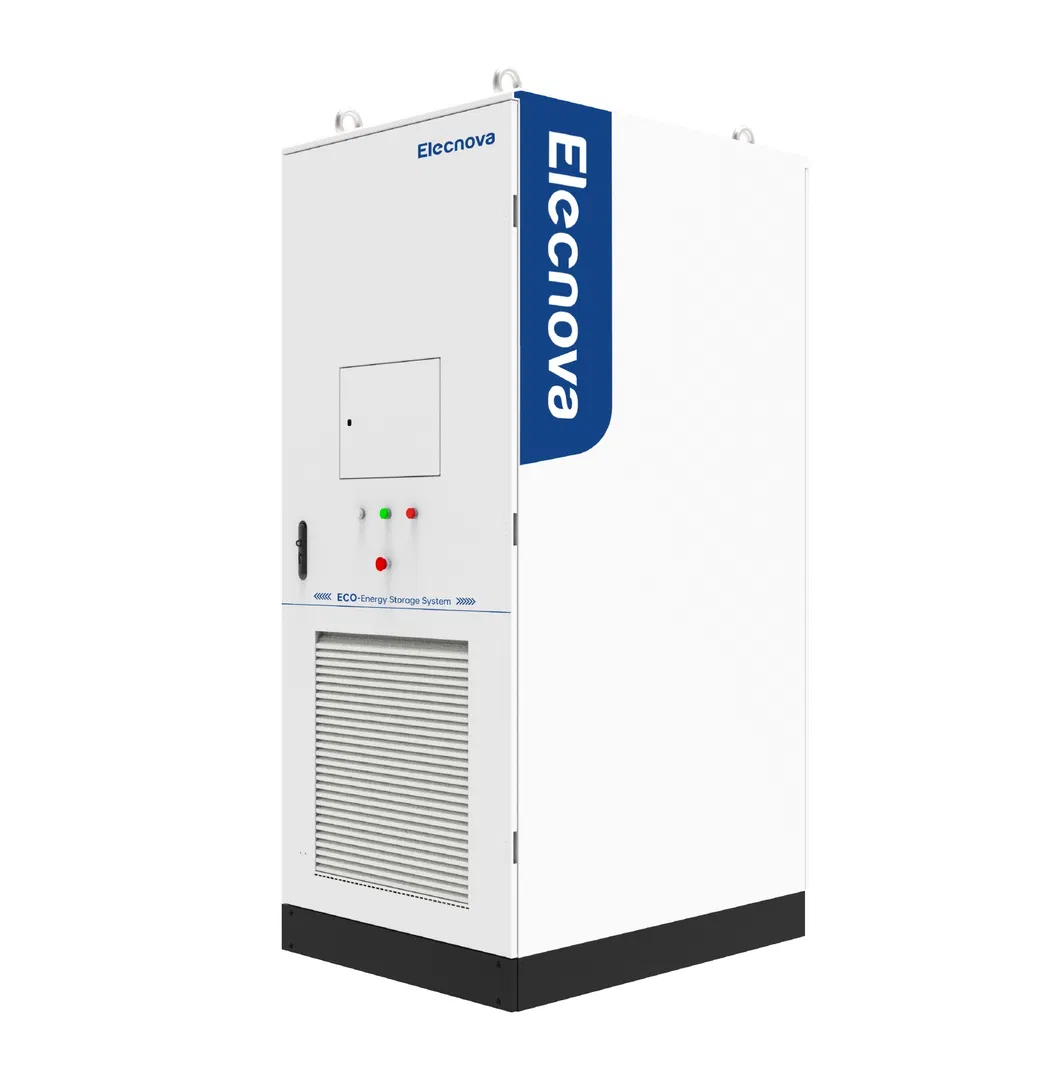

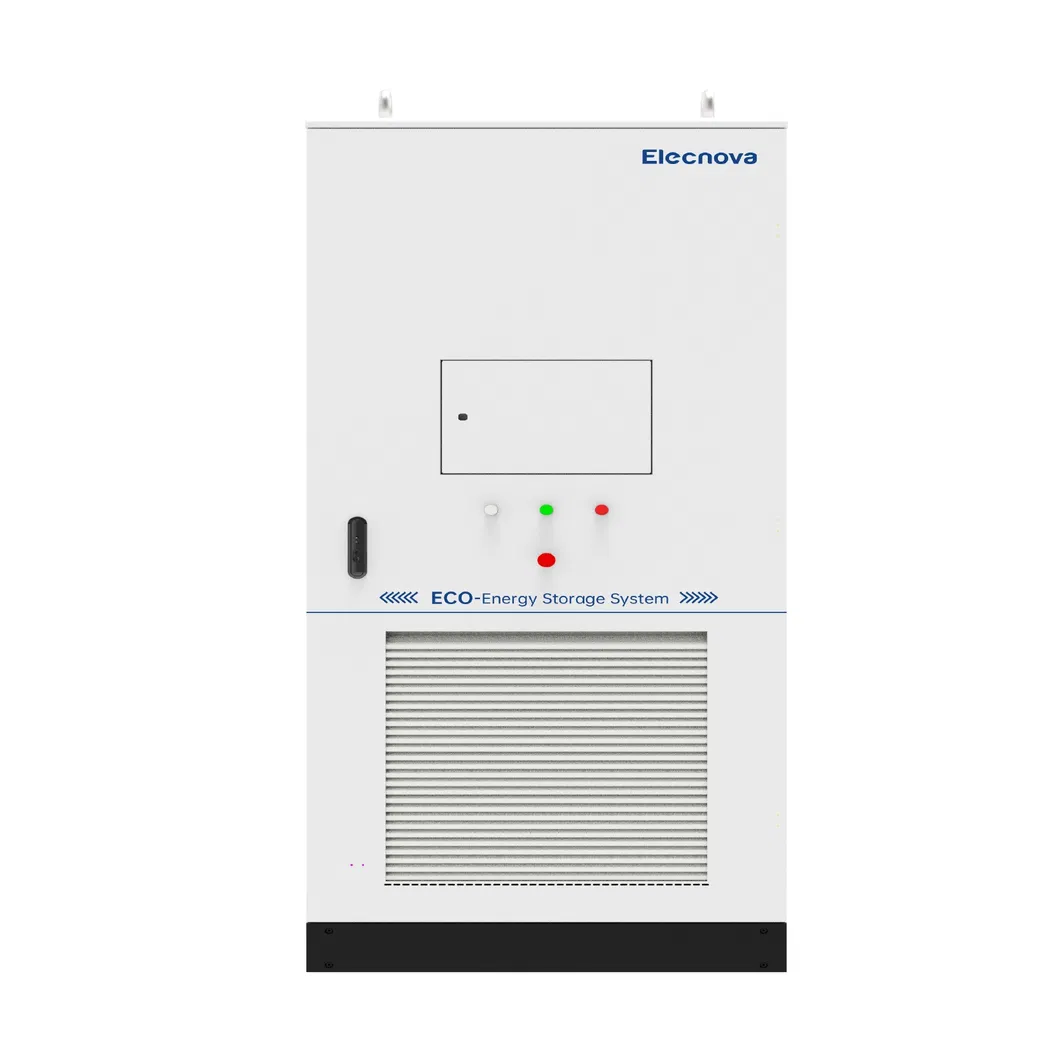

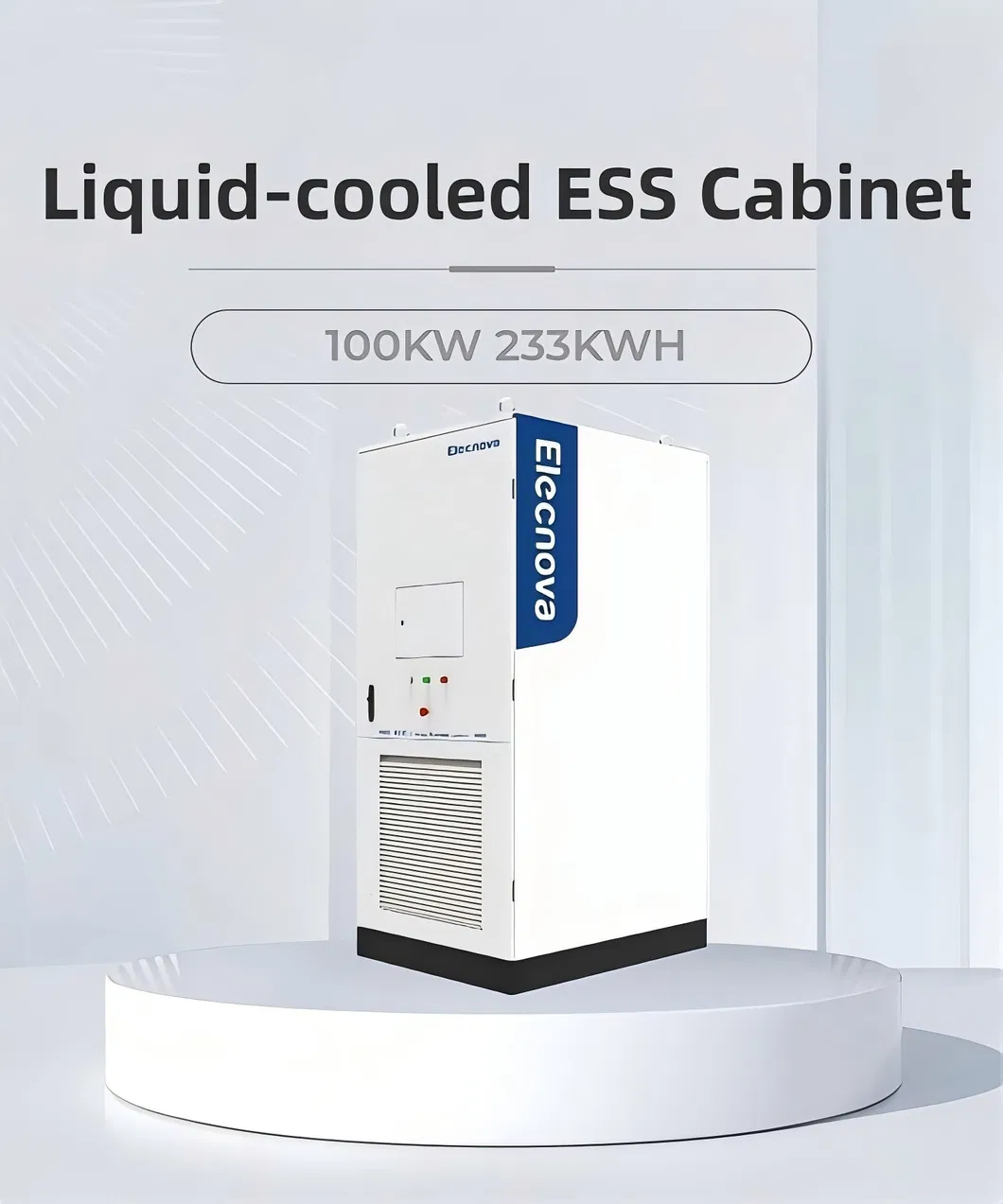

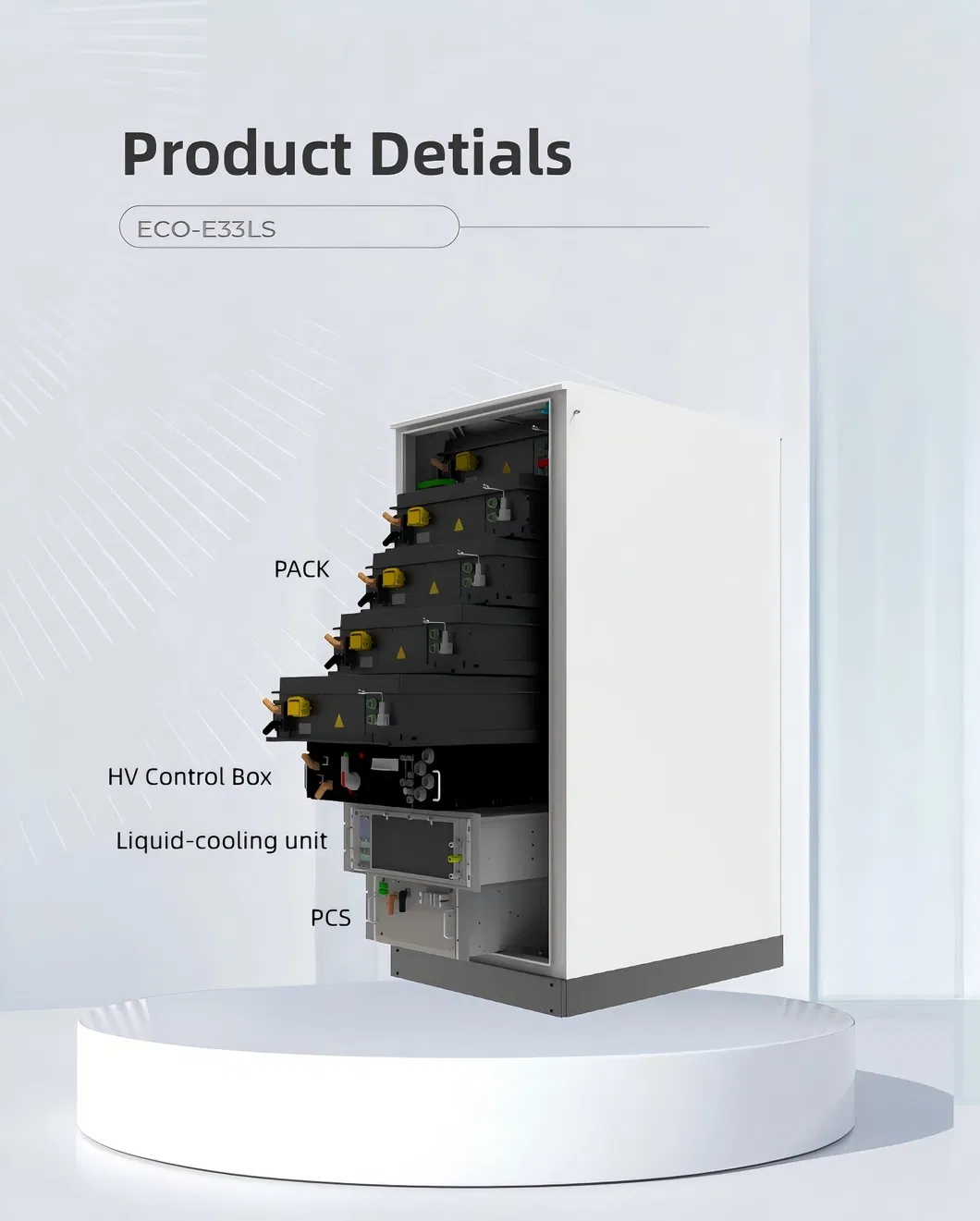

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

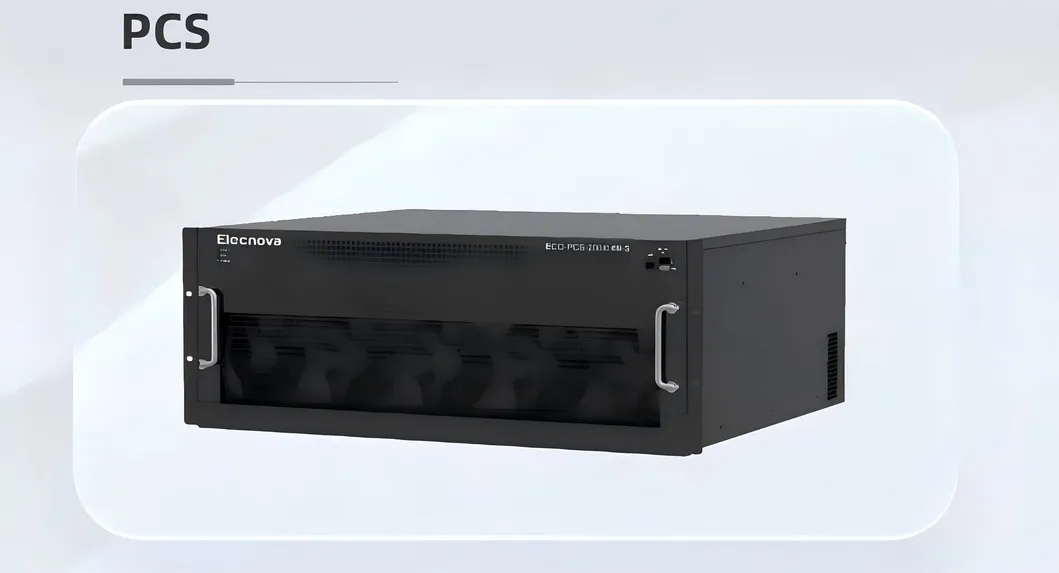

Conversion efficiency: 99%
IP65, ms-level on-/off-grid switching. Suitable for various scenarios such as C&I ESS, microgrid energy storage, PV-plus ESS.

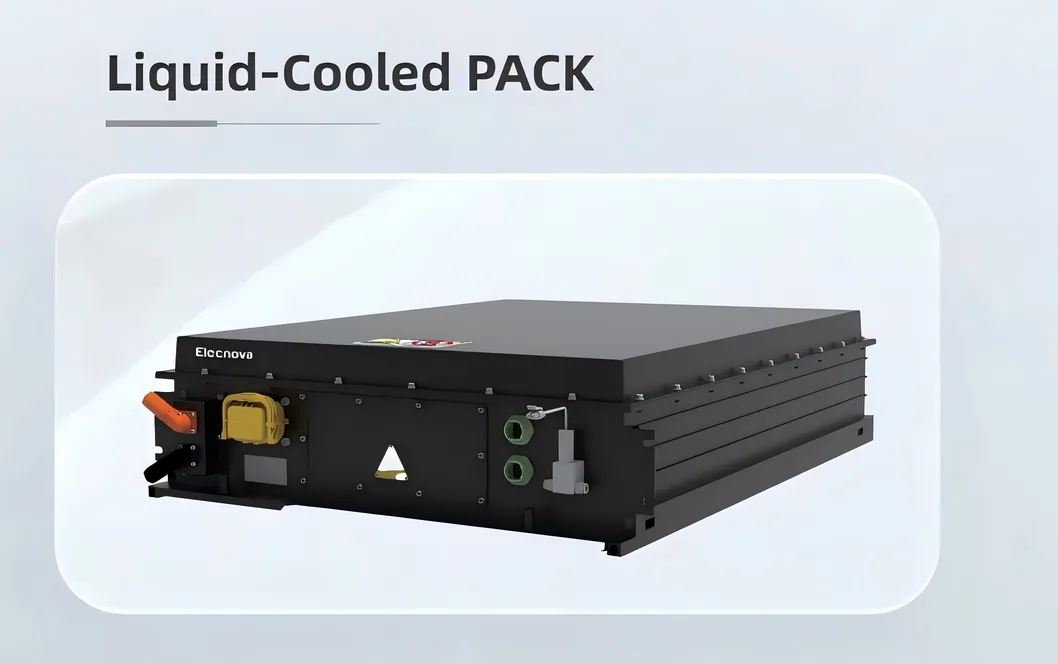

Active thermal management system
Over 8,000 times cycle life. 10 years designated lifespan.
SOC Estimation Accuracy Error < 5%
100ms sampling interval to ensure timeliness of data. Multiple types of DI/DO interfaces.
| DC Side | |
|---|---|
| Cell Type | LFP 280Ah |

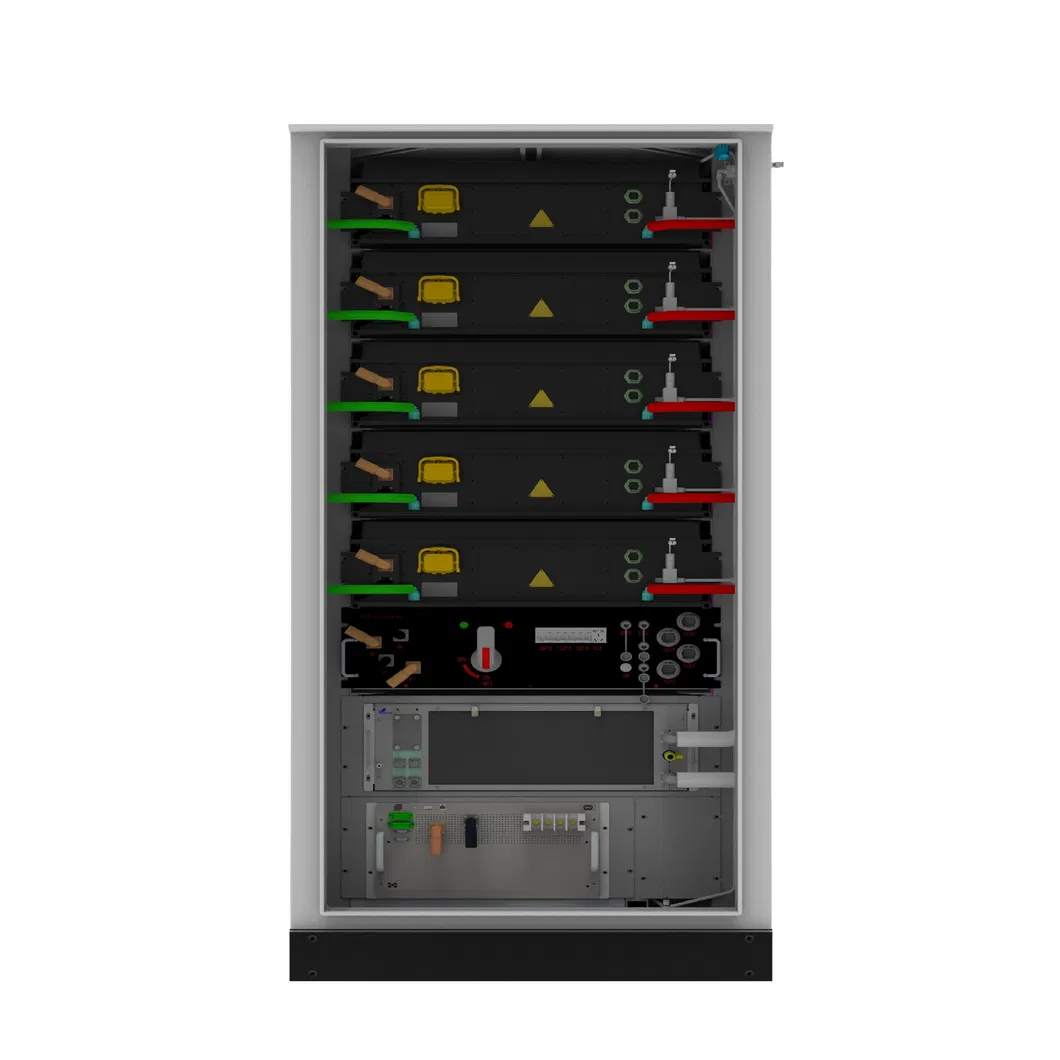

| PACK | 46.592kWh / 1P52S |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728 ~ 936Vdc |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Ingress Rating | IP55 |
| Cooling | Active liquid cooling |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

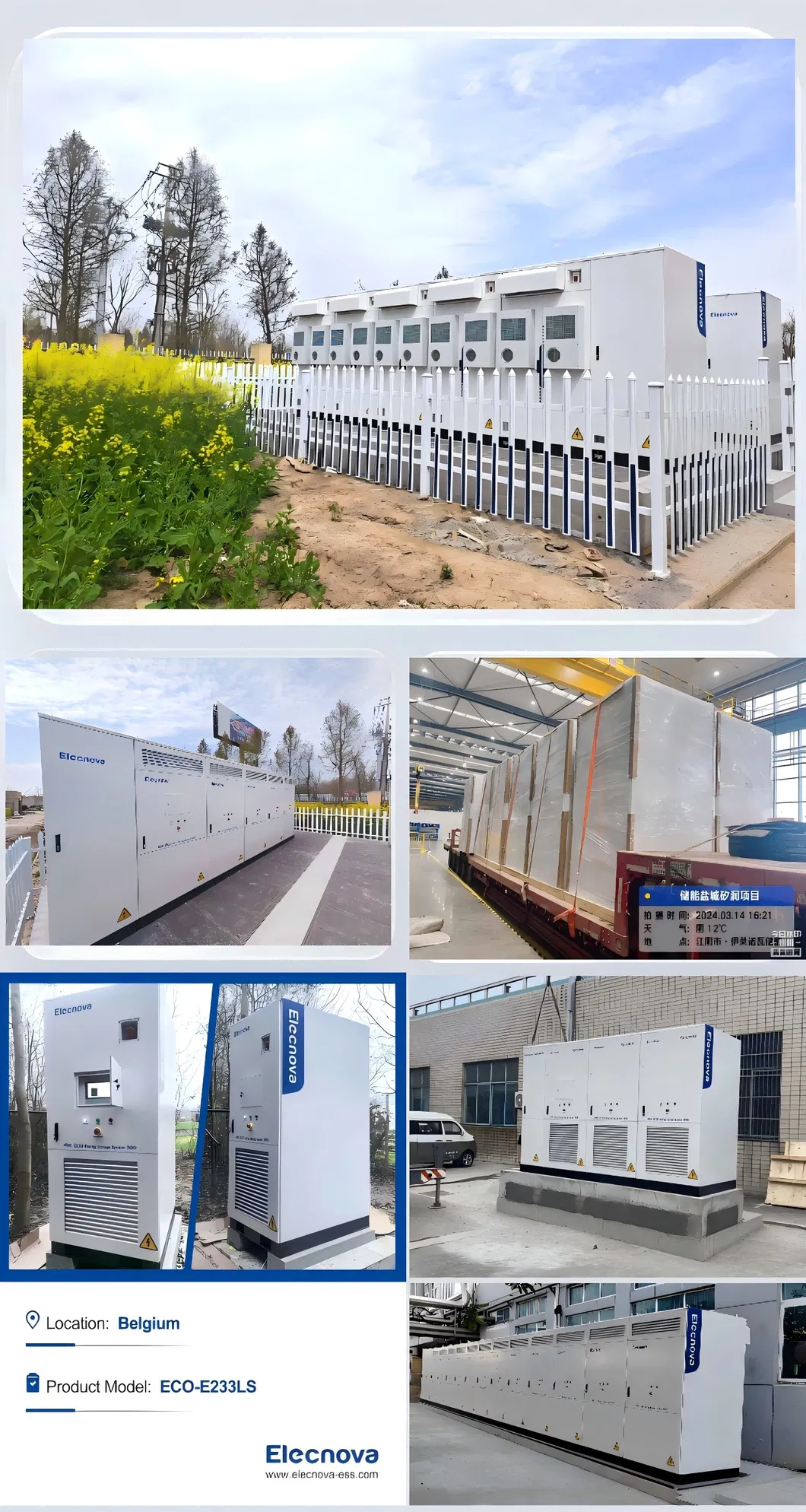

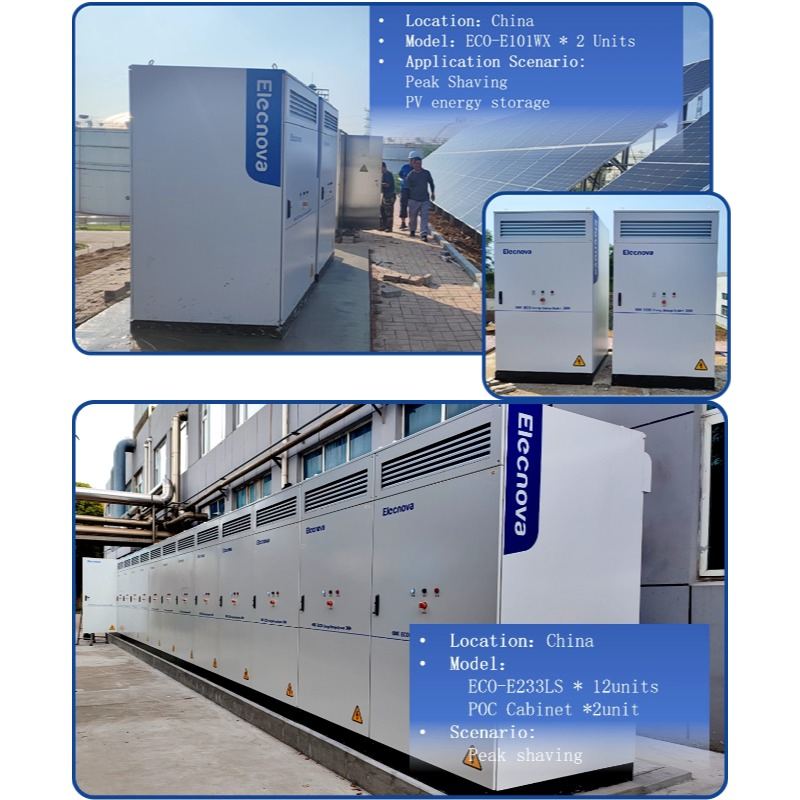

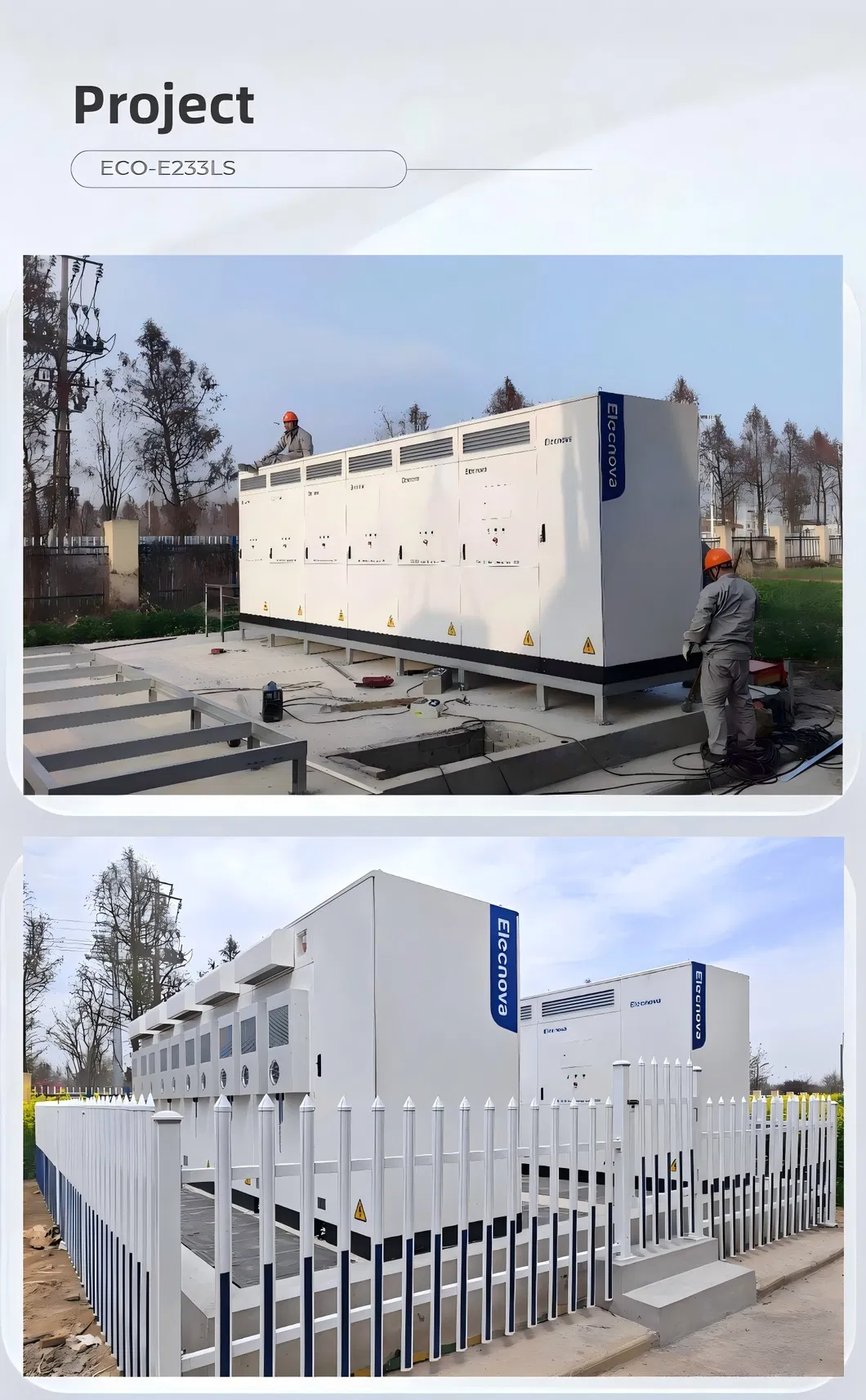

Energy storage projects successfully connected to the grid! The project adopts advanced energy storage technology and equipment, characterized by high efficiency, stability, and safety.

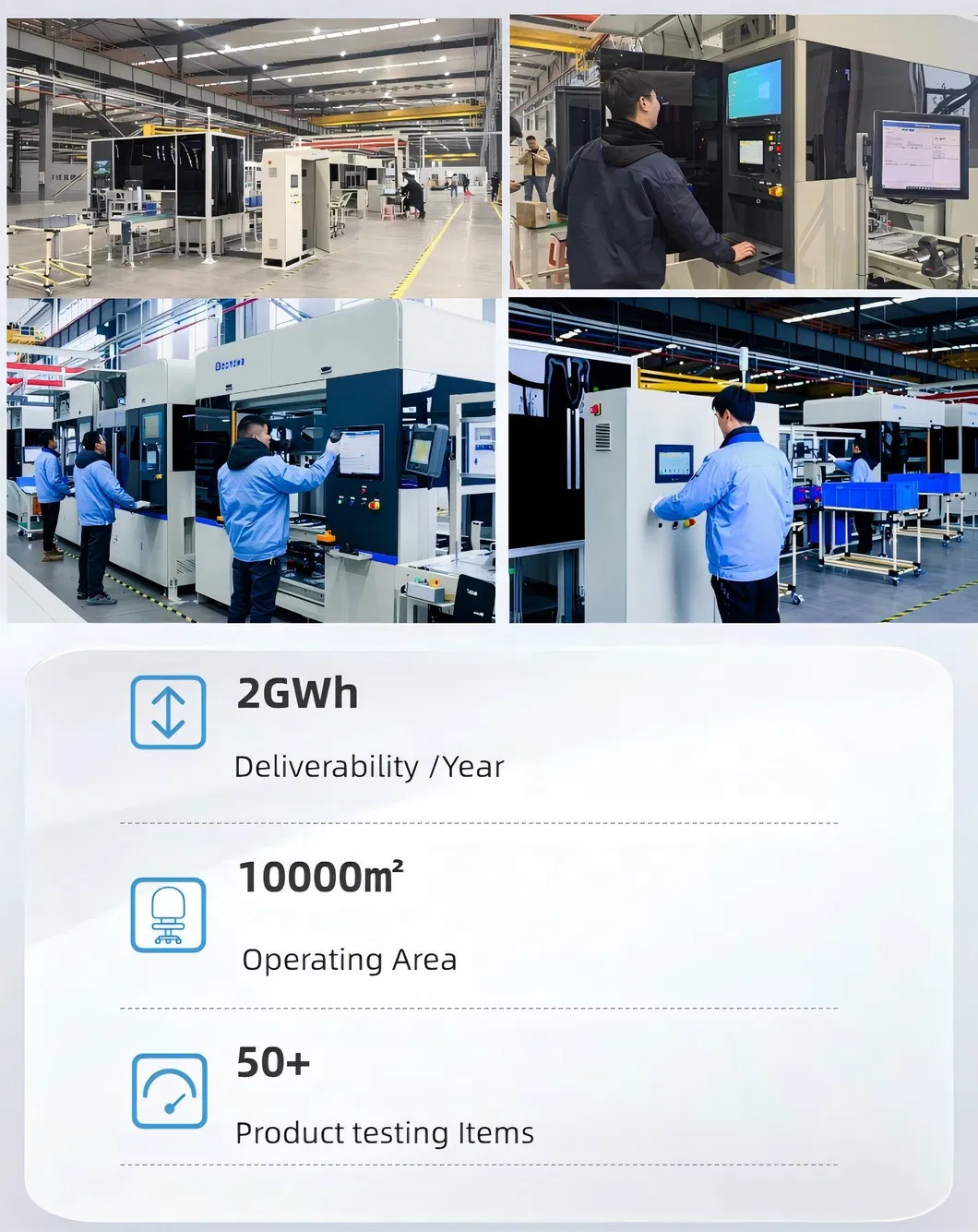

We are a technology-based enterprise focusing on overall solutions for energy storage systems. We have comprehensive capability for system integration of PACK, PCS, and BMS. We are committed to providing high-quality customized products for various energy consumption scenarios on the power generation side, grid side, and user side.
