| DC Side | |
|---|---|
| Cell Type | LFP280Ah |

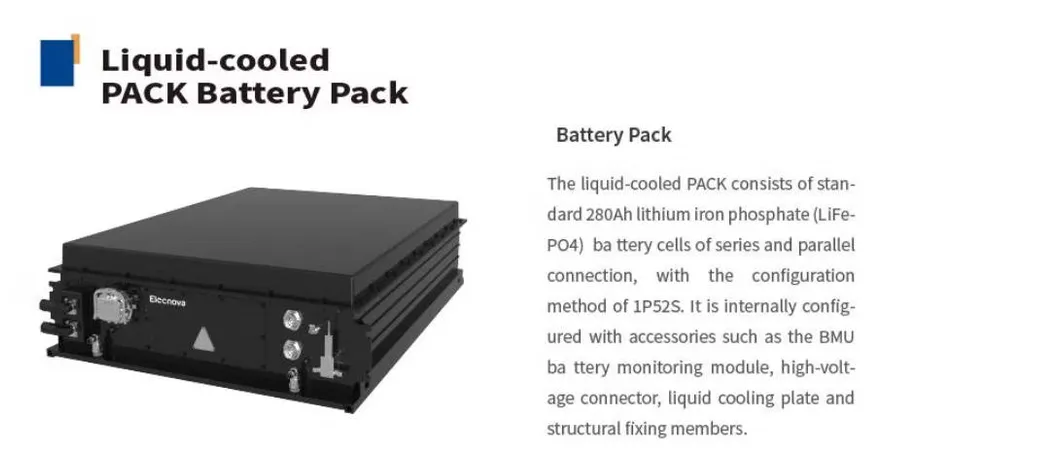

| PACK | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | <3% |
| Nominal Voltage | 400Vac/3P+N+PE |
| General Specs | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling | Active liquid cooling |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

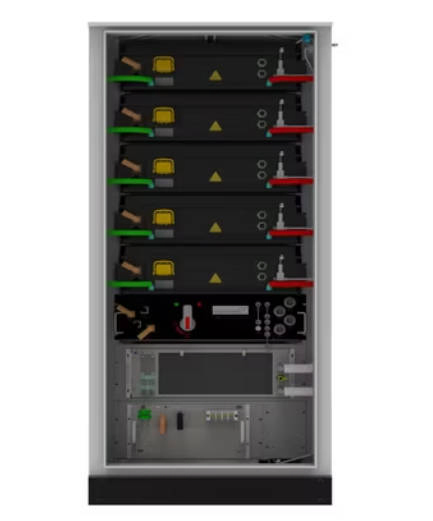

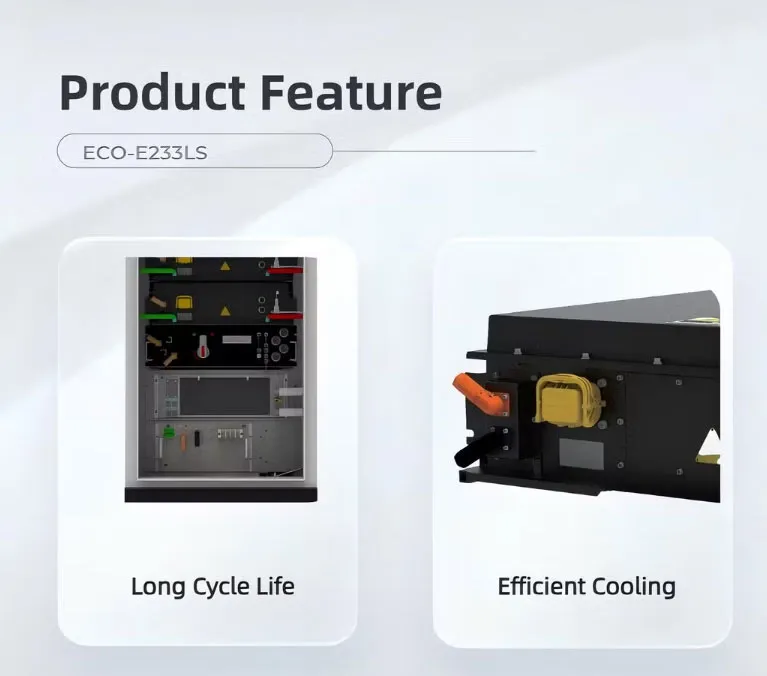

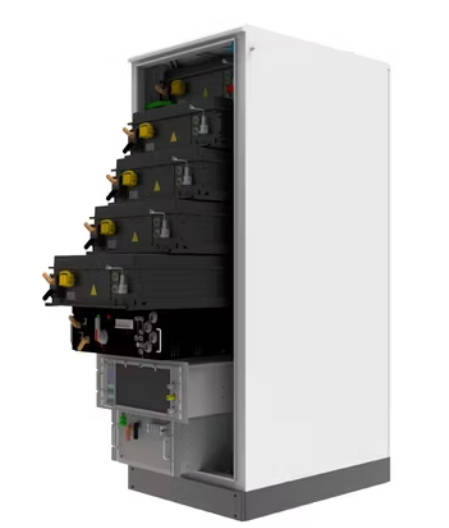

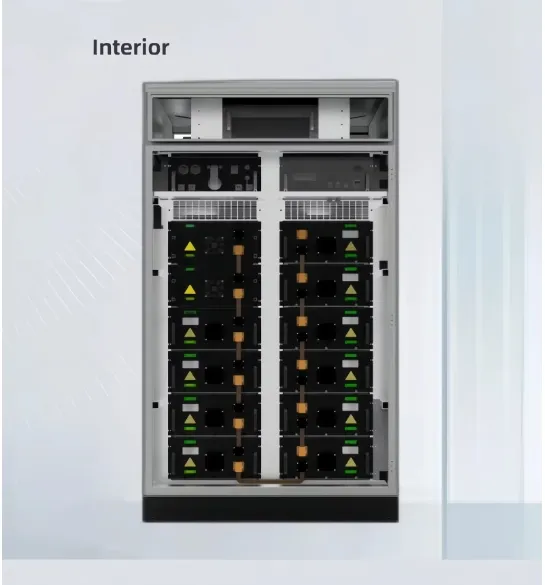

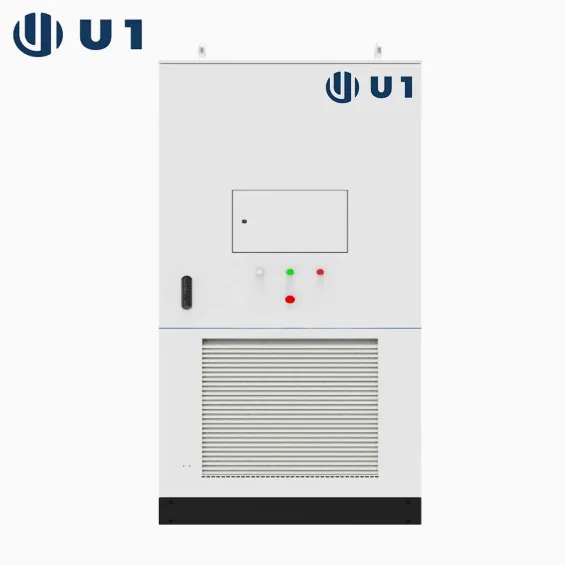

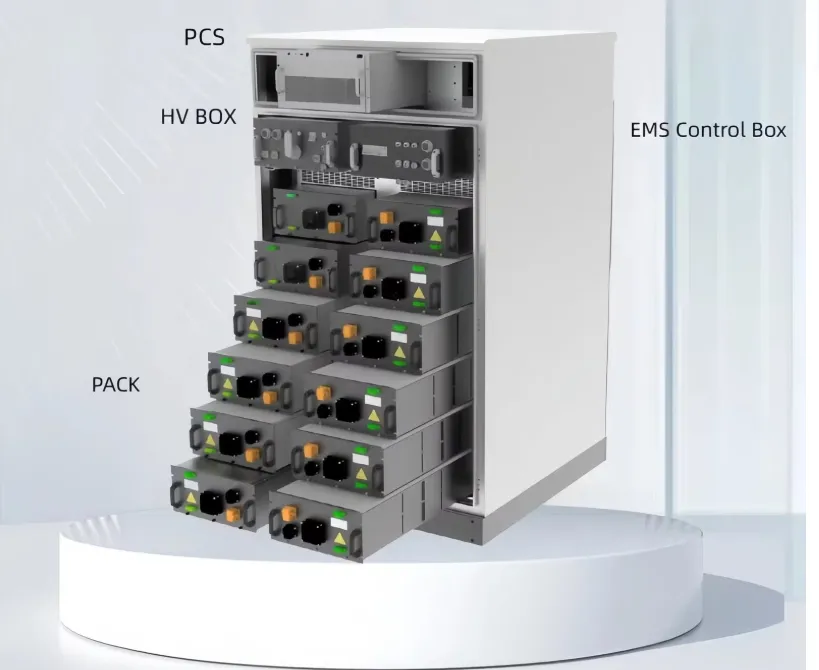

U1's state-of-the-art 233KWH commercial & industrial energy storage system incorporates advanced cabinet-level liquid cooling and a precise temperature balancing strategy. With a cell temperature variance of less than 3°C, it enhances temperature uniformity and extends battery longevity.
Independent Restoration
Black start capability empowering independent power restoration.
Flexible Expansion
Modular architecture enabling scalable expansion up to 233kWh.
Cost-Effective
Maximizing return on investment for solar panel battery storage.
